Fab'ing knee pad brackets
« on: Jan 08, 2011, 11:50:42 »
I'm not sure if anybody has posted on this yet....? I'm sure there is already a tech on this. But, this is how I went about it. Super easy!

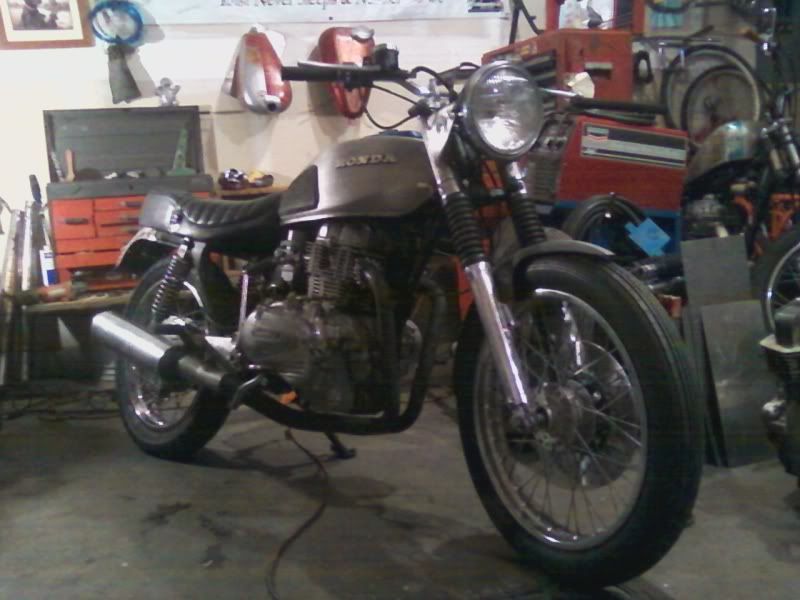

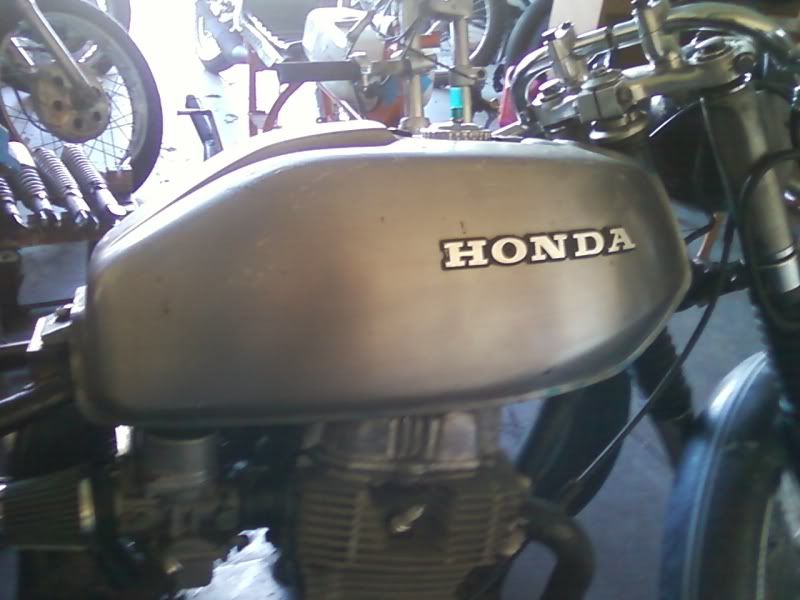

here is the tank that is getting factory style pads. CB400 tank... I know, not the most exotic of tanks. which is why it need something extra.

I used tracing paper to make a template for my metal. then traced the tracing paper onto my sheet metal. and cut them out using a 4" angle grinder. I have a body saw. But, I didnt want to use tool that not everybody might have. After they were cut out, I put a flap-disc on the 4" grinder to fine tune them.

After cutting and shaping them, I drilled 5 holes in each. This is where they will be tacked to the tank.

Then I soltted the edges (about 3/8" deep) all the way around about 1 1/2" apart. Make sure you have a slit in the center of each corner. This will make it way easier to get your pad over the corners later.

Then I bent the tabs in just a little. maybe a 1/4". this makes the plate temporarily smaller. So we are abble to slip the pad over the plate after it is tacked to the tank

tacked to tank

Now simply slip the pad over plate and use a body or other lightweight hammer to tap around the edges of the pad. This will make the pad re-expand and cinch the pad down. and there ya have it! Yer done....

" an opinion form someone who knows not of which he speaks is worse than worthless" TEAZER

"Carb tuning is a black art. It's voodoo(sic), scientiology and comet worship all rolled into a pile. There's is no blue pill, it's a matter of taking the time and earning the bloody knuckles. " Swagger

Offline PatDoody

  • Posts: 140
  • smoke tires, not drugs.
    • ⚓ Pat Doody Approves ⚓
Re: Fab'ing knee pad brackets
« Reply #1 on: Sep 12, 2011, 00:23:10 »
Possibly newb question... Is there somewhere that sells these pads new? or are they kind of a use what you find type thing?
