Author Topic: '94 CB1000F Endurance Race-Rep  (Read 18900 times)

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
'94 CB1000F Endurance Race-Rep
« on: Oct 18, 2012, 17:20:40 »
Welp, I'm back after a long but therapeutic hiatus.  Figured I'd share what I've been up to in the garage.  Last winter after realizing ol' #7 was turning into a very long term project I started shopping around for something I could wrench on in the meantime and have a good commuter for 2012.  What I happened upon was a 1994 Honda CB1000F wrecker that I scored off a guy for a steal.  Took a few months but I got her on the road and have had an extremely fun and reliable daily driver all summer and fall.

I'm still riding into the winter months here in PA but the plan is to tear her down again in the near future and continue on the project to convert this once sport-touring behemoth into a slick endurance racer for the street.  Figure this build log will keep me focused and organized in the next step, something I've been lacking lately.

Anyhow, here's the past several months at a glance:

How she arrived:





Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #1 on: Oct 18, 2012, 17:25:52 »
Teardown




Major issues to deal with were a sheared off Oil Pan that took a hunk of the bottom case and the oil pump



Tacoed rim


...and bent rear shock

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #2 on: Oct 18, 2012, 17:33:47 »
I grabbed a used oil pump off ebay and got the missing pick-up pieces (strainer, seals, and gaskets) from work.  The dude I bought it from gave me a used but perfect oil pan that he had picked up when he was still planning on fixing it himself.

After man failed attempts to simply epoxy the blown out case I was able to braise in an aluminum plug and finish it off with fancy metal epoxy from NAPA.  I lost 2 bolt holes doing it this was but figured that would last me until I tear it down again this winter.  The oil pan is fastened with about 15 bolts, missing two isnt the end of the world.

inside


outside

Offline VonYinzer

  • DTT SUPPORTER
  • *
  • Posts: 18359
Re: '94 CB1000F Endurance Race-Rep
« Reply #3 on: Oct 18, 2012, 17:52:58 »
BOBBERT!!!!!! Welcome back fella!
Like a river that don't know where it's flowin'
I took a wrong turn and just kept goin'

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #4 on: Oct 18, 2012, 17:59:15 »
The CB1000 came stock with 18" wheels since it was a sport touring model.  I knew from the get go I wanted to increase the "Sport" and put the "Touring" aspects on the shelf so after a bit of research rounded up the parts to convert it to 17" wheels which are standard on todays modern super sport bikes.  18" tires are also very hard to find so its nice to have a wide variety to choose from.  With 17's fitted I am able to run 120/70 up front and 180/55 in the rear which is identical to all the modern CBR's, ZX's, and GSXR's and improved the handling accordingly.

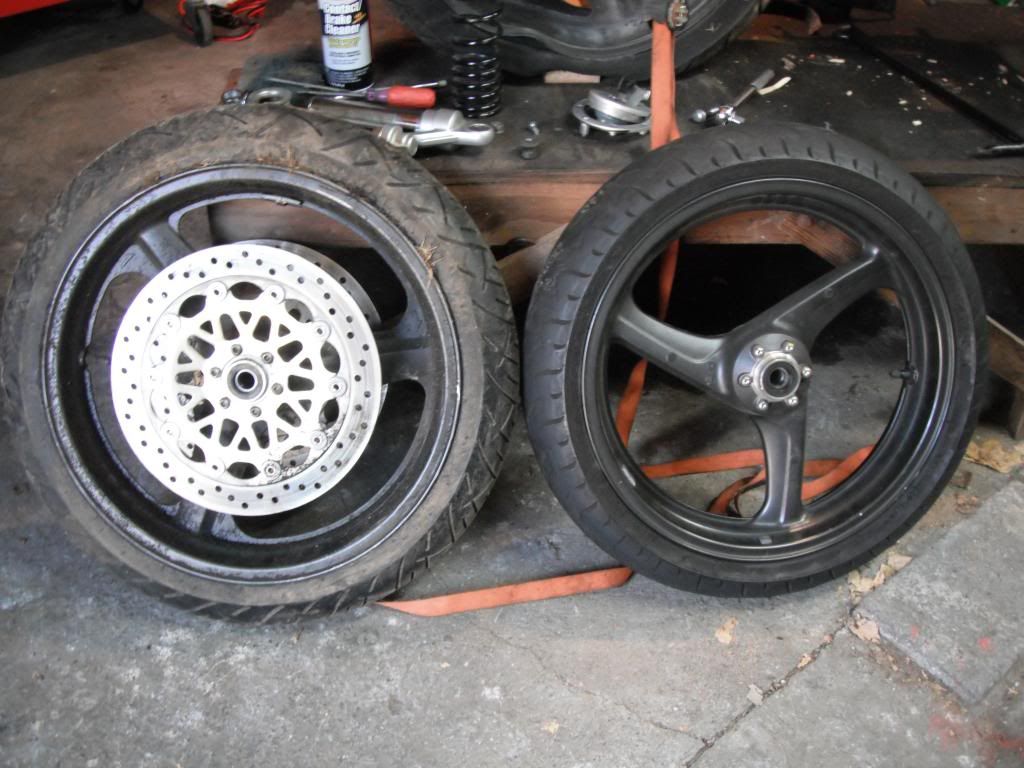

Front rim came from a Honda Super Hawk and is a direct fit, just swapped the rotors from my stocker, now engineering or funky spacers required.  Here's the 18" and new 17" next to each other

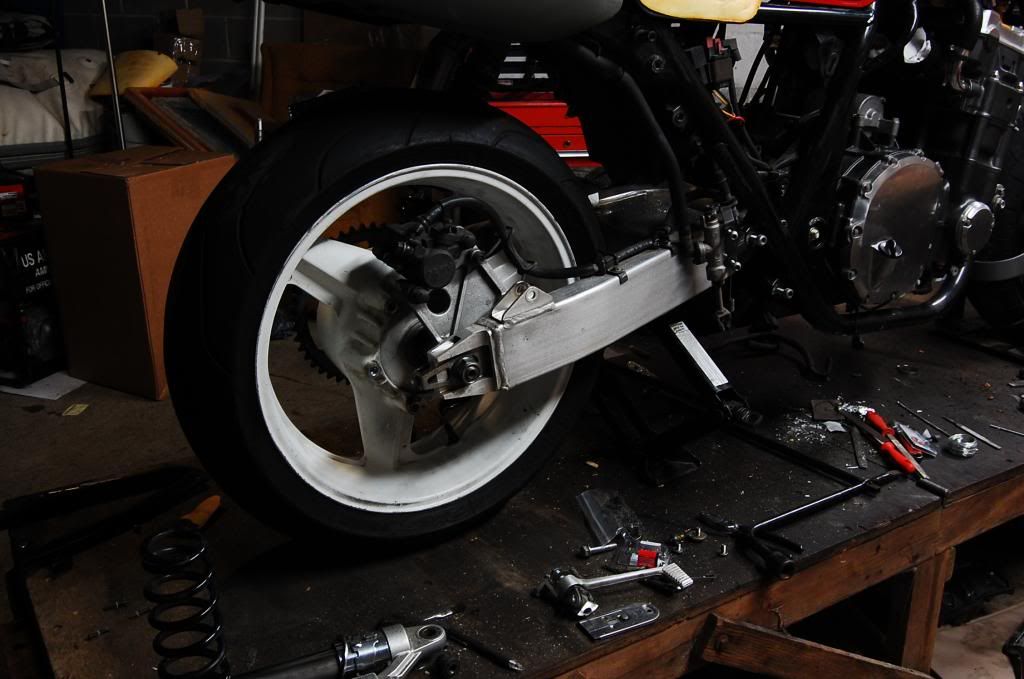

Rear Rim comes from a CBR of the same year.  Although the two bikes have different swing arms the rims are interchangeable, again with no added spacers.  Both the brake rotor and the sprocket carrier slipped right on.


For the bent shock I was able to disassemble it enough to bend the strut back straight.  Wish I had a pic of that proccess... I had quite the redneck set-up but in the end it worked and I got full movement back and havent had an issue since.

Shock re-mounted and work started on repairing the body work.  The tank was good and fucked but my buddy Dan (the man) had just replaced his tank on his 95 model and donated his old previously repaired tank to the cause.


and yes, that tank does hold 5.8 US gallons of gas.  awesome.

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #5 on: Oct 18, 2012, 18:01:04 »
BOBBERT!!!!!! Welcome back fella!

Good to be back my friend.  I blame it on Barber pics.... got me all nostalgic an' shit.

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #6 on: Oct 18, 2012, 18:06:16 »
17" fitted and a good look at the trick drop-out forks that came standard on these bikes and no other model.  Between that and the huge boxed alum swing arm, this thing is just begging to be a racer.

« Last Edit: Oct 18, 2012, 18:13:22 by Bobdot »

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #7 on: Oct 18, 2012, 18:22:24 »
After the hard parts were done I got to do some work on the fun stuff.  Started by removing all the grab rails and anything that had to do with carrying a passenger.  No more passenger footpegs and no more passenger seat.  Seat transformation:






Cut the passenger portion off and used it as a mold for a fiberglass cowl




The cowl is held on by 3 push button fairing clips and gives me extra storage space in the seat pan.  Re-upholstered the seat with a semi-stretchable fabric the local fabric store labeled "Scuba".  Made navigating the complex curves way easier and looks the part too.

You can also catch a glimpse of the new Yoshimura pipe I was able to fit on...

Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #8 on: Oct 18, 2012, 18:40:43 »
continued the back end clean up by getting rid of the giant box of a tail light and replacing it with a flush red acrylic lens back with LED's.  Still working out the LED portion to get more brightness out of it but its working for now.



Offline Bobdot

  • Posts: 614
    • CB1000 Endurance Racer
Re: '94 CB1000F Endurance Race-Rep
« Reply #9 on: Oct 18, 2012, 18:51:26 »
Up front i wanted to change the riding position from upright to more leaned over the tank while lowering the entire front end visually.  Stock handle bars and risers were thrown in the trash and replaced with Woodcraft clip-ons with 3 inch risers.  The intention was that I can raise or lower the bars according to the riding that I'll be doing.  Low sub-top triple for more aggressive riding and raised up above the triple tree for slightly more relaxed long distance riding.  Since getting them fitted in a low position that I like, I have not moved them and its super comfortable.

Definitely moving in the race direction now... and it feels good.
