Author Topic: Recurve Bow Build  (Read 3492 times)

Kamn

  • Guest
Recurve Bow Build
« on: Feb 28, 2017, 12:02:16 »
So I have had a few people ask to start a thread on the Bow Im building.
The goal is to have a 60" recurve bow with a draw weight of 30#'s @ 28"'s of draw.
Also, note that this is my first ever build, I have never done this before so Im learning as I go BUT I have spent the past 2 months reading every piece of info I could find on this subject trying to give myself a bit of a head start before I laminate anything.
I like traditional recurve bows and long bows that are made from multiple laminations of wood and fibreglass.....they are works of art in design and style and you can be unique with what you build from materials to shapes and lengths. Plus, they can be used for hunting and what better than hunting with a bow you made.

So lets get started,

Limb Materials for this bow are 2 layers of Black fibreglass(72") that are .030" thick each (.060 total), 1 parallel(72") Hard Maple lamination that is .080" thick, and 2 tapered(36") Hard Maple laminations that are .100" thick with a .002 taper. The riser (handle) is made from 2 pieces of Padauk with a piece of Curly Maple sandwiched in the centre.

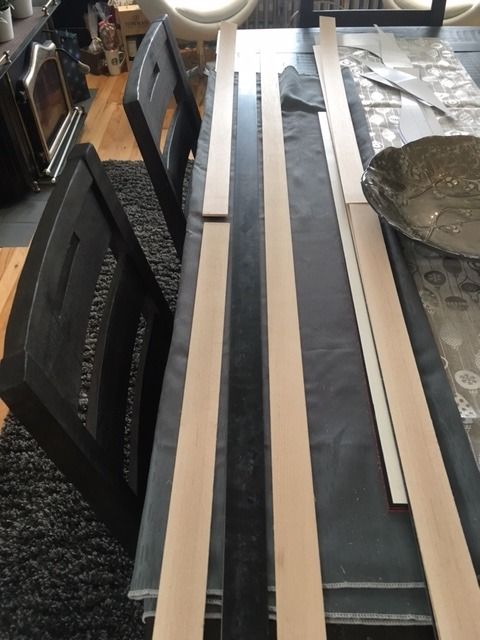

Limb Materials (left side of table)


Riser glued up



What has to happen is, the limb materials need to be sandwiched around the riser with epoxy in a form and then baked for 4 to 6 hours. In the form it will be 1 layer of glass, 1 parallel lamination, the riser, the 2 tapered laminations (glued butt to butt and layed length wise with tapered portion going to the tip of the bow), and then the final layer of glass.

The form needs to be 1-3/4" thick since this is the thickness I like as well as the material width I ordered. Most guys will glue up sheets of plywood to that thickness but I just ordered an 8' length of 1-3/4" x 9-1/4" LVL......they come really straight and no glueing required. I made a template on a heavy sheet of card stock



I used a Bear Grizzly 58" recurve for this template but changed the riser shape a lot and then stretched the limb area 1" to bring the bow to 60"s. The template is just half the actual bow, its easier to manage. Then squaring up some lines along the LVL for bottom and centre (this keeps the template even side to side), I copied that onto the LVL and cut out with a jigsaw an 1/8" away from the lines to leave space to do final shaping on a spindle/belt sander.



also cut out the riser and shaped on the sander



Then did some more shaping and fitting of the two

[/img]http://i1284.photobucket.com/albums/a573/Kamn1/IMG_1518_zpsajvdlifp.jpg[/img]

The thing about the form is that the surface must be smooth and level throughout otherwise the bow can be formed with a twist or really badly aligned.

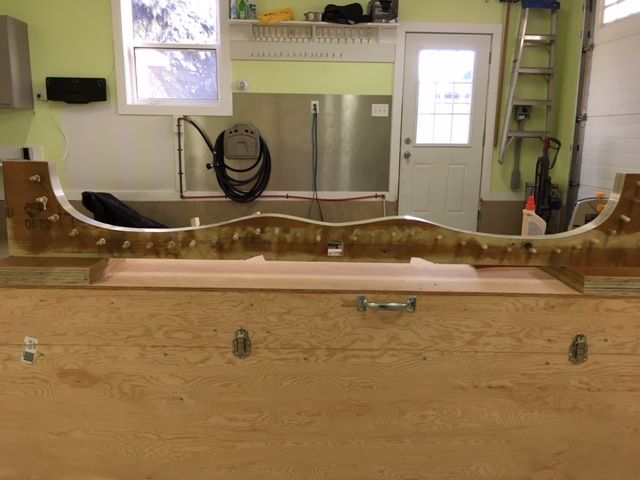

Then when I felt it was ready, I glued up melamine onto the form for a smooth flat surface and added pins throughout so I could strap the bow down with heavy rubber banding as well as I cutout for 3 c-clamps, one for the centre of the riser and 1 at each end of the riser where it fades into the limbs.

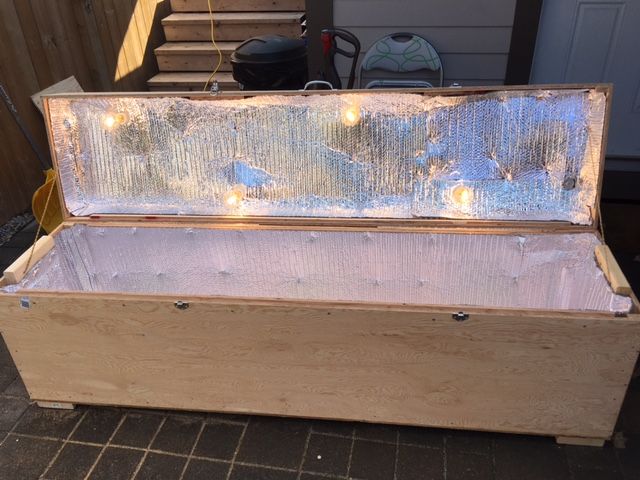

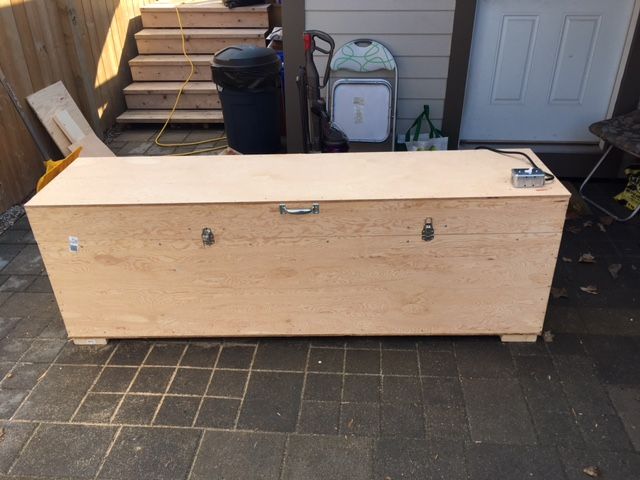

The Oven
when its all ready to go and the bow has been layed in the form and pressured down, the epoxy that keeps it all together needs to be heated for proper curing, so you need to make a oven for the bow.

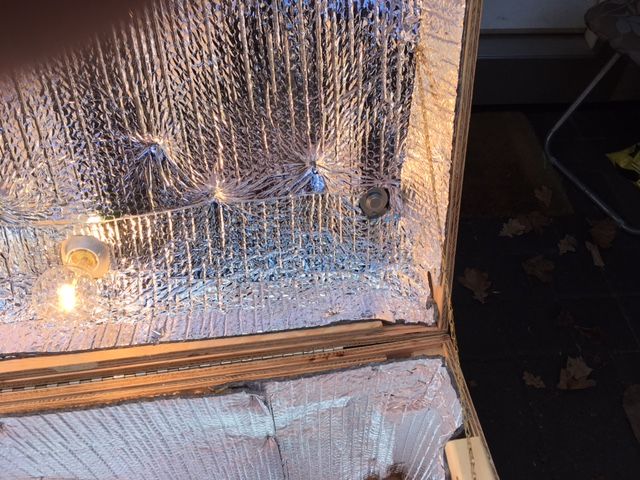

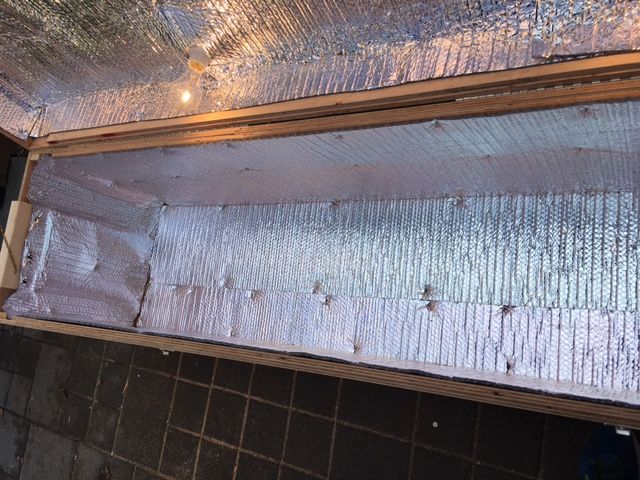

Its made from 1/2" plywood, some 1x2's, screws, a little glue, reflective insulation, and the heat comes from 4 - 200watt light bulbs.







and I added a thermostat switch that cuts out at 150 degrees Fahrenheit.......dont need any more heat than that



The oven cost a bit up front but its a one time cost that gets used over and over


I will post more as it comes, but thats what I have for now

If you are looking to do a project like this, materials and plans can be had from places like Binghams

Offline JustinLonghorn

  • DTT SUPPORTER
  • *
  • Posts: 6483
  • No Purple Hearts, No Blue Ribbons
Re: Recurve Bow Build
« Reply #1 on: Feb 28, 2017, 12:07:56 »
I am on board.
I'm going to eat your brains and gain your knowledge.

Into The Sunset, CB750 build

TT500 the Animal

Offline trek97

  • DTT SUPPORTER
  • *
  • DTT BOTM WINNER
  • *
  • Posts: 5768
Re: Recurve Bow Build
« Reply #2 on: Feb 28, 2017, 14:16:48 »
Nice.  I will make time to read through this eve.  Gotcha bookmarked now.

Offline Hurco550

  • DTT SUPPORTER
  • *
  • DTT BOTM WINNER
  • *
  • Posts: 3522
  • Keep er' Between the ditches
Re: Recurve Bow Build
« Reply #3 on: Feb 28, 2017, 15:20:27 »
Ahh yes, nice! Starting to get enough warm days to start flinging arrows down range here in Ohio.
I'm definitely following along
"If you just picked up a drug habbit instead of a kawasaki triple at least you could get high while you waste money"
~ bradj
1988 tw200, the swamp donkey: http://www.dotheton.com/forum/index.php?topic=75455.0
2006 Suzuki DR650 Adventure monowheel trailer build: http://www.dotheton.com/forum/index.php?topic=75033.0
1976 BMW R90/6 farkilitious: http://www.dotheton.com/forum/index.php?topic=74349.msg882477#msg882477
1975 RD350 Road Racer: http://www.dotheton.com/forum/index.php?topic=70652.msg833688#msg833688
1976 GT250 Rebuild: http://www.dotheton.com/forum/index.php?topic=64973.new#new
Full Custom Pit Bike: http://www.dotheton.com/forum/index.php?topic=66954.new#new
1971 Yamaha 90cc twin HS1: http://www.dotheton.com/forum/index.php?topic=70498.0
"much ingenuity with a little money is more profitable and amusing than much money without ingenuity" - Arnold Bennet

Offline SONIC.

  • DTT SUPPORTER
  • *
  • Posts: 6057
  • Reminds me of...me No, I'm sure of it. I hate him
Re: Recurve Bow Build
« Reply #4 on: Feb 28, 2017, 15:36:30 »
This is what is great about this forum.
Yes we all like motorcycles, but more importantly we all build shit!

Badass man I'm jealous I need to try my hand at one of these.

Offline advCo

  • DTT BOTM WINNER
  • *
  • Posts: 2600
  • Nick Ol' Eye
    • adventur Studios
Re: Recurve Bow Build
« Reply #5 on: Feb 28, 2017, 15:38:40 »
Sweet. Make it happen.
"He broke the mirrors off his Cadillac, 'cause he doesn't like it looking like he looks back."

74 CB360 - Luna - http://www.dotheton.com/forum/index.php?topic=63294.0 - Sold
82 GS550L - Tracker-ish - http://www.dotheton.com/forum/index.php?topic=67229.0 - Sold
74 XL350 - The Turd - http://www.dotheton.com/forum/index.php?topic=70252.0 - Sold
Suzuki FA50 "No-Ped" - http://www.dotheton.com/forum/index.php?topic=71189.0
73 Suzuki RV125 -http://www.dotheton.com/forum/index.php?topic=73875.0
'97 BMW F650st - http://www.dotheton.com/forum/index.php?topic=75732.0

Online Maritime

  • DTT SUPPORTER
  • *
  • Posts: 9301
Re: Recurve Bow Build
« Reply #6 on: Feb 28, 2017, 15:53:47 »
Signing up. this looks great so far.
The GL Rebirth: http://www.dotheton.com/forum/index.php?topic=68337.0
CX500 Low budget Bobber : http://www.dotheton.com/forum/index.php?topic=43617.0
"Beer makes you feel the way you ought to feel without beer" -Henry Lawson
"Beer is proof that God loves us and wants us to be happy." - Thomas Jefferson

Kamn

  • Guest
Re: Recurve Bow Build
« Reply #7 on: Feb 28, 2017, 15:54:06 »
Soon it will get glued up, I just need a good half day to prep the tapered ends of the riser and then roughly 5 hours of bake time

Online Maritime

  • DTT SUPPORTER
  • *
  • Posts: 9301
Re: Recurve Bow Build
« Reply #8 on: Feb 28, 2017, 15:59:20 »
So after it is glued and baked I assume you sand/trim to final shape in the handle/riser area etc?
The GL Rebirth: http://www.dotheton.com/forum/index.php?topic=68337.0
CX500 Low budget Bobber : http://www.dotheton.com/forum/index.php?topic=43617.0
"Beer makes you feel the way you ought to feel without beer" -Henry Lawson
"Beer is proof that God loves us and wants us to be happy." - Thomas Jefferson

Kamn

  • Guest
Re: Recurve Bow Build
« Reply #9 on: Feb 28, 2017, 16:03:46 »
when it gets pulled out of the form, the tips need to be cut back and shaped, and yes the riser gets shaped for a handle and a shelf for the arrow. Also need to tiller the bow, basically its stringing it and looking for any slight twisting in the limbs, if it exists you can sand the opposite side of the limb to get it straight AND the sides of the limbs can get sanded away a little to get the draw weight in to where you want it within certain limits
