Author Topic: The Van Van - '73 Suzuki RV125 "tracker"  (Read 14266 times)

Online advCo

  • DTT BOTM WINNER
  • *
  • Posts: 3234
  • Nick Ol' Eye
    • adventur Studios
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #100 on: Feb 28, 2018, 22:09:18 »

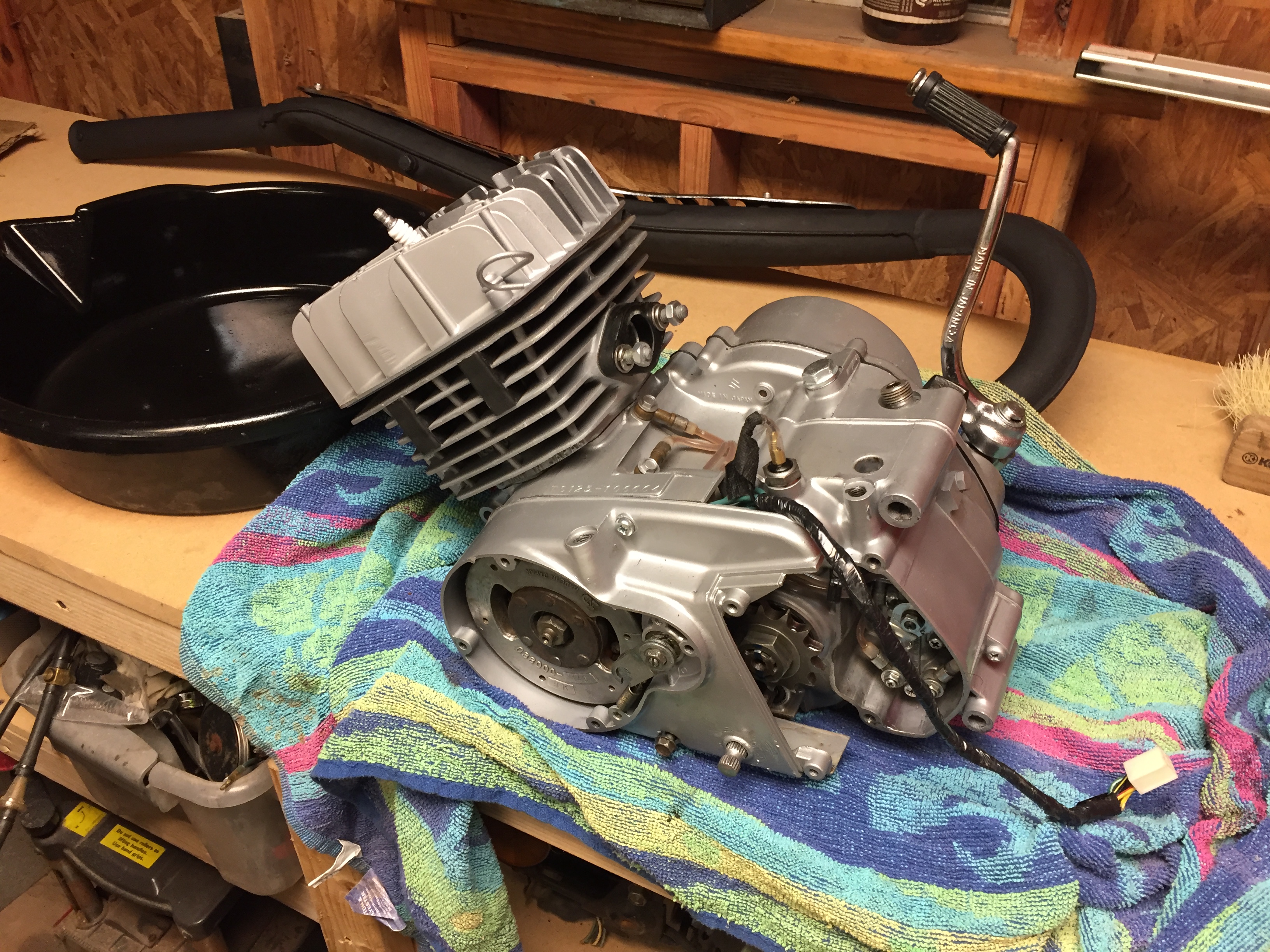

After getting the oil lines bled and all that fun stuff, I rolled her outside for the first start. Put entirely too much fuel in the tank before checking that the float valve and petcock were working. Last time I'll make that mistake. On the bright side, uncured Duplicolor engine enamel AND Rustoleum Appliance epoxy are both fuel resistant, which was surprising. Ended up with about a pint of fuel pissing out of the petcock all over the motor and walkway. Not sure what the deal is as I rebuilt the petcock. Going to pull it off and test it on the bench before I put any more fuel in the tank.

I actually managed to get her running after a few attempts. Since the petcock and float were both malfunctioning, it flooded out and died pretty quick. But I heard it run for a good 10 seconds, so there's that!

However, during this series of mishaps I discovered that the kickstarter gear is completely botched. The ratcheting mechanism only grabs about 10% of the time. So you can kick it over a couple times then bust your shin open when it doesn't engage. Awesome. I ordered a new assembly and annoyingly pulled the motor out to prepare to split the cases again.



On the plus side, this motor takes about 20 minutes to pull and it only weighs about 25 lbs, so it could be worse.

Offline crazypj

  • Posts: 13488
  • Split personality, I fake being smart
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #101 on: Mar 01, 2018, 10:36:50 »
You sure it isn't just the drag spring on kickstart? very unusual for the gears to be trashed unless teeth are broken off
'you can take my word for it or argue until you find out I'm right'
Best thing I ever overheard
"yep, PJ's my boss, he taught me everything I know, just didn't teach me everything he knows"
Brian Morgan, 1982

CB360's,  http://www.dotheton.com/forum/index.php?topic=11736.0
XS650,  http://www.dotheton.com/forum/index.php?topic=11922.0

Online advCo

  • DTT BOTM WINNER
  • *
  • Posts: 3234
  • Nick Ol' Eye
    • adventur Studios
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #102 on: Mar 01, 2018, 11:08:40 »
You sure it isn't just the drag spring on kickstart? very unusual for the gears to be trashed unless teeth are broken off

I'm not sure what it is exactly. Its probably the spring or a worn mechanism. The gear looked fine to the untrained eye when I put it back together. Either way, all that stuff happens between the crankcase halves, so they have to be split to assess the problem.

Online Jimbonaut

  • DTT BOTM WINNER
  • *
  • Posts: 1940
    • Lost Apostle
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #103 on: Mar 01, 2018, 11:21:59 »
Getting close man, bet you're jonesing to get this thing mobile...

Just watched a couple of vids of 70's Van Van's doing laps of people's yards, wow these things look like a ton of fun.  Saw the 2018 model at the moto show this weekend which I'm sure is also loads of fun, but yours has it licked.  Hope you're on the road soon mate
"I'm telling you Donnie, nuthin' but nuthin' but right"

Offline 1fasgsxr

  • Posts: 1669
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #104 on: Mar 01, 2018, 13:30:41 »
I just did a similar thing...dump a gallon of fuel in it to see if its leaking at the pump...yup its leaking >:(
http://www.dotheton.com/forum/index.php?topic=41083.0

Life is a journey from the maternity ward to the crematorium....

Offline crazypj

  • Posts: 13488
  • Split personality, I fake being smart
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #105 on: Mar 01, 2018, 14:44:12 »
The gears can 'look' completely worn out but still work , the internal springs always look OK(it's obvious when they are broken) but can be completely worn out.
'you can take my word for it or argue until you find out I'm right'
Best thing I ever overheard
"yep, PJ's my boss, he taught me everything I know, just didn't teach me everything he knows"
Brian Morgan, 1982

CB360's,  http://www.dotheton.com/forum/index.php?topic=11736.0
XS650,  http://www.dotheton.com/forum/index.php?topic=11922.0

Online advCo

  • DTT BOTM WINNER
  • *
  • Posts: 3234
  • Nick Ol' Eye
    • adventur Studios
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #106 on: Mar 02, 2018, 09:40:42 »
And we’re here again.

Online Jimbonaut

  • DTT BOTM WINNER
  • *
  • Posts: 1940
    • Lost Apostle
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #107 on: Mar 02, 2018, 09:58:20 »
I can't decide if I like the left side of the crankcase more or the right.

It's a split decision.

Thanks, I'll be here all week.
"I'm telling you Donnie, nuthin' but nuthin' but right"

Online advCo

  • DTT BOTM WINNER
  • *
  • Posts: 3234
  • Nick Ol' Eye
    • adventur Studios
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #108 on: Mar 05, 2018, 20:51:26 »
This little bugger is what’s giving me an issue. I ordered a spare gear set and it’s worn as well. Got a NOS pawl coming end of the week.

Offline trek97

  • DTT SUPPORTER
  • *
  • DTT BOTM WINNER
  • *
  • Posts: 6507
Re: The Van Van - '73 Suzuki RV125 "tracker"
« Reply #109 on: Mar 05, 2018, 21:03:08 »
Got a NOS pawl coming end of the week.
Sometimes NOS the best way to go.  Be done and forgotten.
