1981 SR250 Clutch Cable Issues

[ollieB]

Hi All,

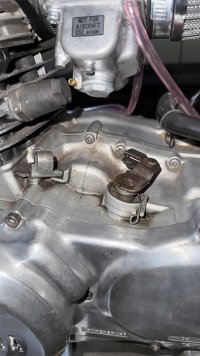

I'm currently restoring a 1981 Yamaha SR250 Exciter and as I was replacing the clutch cable I noticed that the spring on the clutch arm wasn't hold enough tension to pull the cable back into place. Quickly after that I realized that the clutch arm is one piece and if I want to replace the spring I need to take out the entire clutch arm. Does anyone know any way to replace the spring without having to completely open up the clutch box?
Thanks!



[Turnturtle]

Do you have a copy of the factory service manual? You can download it here: https://app.box.com/s/4i3iaqoqkilrdcuflaxt
On page 3-41it shows the clutch arm coming out after removing the retaining screw. The left engine cover has to come off to access this screw.



[ollieB]

Do you have a copy of the factory service manual? You can download it here: https://app.box.com/s/4i3iaqoqkilrdcuflaxt
On page 3-41it shows the clutch arm coming out after removing the retaining screw. The left engine cover has to come off to access this screw.

amazing, I'll check this out rn. Thanks



[COLAB01]

Do you have a copy of the factory service manual? You can download it here: https://app.box.com/s/4i3iaqoqkilrdcuflaxt
On page 3-41it shows the clutch arm coming out after removing the retaining screw. The left engine cover has to come off to access this screw.

Thanks to share Sir ! I'm worrking on the same Bike !!! Have fun guys !!!!
