Honda CB9OOF Special
- Thread starter Calsco985
- Start date
Calsco985
New Member
Gidday everyone,

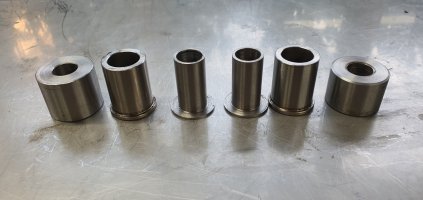

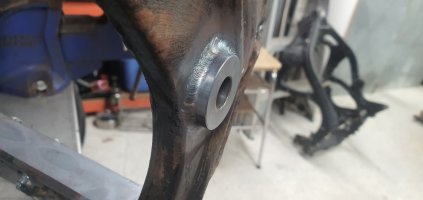

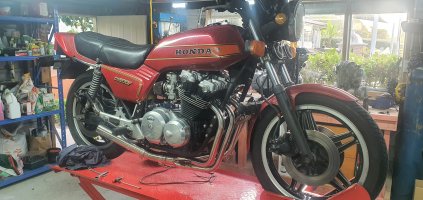

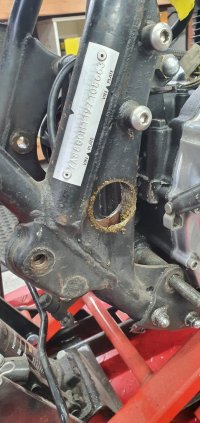

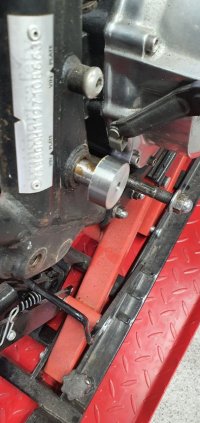

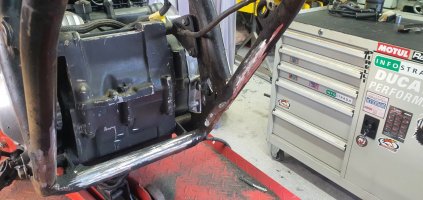

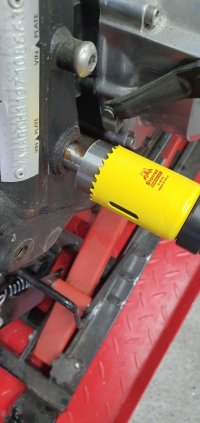

This is a project that's been in the planning for a few years now,beening collecting parts & finishing another bike resto before attacking this one. So here goes,got some triple clamps machined up in the states to accept a 2004 cbr600rr front forks, I also got a 03-04 cbr600rr swingarm for it yrs ago but as it turns out those models swung off the engine as well as frame pivot points & it turns out was to wide for what I had in mind so after a bit of research I got a 09 cbr600rr swingarm which is to wide as well. Had a moment @ 2am on how to sort it out. I lathed up a boss to fit into the old swingarm pivot points as a guide & whole sawed 2 new pivot points. Then turned up a couple of bosses to slide in, had to turn down the swingarm inner bearings length ways to narrow the width & turn up some bosses to slide inside these so I could still use the original swingarm bolt.
This is a project that's been in the planning for a few years now,beening collecting parts & finishing another bike resto before attacking this one. So here goes,got some triple clamps machined up in the states to accept a 2004 cbr600rr front forks, I also got a 03-04 cbr600rr swingarm for it yrs ago but as it turns out those models swung off the engine as well as frame pivot points & it turns out was to wide for what I had in mind so after a bit of research I got a 09 cbr600rr swingarm which is to wide as well. Had a moment @ 2am on how to sort it out. I lathed up a boss to fit into the old swingarm pivot points as a guide & whole sawed 2 new pivot points. Then turned up a couple of bosses to slide in, had to turn down the swingarm inner bearings length ways to narrow the width & turn up some bosses to slide inside these so I could still use the original swingarm bolt.
Last edited:
Calsco985
New Member

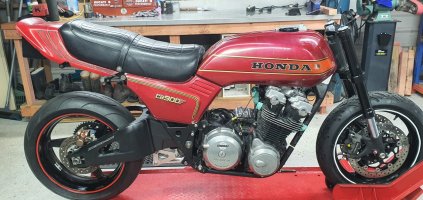

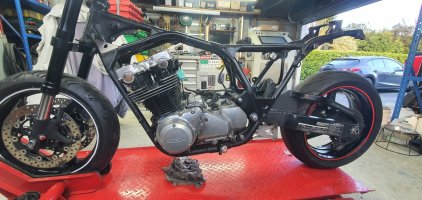

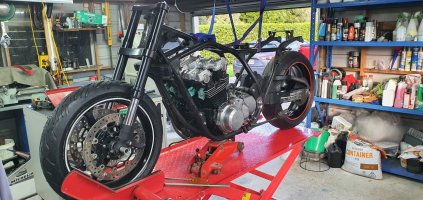

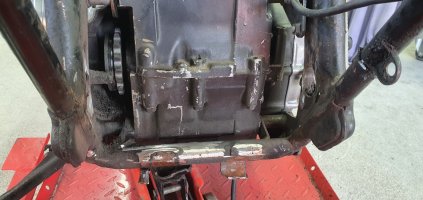

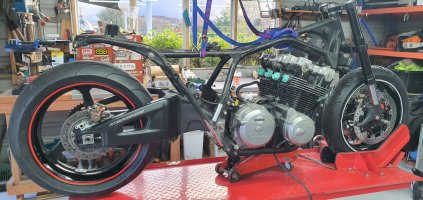

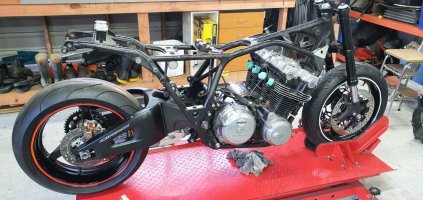

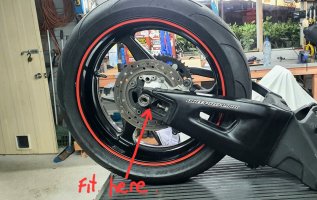

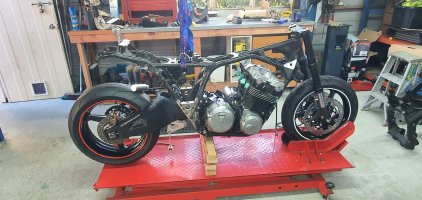

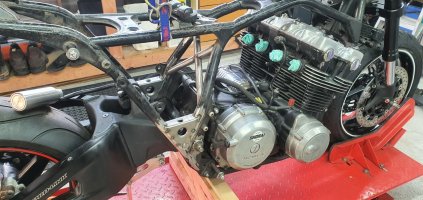

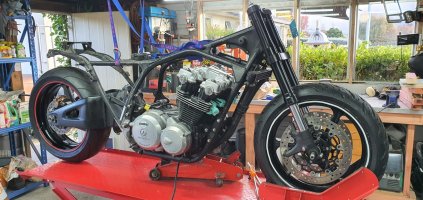

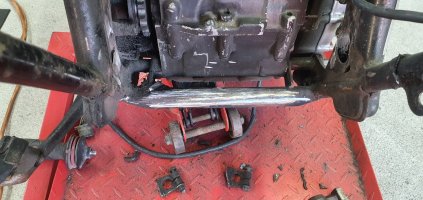

Got the front end on now & attacked the rear yesterday, ground off all brkts not required, had to turn up only 1 spacer on the brake side & its all done. Got to work out now how to mount the new suspension brkt to fit to the old mains stand support.
Attachments
Streetfighterkz
Been Around the Block
Are you raising the ride height up from where it sits now? It looks a bit low. Any idea on final rake/trail figures?
Later, Doug
Later, Doug
Calsco985
New Member

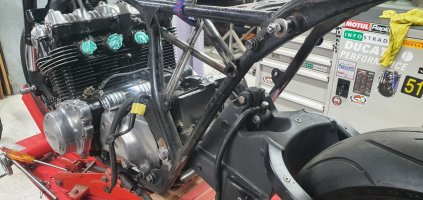

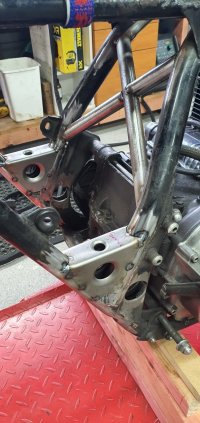

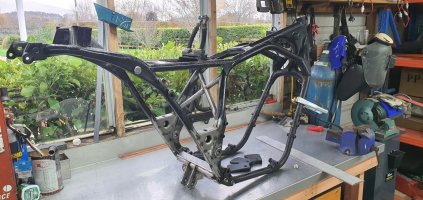

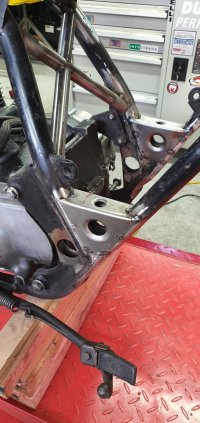

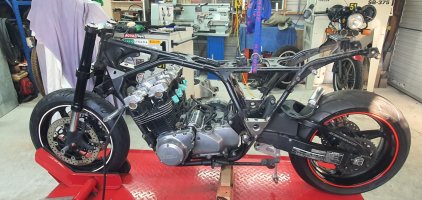

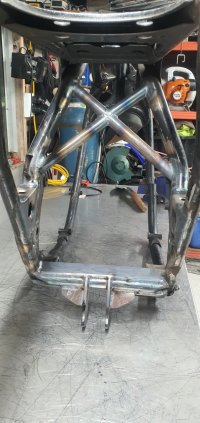

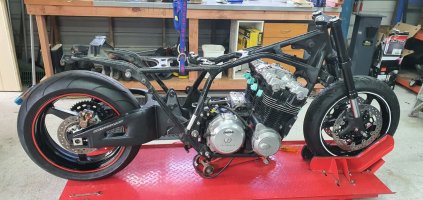

Gidday Doug, your right, it's too low as is, I had only just fitted the swingarm in & have started bracing the frame. When that's all done I will set a ride height & sort out the suspension geometry from a old frame & swingarm I will use as a setup
Attachments
Calsco985
New Member

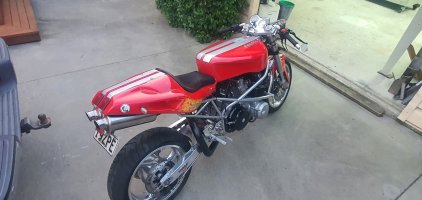

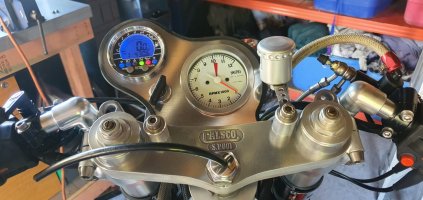

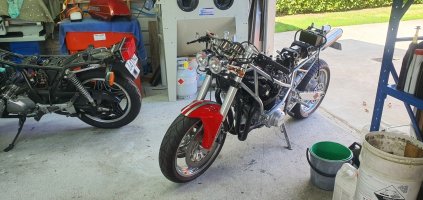

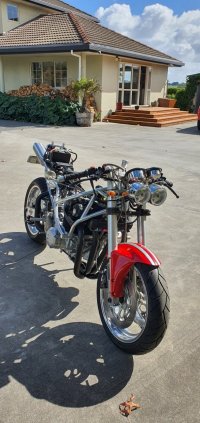

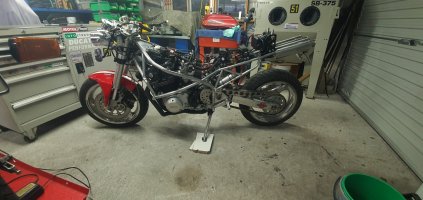

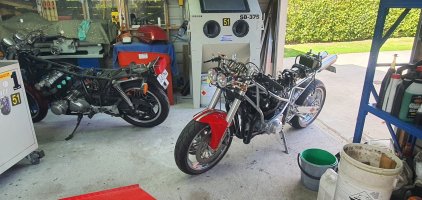

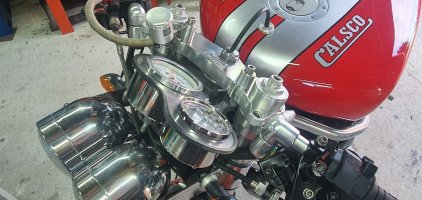

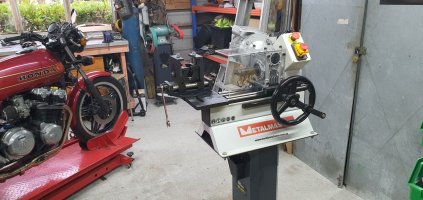

Brought this tube notcher a while back, makes a huge difference. I used to just use a grinder & file. Would of liked something like this when I built the CALSCO985. I've attached some pictures of it.
Attachments
Last edited:
That is a very neat bike.
