HellSoldyr
New Member
My dad and I are almost done building a 82 CB750 and, i just can't to wrap my head around how to wire the LED indicators and the mini gauge with single LED idiot light and the diode.
So on the bike i have:
Double Orange and Blue coming from the switch
Single Orange and Blue coming from the harness
Single Orange and Blue that go to the Idiot light
Yellow and Yellow and Black from the new mini gauge

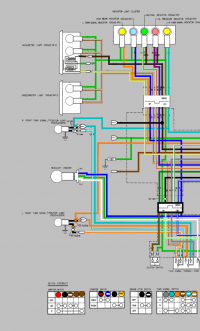

I made this for my own reference lol, i forgot to label the diode but it works
So on the bike i have:
Double Orange and Blue coming from the switch
Single Orange and Blue coming from the harness
Single Orange and Blue that go to the Idiot light
Yellow and Yellow and Black from the new mini gauge
I made this for my own reference lol, i forgot to label the diode but it works
