A bit of ally polishing

toglhot

Active Member

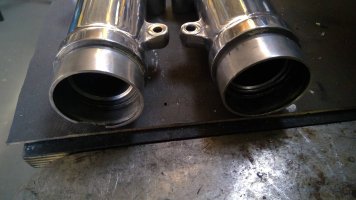

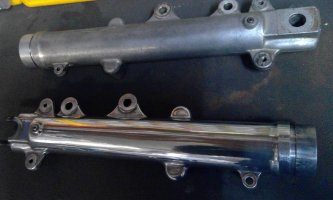

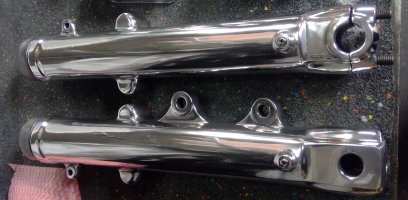

Some bits I polished up off the TX650. Fork legs had caliper mounts on both legs, As I was only using one disk I removed the caliper mounts,on the left leg before polishing.

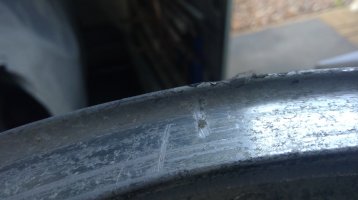

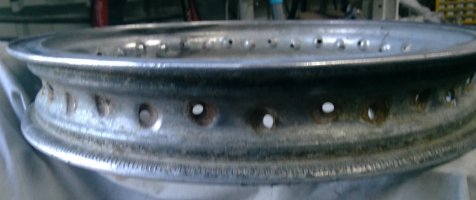

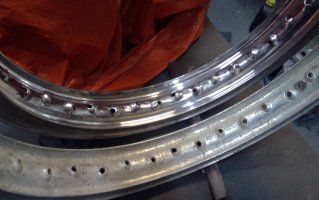

Rims were scarred from hammers, screwdrivers and whatever else the PO could lay his hands on, I cleaned them up as best I could, then polished them.


Attachments

  • 355837144_3575553212704699_4609497687153534867_n.jpg
    414.6 KB · Views: 40
  • 355906031_3575553172704703_7999338076479618870_n.jpg
    458.5 KB · Views: 35
  • 356019984_3575553102704710_657803282955975006_n.jpg
    233.8 KB · Views: 34
  • 311664848_3386662461593776_4705213811817178408_n.jpg
    322.4 KB · Views: 37
  • 311612335_3386664204926935_6959324476717048287_n.jpg
    204.3 KB · Views: 37
  • 67532151_2430492693877429_1701475277407780864_n.jpg
    228.1 KB · Views: 38
  • 67669500_2430492623877436_1357111216295641088_n.jpg
    169.5 KB · Views: 34
  • dirtyrim.jpg
    230.9 KB · Views: 27
  • rim comparo.jpg
    rim comparo.jpg
    241.7 KB · Views: 35
  • 2 polished rims.jpg
    2 polished rims.jpg
    308.9 KB · Views: 37

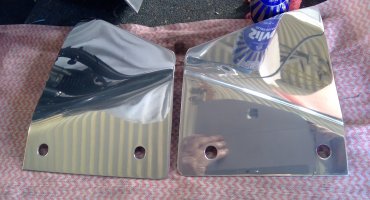

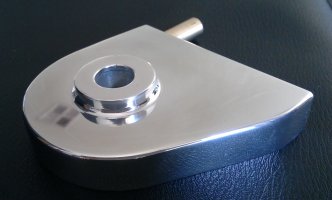

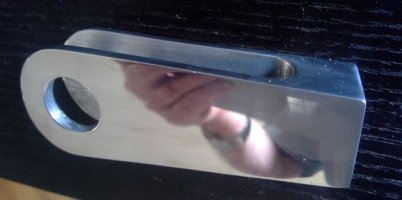

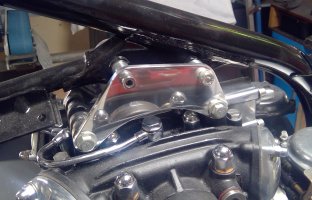

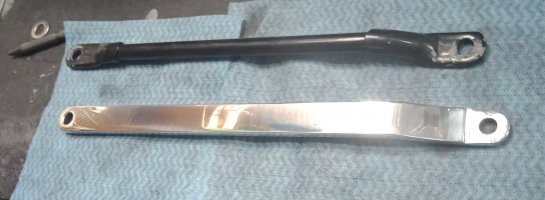

Side panels, spin on filter mount, chain adjusters, engine mounts, brake anchor and a heap,of other parts were made in my workshop, and then polished.


Attachments

  • 12.jpg
    726.6 KB · Views: 40
  • 10.jpg
    366.8 KB · Views: 27
  • topmount5.jpg
    690.7 KB · Views: 33
  • 3.jpg
    45.1 KB · Views: 33
  • ally side.jpg
    ally side.jpg
    669.2 KB · Views: 36
  • bracket left fitted.jpg
    bracket left fitted.jpg
    586.8 KB · Views: 37
  • brake anchor.jpg
    brake anchor.jpg
    640.8 KB · Views: 36
  • risers disassembled 2.jpg
    risers disassembled 2.jpg
    448.1 KB · Views: 45
  • WIN_20220823_14_37_09_Pro.jpg
    921.4 KB · Views: 40
  • 5.jpg
    229.1 KB · Views: 40
Wheel hubs were in pretty good condition, but I did chuck them on the lathe, removed the casting bridges between fins, trued the fins, trued the flanges then polished.
The front hubs had two huge bridges between flanges, so I turned them down a little so I could get in with a mop, trued the flanges and polished them also.
Modify message


Attachments

  • fronthuband disk.jpg
    fronthuband disk.jpg
    227 KB · Views: 44
  • rear hub1.jpg
    rear hub1.jpg
    73.5 KB · Views: 44
They look good. I just finished my side cases, forks, front and rear hubs on my CB550 Build and I know how much work goes into doing that many parts. It's not difficult, just tedious and boring. It's easy to see why so many people are just painting everything black....it's easy. For me, black has been done to death. In fact, if you look a little closer on a lot of black painted parts there's very little prep work and they look like the side of an old house that's been scraped and painted. Yours are going to stand out from the crowd. That many polished parts will make the bike pop. Make sure you post some assembled pictures.

BTW. I was thinking of clear coating the polished parts and most seasoned builders recommend against it but one of the pro builders recommended a product called Shark Hide aluminum / metal protectant. I used it on hubs, pokes and brushed aluminum wheels and it's invisible. Not a forever finish but longer term for motorcycles. Good reviews.

Last edited:
Nothing sticks to polished aluminium. I tried two,pack, but it comes off when doing up fasteners, and if you don't prepare correctly,,it will oxidise under the two pack and turn white. There are products that advertise as suitable for polished aluminium, but realistically, nothing is going to stick, thats why when painting anything you have to sand first.
