Suzuki VX800, a kind of scrambler

DKWraith

New Member
Hello, this is one of my projects, almost finished, one scrambler/big enduro VX800.
DR650 front fork, r1200GS handlebar with brake and clutch pump, F650 twin front fender, XJ Maxim rear fender, Intruder VS800 complete exhaust and battery holder, modified Bulldog foam seat on Suzuki seat base, etc.


Attachments

  • sc1.jpg
    933.4 KB · Views: 2,959
  • sc2.jpg
    174.7 KB · Views: 2,042
  • sc3.jpg
    279 KB · Views: 2,882

DKWraith

New Member
I'm trying to do side covers/panels, adapting a pair of TT600 covers. Will be used as model to make final form.
80978187_2610878055686879_681377985776844800_o.jpg20191228_191615.jpg81034807_2615262111915140_37938300824059904_o.jpg
And some pics from different stages.
1402003_486223714819001_744488102_o.jpg14241511_1038050606302973_7573168461273542382_o.jpg1557161_774445029330200_3981860353117770793_o.jpg52830870_2052426174865406_8004953655373463552_o.jpg31252911_1627592480682113_5419586039868030976_n.jpg


DKWraith

New Member
I like the big tires, they fit this bike well.
Yes, but is a pain in the ass to find a good tyre for 18" front wheel , i'm using 110/80 -18 MC58S TT on front and 150/70 - 17B M/C 69T TL M+S on rear, the bike is heavy, 230 kg wet.

Last edited:

Out

Been Around the Block
My CB is heavy too, but for the riding I do it is fine. We are both still lighter way than most of the HD's out there. My co workers street glide is 800#, or 365kg. He goes through tires like toilette paper.
I just started a similar project with a KZ750B twin. It needs LOTS of help, but is something different. (Lots of help!)


DKWraith

New Member
Your bike is a good base to start a big enduro/scrambler project. Keep the fuel tank, make a custom seat, remove passenger pegs and all unnecessary parts like old turning signals, stock exhaust, fenders/mud guards, etc. A search on net is a good ideea for inspiration and how-to-do hints.


Out

Been Around the Block
So far the bars are off for some XR Honda bars, I have a variety of old fenders to choose from , some 5" longer forks from a KZ1000 donor, a 21" aluminum front rim, the front brakes have been reworked, and some steel is ready to make a cool removable rack for camping. A new coil should get her sparking and then some fuel system care is next. It has been abused pretty bad so I dont know what I will find. It was out in the snow and did not roll.

This is the feel/style I am going for without being a copycat.


DKWraith

New Member
Depends on you in what manner you'll choose to modify the bike. Personally, i would put a handlebar/fatbar, like on BMW GS or KTM, would keep the exhaust headers and change only the mufflers to have a clean line on the bottom end. Is just an opinion.



Pretty close to the final form.


Jimbonaut

Over 1,000 Posts
DTT SUPPORTER
I love how this bike reminds me of lots of other bikes (svartpilen, some kind of supermoto’d MT-01 up front and my KLR out back) and is totally original at the same time. Love it man, keep it coming


Sent from my iPhone using DO THE TON

Last edited:

DKWraith

New Member
Bad news, in Romania we have an emergency situation, due to Covid-19, and everybody stay at home, so, all my projects are postponed till the end of this crisis.
I'm a little frustrated, so many bikes and no time for chop & ride.


Attachments

  • 89115790_2758878214220195_786227985832214528_o.jpg
    810.1 KB · Views: 354

Out

Been Around the Block
Bad news, in Romania we have an emergency situation, due to Covid-19, and everybody stay at home, so, all my projects are postponed till the end of this crisis.
I'm a little frustrated, so many bikes and no time for chop & ride.
Bummer. That is a nice line up there! Same here with the "social distancing". It is just weird. Stay well friend .


DKWraith

New Member
A small update.


Attachments

  • IMG_20210421_193113667.jpg
    262 KB · Views: 165
  • IMG_20210421_193456487.jpg
    327.7 KB · Views: 178
  • IMG_20210421_193518740.jpg
    364.9 KB · Views: 217

DKWraith

New Member

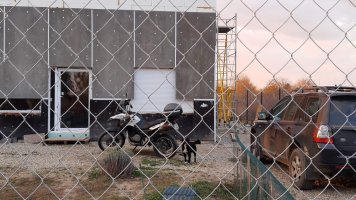

Because of too many bikes, projects or running, i've started the build of a new house, and a bigger garage, so, al the money will be spent on that, and i cannot ask for subvention (from my best half) for finishing the projects till the house isn't ready/finished.
But, because i want more from this bike i'll swap the front fork with one from a TT600R, 45 mm diameter. The bad part is: rear shocks cracked after some drive tests, and i need a pair of shocks longer than stock ones
And a better year to all!


Attachments

  • h2.jpg
    99.6 KB · Views: 76
  • h1.jpg
    235.4 KB · Views: 60
  • h3.jpg
    551.8 KB · Views: 67
