So it begins another Cj 360

L

LtGeorge

Been Around the Block

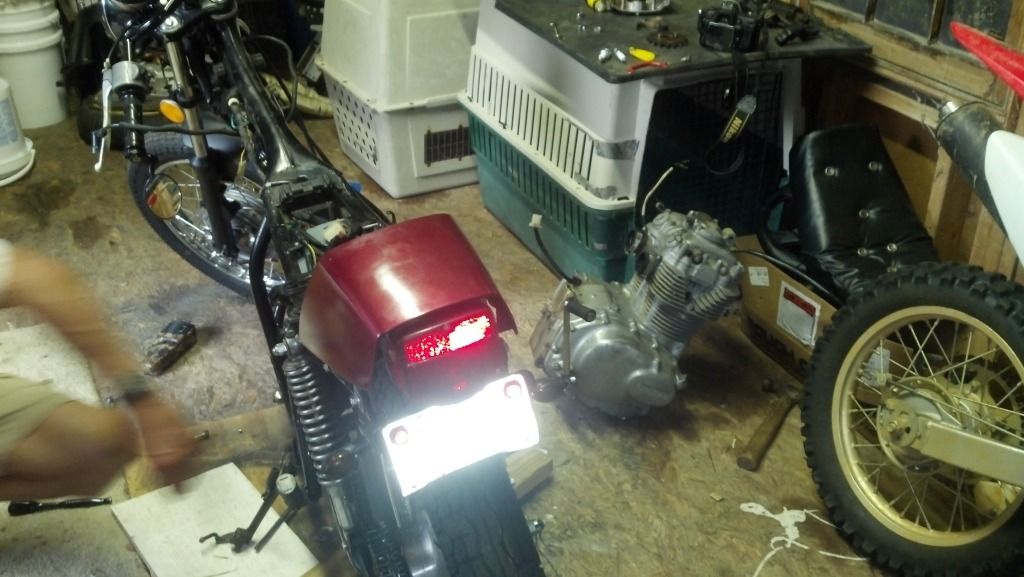

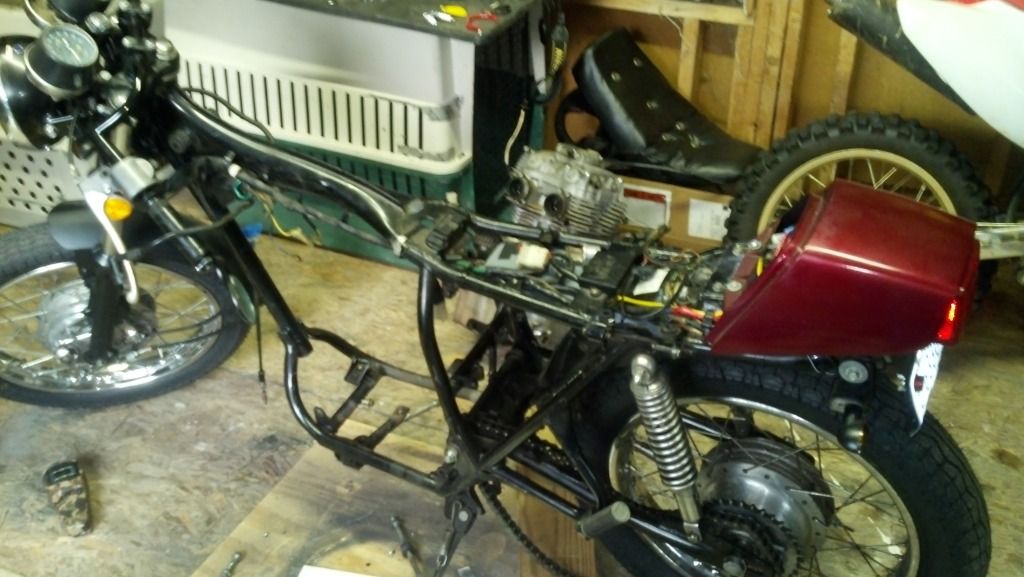

Alright so im finally gettin around to rebuilding my 360. Bought it over the summer and rode it until I think I blew a ring so its time to rebuild and customize. Bought it bone stock and started trying to get it customized to at least look like a cafe bike. Started tearing it down today, got the engine out today and then ran into a bunch of stripped screws so im stalled until tomorrow. Im not to go good with build threads so ill try to keep pictures rolling.


First day home

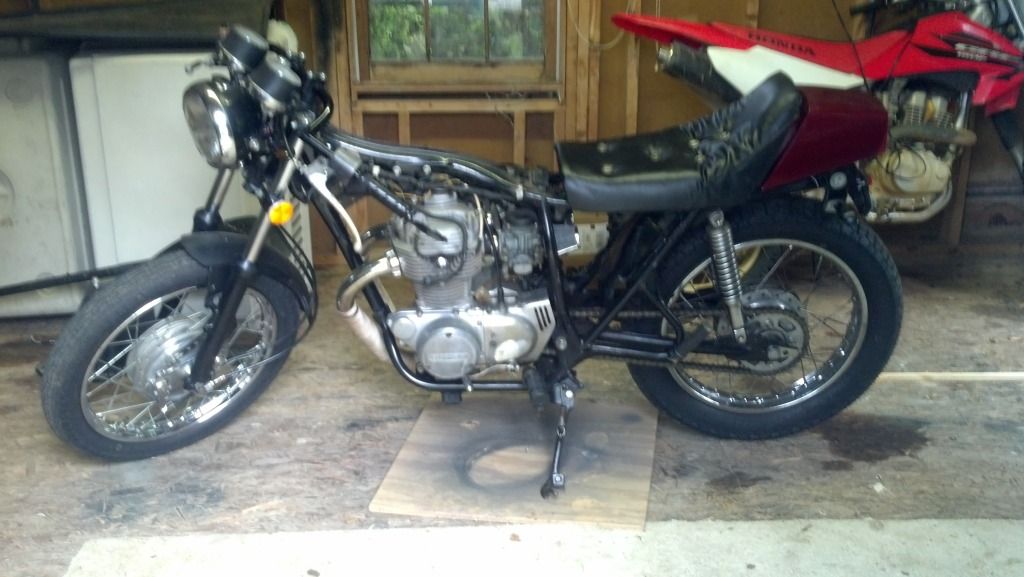

what it looked down, I cut the seat and seat foam down the customized the rear end to fit, for anyone wanting to rag on no wearing a helmet I rode around my driveway








Gonna be a slow build sadly, I only get to work on it on the weekends when I come home from school.

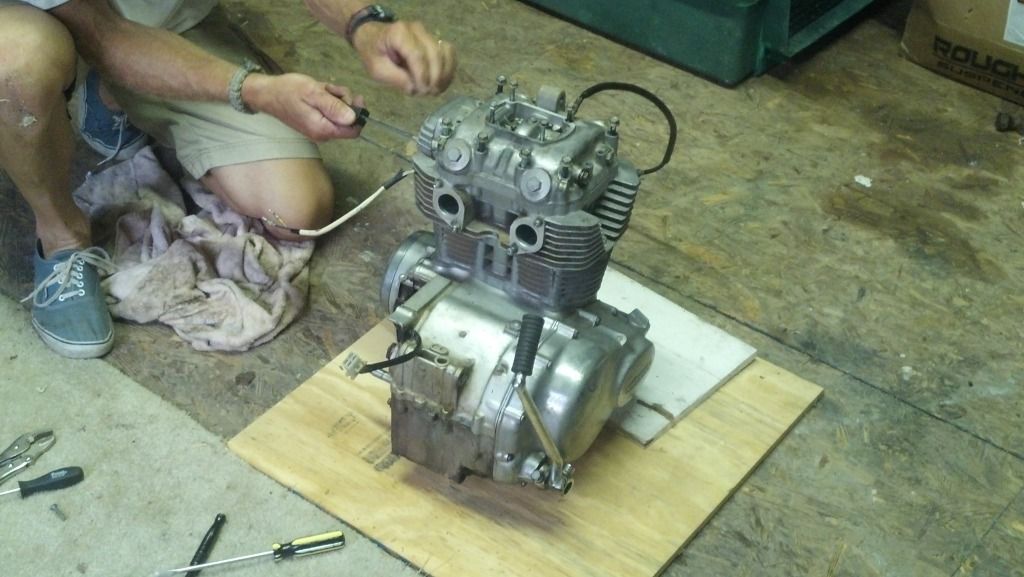

Plan for next weekend is to finish the engine tear down, its pretty close just needs a few more things. Ordering new gaskets and bolt kit as well as whatever I find needs to be replaced while looking at the internals.
Also looking for a 6 spd tranny if anyone knows where I might be able to find one.

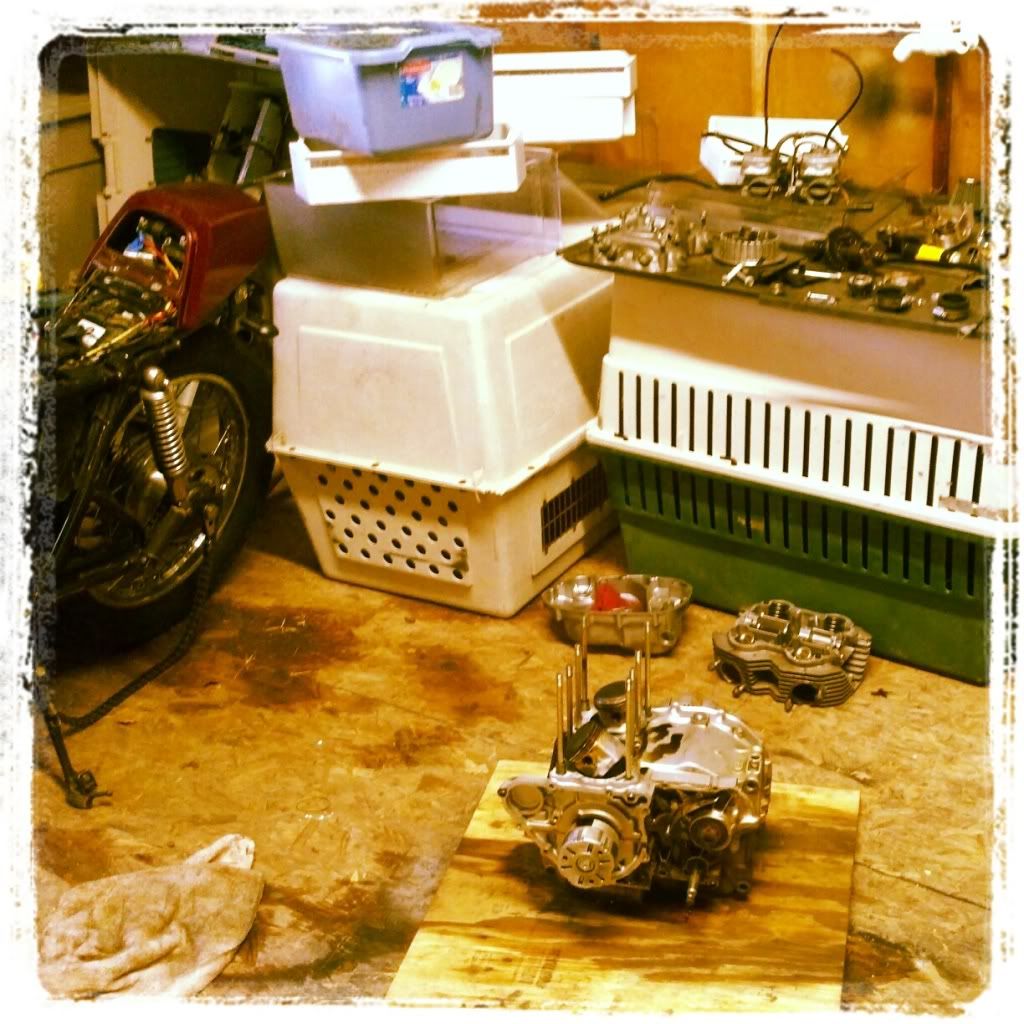

Made some more progress today, have to go back to school now though so next weekend I want to get the pistons pulled and finish breaking down the case, then meet with my buddy and have him show me what all I need to replace component wise

Is this your first time engine build or have you done this before ?
Also, the link to my July rebuild. You might find something useful.
http://www.dotheton.com/forum/index.php?topic=27417.msg422844#msg422844

Thanks!! Ill check it out!
Yes its my first build with a bike.... I know my way around car engines but this is new to me

I did my first top end rebuild on my 360 and it all worked out well with the help of the guys in this forum...

I don't have a lot of how to in my build thread but it might help you from some of the things that caused me some grief.

LtGeorge said:
BTW how did you get a six speed tranny?
Click to expand...

Who? me? Trek97?

CB360 and CL360 came with a 6 speed... CJ360 came with 5 speed if I'm not mistaken.

3DogNate said:
Who? me? Trek97?

CB360 and CL360 came with a 6 speed... CJ360 came with 5 speed if I'm not mistaken.
Click to expand...

Yes, you are correct. The CJ360 was the cheapy version...It offered the 5 speed and No electric start...kick only.

You can swap in a six speed from a CB or CL, but you need the gears and the drum. The shaft and countershaft aren't necessary (I don't think), but it's usually all sold together.

Yeah ive got a 5 and want a six

Sonreir will it stay in the case I have or will I need to replace the case?

if you swap cases w a CB/CL you will either have to install a starter or get PJ to machine a plug to fill the starter cavity.

It'll fit in your current case. The only difference between the cases is the starter motor cutout.

Good deal. A quick FYI though... you probably won't be able to pull to redline in 6th unless you find a few more ponies. 6th is just for dropping the revs a bit if you do a lot of highway driving. 5th is already an overdrive gear, 6th even more so.
