So I am going to catch this up on here from another forum. I was more active here when I built my XS1100 Cafe, So why not stick around?

Well, here we are again, a shit box bike that needs to be saved. Long story short, it looks to be a '72 Motor in a '75 Frame with a welded on Bolt on Hard tail. Clearly owned by the wrong people for some time, but I suspect the person who originally built it in the late 70s had a decent bike. I have been looking for a beater platform to use some of the parts I've saved up for a few years and this one came to me cheap. by cheap, I will say $450. It doesn't run, but it did come with a classic "I was riding it up until last month" warranty.

I will try to get this thing in the right direction and see where it ends up. I have built a few bikes, but never a rigid bike so this will be more of a learning experience than anything. It will be a bit of a Father/Son deal with my dad too.

Pros:
$450 w/NH reg
Hexagon Oil Tank
Flawless Peanut tank
Mikuni Carb
Borrani Front Rim
DEW MFG Triple Trees
4+ ? Showa Forks
Decent Tires

Cons:
Everything was painted black or red.
Hardtail is eh
Rake job is eh
"Jockey Shifter"
Door bell push start
Overall dangerous wiring
Punisher "Theme"
Leaking Head gasket
I had to buy it at night


Anyways.. Here is what I started with and we'll see what happens. Trust me, I basically bought it for the motor and barely the roller, everything else sucks.

From CL
00707_arDbP9ImU6y_600x450_zpsvg1gsghm.jpg~original

00o0o_qo2OMkuSUc_600x450_zpsliavh8zj.jpg~original


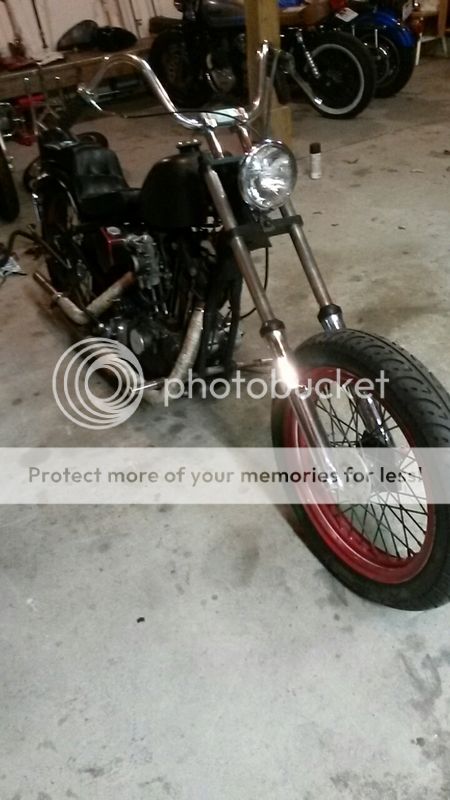

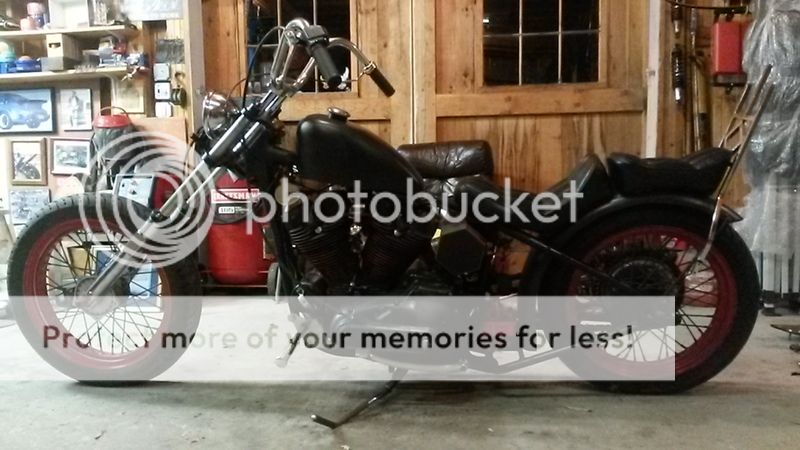

Home, Pretty Much what I expected
1_zpst1mqta8m.jpg~original

IMG_20161026_195439_zpsoyfi4ckf.jpeg~original

front%20before_zpsnor9ditd.jpeg~original

side_zps5afsuf4d.jpeg~original


12/1:

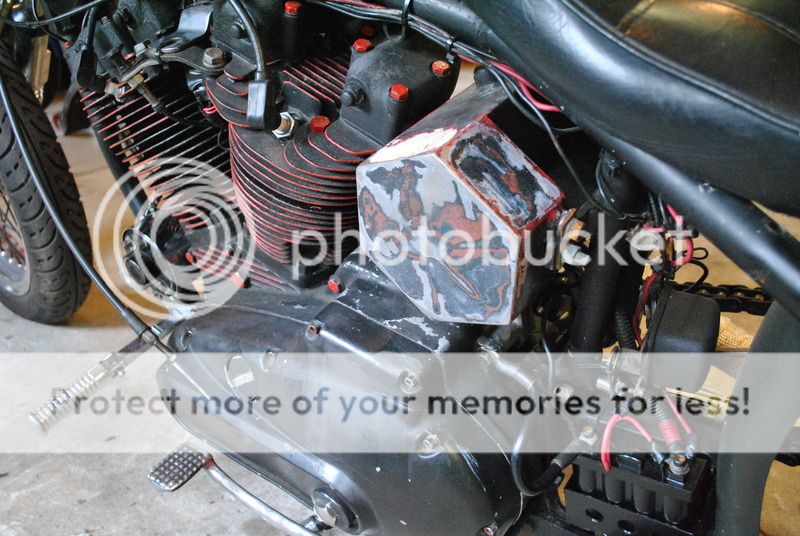

DSC_0134_zpswoatmkfg.jpg~original


Scary. This wiring just in time for Halloween
wiring_zps3vtirtbj.jpeg~original

starter_zpsf2oyvfrp.jpeg~original

speaker_zpsnxmfnpp0.jpeg~original


Just Wow.
shifter_zpsvi5yqobo.jpeg~original

seat_zps9g30u8ui.jpg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

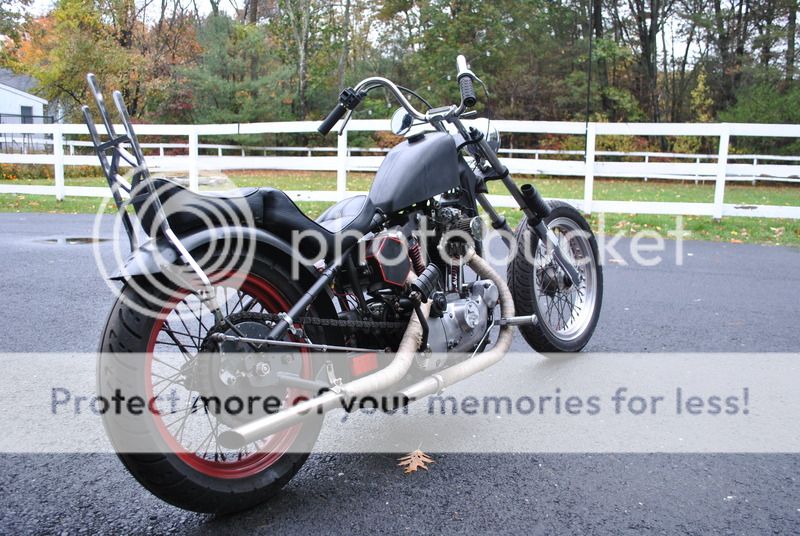

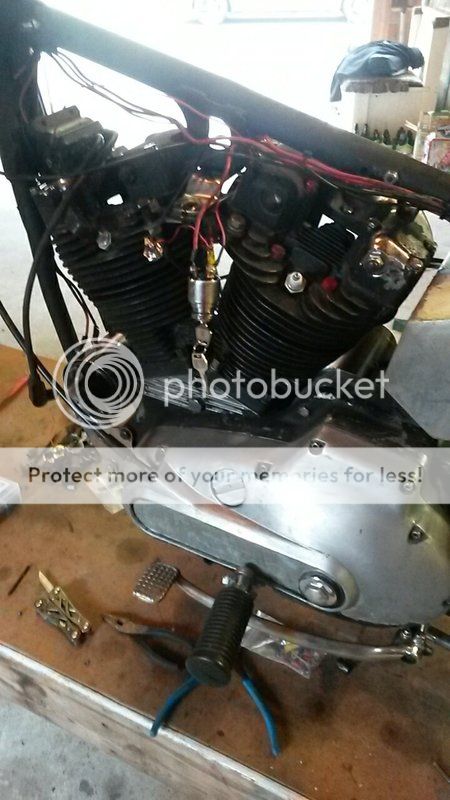

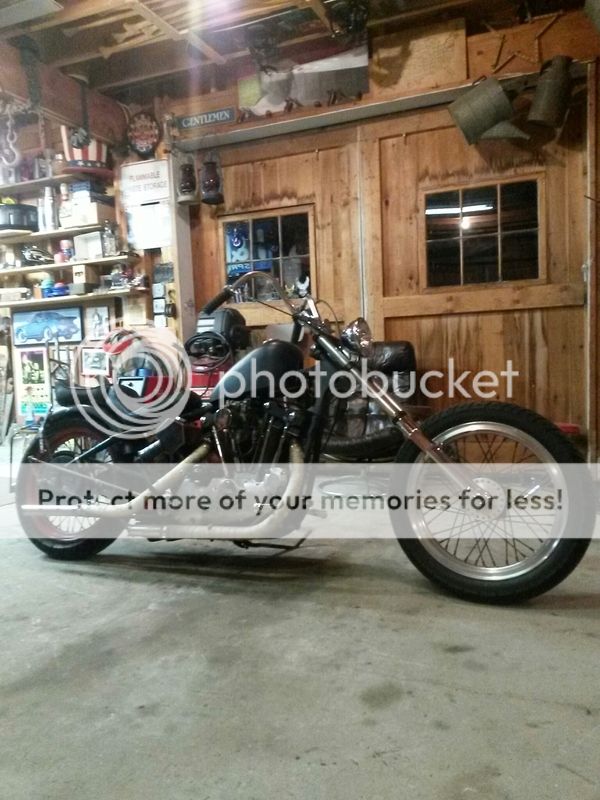

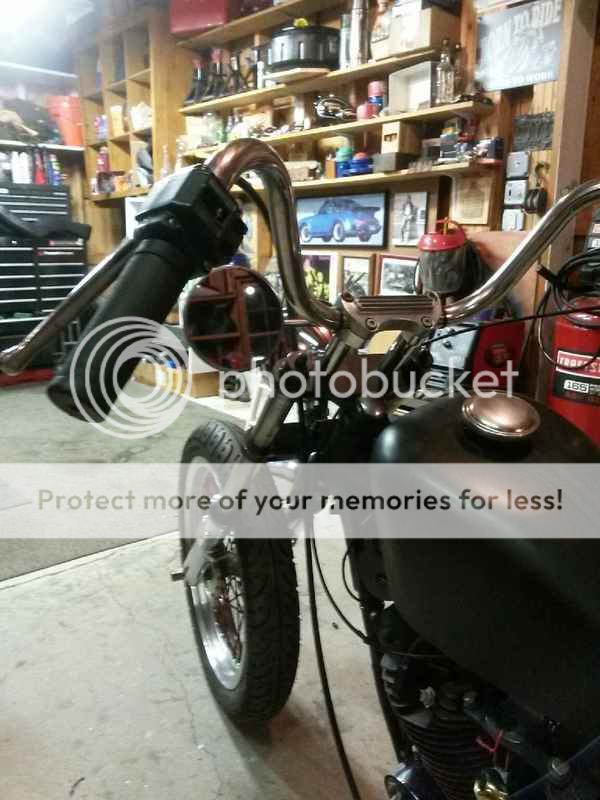

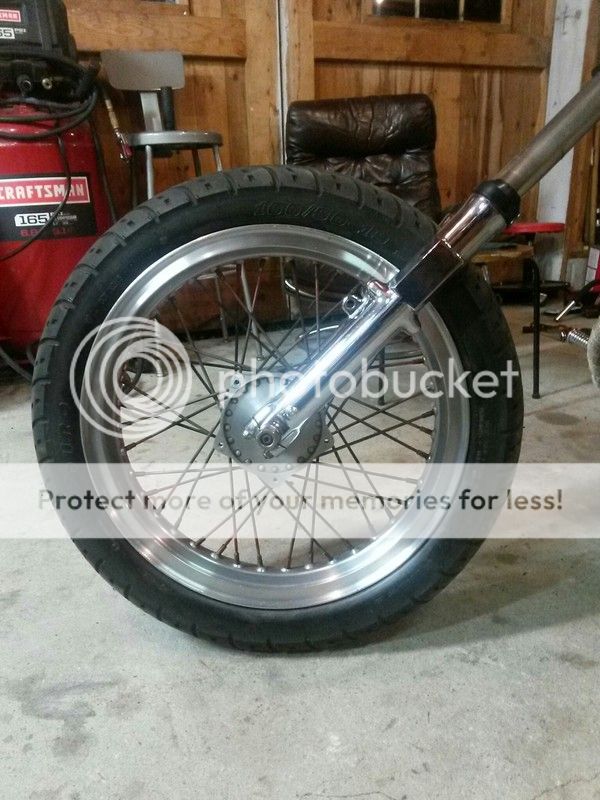

So 4 Hours after I got it it looks like this. The Front rim has also been stripped back to Aluminum and is in great condition thankfully.

DSC_0124_zpstx21w8x4.jpg~original


better_zpssda5l8xa.jpg~original


better%20front_zpsedhqlgqm.jpeg~original


DSC_0122_zpsfctacb9t.jpg~original


DSC_0121_zpsama9rkm3.jpg~original


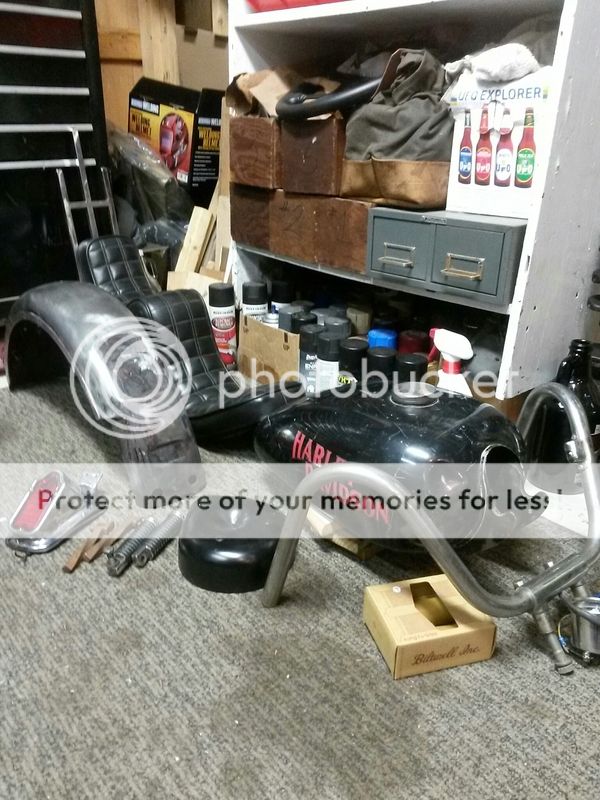

And a few of the scratch and dent parts that may make it on in some way
IMG_20161020_2239251_zpsdekvnsw8.jpeg~original


My Nikon is on the charger so I will start getting better pics than my Samsung


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

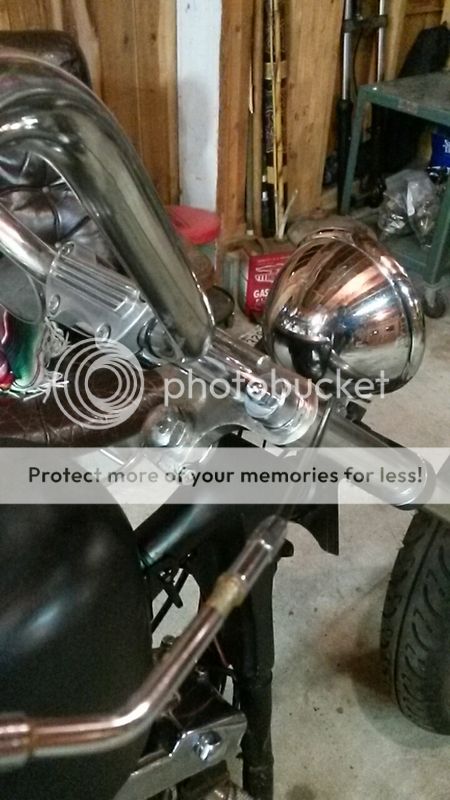

After some detective work, I have found the drilled rotor to fit this Borrani Rim. I also I.D. the Triple trees to be DEW MFG, which I will strip back to chrome likely this afternoon.

IMG_20161027_213341_zpstko63i4i.jpeg~original


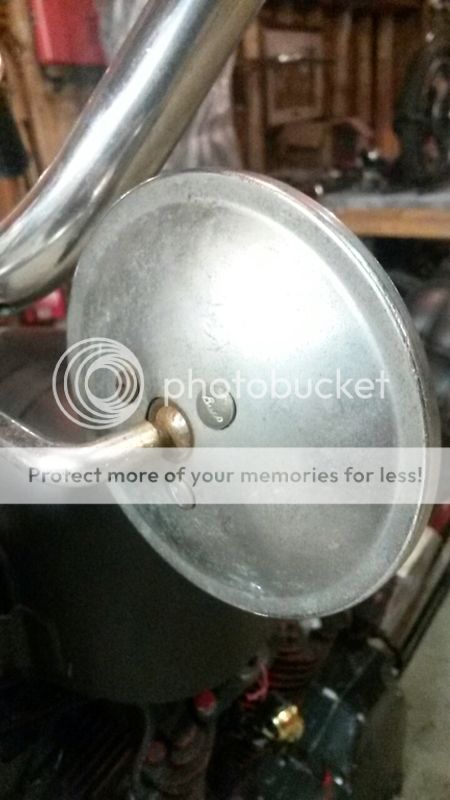

Buco Mirror
20161027_183257_zpsai6vjsib.jpeg~original


IMG_20161027_204410_zpsv8c9dc2f.jpeg~original


IMG_20161027_224046_zpsccm17uvp.jpeg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

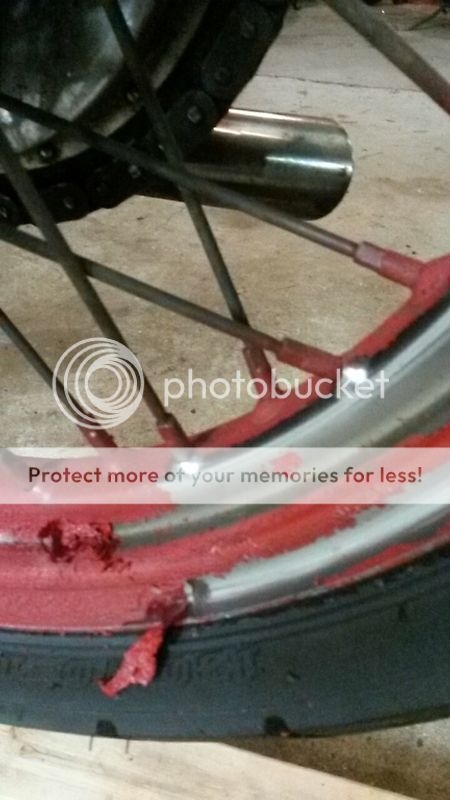

Got a lot done this weekend! Both Case covers are back to Raw Alum. Almost all of the red paint is off of the rear wheel and the chrome is decent underneath. The Top end gaskets are ordered, along with the stock mid mount footpegs, an actual key and a new push button starter. Managed to take a bent XL shifter and graft it to the original half on the "Jockey Shift" Almost done, but there are some process pictures of that too

Here a few more shitty pictures..

20161029_203656_zpsxglp4y7c.jpg~original

20161029_203711_zpsvm4zp1m7.jpeg~original


Strip for me
20161029_175327_zpsopmfyari.jpeg~original


Still need to strip the black off the rocker covers, but I'll probably wait until I tear down the topend. That is the height I am going to tab the tank at, and the coil relocation will be nice.
20161030_000056_zps8so9xmzf.jpeg~original


IMG_20161030_114928_zpsqhj9cgtq.jpeg~original


IMG_20161029_202429_zpsypwmi3e7.jpg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

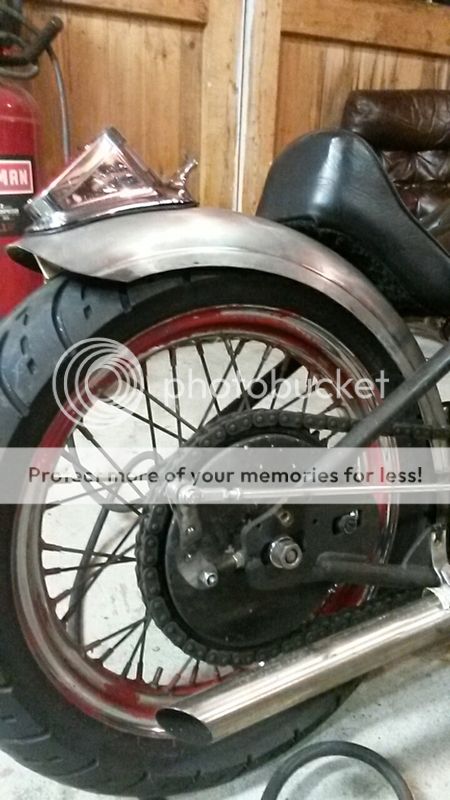

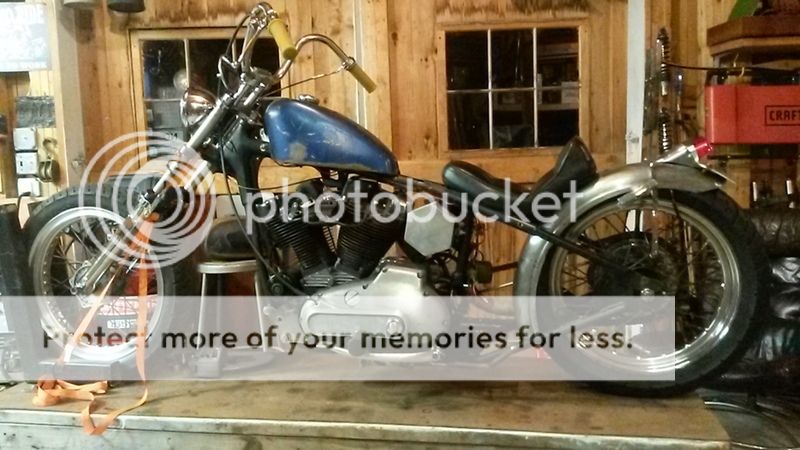

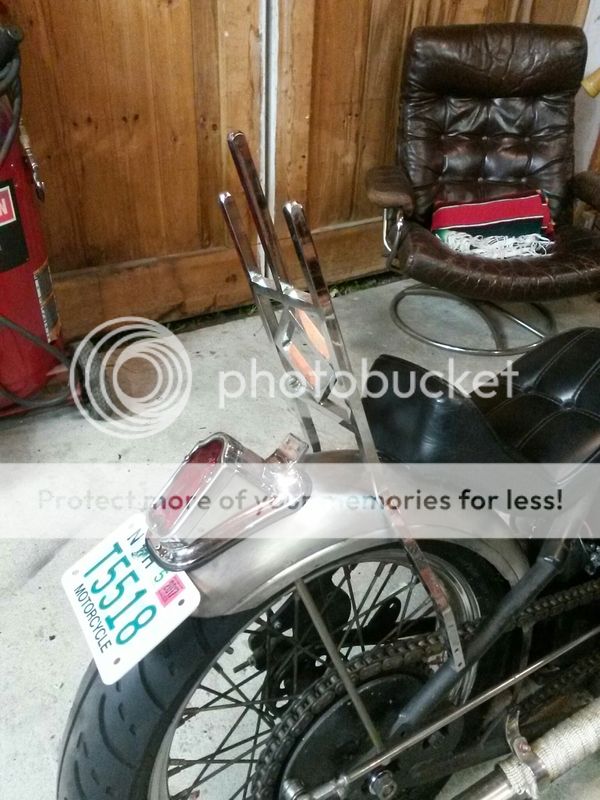

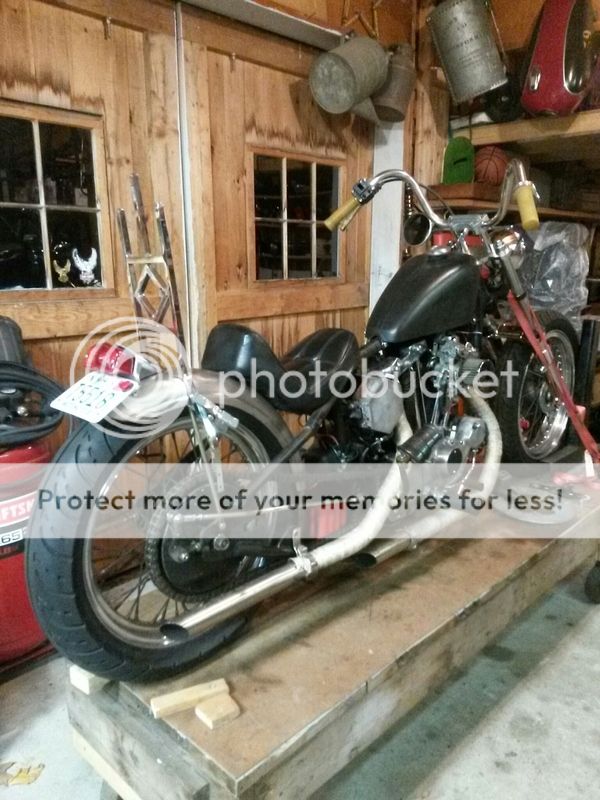

Hey guys, here are some more shitty pictures of what happened last night. Cut down the beater 72 fender I had and mocked up the Tombstone taillight. I think I will end up running it as a solo seat with a modified Bates style P pad, but the rear bucket from the lepera will be too long for the proportions of the frame. The rear rim is stripped, mid pegs mounted, some more paint removed, the triple tree was stripped, but the chrome was half sanded to the copper layer.

A little back yard fab. Better than what was on it and it cost $0
20161102_190353_zpsd0ya0hrt.jpeg~original

20161102_190522_zpsg5zqosqo.jpeg~original

20161102_191110_zpsfexkow9r.jpeg~original

20161102_193429_zpszeptmsah.jpeg~original


A little preview of the Caliper, the Pie Slice caliper is in the mail. I know they are crap, but I'm trying to go with a resto chop.
20161102_223443_zpspwckyoyr.jpeg~original


The Dew Tree stripped a little
20161102_205935_zpstfs2hzmd.jpeg~original


The new profile direction
IMG_20161102_212111_zpsvfguq9x4.jpeg~original


And I'm leaning toward the Trident with the diamond in this spot.
IMG_20161102_224338_zpscwwflkhf.jpeg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

Well, none of my shit came in on Saturday so I didn't get as much done as I wanted to. I did get a spacer made for the Rear brake lever, I bent an offset in the brake rod to tuck it in a little, wired in the Ignition and the Push button start and was able to get it cranking.

The moron I got it from completely fucked the points and condenser. None of the screws were correct, one of the stand offs was stripped in the case cover, the timing advance had a sheered off roll pin and will need to be replaced as well. All and all, the case cover was already crack and previously rewelded twice, so I ordered another, Dynatek S comes in today, etc etc

The bike does crank over though, compression seems strong.

20161105_154905_zps8lgpmvnv.jpeg~original

20161105_162710_zpsakqbudai.jpg~original

20161105_162636_zpsgsvjku9y.jpeg~original


Pie Slice
IMG_20161103_215041_zpsaldu1wpy.jpeg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

Got the Dyna ignition in last night after some fucking around with stripped and mismatched bolts. The replacement XLH covers I bought were actually worse than what was on it and one of the gear carriers was cracked at the oil passage, so there's $50 wasted. At least the screws came out of the one on it. Replacing the sheered roll pin in the timing advance was also a bitch and I think one of the Advance springs needs to be replaced. Should be good to start once I get it timed.

Dyna S
20161115_1914440_zps8wky63pu.jpeg~original


Found cut offs from the Sissy I put on my Dyna, Should help get the trident to the right height once I'm done with them.
20161115_201421_zpswkp6lg2w.jpg~original

IMG_20161115_213113_zpshuf9jcon.jpeg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

Some minor updates, been busy cleaning up the shop before the snow flies and trying to hustle some parts to get through the holidays.

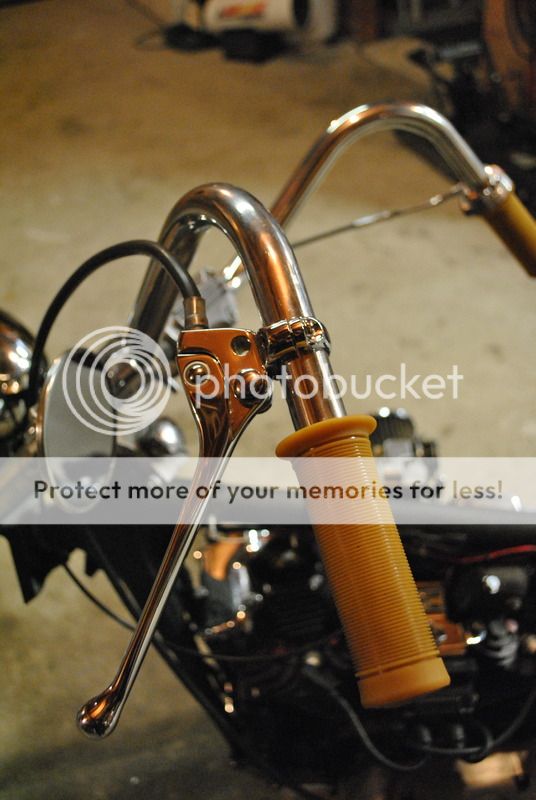

I did replace the switch housing clutch perch with the K Model style which is a huge improvement
20161117_183726_zpsaxwlxicj.jpeg~original

20161117_183718_zpsqdh1ry6r.jpeg~original


I got a little lifted and decided to bust out the sewing kit. It's not perfect, but the entire front seam had pulled out twice and looked like hell. This will pass
20161117_200555_zpsql6swffv.jpeg~original


Trying to get the timing done before Thanksgiving so I can do burnouts in front of my grandma

Cheers


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

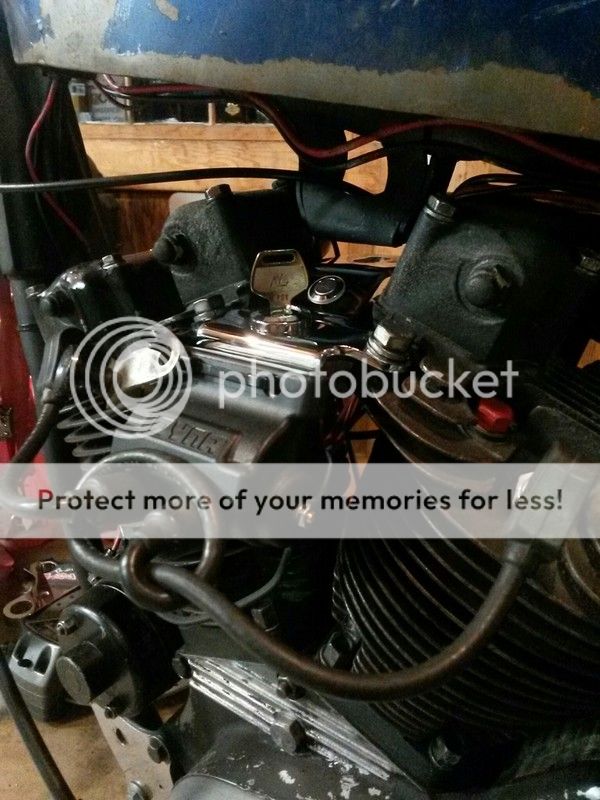

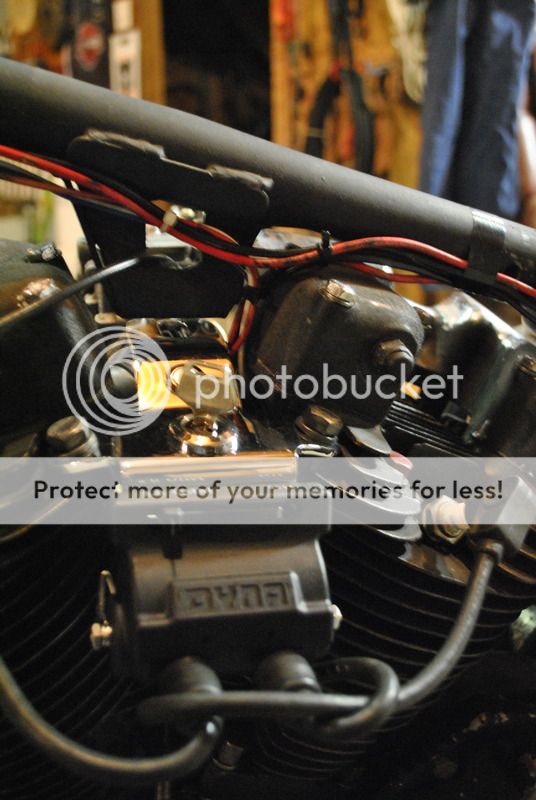

Got the Upper motormount/push button start/ key/coil/ choke mount in last night. Should be a great upgrade to the doorbell and the fog light switch. I also have this Old Paint tank that needs the rear tabs rewelded so I may frisco this one and save the "good" one.

20161121_220109_zps1nhrlm0h.jpg~original

IMG_20161121_214517_zpsv9wdfpvd.jpeg~original


Nothing like taking a drill to a brand new chrome bracket.
20161121_203002_zpsqd5gnact.jpeg~original

IMG_20161121_2116021_zpsctjoefbc.jpeg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

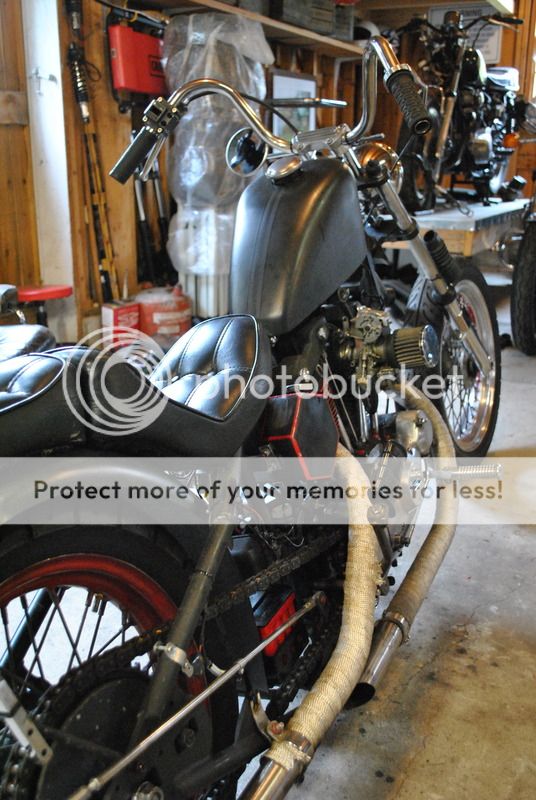

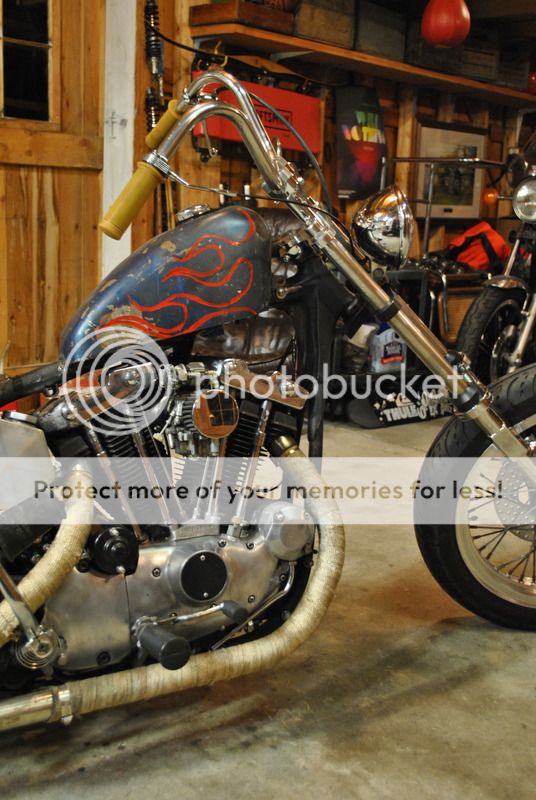

So I finally got a decent laptop so I can actually do internet shit without it crashing. A little hit to the wallet, but now I'm waiting on parts and fabbing the old freebies so it'll work out.

DSC_0134_zpswoatmkfg.jpg~original

DSC_0138_zpsk0yv55m2.jpg~original


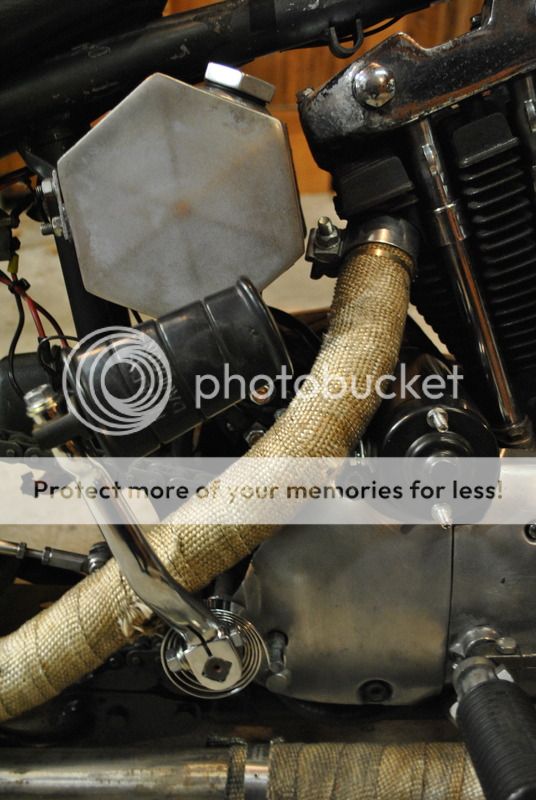

New Dixie Kick lever, the stock one was cracked and welded
DSC_0139_zps65kfpfaf.jpg~original


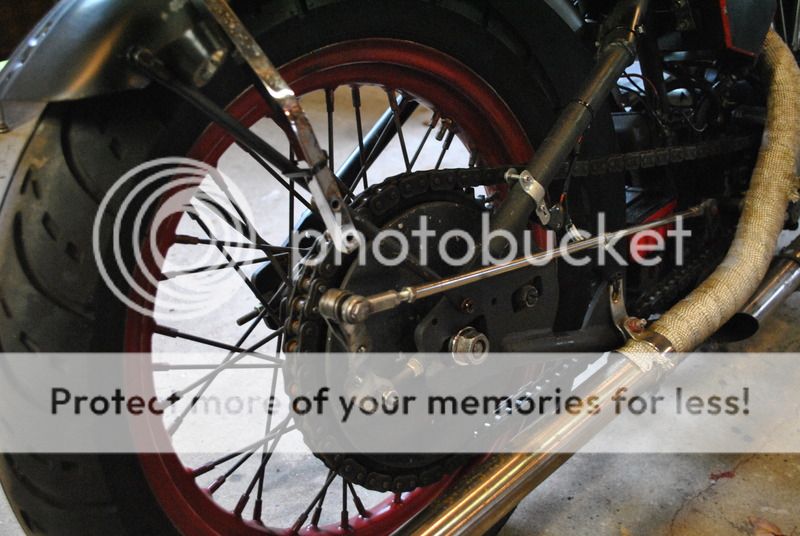

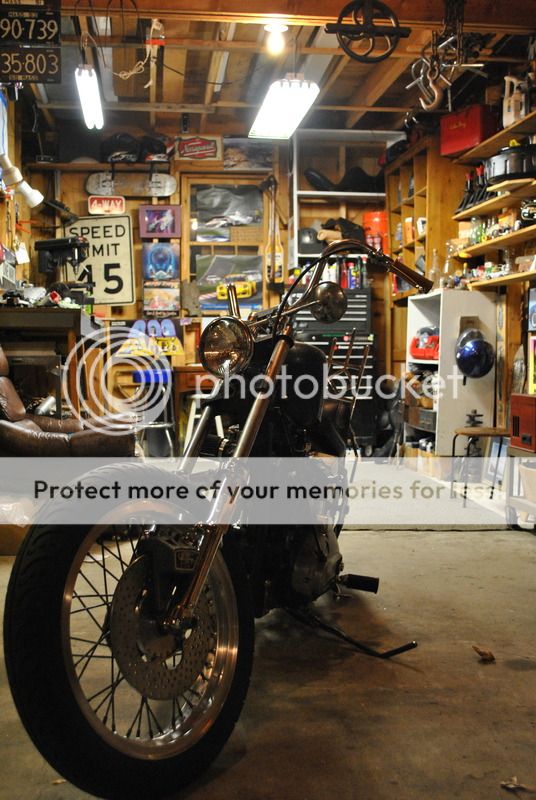

Front Brake set up mocked up, need to rebuild the caliper and get the master still
DSC_0137_zpshxwyzf7d.jpg~original


Front half of the wiring harness is rewired and mounted
DSC_0143_zpsnd4thydc.jpg~original


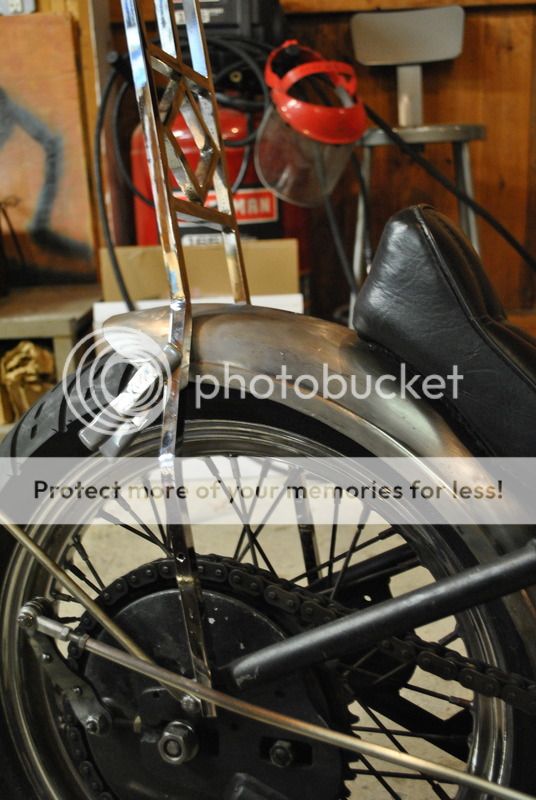

Also extended the $5 tweaker swingarm trident bar. still need to mount it and cut the height. Flux core did the trick with the off set weld.
DSC_0145_zpsee4pctkc.jpg~original

DSC_0147_zpsn7girdr9.jpg~original

DSC_0148_zpsbfq4a8zq.jpg~original



DSC_0144_zpsjprnhnhv.jpg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

So I want to take a second to tally up the parts bill on this one because I said I would on everything I've ever built, but never did.

Bike $450
Dyna S Ignition and Coil : $154
Rivera Primo Timing advance: $53.50
Dixie Kick Lever: $19.99
The Following Lot off craigslist: $140
HD Lolli pop
Old Paint tank w/cap and pet cock
Buco Mirror
Barron II Seat
Headlight
Bars w/ 4" risers
Kung Fu Grips $12
NOS Diamond P Pad: $32
Motor mount key/coil: $26.95
Dixie K Model Clutch lever: $13
NOS Dew Top Tree: $40
Misc timing parts: 24.69
NOS Rotor w/ new colony bolts: $44.23
Pie Slice caliper : $53.50
Stock Mid pegs : $65.17
Push Button Start and Ignition switch: $15.98
Trident Sissy Bar: $3

Total To Date: 1148.01
-$145 profit on a swap meet seat

$1003.01


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

Going through some of my olds man's photos, I found these of his '68 Trophy Sport and his '76 FXE. Too good not to share. The Triumph pics are from '72 and I think the FXE pic is from '77 or 8

Bills%2068%20Triumph_zpsikqyizig.jpg~original

Bill%20trophy_zpsnww4bg7e.jpg~original


Nothing like a White Corbin Gentry seat!
Bills%20Bike_zpsynyhfrqu.jpg~original


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

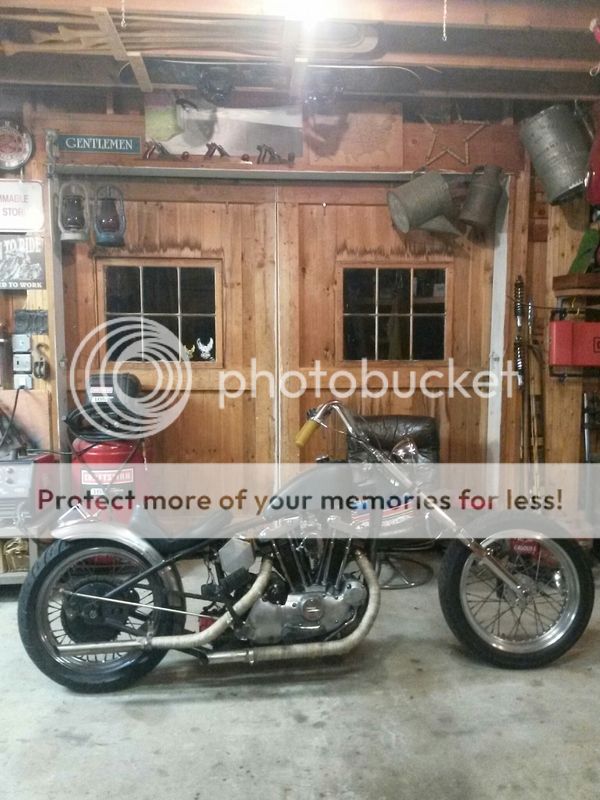

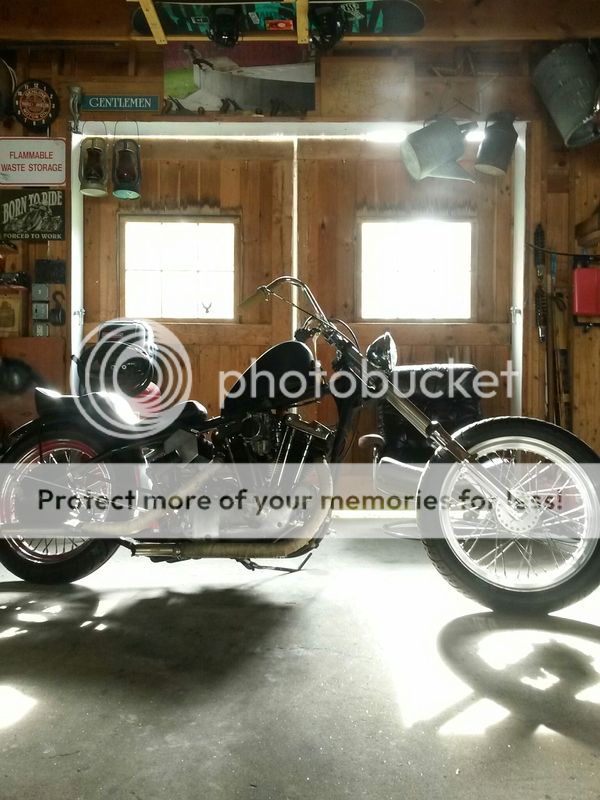

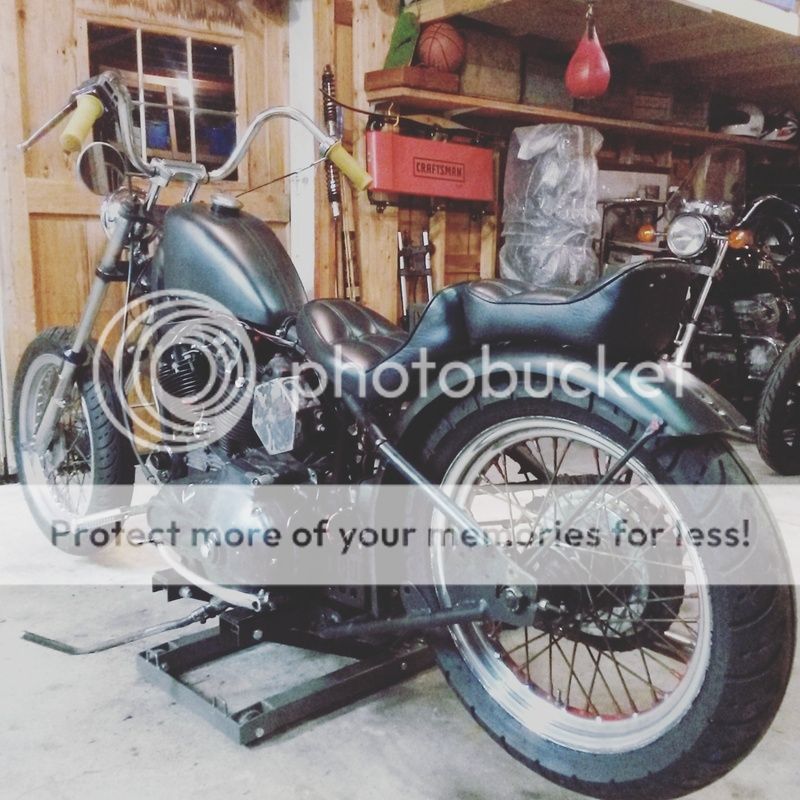

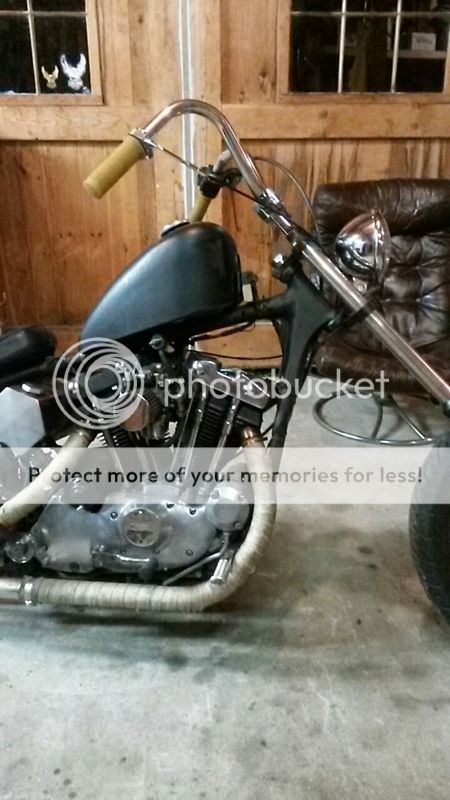

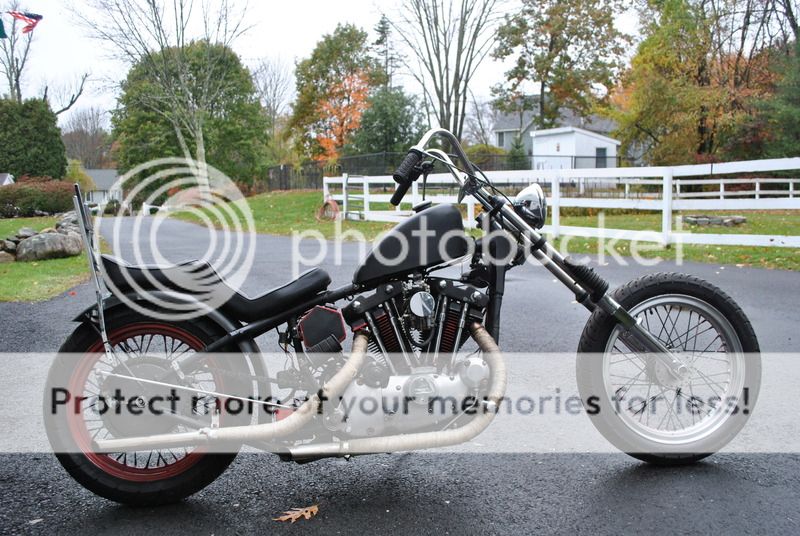

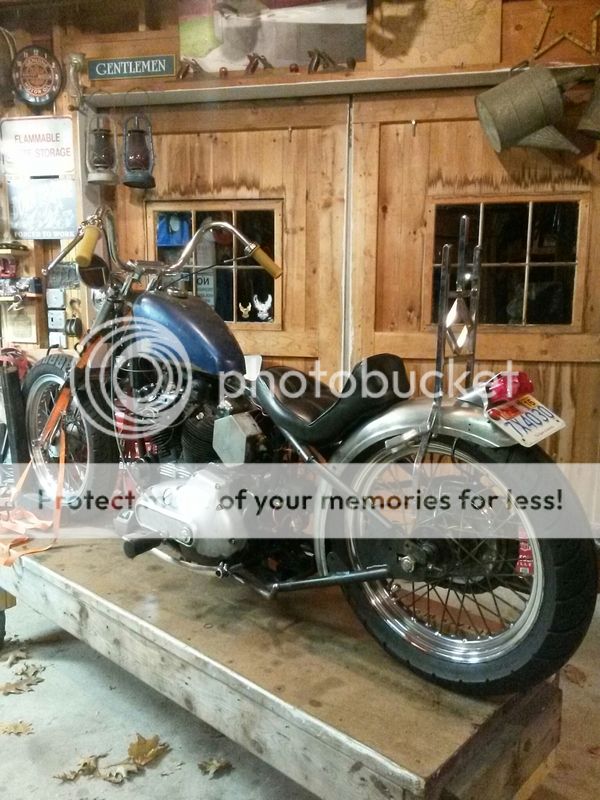

So here's a shitty picture of the bike, and a first mock up of the "Mufflers"

I finally wrapped my head around the timing of the Dyna ignition and holy shit, it kicked over and idles pretty good on shit gas and starter fluid. I will change the gas tomorrow and let the battery charge, but this is a huge milestone for me.

20161206_211052_zps3dxeawad.jpg~original


The TC Brothers hard tail kit is in the mail too, I only want to re-do the top drop outs for now, just to get ahead on the fender/sissy/etc.

Cheers


VonYinzer

Over 10,000 Posts
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

Everything about this is terrific. Spot on period chop. Keep the updates coming!!!!


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

you've done so much good to this thing man! awesome!!


NoHonestlyitsme

Build it and they will love
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

JustinLonghorn said:
I'm on board.

Hang on Tight!

VonYinzer said:
Everything about this is terrific. Spot on period chop. Keep the updates coming!!!!

Thanks VY, This whole build has only been going since 10/27/16 So the updates are fast and furious


hurco550 said:
you've done so much good to this thing man! awesome!!

Thanks Hurco! She had good bones and just needed to get over her Exes


canyoncarver

'hacking is learning'
DTT BOTM WINNER
Re: 1975 XLCH Sportster Hartail Chopper Turn Around The Junk Draw Special

You got a hell of a deal on that, good on ya for saving it.


verboten1

Der konig
I never thought I would say this about an old sporty, but I like it! Nice job cleaning it up.
