3 year Velocette rebuild

The Rockerbox had a scored tappet bearing, and some broken screws, all of which had to be sorted out. It was also warped on the base, and had to be ground flat on a glass sheet.


Attachments

  • DSCN1714.JPG
    3 MB · Views: 199
  • DSCN1718.JPG
    3 MB · Views: 188
  • DSCN1719.JPG
    3 MB · Views: 185
  • DSCN1720.JPG
    3.1 MB · Views: 183
  • DSCN1721.JPG
    3.1 MB · Views: 185
  • DSCN1724.JPG
    3.1 MB · Views: 182
  • DSCN1725.JPG
    2.9 MB · Views: 180
  • DSCN1731.JPG
    3 MB · Views: 187
The old mudguard was stainless, and cleaned up well from 30 years ago! With some new shocks, and the powder-coated rear light housing, it is starting to look like a real bike!


Attachments

  • DSCN1715.JPG
    3 MB · Views: 196
  • DSCN1716.JPG
    2.9 MB · Views: 170
  • IMG_0431.JPG
    2 MB · Views: 176
  • DSCN1804.JPG
    3 MB · Views: 170
The wheels were a real state. The spokes were rusted badly, but the alloy rims were not buckled. New Stainless spokes, a lot of elbow grease, and I was very pleased with the result


Attachments

  • DSCN1805.JPG
    3 MB · Views: 185
  • DSCN1806.JPG
    3.1 MB · Views: 196
  • DSCN1845.JPG
    3 MB · Views: 183
  • DSCN1871.JPG
    3 MB · Views: 173
  • DSCN1875.JPG
    3 MB · Views: 175
  • DSCN1881.JPG
    2.9 MB · Views: 189
Horror of horrors, the bottom yoke was bent. The forks were splayed out. i managed to find the last new original bottom yoke on the planet, and turned the old on off, and silver soldered the new one in. Phew...all good.


Attachments

  • IMG_0786.JPG
    1.2 MB · Views: 170
  • IMG_0802.JPG
    1.7 MB · Views: 170
  • IMG_0842.JPG
    2.2 MB · Views: 175
  • IMG_0843.JPG
    2.4 MB · Views: 167
  • IMG_0847.JPG
    1.8 MB · Views: 177
  • IMG_0853.JPG
    2.4 MB · Views: 181
  • IMG_0934.JPG
    1.7 MB · Views: 173
  • IMG_0939.JPG
    1.6 MB · Views: 172
  • IMG_0941.JPG
    1.6 MB · Views: 165
  • IMG_0944.JPG
    1.5 MB · Views: 173
I stripped the Dynamo, cleaned it up, the powder coated the casing, and rebuilt the internals...


Attachments

  • IMG_0858.JPG
    1.3 MB · Views: 174
  • IMG_0861.JPG
    1.5 MB · Views: 166
  • IMG_0863.JPG
    1.4 MB · Views: 164
  • IMG_0866.JPG
    1.5 MB · Views: 163
  • IMG_0870.JPG
    1.4 MB · Views: 166
  • IMG_0874.JPG
    1.6 MB · Views: 169

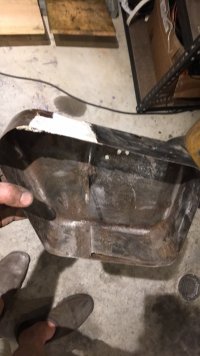

The toolbox was badly corroded. I cleaned it up, brazed some new plat in, filled the gaps, and powder coated it. I then turned up a stainless knob, and knurled it...not too shabby!


Attachments

  • IMG_0878.JPG
    1.5 MB · Views: 163
  • IMG_0886.JPG
    1.6 MB · Views: 165
  • EKGJ3707.jpg
    411.3 KB · Views: 154
  • IMG_0889.JPG
    1.8 MB · Views: 167
  • IMG_0989.JPG
    1.8 MB · Views: 172
  • IMG_1136.JPG
    1.6 MB · Views: 169
  • IMG_1137.JPG
    1.5 MB · Views: 162
  • IMG_1140.JPG
    1.7 MB · Views: 159
The Tank was next...rough but solid. One small hole, caused from vibrating on the cylinder head. I cleaned it, silver soldered the hole, and filled the dents.


Attachments

  • IMG_1158.JPG
    2 MB · Views: 163
  • IMG_1160.JPG
    1.8 MB · Views: 157
  • IMG_1166.JPG
    1.8 MB · Views: 154
  • IMG_1189.JPG
    2 MB · Views: 172
  • IMG_1193.JPG
    1.7 MB · Views: 146
  • IMG_1194.JPG
    1.8 MB · Views: 144
  • IMG_1199.JPG
    2.1 MB · Views: 142
  • IMG_1201.JPG
    1.8 MB · Views: 152
Then I cleaned the inside, by rotating the tank on a shaft, with it holding some wood screws. Then washed it with acetone, dried it, and lined it with Caswell


Attachments

  • IMG_1203.JPG
    1.5 MB · Views: 140
  • IMG_1205.JPG
    1.4 MB · Views: 165
  • IMG_1219.JPG
    1.7 MB · Views: 149
  • IMG_1223.JPG
    1.4 MB · Views: 148
  • IMG_1224.JPG
    1.3 MB · Views: 154
  • IMG_1256.JPG
    1.5 MB · Views: 148
  • IMG_1285.JPG
    1.9 MB · Views: 148
  • IMG_1295.JPG
    1.8 MB · Views: 157
I made a makeshift spraying booth, mounted the tank on a rotating mount, and put multiple base, top coats on. The added some logos, and did my own pin-striping (practicing first on a bucket). Finally a few coats of topcoat, and I was happy about how it came out. Not perfect, but good enough.


Attachments

  • IMG_1291.JPG
    1.8 MB · Views: 147
  • IMG_1298.JPG
    1.8 MB · Views: 155
  • IMG_1319.JPG
    1.8 MB · Views: 145
  • IMG_1405.JPG
    2 MB · Views: 154
  • IMG_1409.JPG
    1.4 MB · Views: 147
  • IMG_1420.JPG
    1.9 MB · Views: 155
  • IMG_1436.JPG
    1.8 MB · Views: 143
  • Finished Tank 3.jpg
    Finished Tank 3.jpg
    67.3 KB · Views: 140
  • Finished Tank 2.jpg
    Finished Tank 2.jpg
    76.9 KB · Views: 150
  • Finished Tank.jpg
    Finished Tank.jpg
    72.6 KB · Views: 149

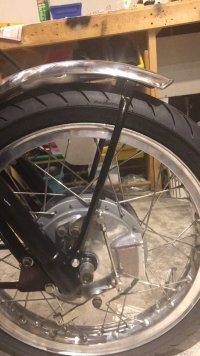

I could only get a pattern stainless front mudguard. The rolled front edge was horrible, so I silver soldered a stainless rod in, buffed it up, and it came out very nice.


Attachments

  • IMG_1459.JPG
    2.6 MB · Views: 162
  • IMG_1461.JPG
    1.5 MB · Views: 151
  • IMG_1462.JPG
    1.3 MB · Views: 154
  • IMG_1465.JPG
    1.3 MB · Views: 157
  • IMG_1469.JPG
    1.6 MB · Views: 150
  • IMG_1471.JPG
    1.6 MB · Views: 158
  • IMG_1473.JPG
    1.9 MB · Views: 149
  • IMG_1488.JPG
    1.4 MB · Views: 149
  • URZO1627.JPG
    532.7 KB · Views: 154
I don't have any good images, but the wiring loom was shot to hell. I built my own wiring. 6V, positive earth, but a separate earth wire, and LED bulbs, and a 14 AH battery, so even if the Dyno fails, I have 8+ Hours of headlight illumination. I lightly serviced the mechanical regulator. All seemed to work well


Attachments

  • IMG_1417.JPG
    1.4 MB · Views: 156
  • IMG_1439.JPG
    2 MB · Views: 160
  • IMG_1440.JPG
    1.6 MB · Views: 153
  • IMG_1456.JPG
    1.4 MB · Views: 150
  • IMG_1457.JPG
    1.7 MB · Views: 173
  • IMG_1477.JPG
    2.2 MB · Views: 146
  • IMG_1479.JPG
    1.8 MB · Views: 161
  • IMG_1481.JPG
    1.5 MB · Views: 174
Then I put a new Exhaust & Silencer on, and Voila. I have been riding him again for about 3 years now, he goes well, but I did have to pull him down to replace the rings and the Big end (which I should have done the first time!)


Attachments

  • Fax in Basement 4.jpg
    Fax in Basement 4.jpg
    419.9 KB · Views: 190
  • IMG_4005.JPG
    6 MB · Views: 188
  • IMG_5213.JPG
    3.8 MB · Views: 177
  • Poolsville Meet.jpg
    Poolsville Meet.jpg
    424.4 KB · Views: 173
I just noticed the tank and front brake. Is that a Thruxton by any chance?

I just noticed the tank and front brake. Is that a Thruxton by any chance?
Well he is a mongrel, with a number of Clubman and Thruxton bits (TLS front brake for example), but he does not have a Thruxton cylinder head, and GP carb, which are the bits that really count!
