'78 GL-1000 ABS Test-Bed Gone Wrong

[pidjones]

The stock carbs are CV and difficult to get right even with just an air filter change, so you are headed the right direction there. I suggest an electric fuel pump as the mechanical is limited. Always keep in mind that the GL1000 has a PM alternator, and controls voltage by dumping excess current through the regulator (not by controlling the field) to ground, so cutting load too much is not a gain - actually stresses the regulator more. The fan normally only comes on when stopped for a long time, riding at parade speed, or when slowing/stopping after a high speed run - the worst times for the electrical system. I commuted and toured on a '77 for a year and the fan only came on one time while riding after 15 miles of 60 mph followed by stop-and-go, and one time in the driveway after idling for ~15 minutes. But, I had a standard lead-acid battery and it had no problem. The temperature switch for the fan is the two-pole one near the front of the water manifold. A toggle around it is added by many as a safety measure.

'75 engines had the highest performance primarily due to cms and carbs. You might look into '75 cams.



[4AM Engineering]

Interesting points on charging and carbs, thank you!

Finals season, so I don't have huge updates right now. But! I've had some fun lately.

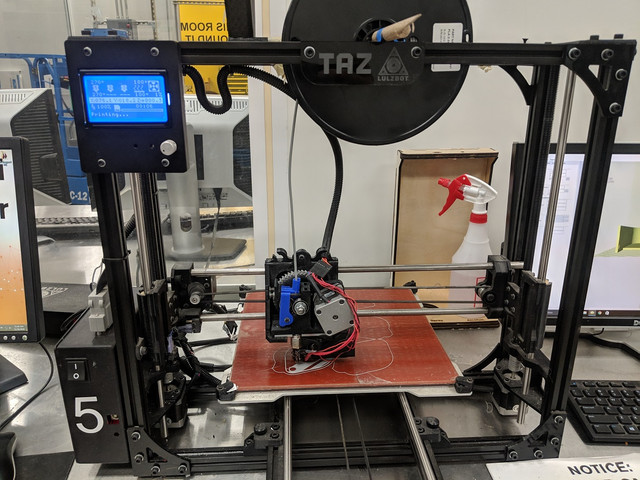

My first seat foam mold concept was to create a foam positive buck, bondo it, lay fiberglass for a negative, and then pour into that. After tinkering with it, I've decided to abandon this concept. Instead, I'll 3D print a negative mold and coat it with Smooth-On XTC-3D. The mold will be filled with Flex Foam-It 7FR from the same company. Just bought a Creality Ender 3 printer so I can make it at home.

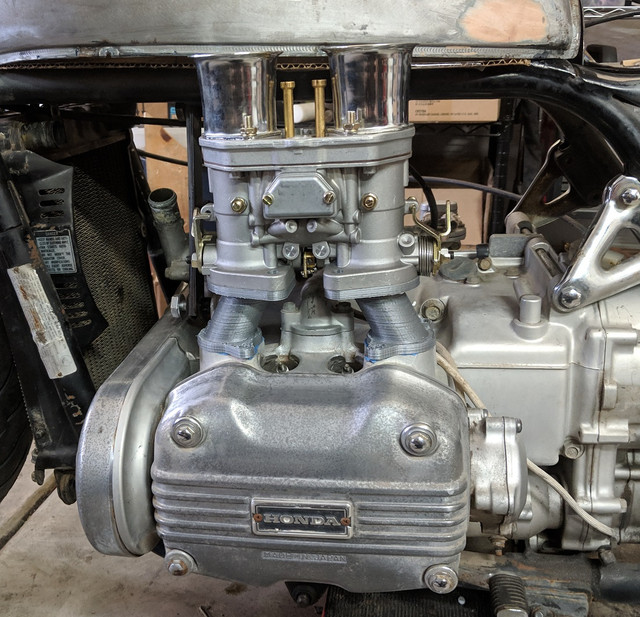

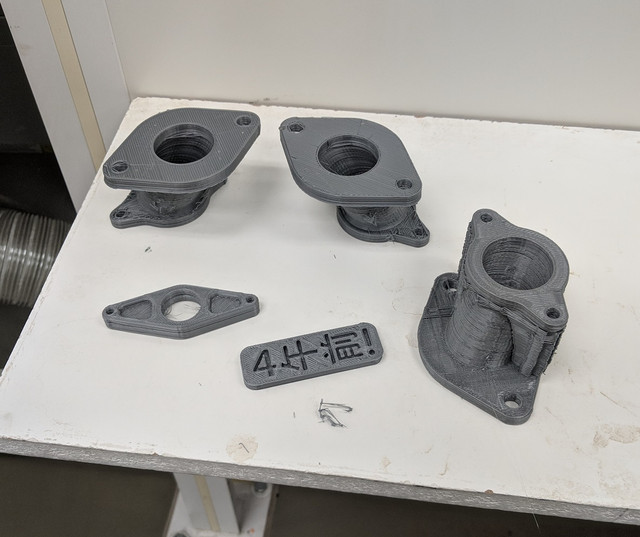

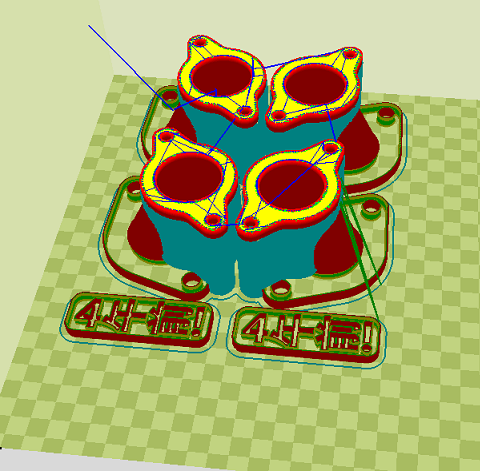

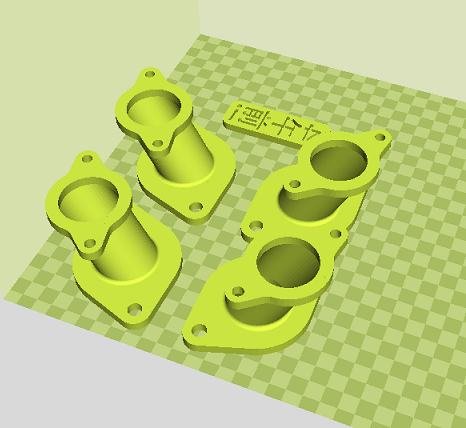

I also 3D printed some intake runners to verify dimensions before I send the files off to be waterjetted out of T304 stainless. I'm sticking to 1.5" tube as it will be easier to cope and work with - nothing fancy like Randakk's taper-bore stuff. I am considering 3D printing several intake manifolds to play with runner lengths later on - I've seen it before through Formula SAE.

Definitely goofed up my dimensions a little! It gets the point across at least.

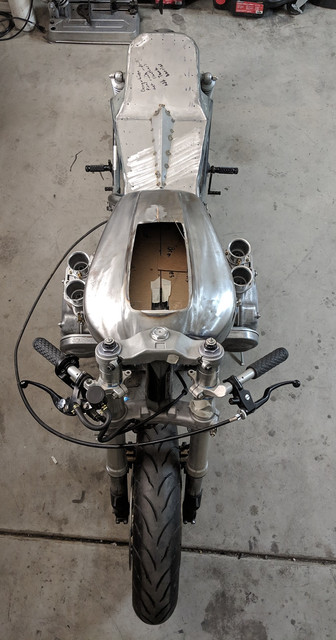

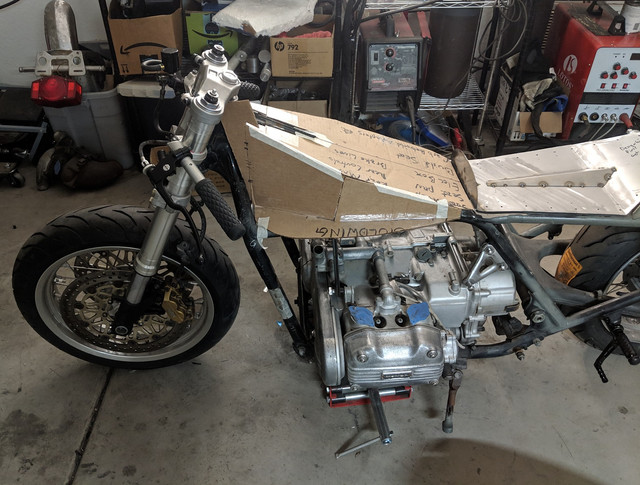

Also made a little progress on the gas tank. I just bought an english wheel and will patch the top with it after finals.

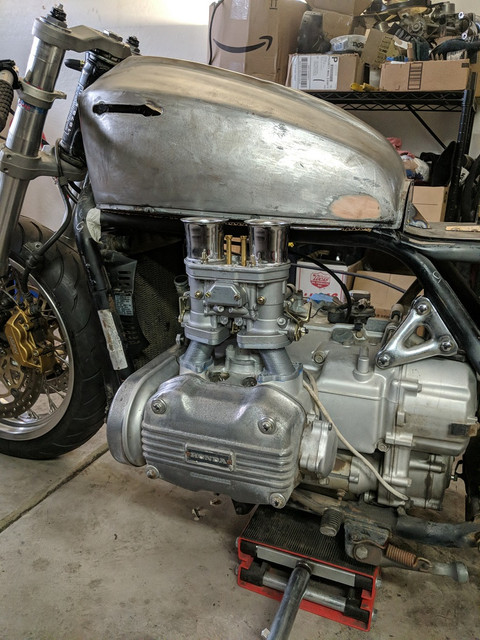

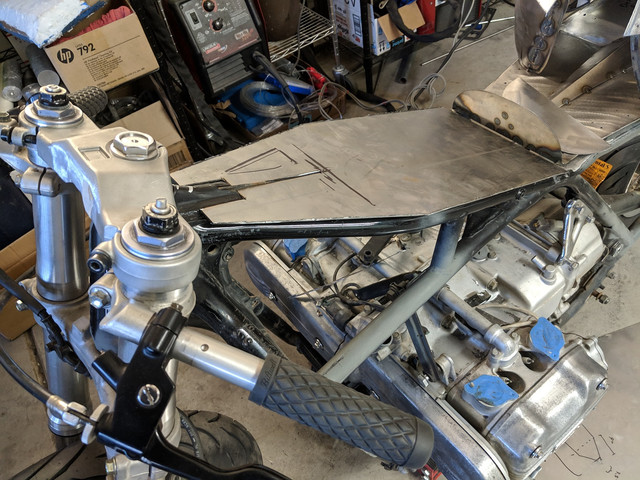

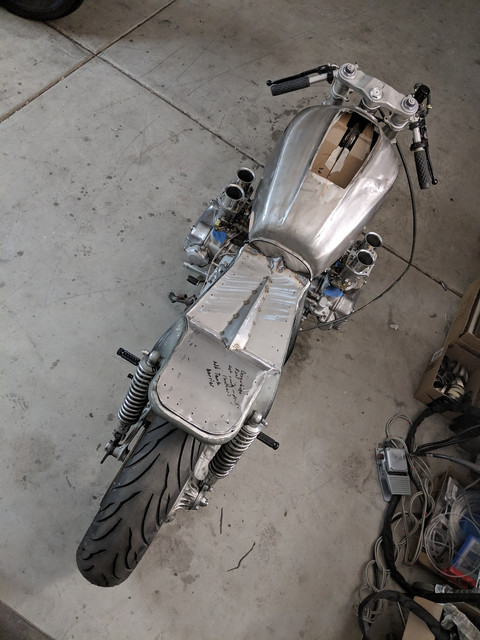

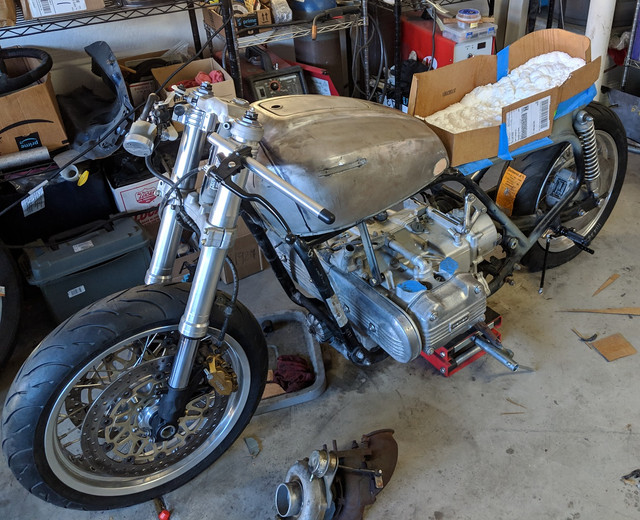

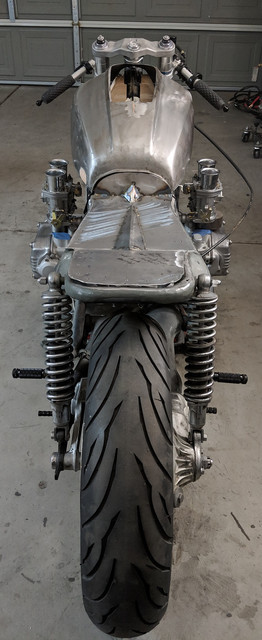

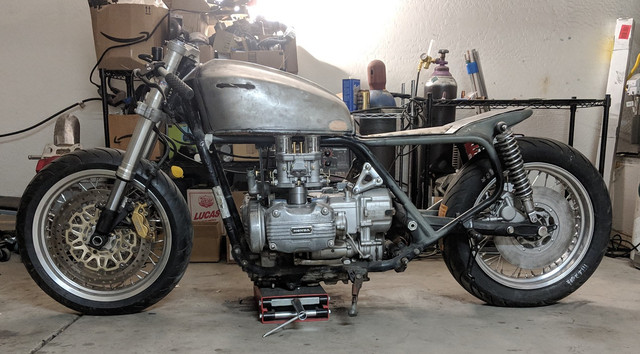

Some glamor shots...



[Sonreir]

Looking good.

As far as cutting the electrical load, that's fine, but be sure to upgrade your regulator/rectifier.

We have modern MOSFET units available, pre-wired to fit your bike and free shipping in the USA.

http://www.sparckmoto.com/Products/Detail/103



[Psycrow]

Is randakk a member here? He's got alot of cool gold wing toys..

Rendakk hangs over at NakedGoldwings.... Along with a bunchnof other great guys check it out if you into old wings without farrings and bags.

Psy

Sent from my LG-H873 using Tapatalk



[4AM Engineering]

It turns out that I'm pretty terrible at keeping threads going.

Somehow got the bike going alright though! Runs like a champ. Still lots of odds and ends to take care of.

Ended up 3d printing a seat from TPU which worked quite well. Motogadget everything, including front and rear turn signals. 3D printed pods for the brake lamps. Pie cut a full exhaust & TIG'd that together. The CB750 tank somehow works as well!



[JustinLonghorn]

Now that thing is all kinds of righteous. I can definitely dig it.


Sent from my iPhone using DO THE TON



[MHATBD]

Interesting points on charging and carbs, thank you!

Finals season, so I don't have huge updates right now. But! I've had some fun lately.

My first seat foam mold concept was to create a foam positive buck, bondo it, lay fiberglass for a negative, and then pour into that. After tinkering with it, I've decided to abandon this concept. Instead, I'll 3D print a negative mold and coat it with Smooth-On XTC-3D. The mold will be filled with Flex Foam-It 7FR from the same company. Just bought a Creality Ender 3 printer so I can make it at home.



I also 3D printed some intake runners to verify dimensions before I send the files off to be waterjetted out of T304 stainless. I'm sticking to 1.5" tube as it will be easier to cope and work with - nothing fancy like Randakk's taper-bore stuff. I am considering 3D printing several intake manifolds to play with runner lengths later on - I've seen it before through Formula SAE.

Definitely goofed up my dimensions a little! It gets the point across at least.









Also made a little progress on the gas tank. I just bought an english wheel and will patch the top with it after finals.




Some glamor shots...

Great build my friend!! It’s been a while and not sure if you’re still following the threads but still worth trying . Can you share CAD drawings for the webers manifolds? I am upgrading mine to EFI and the manifolds would fit perfect!
Cheers!!



[jmoses]

Great build my friend!! It’s been a while and not sure if you’re still following the threads but still worth trying . Can you share CAD drawings for the webers manifolds? I am upgrading mine to EFI and the manifolds would fit perfect!
Cheers!!

Your bike looks awsome, I was also wondering if you have share the file for your intakes?
