Anodising in the home workshop.

toglhot

New Member
I love polished aluminium. But sometimes a polished finish isn't appropriate either because you can't easily access the part, because you want it coloured or a host of other reasons.

I recently made a cable splitter,, but because it's mounted under the tank it's difficult to get to to polish. So, Ii decided to anodise it. Anodising is not difficult, there are a plethora of websites explaining the process, so you can either buy a kit or do as I did and set up your own. I already had some parts, a heavy duty plastic bucket, a battery charger/power supply unit and some aluminium for the cathode. All I had to buy was some acid, some demineralised water and some acetone.

Once I'd put it all together, I assembled the splitter and blocked the cable holes because I didn't want the bore anodised. I thoroughly cleaned the part with soap and water and acetone, diluted the acid, connected the power supply, immersed the part in the bath and switched on. This is the result.


Attachments

  • bath and power supply.jpg
    bath and power supply.jpg
    171.5 KB · Views: 81

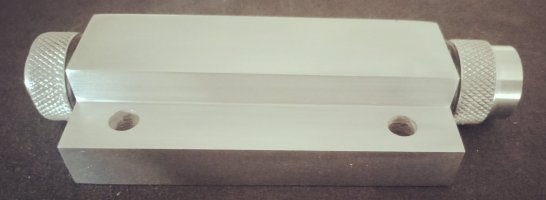

  • splitter assembled.jpg
    splitter assembled.jpg
    85.2 KB · Views: 87

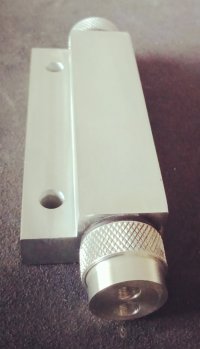

  • splitter assembled twin end.jpg
    splitter assembled twin end.jpg
    147.9 KB · Views: 85

toglhot

New Member
Tank and a few other bits done in acrylic lacquer. Haven't bothered to polish year as no doubt I will get chipped and scratched before it's finished and I'll have to paint it again.


Attachments

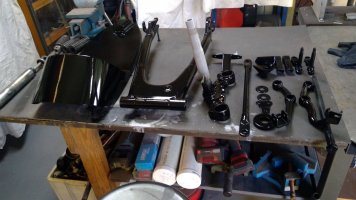

  • seat swingarm foot rests.jpg
    seat swingarm foot rests.jpg
    184.9 KB · Views: 74
  • tank hlight guard.jpg
    tank hlight guard.jpg
    120.2 KB · Views: 70

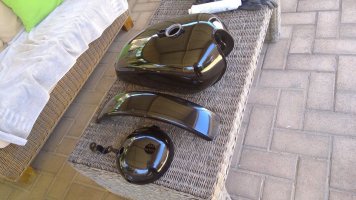

  • tank.jpg
    264 KB · Views: 68

sav0r

Coast to Coast
Nice work! I bought all of the stuff to anodize and just haven't had the time to play with it.
