So just to clarify, this build thread was started on another local forum. However, it lacked any traffic and interaction which is why I'm posting here! :). The build started on May 20th 2016 and the following shows updates I've posted since then all in one. The next update I have will be a different post.

So I bought "Auxiliadora" (OWSSSS-E-LEE-A-DOR-DA) just before the start of this last winter with the help of my friend Chris because I wanted to start a proper project. While I really wanted a car (aka a Supra <3(I'll get her one day :'()) my student budget limited me and there were no other cars that I was really interested in. So I took a look at some bikes that might be good candidates for a cafe racer build because Chris's build really intrigued me and I'd always wanted a bike so I figured I'd give it a shot. That's when I came across Auxiliadora, a pretty much all original 1981 CB750K with under 6500 km on it. At first glance, she was ugly as ****, but I saw potential in her after seeing a couple of amazing looking builds so I picked her up.

To clarify the name, Auxiliadora is my mothers original name prior to her immigrating to Canada. She's the person who has made me the man I am today and plays a huge part in my life. I felt the name appropriate given how original it is. Plus she hates the fact that I got a bike and I thought it might make her hate it less. She still hates it. ;Dation:



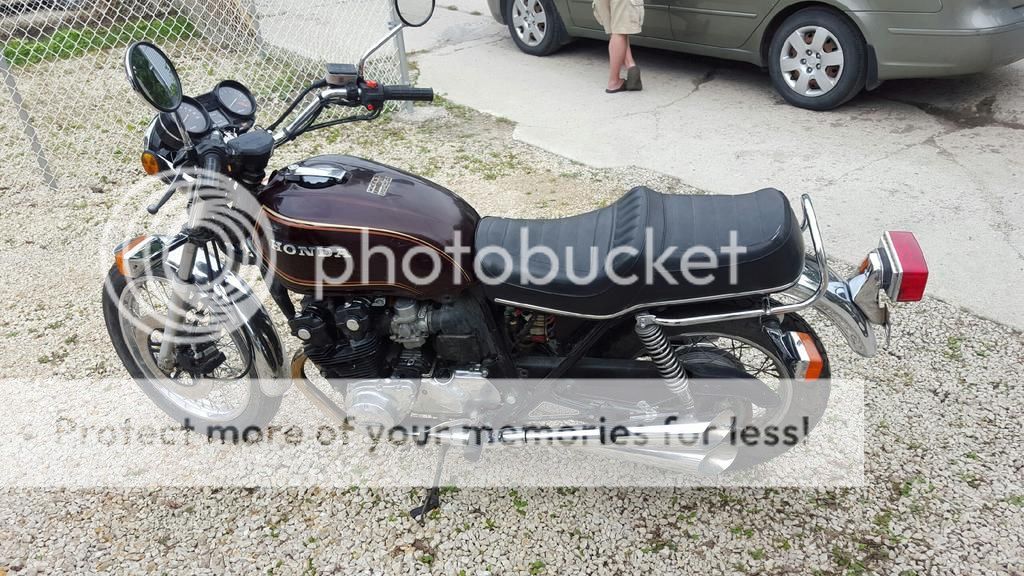

This is what she looked like the day I picked her up with Chris


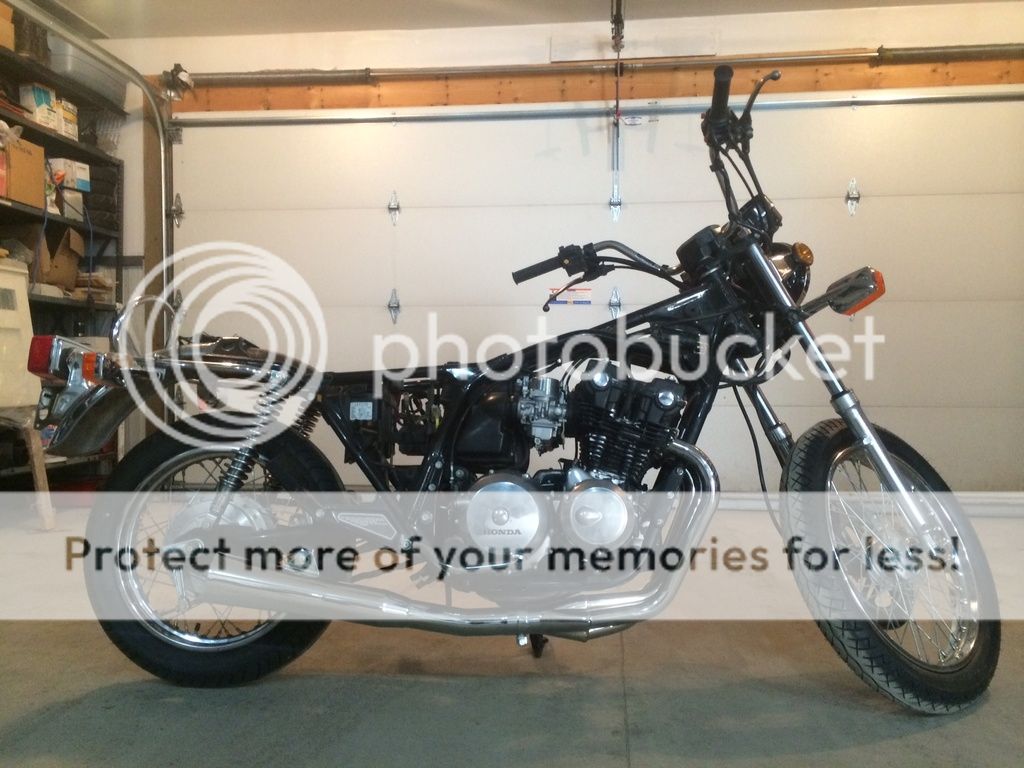

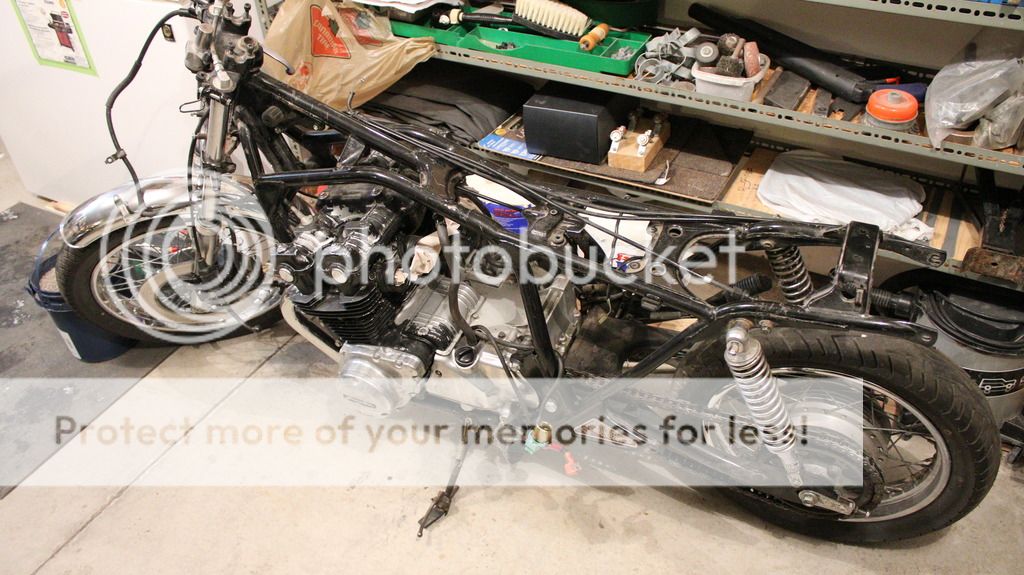

How the bike looks as of 05/20/16


01/03/17


03/30/17


04/24/2018


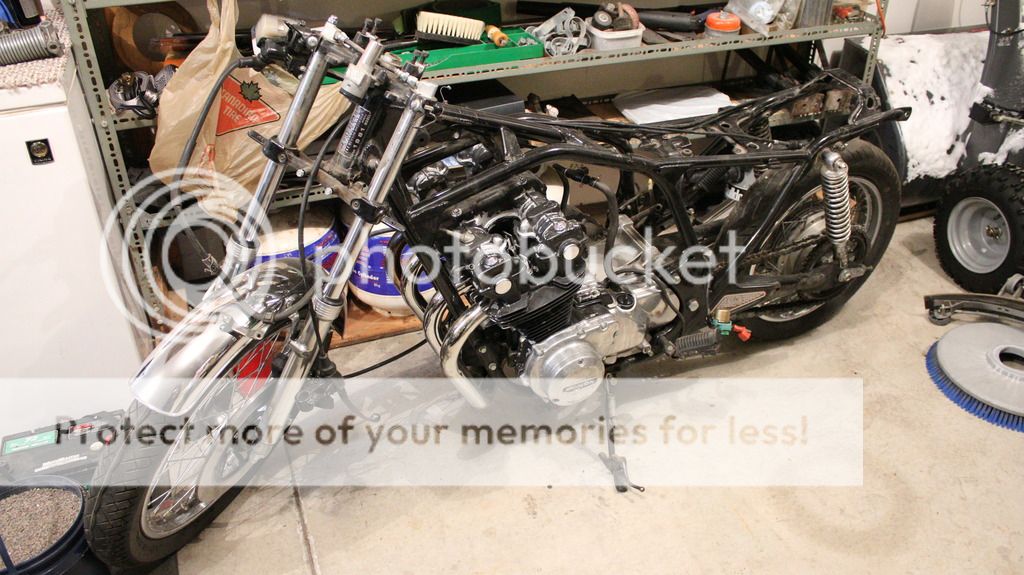

07/23/2018




She started but ran pretty poorly and consistently stalled out on Chris while he rode it home for me (didn't have my bike license at the time). The first time my parents saw the bike Chris and I were pushing it home from about a block and a half away because it stalled and wouldn't start back up :hurr: :lol:. After a bit more of an inspection when the bike got home I found she really needed some love. The tires were shot (thanks Chris for the front tire again <3), the carbs really needed a rebuild, the spark plugs were garbage, etc. So over the winter I ordered a number of parts and just recently really started to dig into the build process and am currently just attempting to get the bike started right now after sitting all winter.

Current Job List

Rebuild carbs
Replace spark plugs
Replace front and rear tires
Replace exhaust system
Oil change
Strip tank paint
Remove inner tank rust
Red Kote tank
Get the bike started
Tune Carbs/Get bike running properly
Safety
Insure
Remove ugly stock parts
Reseal/lower front forks
Upgrade electronics
Completely clean up wiring and tuck everything for a cleaner look
Rear frame loop
Seat cowl and pan
Custom seat
Rebuild engine
Powder coat frame
Strip chipped engine paint and refinish
Replace ugly air box
Install new parts

Parts List
NGK Iridium spark plugs
4" Chrome shorty mirror
MAC 4-1 exhaust
New Starter relay
New OEM tank Petcock
New OEM carb boots
Motogadget m-Blaze disc turn signals (polished)
POSH waffle grips
Nissin master cylinder 14mm
Polished aluminium throttle
JT Z1R X-ring chain
JT 46 tooth rear sprocket
JT 18 tooth front sprocket
Keiti license plate bracket
Chome clip ons
320mm rear shocks
Bridgestone Battlax BT-45 100/90-19 Front tire
Bridgestone Battlax BT-45 120/80-17 Rear tire
Motogadget M-unit V2
Motogadget Cable kit
Motogadget M-button V2
Motogadget 3-button M-switch x2 (polished)
Rear frame loop
Custom Dynamics TruFlex 2 LED Brake light
OEM piston rings
Braided front brake line

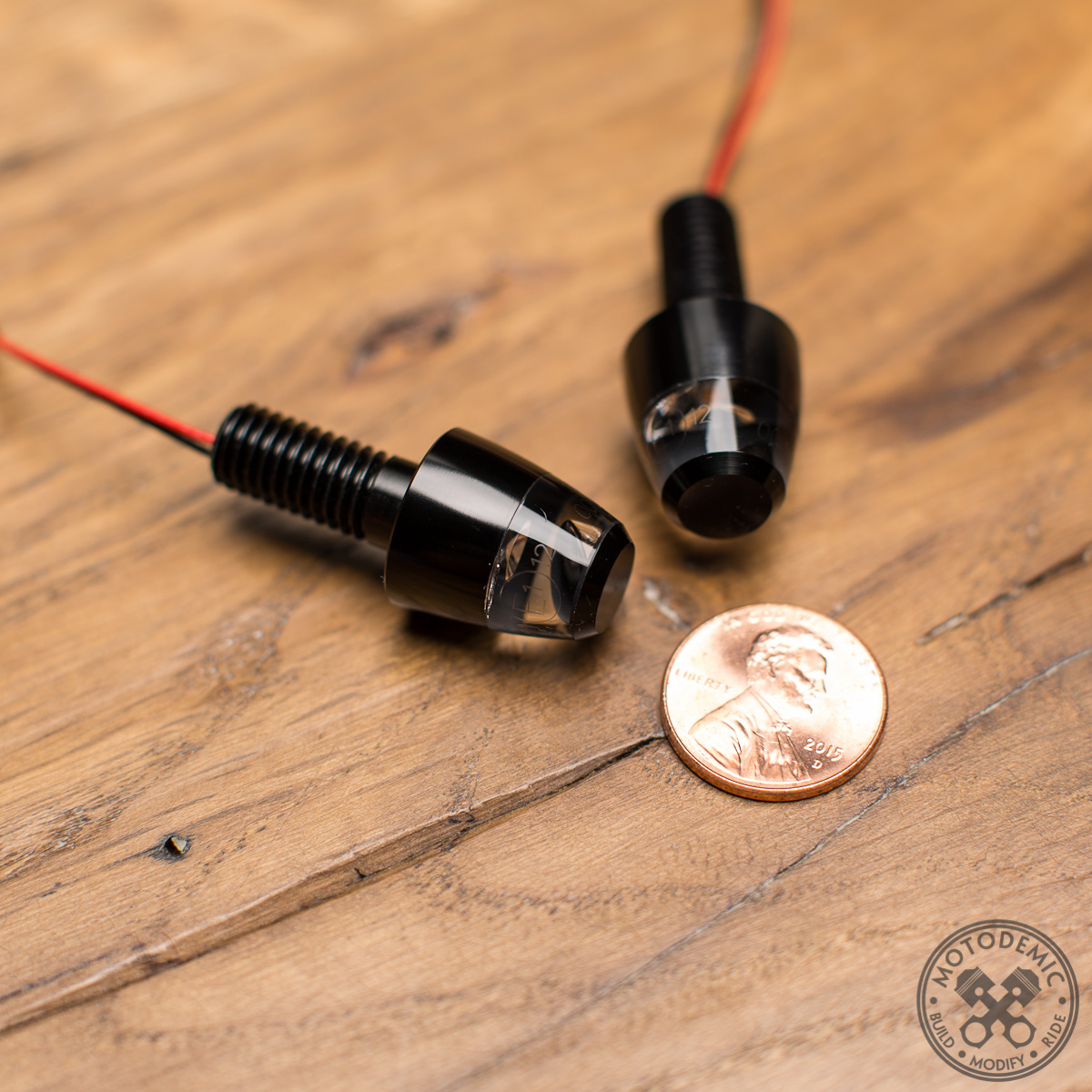

Motogadget M blaze pin turn signals (Black)
New cables (Push, Pull, Clutch, Choke)
Custom seat
CB750 K(Z) Rear sets

Parts to be ordered/Wish list

Oil Cooler
Engine/crash guard from F
New cleaner triple tree top
Aux/fog light


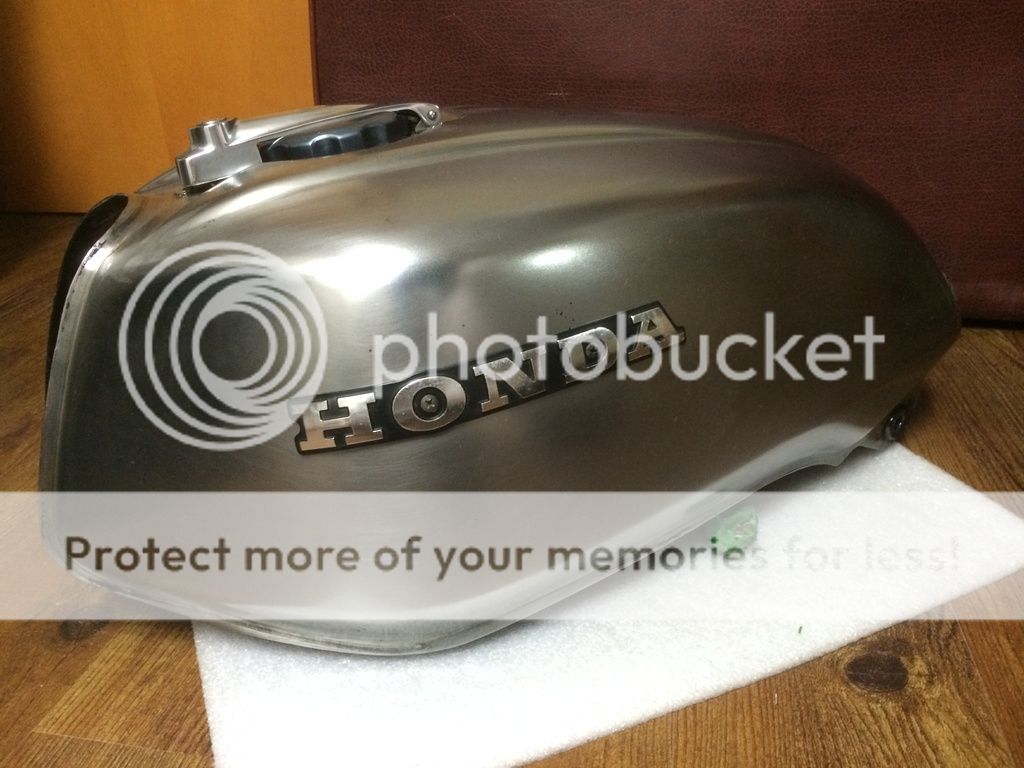

Paint stripped tank


Picture of the tank filled with a ton of white vinegar. Let the tank sit for about a week. Flushed the tank. Then repeated the process. To say the least it worked great removing all the interior rust and and made it look like new!


Next update will be when the starter solenoid I ordered comes in and I attempt to start her up!

Just got my starter relay in the mail today so hoping after my exam today I can try and get the bike started! Will update later today granted I attempt to do so.



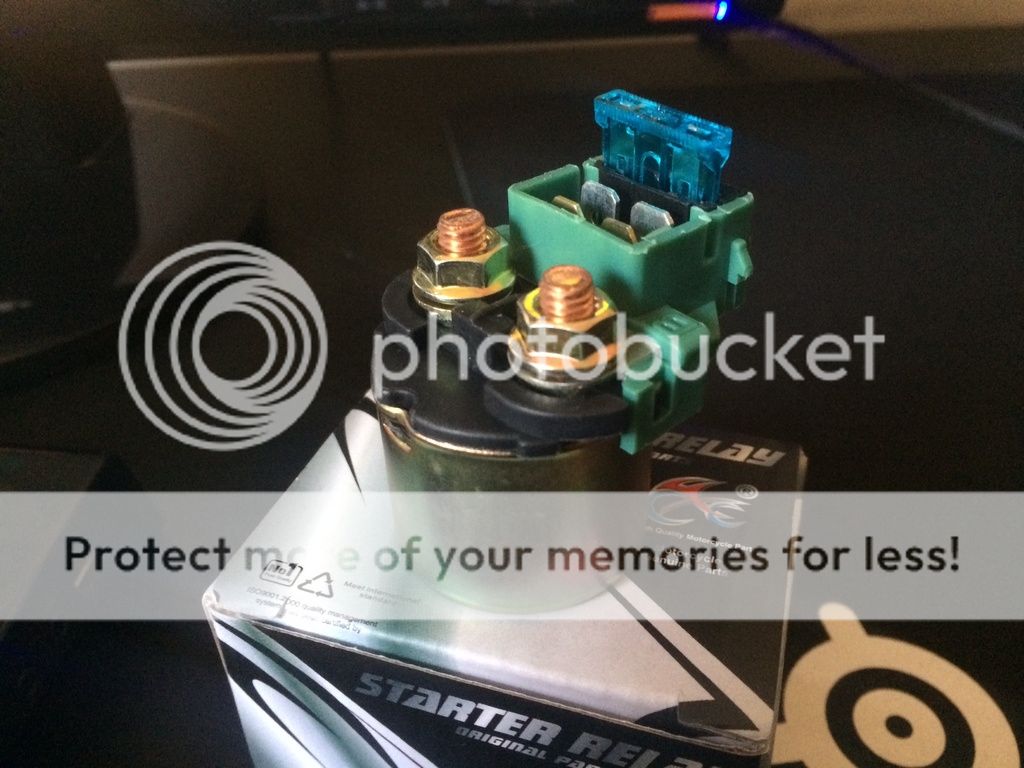

So I installed the new starter relay and she had power WOOO :banana:

BUT sadly, there is bad news. As I got the bike ready to start, I was putting gas into the tank annnd the petcock started to leak and just wouldn't stop regardless of the position I had it in. So needless to say I need a new petcock :( and boy was I surprised how much one was lmao. Regardless, ordered a new one and I'm just hoping it comes in next week.

So, I finally got my tank petcock in


Installed it on the tank with some thread sealing tape to ensure a leak wouldn't occur and I tried to start her up. Sadly I ran into a bit of a problem. The bike would turn but just wouldn't fire up. After some head scratching, I removed the tank and just poured in some gas to the fuel line directly and saw that the gas just didn't go anywhere and just sat in the line. So at this point I'm thinking I've messed up with routing the fuel lines properly. So I've posted on some CB750 forums and am waiting for some responses. Going to attempt to see if I can figure this situation out tomorrow hopefully cause at this point I'm dying to get this project "finished".

So, slight update. She started. But not for long lmao. Got some advice from some people on some CB750 forums to fill the bowls with some gas so I did that and she started right up. After letting it idle, I turned her on and off a couple times just to make sure it would then I decided to hook up my carb sync, turned her on, she idled high, then went steady, then died. Now she wont start back up and the bowls have gas in them still. I'm thinking I maybe flooded the engine but I'm not 100% sure. So I'm going to try and start her later and see what happens otherwise Ill have to try again tomorrow.

On the bright side... SHE STARTED

So no update regarding how the bike is running due to the fact that I don't currently have time to work on her with my summer class coming to an end and with work. However, DDC just had a sale go live today so I put in an order for some Motogadget goodies! Ordered the Motogadget M-unit, Motogadget M-button, Cable kit for the M-unit, and two 3-button polished/stainless steel M-switches!

Update time. So got the bike running a little better and starting more reliably with the help of some people from a cb750 forum.

The first thing I did was uninstall the exhaust due to an exhaust leak. Due to poor instructions from the exhaust manufacturer, a lack of information on the web, and my dumbass not taking pictures when I removed the original exhaust I had the metal exhaust flanges
facing the wrong direction. So I flipped them around, reinstalled the exhaust, and the bike sound 10 times better then before (obviously).

The second thing I did was remove the vacuum operated fuel shutoff valve from the carbs.
(The part on top of the carbs) This little bugger seems to cause people a ton of trouble regarding fuel delivery to the carbs. So I completely removed the valve and ran a fuel line directly to the carbs. The pros to doing this was that I got rid of a TON of tubing making the area a lot easier to work around and it made the area look a lot cleaner. The cons to doing this is now I have to make sure that I always turn off the fuel from the tank when the bike isn't running, and I have to purchase some vacuum caps to ensure there is no vacuum leaks from the carbs.

Currently the bike still stalls after a while and the rpms oddly go up when I disengage the choke but this is due to the vacuum leak. So Ill be picking up some vacuum plugs this week hopefully. I Also ordered some OEM carb boots because the ones currently installed on the bike seem dried up/cracked and when they are like that they tend to cause vacuum leaks as well.


Motogadget goodies came in :hurr: Still waiting on the carb boots before I can really give a further update on the bike.









So, got my new carb boots in a while ago but just didn't have the time to install them up until now. So I removed the old boots and compared them to the new ones. Turns out (or so I at least believe) the boots that were on the bike were wrong. When comparing the old boots to the new boots, the news boots were a lot longer in length making it easier for the carbs to be installed. I also attempted to seal off 2 vacuum lines on the carbs with a bolt and some silicon. Then started her and she seemed to run great! However the bike is still ****ing dying on its own. So I'm going to install the air box and attempt to tune the carbs to see if she'll stay on/run a bit better. Should have an update a little later today!

So I installed the air box, turned her on, and nothing has really changed. Still wont idle on it's own and I noticed that the bike seemed to sound funny so i decided to touch the pipes to make sure each cylinder was firing and go figure that the pipe for cylinder #2 wasn't that hot yet all the other pipes were. So at this point I'm gonna have to do some reading and figure out what the **** is going on. #oldbikeproblem

OK it's been a while I think it's time for an update lol.

Since last writing in this thread I believe I was having trouble with getting the bike to run properly due to some carb issues. Since then quite a bit has been figured out/done.

The first thing I ended up doing since the last post was replace the bike with some cheaper plugs due to the iridum plugs I had always fowling due to tuning the carbs to run properly and my lack of experience lol. After doing so I actually manged to get the bike to run properly and found that I was letting the bike run WAY to rich causing the fowling of the plugs. Once the tuning was figured out the bike ran like a dream. So, before I ran into anymore issues I scheduled it to get a safety at Capitol Motorsports on St. Anne's. During the safety it failed due to the throttle tube not operating properly (felt as if there was a bunch of dirt/sand in it causing it not to turn smoothly). Luckily I had ordered a new throttle tube due to that exact reason and the guys down at Capitol were cool enough to let me work on the bike in the back quickly, get the part replaced, and then I was golden and passed the safety. Sadly I didn't stay golden for to long as a day or two later when taking the bike for a little ride up and down my back lane one of the carb floats decided to stick and when that happens fuel will pour out of that carb constantly, both being a waste of money/safety concern. Not wanting to deal with the problem right away I decided that would be the point where I would start to completely disassemble the bike to get it ready for its final form.



And that's basically where the progress with the bike has since been left. I got the bike down to its bare frame almost being before the winter came and I've since neglected to work on it cause I don't want to freeze in my garage. At this point I want to insure it for the shortest amount of time possible so I can actually have plates for it and make it easier to insure in the summer once it's done. The next thing on the job list once the weather starts to warm up is to pull the engine, rebuild it (hopefully, otherwise just replace some gaskets), Get the frame stripped of paint, modify the frame a little by adding the frame loop (which I ended up already getting) and shaving some stuff off to make it look a bit cleaner/make it easier for me to tuck wiring, get a seat cowl/pan fabricated (which I'm still looking for someone to do. As of right now Speed factor might be doing it), Powder coat the frame, put it all back together, and she'll hopefully be done. There are a couple of other small things that need to be ordered but other then that she should be done this summer as long as I have the spare money to do so.

In the case I do decide to work on the bike (which I probably will) expect more updates soon! Until then I'll leave you with this picture of the almost bare naked lady.





Update

:


Alright its been a while sue me. Since I last posted a couple of things have happened.

I finally got the bike a plate which was waaaaaaaaaay harder then it needed to be. To keep it brief, I attempted to get the bike insured roughly 4 times, constantly got turned away because the bike hadn't been insured for years and the clerks didn't seem to know what to do so they just kept turning me away. Just when i was about to
I remembered my friend Chris worked for HUB at one point. So I explained the situation to him and he came down to a local hub with me to basically walk the clerk through what to do. Low and behold once that happened I got my plates. I don't know why it was a pain but it just was. Regardless I got a plate.

Today I decided to do the final tear down and completely strip the bike down to the frame. So as of right now the bike looks like this


The current things on the to do list are:

- Cut rear frame
- Fabricate rear cowl from sheet metal (My friend Matt who is in engineering with me at the U of M is going to be helping me fab this :banana: )
- Weld on rear loop
- Buy Motogadget M blaze pin's for rear turn signals
- Buy a LED strip to act as my stop light that will be integrated into the rear cowl (Look at picture below for reference)
- Buy any small bits like bearings or bushing in the case they are needed once I fully inspect everything
- Get seat made (I'm either going with a leather or alcantara)
- Powder coat the frame and swing arm
- Install all the parts
- Rideeeeeeeeeeeeeeeeeeeeeeeeeeeeee
- Whatever I missed lol



Motivation
https://youtu.be/IMDkNtRdPDc

I'm determined to finish this bish.




Tomorrow I'll be bringing my frame over to my friend Matt's house for us to start modifying the frame (fab cowl and weld loop) and shaving off any unnecessary bit's. Unlikely that everything is going to be done in one day however. In the mean time I figured I'd work on the wheels just to get some things out of the way.

The first thing I wanted to do was make sure that the wheel bearings were still in good condition, which thankfully they were. So I decided Id clean the wheels up as they were full of old dirt/grease and prep them for some polishing (I didn't end up polishing them cause I didn't realize how big of a pain it was actually going to be. Ill polish the wheels to a mirror finish when the bike is in it's final assembly.)

Note: I'm trying to make the journal more picture heavy but some times forget to take my phone out before I get to work, soooooo you'll only be seeing pictures of the rear wheel as I forgot to take pictures of the front wheel but it was the same process. Rinse, degrease, clean with mineral spirits/ use brake clean and clean small sports by hand with a cloth.

BEFORE







Note the disgusting grease ^^^^^^... Don't worry i repacked it with new grease :mo:

AFTER[/b][/u]







Till next time




Oh hello


So since last posting quite a lot of work has been done. My friend Matt and myself went about installing the rear frame loop and have fabricated the cowl :banana: . The process of installing the loop and fabricating the cowl was a first for both of us and definitely wasn't an easy one, but the final result was exactly what I was looking for. Hand made, hand crafted components made from raw material. I'm not going to be posting any pictures regarding the frame work now as we still aren't done yet but once we are I'll make sure to post about it.

(You after reading that last line)


What I'm here to post about is what else I've done. Which isn't much because I've just come back from a trip to Orlando ( :'( GIVE ME BACK THAT WARM WEATHER :'( ). But I've basically gone about completely rebuilding/refreshing the front forks.

Front Forks


Forks before being lowered


Forks after being lowered

Might be hard to see the difference in the pictures but I lowered the forks 3 inch's. Some might say that's a lot but this bike is going to be more form oriented and be more of a cruiser then anything. If I wanted a performance oriented bike I would just get an S1000RR or something. Lowering the forks in general was pretty easy though.

The process was essentially as follows:

1. Drain fork oil
2. Remove bolt at the bottom of each fork
3. Remove dust seal at top of fork housing
4. Remove locking clip with washer
5. Using force, slide bottom housing of forks like a hammer
6. TADAAAAA Forks are apart
7. Undo top part of forks to release spring
8. Cut spring to remove length that you want (In my case 3 inch's)
9. Add a spacer of removed length to prevent bottoming out
10. Replace anything that could wear aka new seals
11. reassemble, add new oil (Recommended oil for this bike was 10W-40 but i decided to go with a straight 30 weight oil as it's stiffer and will help with preventing any bottoming out.)

The following pictures show the process roughly.


Dirty old oil


One of the forks had a rusted/worn bolt on it that was stripping and I really didn't want to reinstall it so I ordered a new one. (New on left, Old on right)


Dust seal, locking clip, and washer



Hammer slide action to reveal the good stuff aka the fork seal


Forks completely apart



Spacers were made from a 3/4'' piping that were ground and wire brushed on a bench grinder


Cut springs. I made sure to grind down and make the cut end of the spring as smooth as possible on the bench grinder


Forks with spacers

Then put it all back together.

Last thing needed to be done to the forks in polishing, but that will be done on final assembly of the bike

Till next time m8's




I'M BAAAAAAAAAAAAAAAAAACK


Here's some music to play while you read. Recently discovered Logic after a viral video of him waking his wife up to couple of musicians playing the Curb Your Enthusiasm theme song.

https://www.youtube.com/watch?v=O601PVTd0g8


So not much of an update regarding anything major (aka the frame or engine) but those will be coming soon hopefully as I don't have anything else to be working on after this update.

So what the hell am I here to talk about? Refreshing/rebuilding/repainting the front brake caliper and lower portion of the triple tree. But I'm not going to bother typing anymore just go ahead and look.

Brake Caliper

Basic run down of what I did

1. Used a bench grinder with a wire wheel to remove all the paint and got into the tight spots with a drill bit wire wheel
2. Cleaned the bare metal with acetone
3. Painted using high temp black paint
4. Cleared with high temp paint
5. Heat treated the paint by baking it in the oven at 200 F for an hour
6. Rebuilt/greased














SO NICE AND NEW :banana:

Lower Triple Tree

Basic run down of what I did

1. Used a bench grinder with a wire wheel to remove all the paint and got into the tight spots with a drill bit wire wheel
2. Cleaned the bare metal with acetone
3. Primed
4. Painted using black paint
5. Cleared

















Also got this in the mail recently heheh


It's contents will be shown in the future, although you could probably just look up what it is to lmao.

Anyway till next time!


PRIMEWORKS

New Member
I'm back



So today was the first day in a while that I had nothing to do other then work on the bike so I decided I'd tackle probably the biggest challenge aka the engine. The reason why I find this to be the biggest challenge is simply because I've never fully disassembled a bike engine let alone touched one until I purchased the bike. Taking the engine apart and neatly organising every little piece isn't hard, but putting everything back together and making sure everything is timed properly is my biggest concern. Thankfully I'm following a service manual I have for the bike that shows the steps for both taking apart and reassembling the engine but again timing and this being the first time I've done this will make for an interesting experience that I'm sure will be sending me to forums a lot to read as I go. Nevertheless, witness the heart of this project be stripped.

Engine





Side covers off



Intake valves





The intake valves don't appear to be in bad shape at all but being the perfectionist that I am I'll probably attempt to clean it or send it to a machine shop for cleaning.

Valve cover off


Intake and Exhaust camshaft's removed


The shims appeared to be in great condition with no signs of wear






My OCD is going crazy inside looking at these pictures



This is how I finished today off. I could have gotten more taken apart but this is where I figured I'd have to think about going further or not. The bike has less then 6500 km's on it and i really wanted to take it apart to reseal it and refinish the paint which is something I can do in it's current state. So I'll be seeing what I decide to do. Also wondering if I should be ordering any new parts to replace while in there but I'm not sure at this point.

Pistons





Till next time



88SS

Active Member
How was the compression before you pulled it apart?


Sent from my iPhone using DO THE TON


Popeye SXM

Also used for MX
I like your work, looks like you are having fun. If the compression was good I would just lap in the valves, clean & paint everything and rebuild the carbs, Honda make strong reliable engines but if you fancy rebuilding the motor GO FOR IT !!!!


PRIMEWORKS

New Member
88SS said:
How was the compression before you pulled it apart?


Sent from my iPhone using DO THE TON

Not going to lie, I may or may not have skipped on checking the compression.... rookie mistake I know I know. Either way I was planning on tearing the engine down to reseal it cause there was some oil leaks. I also decided to pull the cylinder head to re seal that gasket but also to replace the rings which I have on order now (I'll make sure to hone the cylinders to allow the new rings to seat properly). SO compression should be on point once everything is back together!


88SS

Active Member
If you were going to do the rings anyway, no need really. You might as well since your already in there


Sent from my iPhone using DO THE TON


LeonardiCB

New Member
Definitely in for more updates.. Just picked up a 81 Cb750 myself and still trying to figure out what to do with it. Like you, first goal was to get it running and then modify it.. My carbs are apart right now and wanting for new floats to get here. Im curious as to how and where you cut the frame and welded the loop though. I see a lot of DOHC CBs with a slightly decreased upwards incline and I'm wondering how its done.


PRIMEWORKS

New Member
LeonardiCB said:
Definitely in for more updates.. Just picked up a 81 Cb750 myself and still trying to figure out what to do with it. Like you, first goal was to get it running and then modify it.. My carbs are apart right now and wanting for new floats to get here. Im curious as to how and where you cut the frame and welded the loop though. I see a lot of DOHC CBs with a slightly decreased upwards incline and I'm wondering how its done.

Cutting the frame and installing the loop was some what easy but I didn't install it with it being on an incline at all but rather flat. Pictures will come soon enough once
my friend finishes working on the frame. Till then I won't be showing any pictures.

Not really much of an update today but I did remove the valves from the cylinder head to prep for cleaning.











At this point I'm waiting to call a local machine shop to see how much it would be to clean the head and reinstall/check everything. Ideally I'd like to go that route so that it saves me some work but if not I'll likely go the route of just wire brushing the valves and cleaning the intake and exhaust port with oven cleaner.

The current to do list as of right now:

-Strip remaining paint from engine (need to buy more paint stripper)
-paint engine (need to buy paint, going with stock colour from factory)
-reseal engine
-reassemble engine
-finish frame (cowl and electronics box)
-powder coat frame
-wiring diagram
-order new battery and m blaze pin turn signals when funds allow me to
-get seat made
-install and ride


PRIMEWORKS

New Member
Brief update

polished the valves the other day

Before




After




Only thing left for the head is to strip a bit more old paint, re paint with new paint, polish ports, lap valves, and reassemble.

Cleaned the tops of the pistons of carbon build up




Got new rings in to install as well when I'm resealing everything

Painted the valve cover. If you remember it was that horrible chipping black paint and now it looks like the following




This will be the colour for the rest of the engine.

Lastly I put the front end back together for the most part. Yes it's low, yes there is little to no suspension travel, and yes I will be avoiding every single pot hole. I'm going to be moving the triple tree as high as I can but it'll still be low which is why I installed those bump stops and filled the forks with a much thicker fork oil. #bootybandit




PRIMEWORKS

New Member
quick update. Engines done. Freshly rebuilt with all new seals and rings.

Current to do list:
1. Get hardware (countersunk bolts)
2. Finish frame
3. Powder coat frame
4. Install engine
5. Wire bike
6. Make seat
7. Install everything
8. whatever else that's not on this never ending list

Here is some pictures ya filthy animals.





1jMkEzov



Honed the cylinders as new piston rings were installed









PRIMEWORKS

New Member
Ok so it's been a while. Not a ton has happened since last posting but the reason for my absense was due to school and me finishing a summer class. Since last posting I've finished the frame completely with a friend of mind and have sent it off to get sandblasted and powder coated. I went with powder coating the frame gloss black because I wanted a stockish look but something that was durable. Now Im in the process of trying to figure out what left I have to get ready so that when the frame comes back from powder coating I can just reassemble everything (although I'm sure it will be harder then I think it will be since its been so long since the bike was in one piece).

As of right now this is the list:

1. Wire the bike

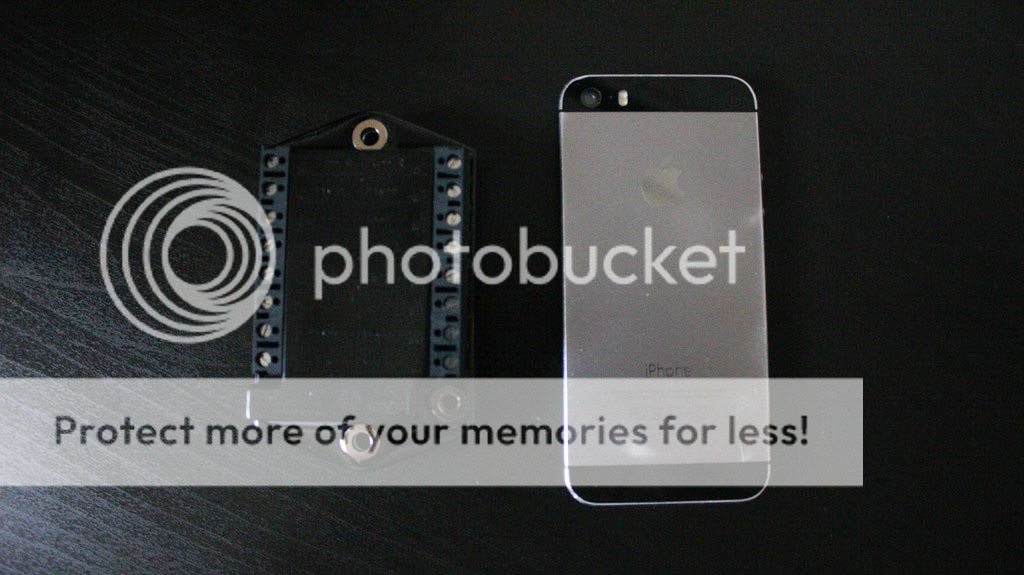

I purchased a Motogadget M unit, M button, and the wiring kit for the M unit to simplifiy the wiring as much as possible. I'll start the wiring once I get the bike assembled for the most part becasuse I want to ensure the wiring is a neat as possible and well hidden.

2. Get a seat made

Kinda need the frame done for this to.

3. Fix the carbs

When I last rode the bike after getting a safety I found that one or two of the carbs seemed to just be pissing out fuel non stop. I read around and saw that some people say this is due to floats sticking but I just removed the bottoms of the carbs and the floats seem fine (atleast visually seeing as they move freely so I'm stumped). Anyone have any ideas about this? Cause the last thing I'd want is to have fuel on my freshly painted engine :(

Anyway till next time.


PRIMEWORKS

New Member
CrabsAndCylinders said:
They move freely but they may need adjustment or the needle jets may have deposits which prevent a good seal.

How exactly would one adjust the float?

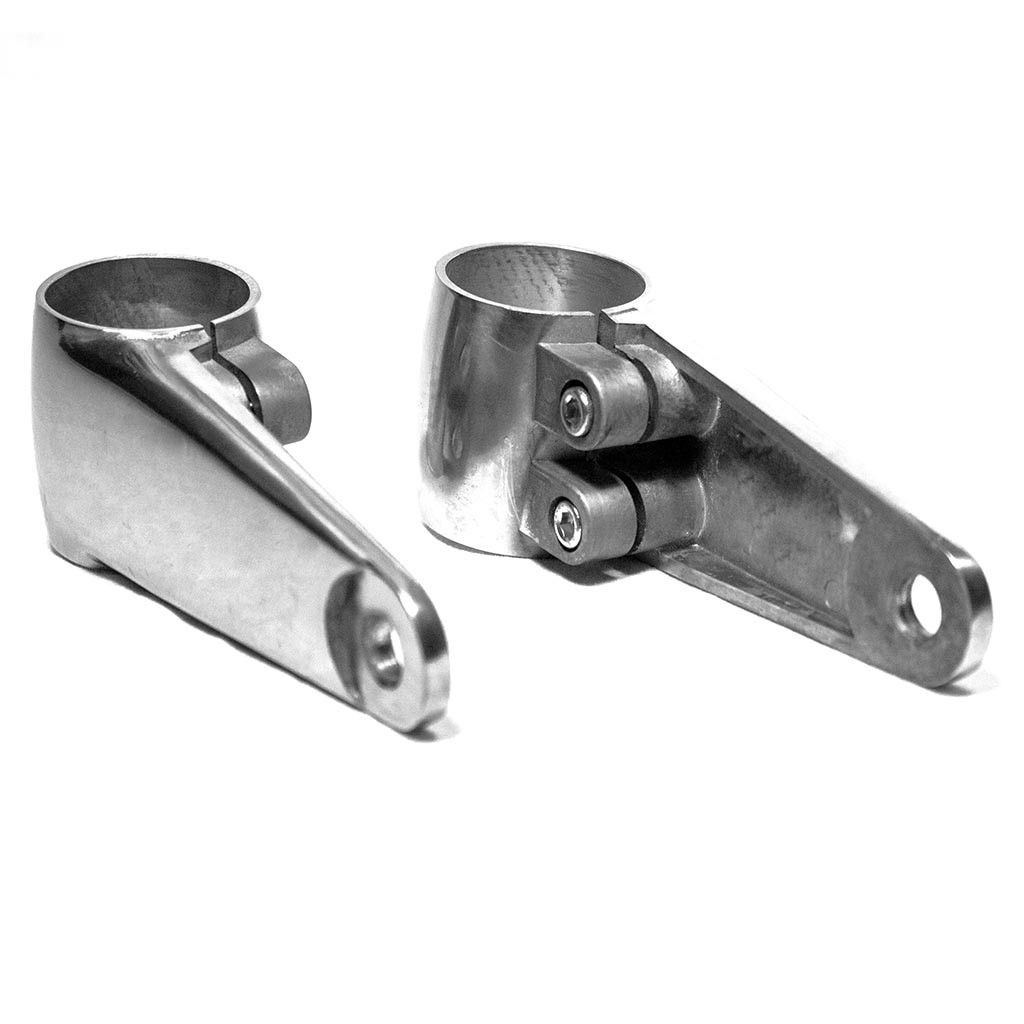

also ordered some new headlight brackets. Nice simple look. As well as Motogadget M-blaze mini pin turn signals for the rear of my bike.




jpmobius

where does this go?
DTT BOTM WINNER
Likely you simply need to clean and polish the needle and seat assemblies. Some floats are adjustable and some are not. Probably you need to replace no parts in your carbs.

Old carbs always need to be cleaned. 100% disassembly is required. Seldom is a rebuild kit needed, and I ALWAYS recommend against them. If you need parts, get the OEM parts as needed. None of the brass parts will need replacement unless damaged by incompetence or severe difficulty in dissasembly. Ultrasonic cleaning is ok, but not good enough. PERIOD. Learn how the carbs work , and you will find them pretty easy to clean properly. Spray carb cleaner and knowledge are all you need to have perfectly operating carbs. Most carbs have two systems that overlap - the pilot system and the main system. The important thing to understand is that the fuel is mixed with air before it is introduced into the main bore of the carb. failure to understand this and clean accordingly is why most carbs work poorly. Look at the pilot system. In most carbs, air for idle is first provided by a hole bored into the intake bellmouth of the carb. The amount of air is determined by an adjustable needle valve which adjusts with a straight blade screwdriver. Usually it is the only adjustment on the exterior of the carb except the idle speed adjustment which usually is a simple mechanically adjustable stop for the throttle. Fuel for idle is provided by the pilot jet. It is submerged in the fuel in the fuel bowl. When the engine is running, vacuum is applied to the well above the pilot jet. Fuel can enter into this well through the pilot jet, and air can enter the well through a passageway from the pilot air needle valve and they mix together. The adjustment for the fuel is to change the size of the jet, and air is adjusted by turning the air screw in and out. The mixture of air and fuel is then sucked into the main bore of the carb and mixed further with air flowing under the throttle plate or slide. If you want your carb(s) to work properly, find these passageways and make sure they are clean. The main system works exactly the same way, but uses different passageways and does not have any adjustable needle valves. All the adjustments are accomplished with interchangeable jets for both fuel and air. There are more parts, but the important thing is to understand this pre-mixing of fuel and air before that mix flows into the main bore of the carb, mixes with the main intake air ind is consumed by your engine.

Once you have the carbs clean, you can address your fuel overflow. Most floats adjust by bending a small tab on the brass lever arm the floats are attached to or operated by. Usually this does not need to be adjusted. You will need the factory manual to know how to correctly adjust the float level, but by far most floats are parallel with the float bowl gasket surface when the body is upside down and gravity is holding the floats in the up position. This is not the reason your carbs are leaking fuel. Likely the needle and seats simply need to be cleaned and no adjustment is necessary. Take the floats and arm(s) out and also the needle and seat assembly. Get some polishing compound (like for polishing paint after wet sanding), put it on a Q-tip and spin it by hand in the brass seat. Put some on the needle as well and spin it by hand on a paper towel. Clean and dry. Put it back together and if there is no mechanical issue or crazy excessive wear on the needle - or some previous parts replacement with incorrect or incompatible parts, the valves should be fine. Be sure to polish the bore of the seat and shank of the needle as well, these parts have to slide freely and loosely with the cone shaped seal perfectly smooth and clean to work.


PRIMEWORKS

New Member
So I got the bike frame back from powder coating






Got all the major stuff on. now it's time to install the controls, a few remaining engine parts, and wire everything up.

One thing I didn't expect to be a problem however was the kick stand. Because the bike was lowered the kick stand is way to long to allow the bike to stand on its own properly so im a bit stumped. I may try and find a new short one online otherwise I'll be cutting and reweld the old one I think. Any suggestions? Also please note the bikes ride height has NOT been set in properly in these pictures. The bike does have suspension travel and the last picture is not what it will actually be.


BIKE MIKE

Active Member
I actually had the opposite problem with the kickstand, mine was too short. I was able to swap the c model kickstand for an f which was slightly longer. I'm not sure the length difference between k and c models but I'll measure it and post pics tomorrow and if it works for you I'll mail it out.

Sent from my SM-G930V using DO THE TON mobile app


PRIMEWORKS

New Member
Thanks a bunch guys!!

CB MIKE said:
I actually had the opposite problem with the kickstand, mine was too short. I was able to swap the c model kickstand for an f which was slightly longer. I'm not sure the length difference between k and c models but I'll measure it and post pics tomorrow and if it works for you I'll mail it out.

Sent from my SM-G930V using DO THE TON mobile app

Wow that would be awesome ! Thanks!


DTT Bike Of The Month Gallery

DTT Light or Dark

www.jadusmotorcycleparts.com
shop.themotoworks.com
www.cognitomoto.com
https://www.townmoto.com
www.speedmotoco.com
www.lostapostle.ca/
www.sparckmoto.com
Top Bottom
