"bird in the hand" xr500/600 short rake deadtail

Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
All the cool kids (and Irk Miller) are building hard tail bobbers and choppers, and being a highly impressionable youth I decided that I want a piece of the pie. I had picked up this basket case xr500 a while back with aspirations of taming the single tracks of Georgia with two carbs feeding the song of the supertrapp triumphant, but alas I looked back and in the stable I have 3 dirt capable machines (tw200, xr200 and dr650)

I couldn't justify buying yet another machine to live out my dreams of spine crushing glory (hence the name "bird in the hand") so I dug the xr500 out of storage to get a move on.



Before any xr purist gets too bent out of shape, the frame was already a bit worse for wear with broken tidbits, AND if I ever see the folly of my ways, I have another xr600 frame sitting there and I'm keeping all the stock bolt on bits, it can be a dirt bike again.

That brings us to the lump. The frame is an xr500. The motor that came with it was nice n toasty with a max overbore and slightly wiped cam journals. I traded it off to the local bike breaker for an xr200 motor. You can check out the carnage that ensued here if you so please: http://www.dotheton.com/forum/index.php?topic=76184.msg914733#msg914733

Mr.E and Kanticoy were gracious enough to find and procure me a dual carb 1987 xr600 engine at the barber swap meet which I collected from kanticoy at Christmas time. It appears to be mostly complete and I'm hoping that I can get it together and running without having to first tear it down. The 600 motors will drop right into the 500 frame easy peasy.




I got a minute last Saturday to finish breaking down the xr500, sliced the sub frame off and got it sitting down where she should be with the help of temporary struts in place of the shock. For now I will be running an early Suzuki t500 titan front end with a shouldered alloy 18" hoop laced to a titan 2ls front drum. I will be running a Yamaha r5 rear drum out back, also laced to an 18" shouldered rim. I've always enjoyed the look of a short rake angle bobber, so that will be kept at the stock xr specs. The next installment will hopefully include finishing up my frame jig (that I started to build 3 or so years ago) and making up some bracing to hold the frame together as I start the butchering of the cradle.


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Glad to have yall along for the ride.

Here are a few pics of the frame jig pretty well as it sits, and sadly how it has sat for the last 3 years er so since starting it. I will be doing a bit of modifying it before I throw the frame in it. The biggest one being adding some stiffeners and building a rotisserie base/stand for it. I'm guilty of buying cheap harbor freight tools, and even run mid grade when I should use premium, but when I build tools for myself I really do try to make them well thought out and hope that they will last for some time.











Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Re: "bird in the hand" xr500/600 short rake deadtail

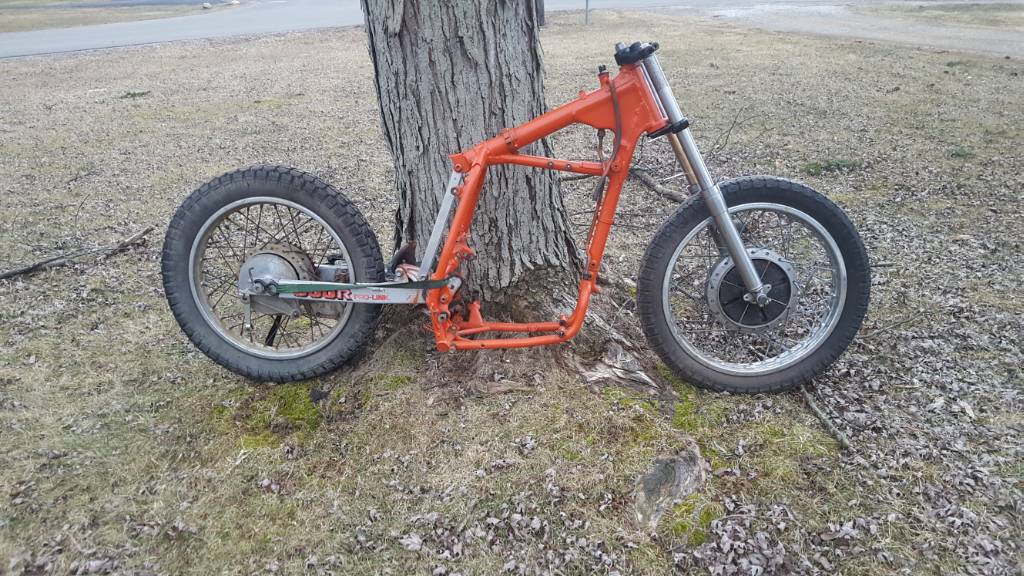

Threw on a few old 18" jap crap wheels that still had rubber on them to get a little better idea of stance before I rip it apart for hard tail fab. I'm thinking ill go with a 2" stretch on top of what's there. In other news, I've never seen a wheel like this once pulled apart. Not sure what the fluffy stuff is, but I'm sure I don't wanna breathe it in lol


Sent from my SM-G920V using Tapatalk


Kanticoy

Mad Science!
DTT BOTM WINNER
Re: "bird in the hand" xr500/600 short rake deadtail

I’m in for another dirt bike bobber!


Sent from my iPhone using DO THE TON


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: "bird in the hand" xr500/600 short rake deadtail

This better happen, or you ain’t getting my $2.


Sent from my iPhone using DO THE TON


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Re: "bird in the hand" xr500/600 short rake deadtail

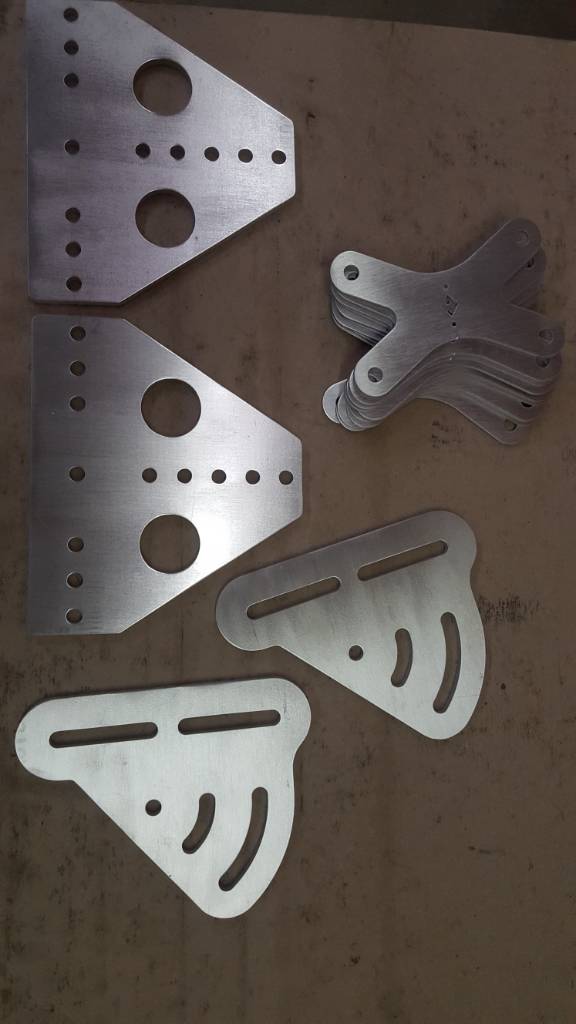

Collected the rest of the jig parts from the waterjet shop (dad) today. Should have it wrapped up this week sometime.


Sent from my SM-G920V using Tapatalk
