CB350/400F Hybrid Pics to Share

[Owned]

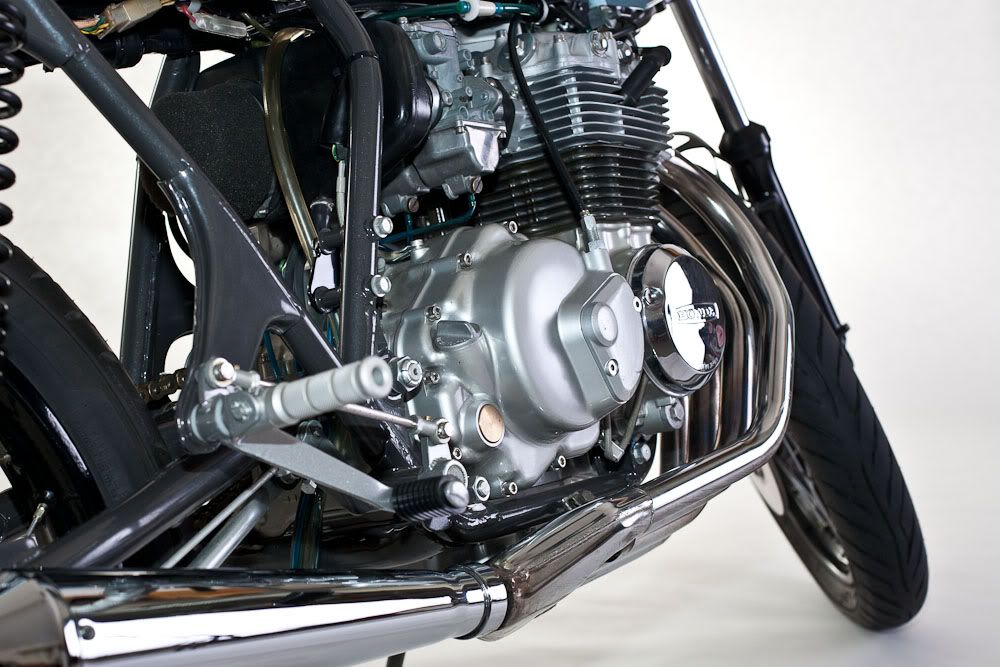

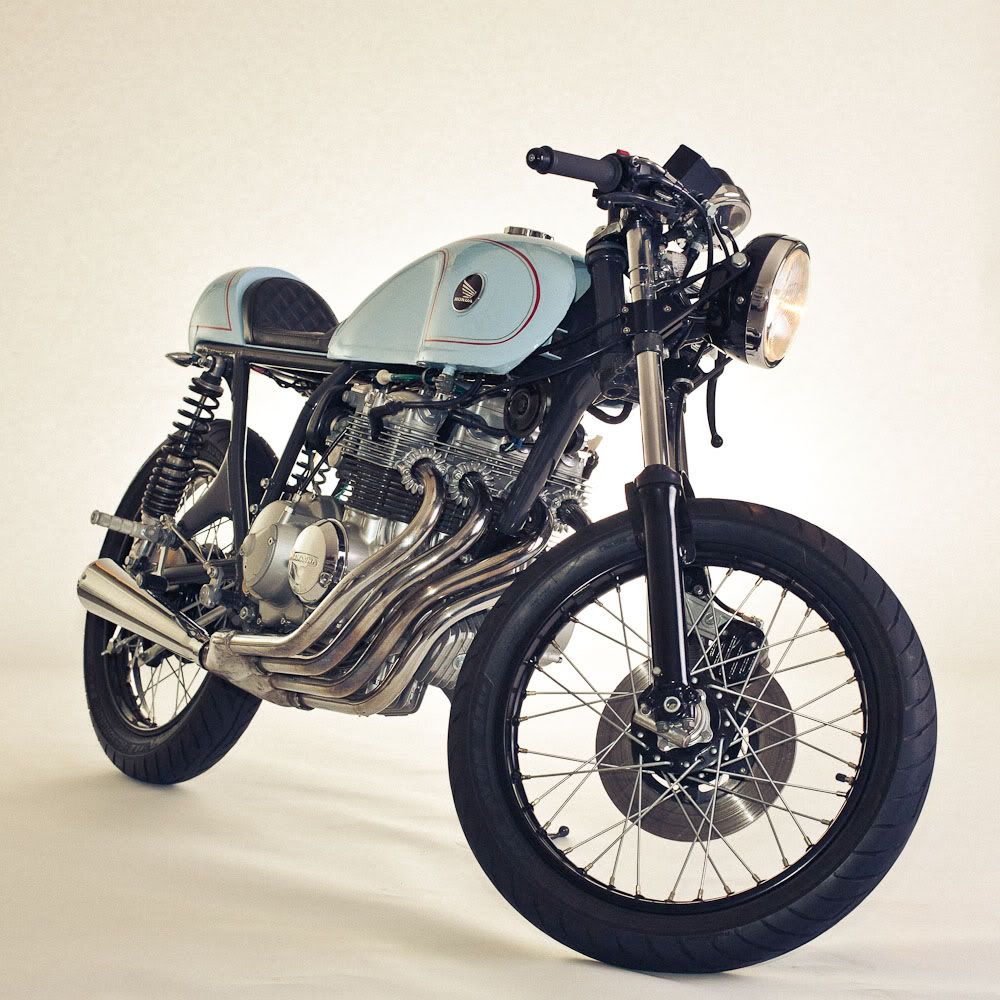

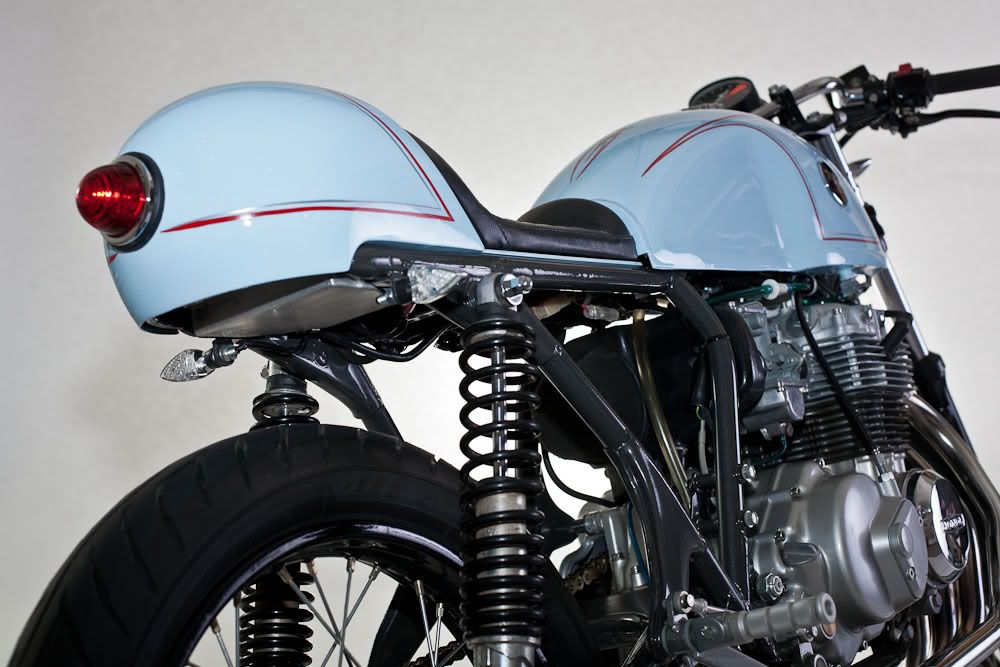

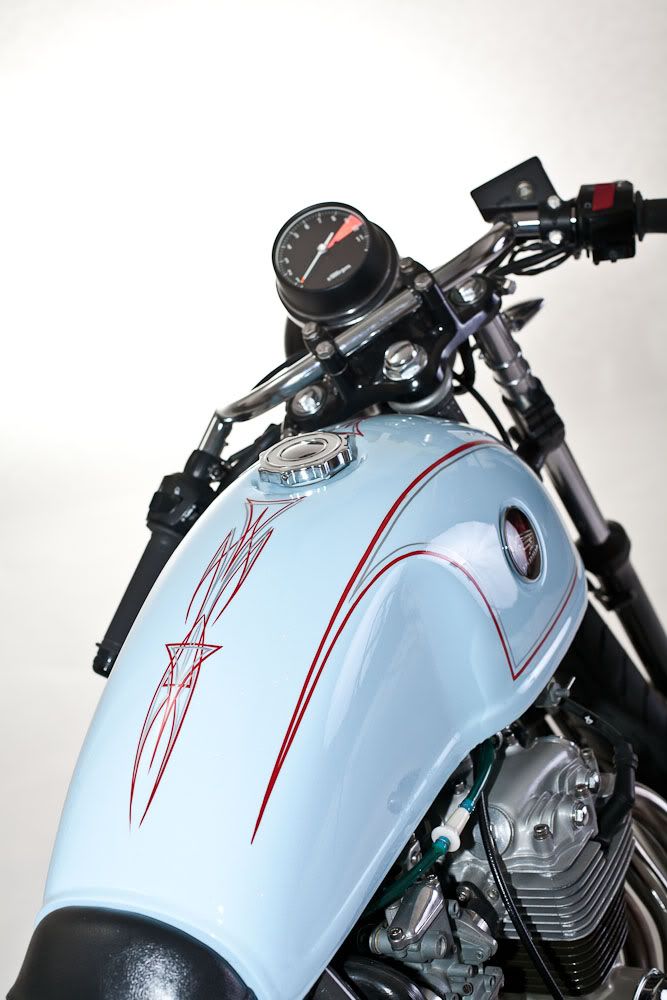

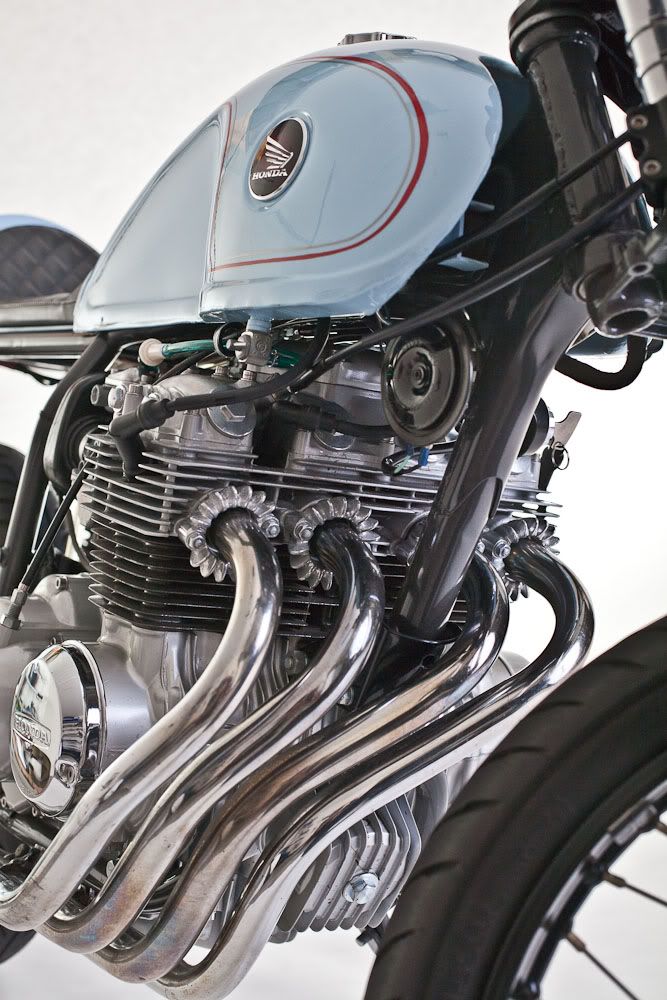

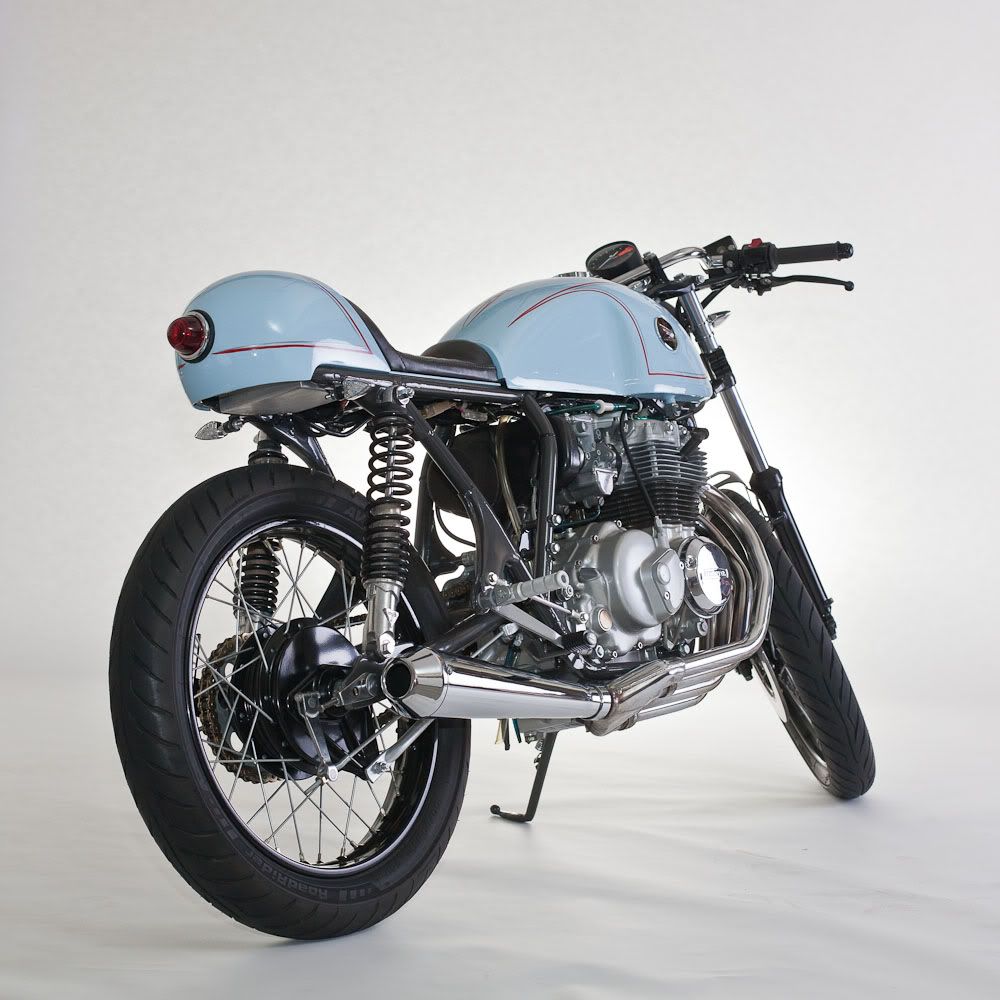

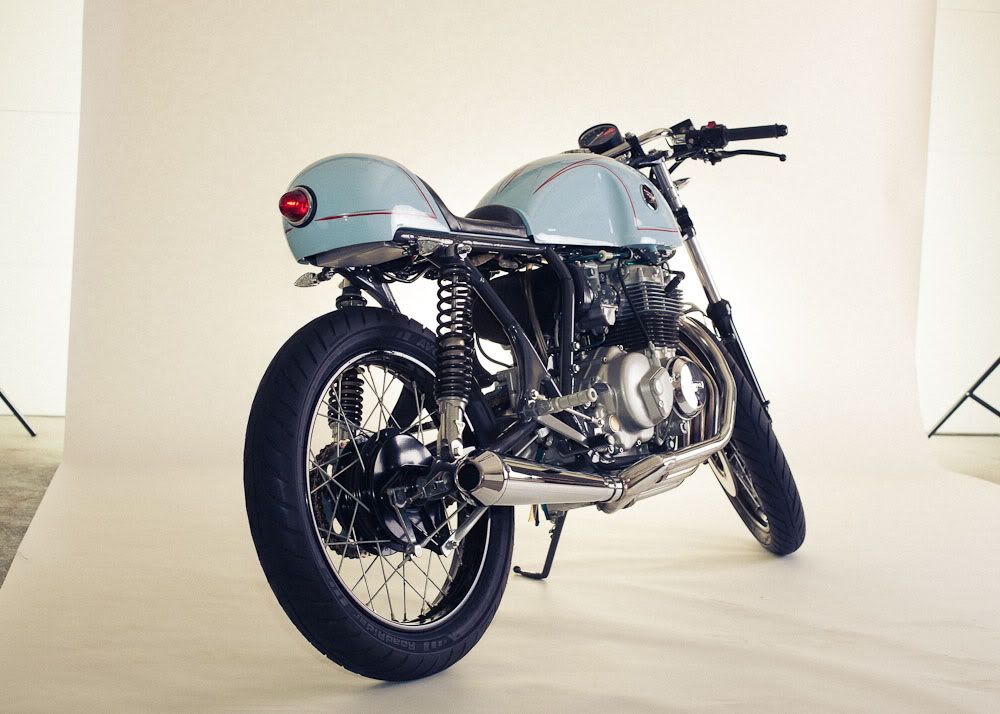

All, My brother came down and took some great shots of my finished project. Check em out below!

Addl pics at: http://s1231.photobucket.com/albums/ee520/indyrider2/?albumview=slideshow



[NvgtrWiggles]

Gorgeous! Has a very sleek, no nonsense look to it.



[session101]

awesome!

how hard was it to integrate the new electronics and switches, i plan on doing the same? was it pretty easy?



[cafePete]

Very clean...great job!



[Owned]

awesome!

how hard was it to integrate the new electronics and switches, i plan on doing the same? was it pretty easy?

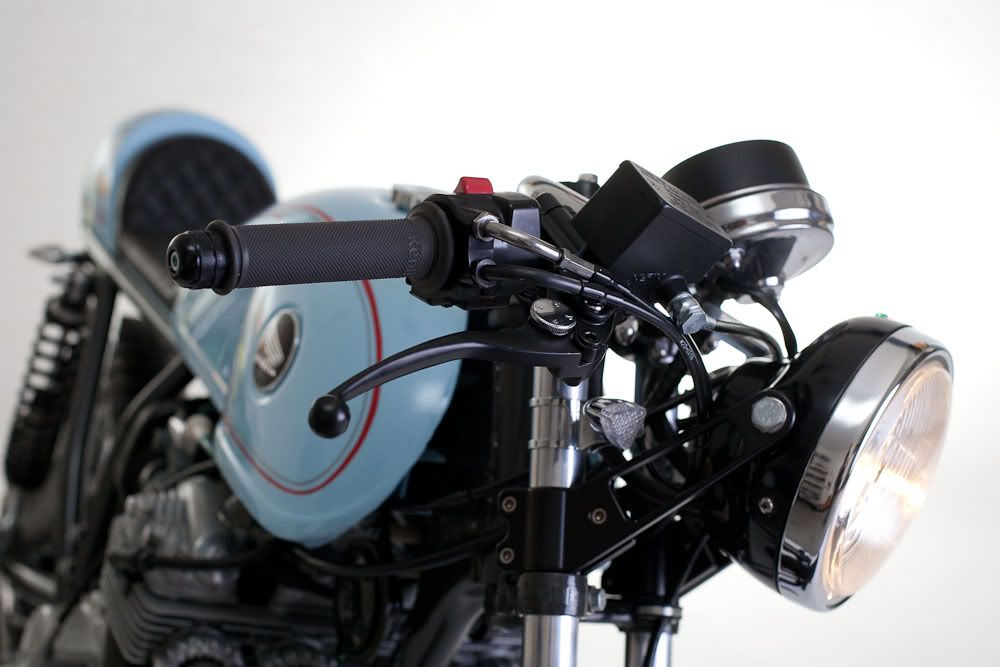

The hand controls aren't too tough. It just takes time. I sat down with an Ohm meter and traced down what wires went to each switch and integrated with the factory harness crimping on connectors from Vintage Connections. I also installed a clutch switch and used the starter button cut out to drop the headlight circuit when the starter is depressed (something the 350F never had). Helps to save load on the battery.

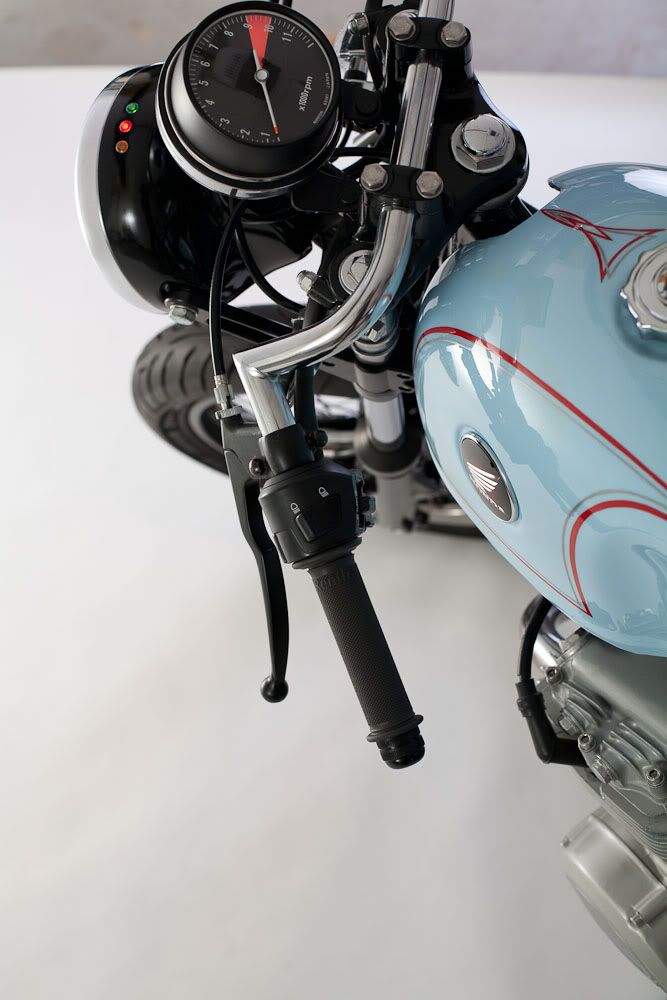

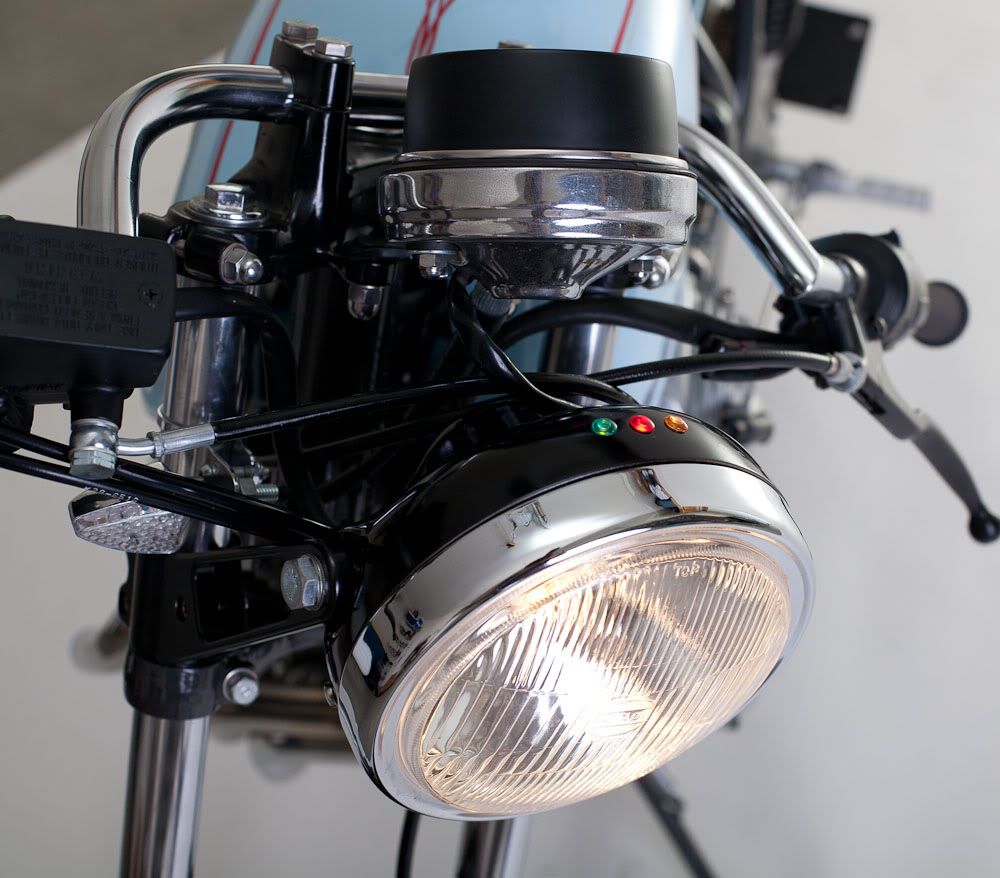

If you decide to use LED's as I did for dash lights, you'll need to use two diodes for the indicator light (or use two amber LED's).

When/if you get stuck, look me up.
