cb360 cl360 cj360 cam chain tensioner recall markings for factory fix? help id

[mark13018]

Guys, need a little help identifying the honda recall corrective service markings... I have a couple 360's I'm looking at and they have these stampings on them. 3 engines total, one with nothing, one with one hash/dot, one with two hash/dot... Is this what the factory marking were? I don't recall ever seeing a picture from anyone on what the mark looks like but I know it's a fairly common discussion here so I thought you guys could help ;D

The one with the two hash/dot is only a lower and not the upper with the can chain stuff anyways



[mark13018]

No one?



[irk miller]

Here ya go: http://www.hondatwins.net/forums/48-engine-discussion/18345-1974-cb360-recall.html



[trek97]

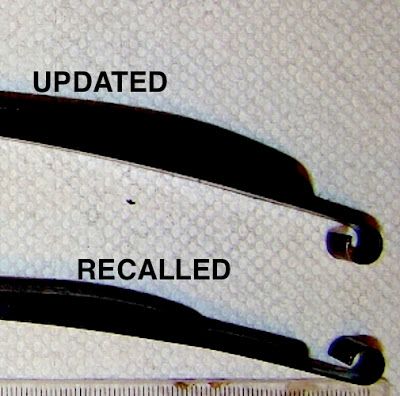

here is a pic showing the difference between recall and updated slides. In case you crack em open and look for yourself.



[mark13018]

You guys rock!!
