CB450 K7 "Espresso Love"
- Thread starter CCRider
- Start date
IanOberholtzer
green behind the ears
wow, where did this thread come from, fantastic quality build, love the rear sets, cant wait to pictures of her standing on her own
CCRider
Coast to Coast
Thanks very much guys. I appreciate the comments. She's been "finished" for a little over a year now and I've put about 2500 miles on her. Unfortunately, she's down for a top end overhaul due to low compression (broken rings in both cylinders) and new coils (splurging for Dynas). Hope to have her back together in the next few weeks.
CC
CC
rockcitycafe
I make things.
egads! if you've got broken rings the cylinders will probably need boring, chances are the sharp edge will start scraping deep grooves in the cylinder wall
CCRider
Coast to Coast
Re: CB450 K7 "Espresso Love" (An update)
Well, its been along time since I posted here so I thought I'd give a quick update.
I finally got the top end rebuild finished and the engine installed back in the frame. The damage to the cylinders was a bit more severe than I had thought so I ended up having it bored out. After a lot of searching, I found a set of 1mm OS NOS Honda pistons and rings on ebay and had the cylinders bored to fit.
I was having a lot of trouble last year with an intermittent weak spark at the left cylinder, so I decided to upgrade the coils to Dynas. Also, because of the way my tank kind of envelopes the top of the engine, I thought it may be trapping a lot of heat and causing the coils to overheat so i wanted to relocate the coils to under the seat for better cooling.

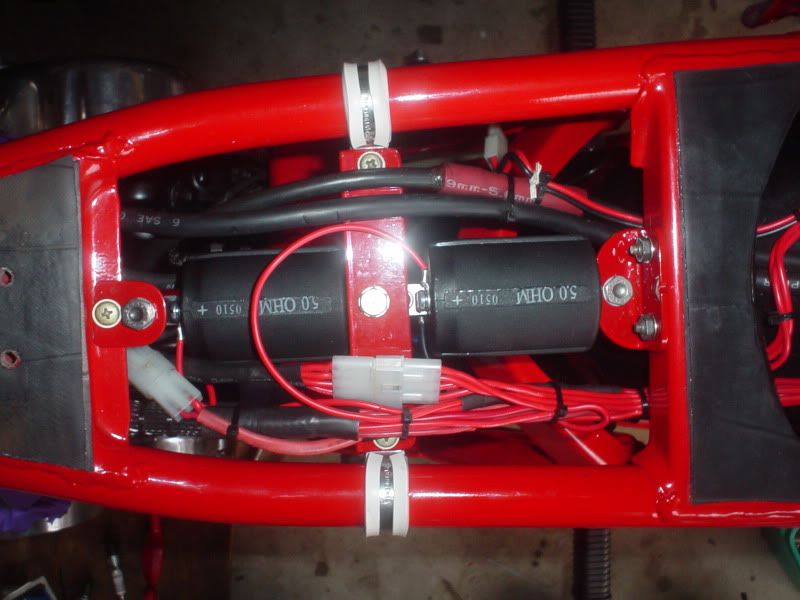

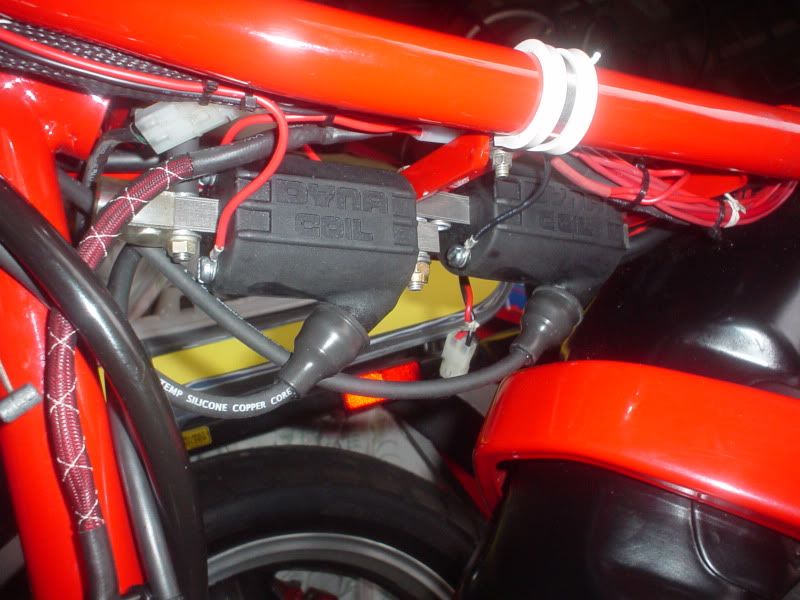

After a lot of head scratching as to how I could mount them under the seat without interfering with the seat and tank mounts, I came up with a few brackets to mount the in tandem along the center line:

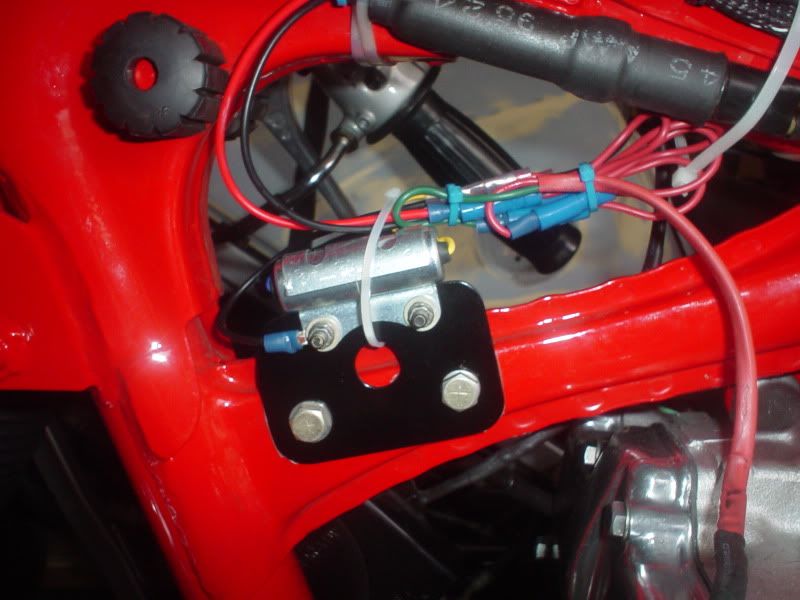

I made a simple bracket to mount the condenser where the coil pack had been:
So that's about where we stand today. While I've got the carbs off, I want to go ahead and take them apart and make sure everything's nice and clean and I'm going to seal the tank while it's off.
Maybe next week I can start her up and see how see runs.
CC
Well, its been along time since I posted here so I thought I'd give a quick update.
I finally got the top end rebuild finished and the engine installed back in the frame. The damage to the cylinders was a bit more severe than I had thought so I ended up having it bored out. After a lot of searching, I found a set of 1mm OS NOS Honda pistons and rings on ebay and had the cylinders bored to fit.
I was having a lot of trouble last year with an intermittent weak spark at the left cylinder, so I decided to upgrade the coils to Dynas. Also, because of the way my tank kind of envelopes the top of the engine, I thought it may be trapping a lot of heat and causing the coils to overheat so i wanted to relocate the coils to under the seat for better cooling.
After a lot of head scratching as to how I could mount them under the seat without interfering with the seat and tank mounts, I came up with a few brackets to mount the in tandem along the center line:
I made a simple bracket to mount the condenser where the coil pack had been:
So that's about where we stand today. While I've got the carbs off, I want to go ahead and take them apart and make sure everything's nice and clean and I'm going to seal the tank while it's off.
Maybe next week I can start her up and see how see runs.
CC
CCRider
Coast to Coast
Wow, time flies. I can't believe it's been over three years since I've posted to this thread.
I've never been really happy with the exhaust on this bike. Too loud, kind of a "raspy" tone, and maybe not the best performing either. I been thinking about building a little more traditional exhaust, so a couple of months ago I ordered some tubing, a few mandrel bends, splurged on a nice SS Cone Engineering muffler and started cutting and welding.
Got the new headers wrapped last night and went for a ride this afternoon. The tone is deeper and quieter, but there's still plenty of good noise when you roll on the throttle. I think it may have picked up a bit of power too.

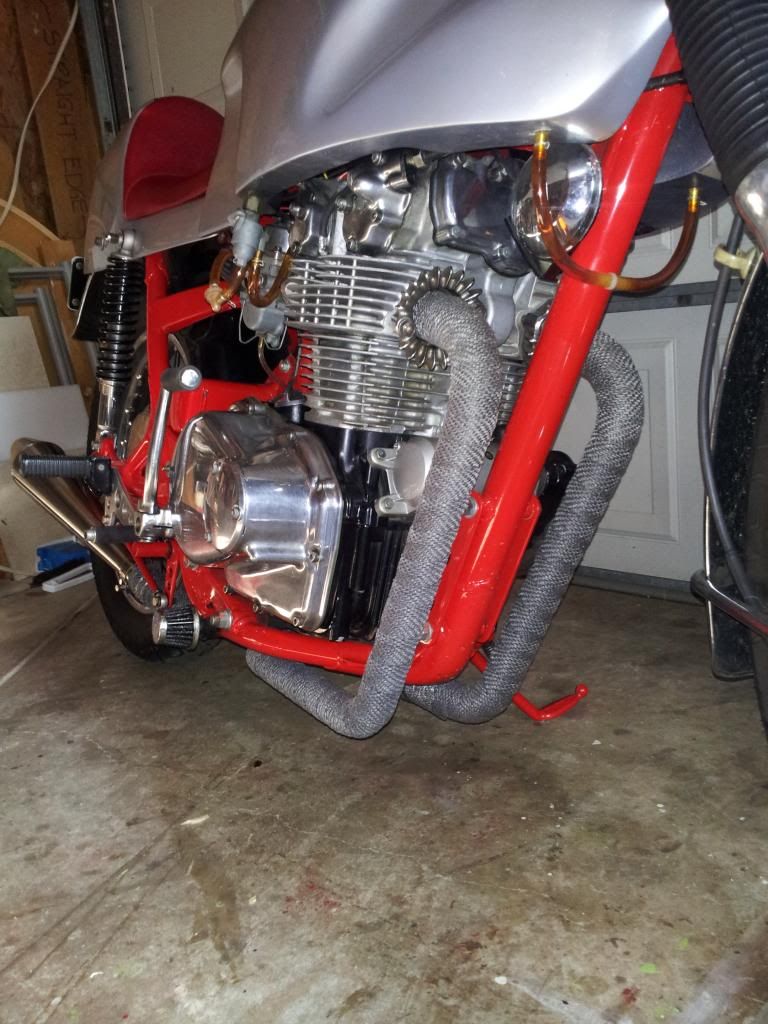

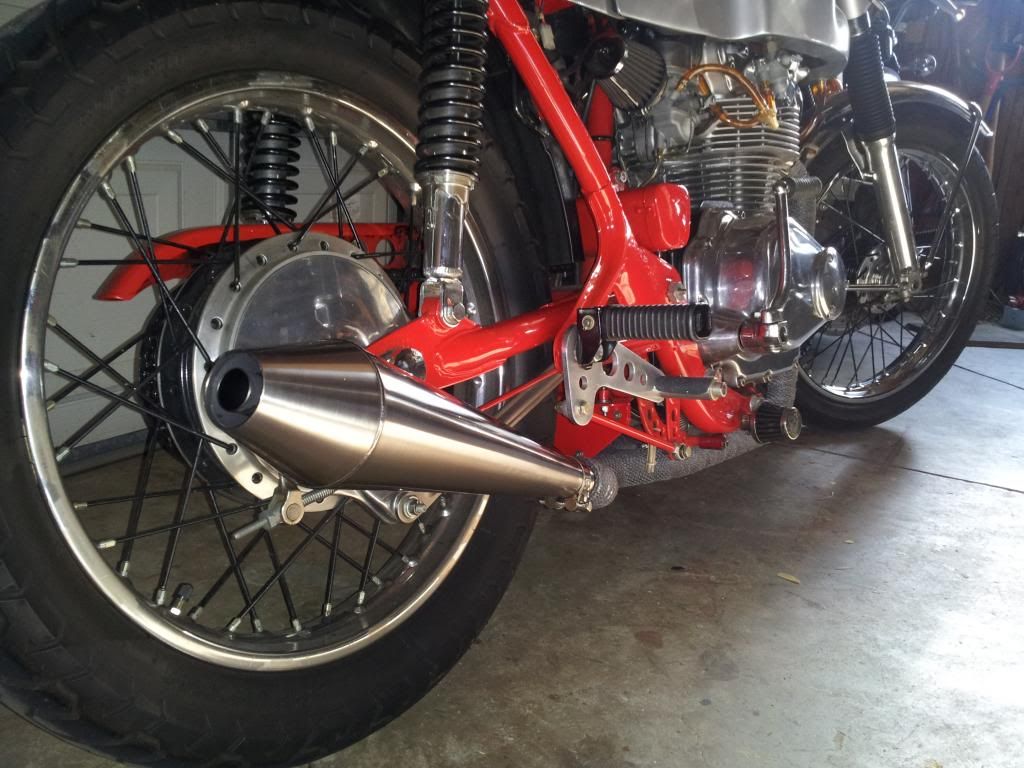

Here's a pic of the old pipes and a few of the new:
I've never been really happy with the exhaust on this bike. Too loud, kind of a "raspy" tone, and maybe not the best performing either. I been thinking about building a little more traditional exhaust, so a couple of months ago I ordered some tubing, a few mandrel bends, splurged on a nice SS Cone Engineering muffler and started cutting and welding.
Got the new headers wrapped last night and went for a ride this afternoon. The tone is deeper and quieter, but there's still plenty of good noise when you roll on the throttle. I think it may have picked up a bit of power too.
Here's a pic of the old pipes and a few of the new:
Flugtechnik
My bike is not transportation, it is a respite
Very nice sir. I like how the headers follow the line of the frame.
JustinLonghorn
No Purple Hearts, No Blue Ribbons
I can dig it, man.
