Comstars + gsx-r front end

rs_ss350

Active Member
I'm one of the rare few who actually like the look or comstars for my project, but wondered if there's a way to use them with the gsx-r fe I just bought. If not I'll have to settle for different wheels but wanted to check before committing.

Btw, this is for an 82 cb750

Thanks!


J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
Spacers and rotor adapters. Easy work, if you have a mill and a lathe at your disposal. Probably a couple hundred if you don't.


cxman

Over 1,000 Posts
DTT SUPPORTER
first one i did cost me over 500 due to the thickness and sizeof the blanks plus axle spacers and bearings and seals ect











i also found since that using rotors from a honda black bird will require way thinner spacers

and more or less right up to the comstar you have to weld redrill the moount holes the rotor comes with 6 holes and the comstar 5

http://www.ebay.com/itm/97-Honda-Blackbird-1100XX-Front-Brake-Rotor-75E-/152140998673?hash=item236c4f6811:g:JuUAAOSwzJ5XYf5w&vxp=mtr


rs_ss350

Active Member
Thanks guys - glad to know it's possible (anything is possible). I don't have the engineering skills myself to do this but have friends. I can turn a wrench like a monkey though. Can you give me the specs for what you did? I have gsx-r rotors already, so i guess the measurements would need to be a bit different than what you have. Couple hundred would hurt me a lot less than cobbling together a laced wheel with cognito parts so I am very into this.


rs_ss350

Active Member
What's needed as far as the axle? i haven't attempted to size them up yet before deciding if it's even possible


crazypj

Split personality, I fake being smart
Personally I would bolt them on using original mounting holes just use one extra long bolt (if any rotor holes line up)
Honda spent a LOT of time and money 'fixing' the Comstar's. The original wheels with cheap 'stainless steel' (they go rusty) 'spokes often loosened up requiring new wheels under warrantee (I was running a workshop at Honda dealers when the various new 3~4 valve motors and Comstar wheels were launched)


rs_ss350

Active Member
OK, so i found that Ninja rotors line up almost perfectly with the honda 5 holes. the question now is what thickness of spacer i'd need to get the rotors to line up with the calipers...

and then, what's the solution for the axle? The GSX-r is 25mm, the original is 15mm. Is there a bearing that's going to work in there? then a 25mm diameter spacer between them?

THanks!


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
What I've done is go somewhere like Motion Industries and found a bearing with the right OD and ID and swap them out. When there wasn't a bearing option, then I've made a tension bushing to slide over the smaller diameter axle to fit the larger diameter forks.


rs_ss350

Active Member
ah - tension bushing - that's interesting! so they'd go in the wider diameter fork "clamps", while the rest (axle, bearings) is oem. you got a picture of it installed i could use for reference? still learning here.. :-[


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

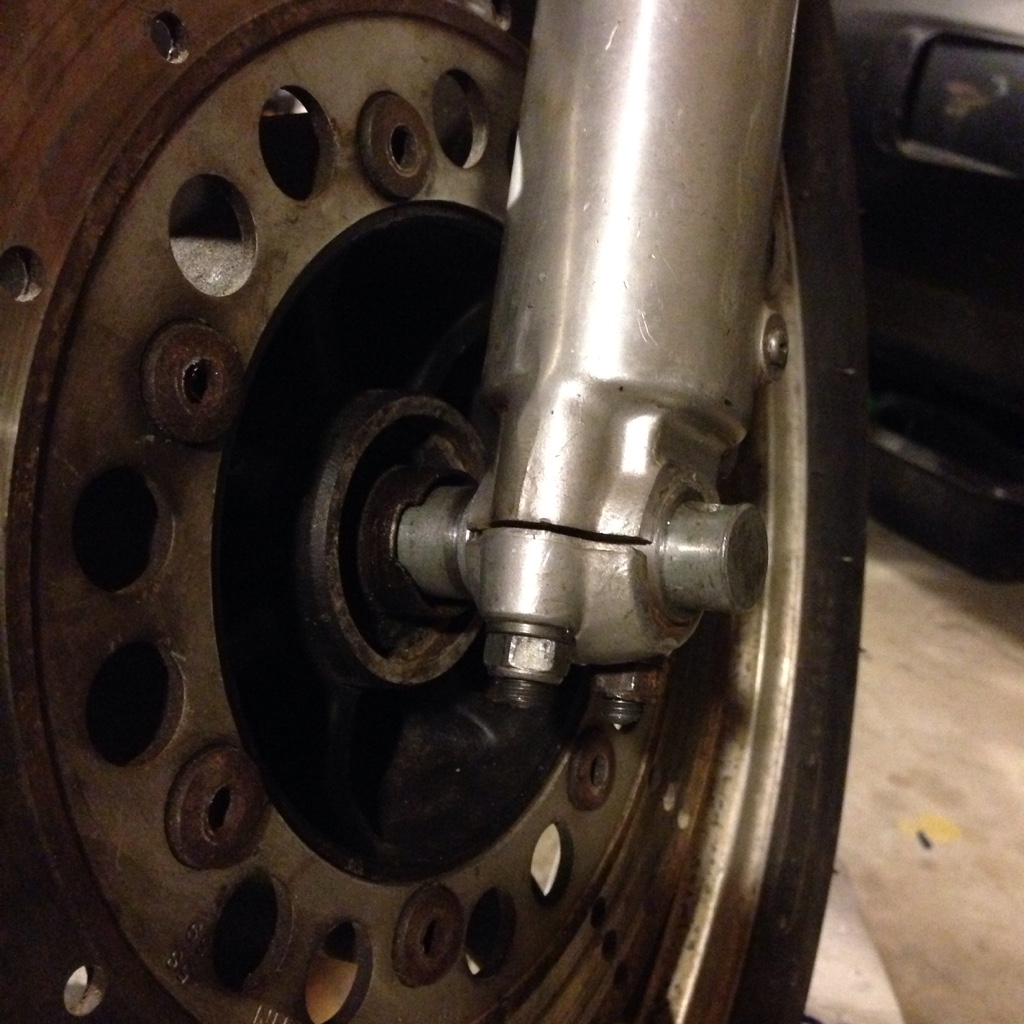

I don't have a pic installed where you can get a great look. This is what the bushing looks like:


I was putting a KZ750 front end on a Honda CB750 while using GPZ rims. If you look close, you can see the sleeve in there.


crazypj

Split personality, I fake being smart
I made alloy 'bushing' for Neevo to fit GSX-R forks with stock CB400 front wheel. Probably safer to bush the fork legs and use a GSX***F front axle (15mm) I used Katana 600/750 axle. The bigger issue, how much shorter than the stock forks are GSX-R forks? Usually, it's around 2"~4" difference which will really mess things up (unless you lower rear to match but then you run out of ground clearance real quick)


rs_ss350

Active Member
thank you!

So the Comstar bearing has 42mm OD and 15mm ID, with 13mm width. The GSX axle is 25mm ID, so I found an All Balls bearing that's 42mm OD, 25mm ID, but it's 9mm wide. Will the narrower width be a concern in terms of performance/wear-tear? And if not a concern, I assume the spacer inside the hub will need to be 8mm wider to make up for the space difference, then we should be all good?


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
I wouldn't worry about the 4mm difference. And yeah, you'll need the spacer to make up the difference.


crazypj

Split personality, I fake being smart
That's a nice easy way to do it, those bearings may not have been available a few years ago?
Do you have spec for load ratings, etc. (although I doubt you'll exceed limits?)


rs_ss350

Active Member
http://www.allballsracing.com/6905-2RS.html

There's no specs out there on the site. But thanks for confirming this will work along with the spacer. Now for the spacer, I assume I'd want the ID of the spacer slightly larger that the axle? How many mm clearance should there be?


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
You want a slide fit. Not tight, but not loose either. Essentially, OD of axle should match ID of spacer.
