Cylinder bore removal help.

[johnny2stroke]

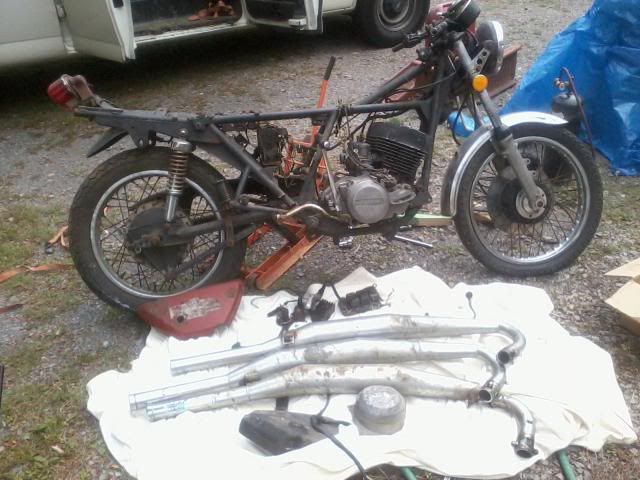

Bike is a 72 kawi h2, gotta send the bores and heads out for machine work. Thing is the two outer bores don't want to come off. There is a bit of play in each of them, I know they are not seized on (neither are the pistons in the bores). I've been taping on them with a rubber mallet, using pieces of thin metal/ wood/ plastic to pry without damaging but no luck yet. I can see a bit of a gap freeing up on both of them but have not gotten beyond that. I have sprayed penetrating oil in the head bolt holes and around the block to bore area. Still no luck. Any help would be much appreciated.



[AlphaDogChoppers]

Just keep at it, wiggling and gently prying. Try heat.
Persistence pays off.



[650hardtail]

try adding heat w a torch to cyls till they get nice n warm..just did that the other day to a well stuck h2 engine..
you are close if the cyls are moving



[650hardtail]

other option also

http://kawtriple.com/mraxl/stuckcyl.html
