diy garage paint booth

rocketman

Been Around the Block
I have this idea that i need to build a paint booth in my garage to paint my 2 bikes plus 1 other,so here goes. The plan is all clear plastic with an entrance and exhaust fan/filter. I already had an 8' light that wasnt being used so all set there. This may take a little bit so bare with

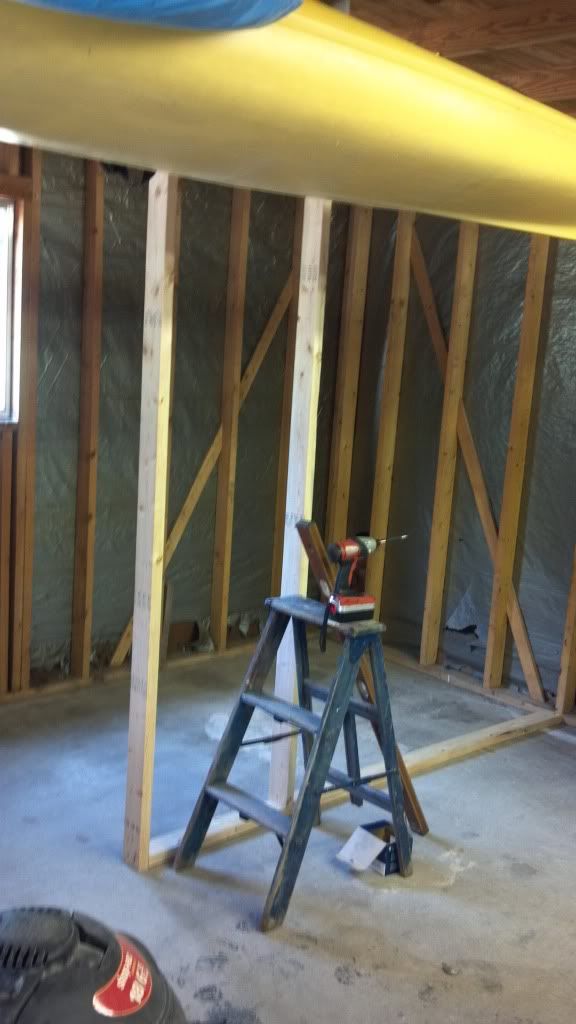

proposed area


Bellicose

Active Member
With the fan, be sure you get one that has a "burst proof" motor. Also choose the plastic carefully as some plastic sheets can cause static electricity with BAD results.


mnraider

Been Around the Block
Please keep us updated on what materials you use. I have 3 bikes that I am going to need to paint and I would like to get somethng going in the garage also.


eyhonda

Coast to Coast
I used 1" PVC pipes and joints for a frame (7' cube). Easy to setup and easy to breakdown and store. Enough space to paint a frame easily.


rocketman

Been Around the Block

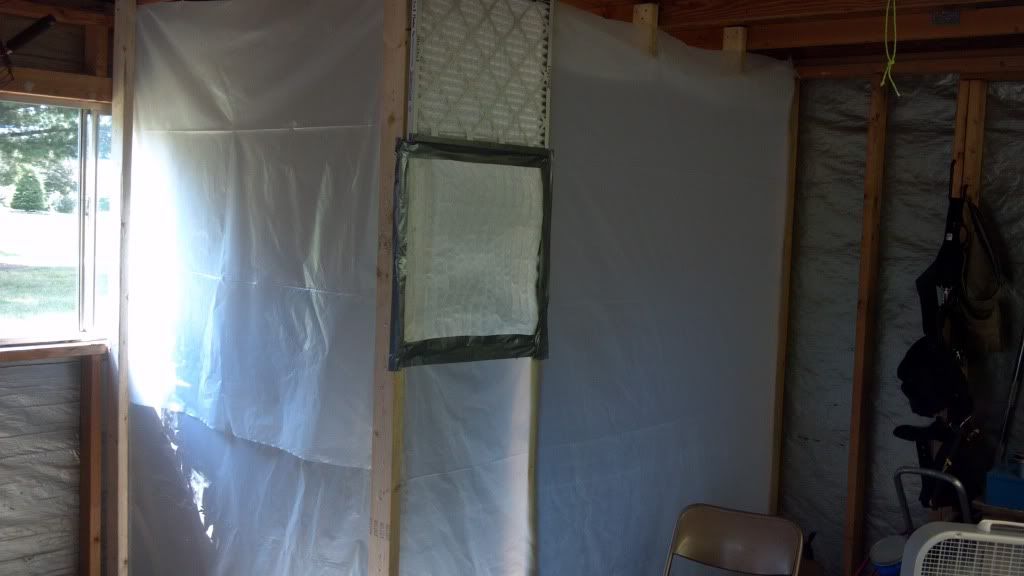

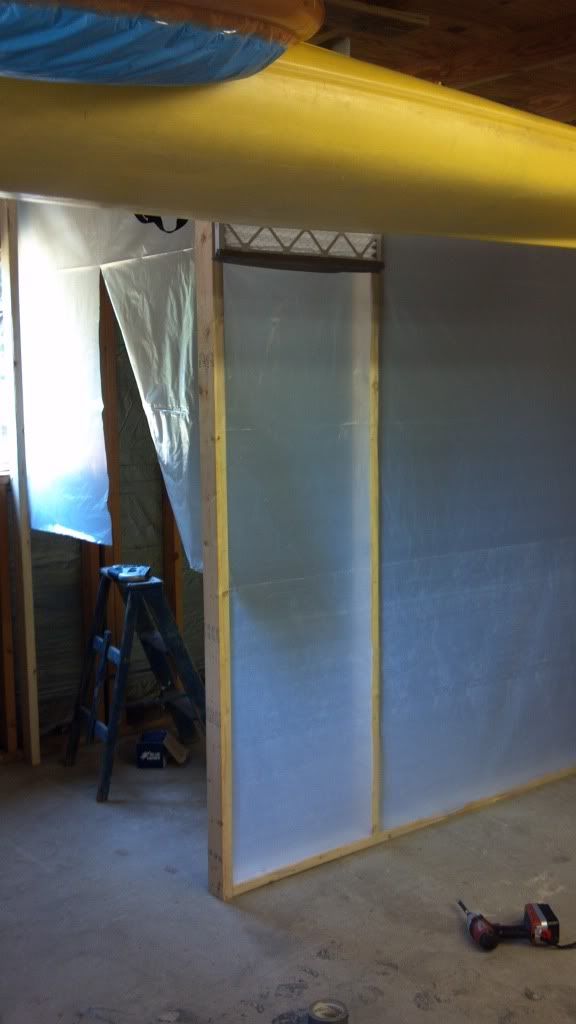

Couple 2x4, fan for window, 8' light 2 furnace filters(dedtroyed one trying to screwcome it) and roll of 12x 100' plastic 3 mil.
We shall see how it goes. Its about 5x8.





AlphaDogChoppers

Science is true whether you believe in it or not.
You will find 5' X 8' is a tad too small.

Go to a home improvement center and buy a self-stick zipper. That can be your door. If you have a leaky flap door, the filters are useless. I would suggest a couple more filters. If you are using a box fan, the amount of air that it could move through those filters is pretty limited. If the air is full of overspray, your paint jobs will suck.

I single 8' light will probably not be enough. You need light from all angles, not from a single fixture.


rocketman

Been Around the Block
I'm sure your right if I was expecting professional results. We'll see what happens and I'll post as I go! Thanks for chiming in Alpha!


sasquach

Coast to Coast

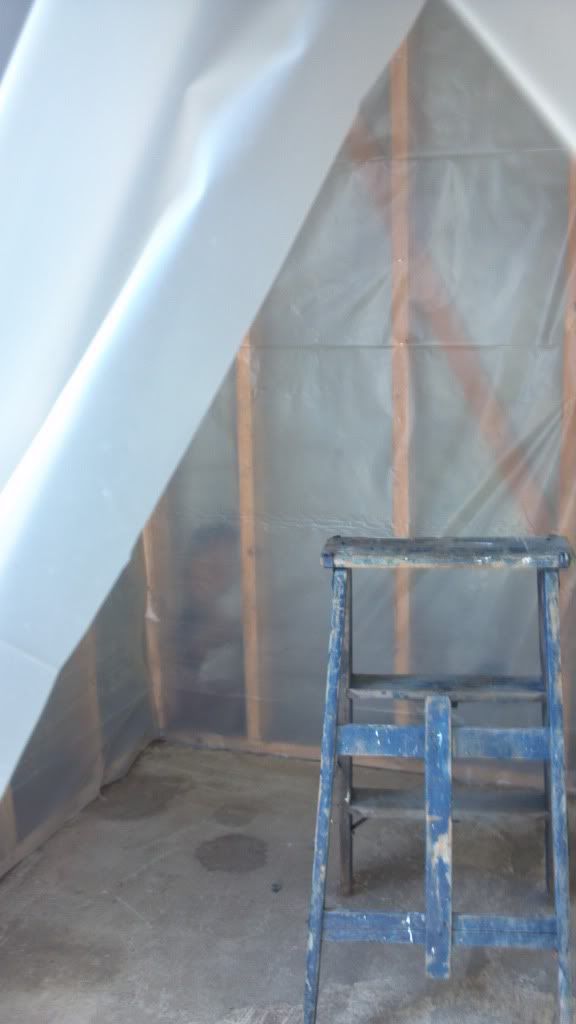

When I remove asbestoswe had to line the rooms in plastic . When it came ti the door we used 3 flaps , just staggered the openings opposite of each other .


rocketman

Been Around the Block
That's basically what I did and there's Velcro once I get in the booth to close behind me.
