DWMS Racing RD350 Cafe Racer! New Gold Leaf Lettering And Graphics!

[joeyputt]

Re: DWMS Racing RD350 Bare Frame Custom Build!

Brother Joe, I've seen what you can do with an engine and I look forward to seeing what you transform my jewel here into! I spoke with my painter today and we have some pretty "trick" ideas for the tins...... This little RD is going to be something special!

I love building engines and making them pretty Brother so I am really looking forward to completing the engine as well! It is awesome to hear that you spoke with your painter and I can not wait to hear all of the final details, she truly is very special!

Any updates Joe?

We have been talking about a couple of different ideas for the frame work however we are not sure which way we are going to build it yet so I am currently working on the engine, I will add some new photos for you tomorrow Brother!

found it... better late than never...

It is good to have you here with us Brother!



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Brothers I apologize for the delay in adding new information to this thread, we had a couple of different ideas for the frame work and I was waiting for approval of one of the designs.

I have had an idea for some frame work that I have been wanting to do for a while and Brother Bluesmokey approved the design that I had hoped he would over the weekend so I started working on the frame some more today! I had to leave the bottom end of the engine together while I was waiting to see which design we were going with as I needed to have the engine in place for measurements and to make sure that we had enough clearance to install and remove it if we went with this one particular design!

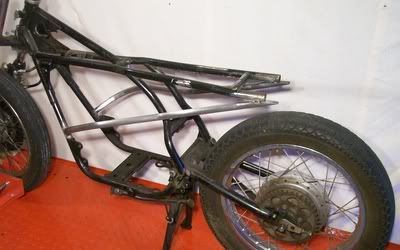

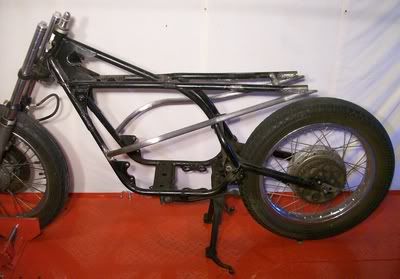

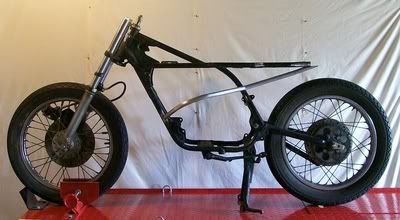

We decided to run a one piece frame rail from the front down tubes, around the cylinders, and all the way back to the rear shock location on each side of the frame! I set the bottom end of the engine back in the frame and bent the left frame tube and then built a matching frame tube for the right side.

I designed the new frame rail so that it does not touch the rear frame down tube and is about an inch away from it so that I can add two short pieces of tubing to form a triangle connection there. I am also going to extend the rear of the top frame tubes and once I have I will box in the rear triangle of the new frame section to incorporate the new shock mounts.

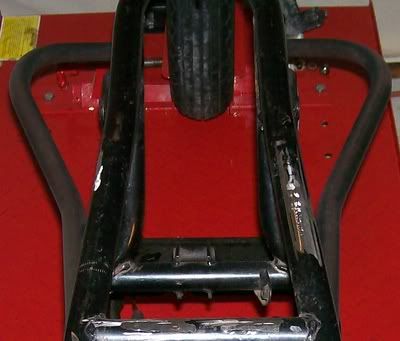

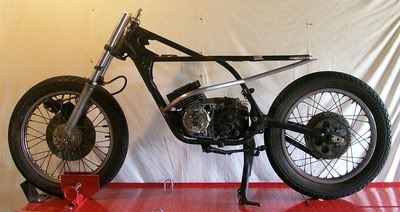

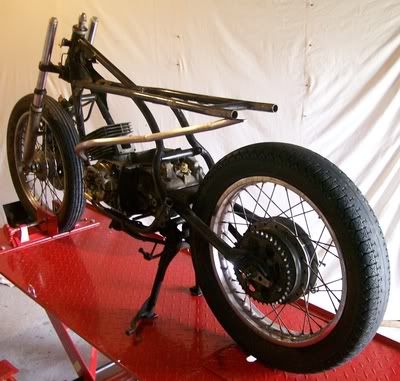

It is hard to get good photos that truly show the new dimensions that this frame design adds however I took a few to share with you all!



[Redbird]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Integrated Case Savers!!



[JustinLonghorn]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

This may sound like a silly question, but how will you get the motor in?

Otherwise, I really dig the outside of the box thinking you have going on there.



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Integrated Case Savers!!

Yes they are Brother!

This may sound like a silly question, but how will you get the motor in?

Otherwise, I really dig the outside of the box thinking you have going on there.

Brother the engine goes in or out of the frame easily without the heads or cylinders on so I will install the completely built bottom end and then assemble the cylinders and heads inside the frame.



[Ringo]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

So cool Joe! Bolt-on frame sections could alleviate Justin's concern as well, but it sounds like your plan is better.



[50gary]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

I like it a lot. It will be interesting to see how it improves the chassis. I think it should? A stiffer frame cannot hurt and overall weight shouldn't be a penalty with so much other weight reduction. It could turn out to be a half cradle and half trellis?
Cheers, 50gary



[bradj]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

but the cylinder studs are not in the case in the picture they should be they rarely come up with out heat and if your just reringing a motor it seems like a waste
im not saying its a bad idea i just dont get it



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Brother I am getting ready to rebuild the engine so I removed the studs, they did not have to come out I just wanted to clean them. You know I like to take my engine builds all the way down to the bare cases! As far as installing new rings or pistons they would not have to come out then either as the heads and cylinders will clear with the engine in the frame and this frame modification does not change that at all so I am not sure what you mean or what it is that you do not get?



[bradj]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

So top end gaskets and stud replacement every time the motor comes out?



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

I like it a lot. It will be interesting to see how it improves the chassis. I think it should? A stiffer frame cannot hurt and overall weight shouldn't be a penalty with so much other weight reduction. It could turn out to be a half cradle and half trellis?
Cheers, 50gary

I am very happy that you like it Brother! I could never leave the factory rear tubes as they are both offset to the same side so when you look at the bike from the rear it does not look uniform, this design may add a little stiffness and take a little of the flex out of the frame however you have to be careful when adding new bars to a frame as taking flex away from one area of a chassis will often move it to another place in the chassis. I tried to keep the attachment points of the new frame rails close to places in the frame where there should not be a lot of flex in theory, the front of the new frame rails attach to the front down tubes very close to the front engine mounts where the engine is bolted in place and already connecting the two front down tubes and where we are attaching the new frame rails in the center of the bike to the rear down tubes there is already a factory cross brace to connect the two rear down tubes so hopefully the new frame rails will help slightly with out moving too much flex to other areas of the chassis.



[bradj]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Kool mqn im not out to give ya a hard time i just didnt see the big picture. Looks great as always keep up the good work my friend



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

So top end gaskets and stud replacement every time the motor comes out?

Actually no Brother, as I mentioned previously the studs do not have to be removed to remove or install the engine as they will clear the new frame rails. I only removed the studs for cleaning as I was starting to take the engine apart for the rebuild however I needed to set the bottom end of the engine back in the frame and set the cylinders in place so that I could check for clearance around the cylinders while I was bending the tubing for the new frame rails. The engine may even go in with the cylinders in place however I have not tried yet to see as if they will clear it will be by installing the engine from the right side and I have not installed that frame rail yet. This is not a track only bike so we do not plan on having to remove the engine often and even if it was we would always replace all of the gaskets with new ones every time we removed the engine for inspection or rebuilding.



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Kool mqn im not out to give ya a hard time i just didnt see the big picture. Looks great as always keep up the good work my friend

I know Brother, thank you for your support and it is always good to have you here with us! I always enjoy talking with you my friend!



[teazer]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Joey, good to see that you still like to push the envelope.

What I haven't worked out yet is the objective of the frame modifications. Suspension forces applied to the new tubes will tend to twist the rear triangle upwards more than a stock arrangement. Maybe not by enough to be an issue, but those frames are not super stiff to begin with. Directing any extra force into the front downtubes might add to the way that stock frames crack above the engine mount and below the swingarm pivot.

The revised frame design mimics a Big Tube Spondon but they typically have no lower frame tubes and the motor drops out of the bottom. They are also a much stiffer design, but that's another story.

I doubt that the frame will be much, if any, more likely to crack in street mode than a stock frame, but it is unlikely to be any stiffer either. It might tie the swingarm pivot and steering head together more stiffly, but I wouldn't bet on it, so let's assume for the moment that it comes out awash.

That's a lot of work for aesthetics. I'm not knocking it, just thinking out loud. With the right paint and graphics it might just update the look of the bike and make it stand out as different. That can't be all bad.

Nice to see someone making their own path and not just following the herd.



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

Brother Teazer I was truly hoping you would join in and share your thoughts on this design as you know I always value your knowledge, I agree with you and do not believe that the design will add much stiffness to the frame and I was actually trying to prevent adding too much which was the point that I was trying to make when I responded to Brother 50gary as to why I placed the attachment points where I did as I really do not want to move too much of the flex around on the chassis.

As for adding stress to the front down tubes, where the new frame rail intersects with the rear down tubes I designed the new frame rail so that it is roughly an inch away from the rear down tubes and am planning on adding two short bars on each side to tie the new frame rail to the rear down tube forming a small triangle on each side which should alleviate some of the stress from the shock pressure from travelling forward to the front down tube, what do you think? I am also planning on adding a couple of new gussets to the frame to help with the stress and to prevent cracking.

As for pushing the envelope and not following the herd you know me Brother!



[teazer]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

If I were adding those tubes, I'd want to tie them in nice and tight to the rear down tubes. I'd lightly notch them and weld tube to tube and then add a small sheet metal brace to lock them in tight. The rear suspension tubes need to be tied in and not move. If the new tubes have nay flex, it will put the rear suspension force into the front tubes at the wrong place.

If the front connection point were around the top engine mount it would be more effective IMHO.

Here's some modern versions of that lateral frame member

http://www.customfighters.com/forums/showthread.php?t=7810&page=5

http://www.spondonownersclub.co.uk/chris%27s%20bandit.htm

http://www.superstreetbike.com/custombikes/0909_sbkp_spondon_bandit_1216/photo_01.html



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

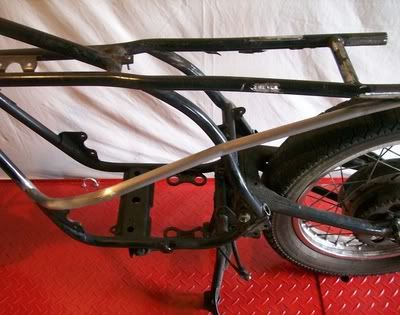

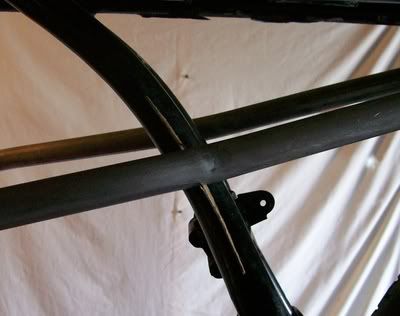

Brother those Spondon big tube frames are absolutely gorgeous however I think that type of design it a little too modern of a look for what we are looking for on this RD. I tried to take a couple photos of where I am going to tie the new frame rails to the rear down tubes however it is hard to show in a photo as the new rail looks like it is touching the down tube in a photo when there is actually about an inch of clearance. The way I am planning on connecting the new frame rails to the rear down tubes the rear suspension tubes should be really tight and not move at all, I am also adding a triangle shaped gusset in the corner just below the top frame tube and behind the rear frame down tube and I will be enclosing the rear shock mounting point with a triangle box section so that the top frame rail will only have a roughly ten inch span between the gusset and the box section.

As for the new frame rails mounting location to the front down tubes you may not be able to see it very well in the first photos I posted however they do connect around the top of the engine mount, there is roughly 3/8th's of an inch between the bottom of the new frame rail and the top of the engine mount.



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

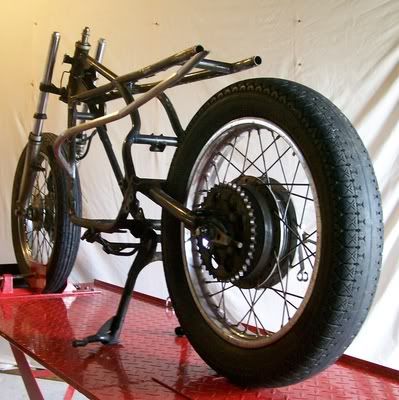

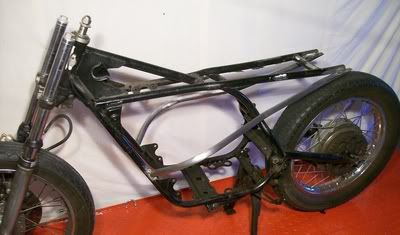

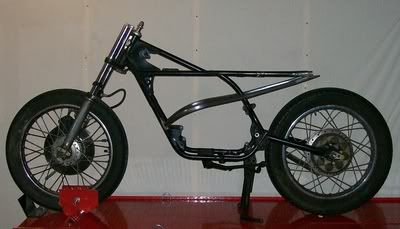

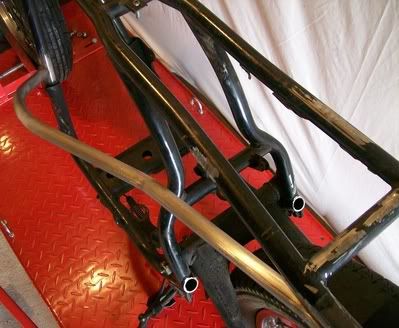

I added the new right side frame rail today!



[joeyputt]

Re: DWMS Racing RD350 Build! New Custom Frame Work Photos!

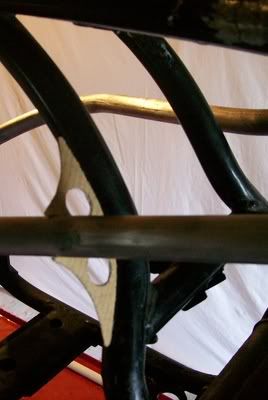

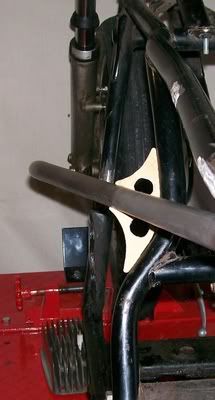

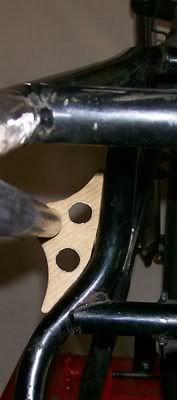

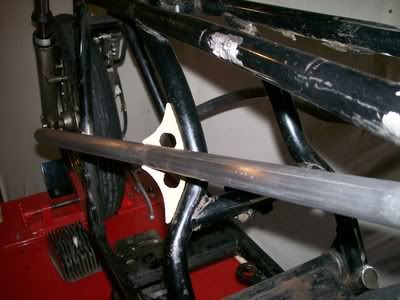

We had originally planned on connecting the new frame rails to the rear down tubes on each side of the frame with two one inch pieces of tubing to form a triangle however after looking at it today we felt that a nice gusset would be stronger and would also look nicer! We designed a gusset and cut it out of cardboard so that we could set in on the frame to see how it would look and we really like the design so I am going to start building the gussets out of 3/16th's steel plate.

We are going to slightly curve the gusset so that it matches the curve of the rear down tubes when looking at the bike from the side.

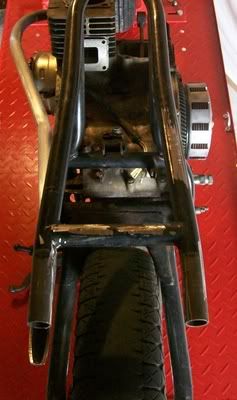

We are also going to skin the back side of the rear down tubes that you can see in this photo with some nice aluminum from the top of the frame down to the swingarm to protect the carburetors and engine from any water, dirt, or rocks that may come off of the rear tire. The down tubes have a really nice curve to them and they have a nice step in them on the sides so I am going to build the aluminum shield with the same curve and shape which I think will look really nice!
