Honda CB360T Rear Sets

J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
Finally got a chance to get a set together for the 360.

Here's the brake side. Same as my 350 set up, these will make use of the stock brake rod/light switch by using the custom pivot piece I've built for them. So there is no relocating the switch, or running an aftermarket rod.

These, as all of our others, are aluminum pegs/levers/linkage rods with heim joints.

Same as the other bike specific, they will be $175 + $12.80 shipping.

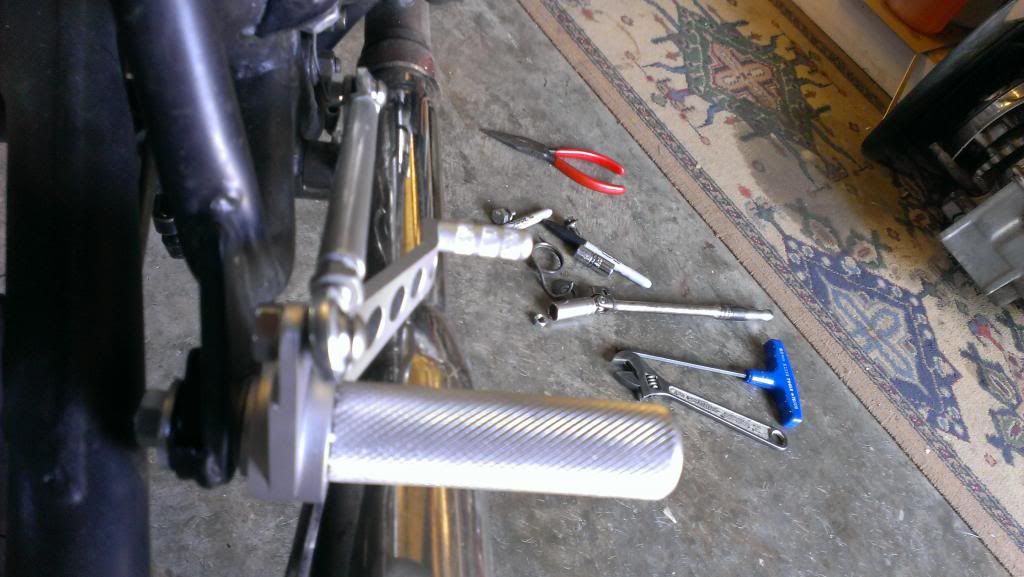

Here are some pics of the brake side. Have to machine a lever for the shift side, but, it'll look just like all of our others.



hey j rod i purchased these rear sets from you for my cb360, couple of months ago, right around the time of barber because i remember you said you shipped them right after you got back. anyways im installing the rear sets right now and cant seem to figure out how it all goes together. You sure you dint send me a cb350 kit instead of 360? any advise would be great or some installation instructions

Post a pic of the pivot you received, and I can verify which set you received.

Hey, Thanks a lot for the swift reply. Here's a picture of the bracket I received.


Attachments

  • 20140402_085307.jpg
    158.5 KB · Views: 381
I sure as hell did.

If you'll send that back my way, I'll send you the proper one.

Phew, I thought I was completely off last night. Thanks, can you pm me the return address?

I bought this kit and it said it’s a direct replacement but can’t figure out the brake side, am I suppose to replace the bolt with a longer one? Or am I just positioning the pieces incorrectly?
Thanks

FatJanky said:
I bought this kit and it said it’s a direct replacement but can’t figure out the brake side, am I suppose to replace the bolt with a longer one? Or am I just positioning the pieces incorrectly?
Thanks
The two pieces provided replace the stock pedal. They are set up in the same orientation as the pedal goes in.
