KZ650 Street Fighter

[DNel928]

What did you have to machine on the stem to fit those forks? It almost looks in that photo as if the bottom retaining collar was machined off, but that wouldn't work so I'm not sure how it was modified to fit the KZ frame. Care to share?

All you have to do is machine a bushing to go over the kz stem that fits the ZX6R triple tree and weld it on. Here are some pics to help ya along with the idea.

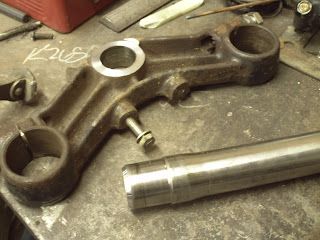

kz stem out.

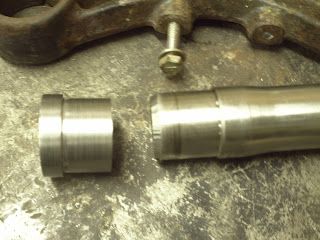

Bushing made

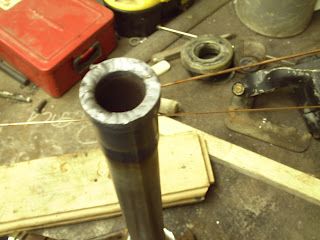

Welded on

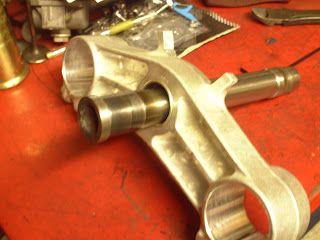

And then press into the zx trees.

Any more questions just ask!



[Tifun]

You having Ethan tig it?



[DNel928]

You having Ethan tig it?

Yes sir should be done here soon



[Tifun]

Is it already there? If so, ill be humping it tonight.



[DNel928]

Yep, left my house Friday lol. Make sure you hump it good.



[Tifun]

I humped many pieces laying about

Btw. My bike is currently over thee as well lol



[DNel928]

All welded up. Next is engine reassembly



[DNel928]

Picked up a set of carbs today, along with pistons and jugs. Kinda happy about the carbs, as they are getting hard to find!

Getting the last part of the frame done today, then it's time to reassemble.



[Tifun]

Have you decided what route you are going with for the engine now? 650/750?



[DNel928]

Have you decided what route you are going with for the engine now? 650/750?

Will def be 750, unless the jugs I just bought are not as described, then it will be 810.



[thebronze]

Picked up a set of carbs today, along with pistons and jugs. Kinda happy about the carbs, as they are getting hard to find!

Getting the last part of the frame done today, then it's time to reassemble.

Give those carbs a good soak in "Pine-Sol"... They will come out like new



[Tifun]

Pinesol works good, the Yama lube works way better though.



[DNel928]

sitting in a 35 gallon drum of parts solvent for the night, then off to media blasting



[DNel928]

Took the carbs apart today, let them soak, and media blasted them. Ready for rebuild! Also dropped off the jugs to get honed, and ordered all the goodies to get the motor back together.

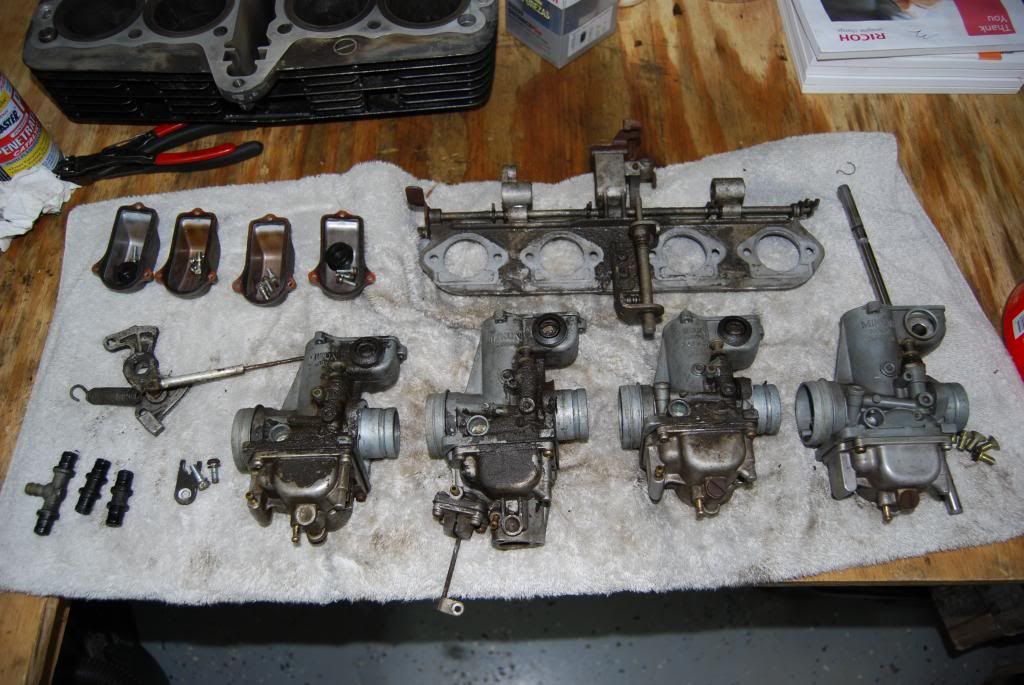

Dirty

After soaking

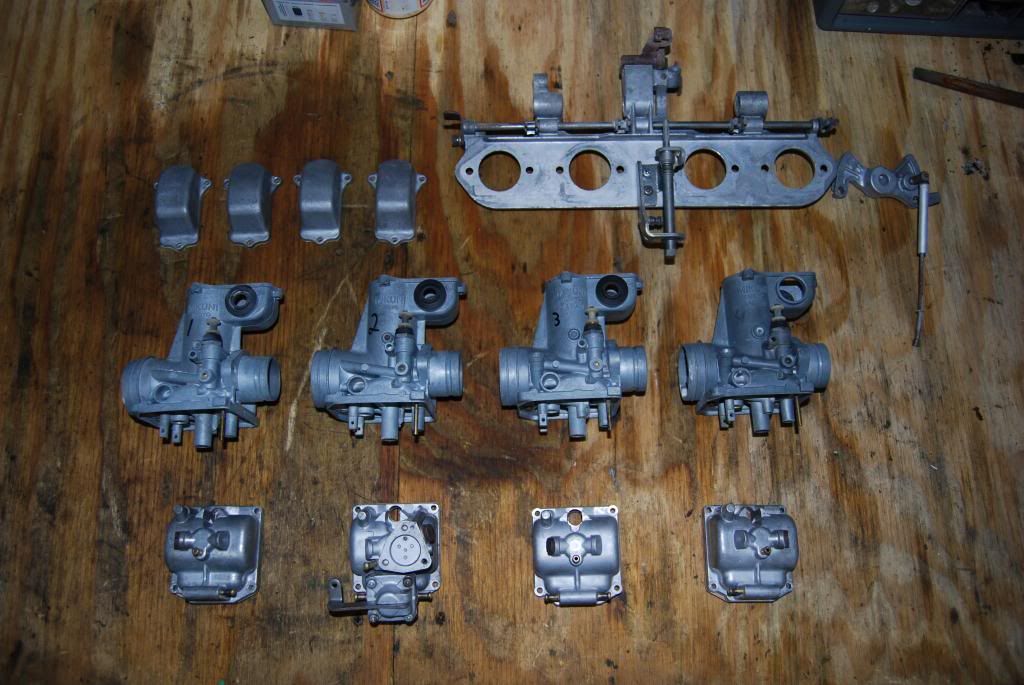

And blasted



[thebronze]

Awesome



[750INDY]

Awesome

I cant stop watching your GIF....



[DNel928]

Well engine reassembly has begun, also got the frame back from the welder. It's all down hill from here!

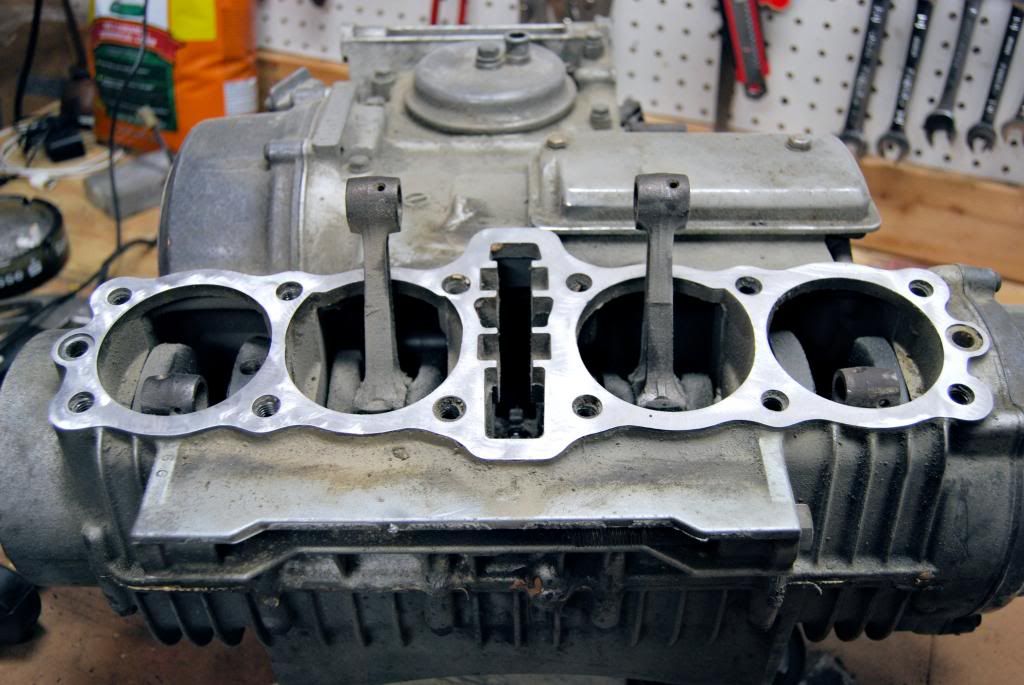

Had to yank the studs out to get the gasket off around them. The gaskets were as hard as rock and I swear fused to the case. Thank god I learned of a 3M roloc bristle disk, cleaned it up in no time.

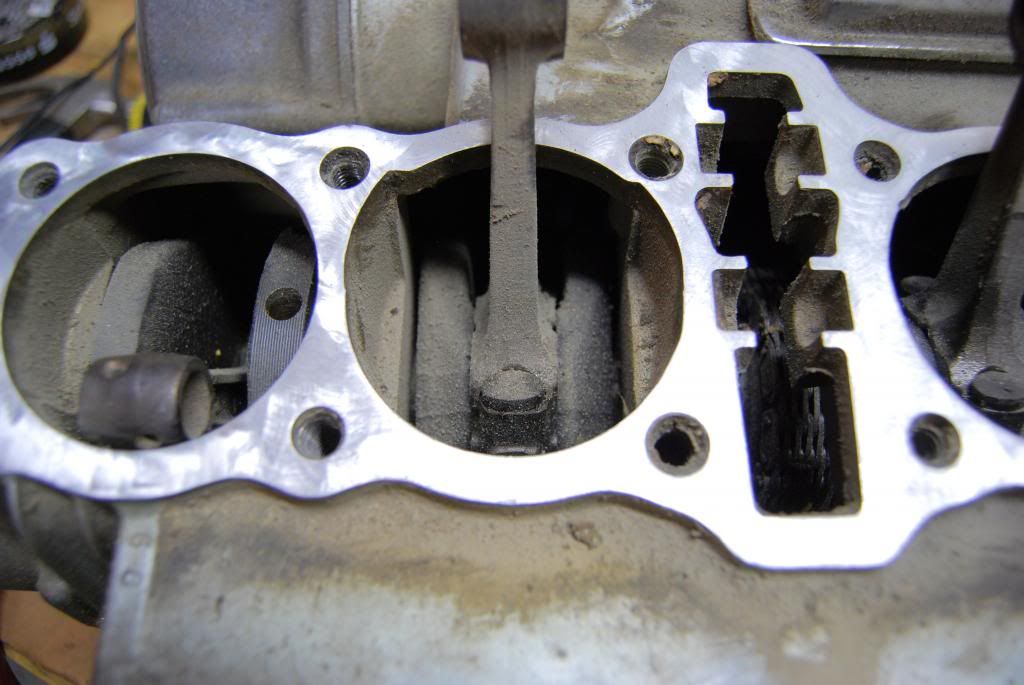

The only bad part is the dust and dirt in the crankcase, any ideas on how to flush this stuff out???

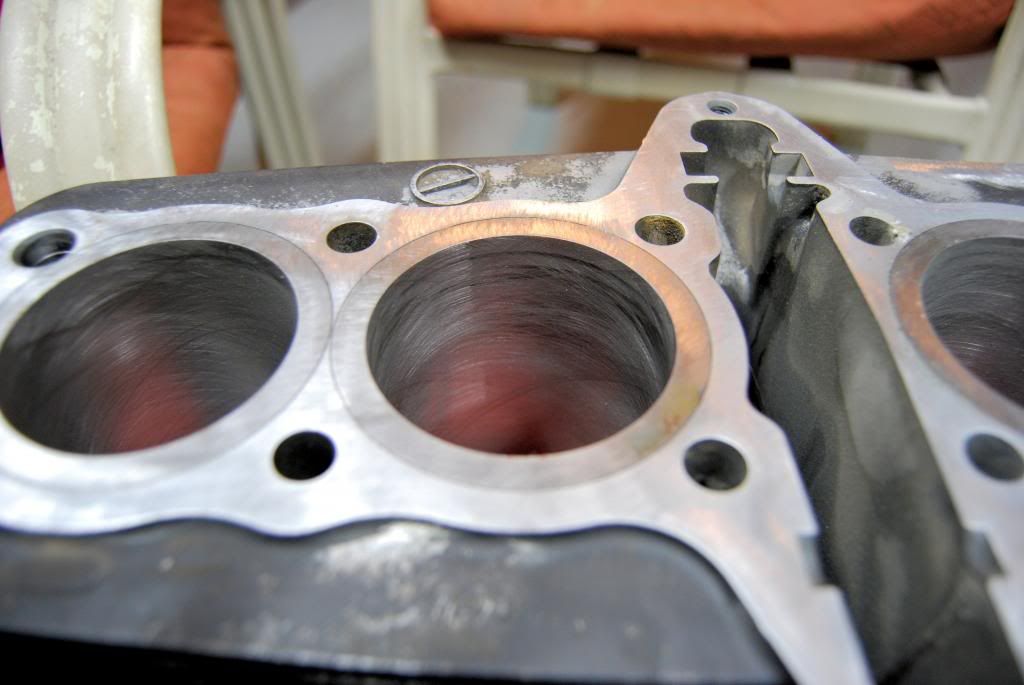

Nice fresh hone

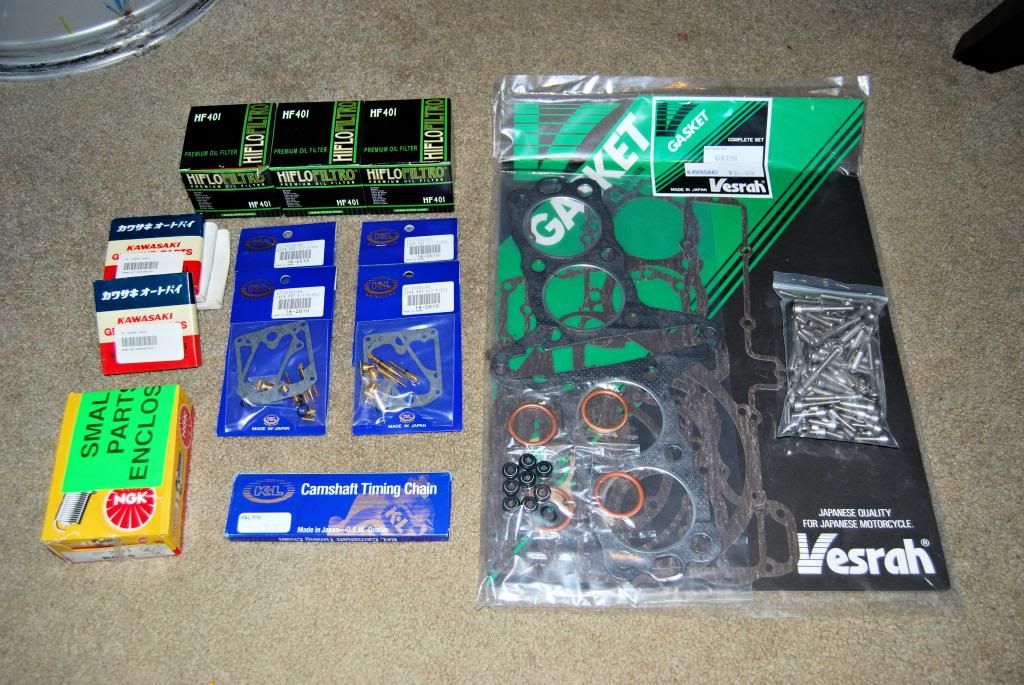

And a few goodies from Z1 to reassemble.



[Tifun]

Hope this thing is ready for the rockers reunion.



[DNel928]

Hope this thing is ready for the rockers reunion.

That's in June iirc, will definitely be done by then.... I hope lol.



[veaone]

What a great build so far, looking forward on seeing how it turns out. Are you planing on using the stock tank?
