Laser cutting and CAD stuff..

Bucky685

New Member
Figured I'd show off some of the stuff I have drawn up in CAD, and parts I have made.
Velocity Stacks:

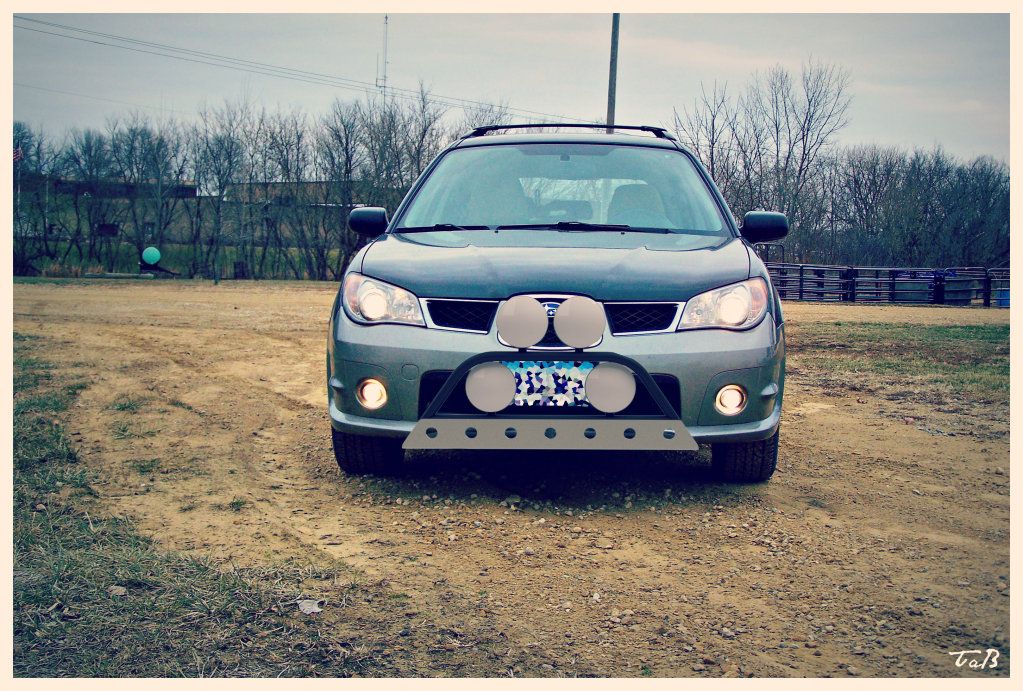

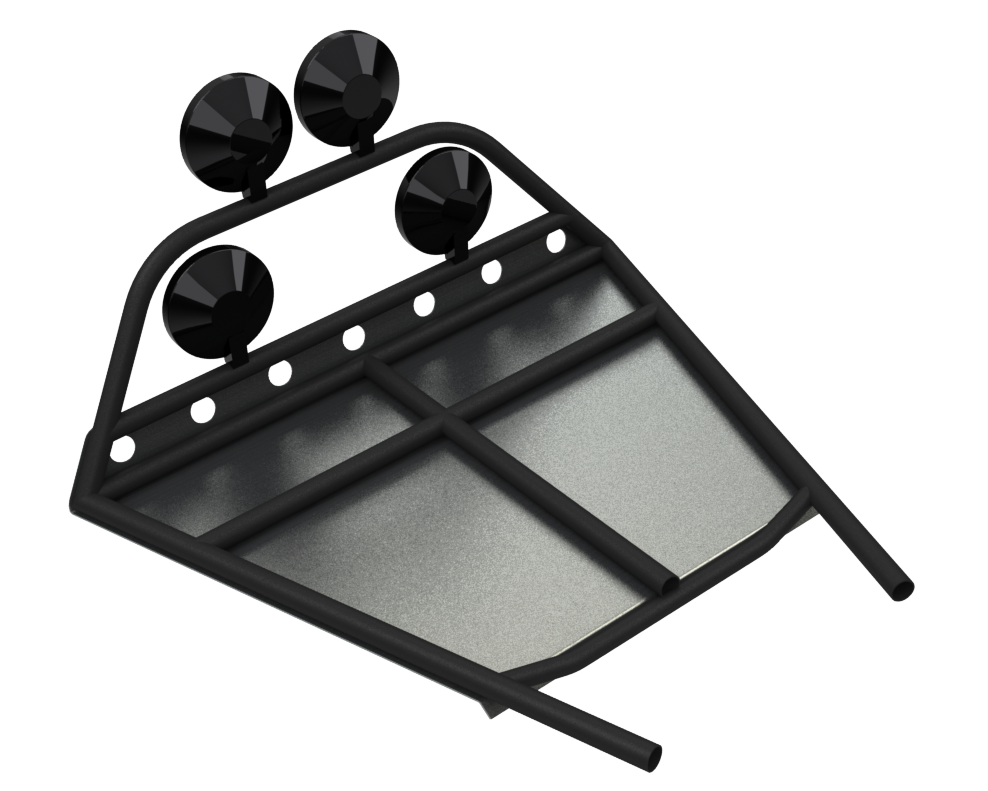

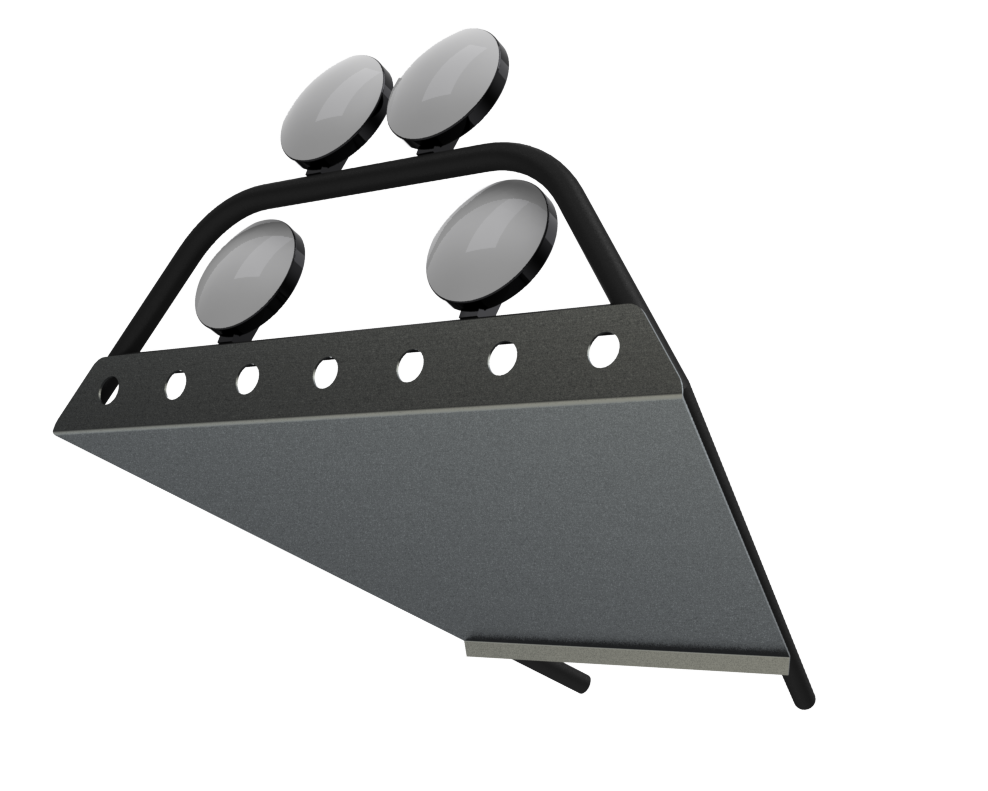

Light bar/skid plate for Subaru

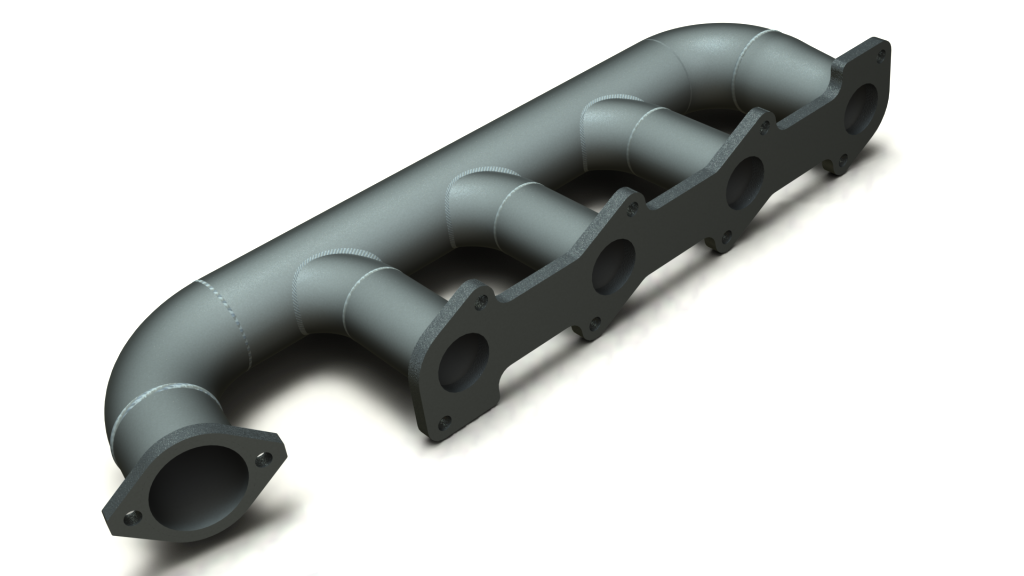

Header for a F250 Diesel

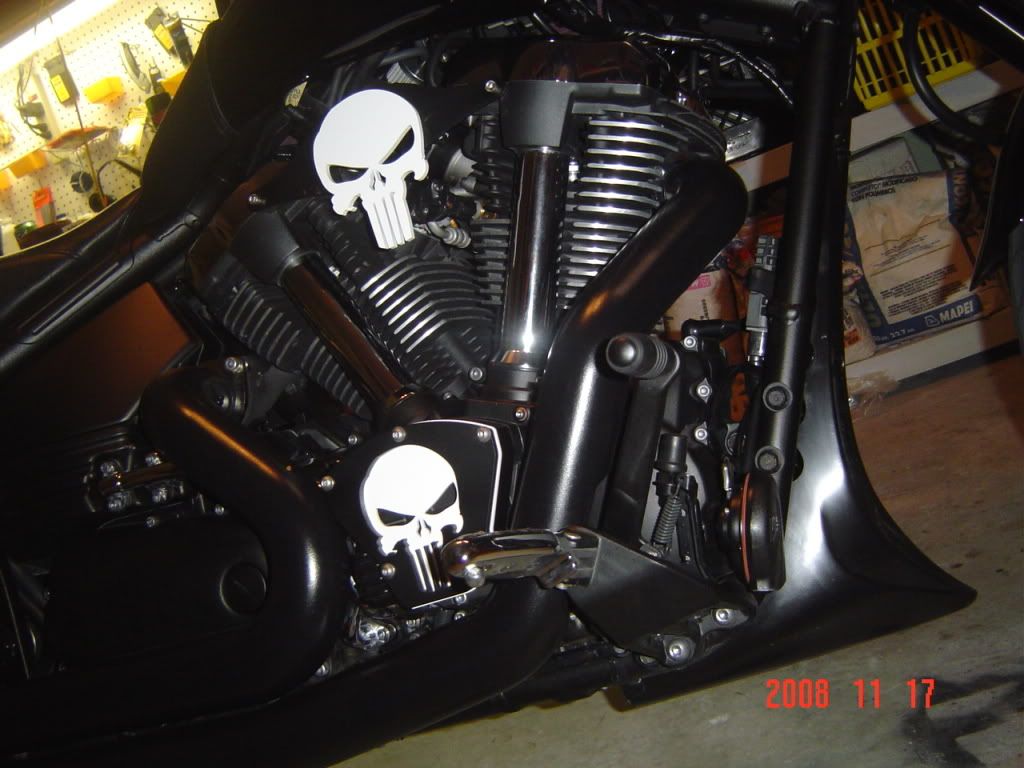

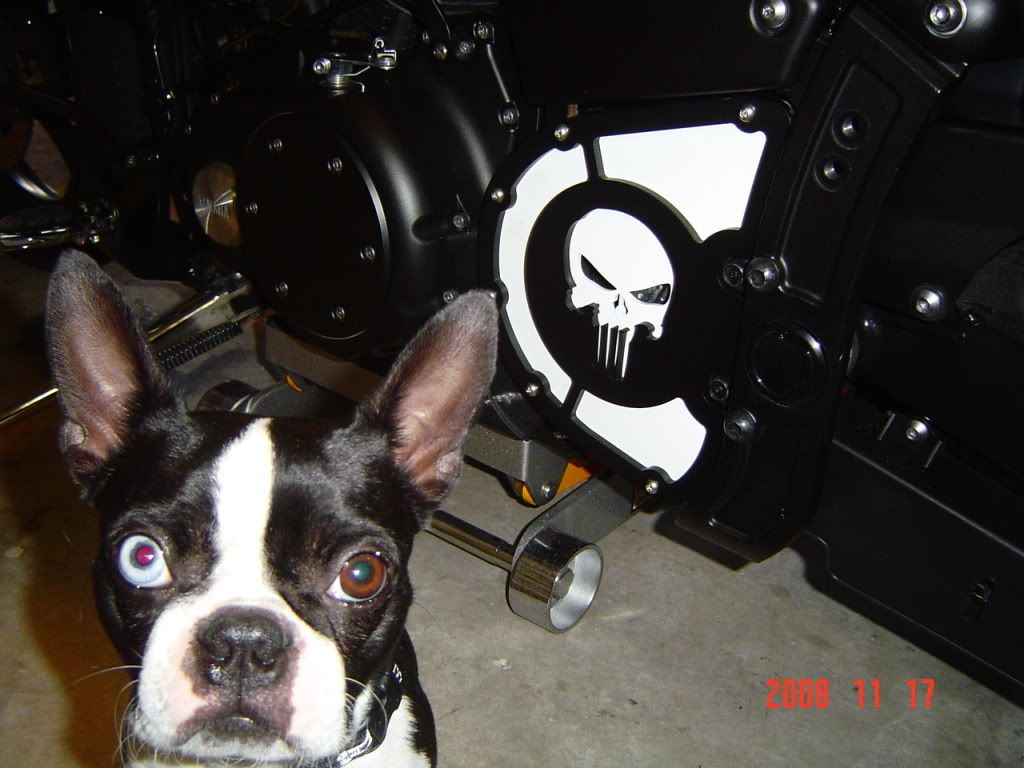

Punisher Engine Covers

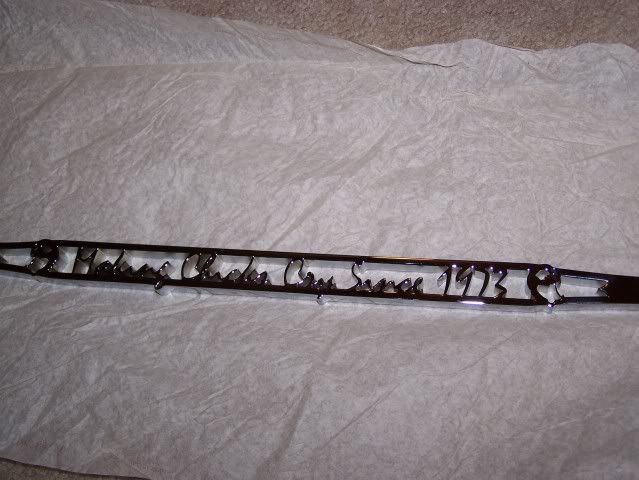

Chrome Shift Rod:"Making chicks cry since 1973"

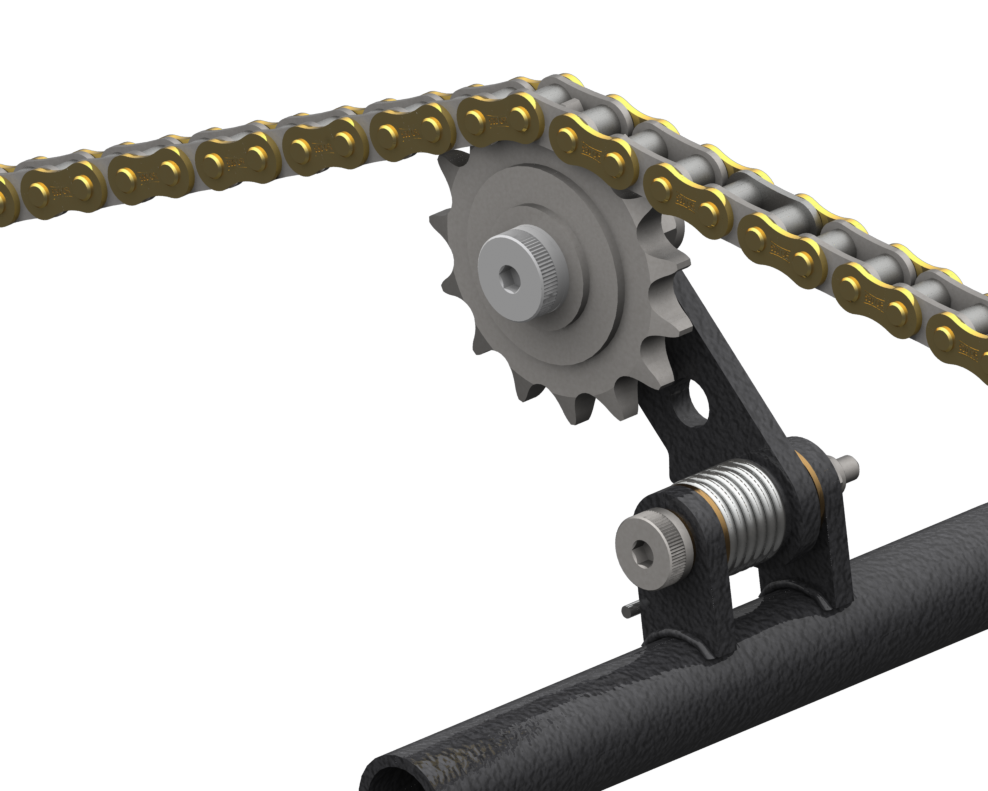

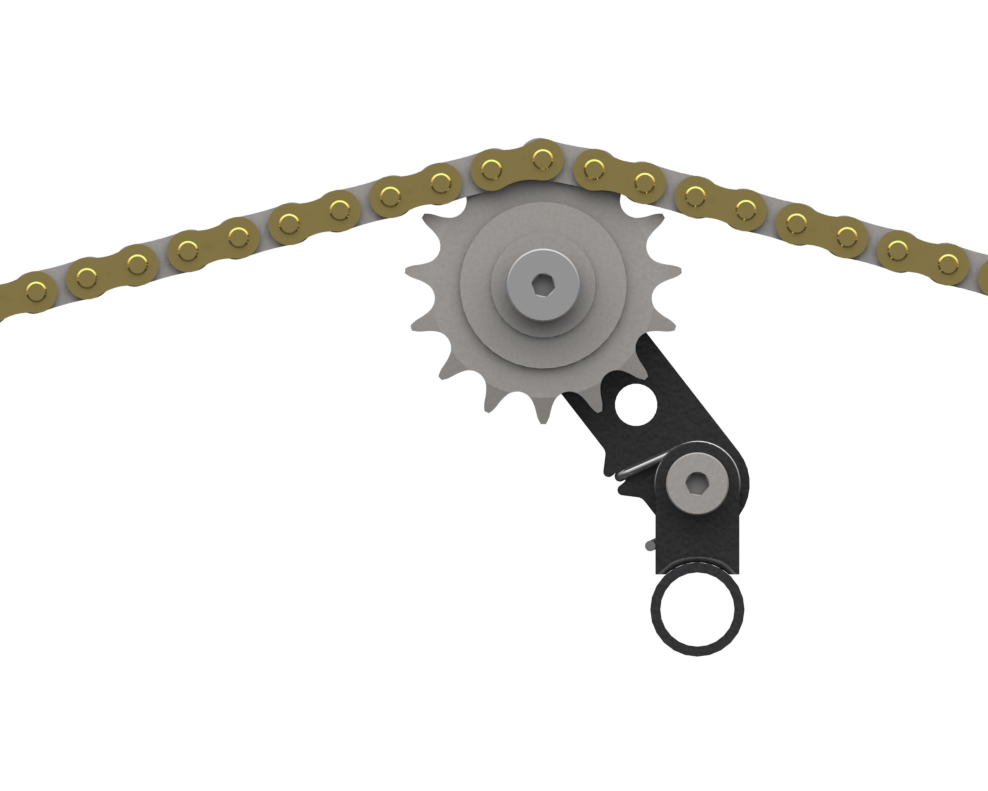

530 Chain Tensioner:



Bucky685

New Member
ILoveThumpers said:
Are you a vet, Bucky?
I am not, however I respect them for there service!! I have made several military themed stuff for a few different vets over the years.

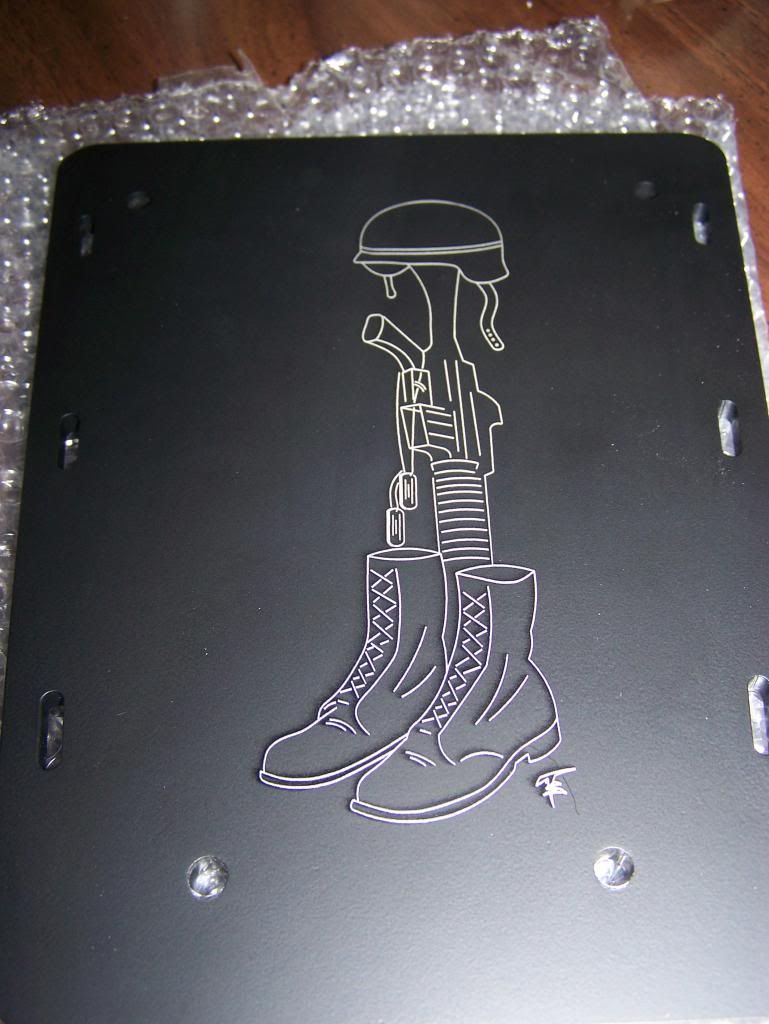

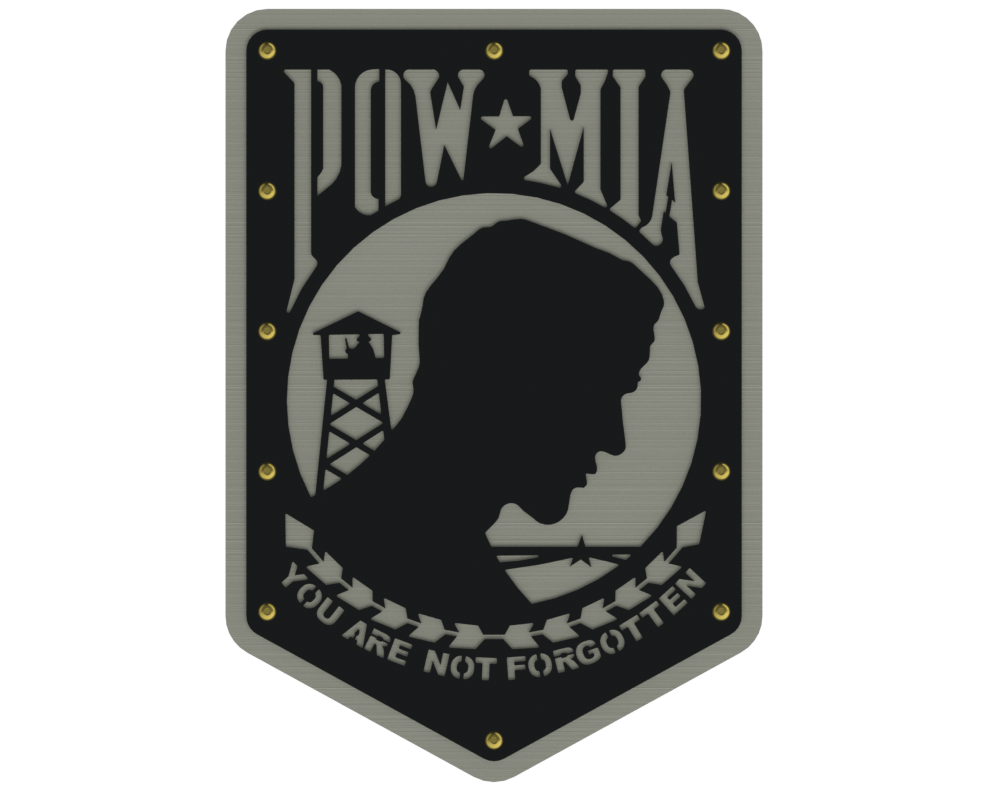

The Large POW/MIA wall hanging is going to be given as a gift, to the puchasers friends family. Who lost there son in Iraq.


timberwolffxdl

New Member
what CAD software packages do you use?
what size laser are you running?

I use Inventor and Solidworks for the most part here. We've got an old Bystronics 2800W laser, but it does the job. Usually.

Check my build thread and you can see some of my cad, laser and machine work.


Bucky685

New Member
timberwolffxdl said:
what CAD software packages do you use?
what size laser are you running?

I use Inventor and Solidworks for the most part here. We've got an old Bystronics 2800W laser, but it does the job. Usually.

Check my build thread and you can see some of my cad, laser and machine work.
I use solidworks and autocad. I don't own the laser/Waterjet. I have the done in a local shop. I'll take a peek at your build thread.


Sent from my iPhone using Tapatalk
