Lifan 150cc big-bore kit: Installation

[stroker crazy]

Any chance of them being reposted?

The photo service I was using is no more!

Will repost over next few days.

Crazy



[stroker crazy]

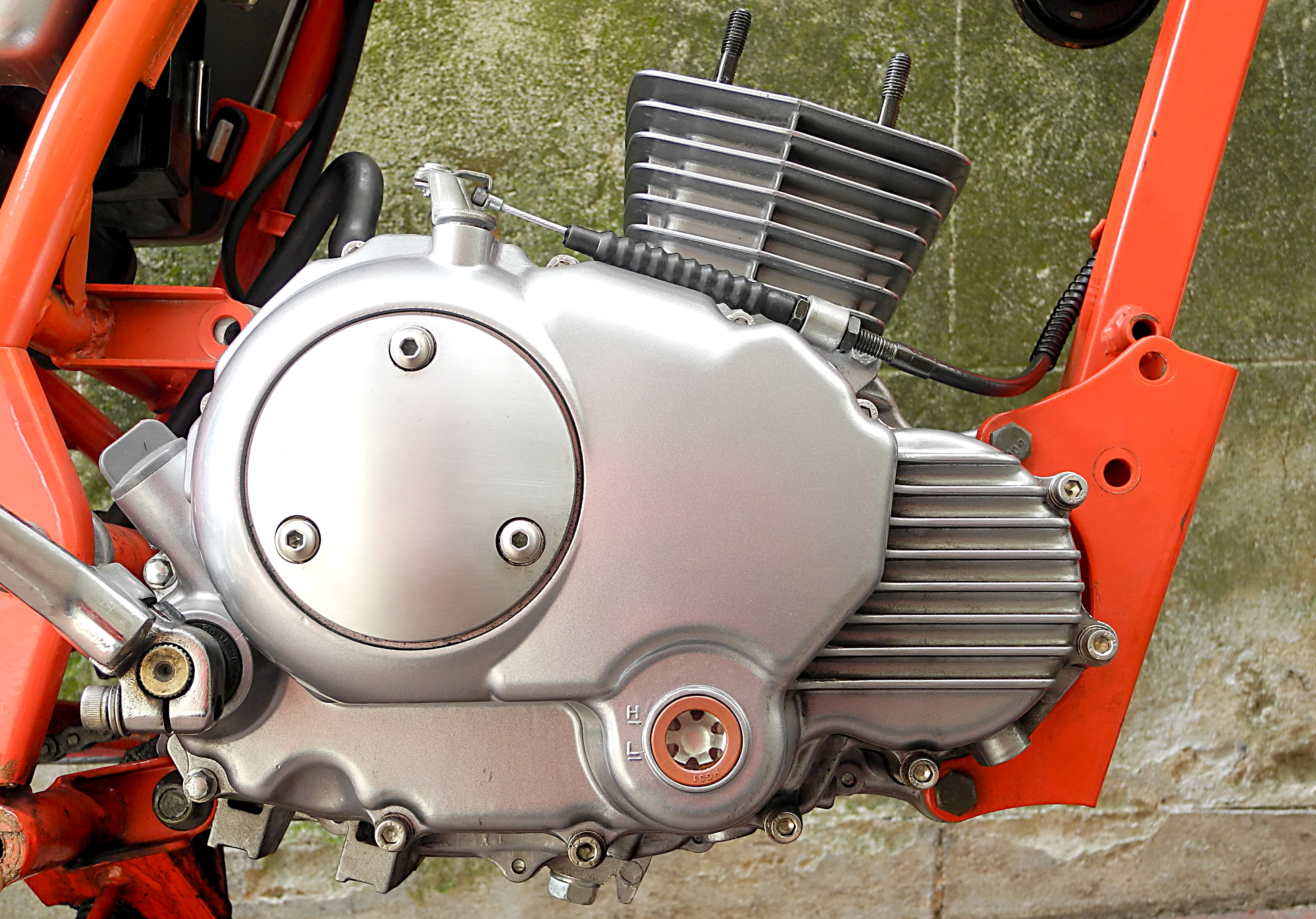

Remove seat and petrol tank to allow clear access:

Remove carburettor and intake, spark plug, exhaust, horn and bracket:

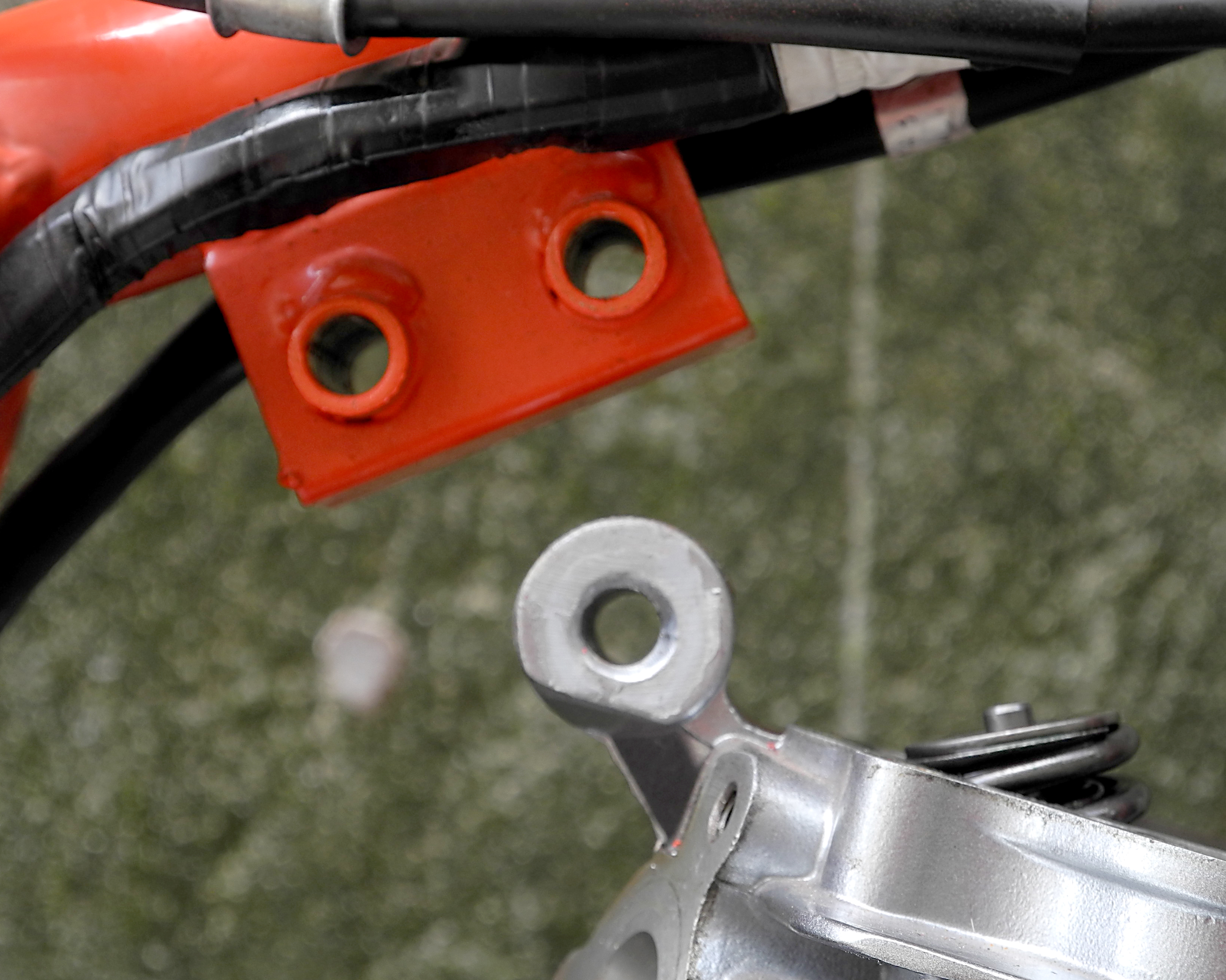

Remove head steady bracket, the two bolts holding the front engine mounting bracket to downtube, top rear mounting bolt, and loosen bottom rear mounting bolt:

Remove tappet cover:

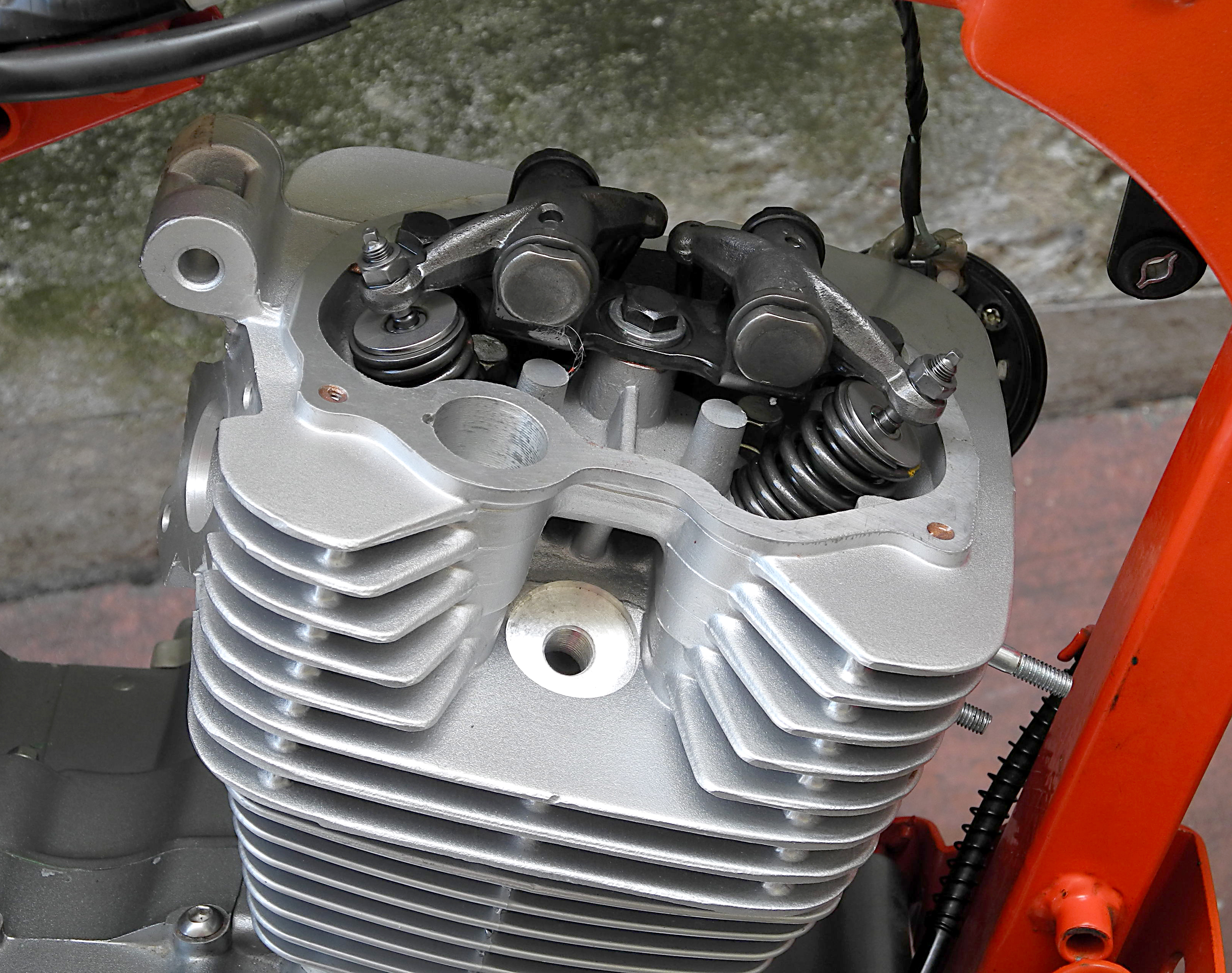

Remove rocker assembly; when lifting pushrods, make a note of which is intake and which exhaust:



[stroker crazy]

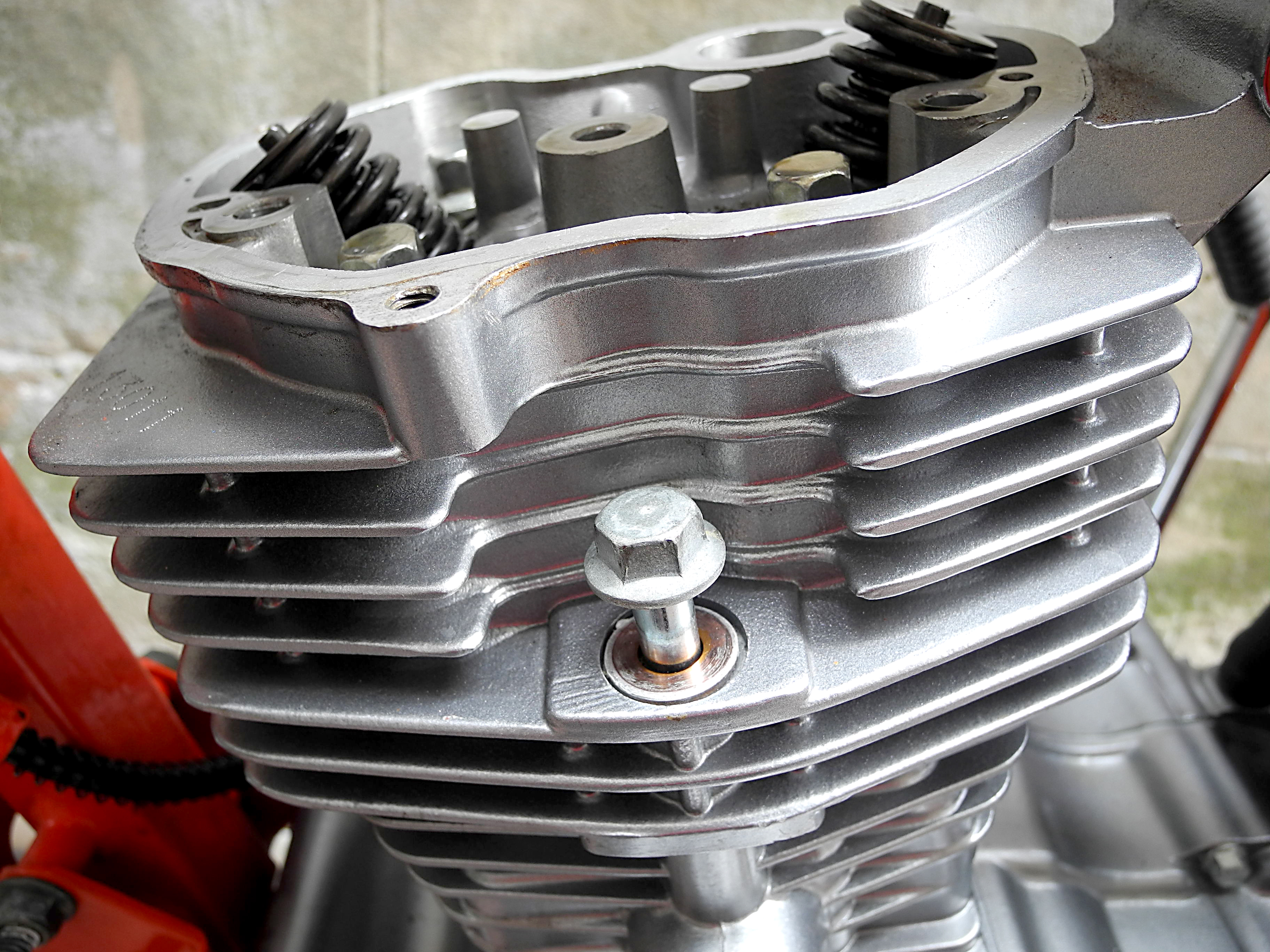

Remove the four head bolts, not forgetting the cam locating bolt on LHS of motor:

Lift head clear, keeping a look out for the dowels between head and cylinder:

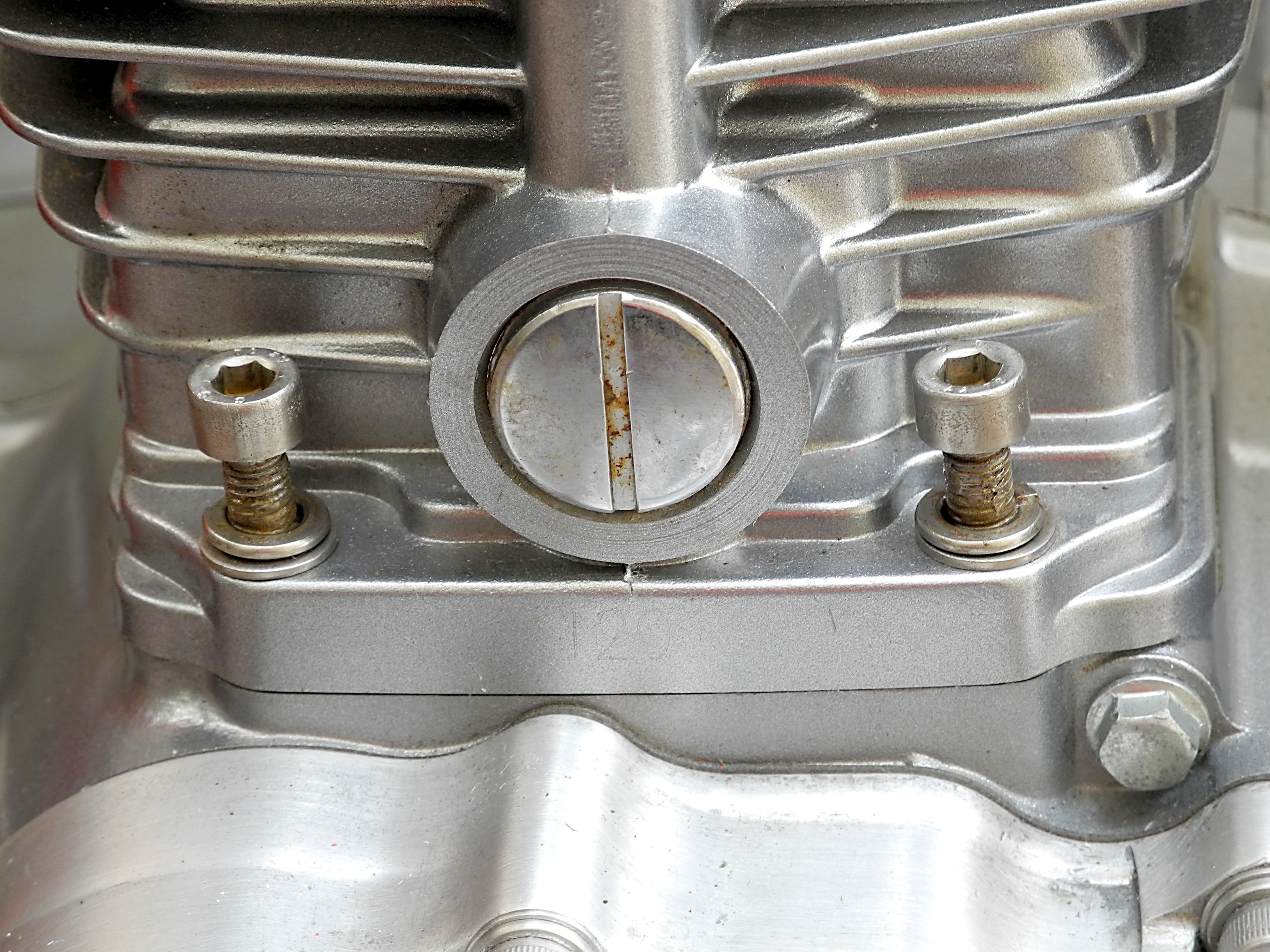

Undo cylinder location screws on LHS of motor:

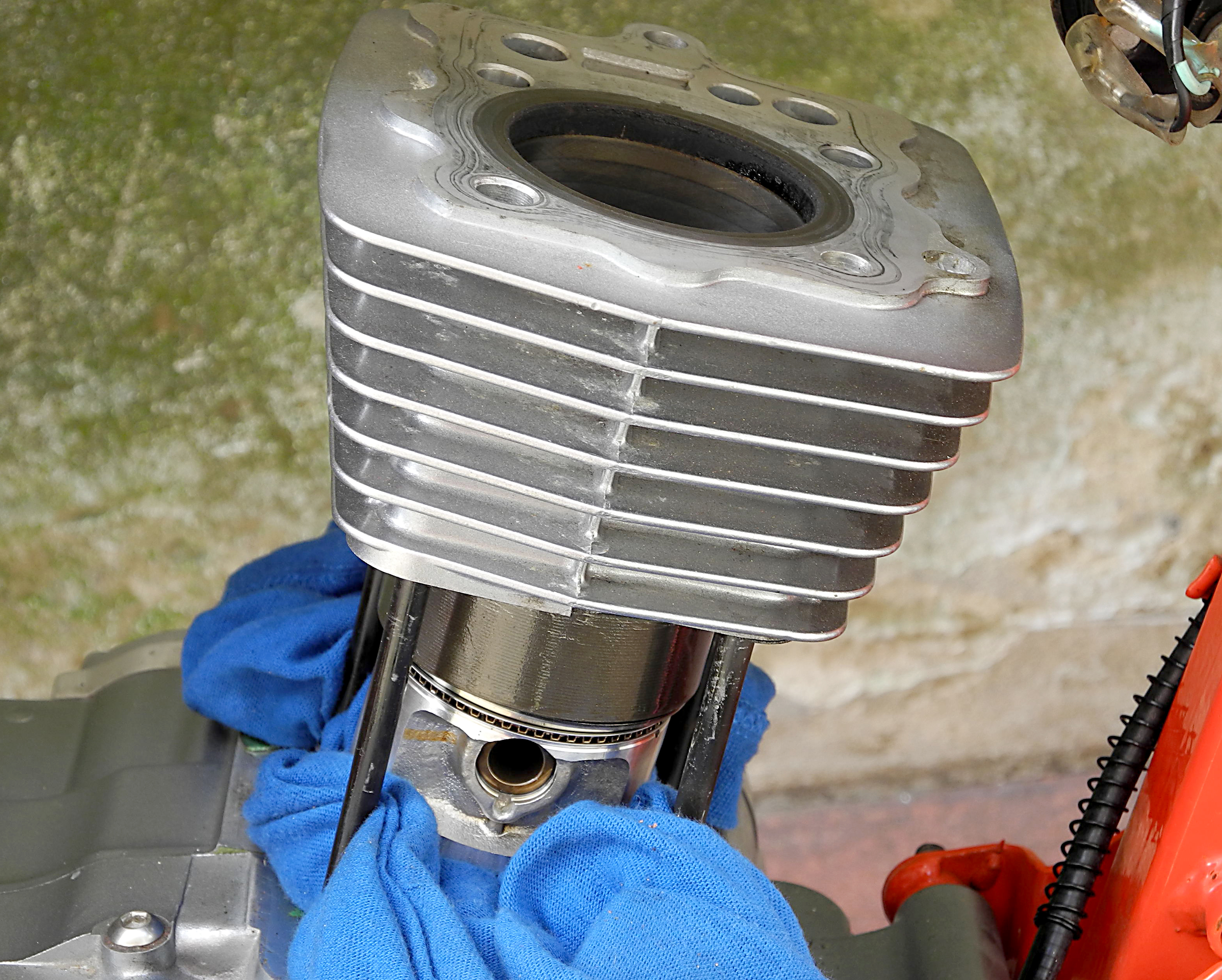

Lift cylinder, taking care to stuff crankcase openings as soon as possible

Pry out circlip from one end of gudgeon pin and push pin through the piston from the opposite side. (do not re-use circlips!)



[stroker crazy]

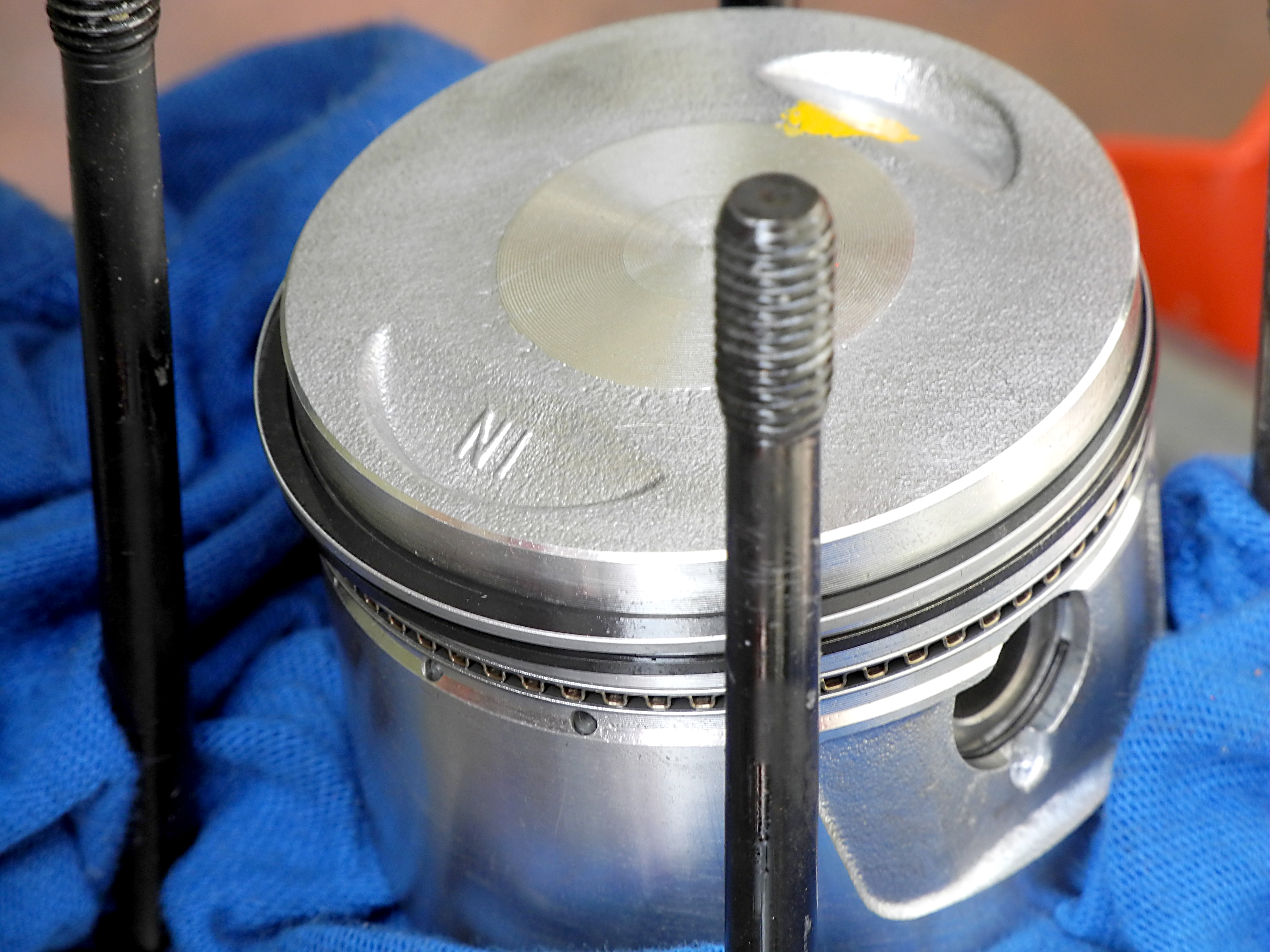

Install new piston noting marked inlet side (lightly oil gudgeon pin to install),
make sure circlip gaps are to top or bottom rotate rings so that the gaps are 60 degrees apart:

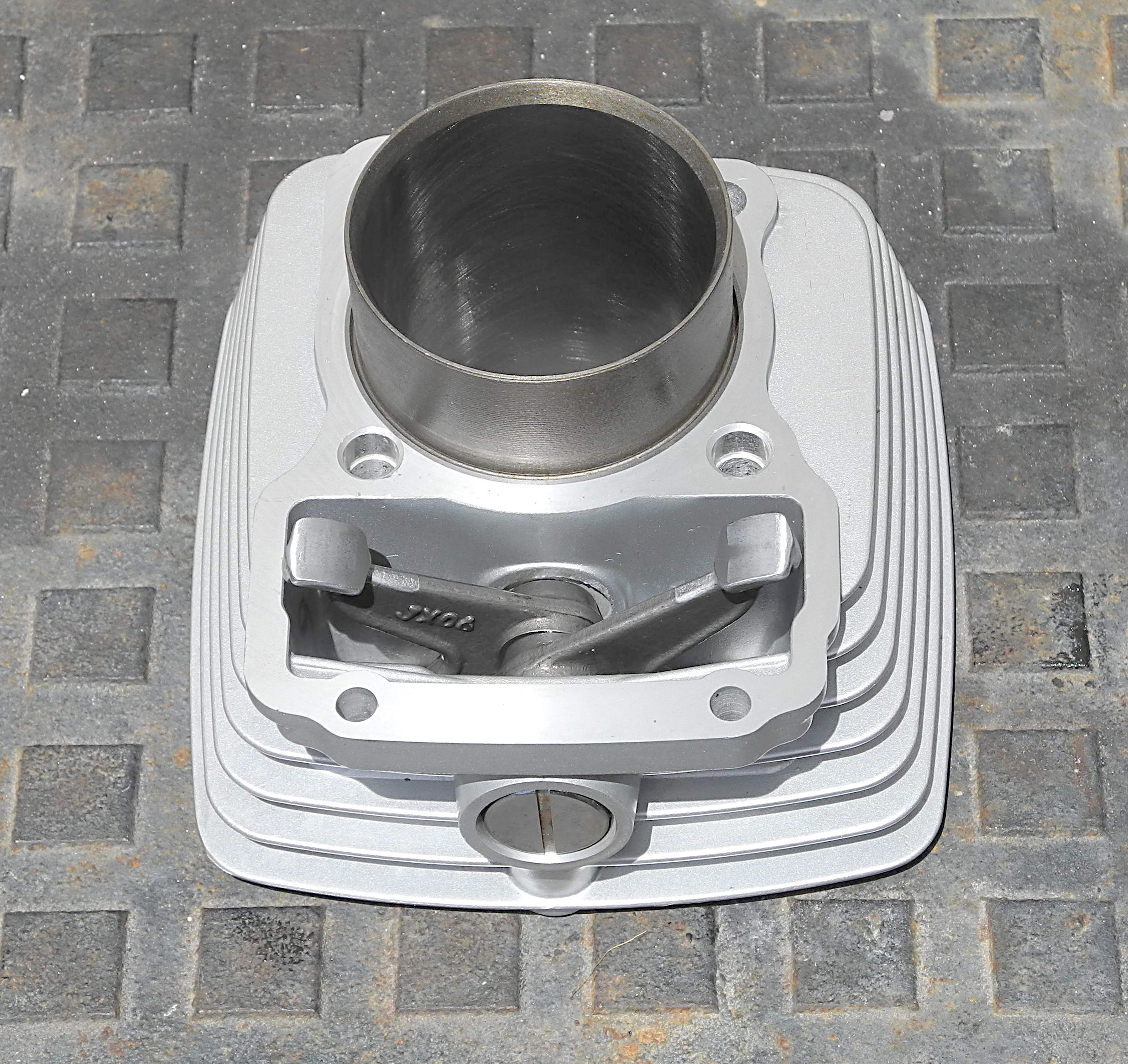

Swap cam followers from original cylinder (be careful not to lose the wave washer) to the new cylinder:

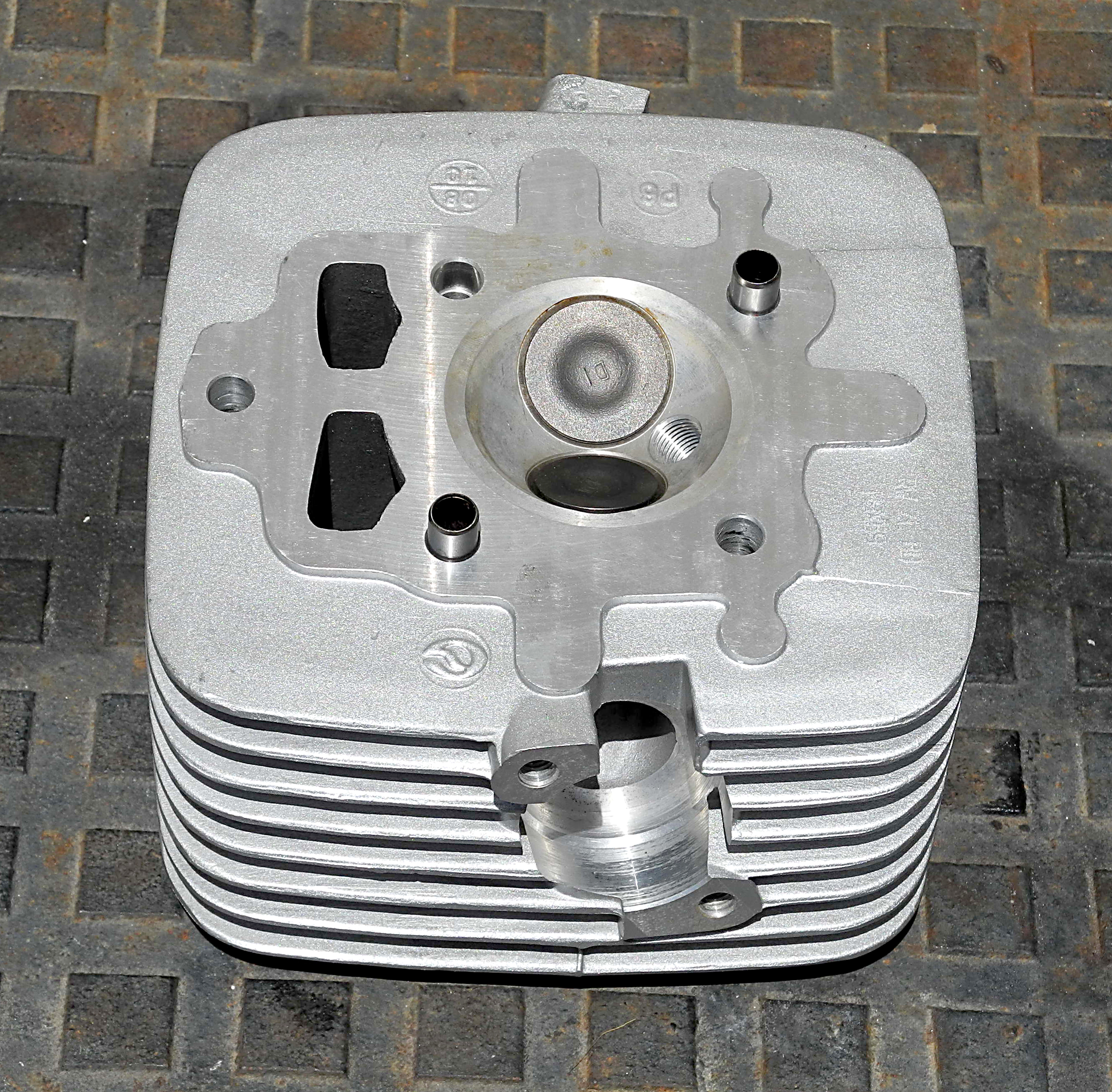

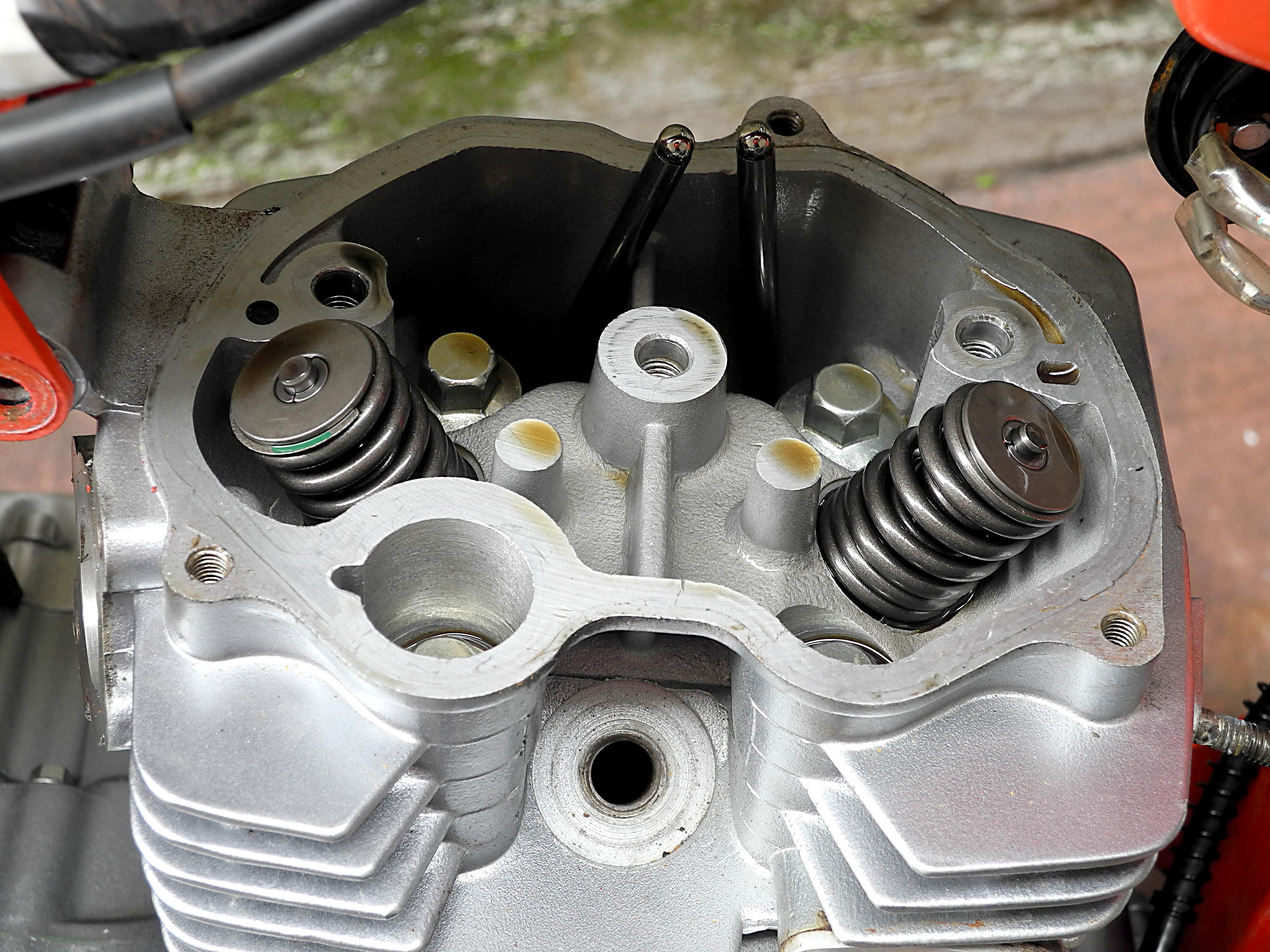

Dowels in place in head:

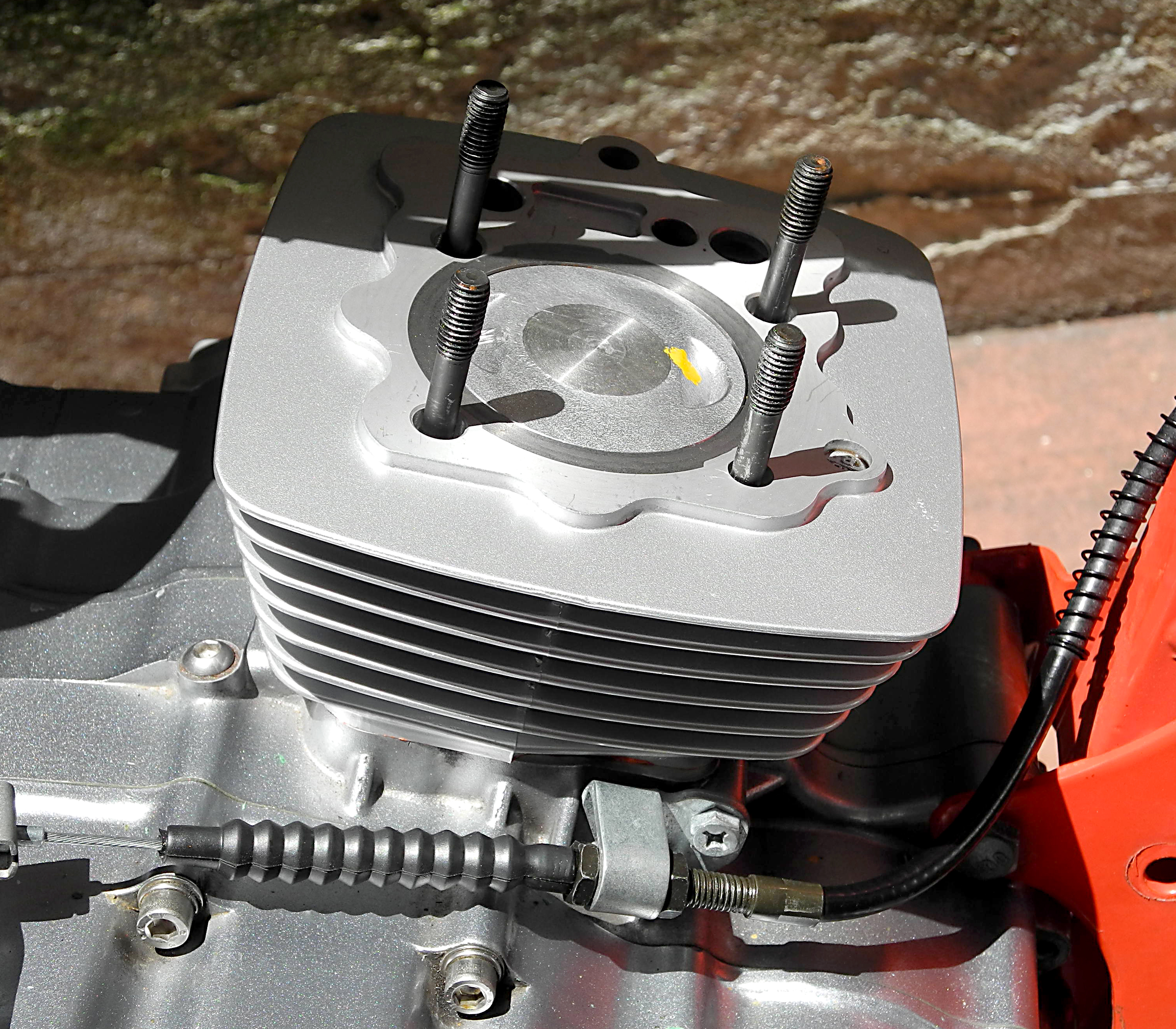

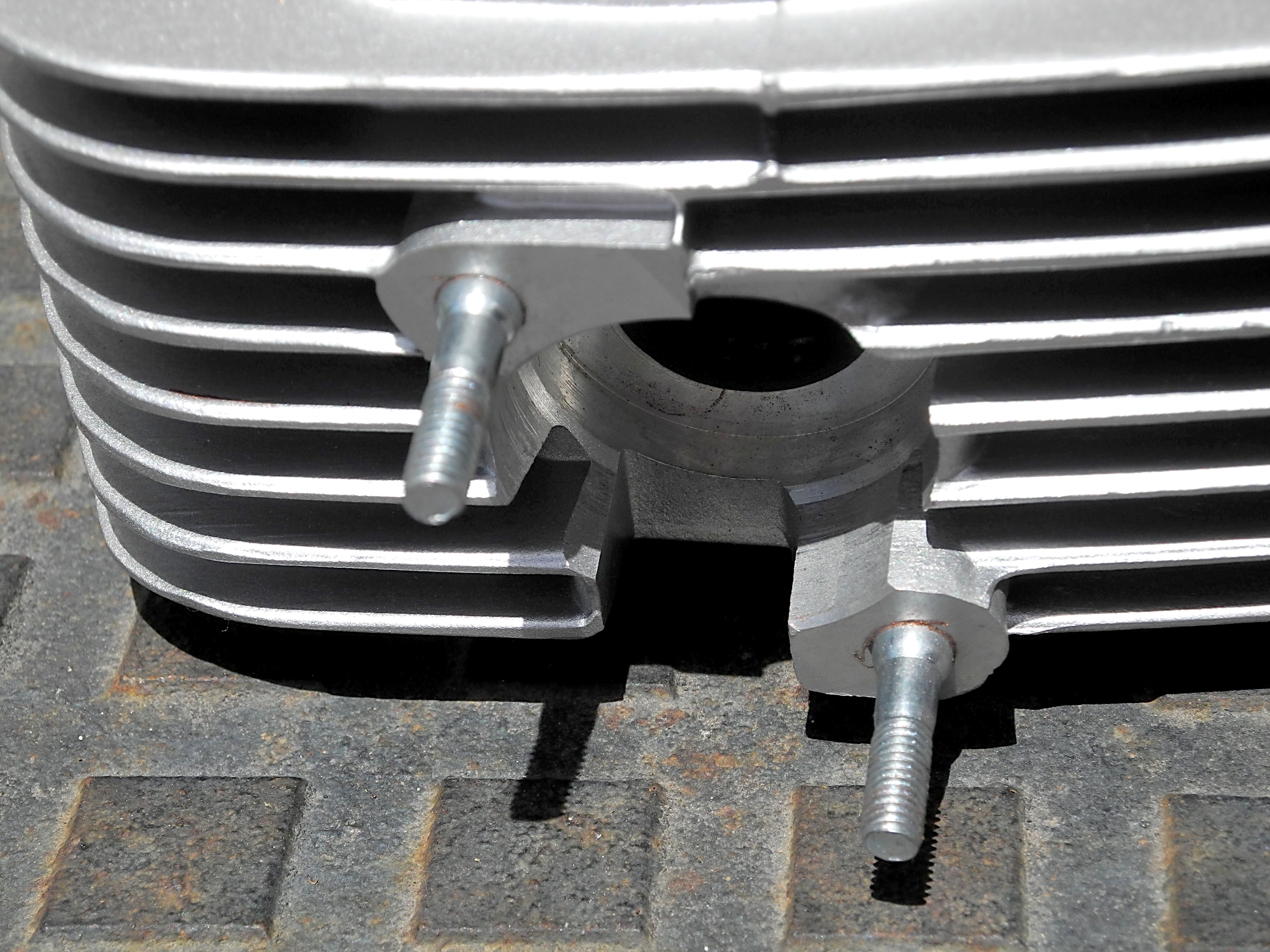

Install 8mm/6mm exhaust studs:

Smear a very light coat of silcon sealant on cylinder mating surface, if you are not using a base gasket:



[stroker crazy]

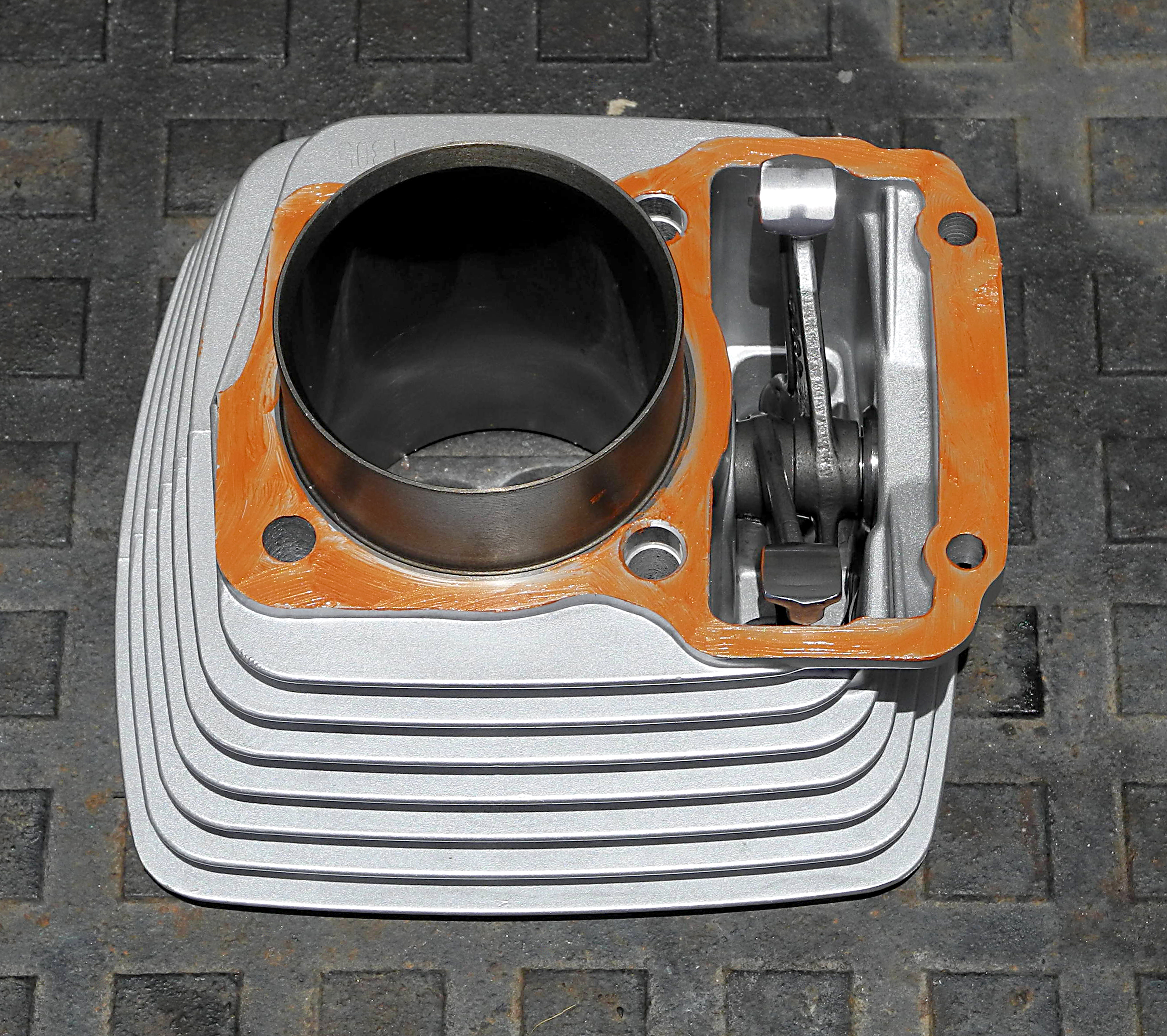

After cleaning any gasket remains from crankcase and replacing dowels, lightly oil the cylinder and carefully slide into place over the piston (remove the stuffing when the rings are inside the cylinder):

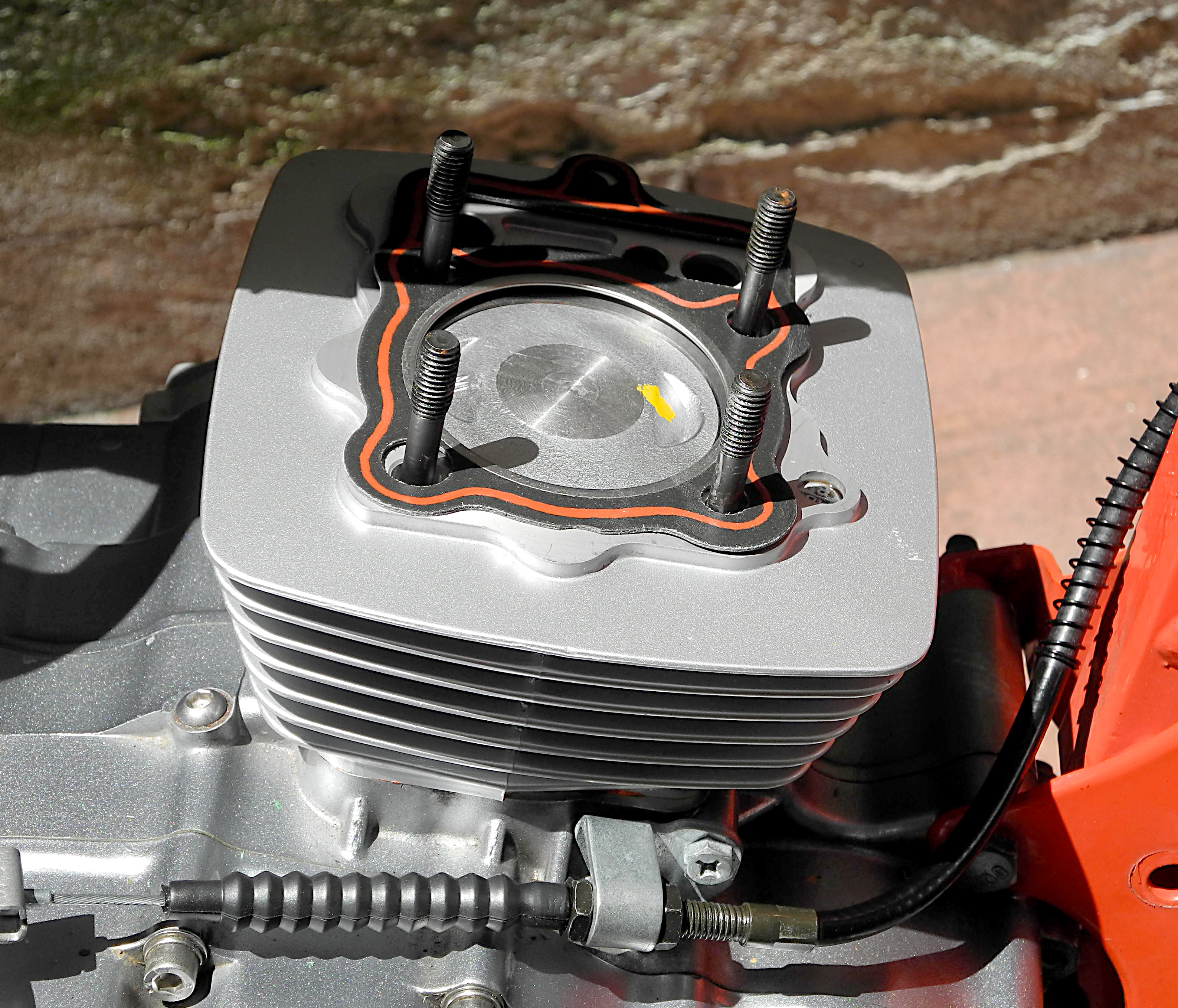

Position head gasket and top dowels:

Bolt head in place (20–22lbf. or 28–30n/m) and replace cam locating bolt (13–16.5 lbf.). Be very careful when replacing the pushrods – angle them toward the outside corner and rock the cam using the kick-start lever to ensure contact. If not positioned correctly they will drop into the motor, necessitating the removal of the head and cylinder in order to retrieve them:

Replace rocker assembly:

Replace engine mounting bolts (8mm 22.5–27.5 n/m)

Adjust valve clearances – intake 0.1mm (0.004˝), exhaust 0.15mm (0.006˝). For correct TDC inlet valve should be closing as piston rises.

Replace tappet cover, refit head steady, carby, spark plug, horn, tank, etc.

Before starting, remove oil bleed screw from rocker cover. Start motor; when oil bleeds from from vent, replace screw.



[stroker crazy]

That's as good as I remember!

Fortunately I had archived the photos. Any problems let me know.

Good luck!

Crazy



[2b]

And if like my kit, your rings are not fitted on arrival.....

Steps 1-3
1. Fit the corrugated type ring first, its actually an inverted T shape, so has to go in first to allow the two thin oil rings to fit in either side afterwards.

2. Fit the dark ring (D) facing up in the second groove.

3. Fit the silver ring (DY) facing up in the top groove.

READ MORE DETAIL IN THIS LINK>>>
http://www.duncanracing.com/TechCenter/4strk_ringinstall2-24-05.pdf

Clocking the rings vid
https://www.youtube.com/watch?v=GJsJNjYEbKg



[stroker crazy]

And if like my kit, your rings are not fitted on arrival.....

A great addition!

Thanks 2b.

Crazy



[Alex jb]

Top job!


Sent from my iPhone using Tapatalk



[r4g5]

Thanks stoker and 2b for taking the time to upload these, this will be invaluable further down the line...top job

Sent from my SM-N910C using DO THE TON mobile app



[Niek35]

Hi Guys,

Had a question about the big bore kit. Is it possible to drill out the 150cc cylinder to a bigger cc? Have a friend with a 50cc Honda cylinder drilled out to 70cc. And a 70cc drilled out to 125cc.

Thx,

Niek



[stroker crazy]

a 70cc drilled out to 125cc.

I would like to see that!

You won't get much more out of the 150, even if you could find a suitable piston.
The easiest way to get more power is to fit a 250cc clone.
But you would have to do something about the inadequate brakes.

Just buy a bigger bike ...



[turbotaff]

I've just done a 150 conversion on a156fmi, i used the 125 head and cut in the larger 150 valves which i polished and shaped as well as port and polished the head, and would say with mine i had to get the longer 150 push rods to get the rocker angle right.
