Making a carbon fiber fender

J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
Unfortunately, those voids, when filled post cure, never blend quite right.

Wet lay your first couple layers in the mold, and roll the shit out of it. Make sure it is good and saturated.


billyp

Been Around the Block
J-Rod10 said:
Unfortunately, those voids, when filled post cure, never blend quite right.

Wet lay your first couple layers in the mold, and roll the shit out of it. Make sure it is good and saturated.

What do you roll carbon with? I would think an aluminum roller like you use on csm or fiberglass would have the potential to grab or ruin the weave on the carbon.


billyp

Been Around the Block
I have one of those, also have enough of everything to do another fender. I'll see how this one looks after some resin, if it doesn't look good I'll try it again


billyp

Been Around the Block
J-Rod10 said:
Unfortunately, those voids, when filled post cure, never blend quite right.

Wet lay your first couple layers in the mold, and roll the shit out of it. Make sure it is good and saturated.

When you wet out the first couple of layers are you also wetting the mold or laying the wet carbon into a dry mold?


billyp

Been Around the Block
Hmmm, that's exactly how I did it the first time. Guess I need to take the roller to it


billyp

Been Around the Block

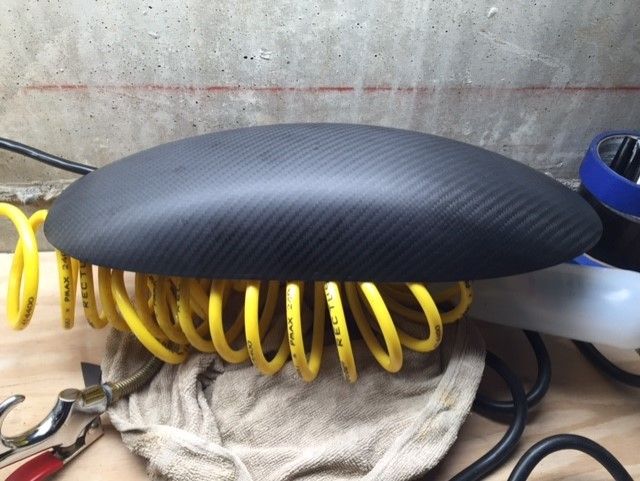

Finished



biggreen96

New Member
Looks great! I am going to be attempting the same thing... How are you mounting it to the fork? Old mounting arms bolted or riveted to the fender?


jojobara

New Member
Hi i am also new to creating composite molds and my question is by using the vacuum bagging technique why are there still air pockets? If he used a stronger vacuum would it decrease the chance of having an air pocket? Thanks

Sent from my LGLS770 using Tapatalk


J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
jojobara said:
Hi i am also new to creating composite molds and my question is by using the vacuum bagging technique why are there still air pockets? If he used a stronger vacuum would it decrease the chance of having an air pocket? Thanks

Sent from my LGLS770 using Tapatalk
Yes.


Ply318ci

Been Around the Block
Do you use resin or epoxy with carbon fiber? I have read you are supposed to use epoxy but the OP says resin to fill in the voids. Wanting to do something like this since my bike was a junker when I bought it and has no fenders at all.


Sent from my iPhone using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Ply318ci said:
Do you use resin or epoxy with carbon fiber? I have read you are supposed to use epoxy but the OP says resin to fill in the voids. Wanting to do something like this since my bike was a junker when I bought it and has no fenders at all.


Sent from my iPhone using Tapatalk
They are all resins, just a matter of which one- epoxy, vinylester, or polyester.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Ply318ci said:
Which one for carbon fiber. I have polyester.


Sent from my iPhone using Tapatalk
Epoxy. It's the strongest of the three and bonds very well with carbon, kevlar or fiberglass. Vinylester also bonds well, but is a third as strong. Polyester has a poor bond with carbon.


alemonkey

Active Member
Glad I found this thread. I want a smaller fender for my project but the factory fender is pristine so I'd rather sell it than cut it down. I'm going to give this a try but with fiberglass.
