Project peer pressure ADV danger bike!

Kanticoy

Mad Science!
DTT BOTM WINNER
JustinLonghorn said:
If it is ready for the thaw, can I ride it?
Sure you can, might have to get you a ladder though, she's pretty tall


Sent from my iPhone using Tapatalk


Hurco550

Keep er' Between the ditches
DTT SUPPORTER
DTT BOTM WINNER
Kanticoy said:
Sure you can, might have to get you a ladder though, she's pretty tall


Sent from my iPhone using Tapatalk
;D ;D ;D


Kanticoy

Mad Science!
DTT BOTM WINNER

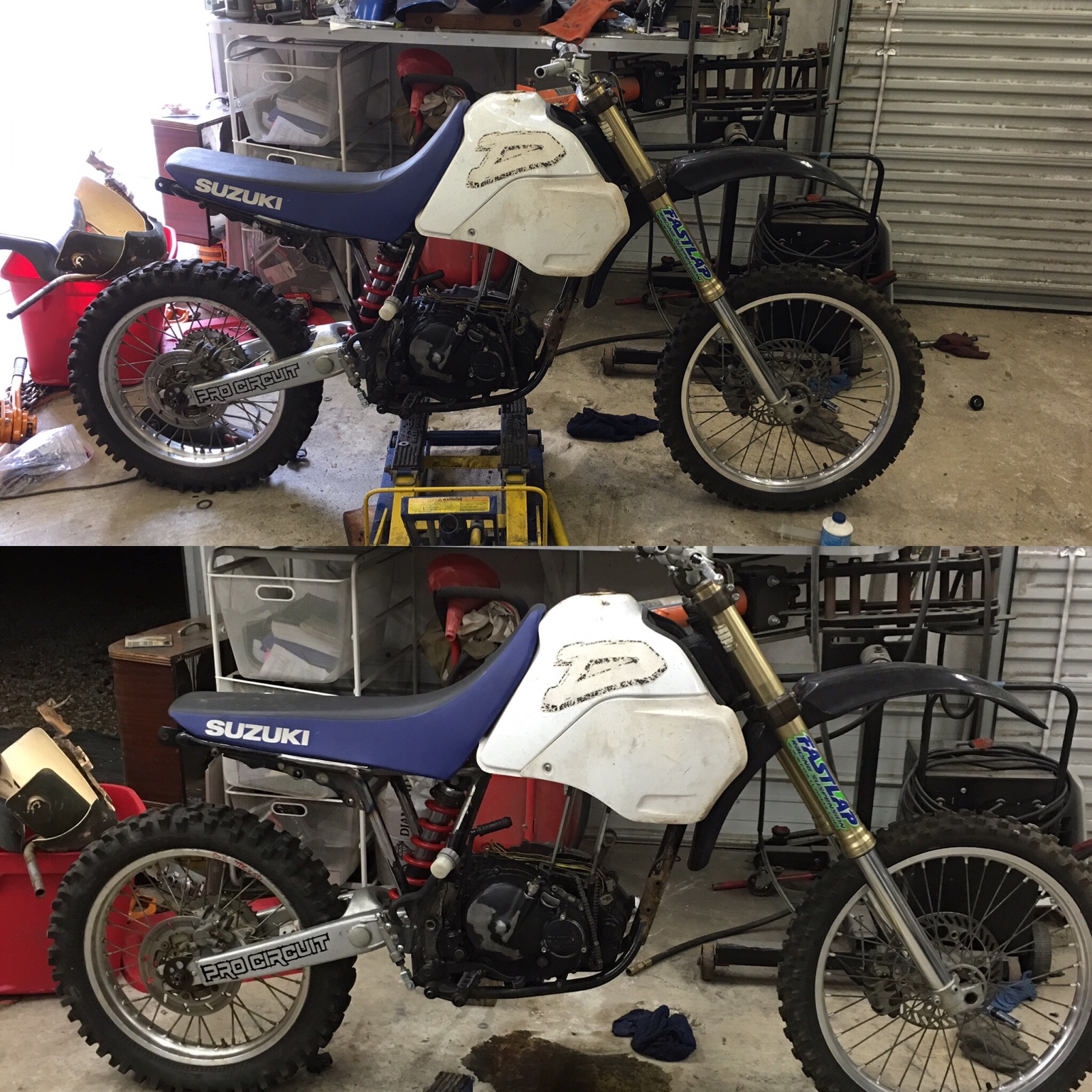

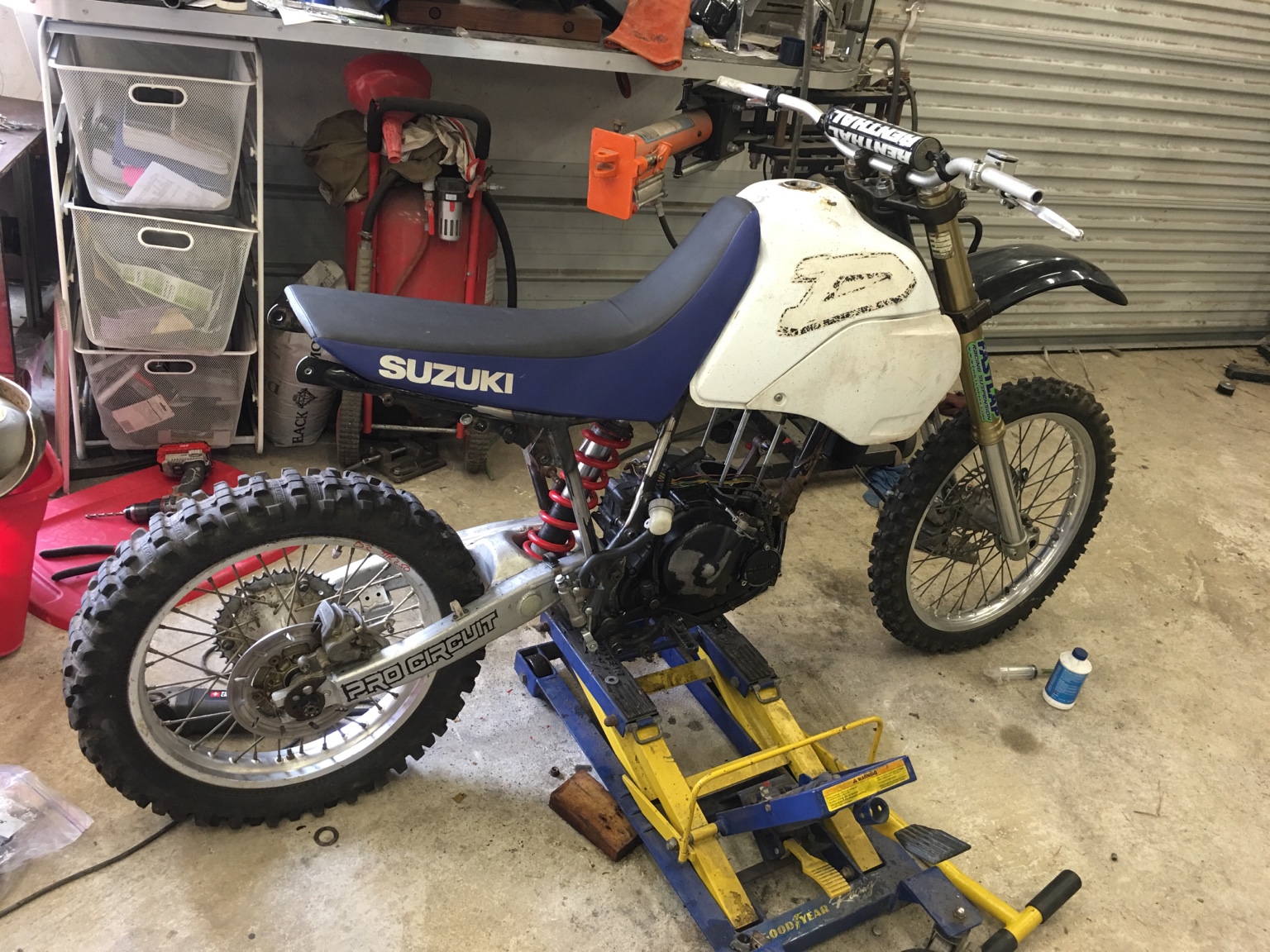

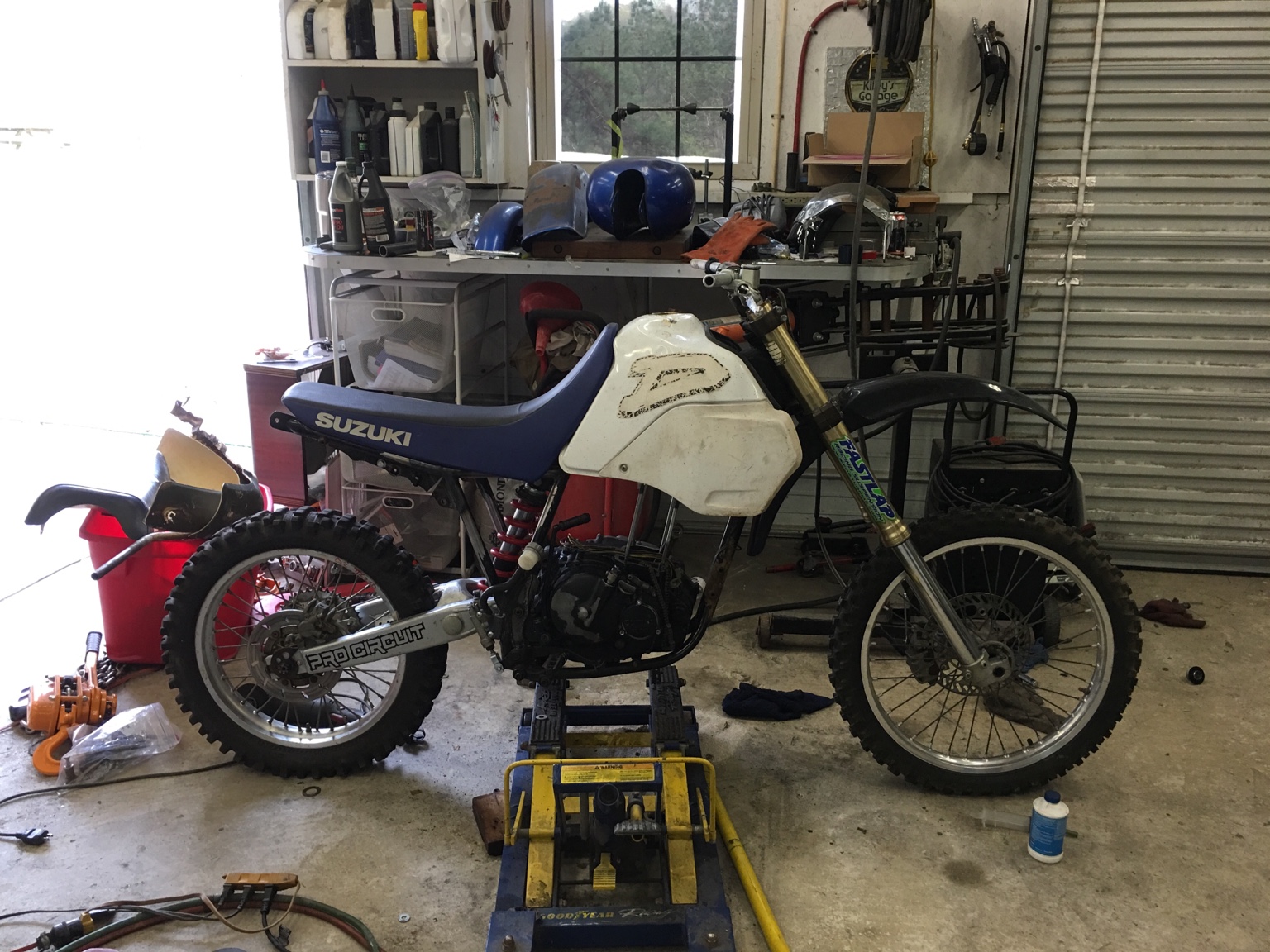

Currently in the shop breaking shit. Heated, bent, and raised the rear subframe up 3" in the rear so the seat cups the rider better and adds more rear fender clearance. Much improved.

Before bottom, after top:










Sent from my iPhone using Tapatalk


Kanticoy

Mad Science!
DTT BOTM WINNER
JSJamboree said:
That looks so much better, I was wondering how you were planning on not sliding off the back.
You'll have to forgive me, I'm making it up as I go.


Sent from my iPhone using Tapatalk


Kanticoy

Mad Science!
DTT BOTM WINNER

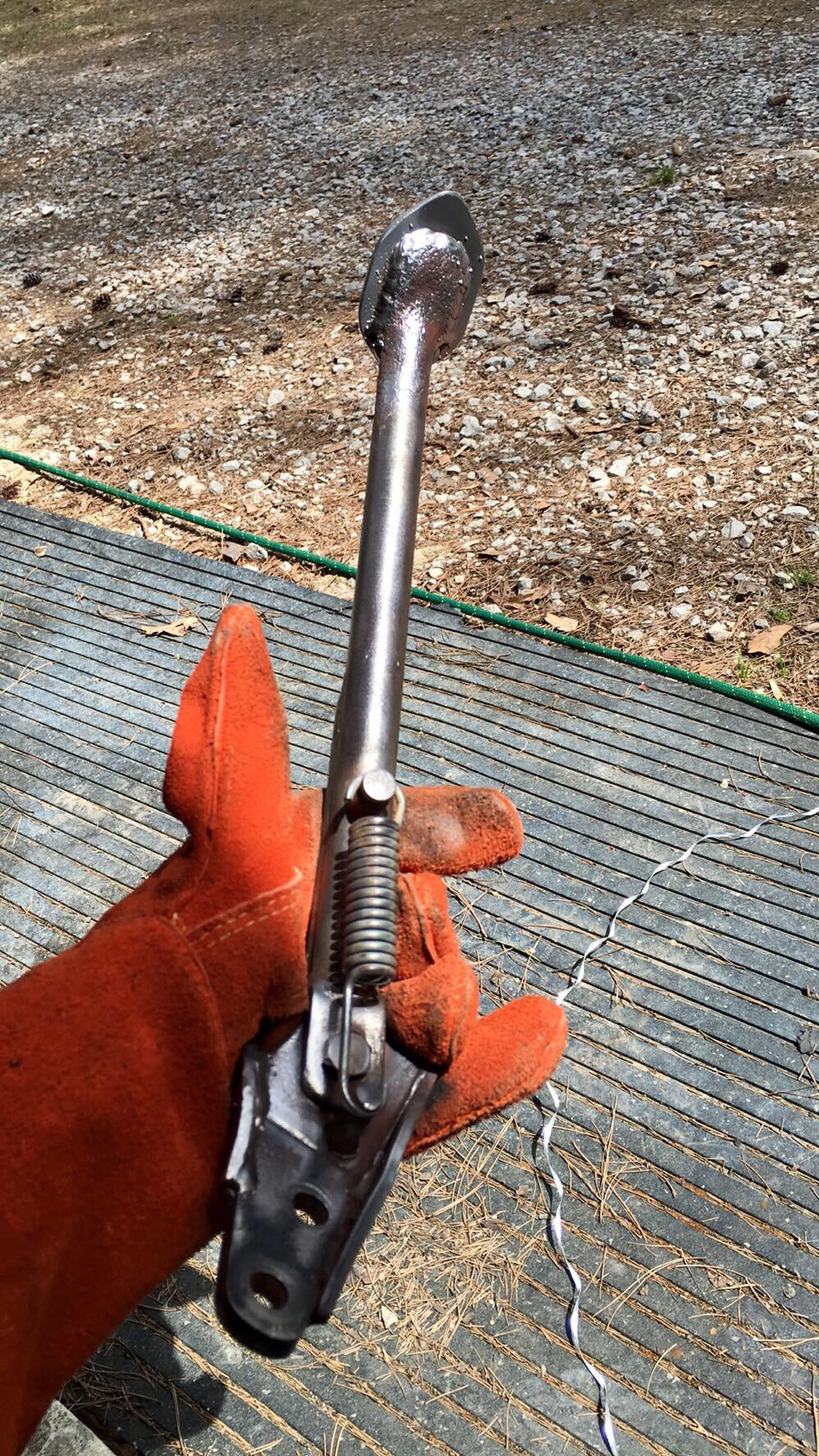

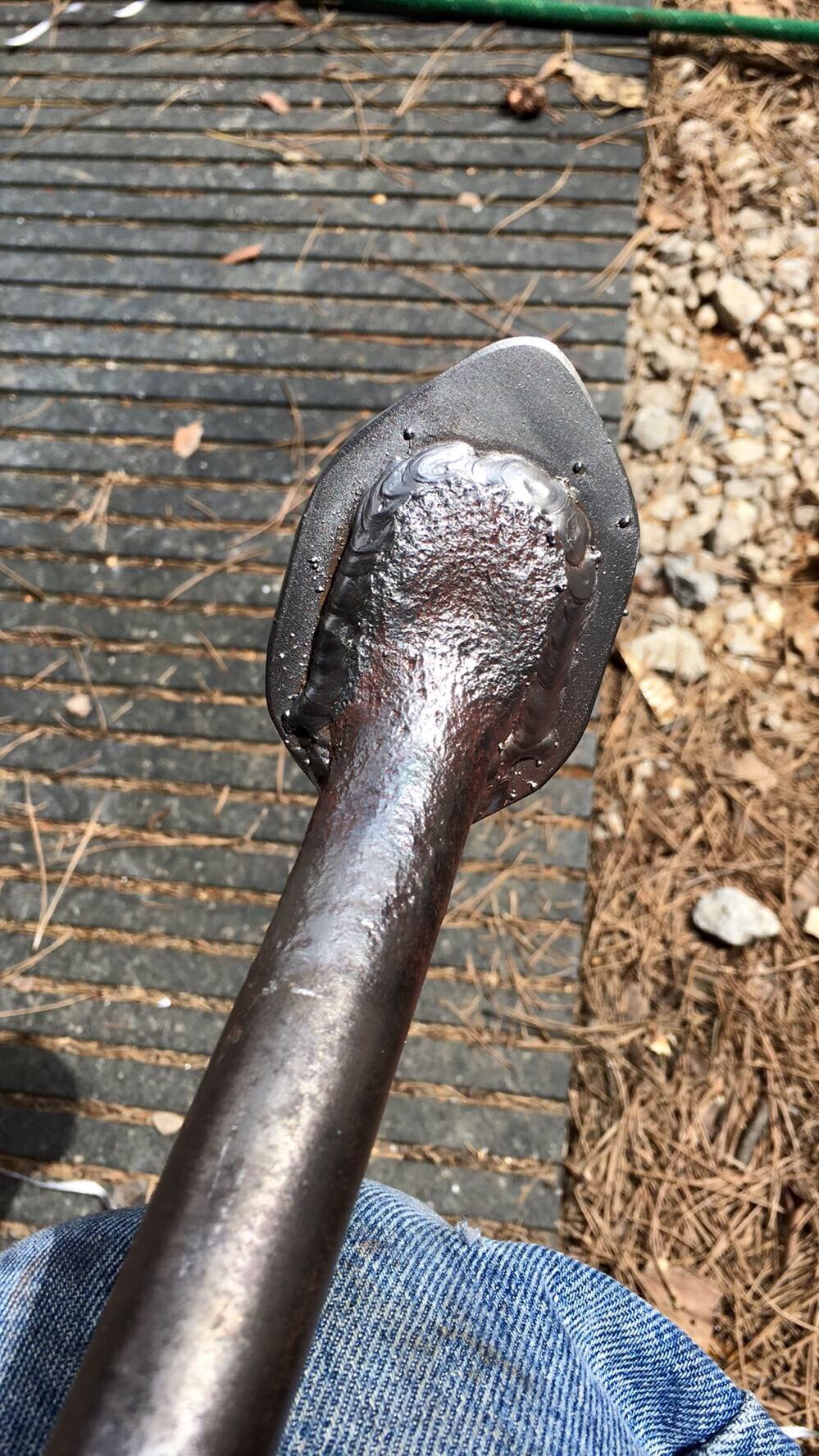

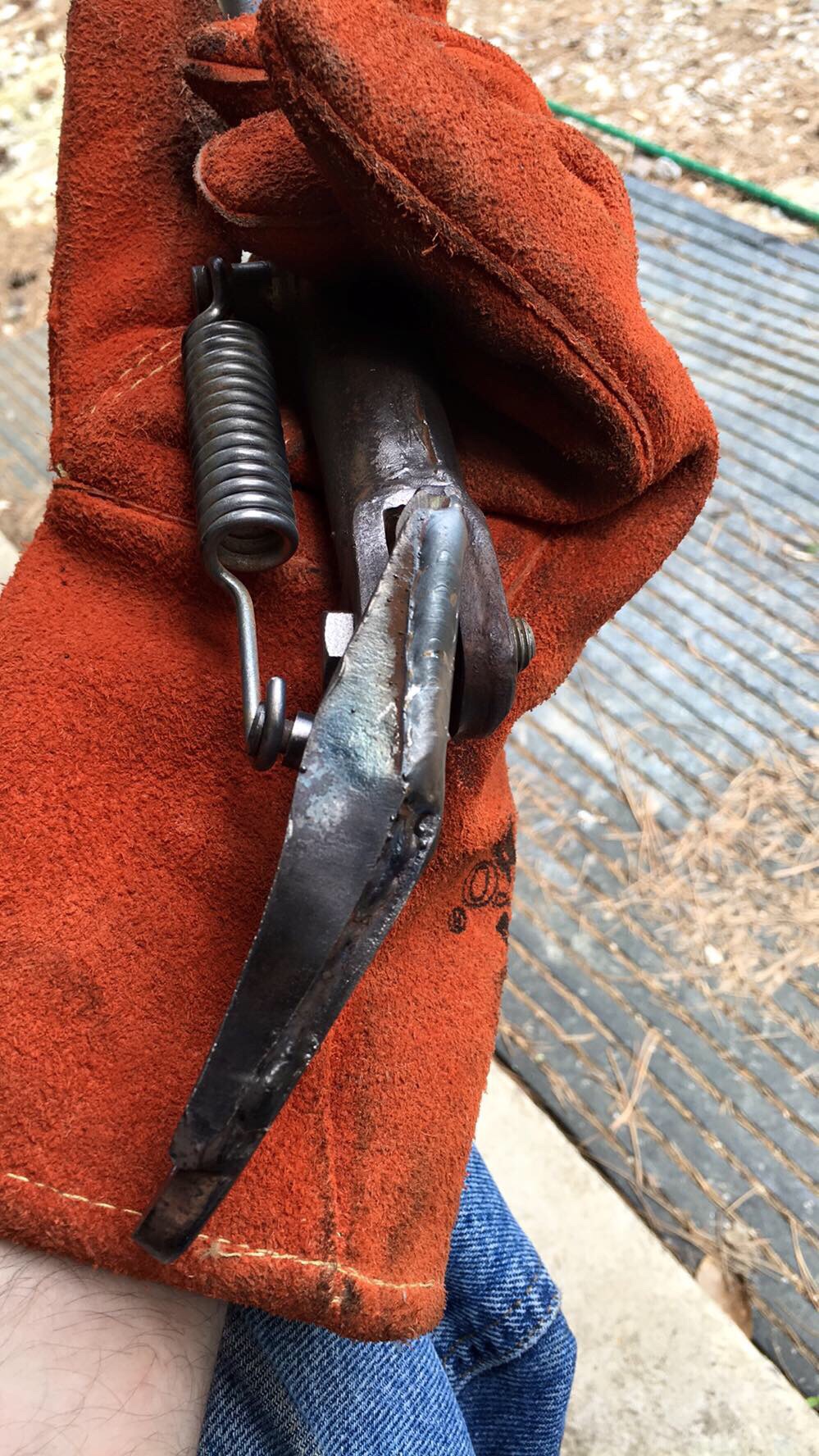

Modified the kick stand today as well. Added a "don't sink in the mud" foot and cut, heated, bent, and re-welded the stock bracket to keep it from wanting to fall on the ground when it's leaned over. Really showed how much suspension I gave the old girl the way she was leaning.








Sent from my iPhone using Tapatalk


SONICJK

Reminds me of...me No, I'm sure of it. I hate him
I too was wondering about the seat, but looks like you got it figured out.

Looks still like the front might need to go down an inch or so or up in the rear?


Kanticoy

Mad Science!
DTT BOTM WINNER
SONIC. said:
I too was wondering about the seat, but looks like you got it figured out.

Looks still like the front might need to go down an inch or so or up in the rear?
Won't really know until I have weight on the bike as it'll be sitting. The rake and trail is about perfect though as is the wheelbase, so I think it's gonna be just about perfect.


Sent from my iPhone using Tapatalk


Kanticoy

Mad Science!
DTT BOTM WINNER
More shiznit.

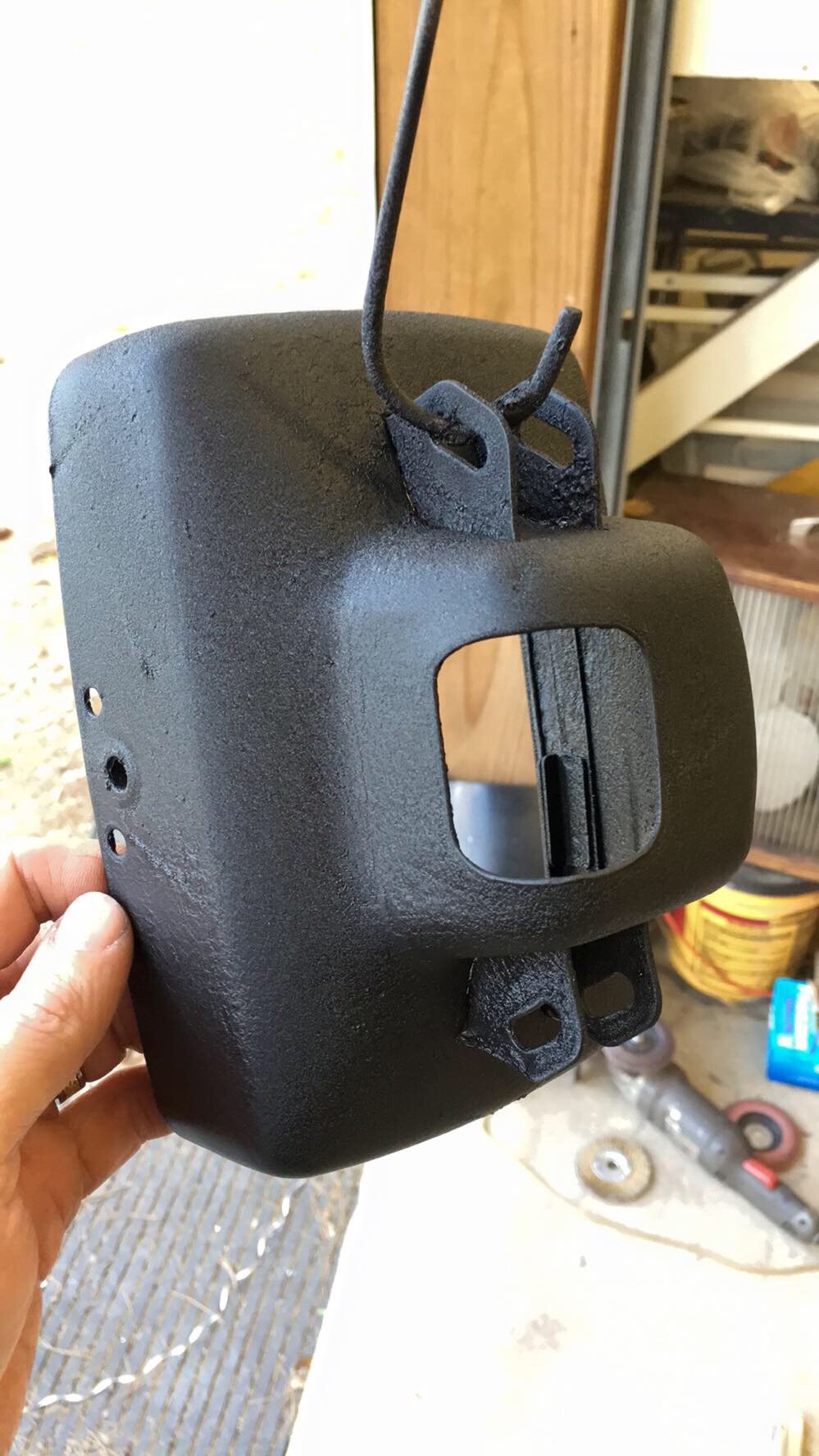

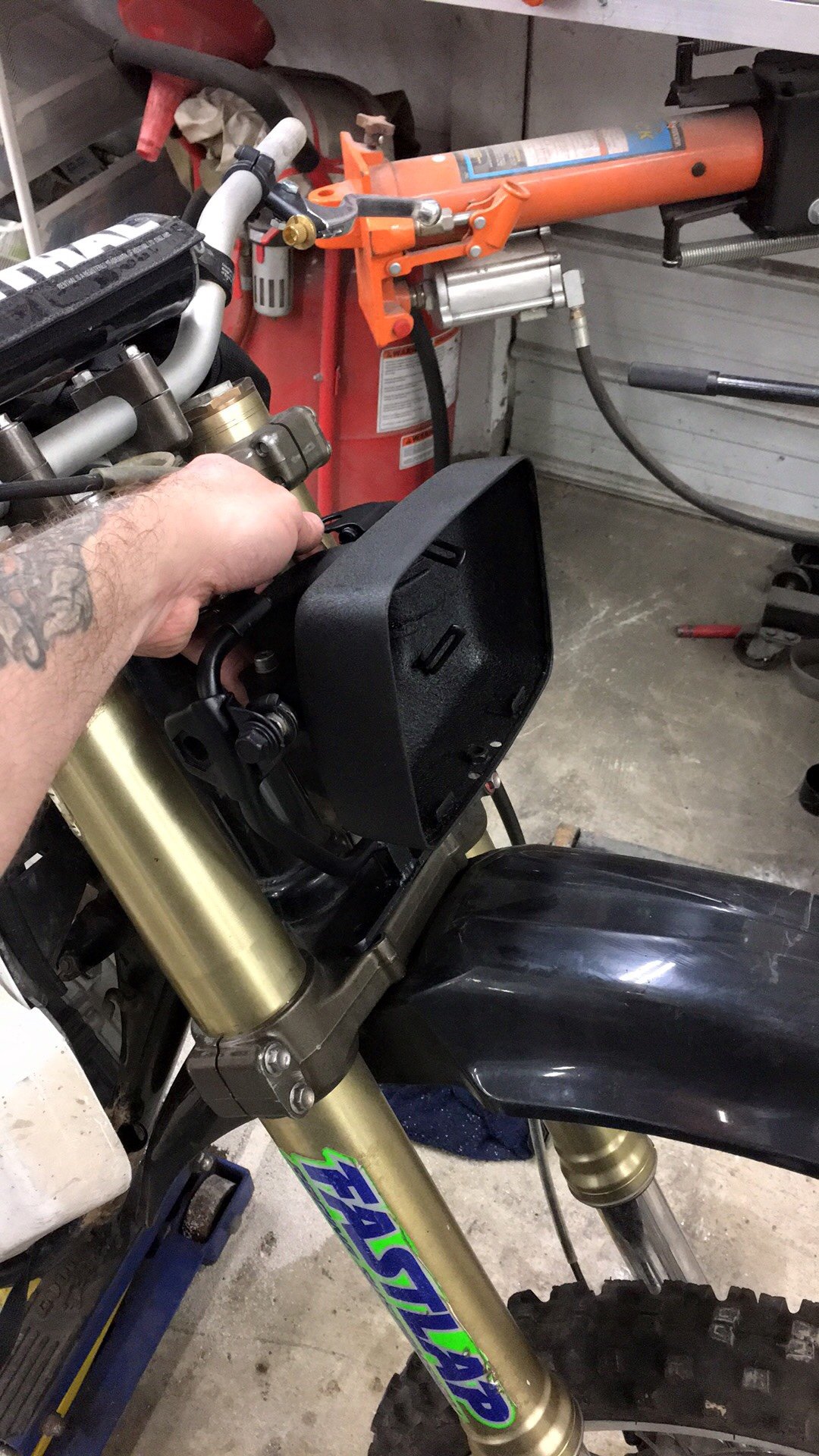

Some stuff I forgot to take pictures of but it was boring. Gusseted the subframe and welded in a tab for the rear brake reservoir. Picked up a headlight for $2 off of eBay off of an FT500 Ascot. I chose this because it's metal, heavy duty, takes an H4 bulb and will be pretty easy to build a stone guard for. Also the shape goes along with the random bikini fairing I picked up. Should do well giving you something to duck behind. Headlight bucket was beat, chrome flaking off, pitting, all of the goodies, so into the blast cabinet it went and then cleaned and coated with a coat of wrinkle black paint and baked on. Scratched my head for a minute about mounting and what I came up with is hilarious to me. I used a stock CB360 headlight bracket and modified it to fit the FT bucket, then added a plate to the bottom that will mount to the RMZ lower triple. I love frankensteining!









Bikini fairing:



Also scored a set of Wolfman tank panniers for $20 second hand:






Sent from my iPhone using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Yessir. Awesome. You do realize, however, that putting a 360 part on there just insures you will have mechanical issues right after E's Elsinore kills itself?


Kanticoy

Mad Science!
DTT BOTM WINNER
deviant said:
Yessir. Awesome. You do realize, however, that putting a 360 part on there just insures you will have mechanical issues right after E's Elsinore kills itself?
That's true. The headlight is probably gonna fall off, explode, and we will use the scraps to fix holes in E's engine so it's a win win really...


Sent from my iPhone using Tapatalk


Hurco550

Keep er' Between the ditches
DTT SUPPORTER
DTT BOTM WINNER
Kanticoy said:
That's true. The headlight is probably gonna fall off, explode, and we will use the scraps to fix holes in E's engine so it's a win win really...


Sent from my iPhone using Tapatalk
Always an optimist.


Mr.E

Got to keep the loonies on the path...
deviant said:
Yessir. Awesome. You do realize, however, that putting a 360 part on there just insures you will have mechanical issues right after E's Elsinore kills itself?
Eric you better put two sets of passenger pegs on your bike then.
