Hmm, thought I had a thread on here already, but not finding it, so starting at the beginning:

I had 3 steetable bikes in the shed (restomod chain-drive, spare parts shaft-drive bike, and a BMW R1100S I've been riding daily) - and enough spare parts to build a 3rd XV. As I'm pondering selling the spare parts bike, my wife decides she'd like to be able to ride with me sometimes. She's taken the MSF basic course - twice. Each time, life has thrown us a curve ball and thwarted the plan to get her a bike.

Now she says that she's interested, but worried now age may be a factor, so suggests a trike. In searching Craigslist for a trike, we see a sidecar rig with a dog in it. Eureka! We had recently put down our 15 year-old Golden Retriever, and we are waiting to be chosen by another dog. So, a sidecar rig it is.

I see an ad for a Vetter Terraplane, and after a little research, decide it is a fine candidate. A few days later:



It was in pretty good shape, but the brake hardware was all missing.
So, I stripped it down and verified nothing worse than surface rust. I also find out that original brake parts are unobtanium, so I set about adapting a Virago XV920K wheel and brake.

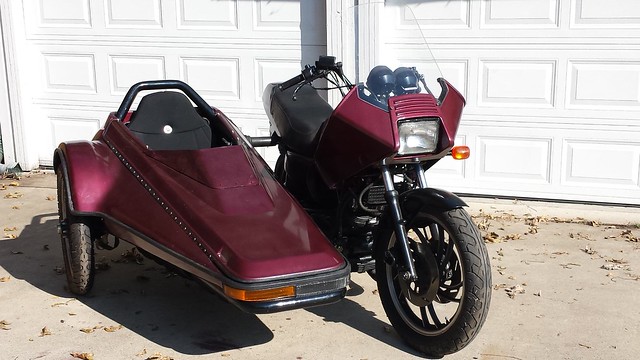

For the tug, I'm adapting my spare parts bike, using a XV-R tank, European TR1 tail, and NOS Vetter Quicksilver fairing:



In the meantime, our new monkey arrives:


turbodog

New Member

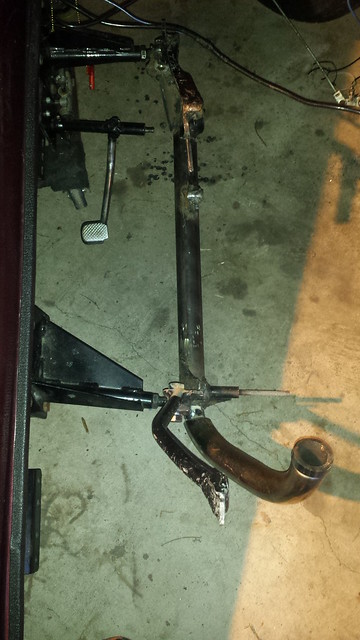

One challenge in Hacking a Virago is the lack of a lower frame. I built a subframe to distribute the sidecar loads to the engine and upper frame. It is not really visible in the photo, but there is a pretty stout tube running below and along side the engine - right where the front header normally goes. This required relocating the front header to the other side.


I did run this configuration for a short time, but quickly decided that the header tube was hanging too much in harm's way. I couldn't tuck it up against the engine because it would block the oil drain plug. So, subframe Mk II was born:

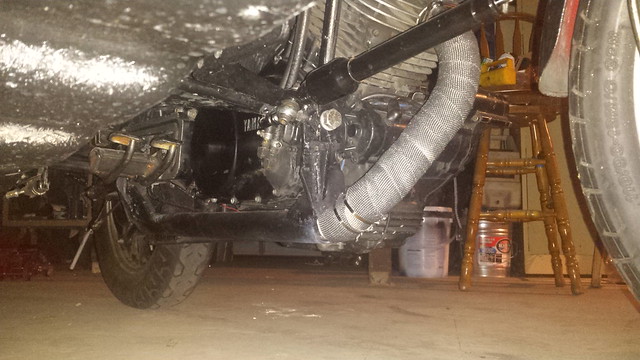

The fact that the header and subframe wanted the same real estate was embraced, and the exhaust run through a thin wall tube concentrically inside the heavy DOM structural tube. It worked out fairly well.

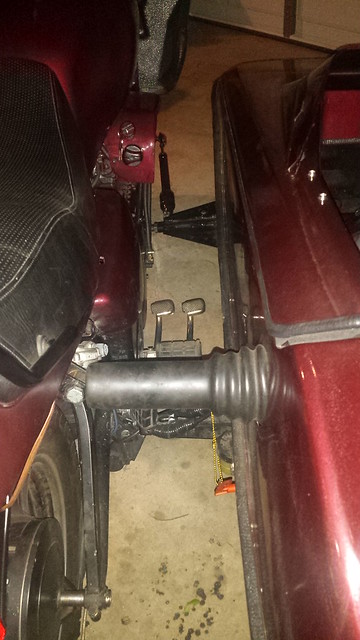

Braking was finished off with a CBR master cylinder and separate pedal next to the rear brake:


The red lever in the foreground is a master battery disconnect. I deleted the bike battery and put a small car battery behind the hack seat.

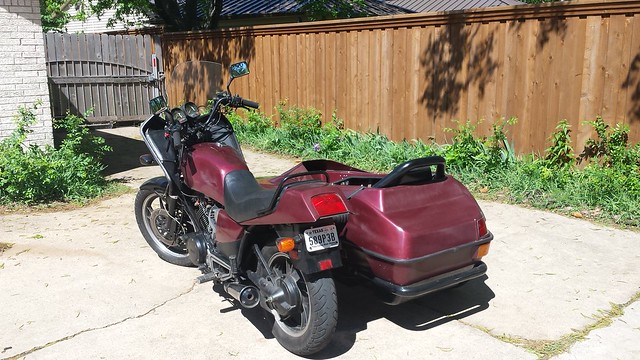

Other electrical mods include flush LED lighting, including separate turn signals and a DRL/driving light, all driven by relays locally in the sidecar, so that only low current signals are running through the tugs switchgear. A coat of paint and interior surfaces refreshed, and it was road-ready:




turbodog

New Member
The last major modification was to reduce steering effort so my wife could drive it more easily. I reduced trail by 2 inches, using a 'leading leg adapter':



Result?

The wife likes it!



The dog likes it!
