was a rupp roadster, now i dont know what to call it

Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
canyoncarver said:
I'd wait in line to ride that minibike hurco.
It'll be at a few events in next year (hopefully) waiting to be passed around ha


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
JSJamboree said:
This is something that better not die


Sent from my iPhone using Tapatalk
Funny, I'm going to the shop this Saturday to water jet some parts :)

Sent from my SM-G900V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER

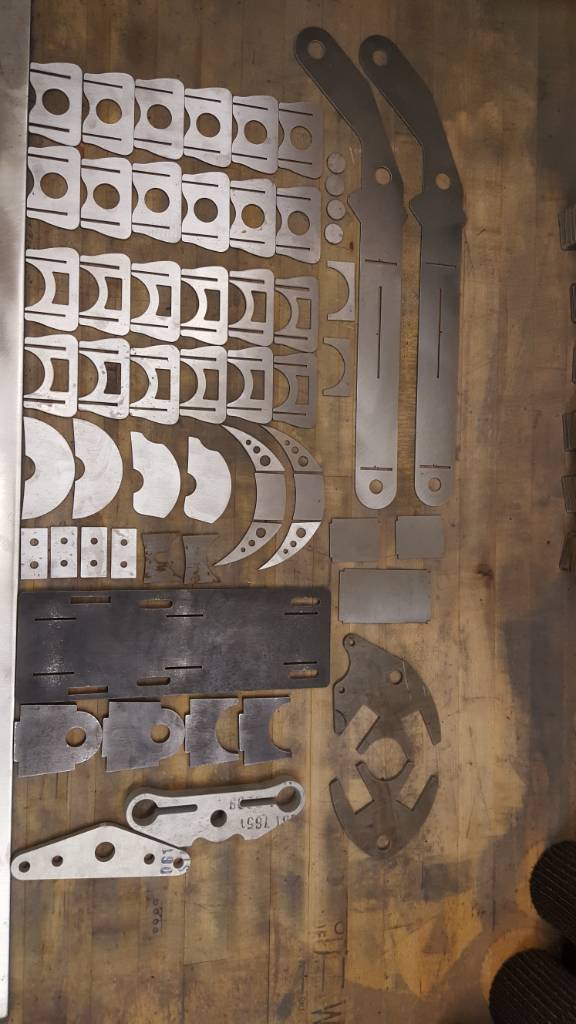

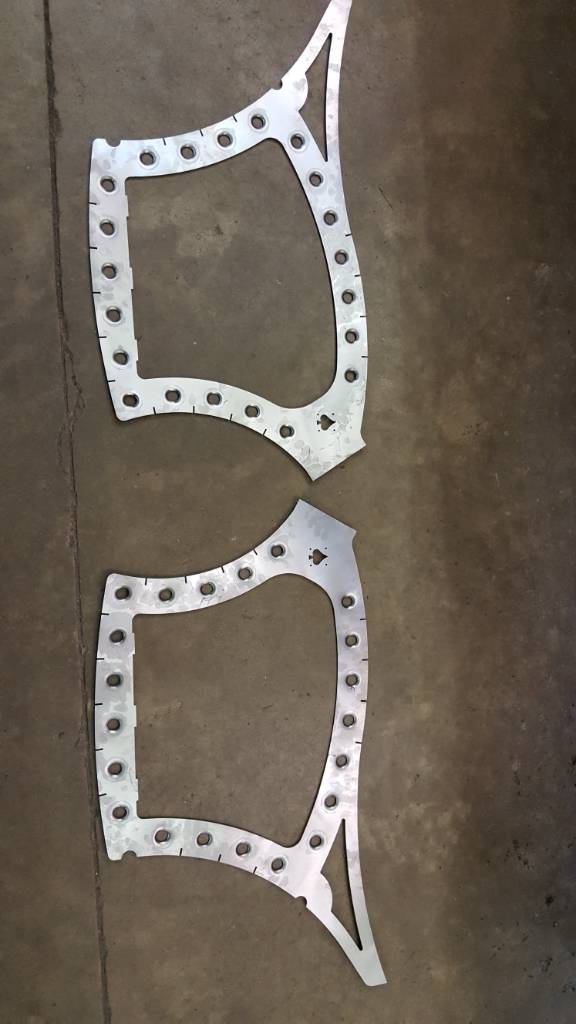

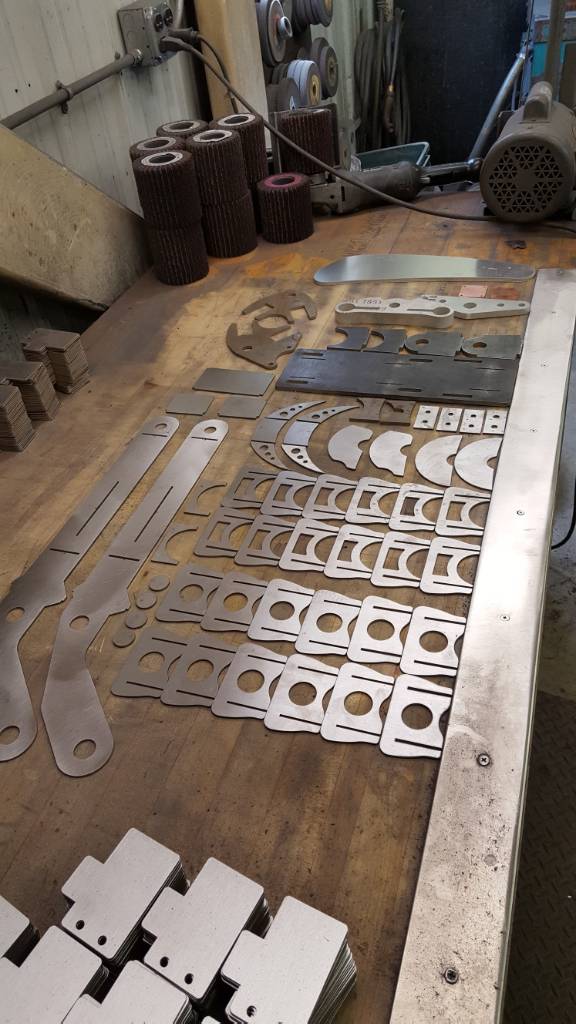

Well, got the bulk of it water jet cut today. Now time for machining and welding :) liking how it's fitting up so far


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER

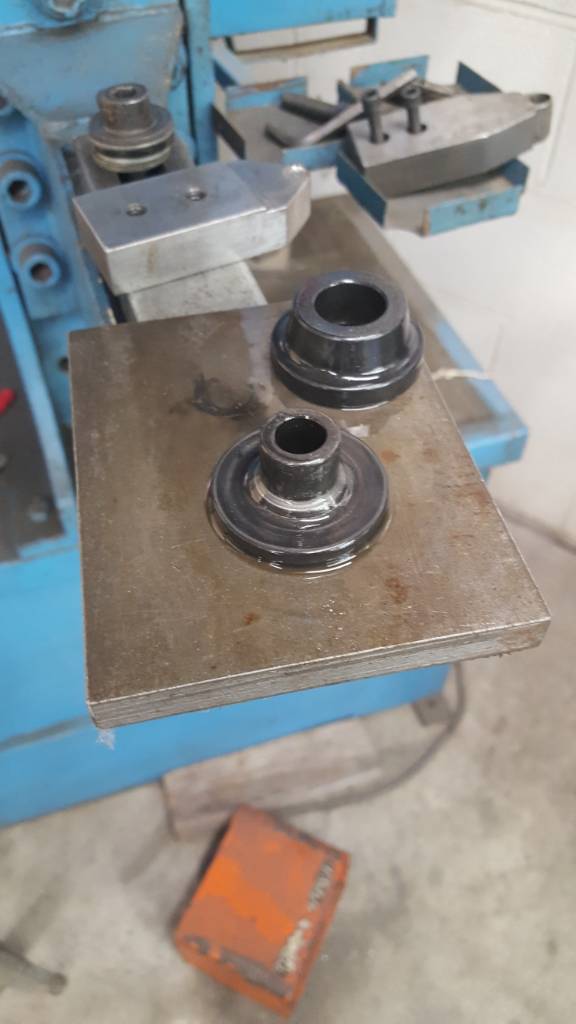

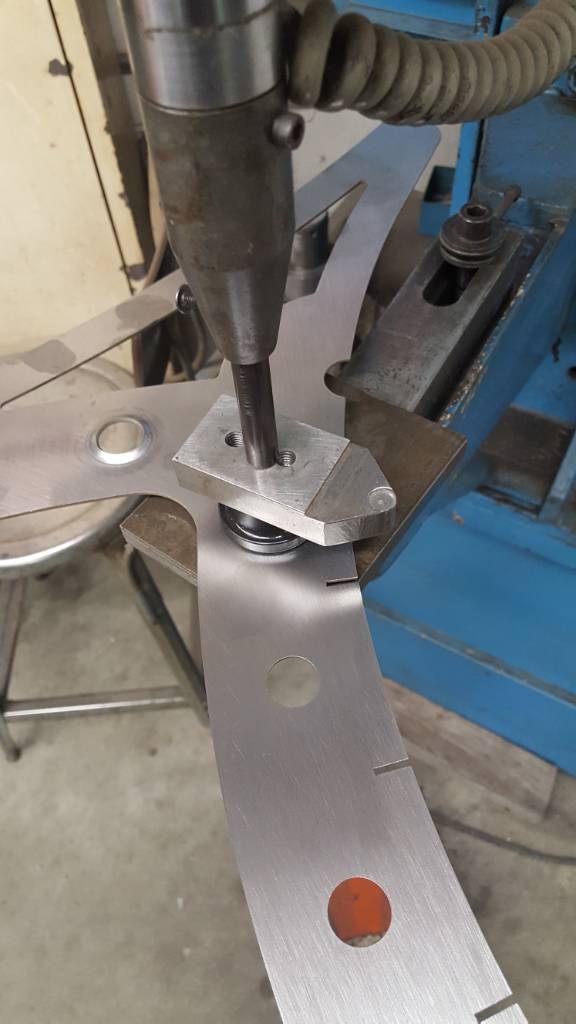

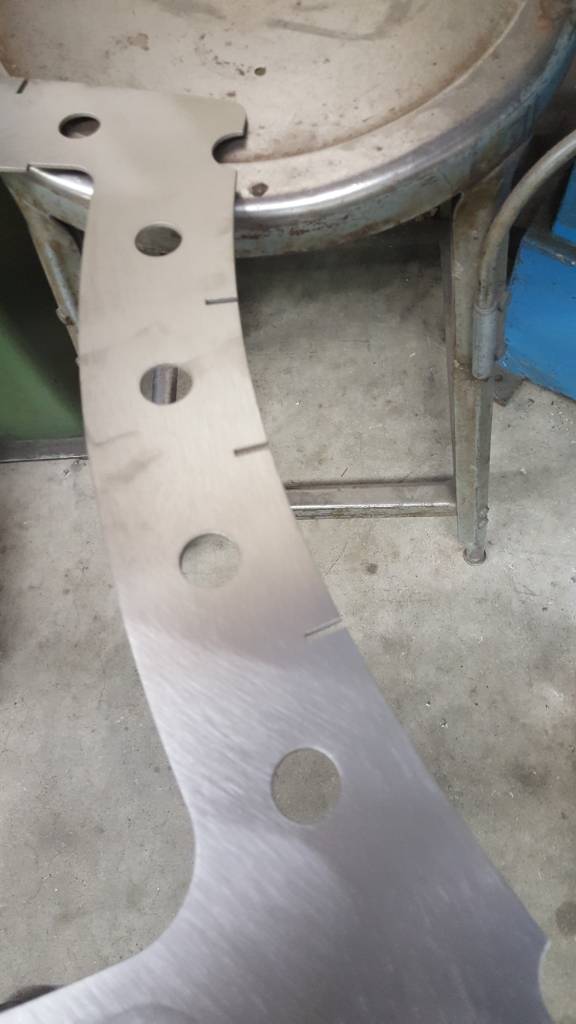

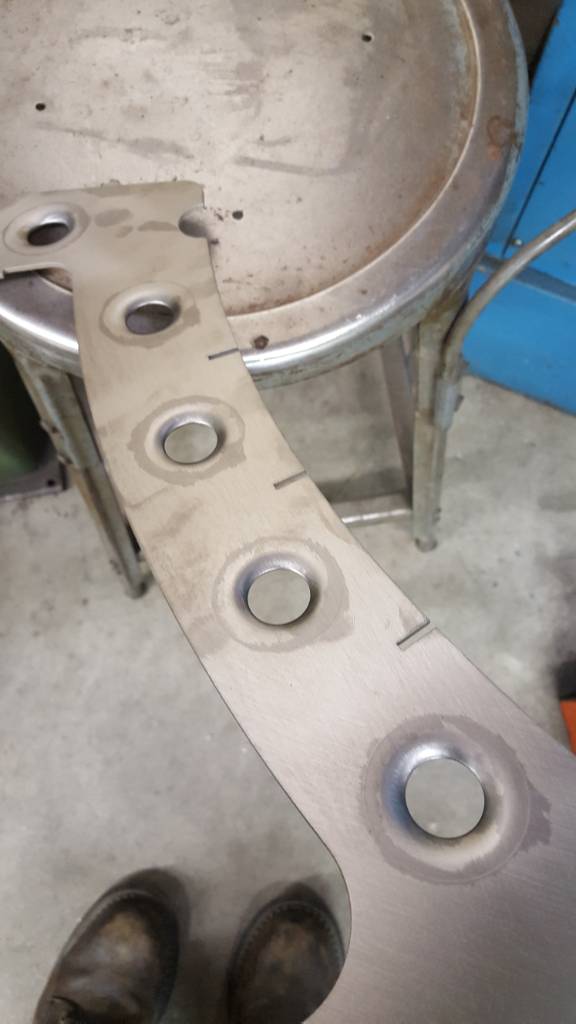

Also dimpled the main frame. Looks good and adds rigidity. Win win


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER

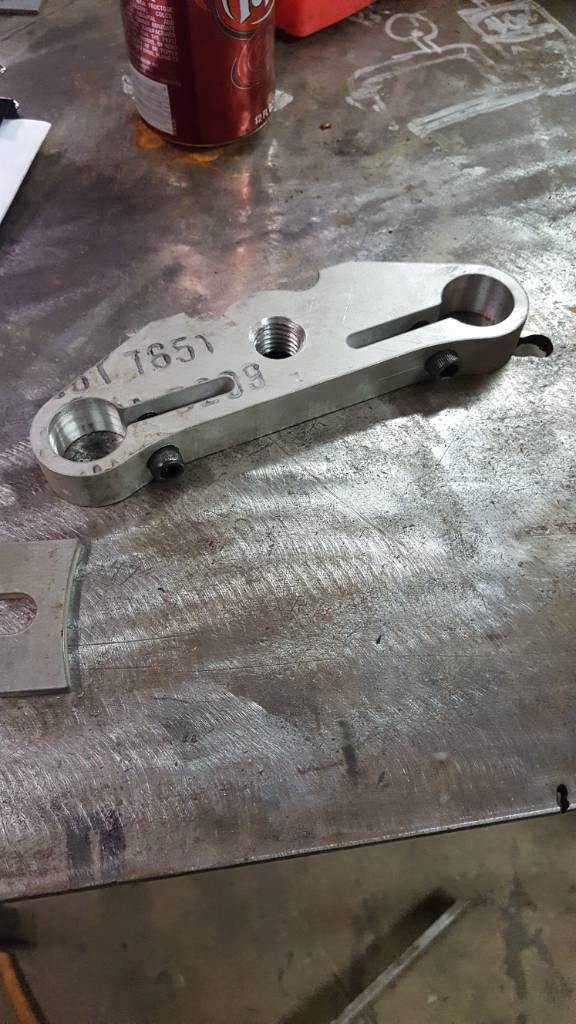

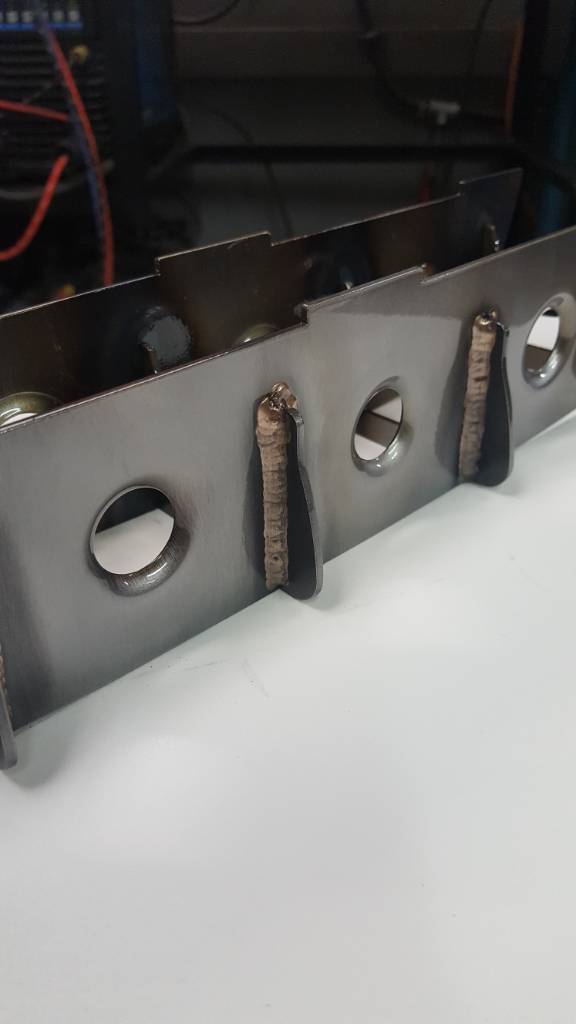

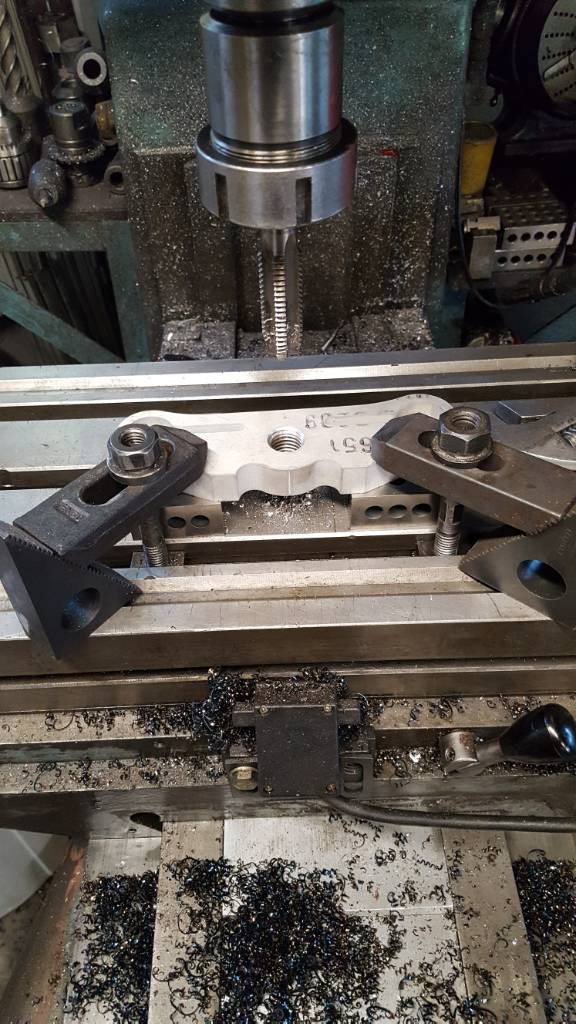

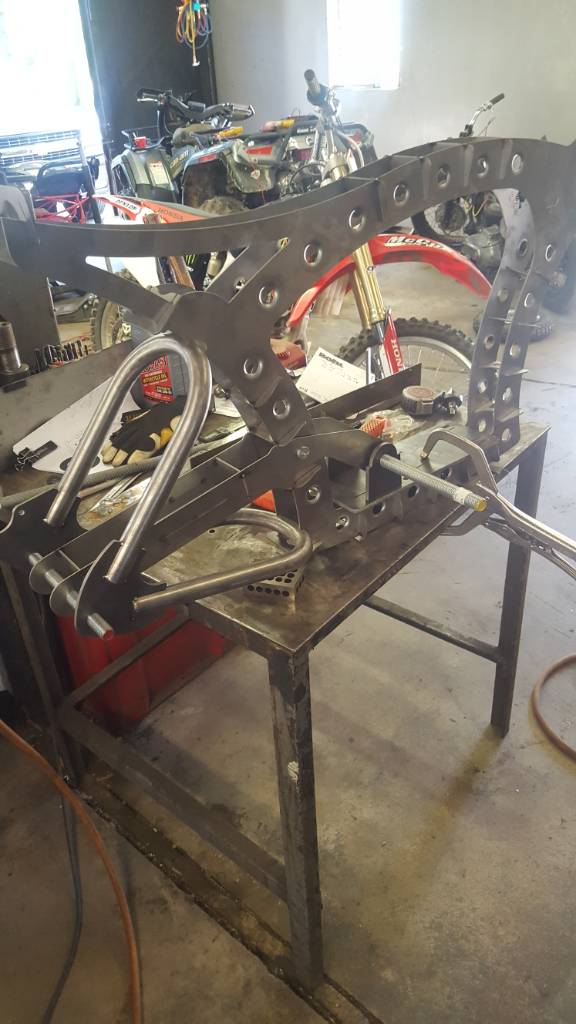

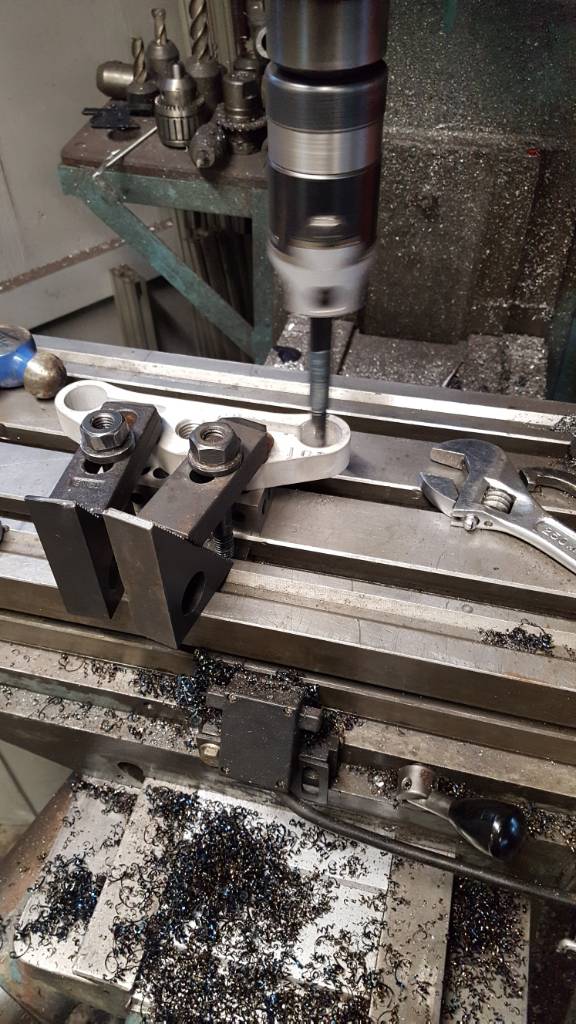

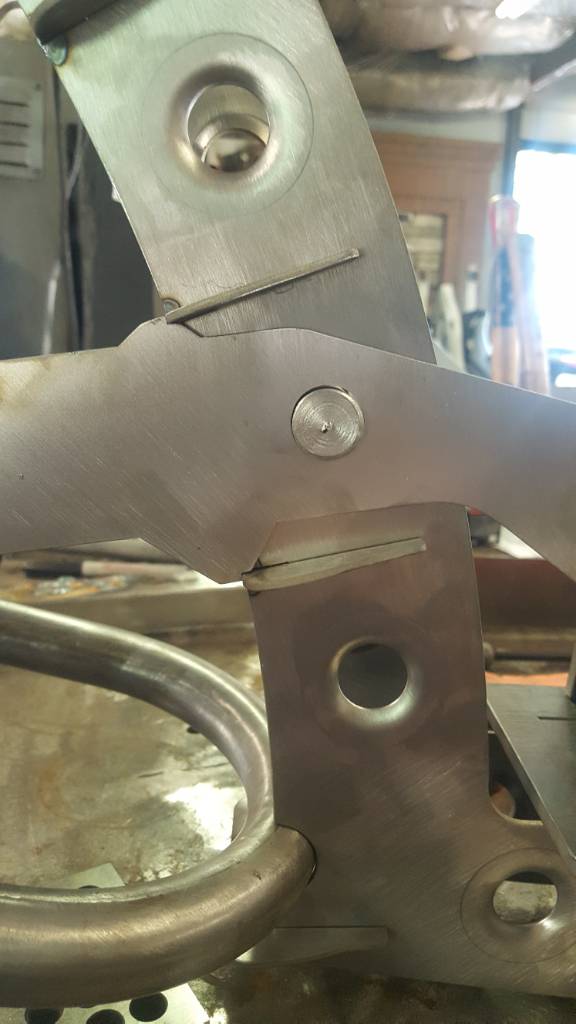

Got a little more done this afternoon. Drilled and trapped the bottom triple for the stem and bored the holes to size for the fork tubes. Also went ahead and welded up a practice or setup piece. I'm trying to decide wether to weld up the frame and have it powder coated or tig braze it and clear coat the bare metal.


Sent from my SM-G920V using Tapatalk


dakine_surf

"Stay Thirsty my Friends"
How much will the frame weigh when all said and done?

Would this work for a larger bike or would it end up being too heavy


Sent from my iPhone using DO THE TON


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
dakine_surf said:
How much will the frame weigh when all said and done?

Would this work for a larger bike or would it end up being too heavy


Sent from my iPhone using DO THE TON

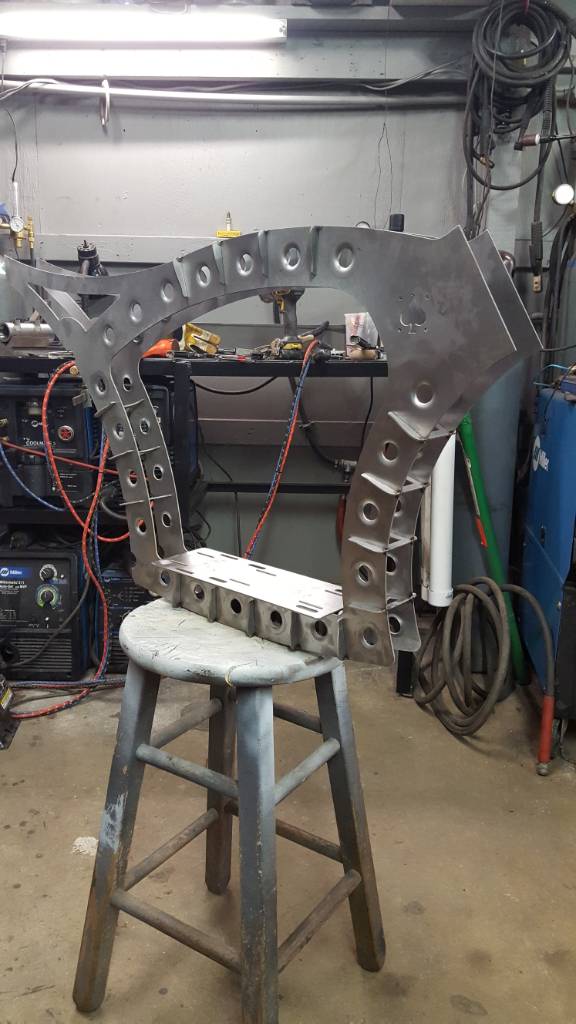

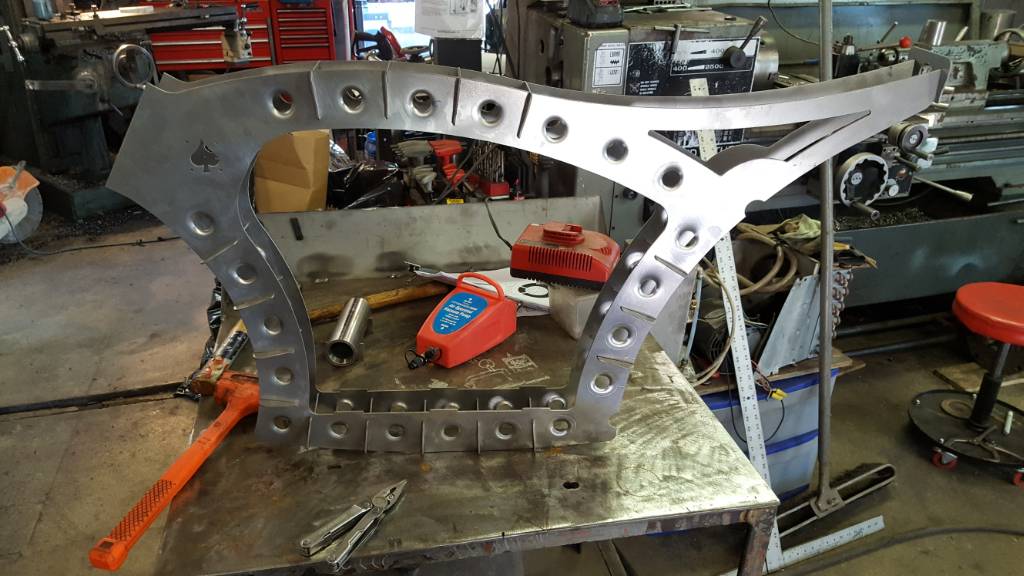

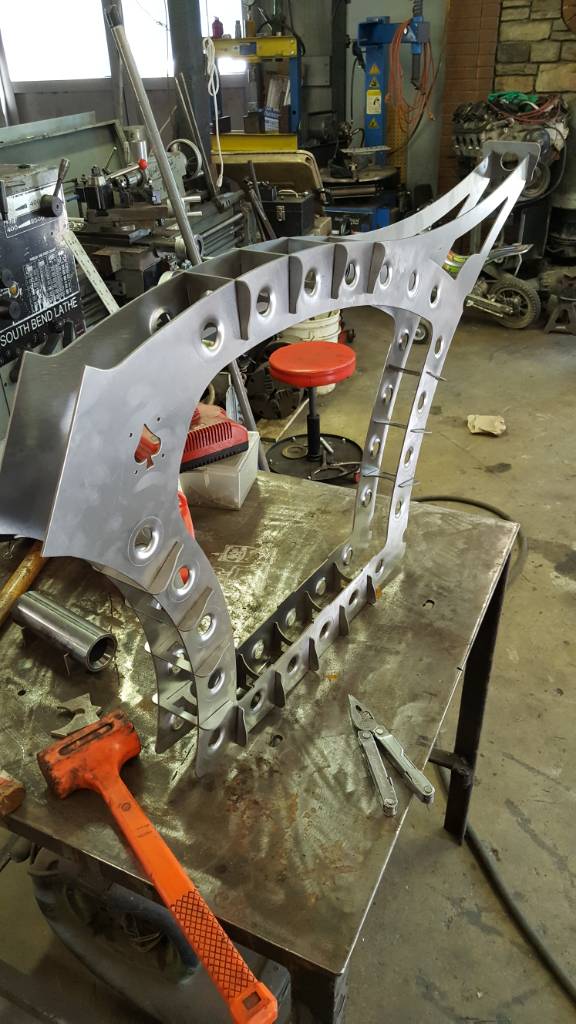

Main part that I have tacked up in that last picture is actually really light, Judy guessing around 10 lbs. Now once I mount the 1/4" thick engine plate, rear end, neck tube, Jackshaft ECT, the frame will definitely go up in weight. The plan is to eventually build a full size bike with this same design. This is just more or less a proof of concept

Sent from my SM-G920V using Tapatalk


dakine_surf

"Stay Thirsty my Friends"
HURCO550 said:
Main part that I have tacked up in that last picture is actually really light, Judy guessing around 10 lbs. Now once I mount the 1/4" thick engine plate, rear end, neck tube, Jackshaft ECT, the frame will definitely go up in weight. The plan is to eventually build a full size bike with this same design. This is just more or less a proof of concept

Sent from my SM-G920V using Tapatalk
Very cool, I've had a hardtail frame kicking around in my head that is very similar. Kinda with board tracker look.


Sent from my iPhone using DO THE TON


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER

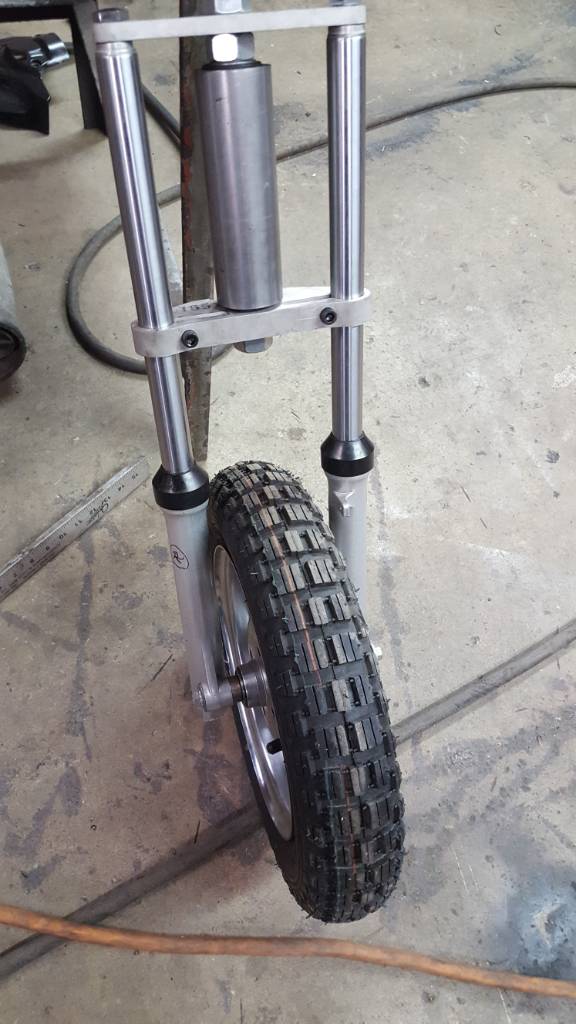

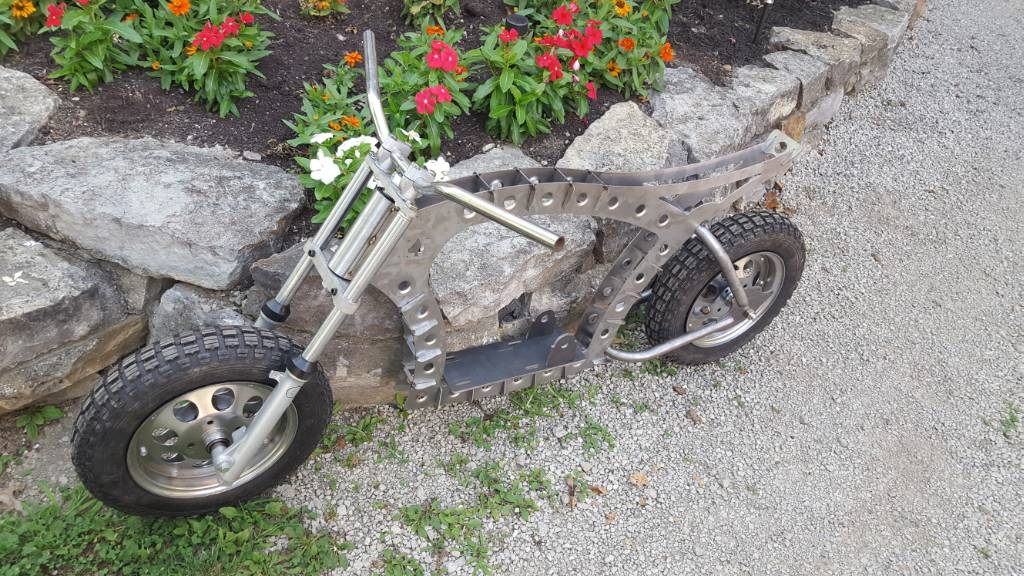

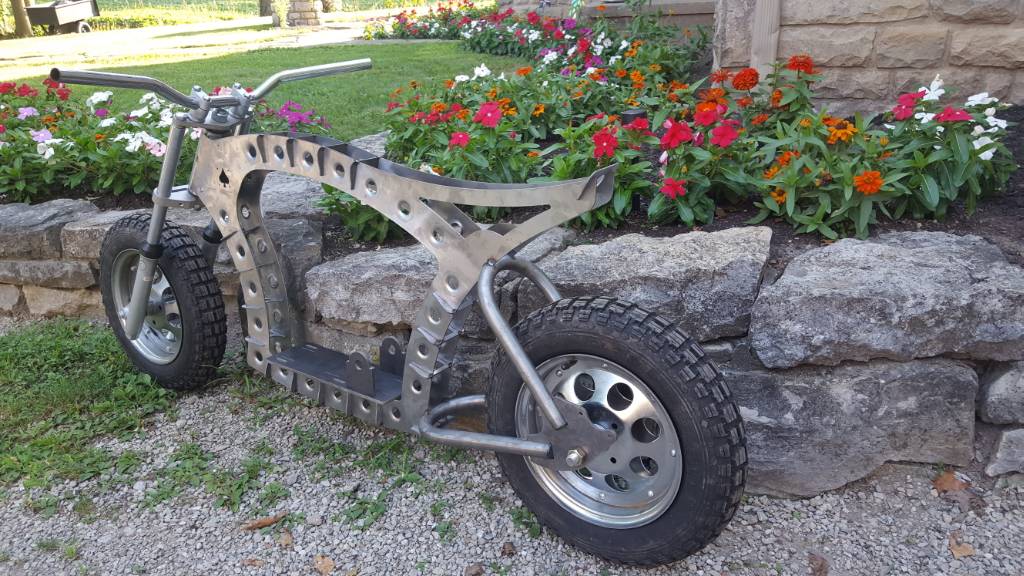

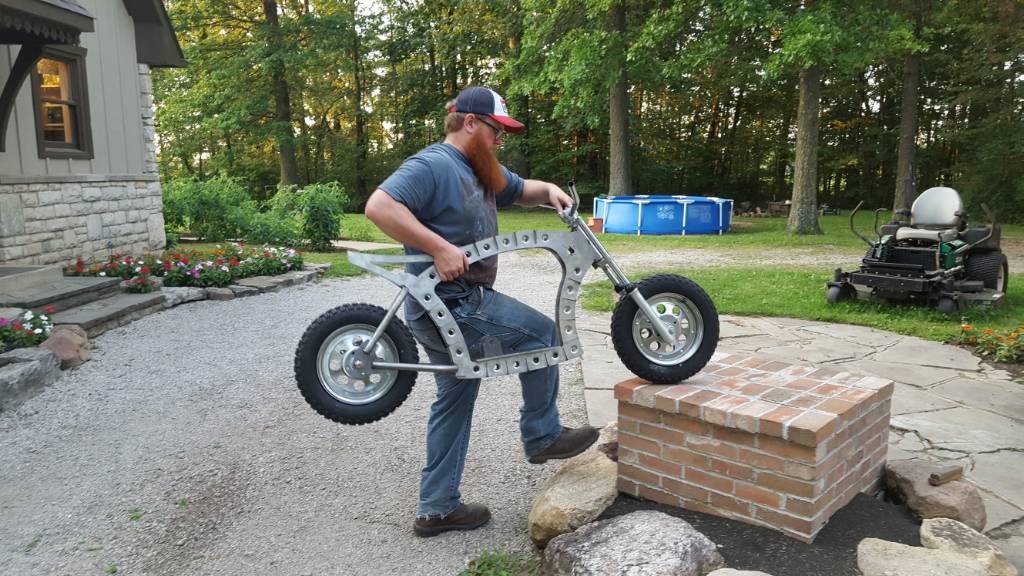

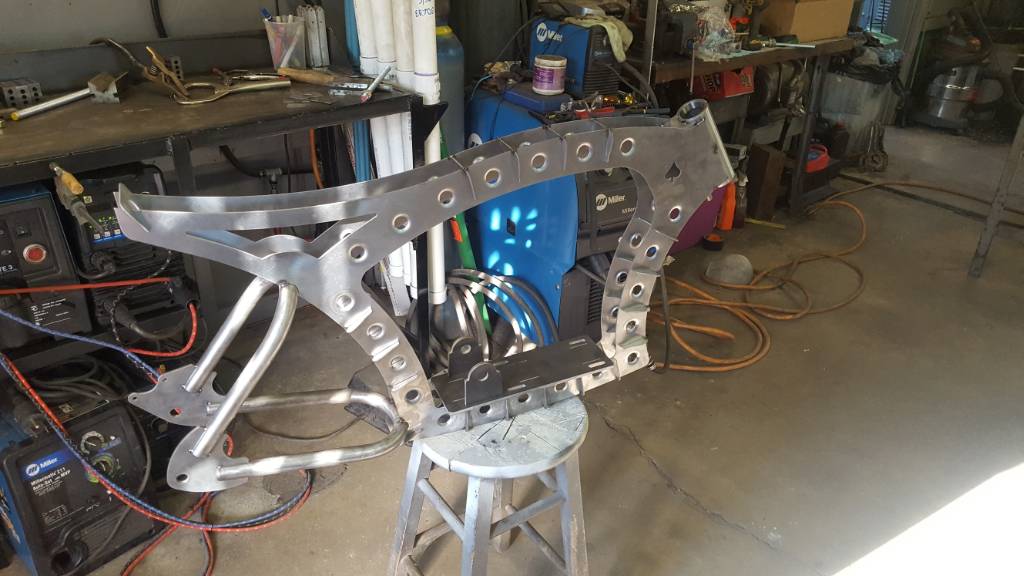

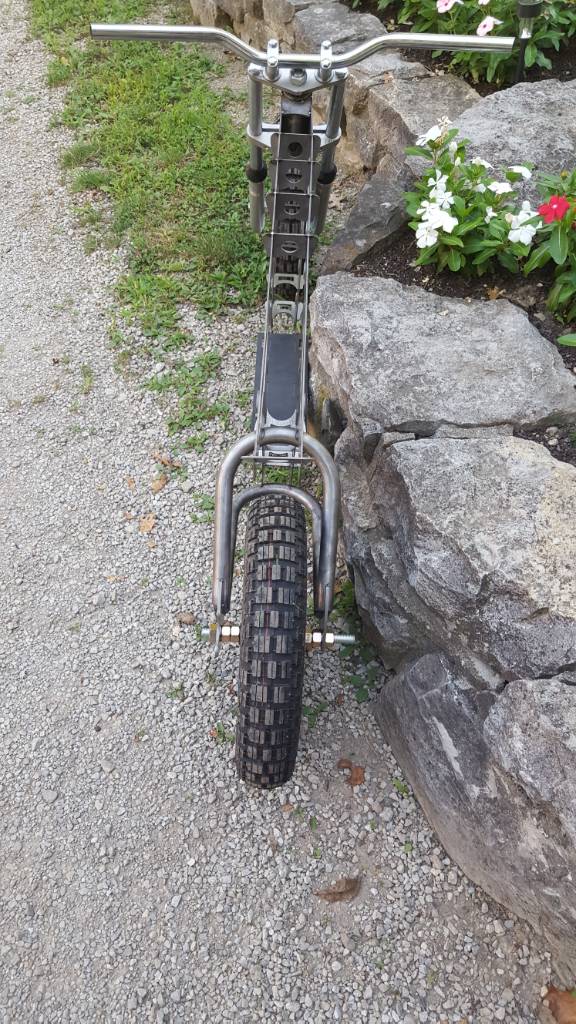

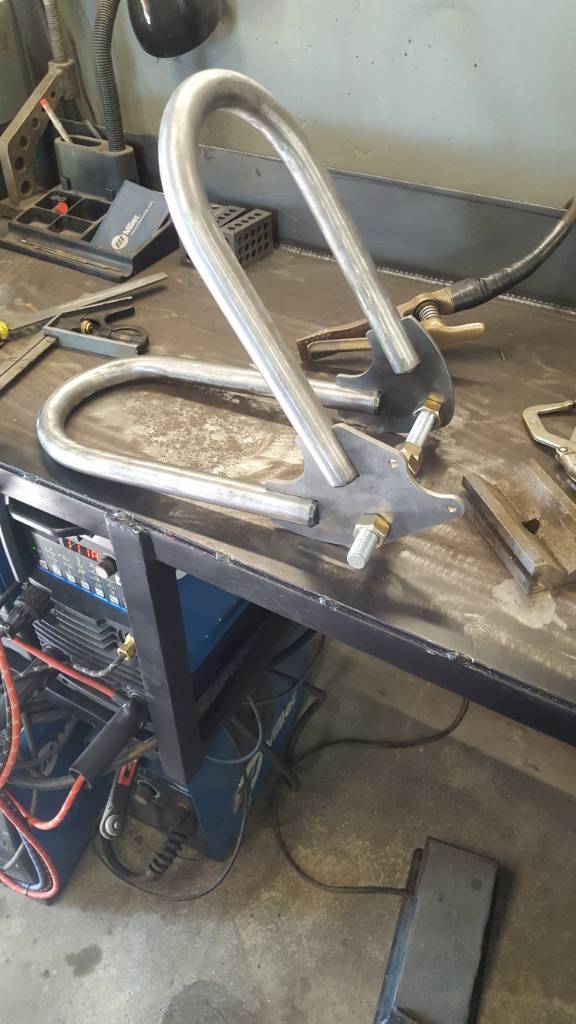

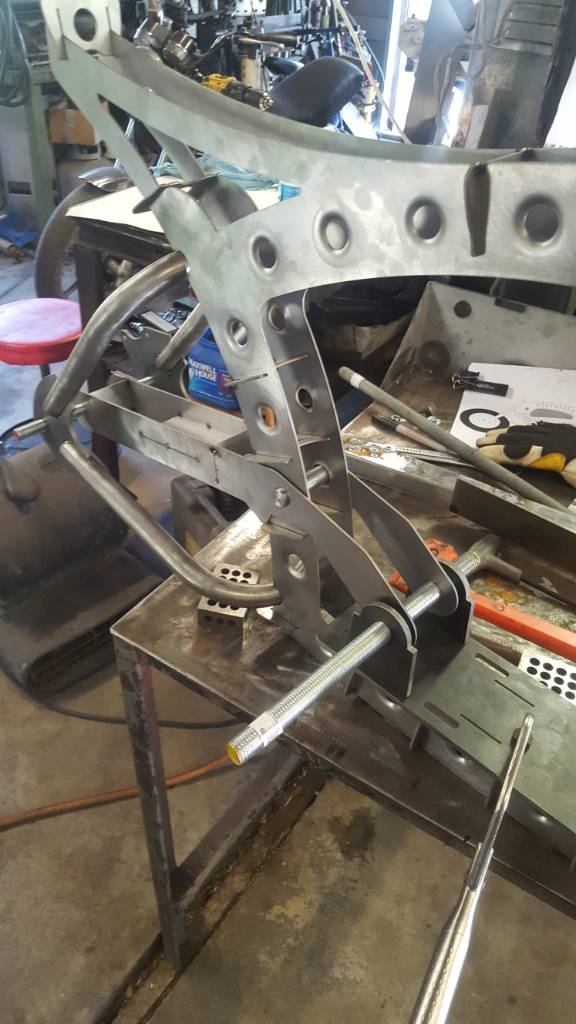

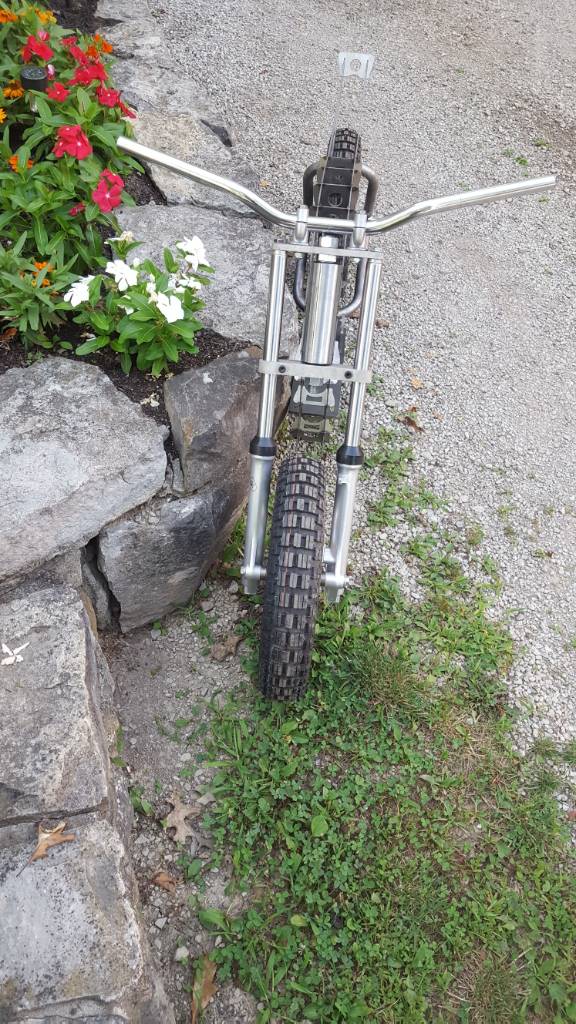

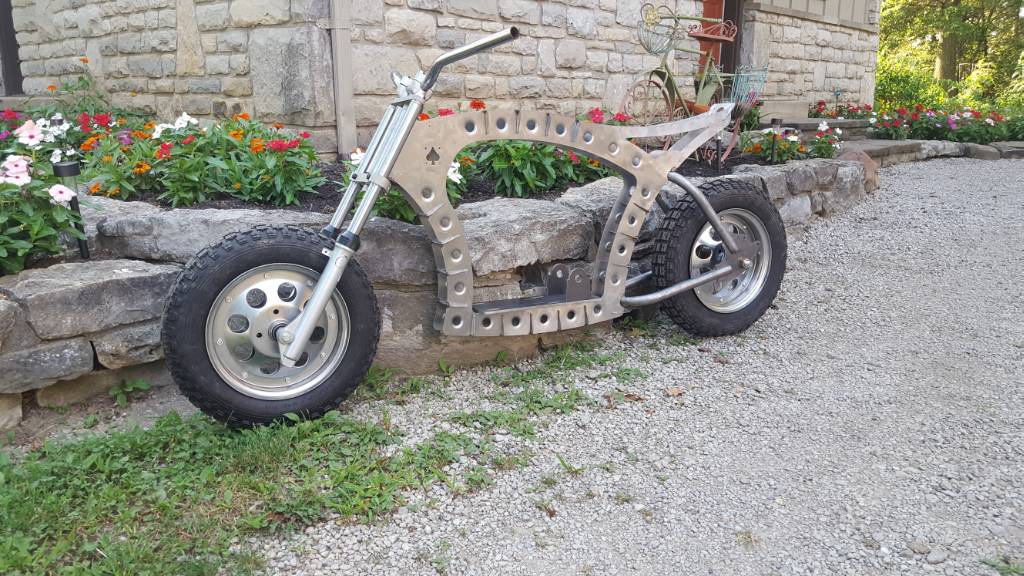

Built the rear hard tail and used a fixture I made to locate the rear axle plate(not bought at Ikea), finished machining stuff on the front end, tacked er together and now we have a roller. The front end will come down a bit with the weight of the motor and a less than dainty rider.





Sent from my SM-G920V using Tapatalk
