Zephyr 550 build

WaldaCZ

New Member
Hi, here are some pictures from my start rebuilding. base is kawasaki zephyr 550, 1991.


Attachments

  • IMG_20120505_132558.jpg
    125.8 KB · Views: 854
  • IMG_20121023_194118.jpg
    73.9 KB · Views: 736
  • IMG_20121023_194147.jpg
    83.9 KB · Views: 719
  • IMG_20121030_183653.jpg
    75.5 KB · Views: 1,426

WaldaCZ

New Member
progress and a bit of photoshop


Attachments

  • sedlo a vyfuk kopie.jpg
    sedlo a vyfuk kopie.jpg
    77.5 KB · Views: 1,054
  • IMG_20121213_171453.jpg
    54.9 KB · Views: 815
  • IMG_20121213_171359.jpg
    85.7 KB · Views: 776
  • IMG_20121207_170326.jpg
    69.5 KB · Views: 760

two-smoker

I reject your reality, and substitute my own!
Y'know, the Zephyr is a bike I am pretty happy with leaving stock, but I do like the exhaust. In fact, i'm doing pretty much the same thing on my build. Did you wrap the tank in a motorcycle jacket? That's pretty unique-looking.


jaddy10

New Member

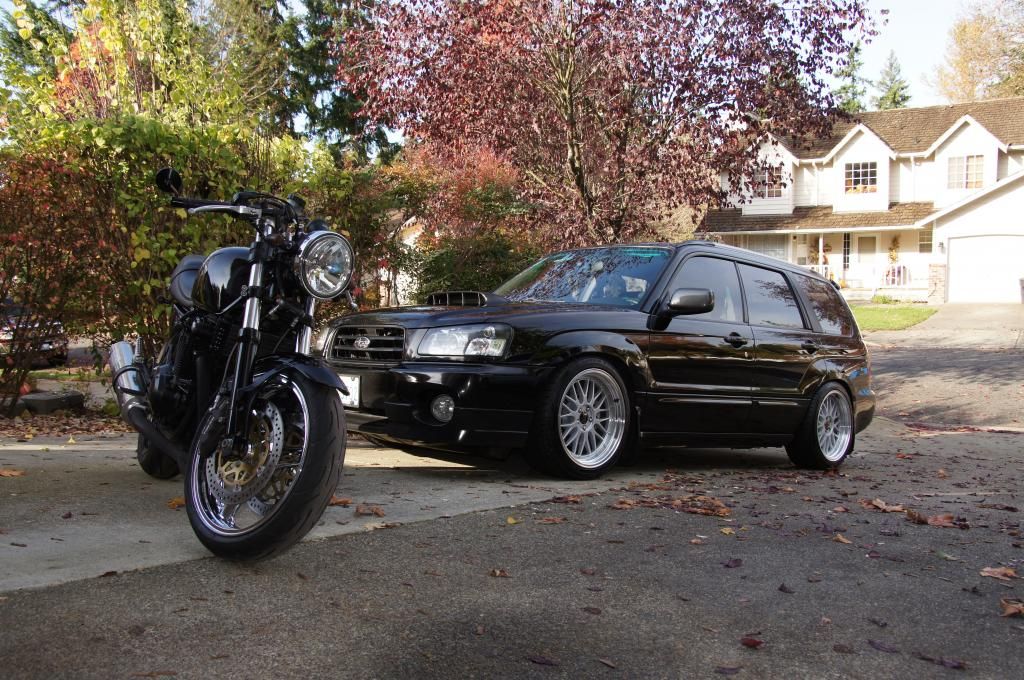

Hey! a zephyr! you dont see too many zephyrs. I built my 1990 zephyr 550 into a fighter last year a lot of custom work and parts from other bikes. heres a quick pic.


jaddy10

New Member
WaldaCZ said:
Great work man!! :eek: Please give me more information about this Zephyr, thank you :)

Thanks! the zephyr has been great to me last season. I finished the build march last year after working all summer fall and winter on it. Started out just a stock rebuild because the valves were getting really noisy. So I just decided to do a motor and carb rebuild. but in the process of rebuilding I ran across a 1999 zx6r on the craigs for a really good deal so I bought it and then it was months of figuring out how to fuse the front and rear end together.
from the front I milled the zx6r stem to fit the zephyr bearings then mounted a 2000 ducati monster front fender. headlight fork brackets for the stock zephyr headlight. fitted an acewell digital speedo/ tach rewired for the zx6r controls. I changed the tank and rear fairing to a 1998 zephyr 750, jetted carbs to 122 with UNI pod filters. 5/8 offset sprocket.

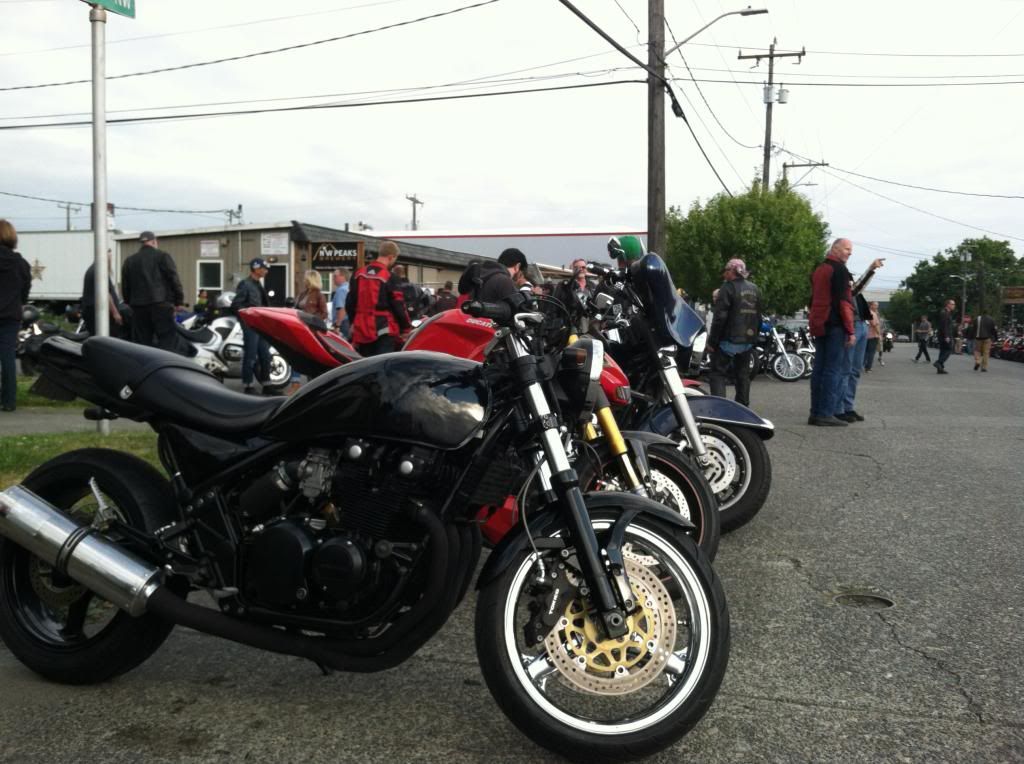

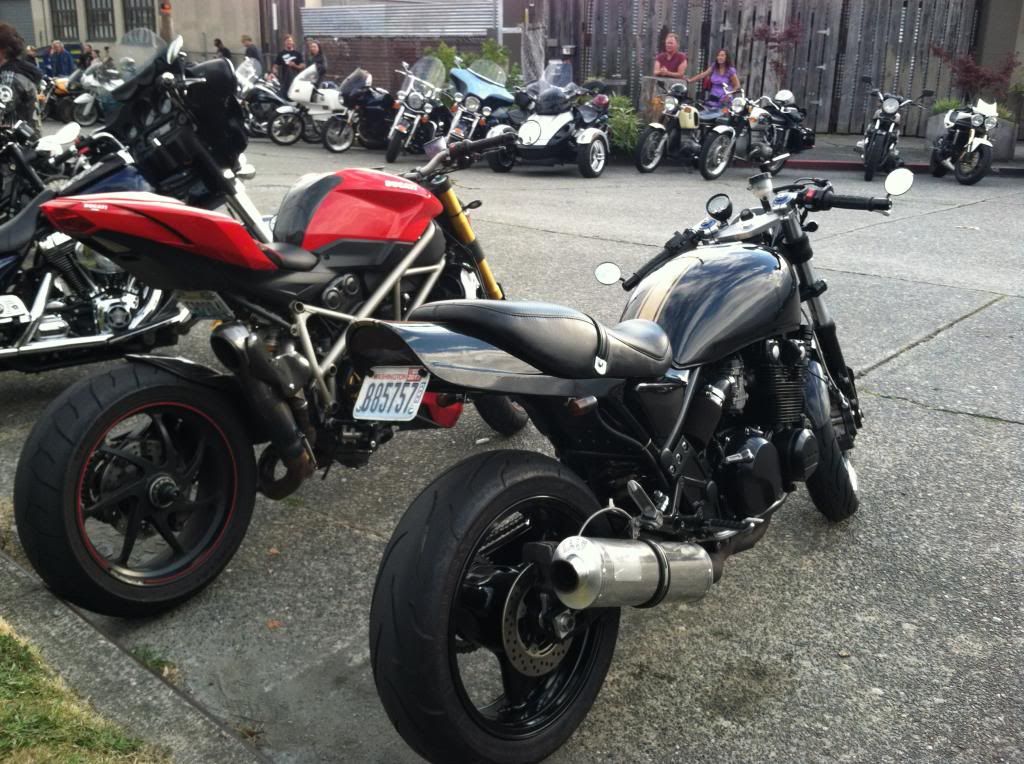

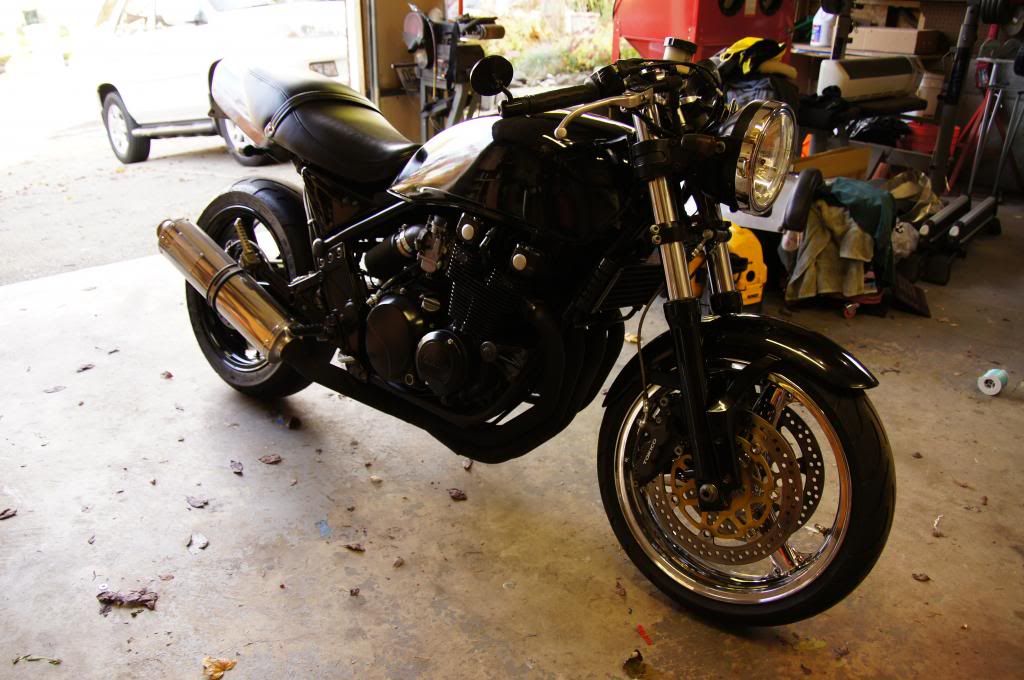

now for the zx6r swingarm to fit I had to cut the whole middle section of the frame where the pivots are and widened them about .5 wider. it was a task but worked out well. just make sure they are centered and level with the rest of the bike. I welded in a custom upper mount under the seat for the monoshock and welded in lower brackets for the shock linkages. then recovered the seat and fitted a 2004 triumph triple led tail light. It was a lot of work but it worked out great. I get a lot of questions where I go what kind of bike it is. ive only had one person actually ask if it was a zephyr. keep up the build man ive mashed on my zephyr all year and never gave me issues and with the suspension I am able to have more fun in the twisties. heres some more pics.




WaldaCZ

New Member
Little Update


Attachments

  • IMG_20130227_203813.jpg
    81.3 KB · Views: 598
  • IMG_20130227_203925.jpg
    80.1 KB · Views: 635

sidejam

New Member

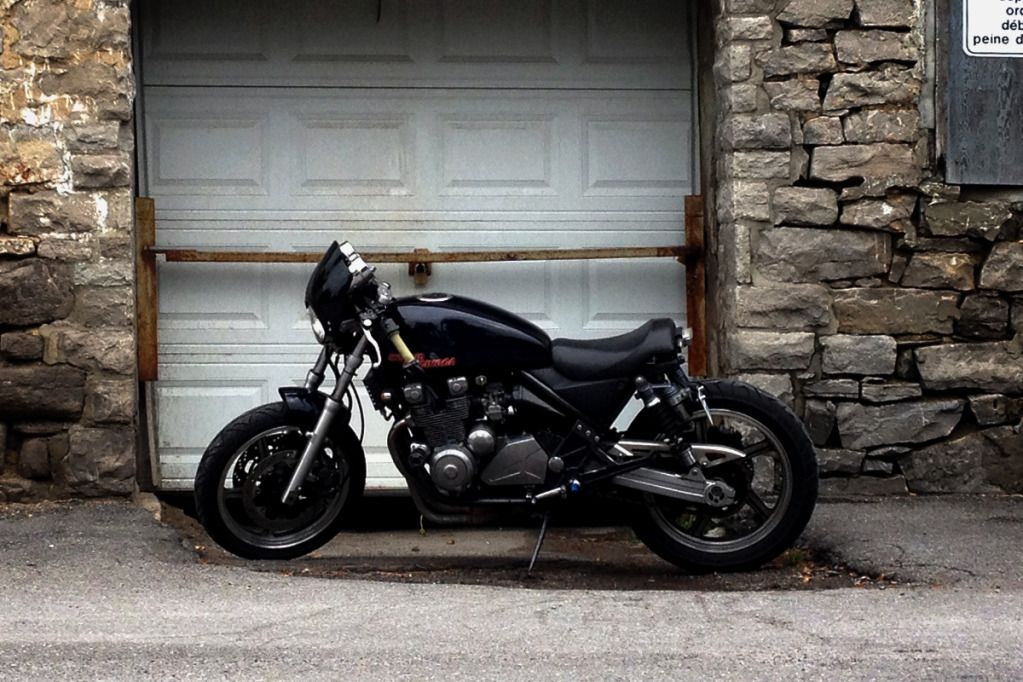

Walda said:
Nice machine, I looked at him :). How do you ride with the handlebars? Where did you get them? If I may ask :)

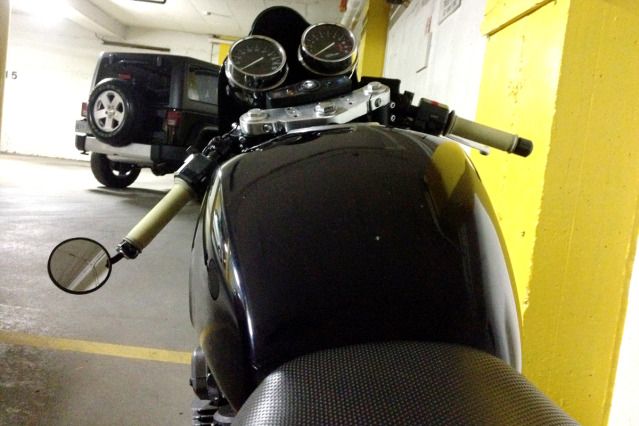

Here's another shot of the clip-ons:



For me, riding it is easy. It's a small bike and I'm 6 feet tall so it doesn't feel like that far of a reach. The bars are 41mm Woodcraft clip-ons with a custom spacer made to bring them down to the 39mm forks. Instead of using the aluminum bars that came with them, I cut up a pair of flat drag bars that had a 15 degree pullback. This makes the bars angle down even slightly lower and also helps them clear the tank. It took a lot of adjustments, but the bars are mounted symmetrically and will turn lock to lock without hitting the tank.

You have a great build yourself! I really like the way your tail section is coming along! While I didn't use the seat pan or foam, I used the exact same Ducati seat skin you've used to recover my seat after I cut it down. Keep up the good work!


WaldaCZ

New Member
Thanks so much for all the information! :) With the modifications I have to hurry, the season is approaching very quickly :)


WaldaCZ

New Member
left-tune a few details, but otherwise done :)


Attachments

  • IMG_20130414_174043.jpg
    1.1 MB · Views: 485
  • IMG_20130415_173347.jpg
    1.8 MB · Views: 556
