1980 CB750 “Beavertail” Cafe Build

Nice progress. Be advised that by dropping the forks in the triple trees you are changing the bikes geometry. all things remaining equal doing this will decrease trail. This could make it twitchy and unstable. I would recommend running your rake/trail numbers to see where you are at.


I agree with what Doc said about your front end geometry. I'd also be concerned about the width of your front tire. A 110 is pretty wide and will give you very heavy steering. That along with the dropped forks could be very weird and potentially evil.

doc_rot said:
Nice progress. Be advised that by dropping the forks in the triple trees you are changing the bikes geometry. all things remaining equal doing this will decrease trail. This could make it twitchy and unstable. I would recommend running your rake/trail numbers to see where you are at.

[/URL]
Click to expand...
Thanks for letting me know - I'll check this out some more. I have some research to do!

ex119x said:
I agree with what Doc said about your front end geometry. I'd also be concerned about the width of your front tire. A 110 is pretty wide and will give you very heavy steering. That along with the dropped forks could be very weird and potentially evil.
Click to expand...
Thanks for looking out - I may change a few things around after finishing up the build and running a few test drives.

Huge updates - the bike is done aside from break-in and minor things that I probably forgot in my build list. With the warm weather here on the east coast (and now half the MC season gone) I was chugging away at finishing this thing and getting it on the road. I’m posting all final weeks at once with photos and not a ton of word vomit. I’d be happy to answer questions anyone has with their own build but if you’re anything like me you just want to see the progress in short bullets along with photos.

Week 14 5/28 Wiring Craziness

Drilled holes in bars for switches

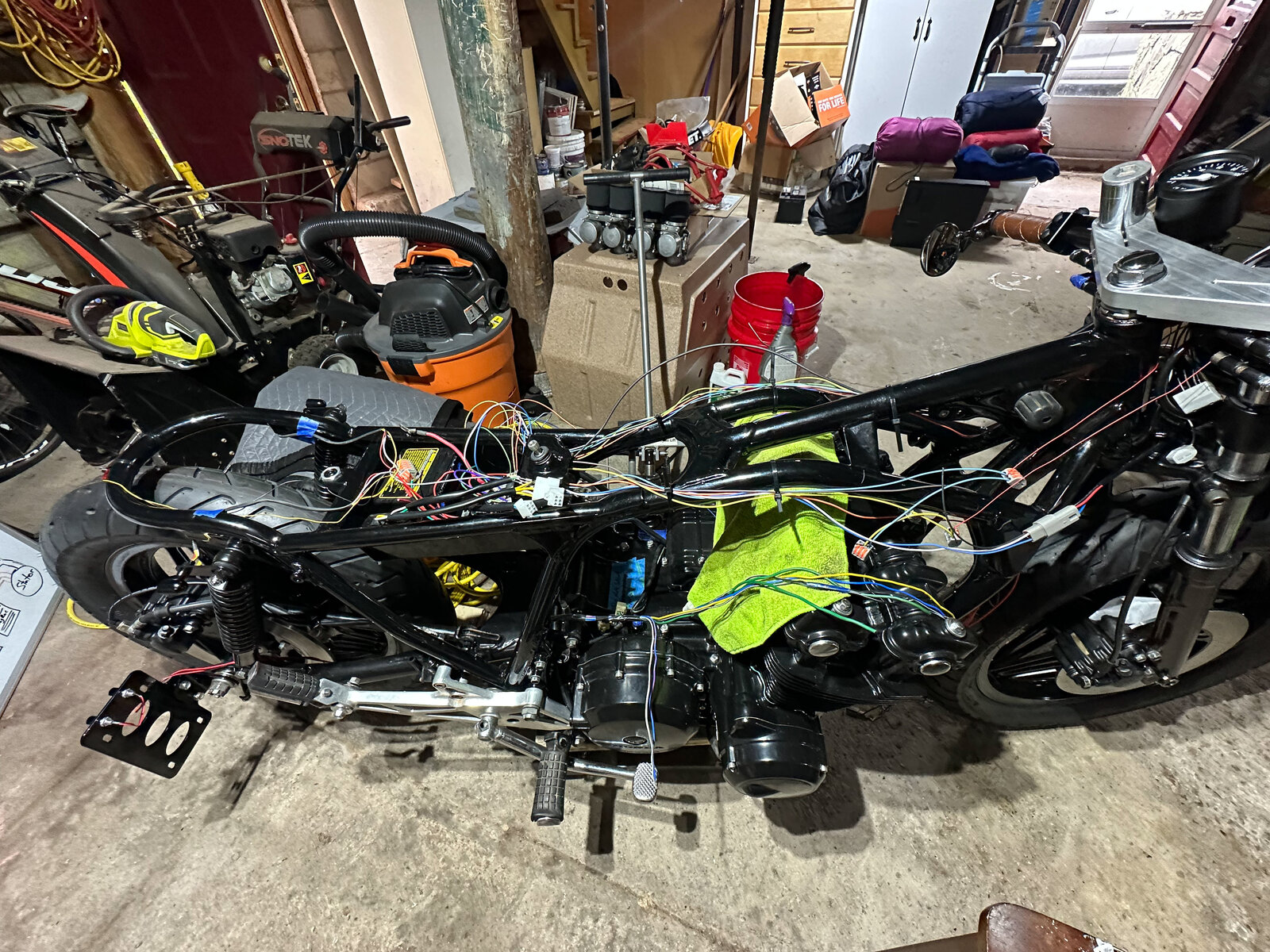

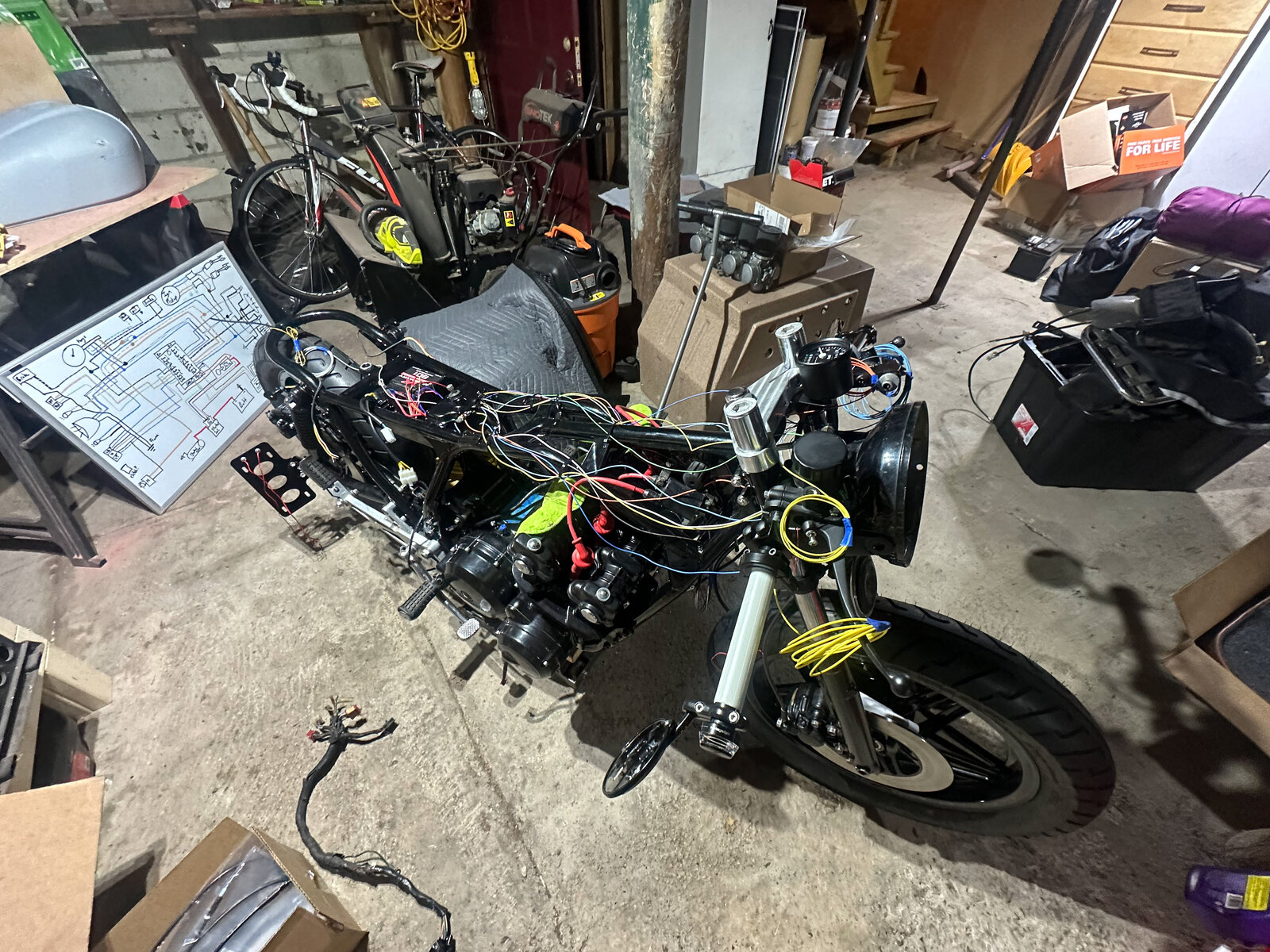

Started by loosely running all M-unit inputs
Took pieces of OEM wiring harness (mainly ignition side)
Wired everything one circuit at a time - gauge gave me the most trouble
Installed custom headlight/mount
Cockpit view

CB750 - Week 14-1.jpg




CB750 - Week 14-3.jpg


CB750 - Week 14-4.jpg


CB750 - Week 14-5.jpg

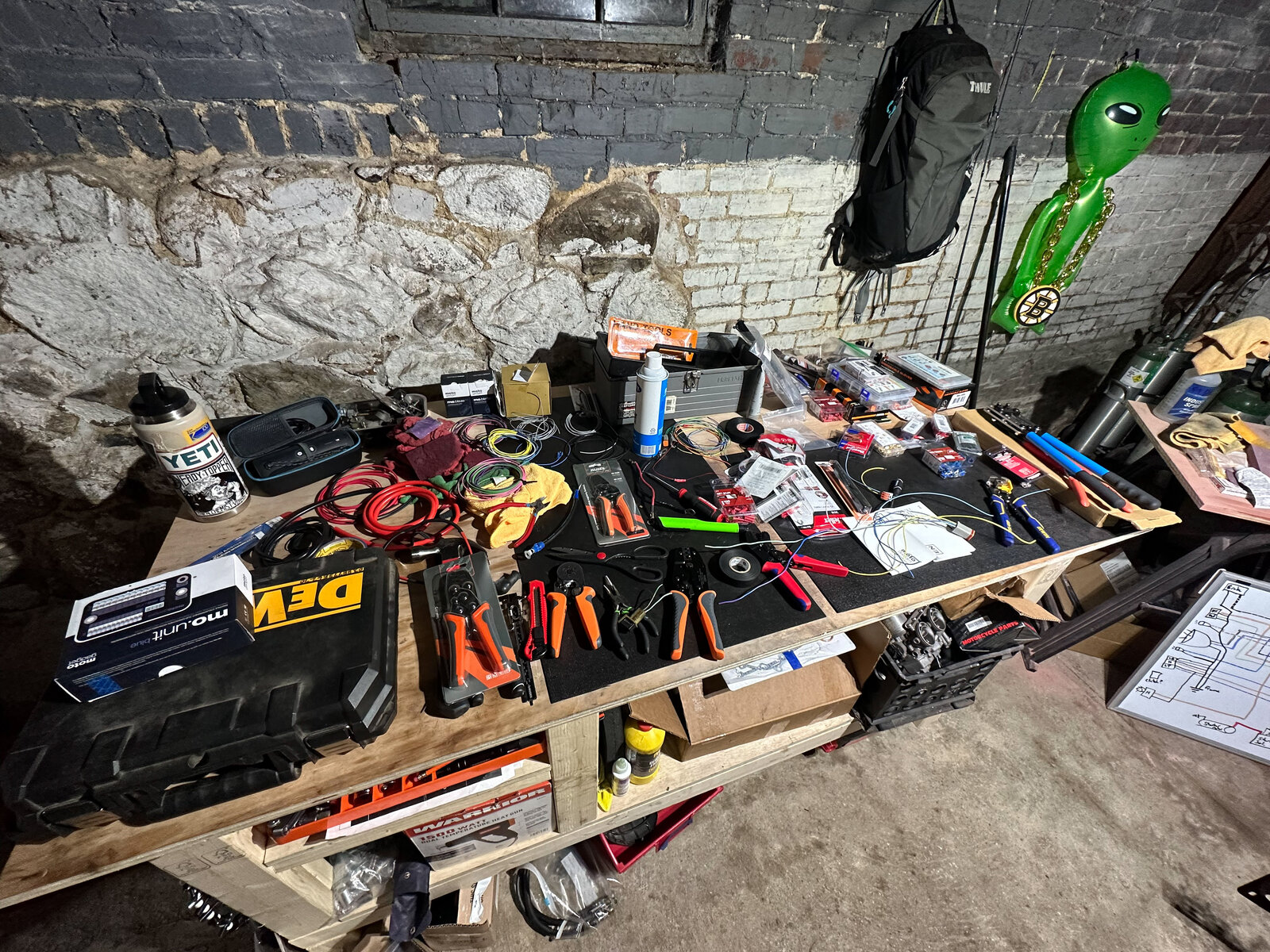

/\ What was I saying about a clean workshop is important? lol

_______________________________________

Week 15 6/7 Wiring tidy up + Tank Paint

Finalize all wire routing and testing

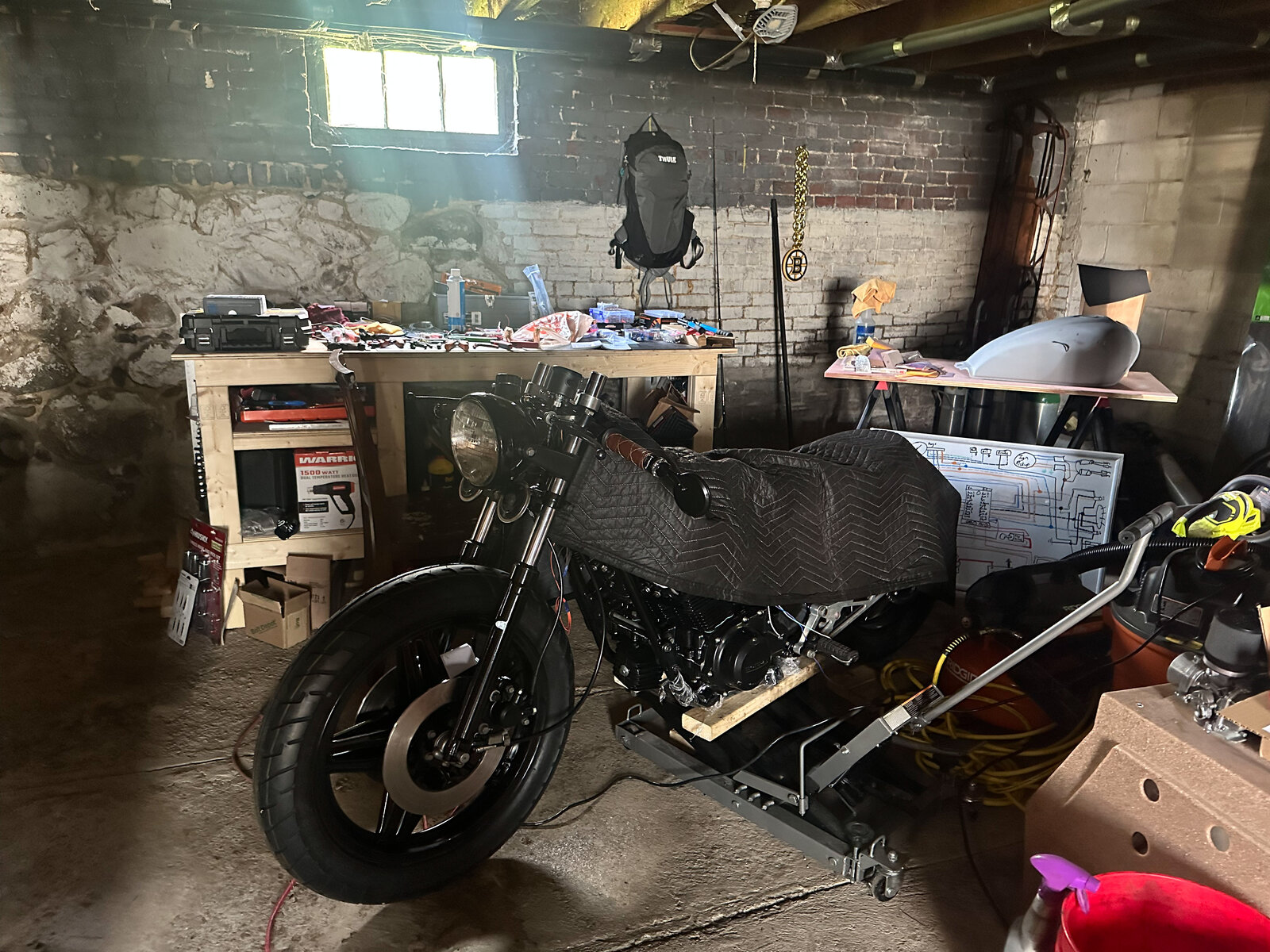

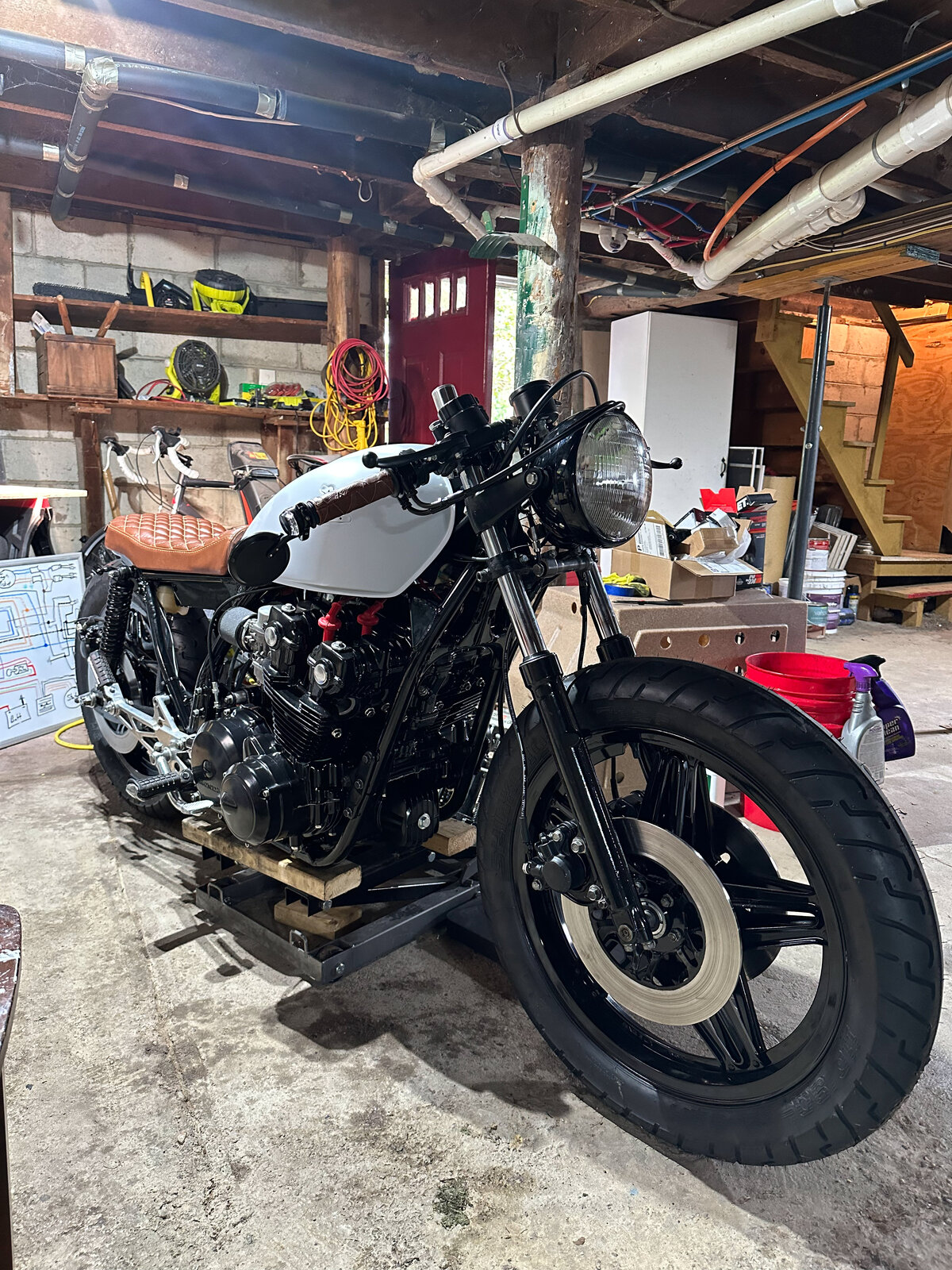

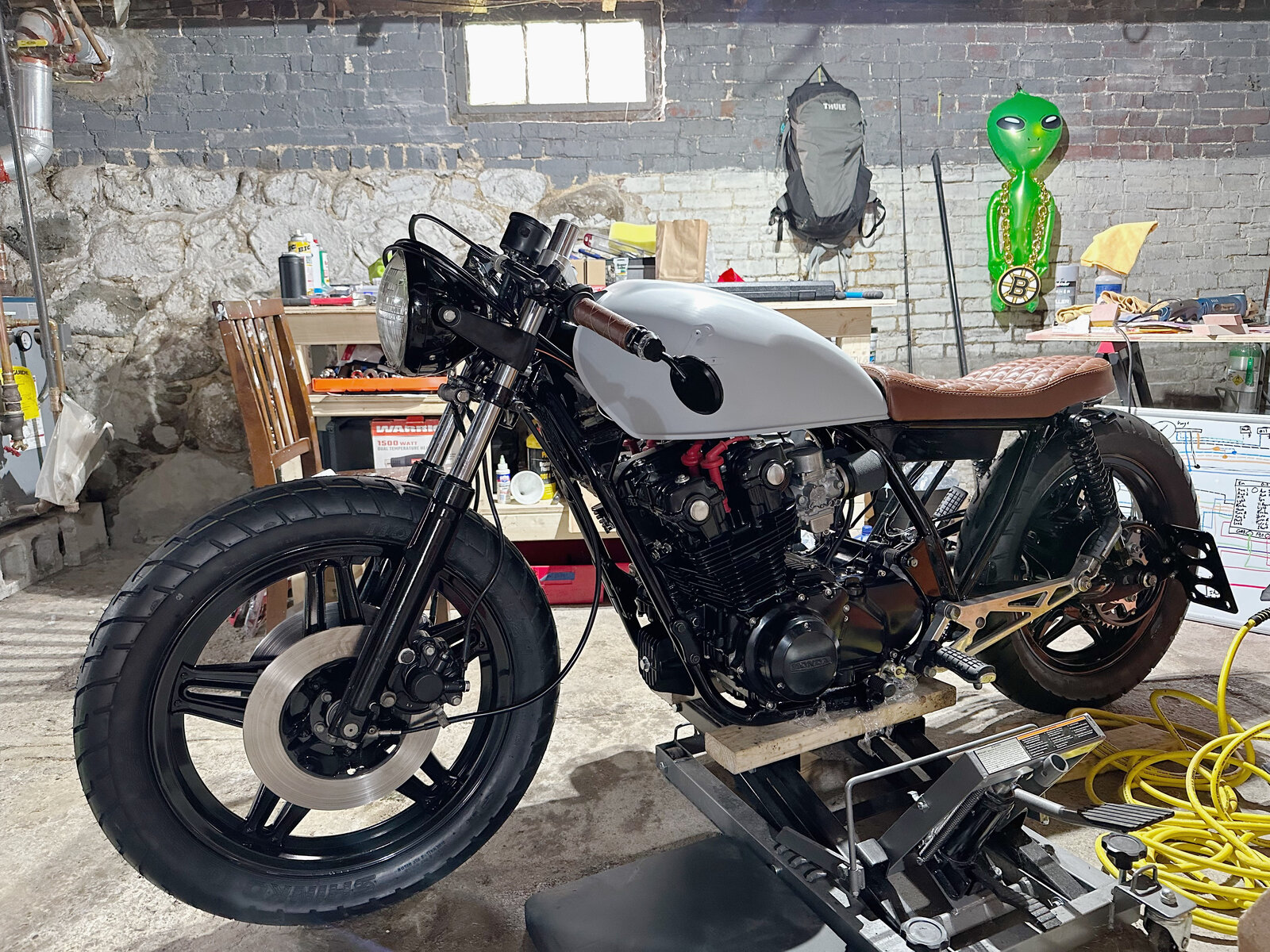

Tank and seat mockup for motivation
New Ignition coils and wires installed (not shown)
Tank primer laid down

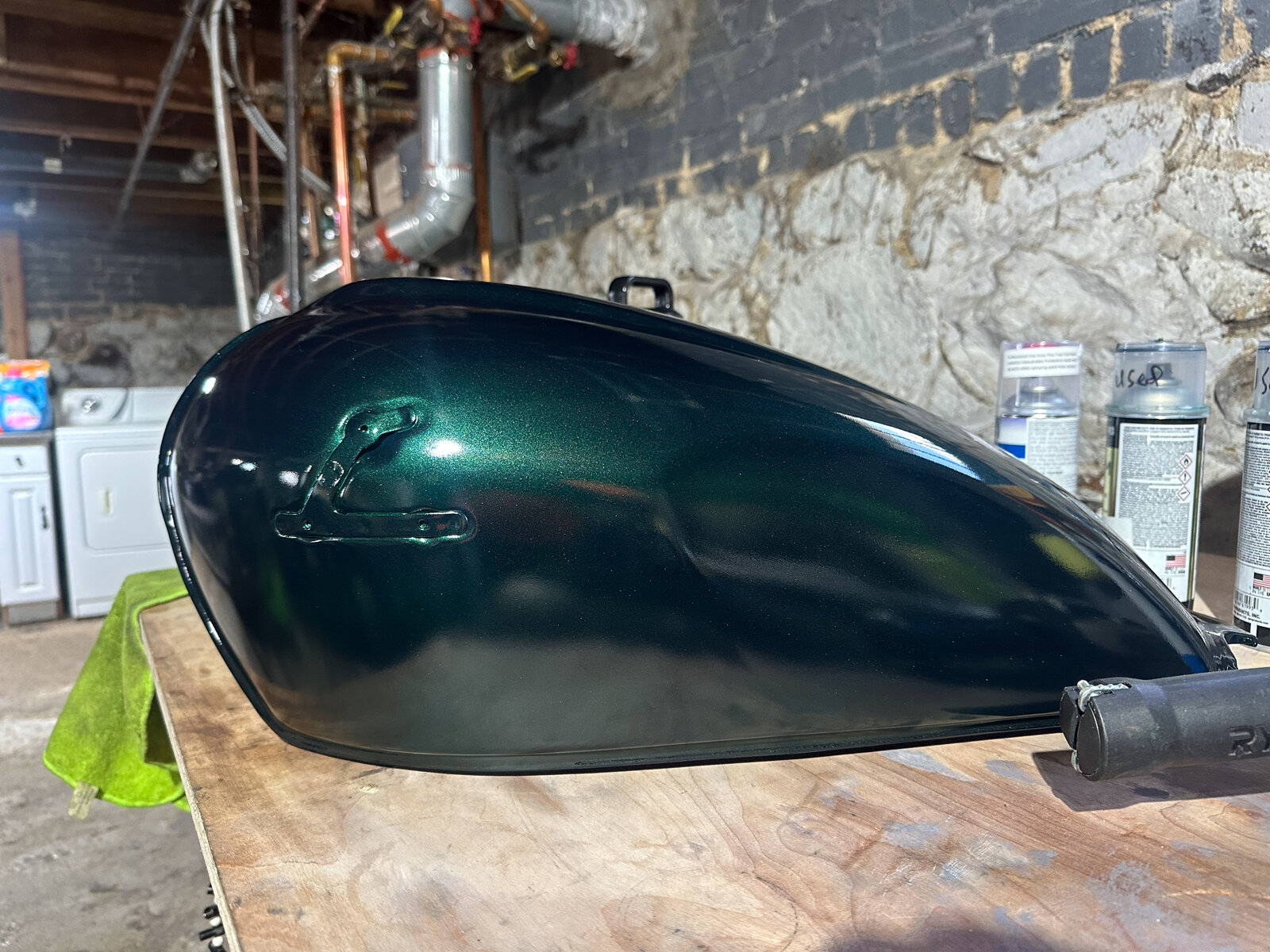

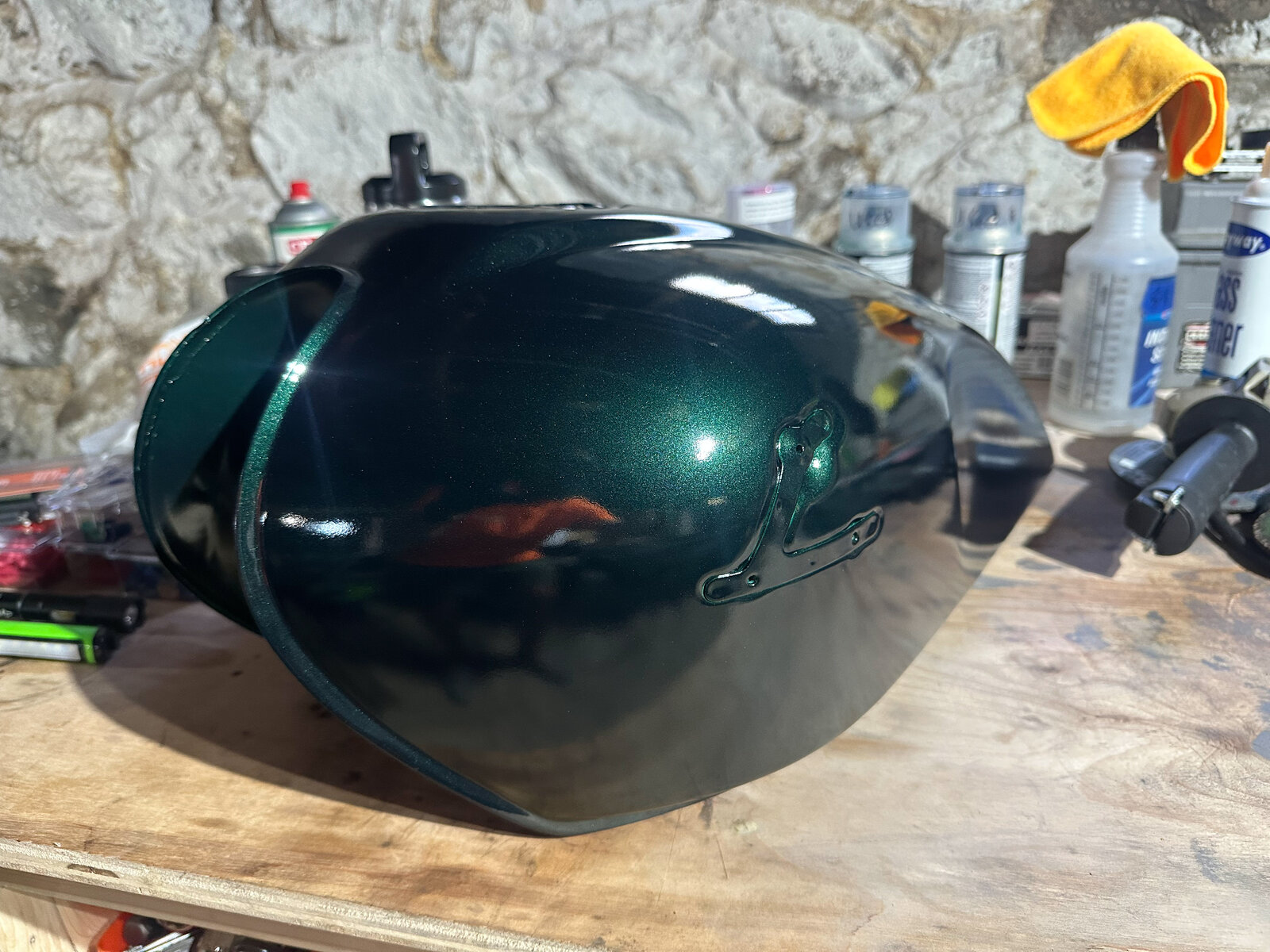

Green Laid down - I chose to go with Porsche Forest Green Metallic. It looks almost black in the shadows and slightly green in direct sun

CB750 - Week 15-2.jpg


CB750 - Week 15-3.jpg

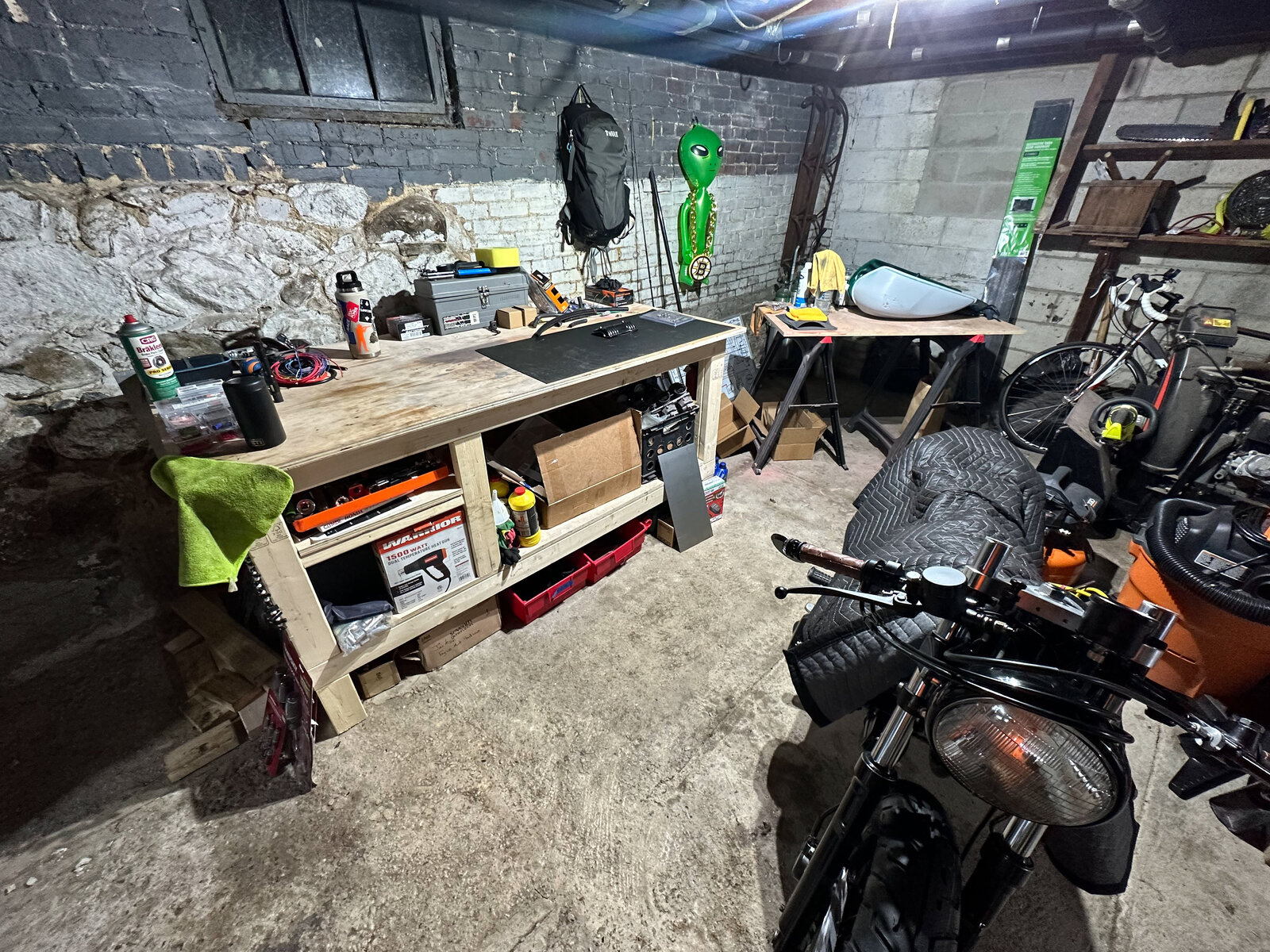

Cleaned up the shop because it was getting crazy
CB750 - Week 15-4.jpg




CB750 - Week 15-6.jpg


CB750 - Week 15-7.jpg


_____________________________________

Week 16 6/14 Exhaust install/Miscellaneous

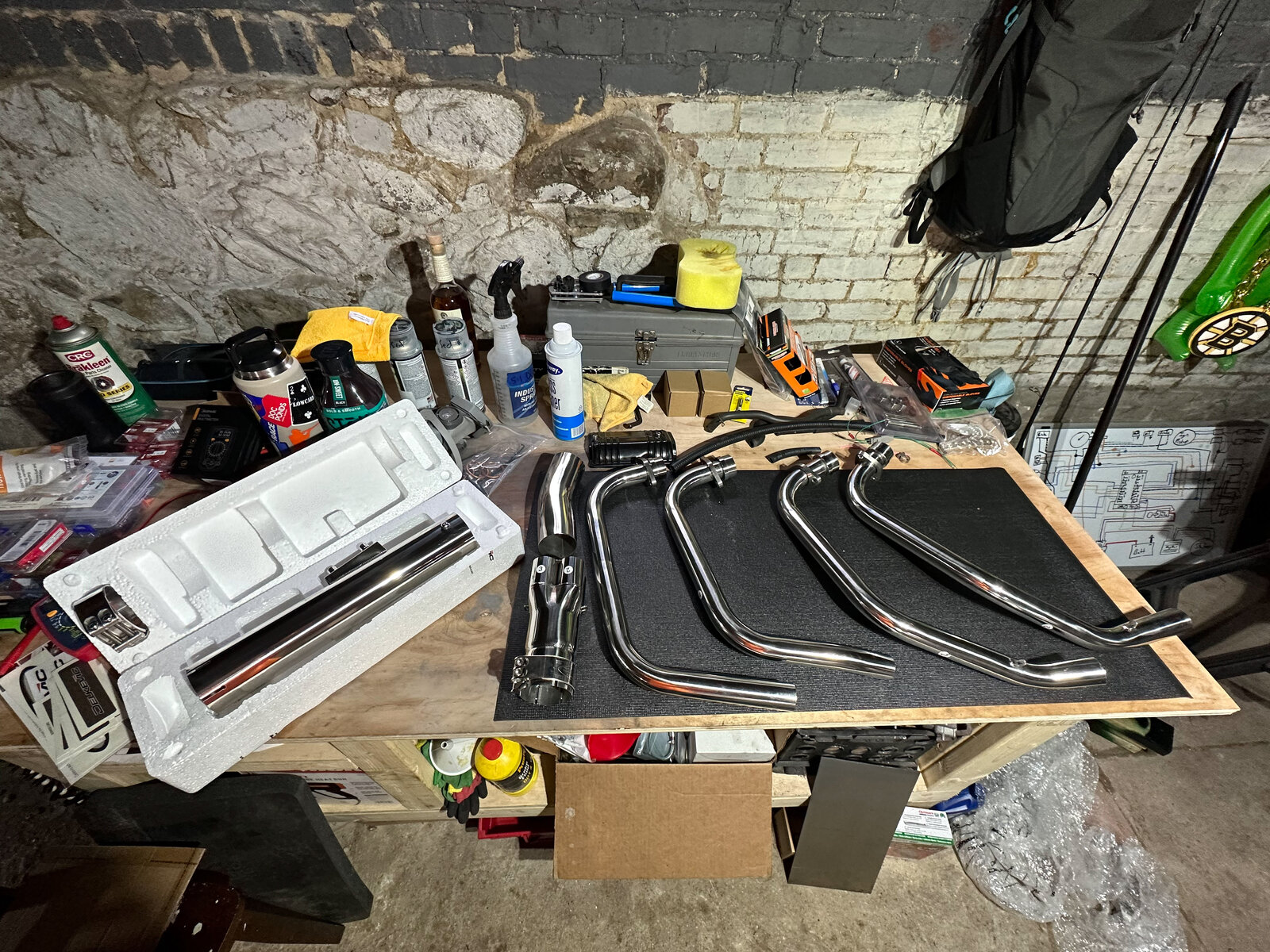

Install exhaust - went with a Delkevic and abandoned the wrapped exhaust
Sprayed clear on tank

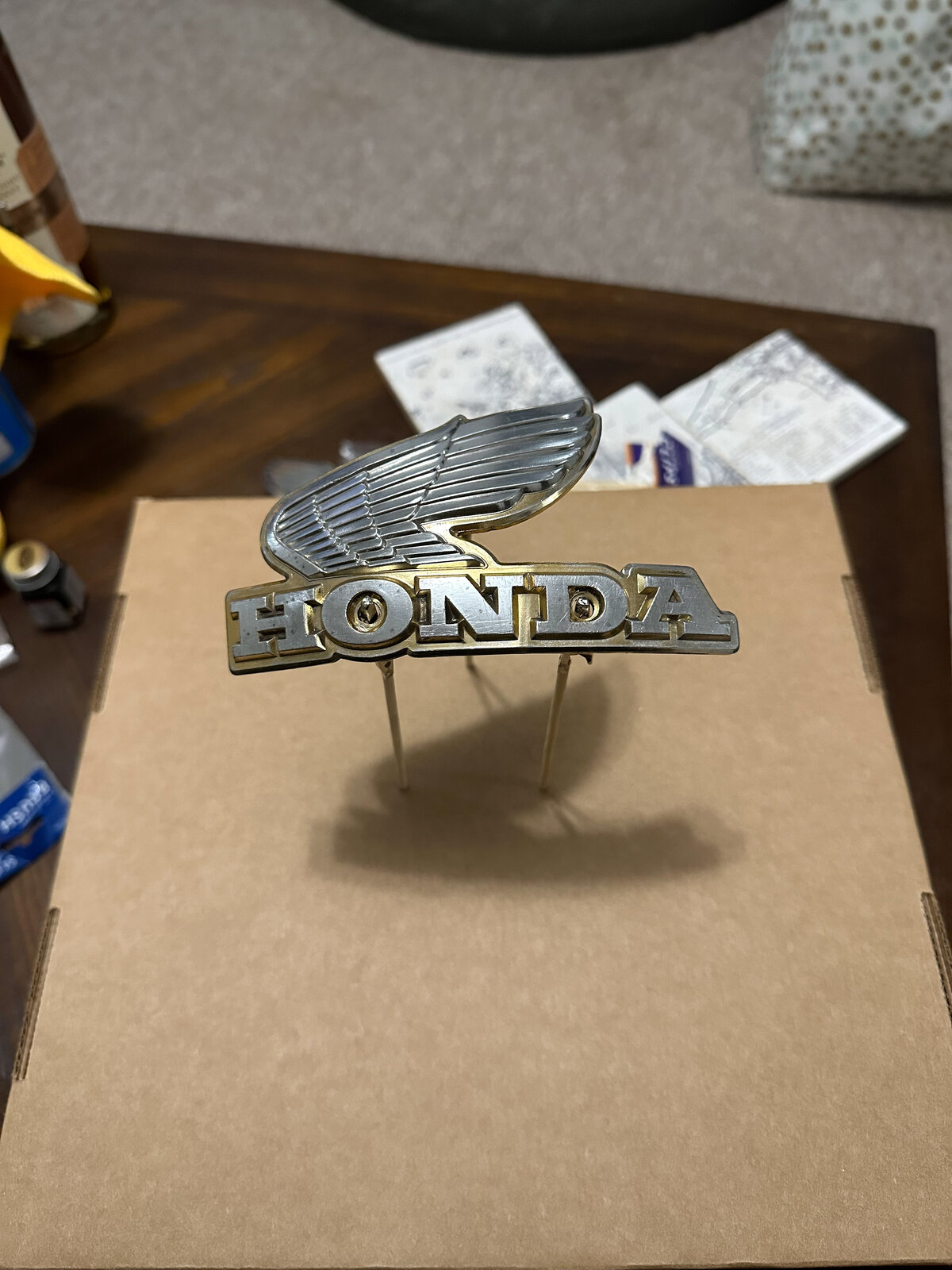

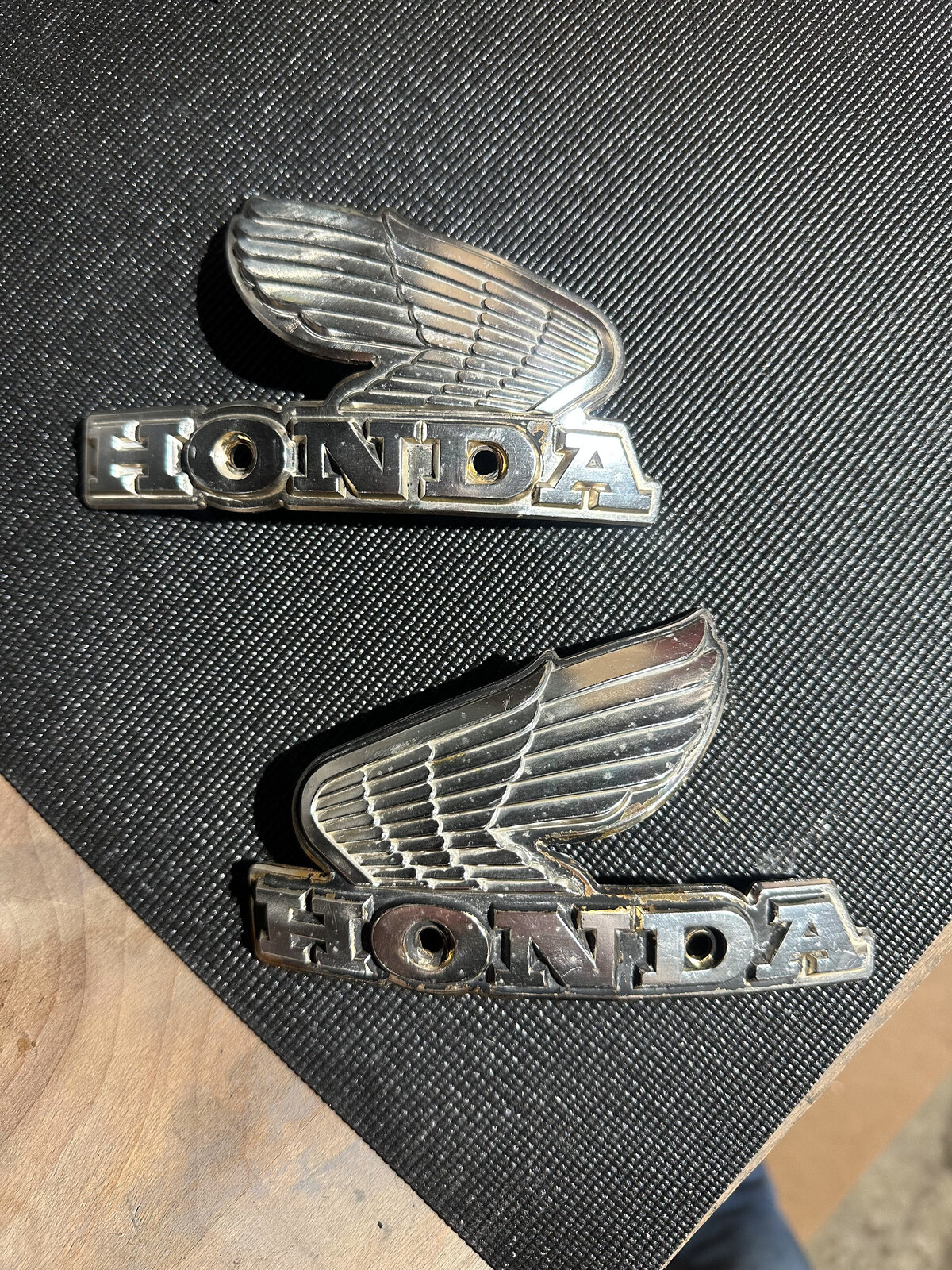

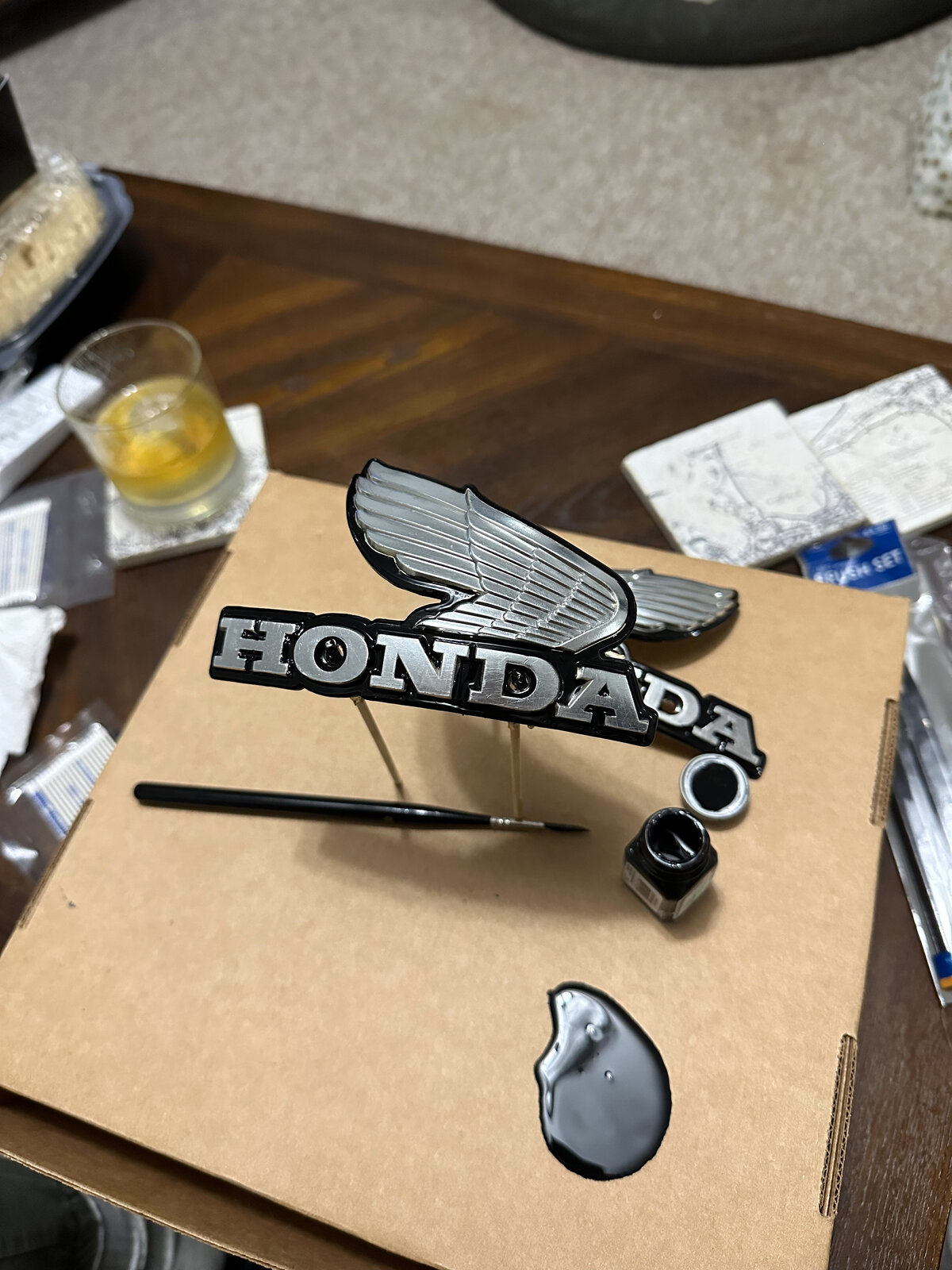

Hand paint/mount logos
Had a mechanic check my work for sanity/carb sync run fuel lines/set idle

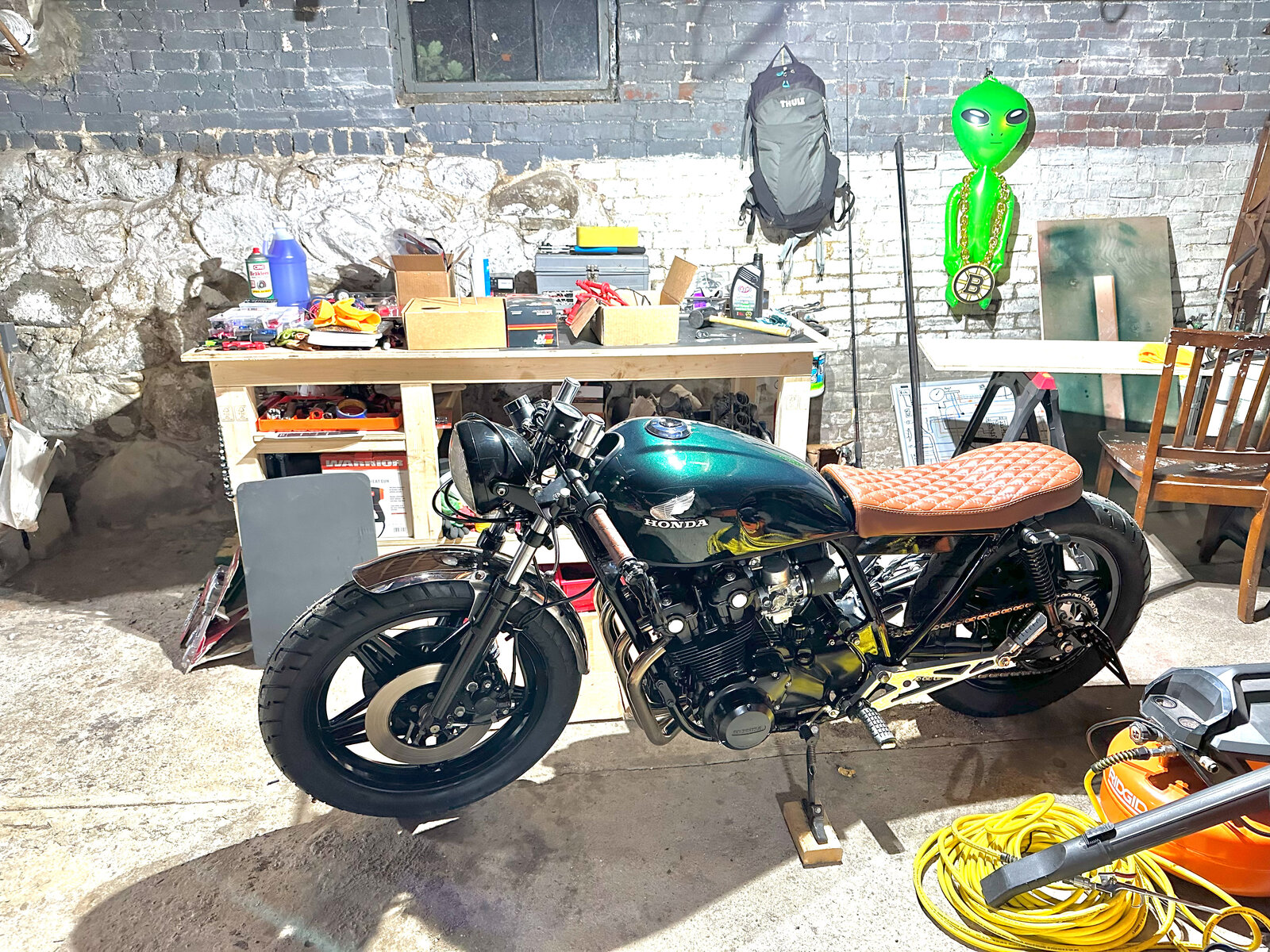

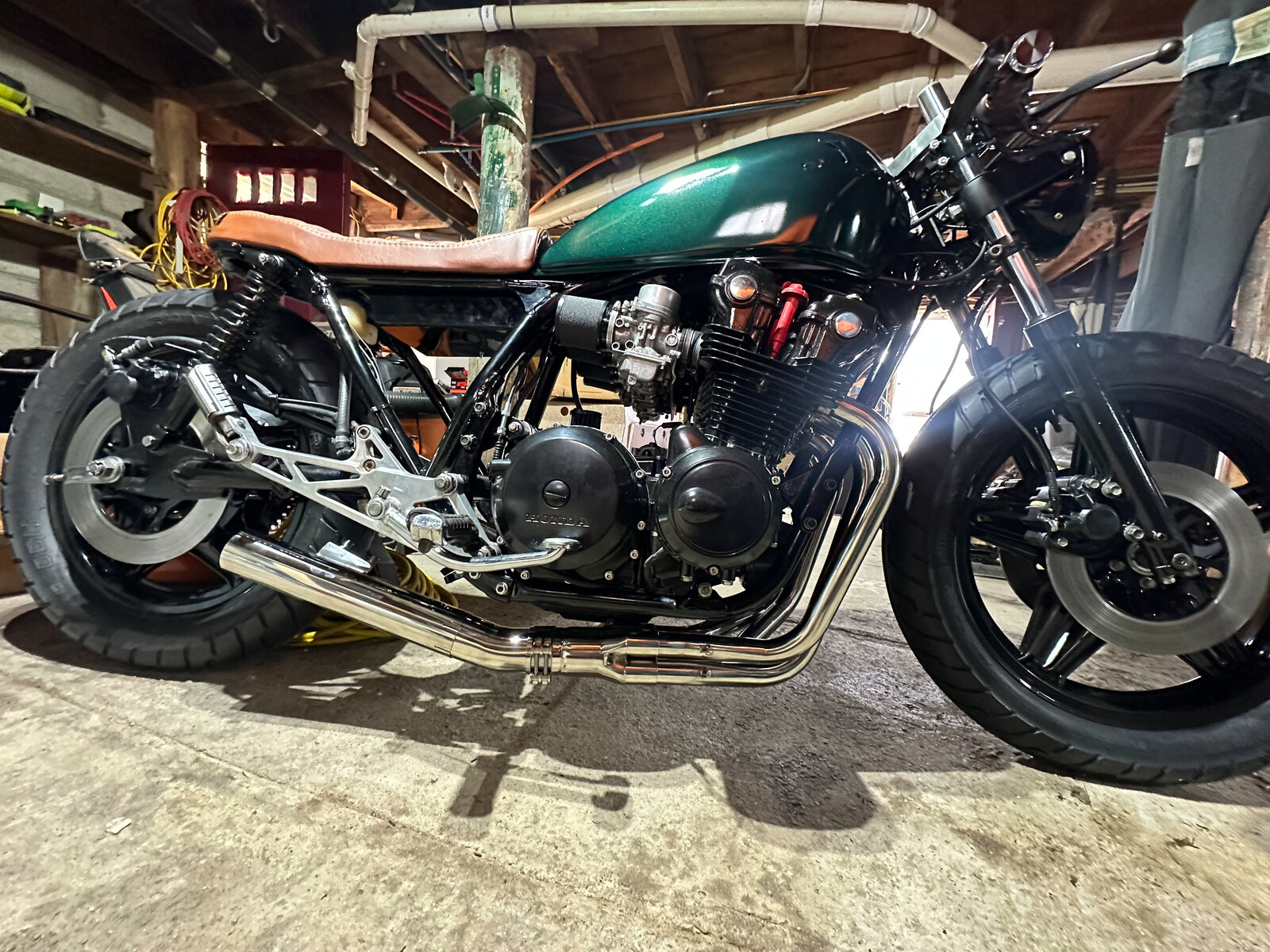

Getting there!


CB750 - Week 16-1.jpg




CB750 - Week 16-4.jpg


CB750 - Week 16-6.jpg


CB750 - Week 16-7.jpg


CB750 - Week 16-8.jpg


CB750 - Week 16-9.jpg

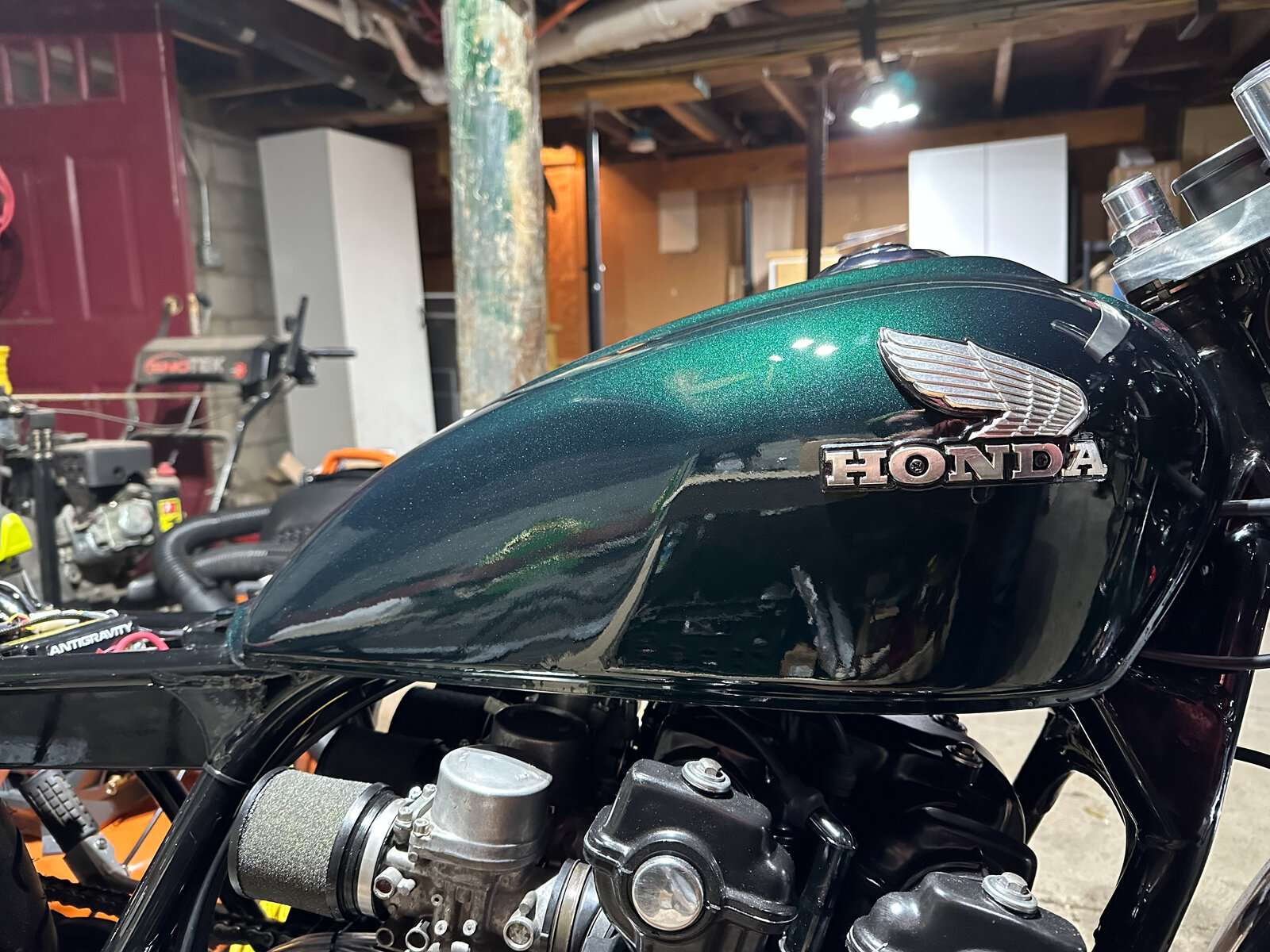

I test mounted the emblems and also plan to use trim liner around the edges to line the tank to "finish it a bit" this is the photo of no trim liner
CB750 - Week 16-10.jpg

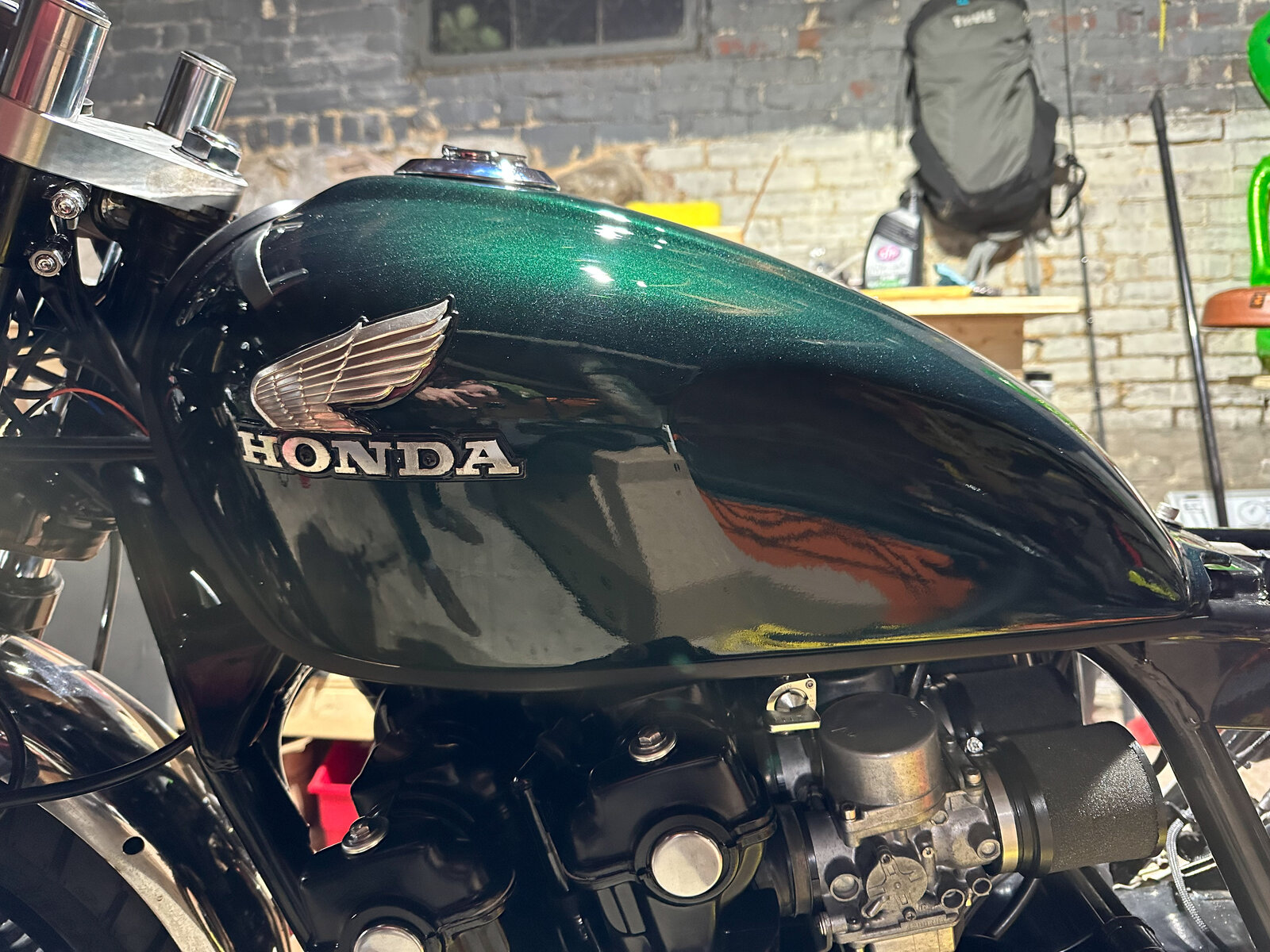

Here is what it looks like with trim liner - let me know what you think!
CB750 - Week 16-11.jpg


______________________________________

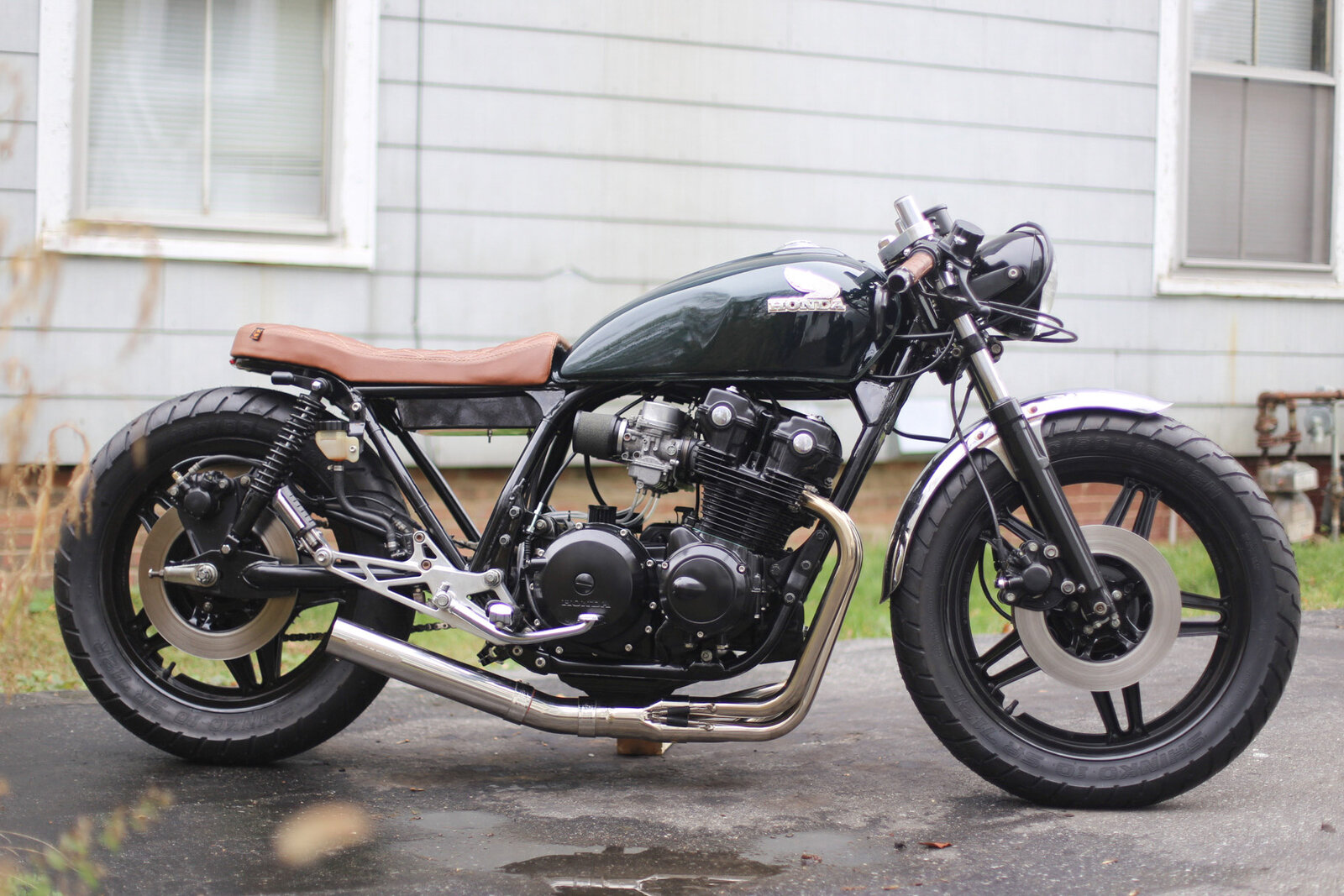

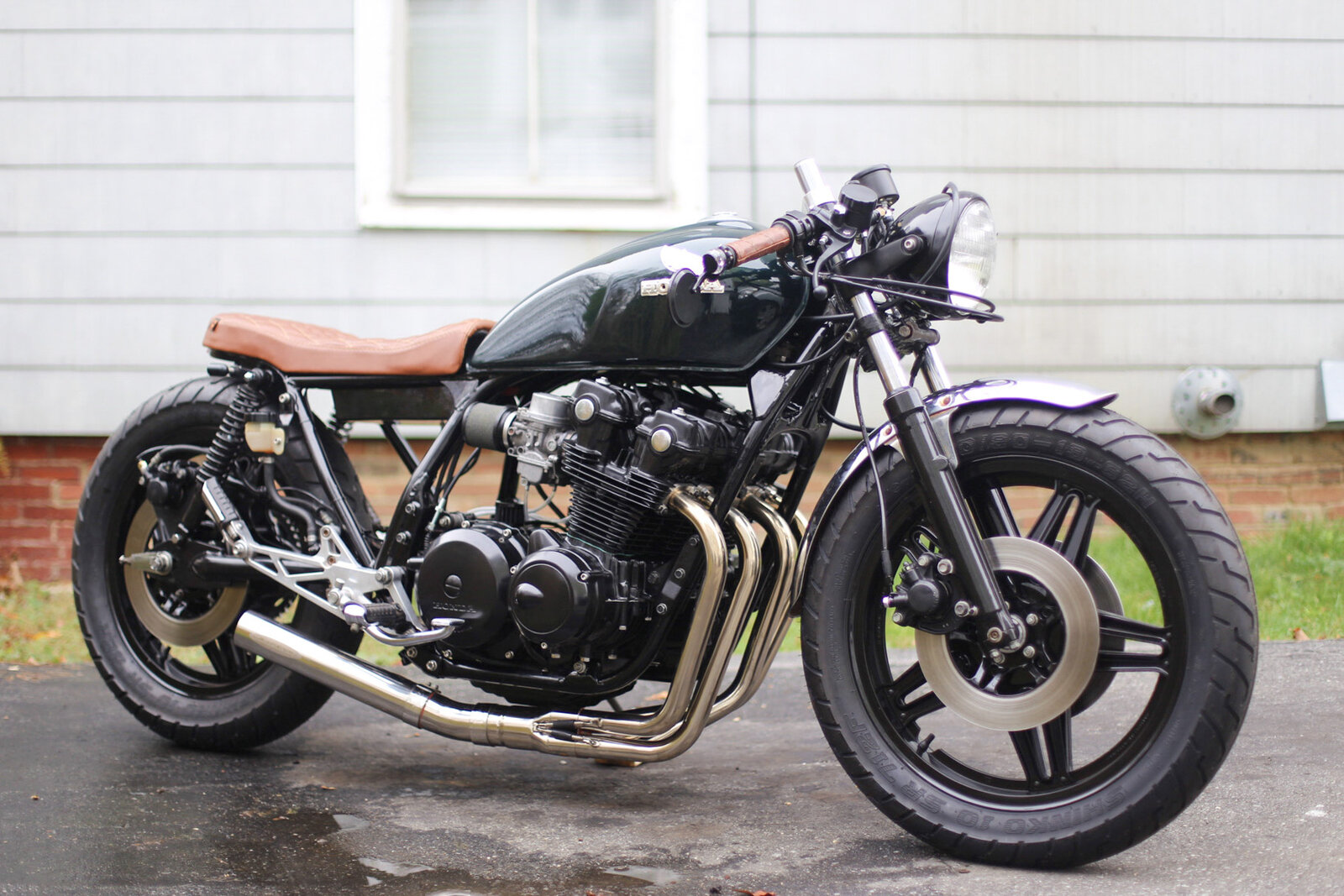

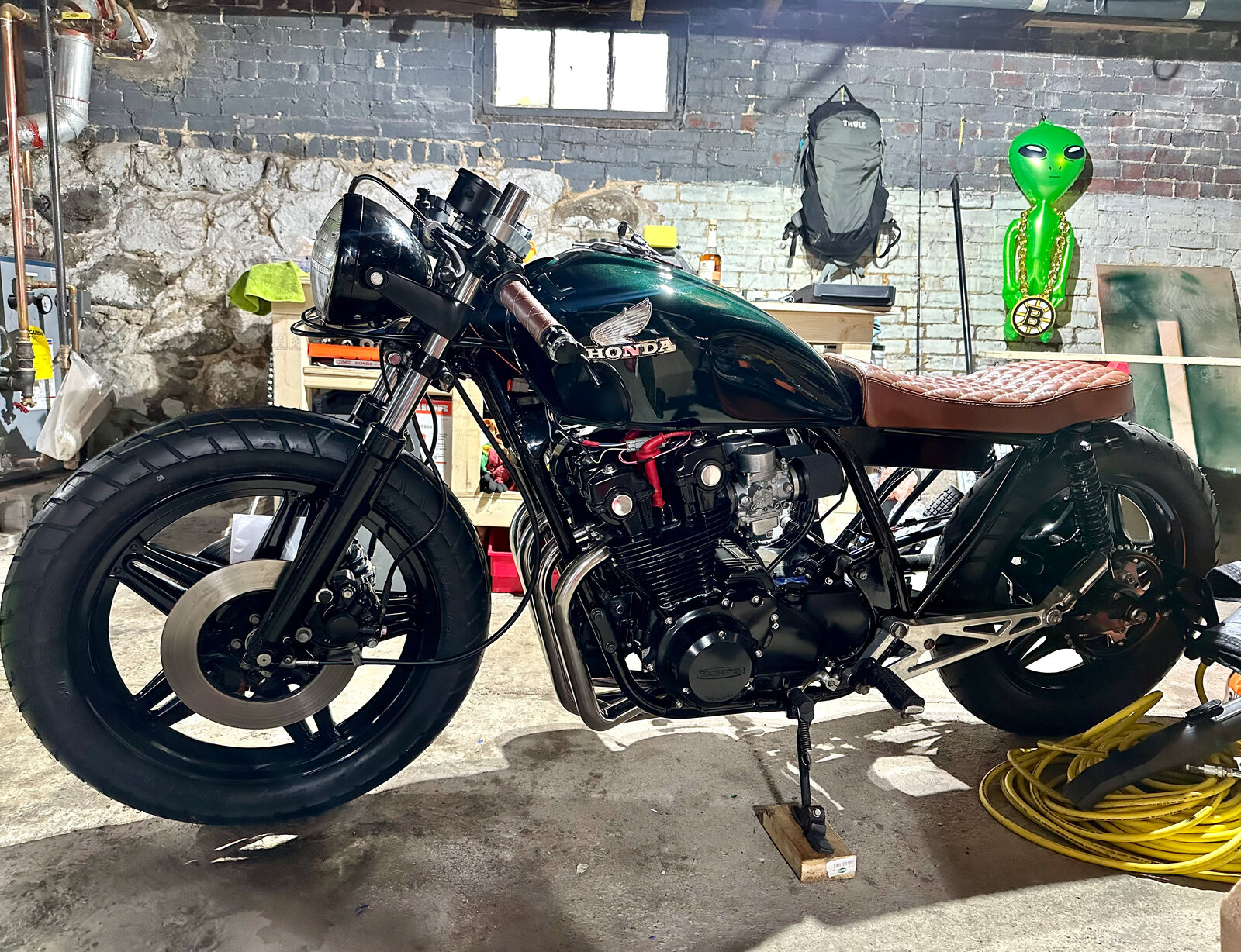

Week 17 6/20 She’s Done!

First start in 18 years went well
Pulls hard, shifts well, brakes hard
Engine break in needed
Before and after shot
More pics to come!

Love seeing how far the shop has come and my first completed build inside.
CB750 - Week 17-3.jpg


CB750 - Week 17-1.jpg


CB750 - Week 17-2.jpg

There are a lot of very nice details on this build but I don't get the lack of suspension travel. I guess it's ok if you just want to look at it.

chesterburnet said:
There are a lot of very nice details on this build but I don't get the lack of suspension travel. I guess it's ok if you just want to look at it.
Click to expand...
I did favor the "low" look, i think some adjustments will be made as I ride it more but its surprisingly smooth so far after putting the first 100 miles on it.

nice but agree the back hoop looks like it will smack the tire on a bigger bump. other than that the colour and other details are really nice.

Not to dog pile but that shock to tail interference actually could be dangerous. Easy to check - remove one shock and then compress the other to see how much travel you have. Other than that I like the work you've done. Nice color on the tank.

Maritime said:
nice but agree the back hoop looks like it will smack the tire on a bigger bump. other than that the colour and other details are really nice.
Click to expand...
thank you! yeah i definitely think the rear is too low and may strike the frame. I measured the stock suspension which was probably sagging and not taking all things into consideration. New suspension has been installed since these photos that brings it up about 2 inches maybe a bit more.

doc_rot said:
Not to dog pile but that shock to tail interference actually could be dangerous. Easy to check - remove one shock and then compress the other to see how much travel you have. Other than that I like the work you've done. Nice color on the tank.
Click to expand...
Yeah for sure, I measured the old suspension and dont think it gave me a good read. New suspension has been installed that is a bit taller (about 2 inches)
