1981 GS750E (GSX750E) Dented Cafe Racer ( Currently doing GSX-R USD conversion)

[LKS]

Hi everyone! I've been working on a bike for a while and decided I'd start a thread to get feedback and to get help when I get stuck.

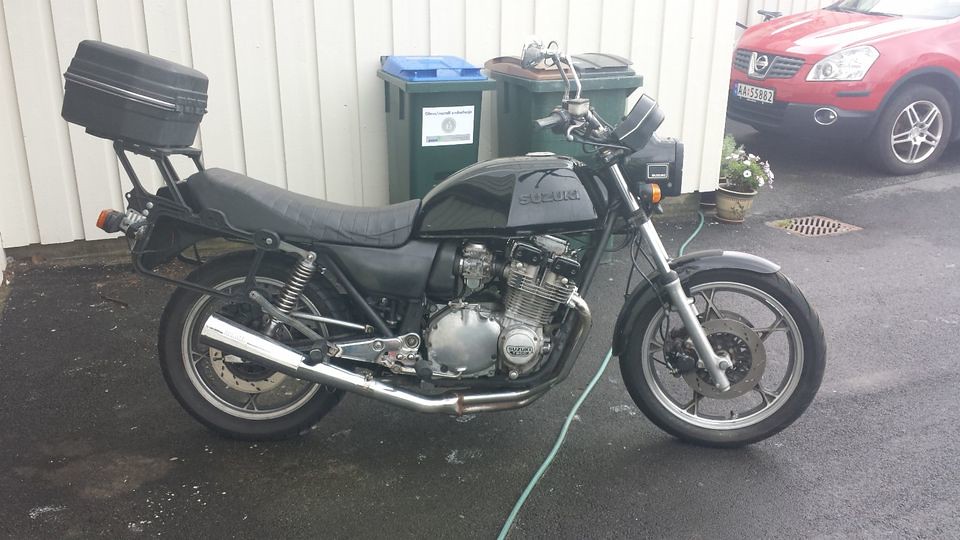

Here's a picture of the bike when I bought it. The engine ran OK, but the bike was misssing som parts like som bolts, and one of the engine mounts. I descided to take it apart and make sure everything was in order.

gsx by Lars Krogh-Stea, on Flickr

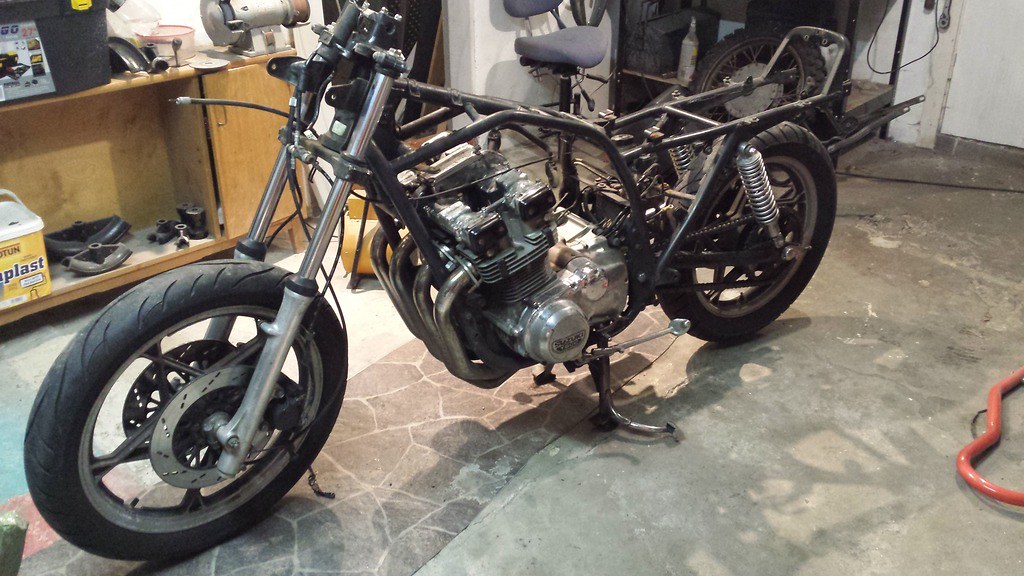

All the small parts removed:

20151203_212014_zpsze8gyesy by Lars Krogh-Stea, on Flickr

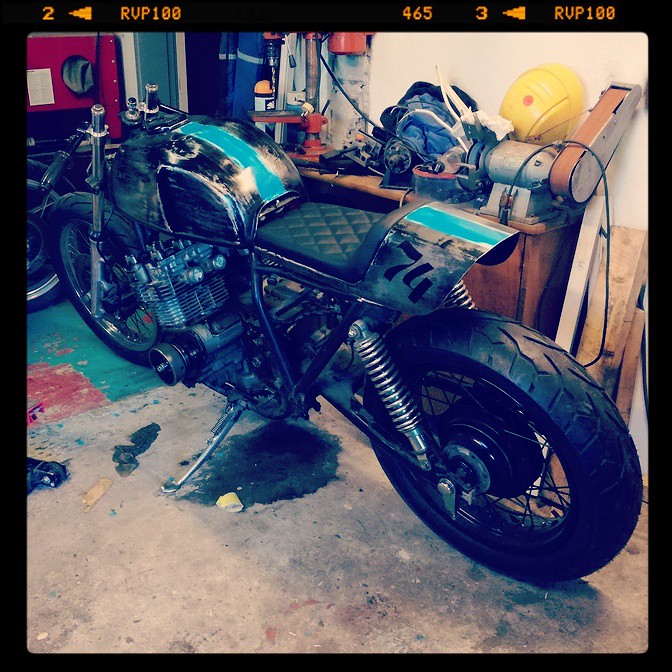

This is how the bike looks now:

IMG_20170708_231958_149 by Lars Krogh-Stea, on Flickr

I'll explain some of the work and choices I've made in the following posts



[LKS]

I have no previous experience with metalwork, so behind every part is a lot of Googling and hours of Youtubewatching.

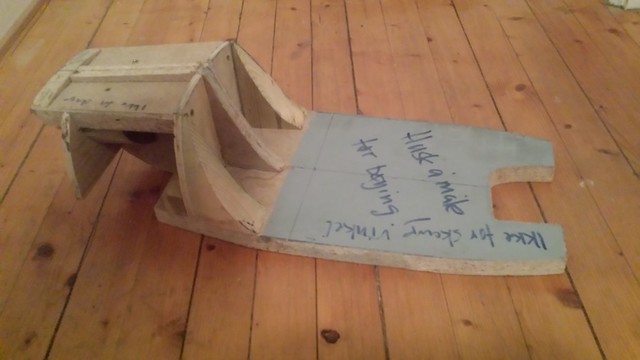

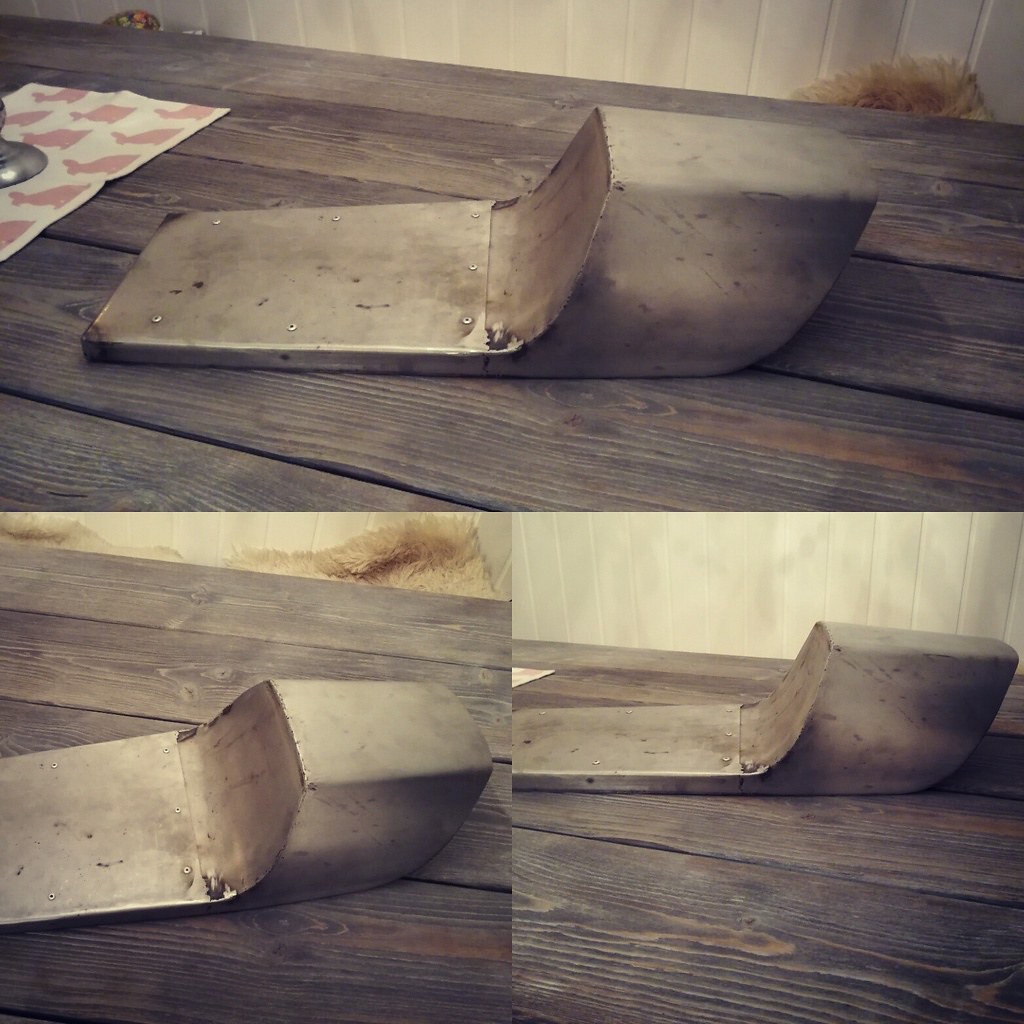

In the next picture I've made some kind of buck to bend the rear seat around:
20160529_194812_zpsc9rkobar by Lars Krogh-Stea, on Flickr

Here I've been trying some TIG welding. extremely easy to burn a hole in the thin plates:

IMG_20170408_221434_282_zpsxqqxjpj2 by Lars Krogh-Stea, on Flickr

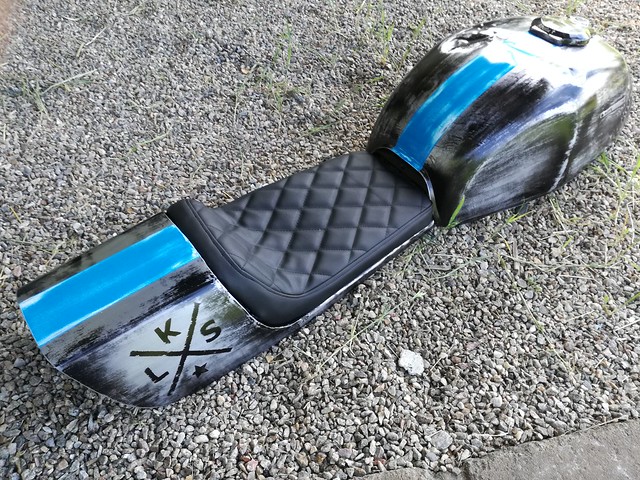

Here the seat and tank is painted, rat-style. The tank is a cheap, dented one from a Honda CX500. I also found a how to make a seat on Youtube, so I borrowed my wifes sewing machine and followed it as close as possible:

IMG_20170630_144244 by Lars Krogh-Stea, on Flickr



[LKS]

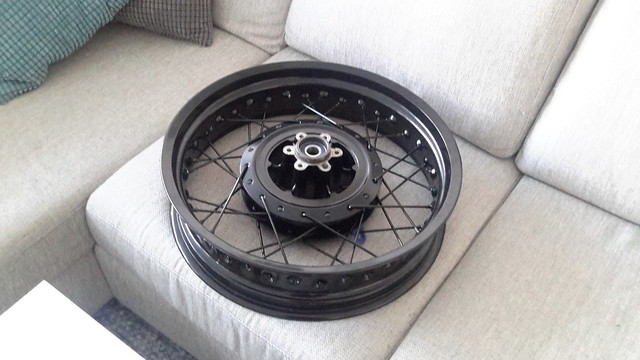

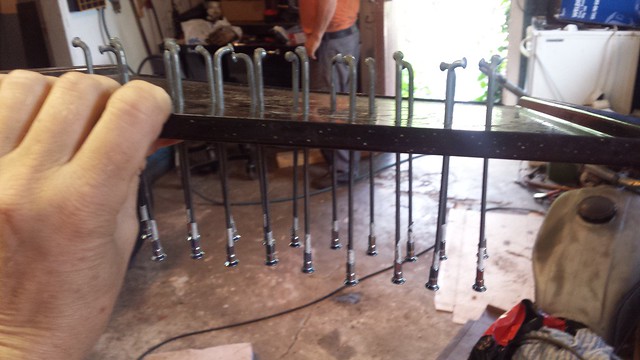

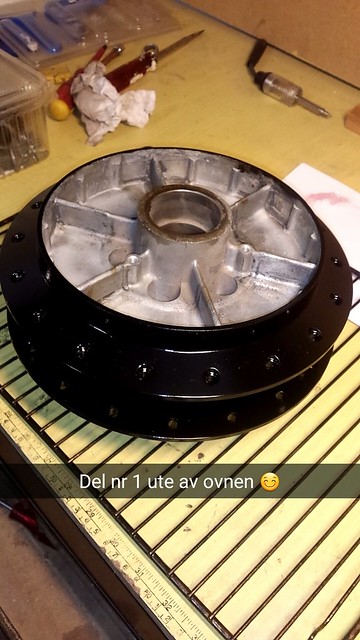

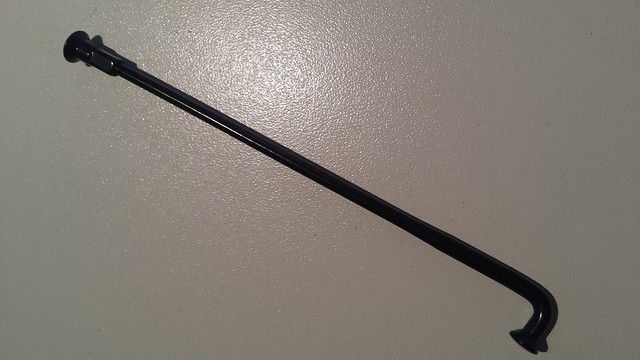

Wanted wider rear wheels and also wanted to get rid of the cast wheels. So I got hold of a 1977-9 gs750 hub. This hub is for both disc brakes and spokes. Ordered a 4.25x18 aluminum rim for it and powdercoated spokes and hub. The rim was powdercoated by the supplier.

20160707_133821_zpsx0ns4jgx by Lars Krogh-Stea, on Flickr

Snapchat-3550012378084688016_zpshtswbcoz by Lars Krogh-Stea, on Flickr

20160707_212122_zpsp8rix6ty by Lars Krogh-Stea, on Flickr

20170112_101044_zps2gerfrjv by Lars Krogh-Stea, on Flickr

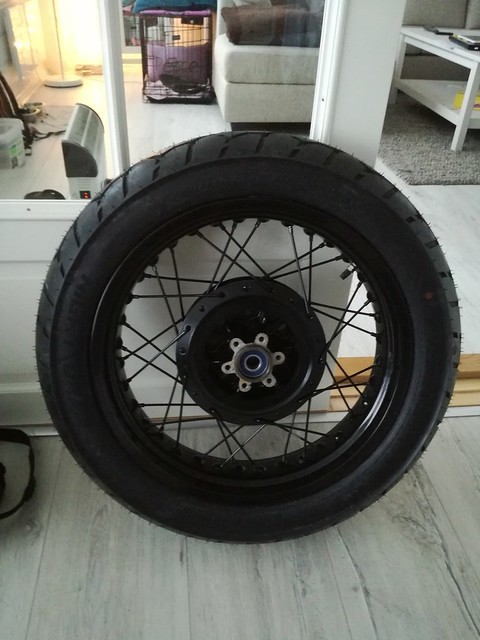

Fitted it with Pirelli Night Demon 150/70-18:

IMG_20170208_083312_zpsnwkvjqnk by Lars Krogh-Stea, on Flickr



[LKS]

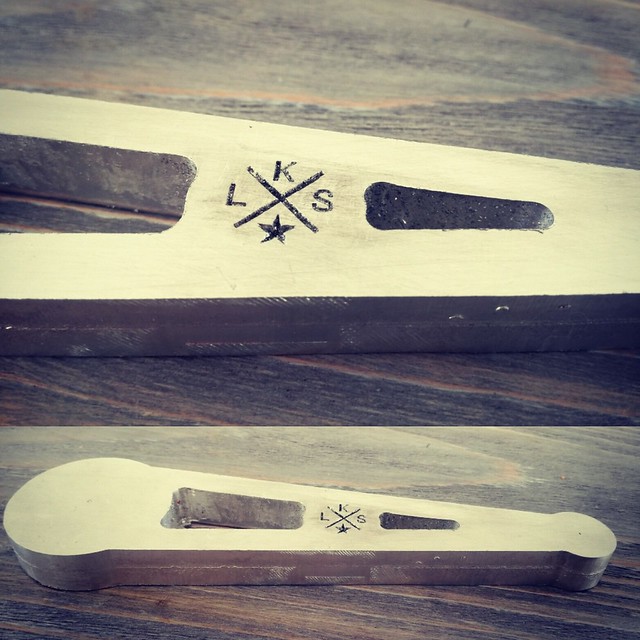

I have a friend with a cnc-router, so I decided to make my own rear sets. Excited to see how that goes:

IMG_20170402_181501_502_zpsbsmnmawy by Lars Krogh-Stea, on Flickr



[The Limey]

Intriguing. I'm in.



[canyoncarver]

Cool!



[spotty]

nice, i had the 1100 version a long time ago, it got a 70 endurance racer fairing and a genuine CB1100R kevlar seat, hideously uncomfortable but looked great and went like stink (topped 250kmh out on the highway)

i was amused to see the pic with "small parts removed" with the headlight taken off, not what i'd ever have described as a small part.....

keep up the good work



[Hurco550]

I like it! Nice work so far

Sent from my SM-G920V using Tapatalk



[Jimbonaut]

Wait, what?!? First time making all this stuff and it looks that good? Kudos my man, looking great! (And I hear you on the Youtube thing - I'd be sunk without it!)



[hooligan998]

In. Inspiring work.



[CarbsAndCylinders]

Looks great!



[LKS]

Thanks for all the friendly replies! I will keep you updated



[LKS]

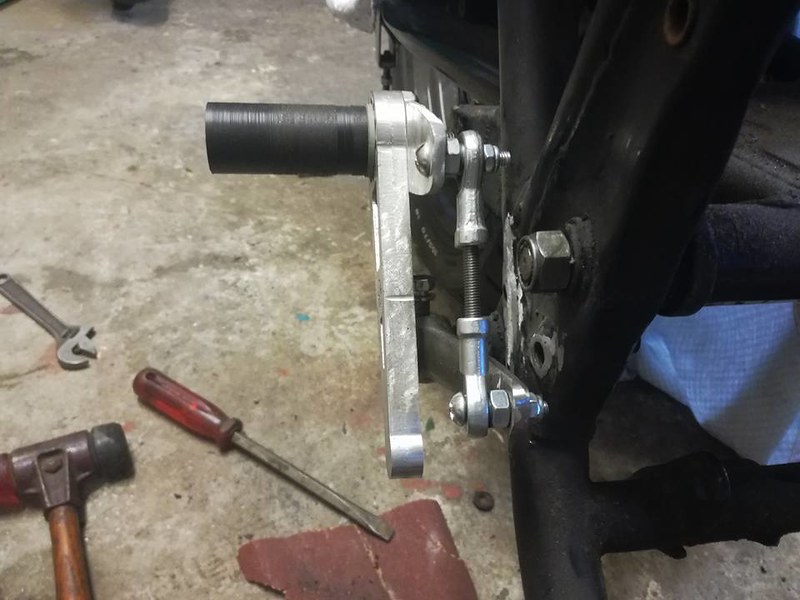

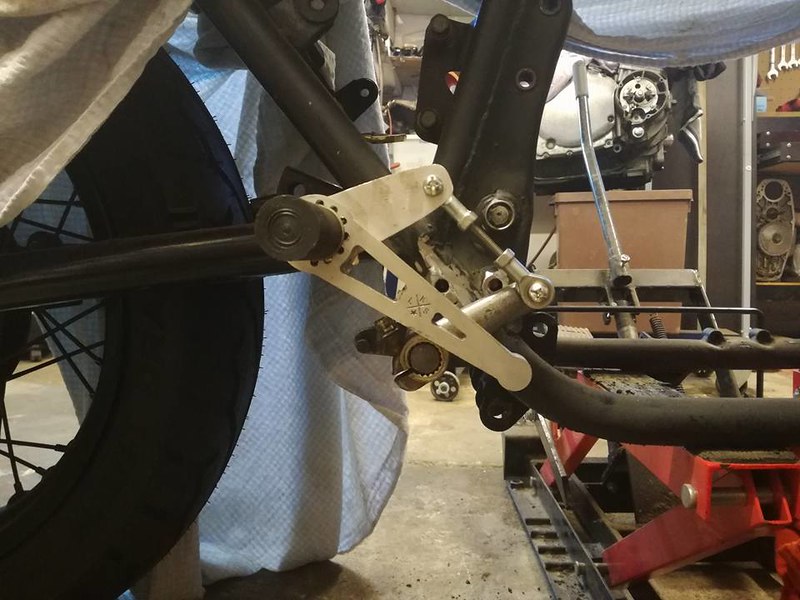

Got som time with the bike today. Did a test of the rearsets on the brake side. When i have the final measurements for both sides I will make some more parts on my friends cnc-router.
The arms that hold the linkage will be about an inch shorter and much slimmer in the final version.

Pictures:
27971797_10155989847505915_6775108173156400425_n by Lars Krogh-Stea, on Flickr

28055771_10155989847360915_8431573641075982601_n by Lars Krogh-Stea, on Flickr




Video:
https://youtu.be/fD0chl269_w



[LKS]

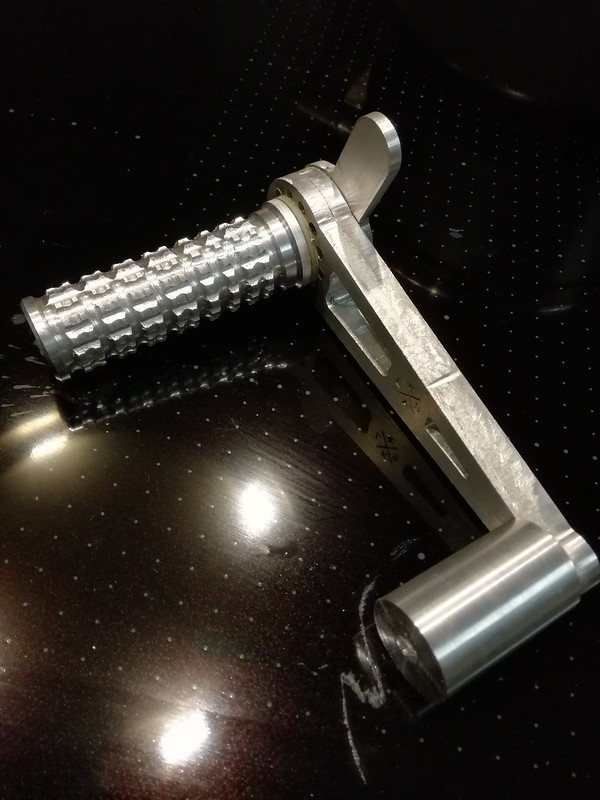

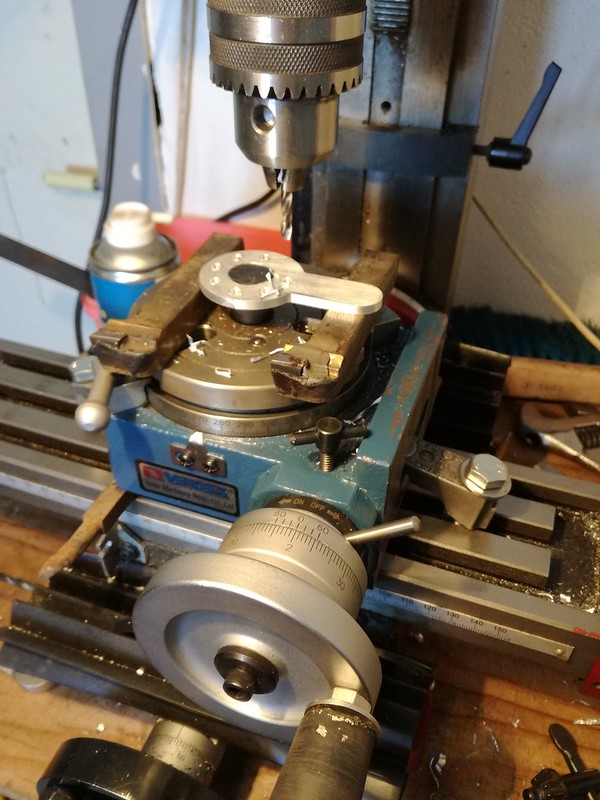

Had a full days work on the bike today Tedious work, and I'll need another full day to finish these. Hope I'll get the time to take another full day off soon.

IMG_20180328_203355 by Lars Krogh-Stea, on Flickr

IMG_20180328_123910 by Lars Krogh-Stea, on Flickr



[JustinLonghorn]

keep it up, man. Nice work so far.



[LKS]

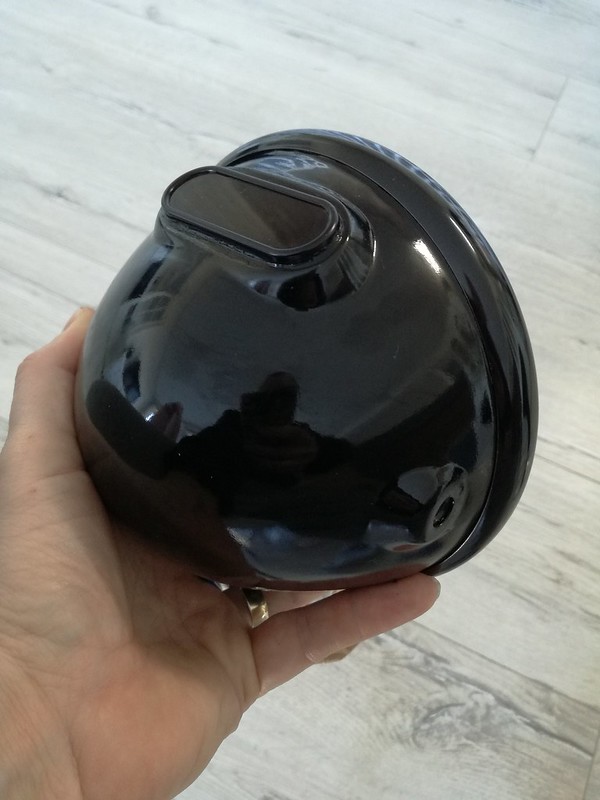

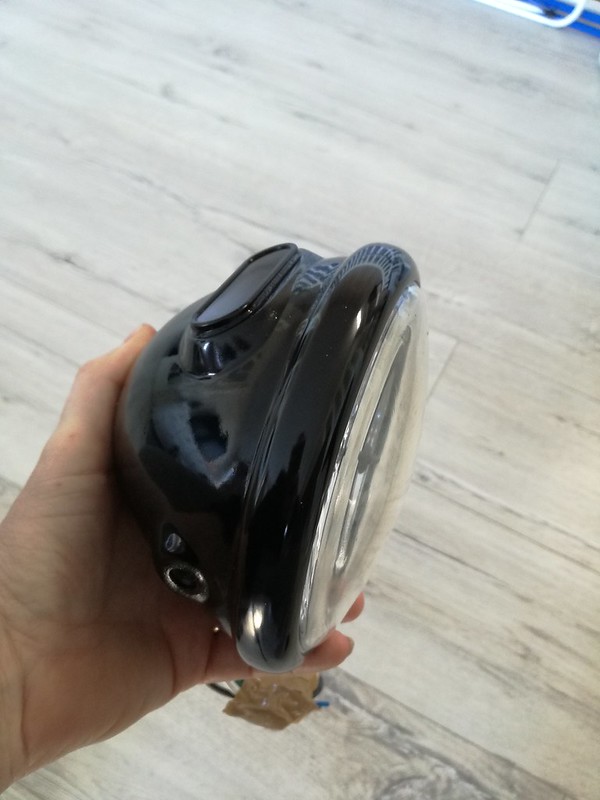

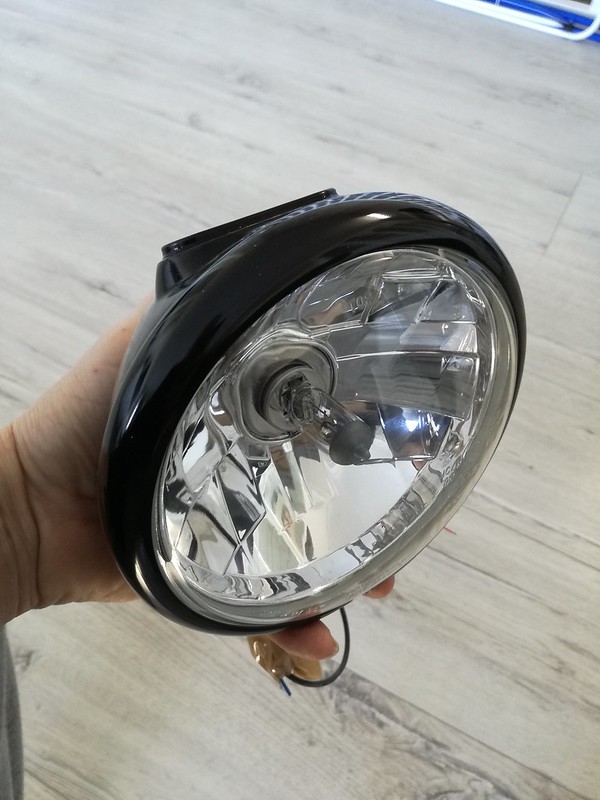

Today I got to finish one of the parts that I've really been looking forward to see finished. The Motogadget MIni embedded in the headlight. The result is not perfectly symmetrical, but close enaugh

Motogadget embedded in headlight by Lars Krogh-Stea, on Flickr

Motogadget embedded in headlight by Lars Krogh-Stea, on Flickr

Motogadget embedded in headlight by Lars Krogh-Stea, on Flickr



[canyoncarver]

Very cool. Nice work.



[LKS]

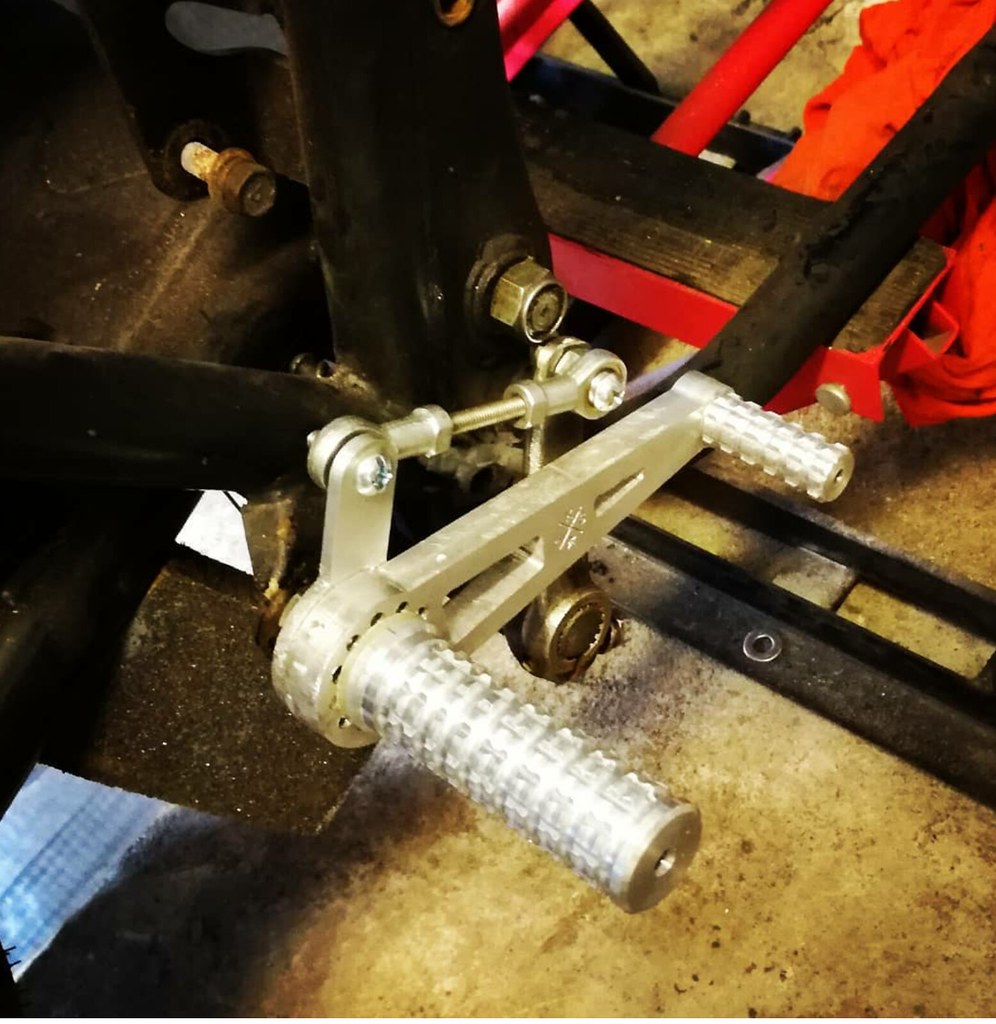

Rearsets testing. Needs better finish and some adjustments

2018-05-22 23.09.51 by Lars Krogh-Stea, on Flickr



[LKS]

Should I powdercoat the rearsets black or leave them as they are?



[cb250nproject]

Let them stand out, there is artistry in them
