1990 Suzuki DR350 Medusa Transducer Hellride

irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

They really do look similar, don't they?


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
1990 Suzuki DR350 Moonbat Hellride

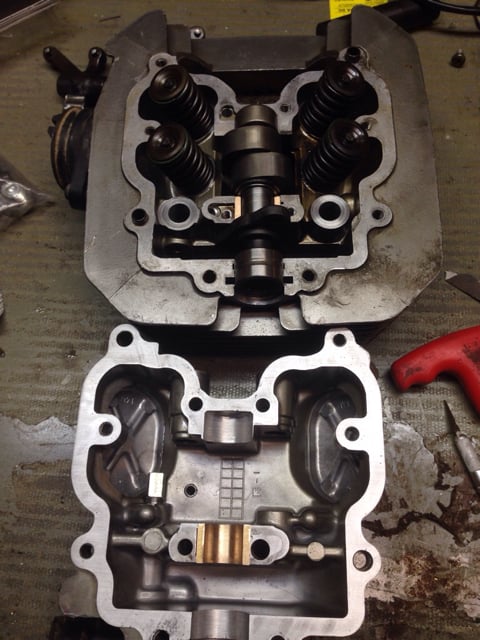

The center bronze bearing has to be split, so I machined two, marked them with an Exacto, then cut them 1 mm above the line and filed them down. The plan is to pin the bottom half.










Sent from my iPhone using DO THE TON


cxman

Active Member
Re: 1990 Suzuki DR350 Moonbat Hellride

awesome bit of work

now i have a xl 350 head that needs this done so how much????


Tune-A-Fish

BOTM LOSER Proudly Deplorable
Re: 1990 Suzuki DR350 Moonbat Hellride

X2 my XL350 is in good shape but I'm thinking this will bullet proof the top end... nice work mang!


Sent from my iPhone using DO THE TON


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

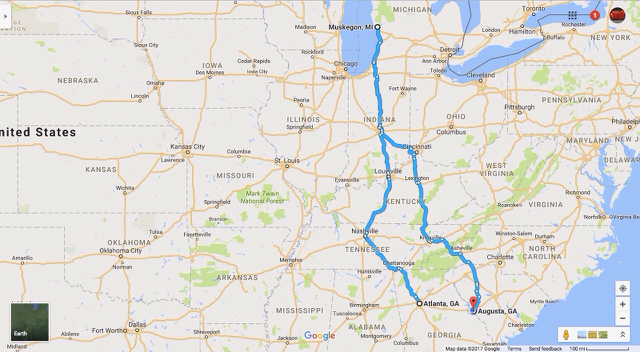

I do the bearing mod with the expectation that rockers will come in to follow up. I contacted Babbitt's last week to order the rockers. They tell there's a set in the Atlanta warehouse. I'm like, "Hell yeah, I'm just two hours down I-20 in Augusta." Wednesday rolls around and nothing. An email arrives in my inbox with tracking. Here is the route my rockers have taken:



They go from warehouse to store. Then packaged in store for shipment to me. Oh, the efficiency of modern technology! I'm really glad I'm not building a race bike or something I need a quick turn-around.


Sent from my iPhone using DO THE TON


Tune-A-Fish

BOTM LOSER Proudly Deplorable
Re: 1990 Suzuki DR350 Moonbat Hellride

irk miller said:
I do the bearing mod with the expectation that rockers will come in to follow up. I contacted Babbitt's last week to order the rockers. They tell there's a set in the Atlanta warehouse. I'm like, "Hell yeah, I'm just two hours down I-20 in Augusta." Wednesday rolls around and nothing. An email arrives in my inbox with tracking. Here is the route my rockers have taken:



They go from warehouse to store. Then packaged in store for shipment to me. Oh, the efficiency of modern technology! I'm really glad I'm not building a race bike or something I need a quick turn-around.


Sent from my iPhone using DO THE TON
Why is this not surprising to me lol


Sent from my iPhone using DO THE TON


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

irk miller said:
I'm really glad I'm not building a race bike or something I need a quick turn-around.


Sent from my iPhone using DO THE TON
nah, if you were building something that needed quick turn around, they would have gone to California, 3 of the Hawaiian islands, Alaska and then got lost at your local post office


canyoncarver

'hacking is learning'
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

You guys get an pics of the setup to do these mods? You know, like lathe and mill magic of some kind?


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

canyoncarver said:
You guys get an pics of the setup to do these mods? You know, like lathe and mill magic of some kind?

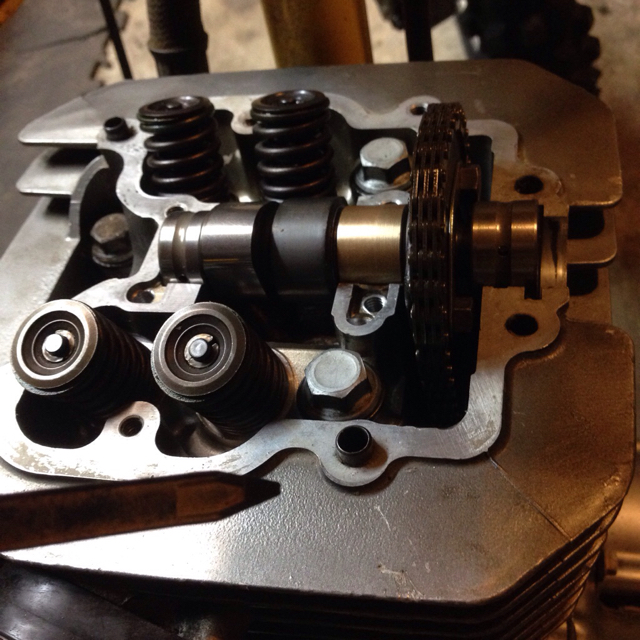

It's up a few posts. We set the head up on a 90° mill jig, then ran a 24mm reamer with no bottom cut, so when it hit max depth it wouldn't cut through the head. You can buy end mills the right length, but they cost big bucks. I didn't want to use tooling that costs more than buying a brand new head. We had to use a corn cob reamer to rough out journal all the way at the back of the cam, since it was originally the smallest dimension on the cam. So, the original plunge "bottomed out" ahead of that final journal. If you start from the outside of the head on the cam, the bearing ODs are 25mm, 24mm, 24mm. I turned the cam down to 18mm, 16mm, 16mm for the ID on the bearings. The bearing bronze was bought in a nominal size with enough meat to turn down to 24mm OD and 16mm ID. They are 14mm wide, which is the dim on the journal so they will keep the cam from floating back and forth in the head.

Not sure if that's what you're looking for. Let me know, and I can mock up some more pics tonight.


canyoncarver

'hacking is learning'
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

.......ah geez, I'm multitasking too much and should have seen that. I see the magic now...


adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

Real nice work man. Looking forward to hearing you light her up


Sent from my iPhone using DO THE TON

Re: 1990 Suzuki DR350 Moonbat Hellride

Nice work on bushing in that cam and machining the journals. I started a project like that 10 years ago on a Honda but never finished it!

Sent from my SM-N910V using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
1990 Suzuki DR350 Moonbat Hellride

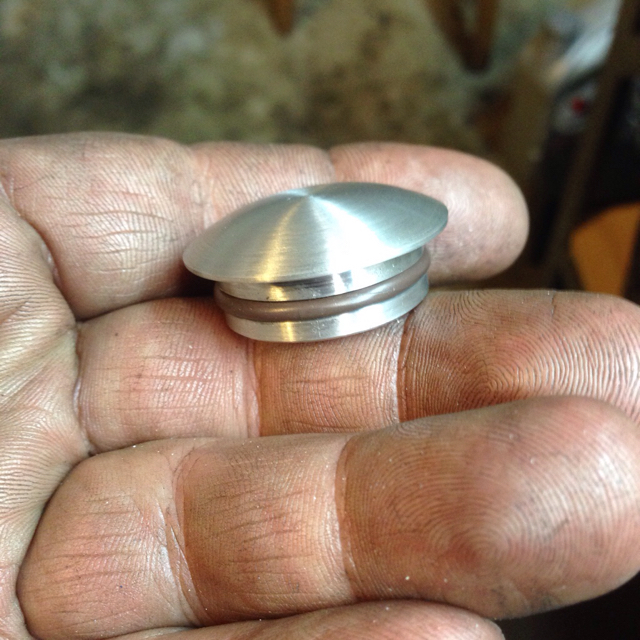

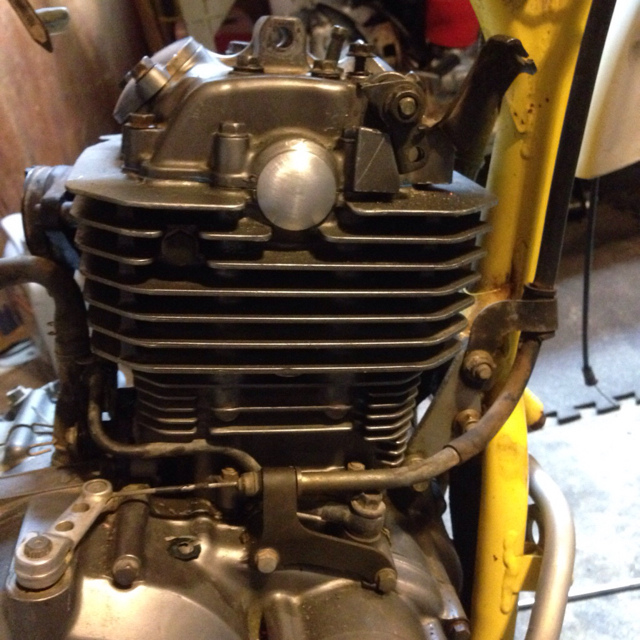

Got the head put together, plus i machined a cap to replace the stock rubber jawn...

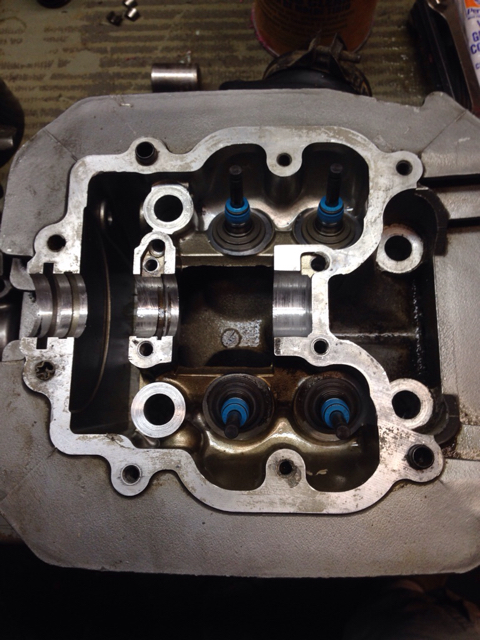

Viton valve seals. Valves are within spec, so a lap and re-install.



New rockers






Sent from my iPhone using DO THE TON


canyoncarver

'hacking is learning'
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

irk miller said:
Got the head put together, plus i machined a cap to replace the stock rubber jawn...





You knocked that shit out of the park quick. Don't stop now!


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: 1990 Suzuki DR350 Moonbat Hellride

Ha. Thanks, Kelly. This is assuming it will actually run.
