BGW Tri-Rod Panty Dropper Hellride

canyoncarver

'hacking is learning'
DTT BOTM WINNER
Yay


Attachments

  • giphy-downsized.gif
    720 KB · Views: 671

irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Hurco550 said:
Those belong in mini bikes and tw200's

Sent from my SM-G920V using Tapatalk

Exactly. And since I now have a GY6, I don't need it.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

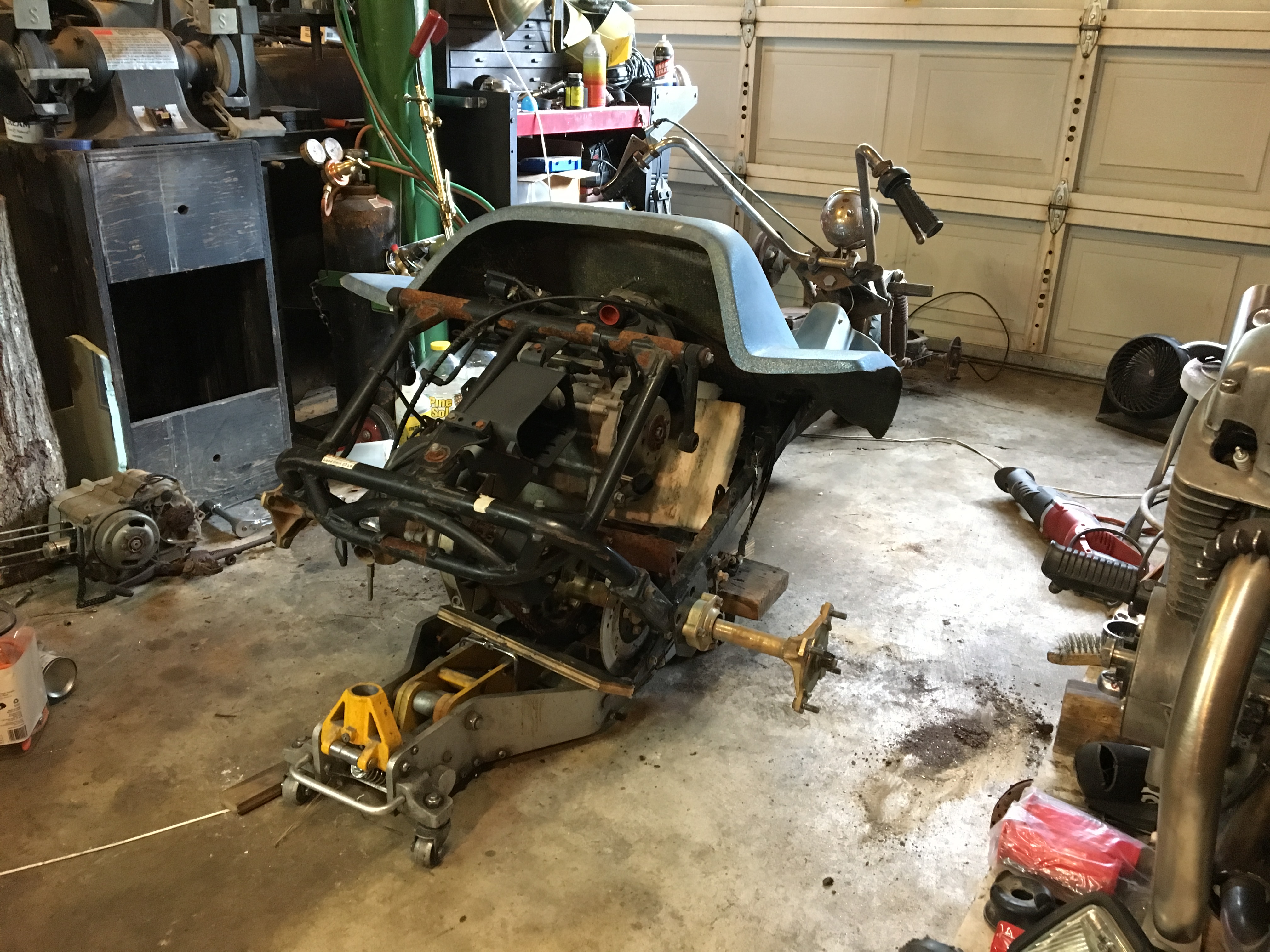

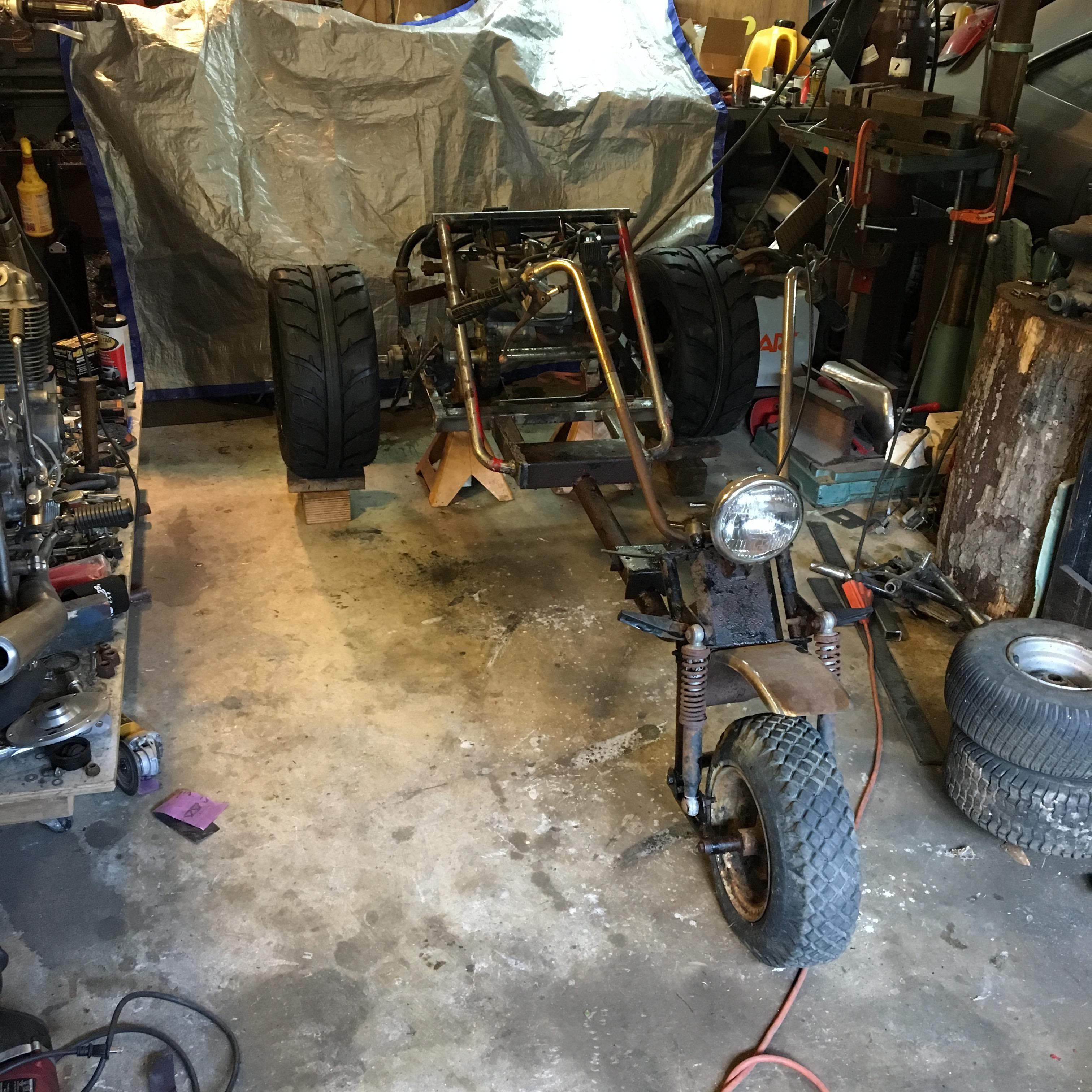

One thing I won't get away with using the GY6 rear end setup is not lengthening the chassis by about 6 inches. I cut the tail piece off to mock up. This is pretty close to how it will fit in there. It reminds me of a dune buggy. The swing arm mount is pretty high, but until I can make some proper chassis points, i don't really have a way to get the motor and swing arm oriented.





irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

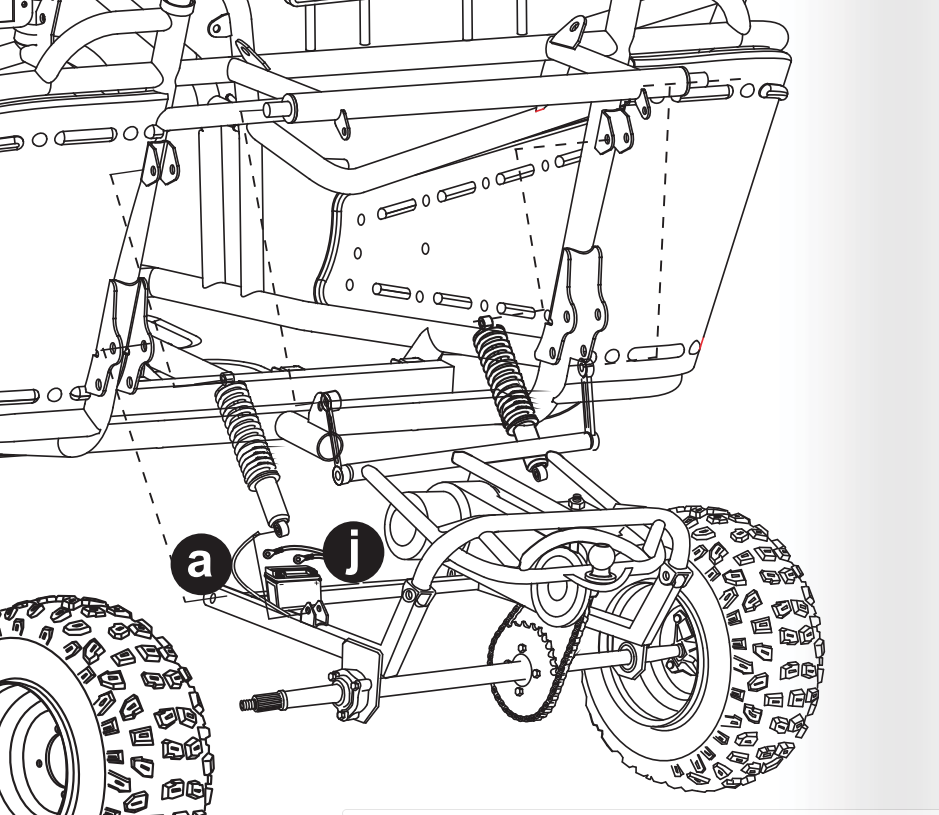

Here is how I need to replicate the chassis to mount this engine carrier setup...



whynot

~~~If it ain't raining, I'm riding~~{iii}?~~prost~
man you move crap around purdy good to create space with all those projects

my garage barely has enough room to walk and i only have 2 projects in there and they are all put together.

But I love watching/reading your work.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

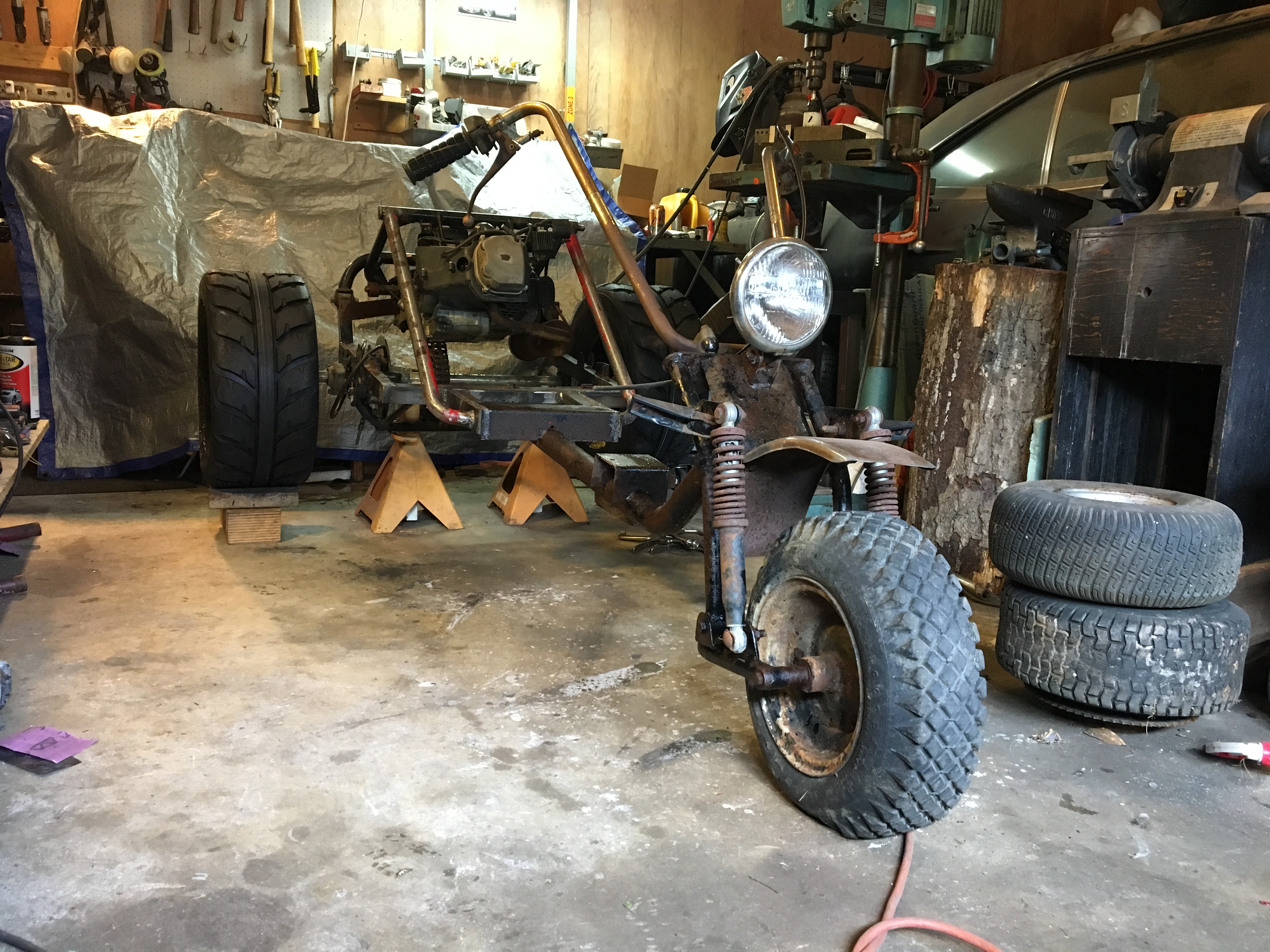

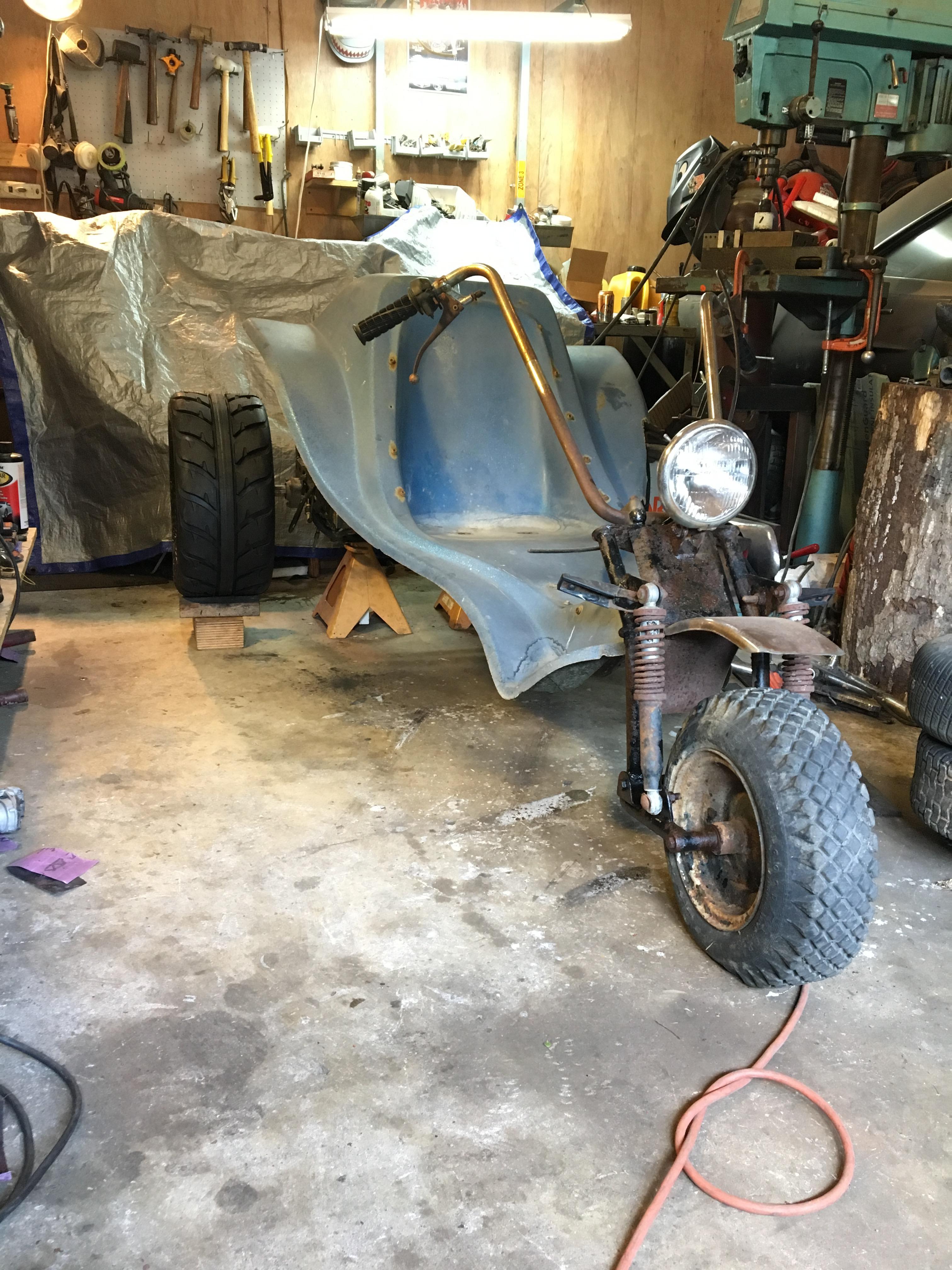

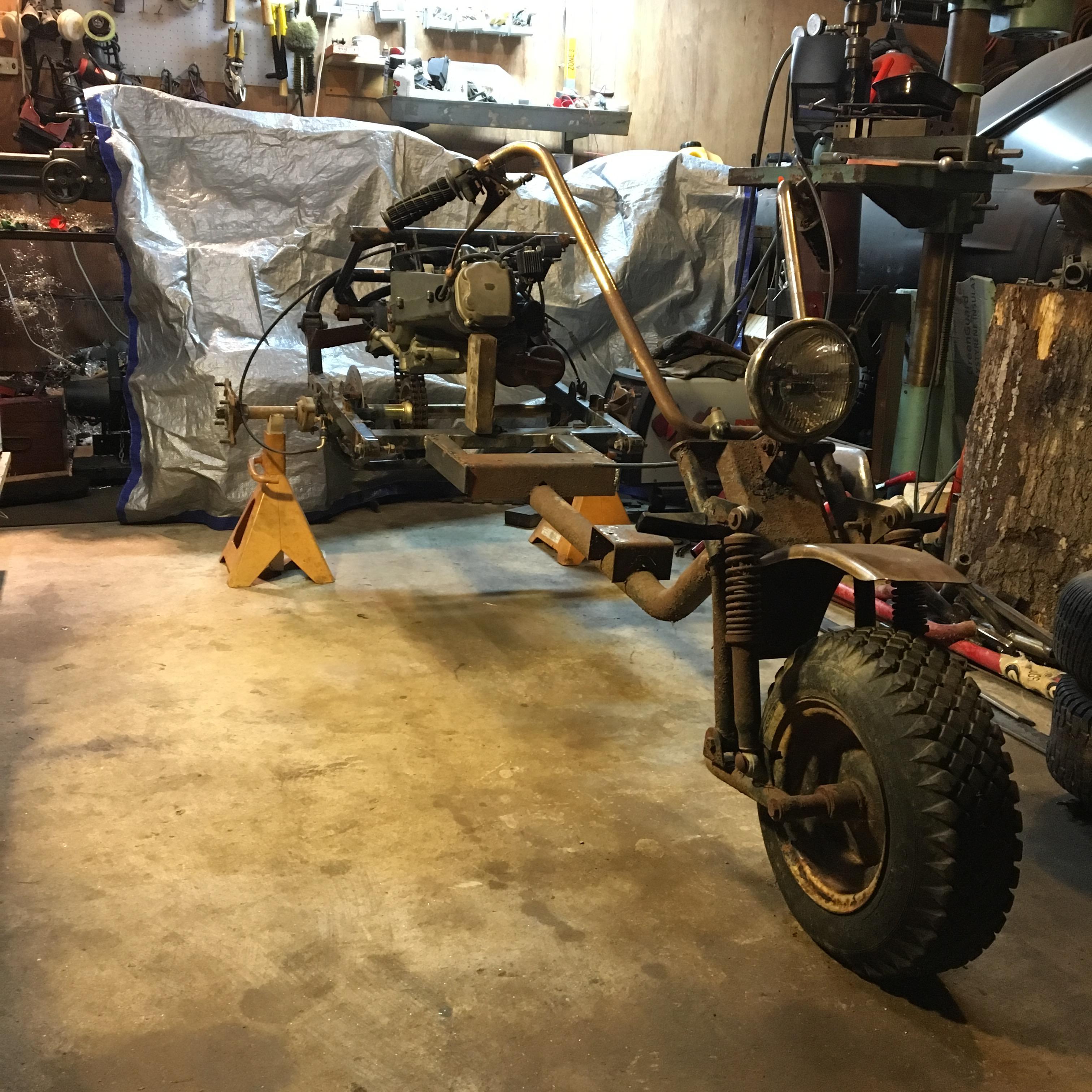

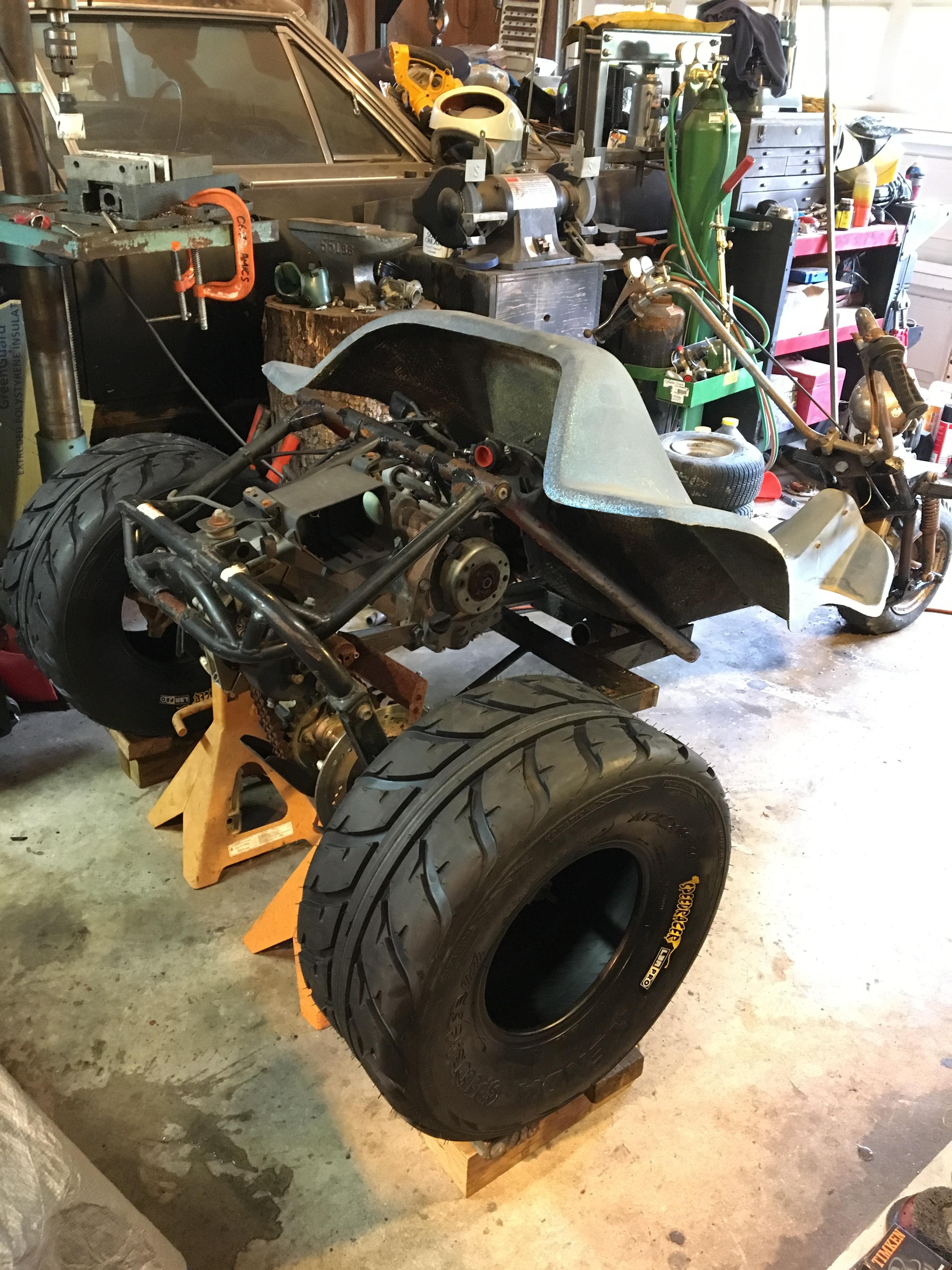

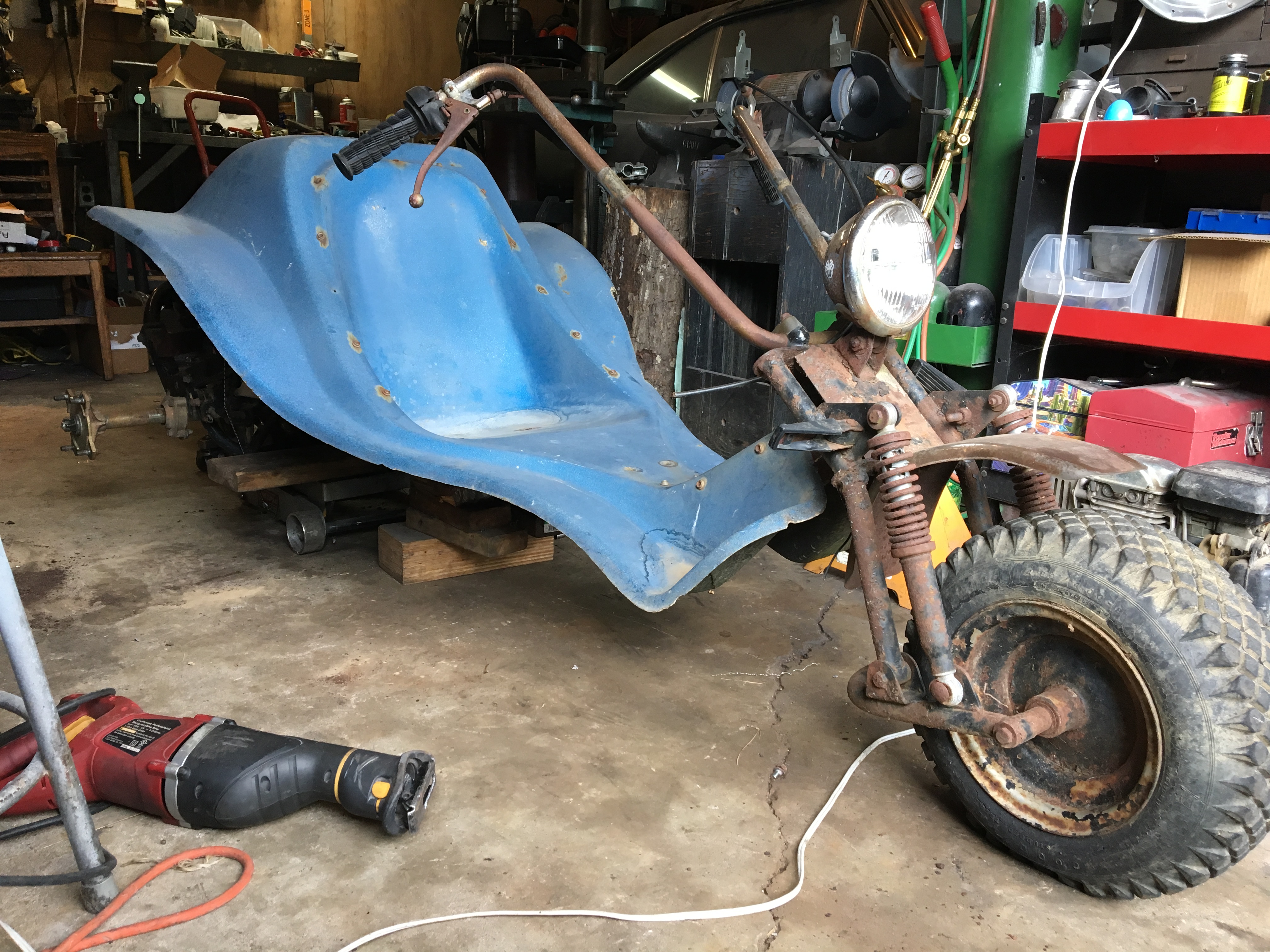

More frame work and the de-rusting begins. Tires came in, but the rims are MIA. A mockup gives an idea how it looks. In a way, I wish I didn't have to stretch the frame. In a way, I'm glad I had to stretch the frame.









Brodie

Gold Coast, Queensland
DTT SUPPORTER
Yep.

Needs a cool rack above the engine for all that swap meet gold you seem to find.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

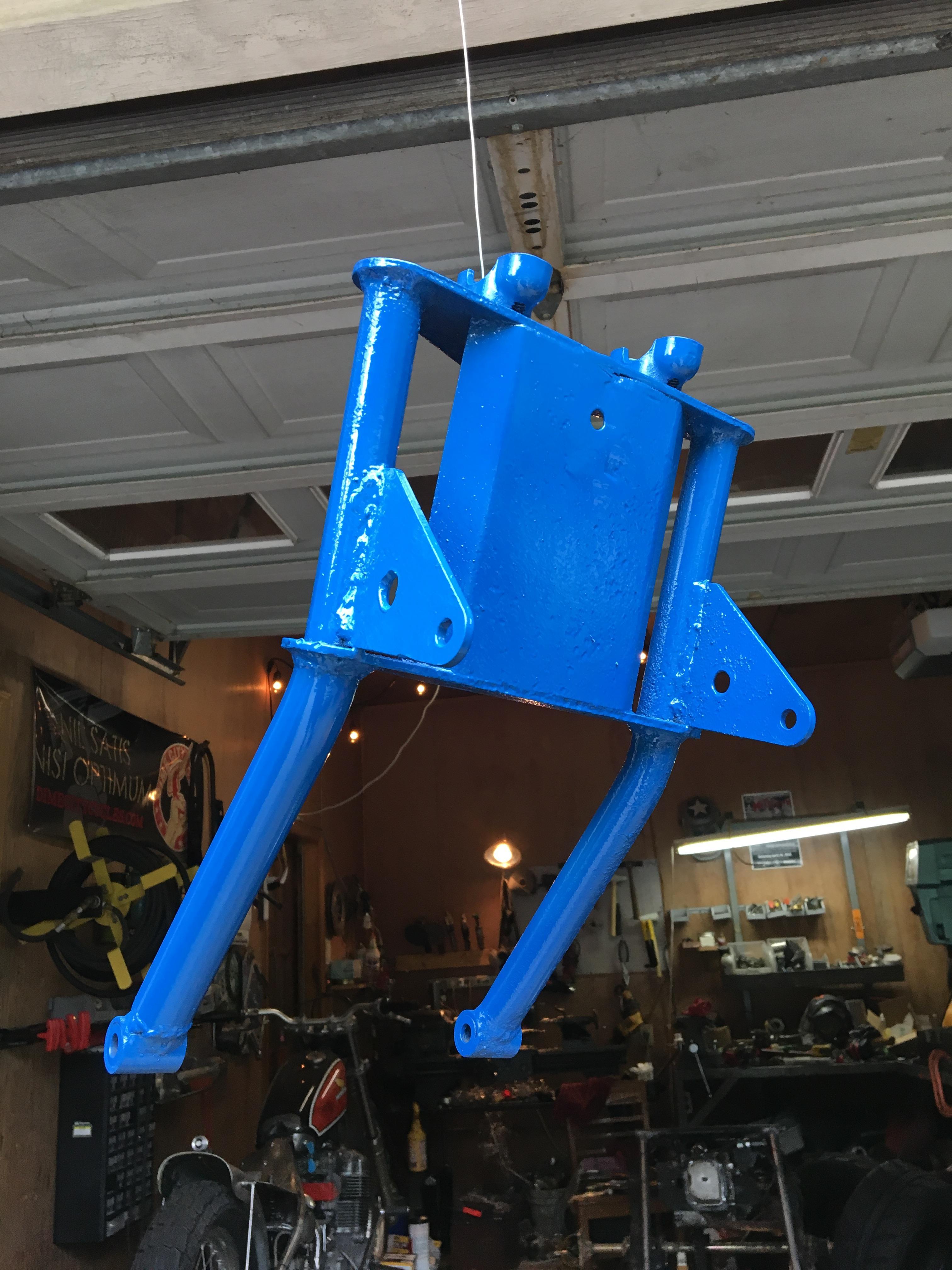

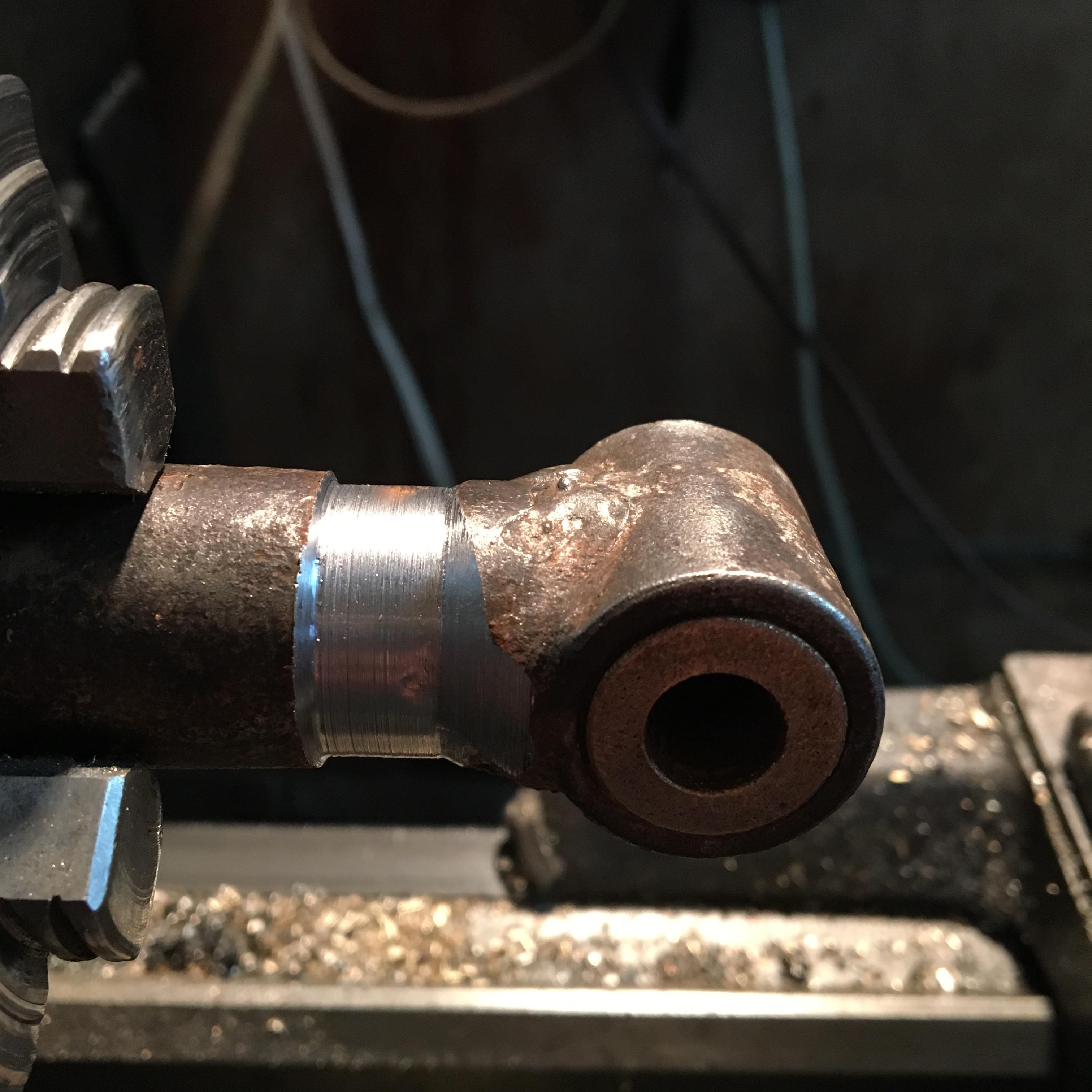

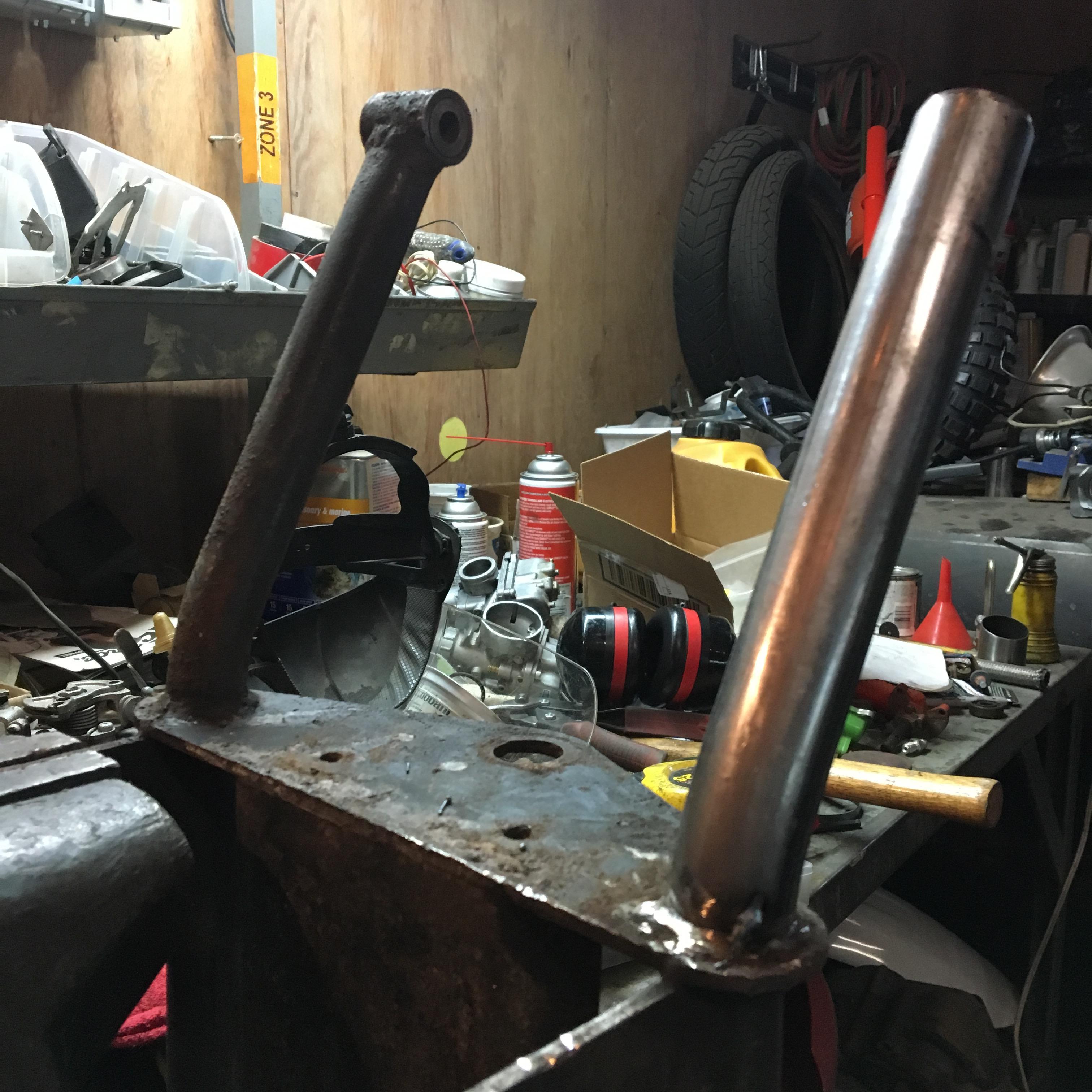

I took the front end apart to rebuild, when I discovered the right fork had been wrecked, broken and booger welded back together. I tossed around the best way to fix it, when I decided to just redo that side.

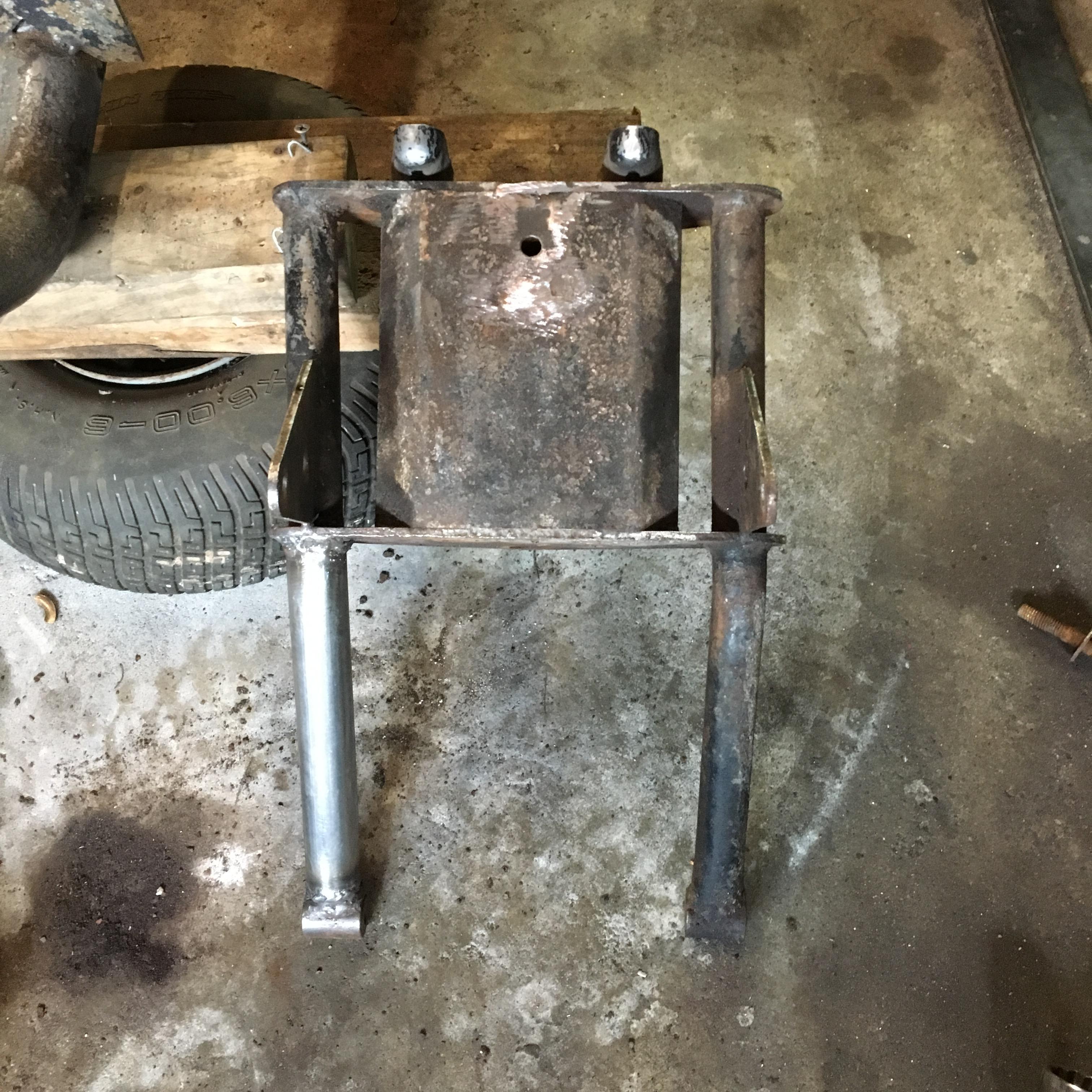

All at once, I cut the tube off and tacked a new piece in place.



note: I should probably care that the right side tube is a few mm OD than the left side. I don't. Once the shocks are mounted it really shouldn't be that noticeable.







Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
irk miller said:
I took the front end apart to rebuild, when I discovered the right fork had been wrecked.

Probably wrecked while swerving to miss the swarm of lot lizards that were inevitably trying to block the driver and steal his 70's funk man-seed.


Sent from my SM-G920V using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Hurco550 said:
Probably wrecked while distracted by all the boobs when the ladies were pulling up their shirts to solicit a ride and steal his 70's funk man-seed.


Sent from my SM-G920V using Tapatalk
