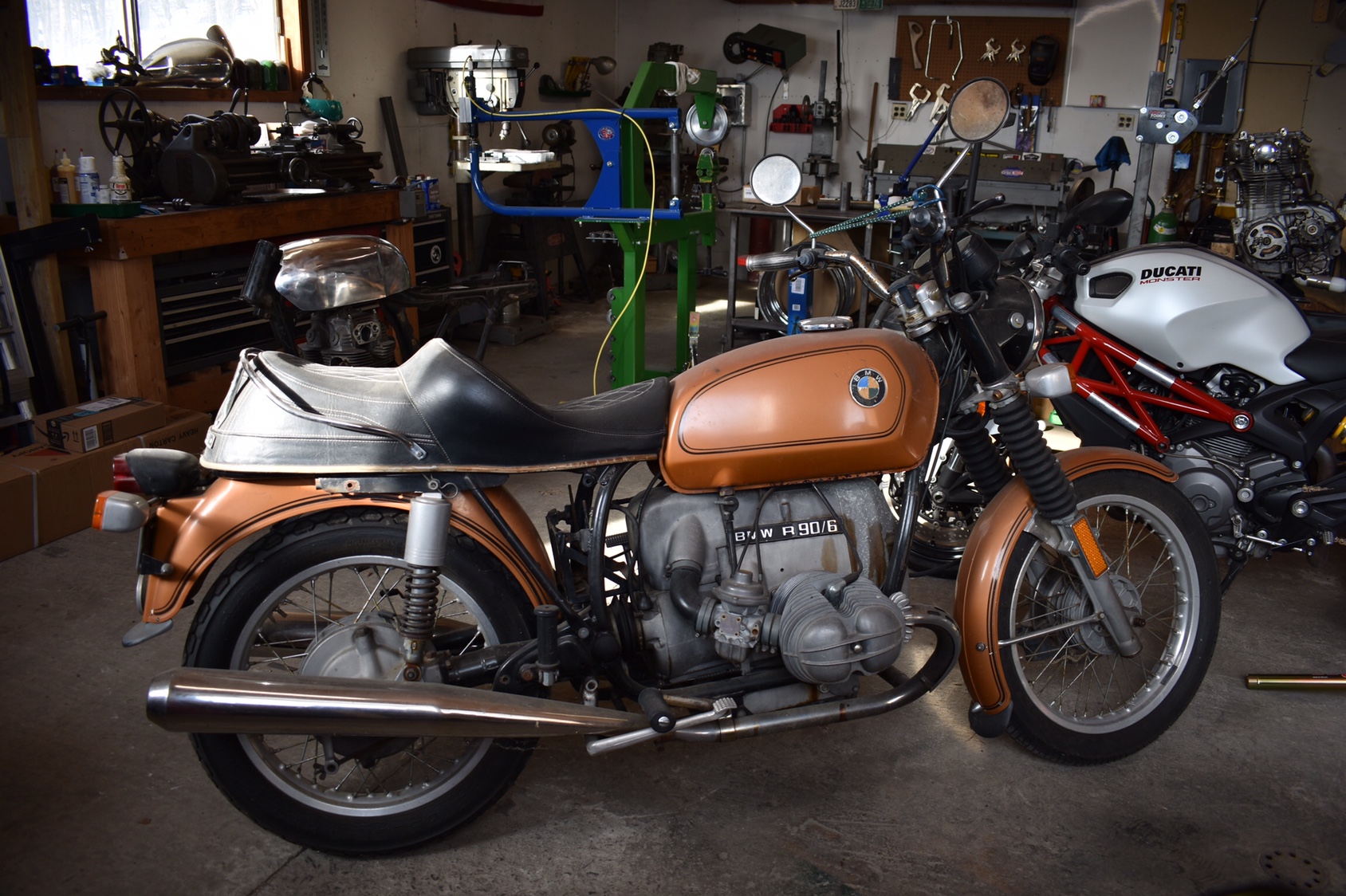

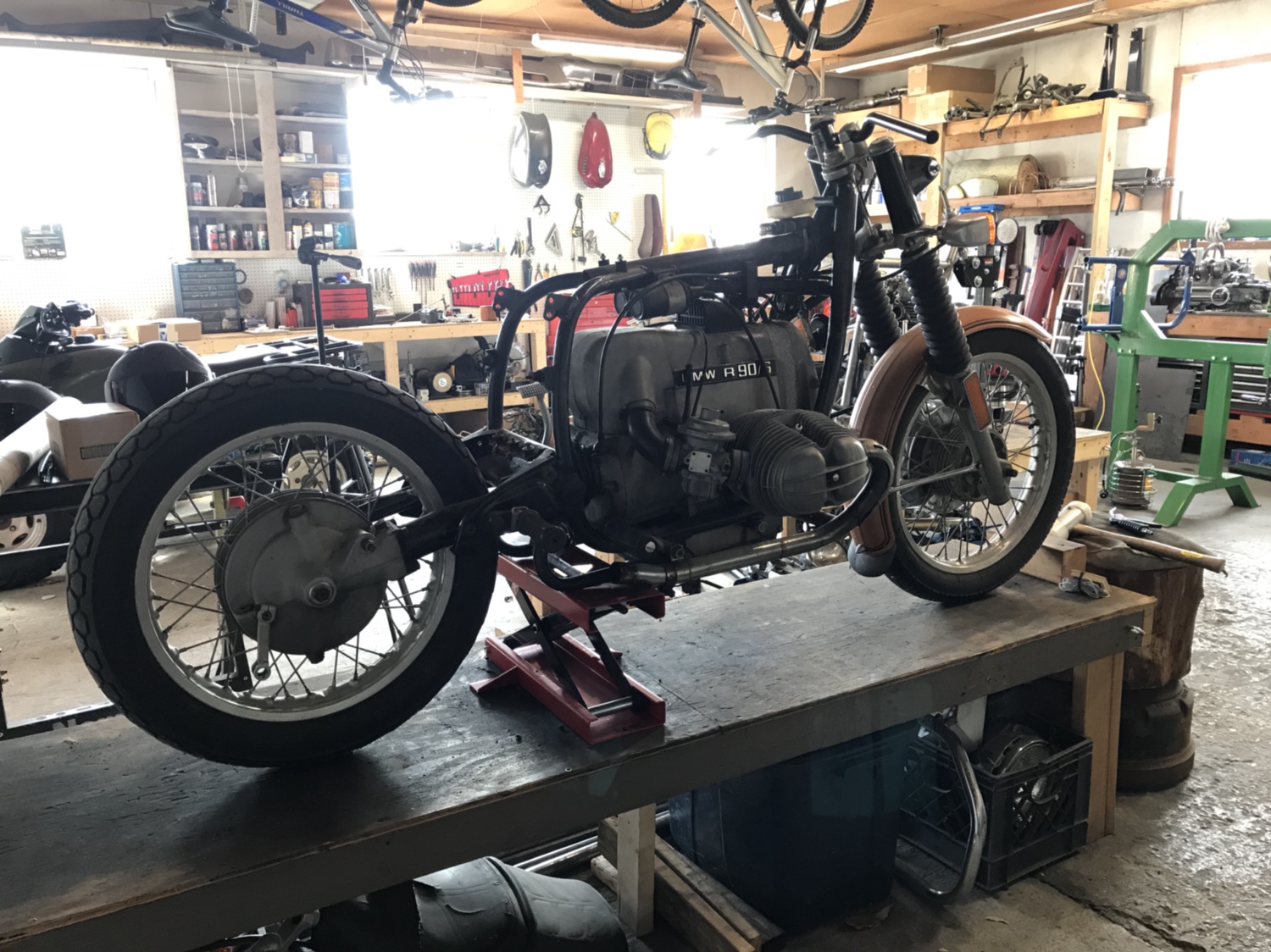

I thought I’d share my latest build in progress with the DTT community. It’s a 1974 R90/6. It started off as a nice complete bike, but on closer inspection nearly every part was in poor/rusty condition so not a good candidate for restoration. The owner saw some of my other builds at local bike-gatherings, and approached me to do the work turning his BMW into a cafe racer. After chatting a bit, he basically turned the reigns over to me, and I got to work.



ncologerojr

Coast to Coast
DTT BOTM WINNER

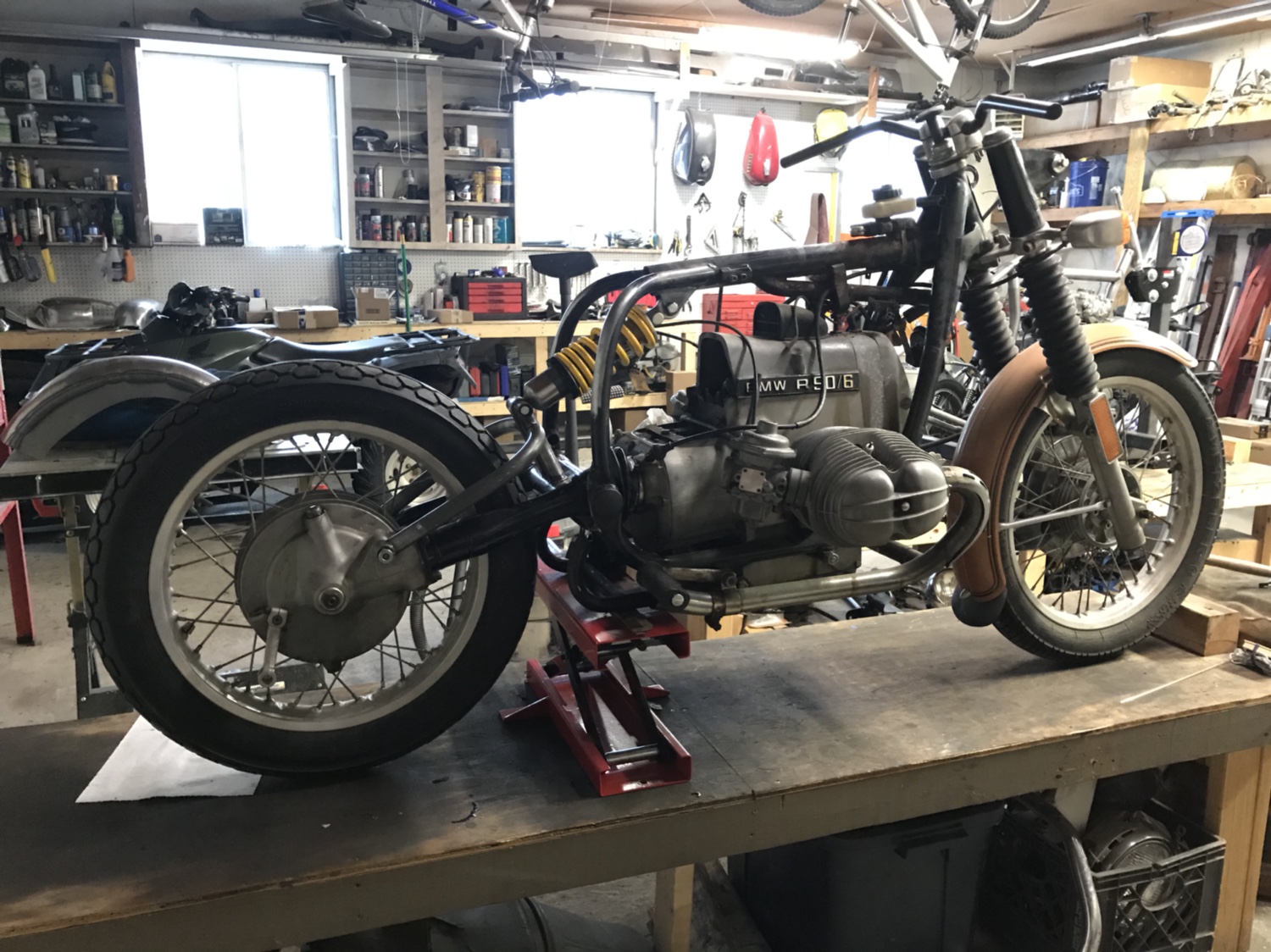

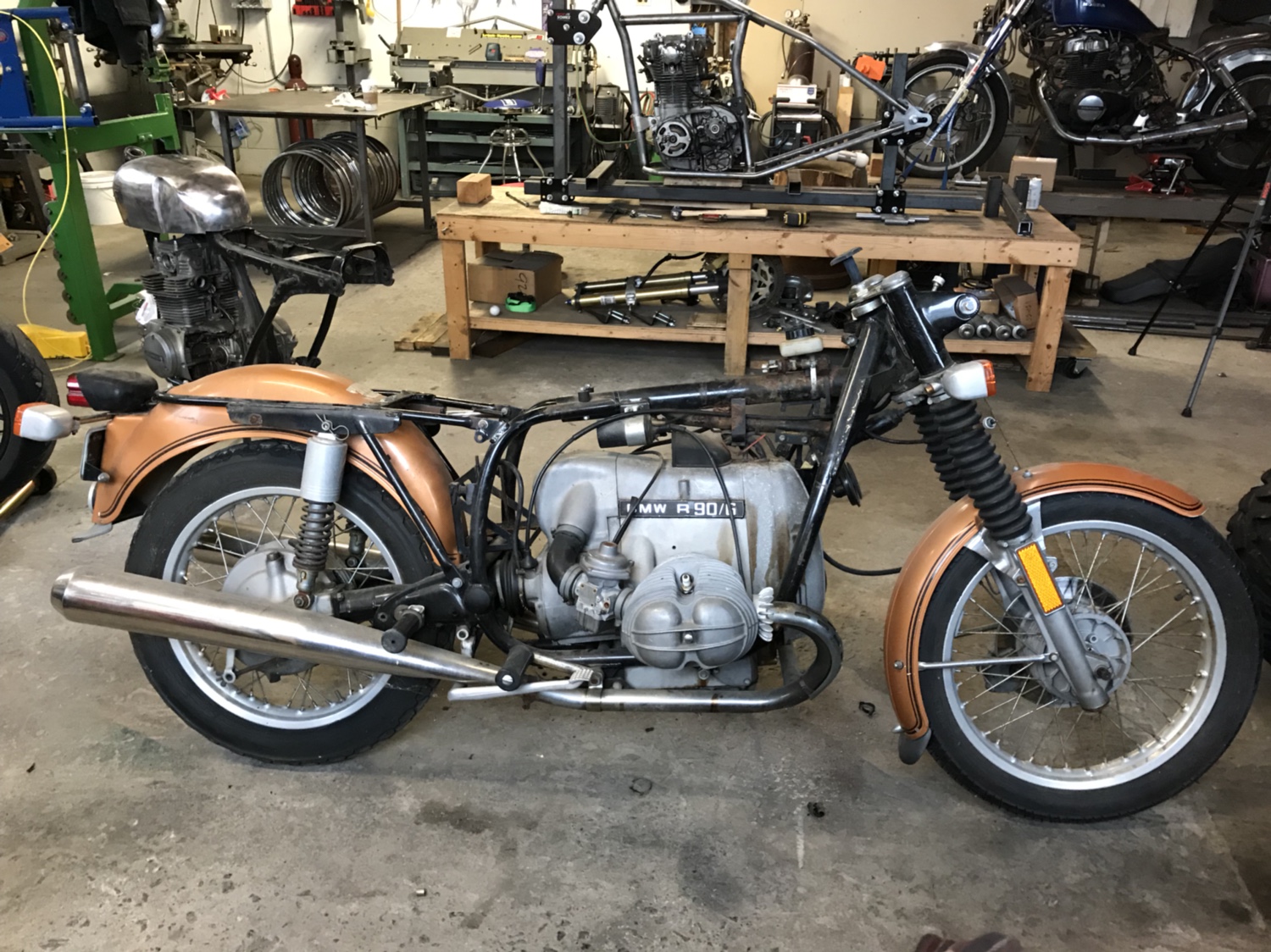

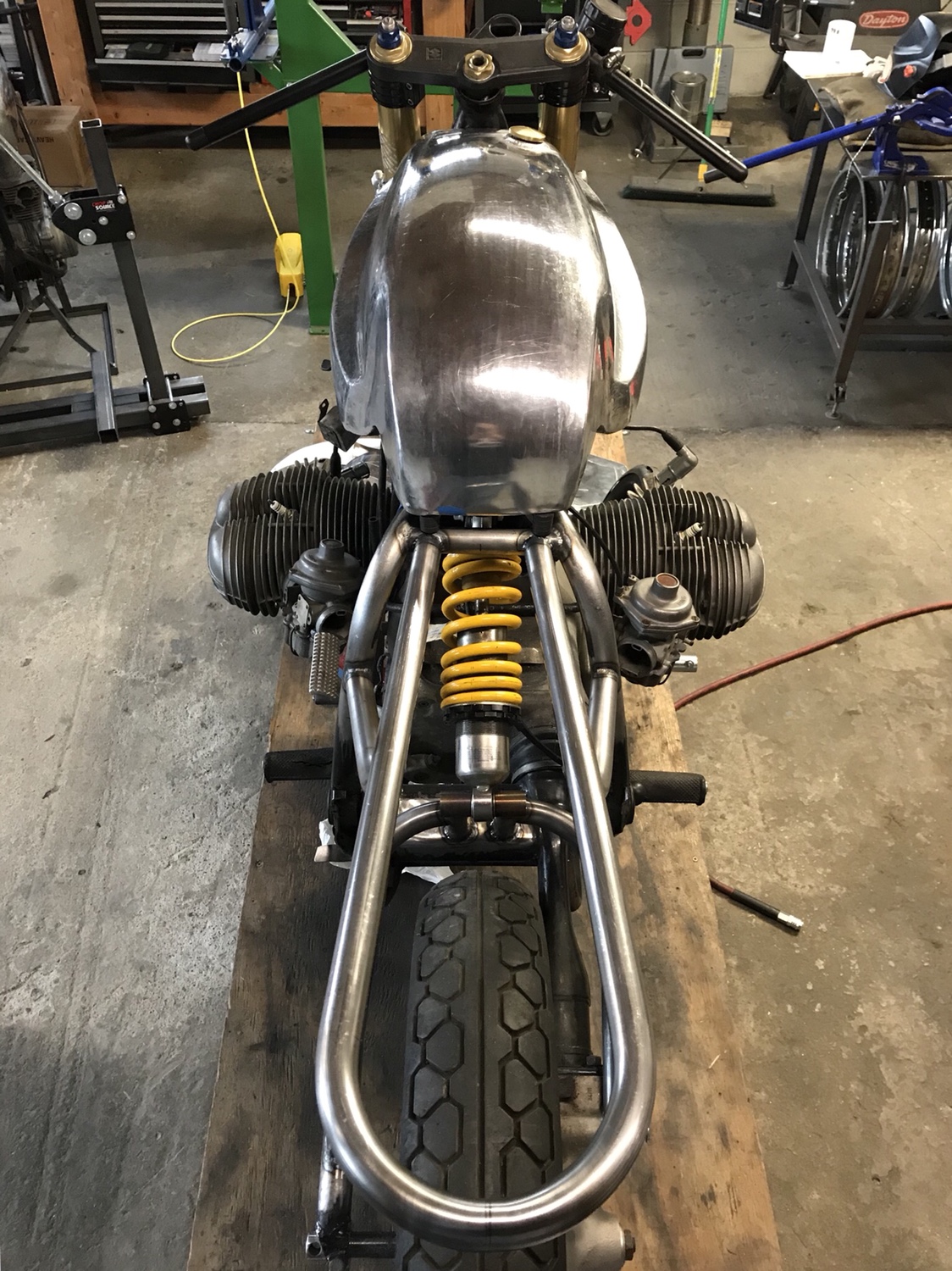

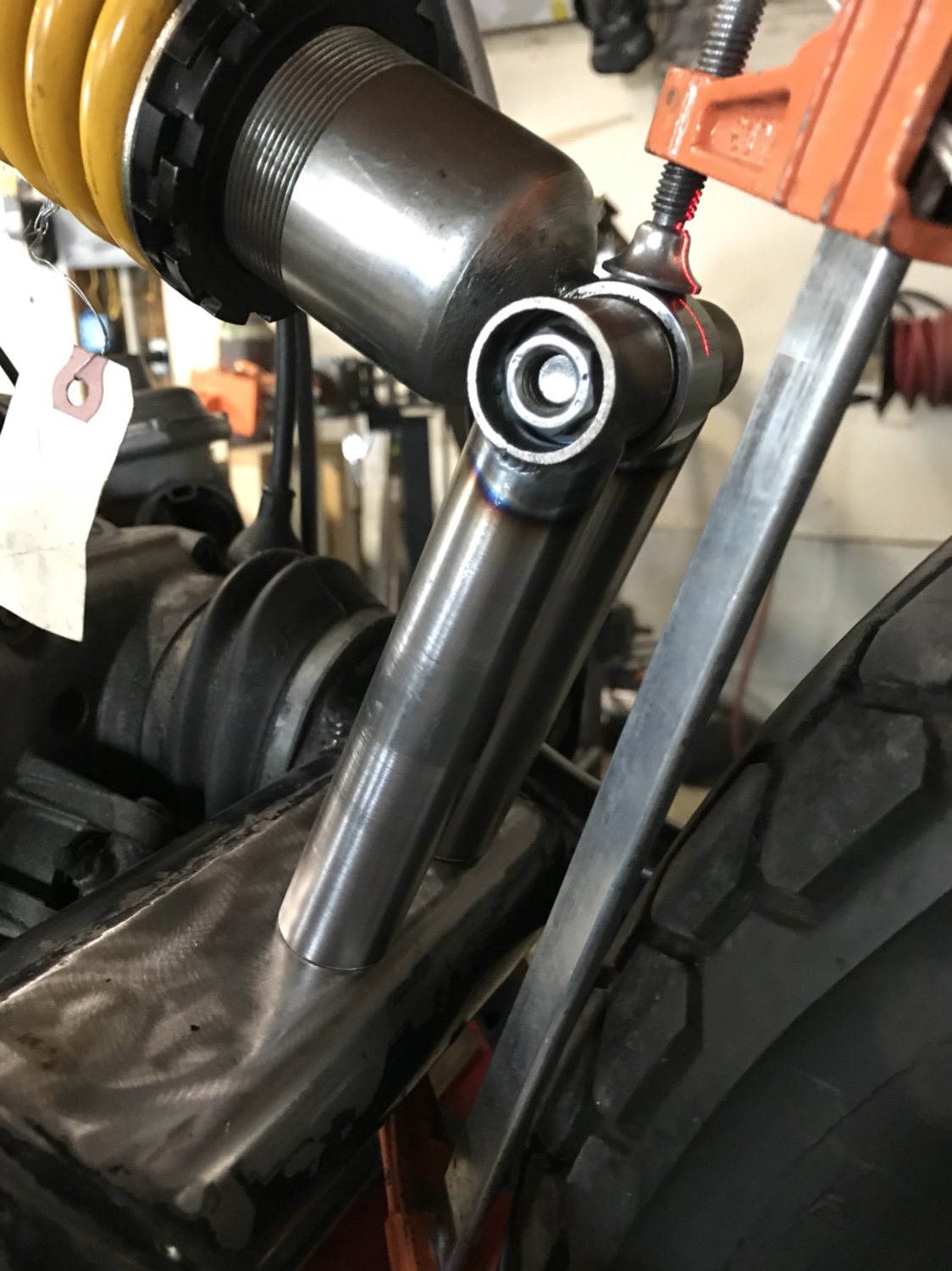

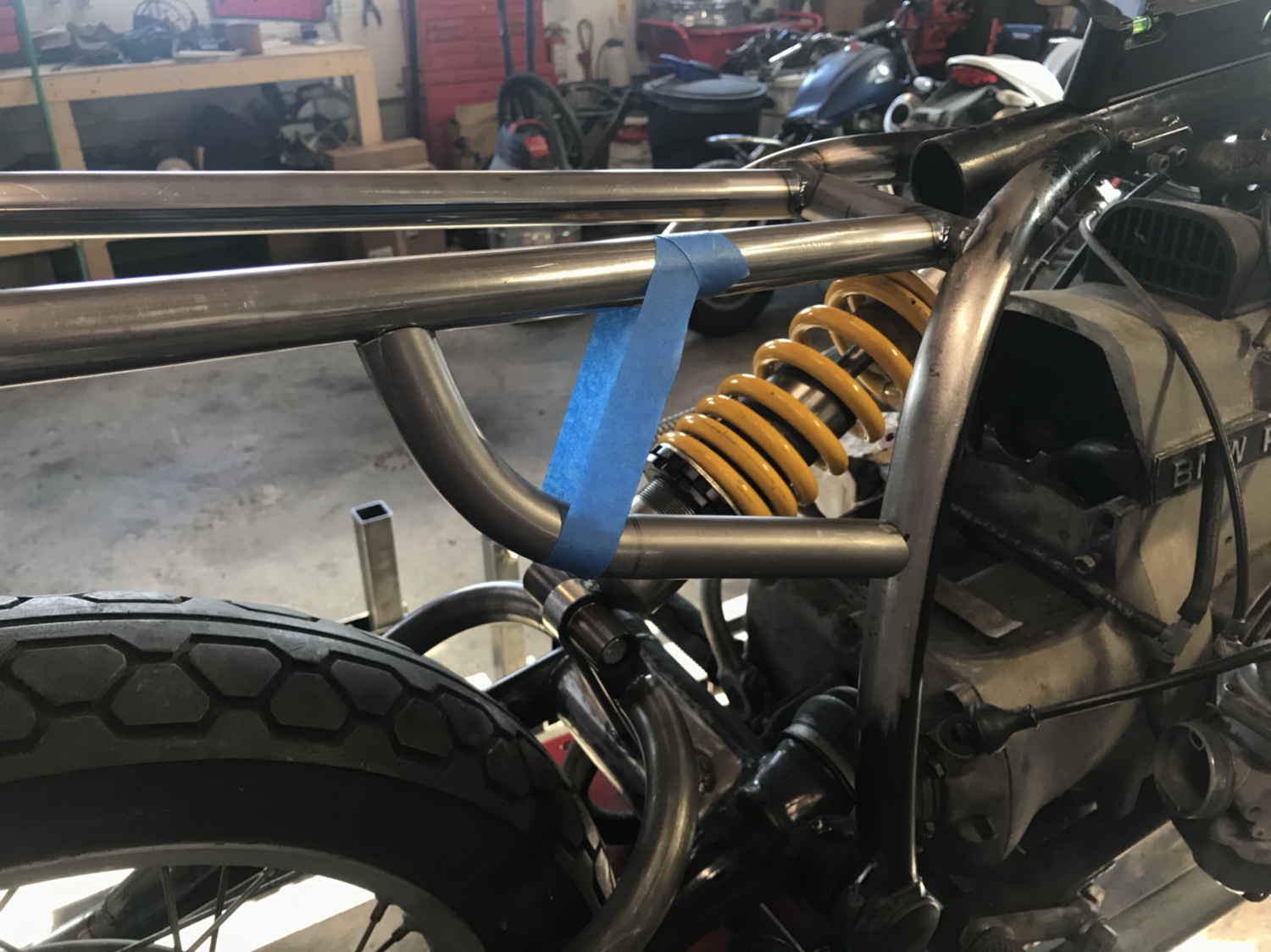

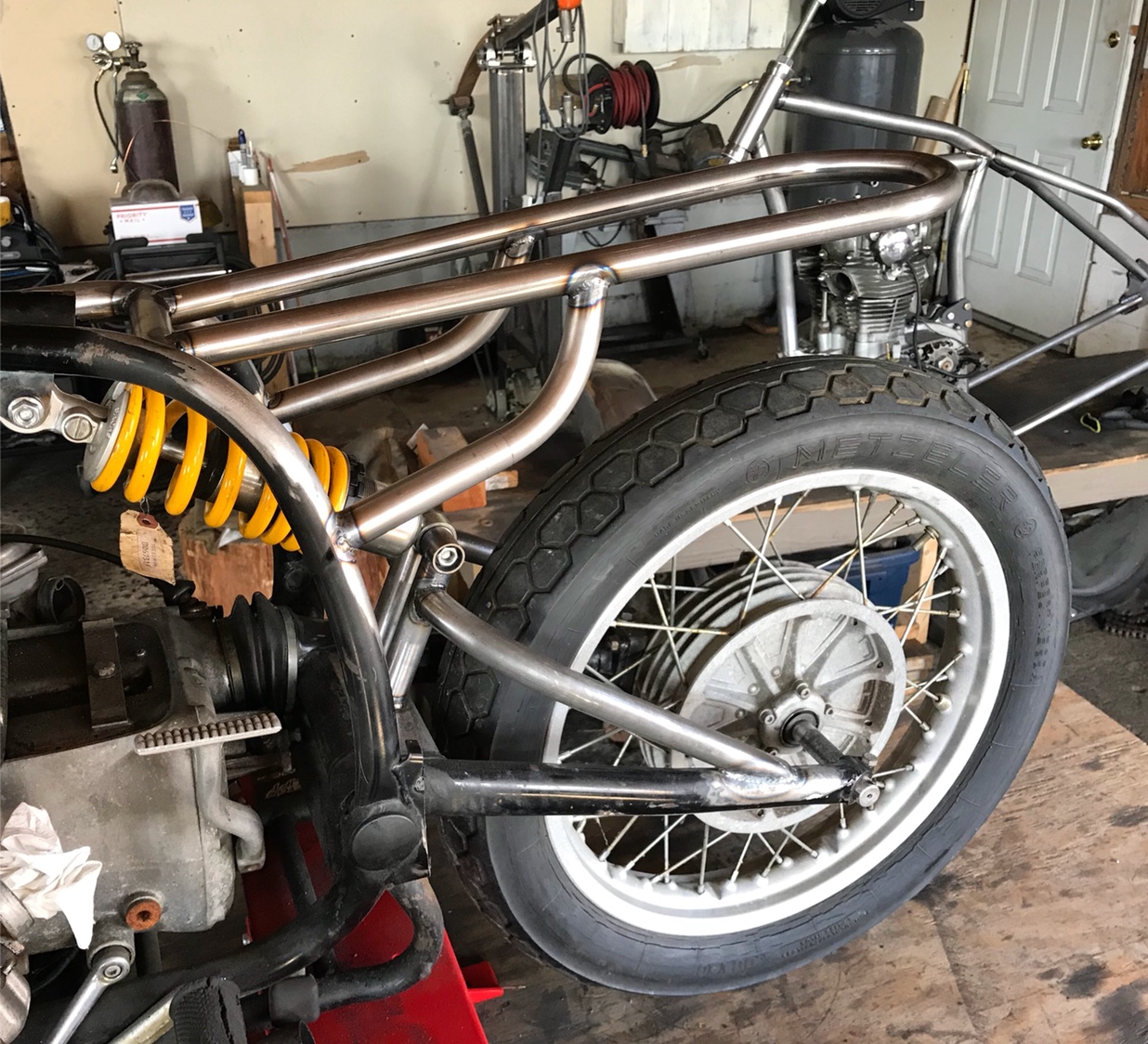

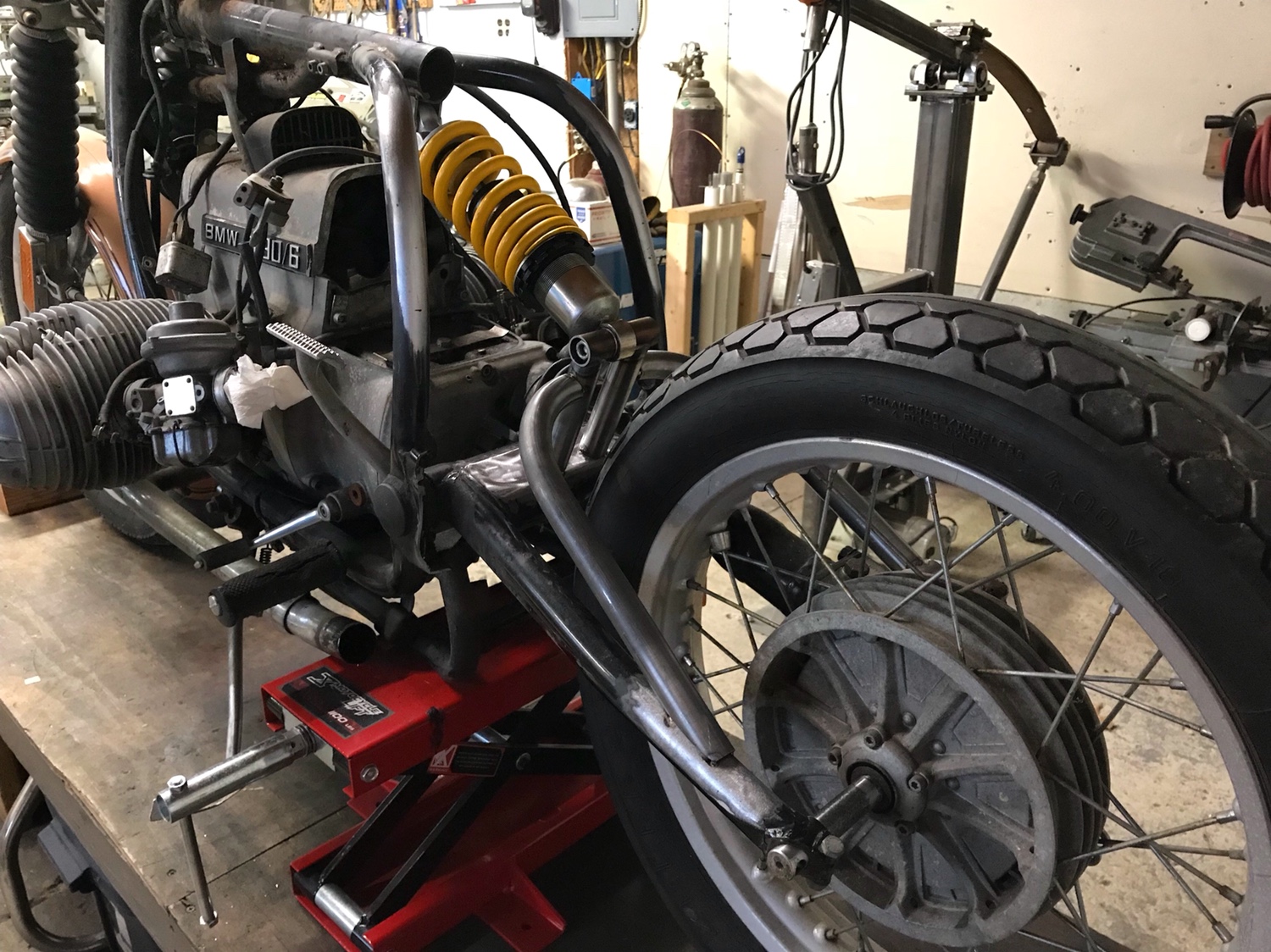

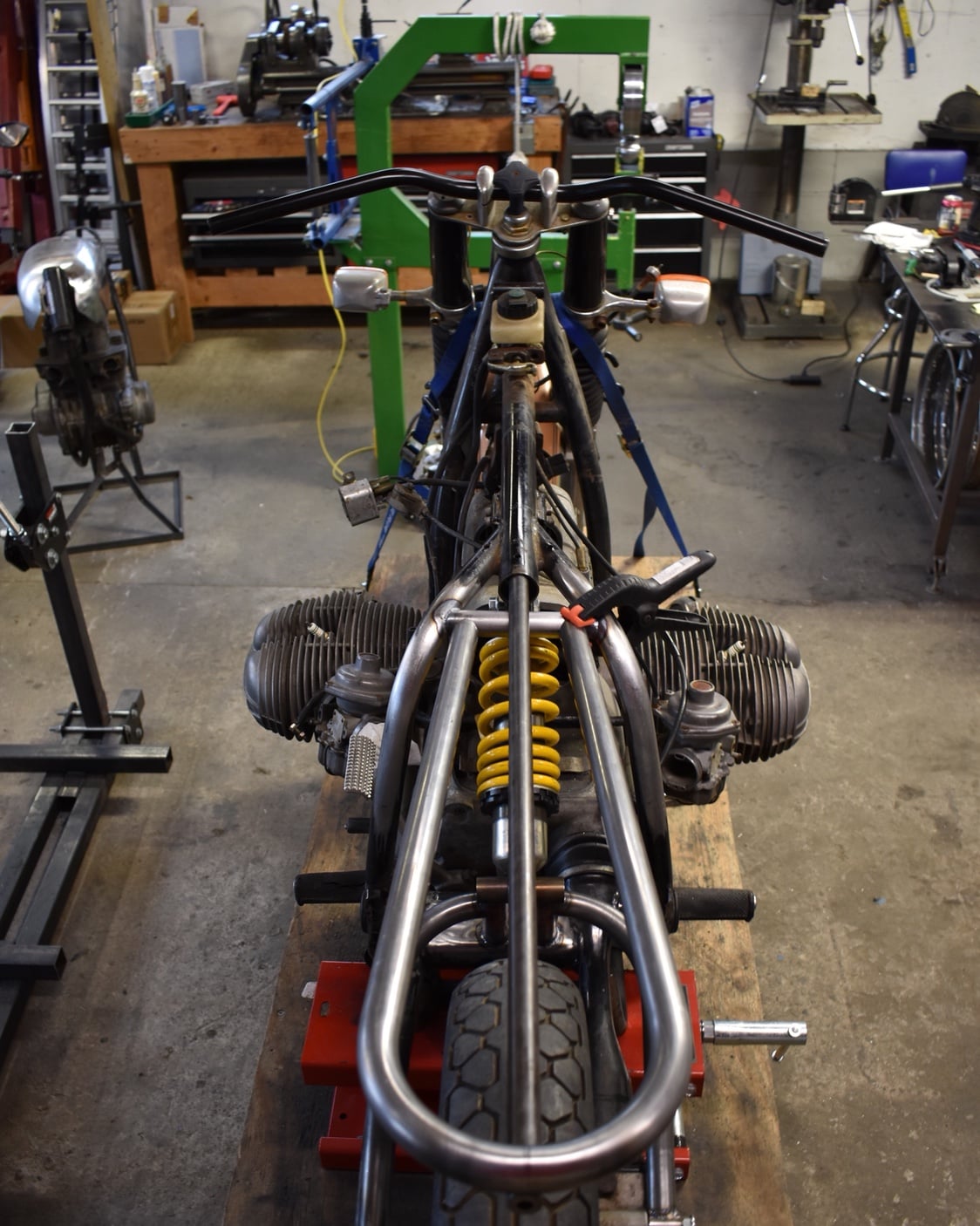

After some tear-down I started on the rear, converting the suspension to mono-shock. I chose a Sachs shock from a Ducati because it is designed to be used in a straight non-cantilever position, the length will fit without casting the bike too far forward, and the finished weight of the BMW should be close to the weight of the Ducati.

The goal here is to increase aesthetics while achieving the same suspension quality as a good set of dual shocks on the stock configuration.

91c792e40024a37264ef3d7501107f58.heic
f0957b876e946efca967fc745f66938d.heic
d906d5a805aceec585baac2e7f323c13.heic
632d4c63102b1c7f900c51371f56140f.heic


ncologerojr

Coast to Coast
DTT BOTM WINNER

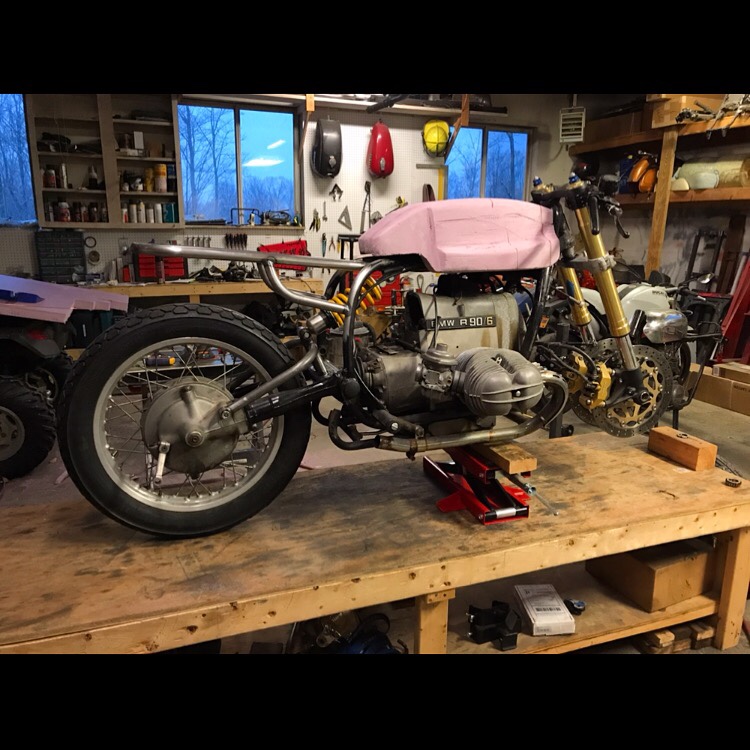

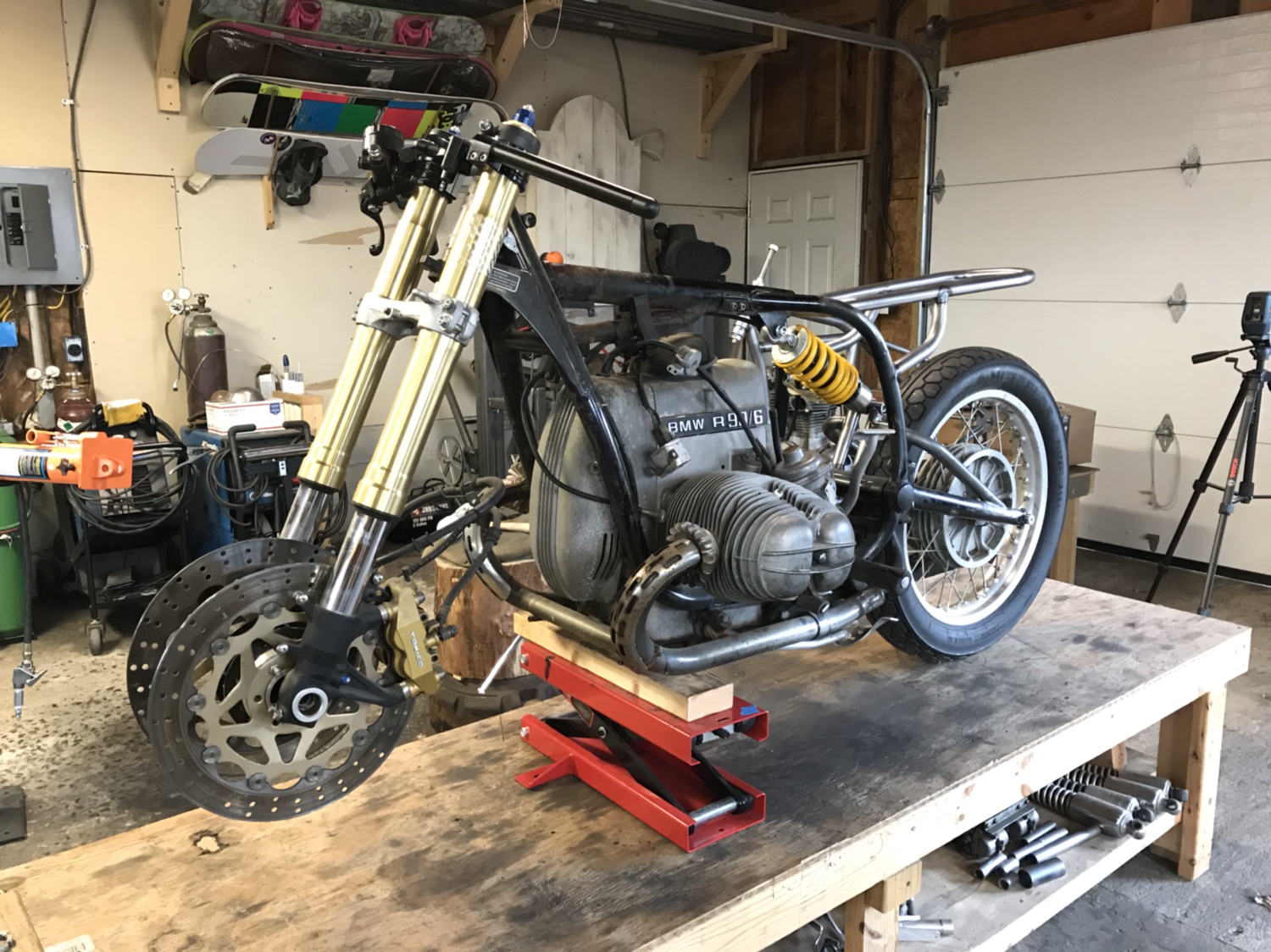

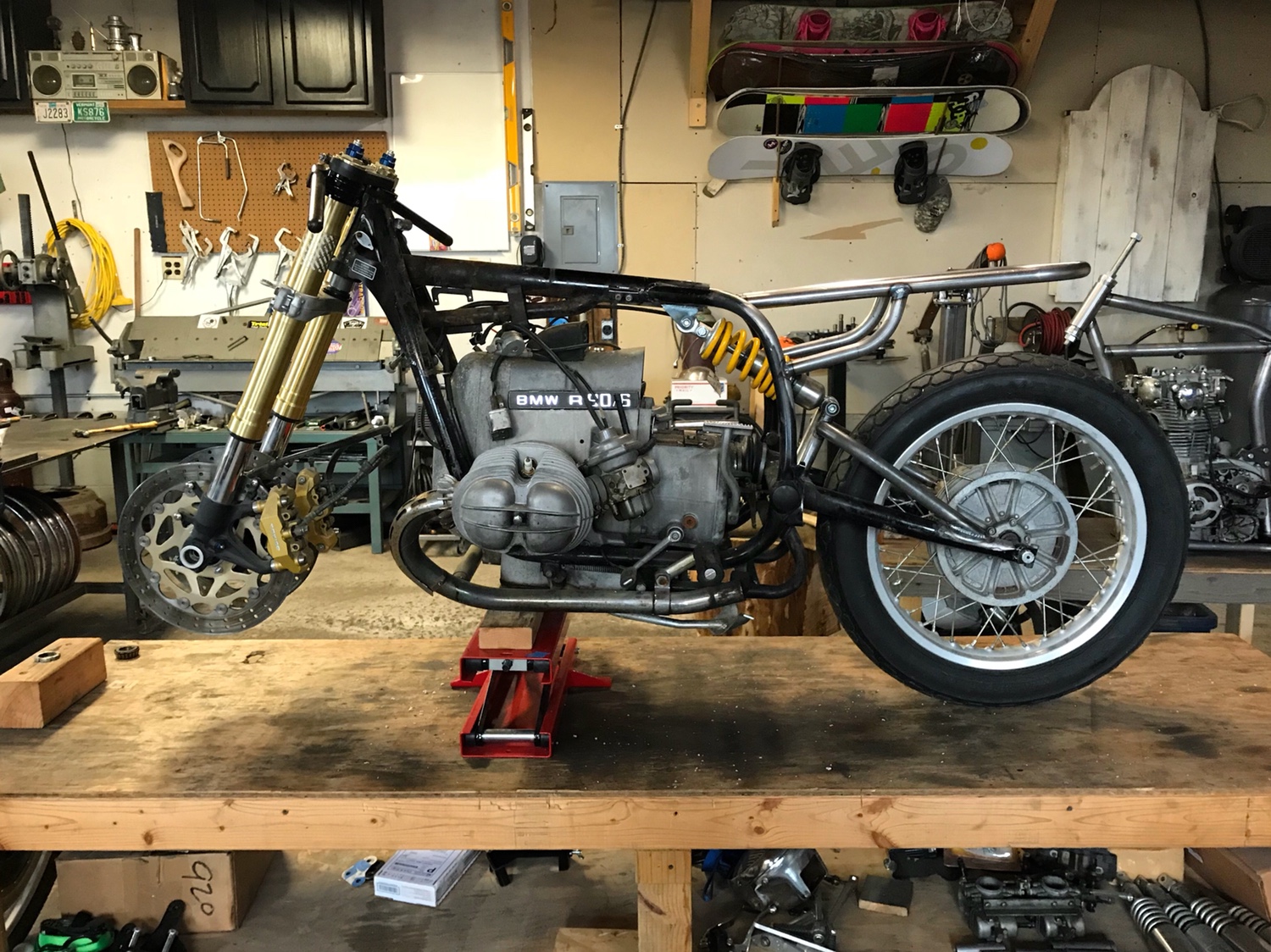

These old r90/6’s lacked severely in the front suspension and braking department, so gsxr 600 forks and brakes will be fitted. The bike’s original geometry and fork length built in a lot of trail for long distance cruising. The trail lost by the shorter forks should not be an issue for the sport-type ride we’re going for.

52e458c9569003425839b8d5f3814264.heic


ncologerojr

Coast to Coast
DTT BOTM WINNER
Next I started on the aluminum gas tank design. I’ve always wanted to design a tank loosely based off the Ducati Imola tanks, both because I love the look and it’s a real challenge metal shaping wise. Shaping the tank by hand will be the most time consuming part of the build.

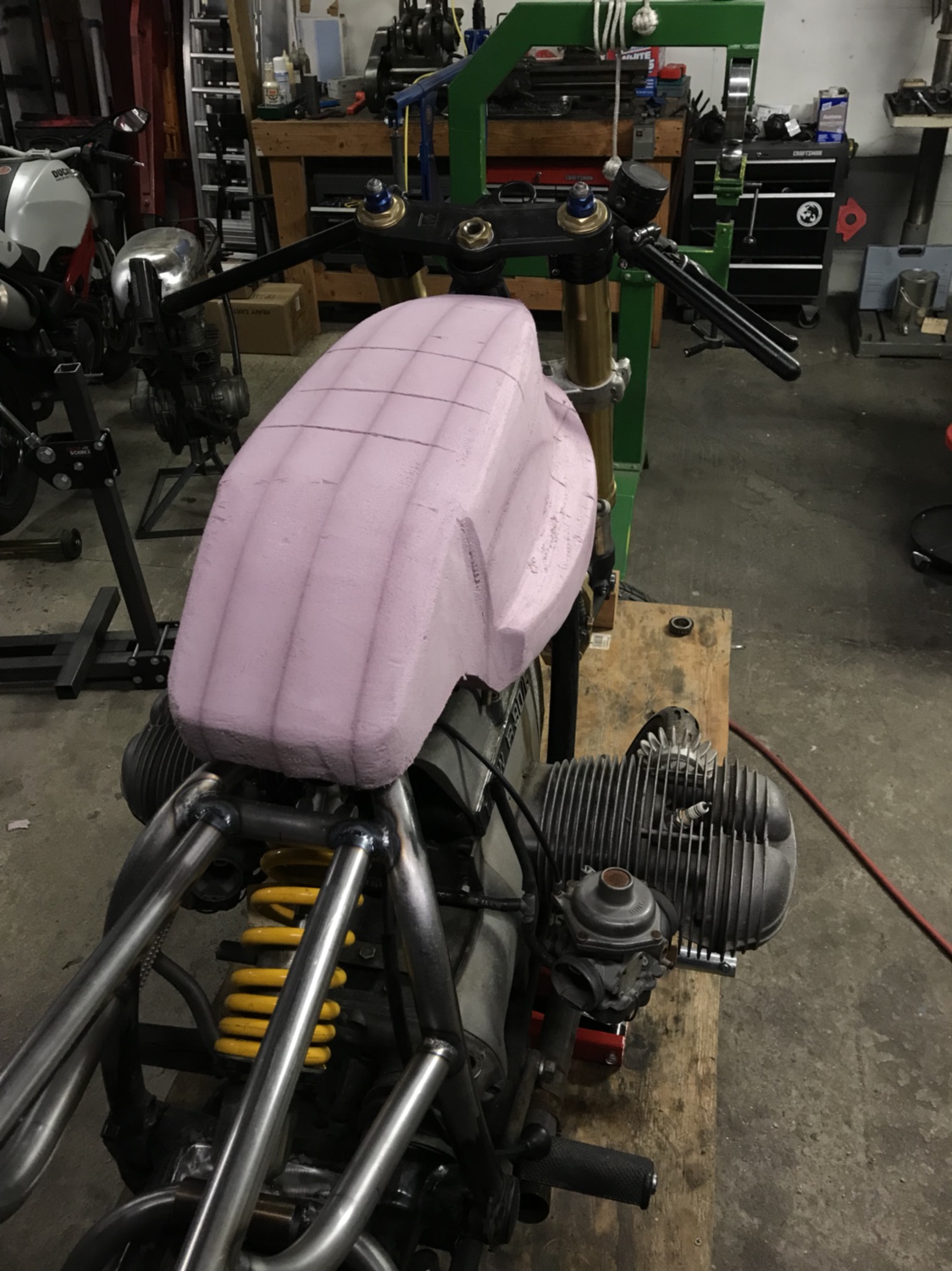

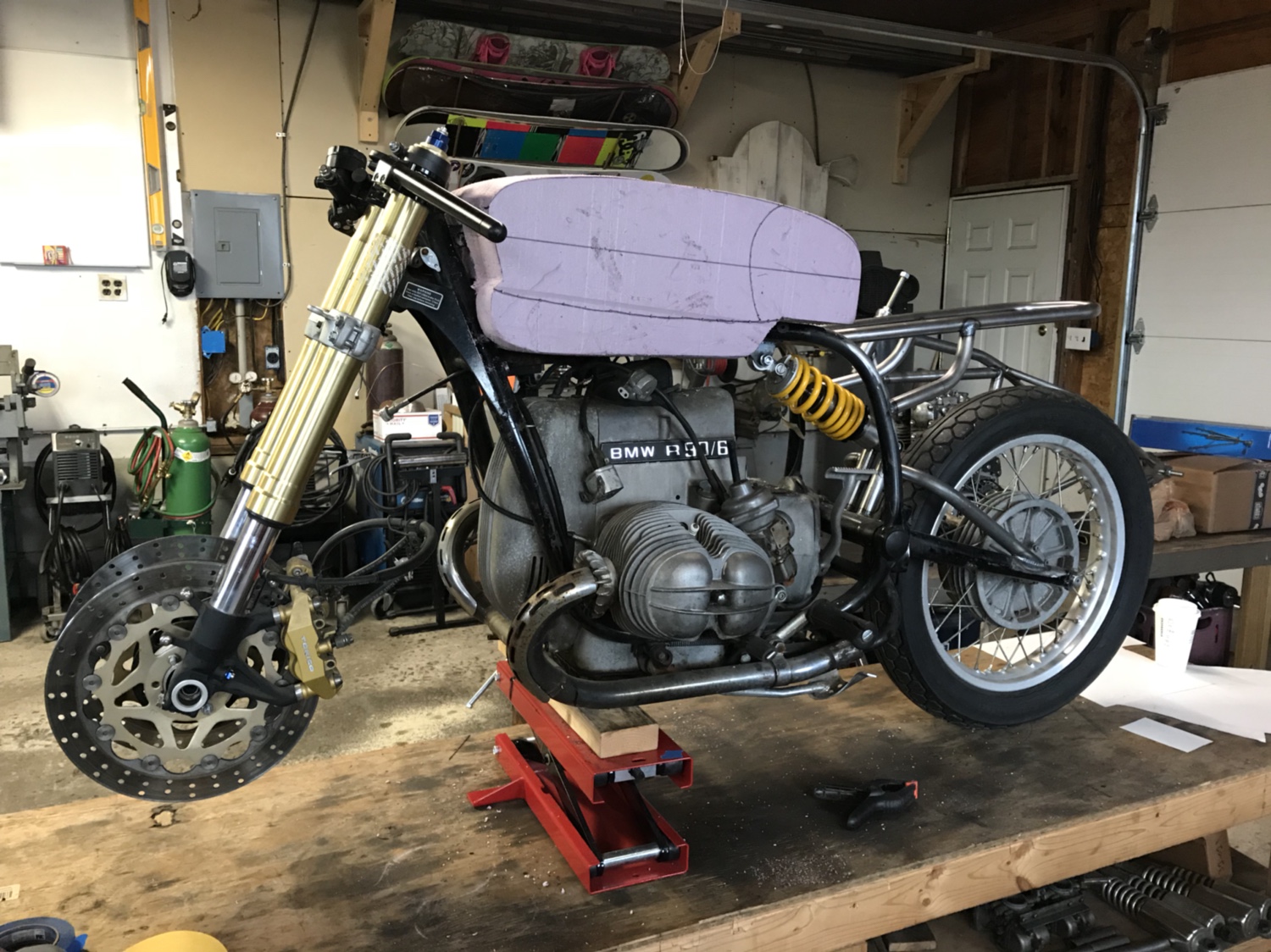

I started off by making a foam buck to get a feel for the dimensions.
220e1393b82ad6258565681be433cc74.heic
610957e36ca0e92a202e9f2157ba833b.heic
8332e8e35c1c222bec1d125060279182.heic


ncologerojr

Coast to Coast
DTT BOTM WINNER

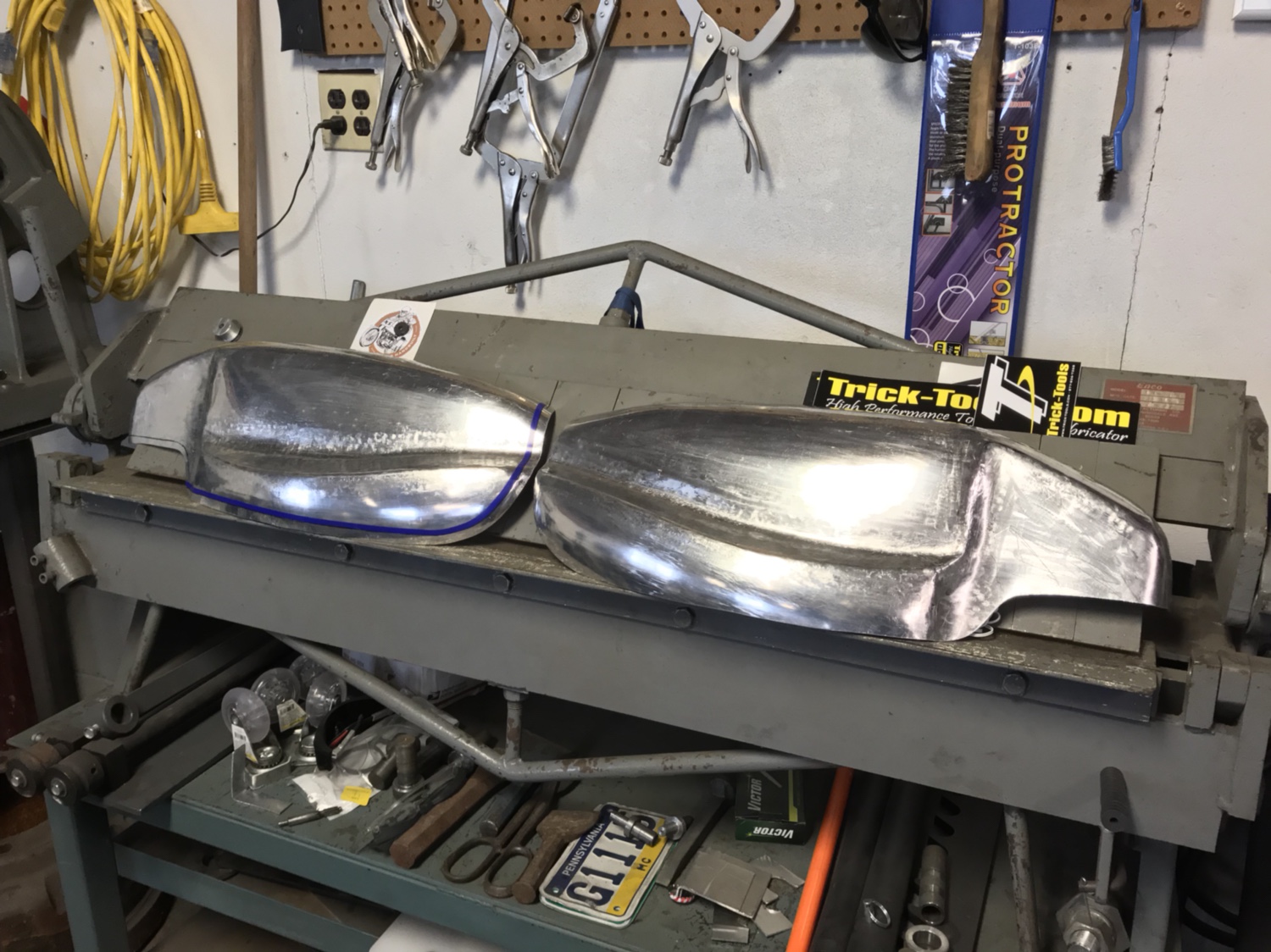

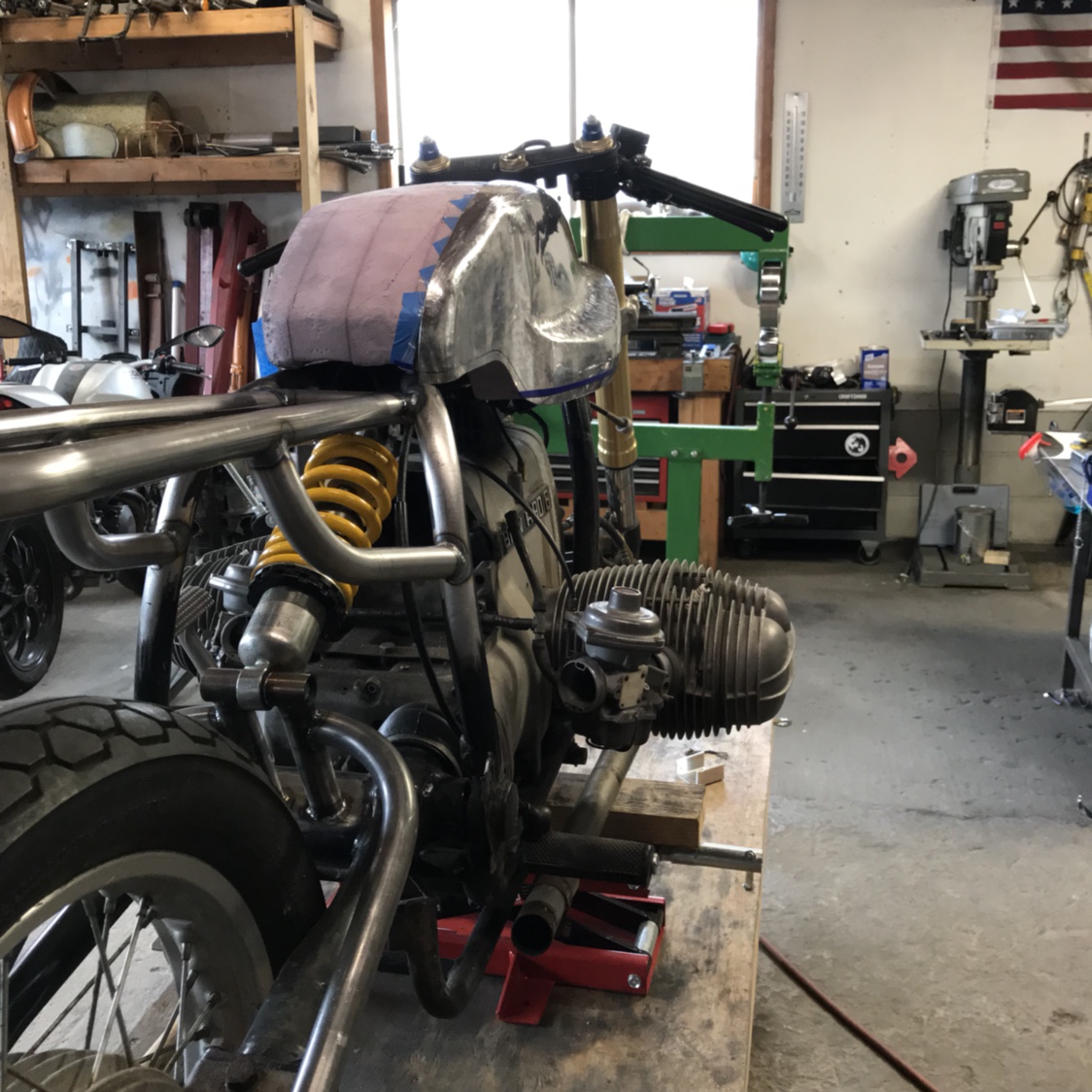

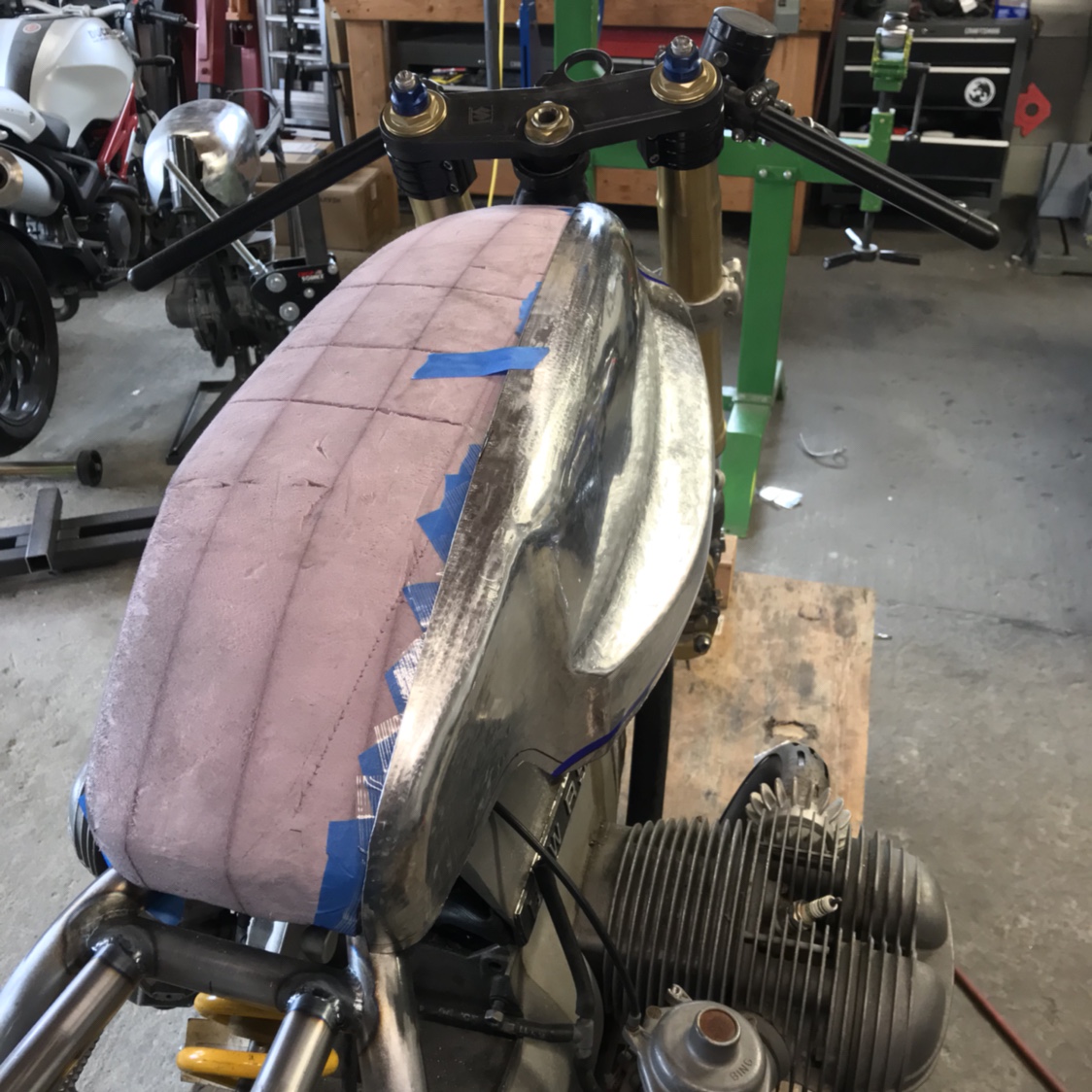

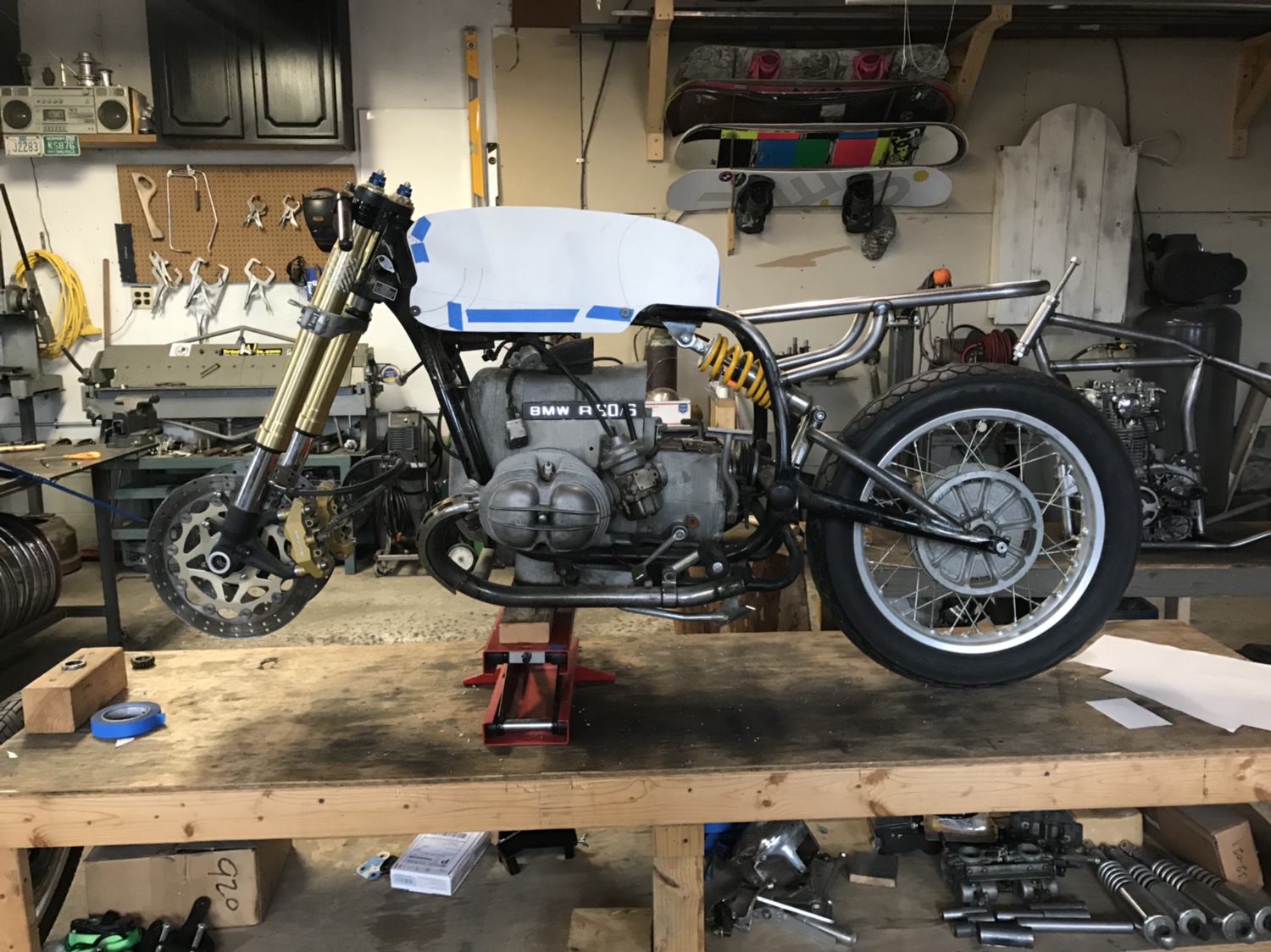

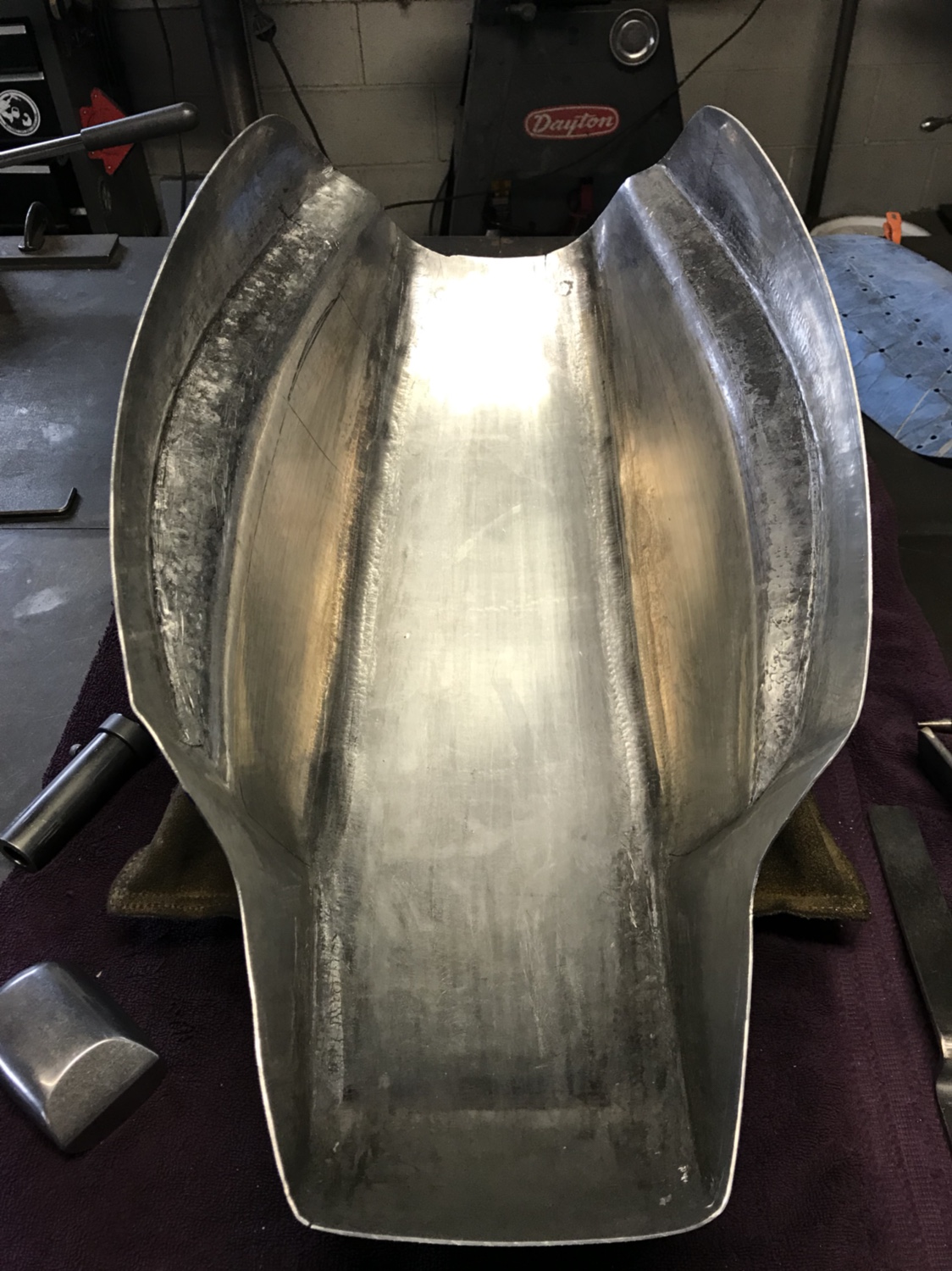

After the buck was where I wanted it, I made my patterns and started bashing aluminum. To make things even more difficult on myself I decided to make the sides from one piece.

a38d768eba526390e5de8719a9b1c353.heic

0ae0b7c1a8f0c84656dfd00fc2978e37.heic

c11b7c35f6ab98deec2793ea0f9ce5f9.heic


ncologerojr

Coast to Coast
DTT BOTM WINNER

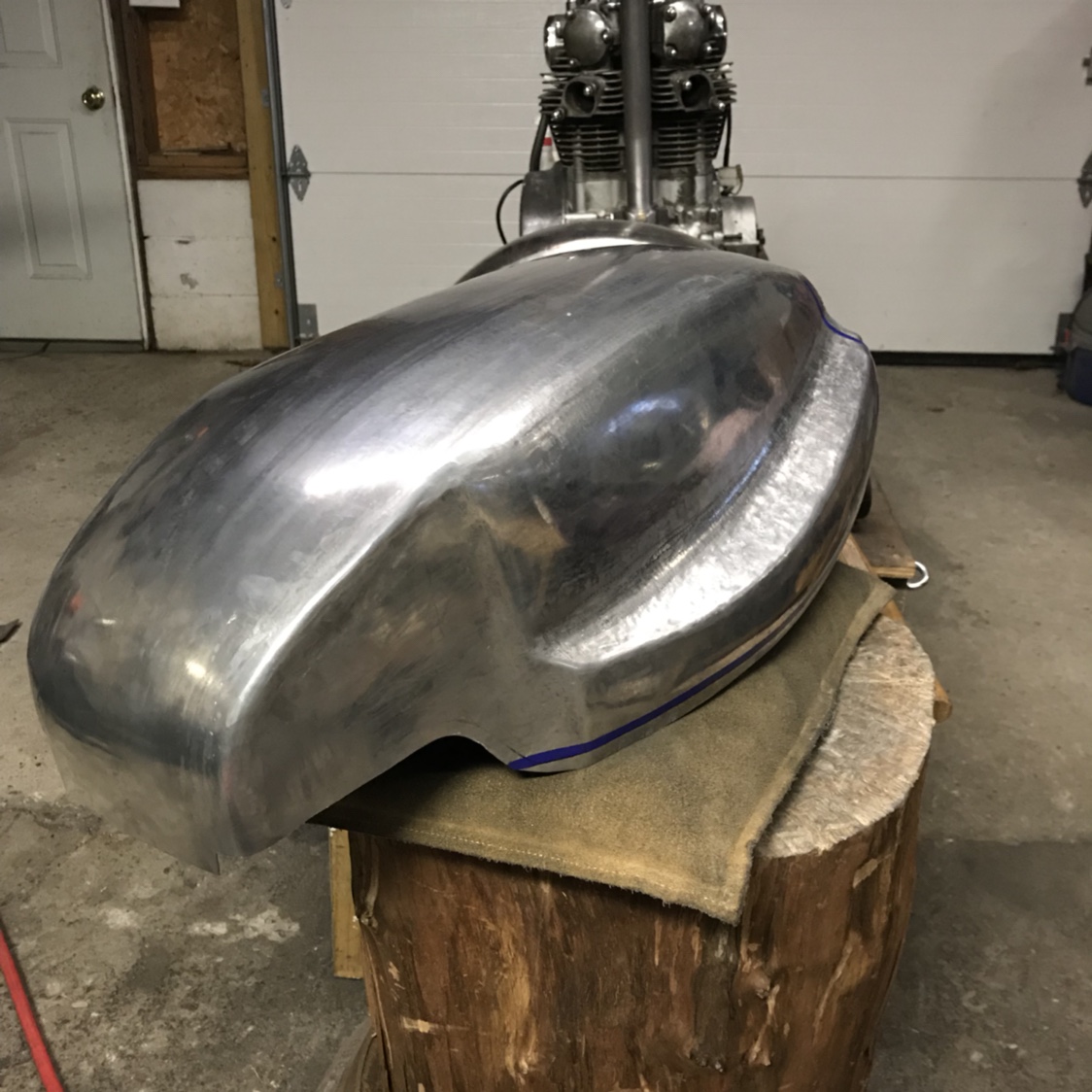

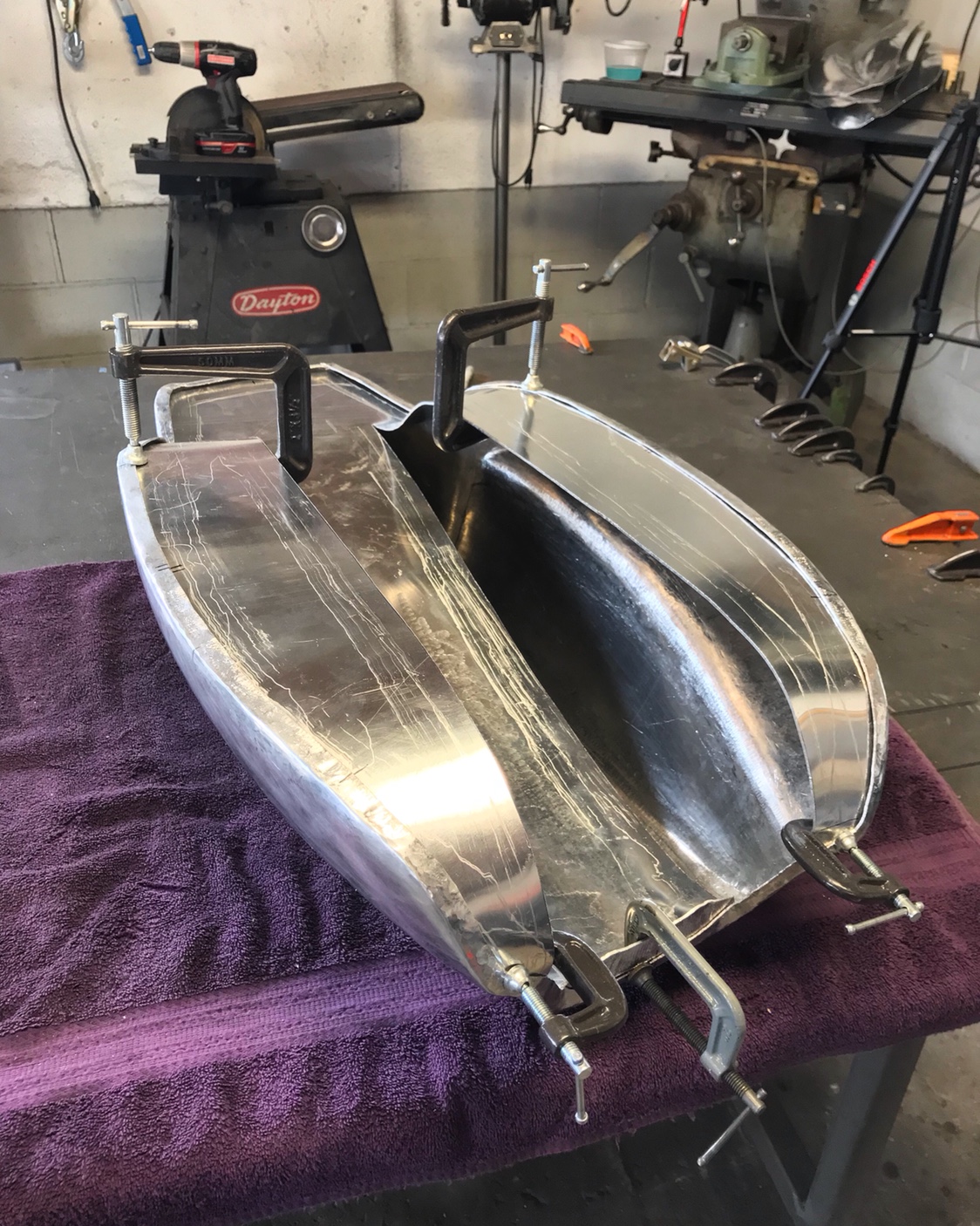

More tank work. Once the halves were welded together a flange was turned by hand around the bottom edge to add strength to the entire shell.



f50d566a9662bdd17d72fd0883bff56d.heic

b406e3a08c4c6c1a0b2619785da873cf.heic


ncologerojr

Coast to Coast
DTT BOTM WINNER
Tank continued...

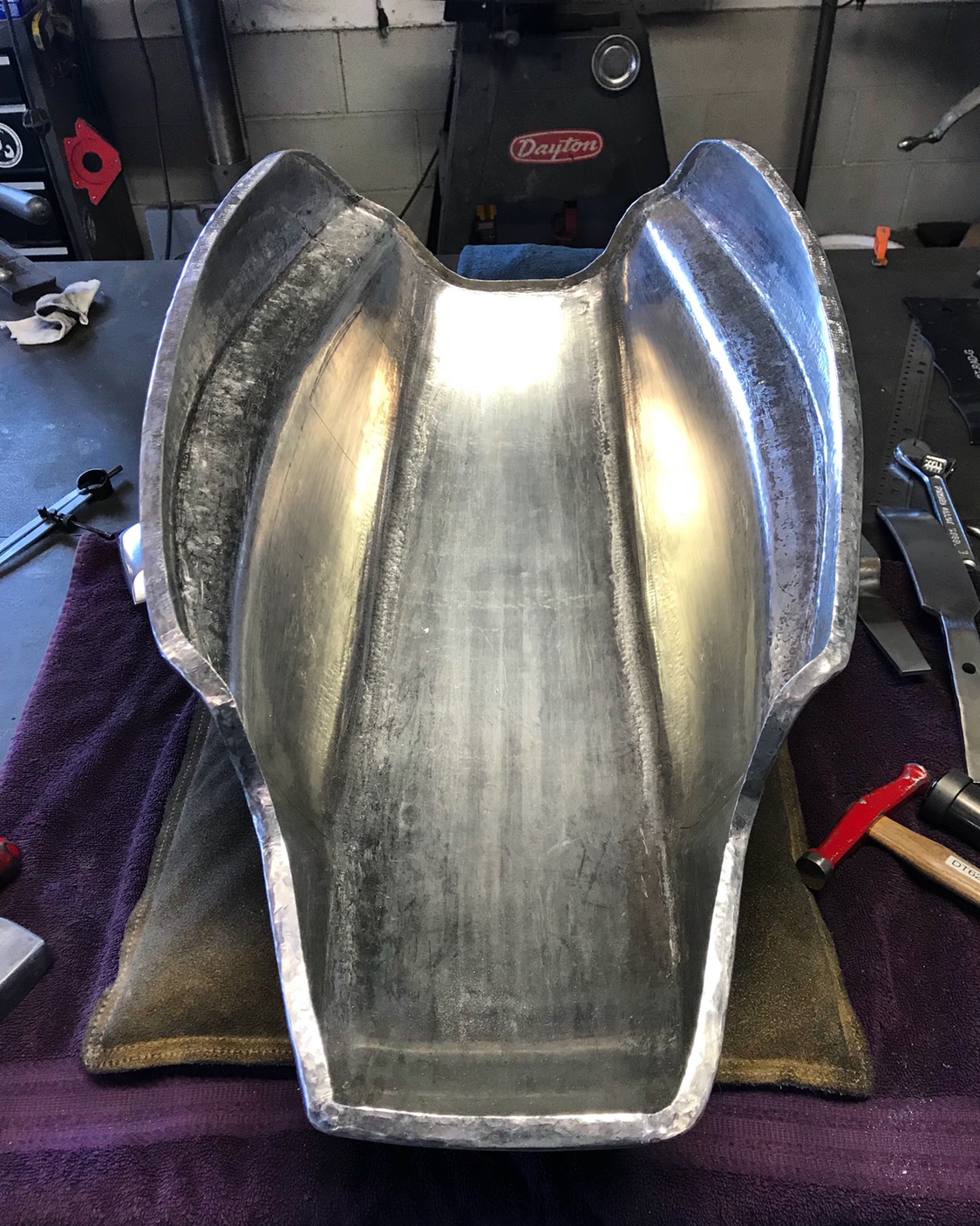

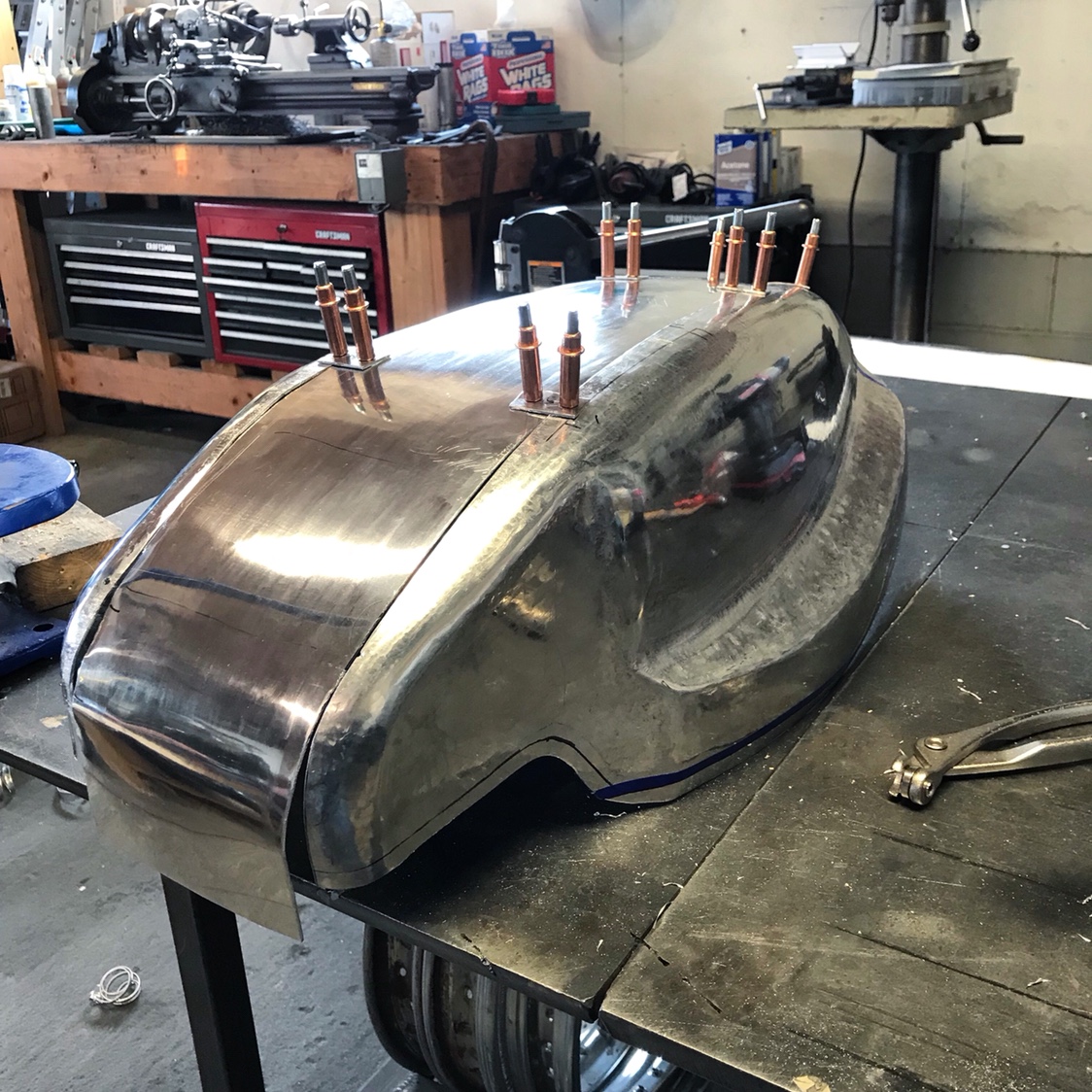

Next I got the fuel bung in and the majority of the underside/tunnel fitted. I wanted to get the seat pan, tank mounts, and a few other parts positioned and clearances set before welding in the tunnel. So it was dry fitted and set aside.

4fc23c1bb28e2d555c46490dec3fa3de.heic


ncologerojr

Coast to Coast
DTT BOTM WINNER

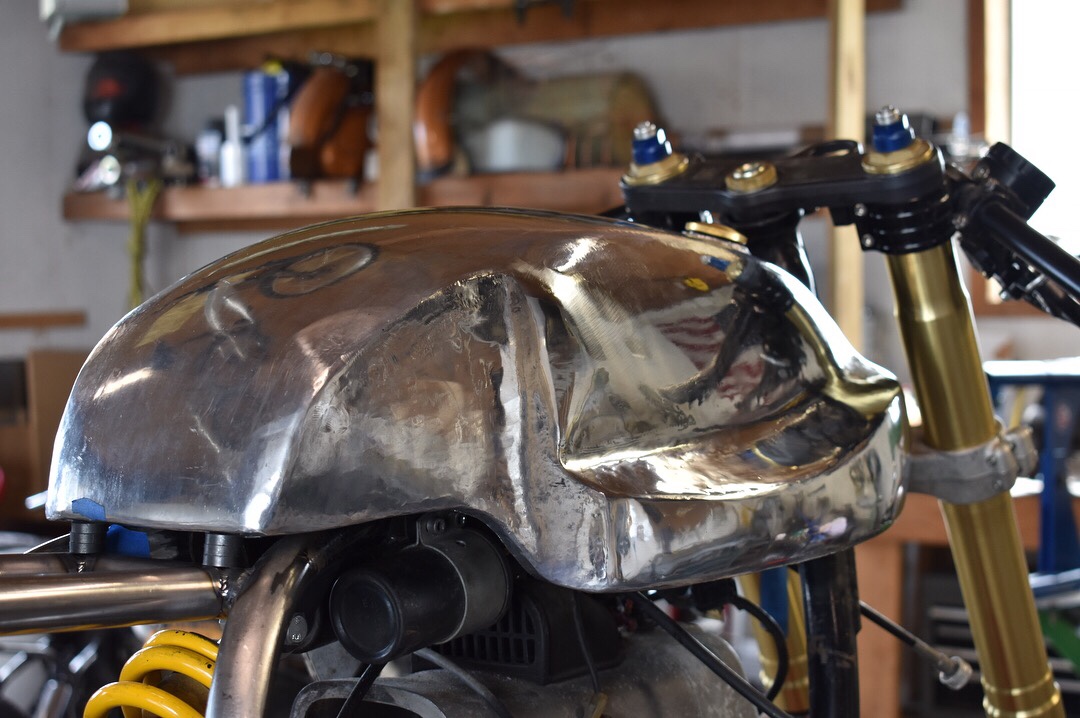

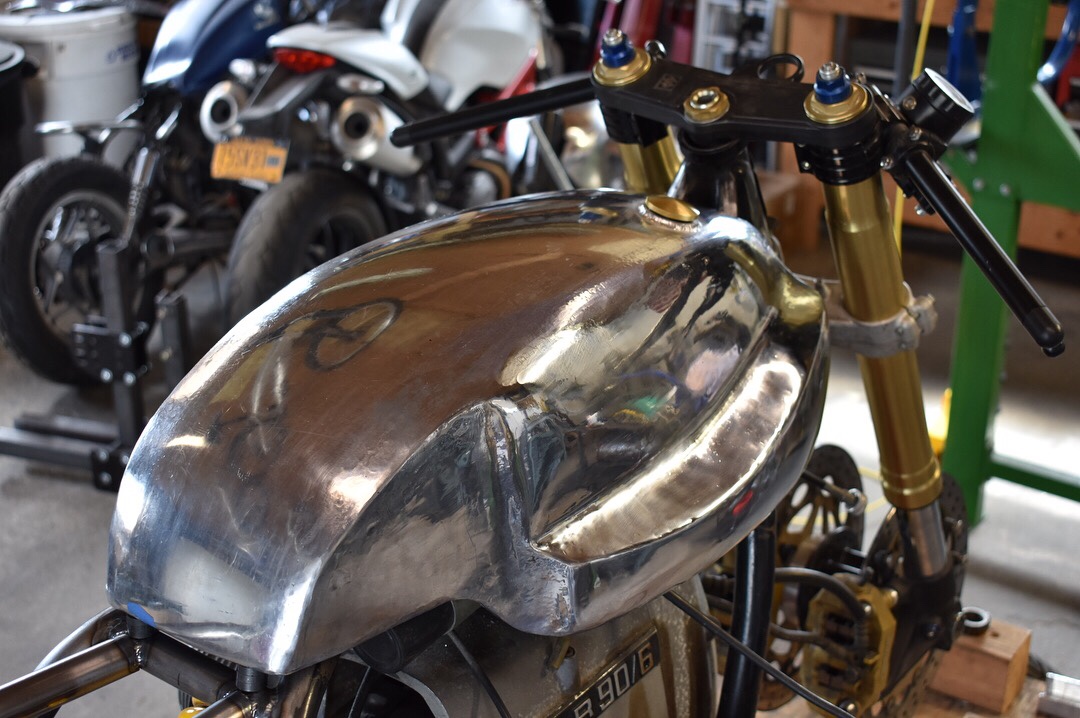

The tank she’ll with a quick polish to get a good look at the contours/transitions. Because the tanks will be painted this is as far as I’ll go with the metal finishing process. Just a coat of primer will fill any remaining hammer marks.



ncologerojr

Coast to Coast
DTT BOTM WINNER
advCo said:
Man, that tank looks great on there. Always enjoy watching your metal forming skills.

Thanks so much man! I basically build bikes just to make the tanks and fenders haha


trek97

No Custom Title
DTT BOTM WINNER
ncologerojr said:
Thanks man! Sometimes I think I enjoy building bikes more than riding them.

Bro I am right there w you. Sure I enjoy going for a ride. However, I leap out of bed in the mornings if there’s work to be done.
I am in awe of the work you and some others are doing. Sometimes I’m surprised you all allow me to be here at all.
