BMW R90/6 Cafe

ncologerojr

Coast to Coast
DTT BOTM WINNER
Hurco550 said:

Thanks a lot man, it’s always helpful to take a look at how others improved on frame design. I love that bike!


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
ncologerojr said:
Thanks a lot man, it’s always helpful to take a look at how others improved on frame design. I love that bike!
It is sitting at speed deluxe in Chattanooga tn. I don't know where your located, but it would be worth a gander if you are going through there. It's a well done machine

Sent from my SM-G920V using Tapatalk


ncologerojr

Coast to Coast
DTT BOTM WINNER
Hurco550 said:
It is sitting at speed deluxe in Chattanooga tn. I don't know where your located, but it would be worth a gander if you are going through there. It's a well done machine

Sent from my SM-G920V using Tapatalk

I’m in upstate New York, so probably not gonna make it through there anytime soon haha but it does look like a sweet build.


ncologerojr

Coast to Coast
DTT BOTM WINNER
Small update for now now.

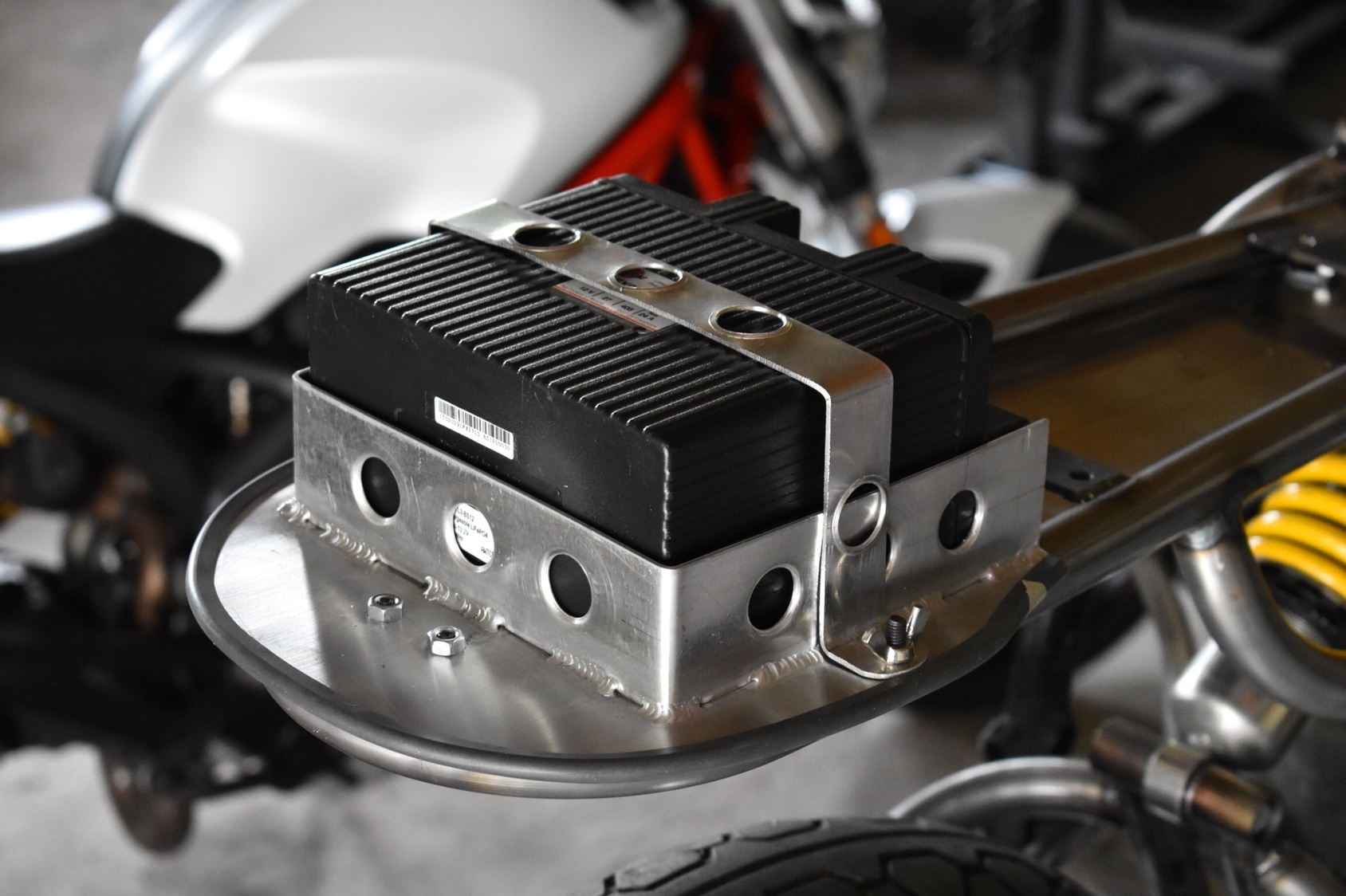

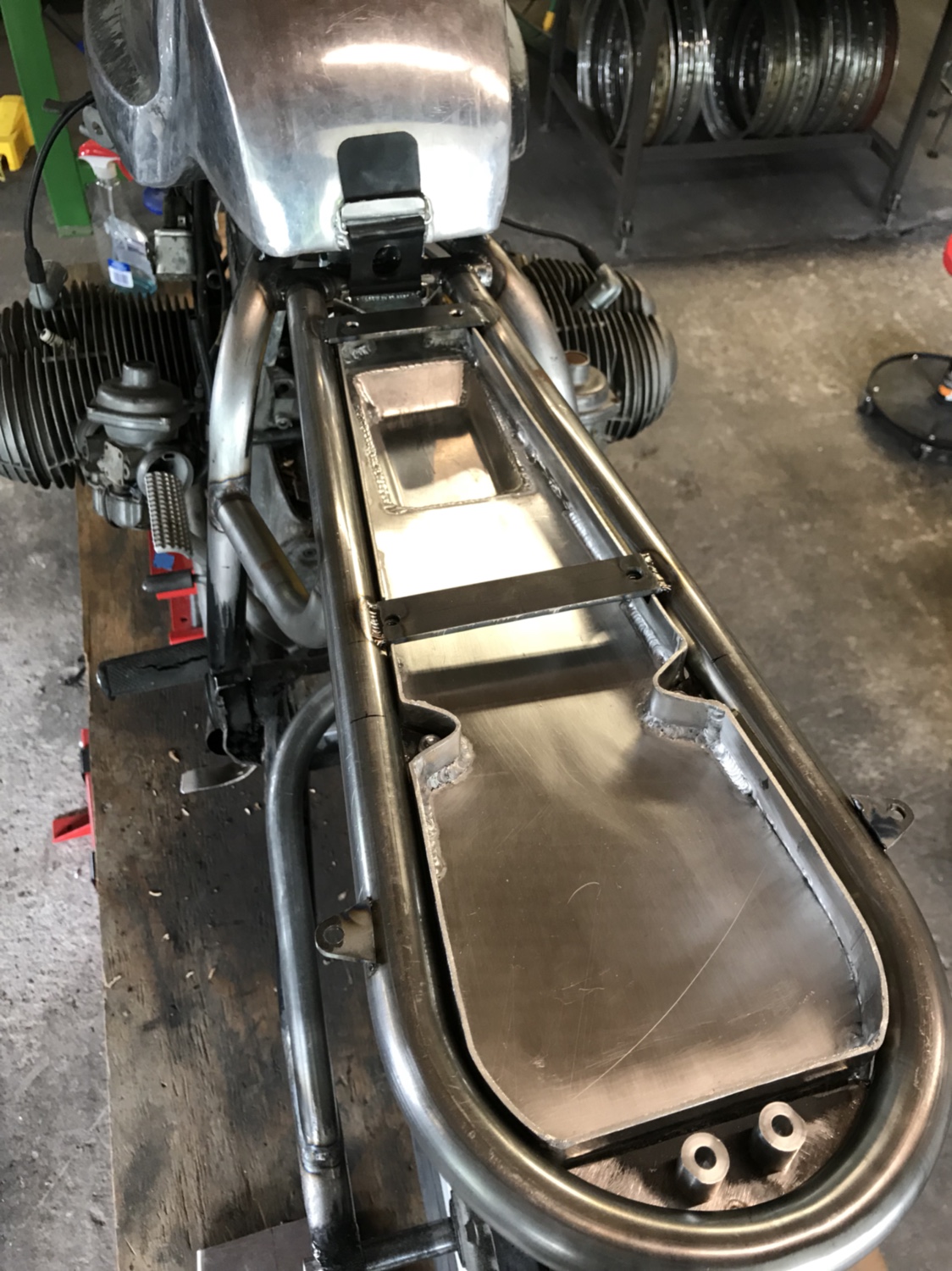

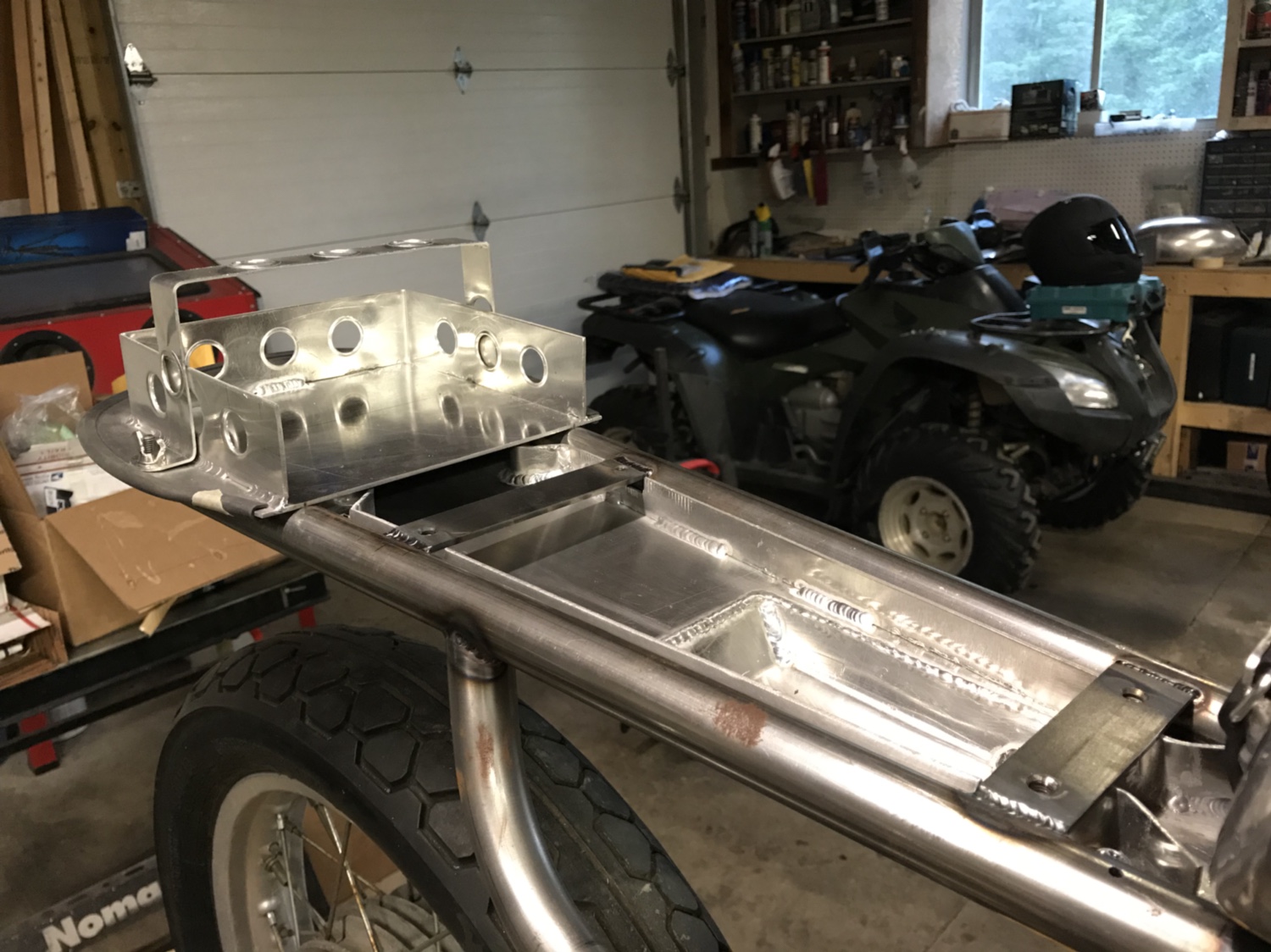

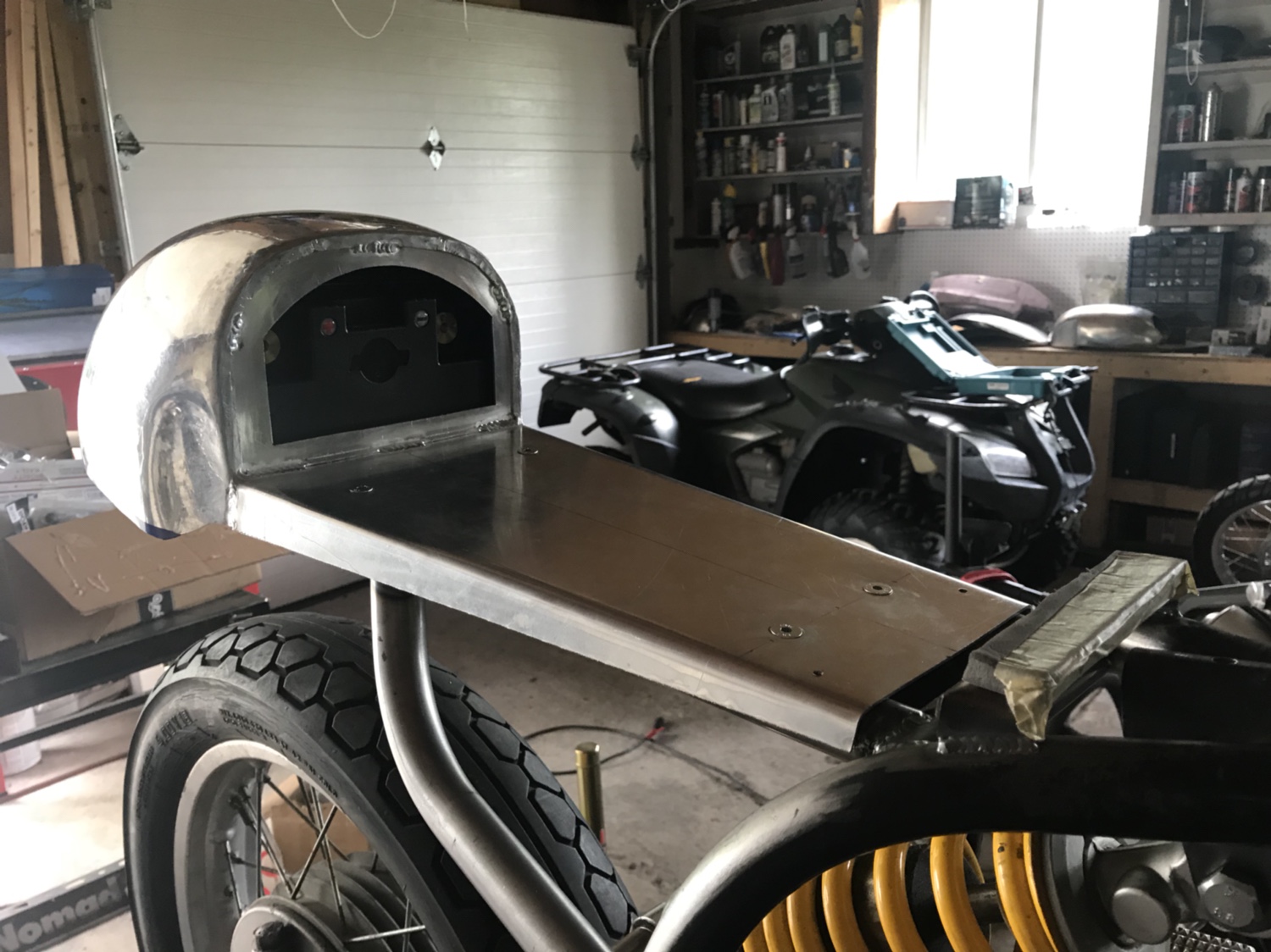

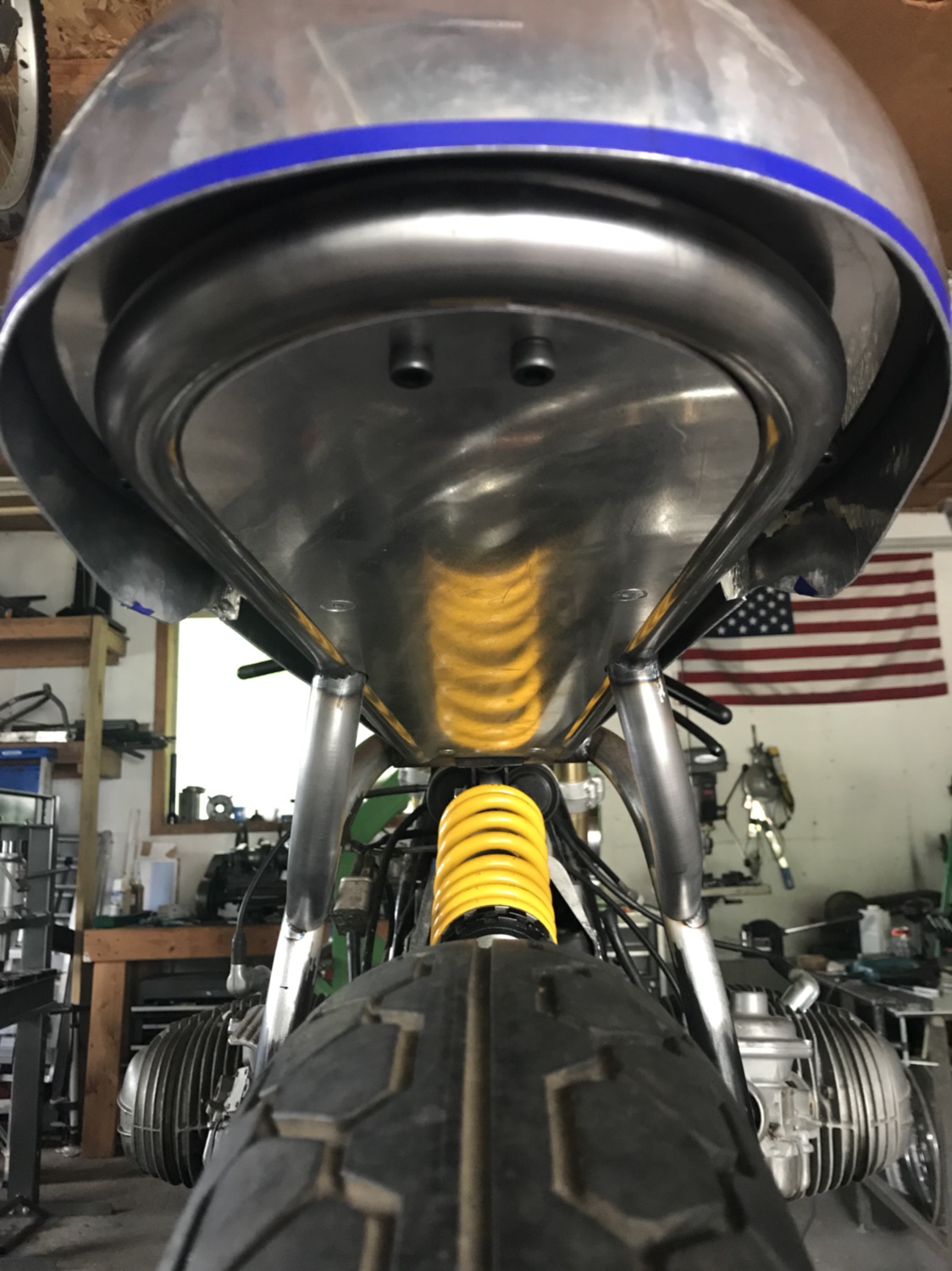

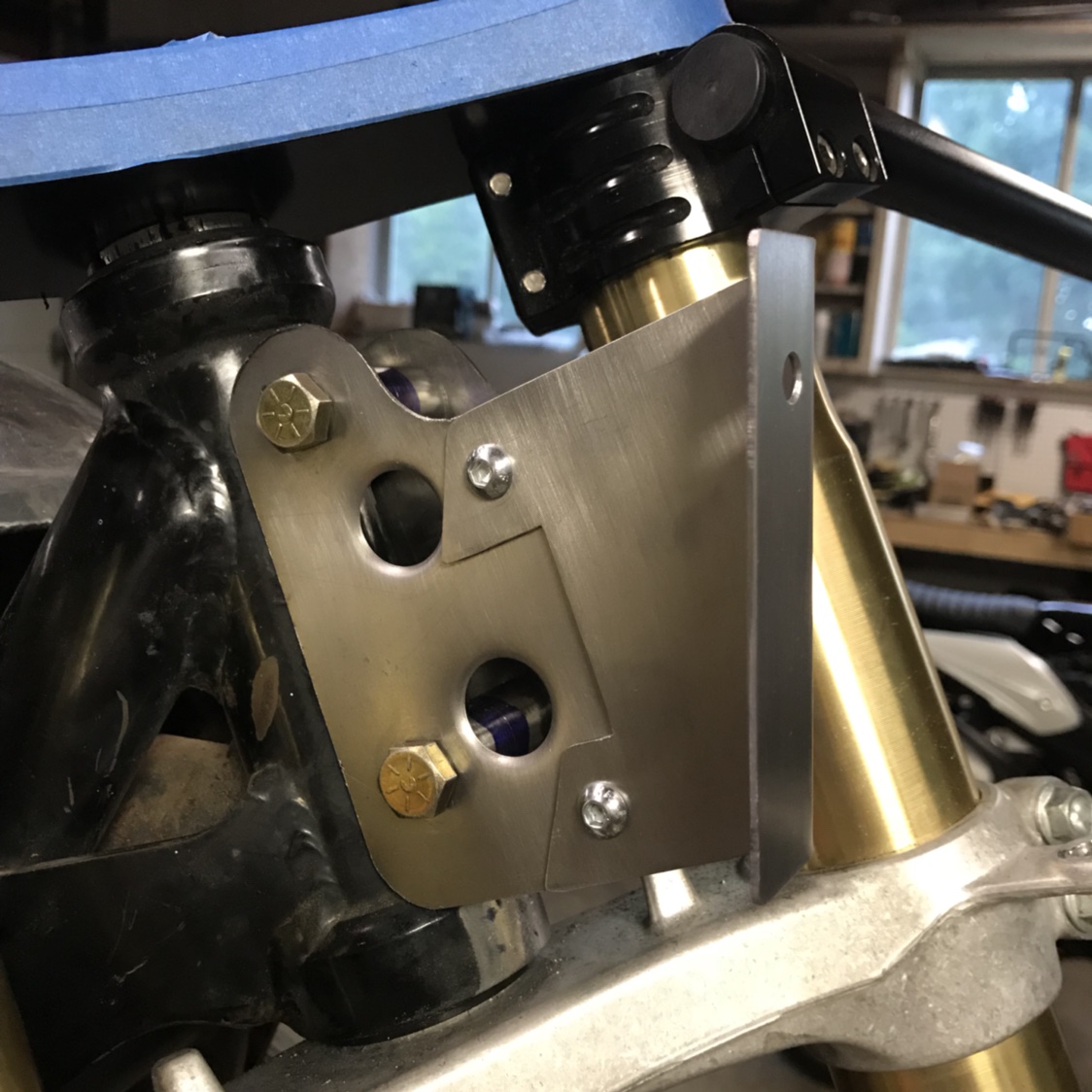

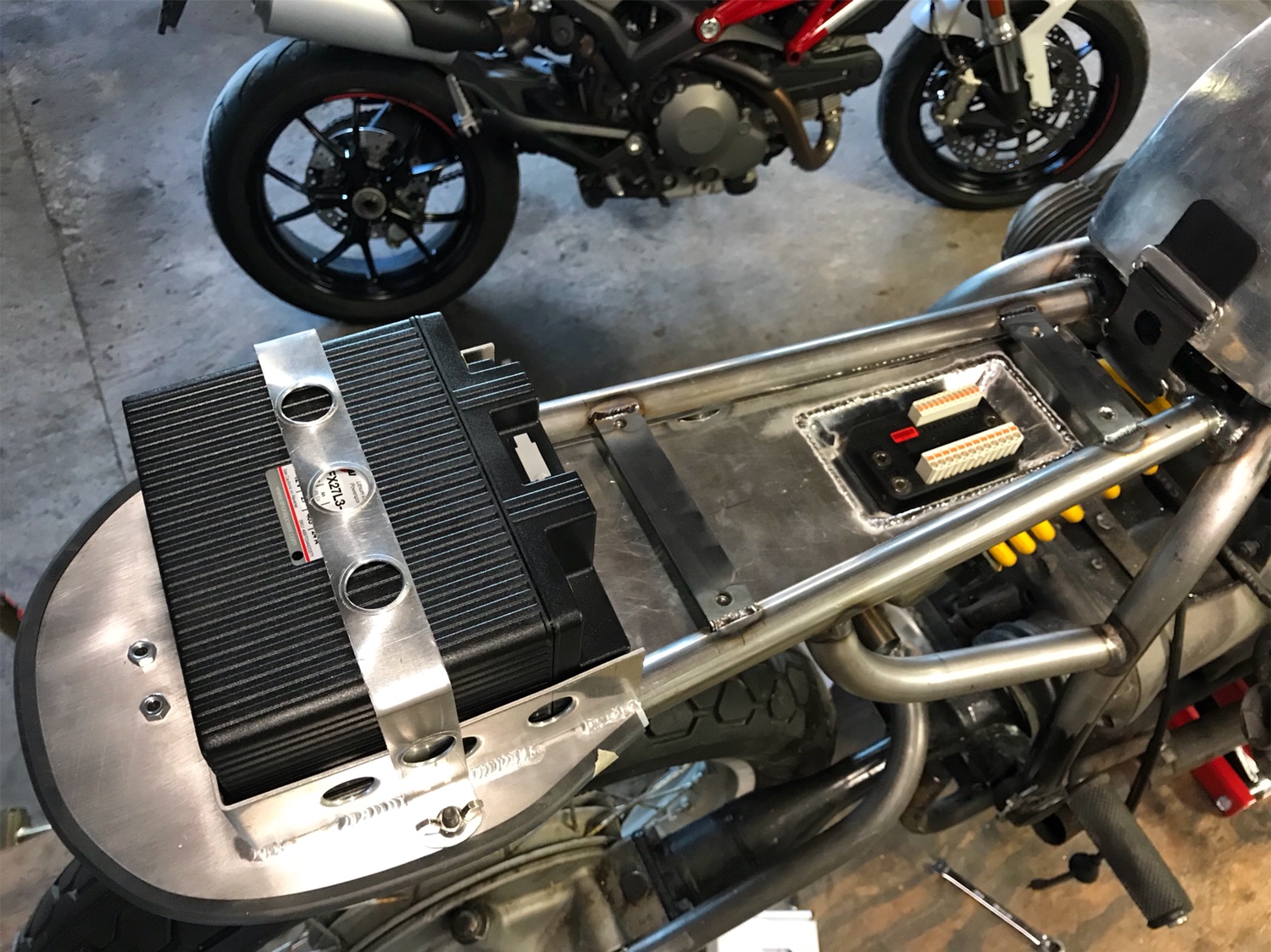

I decided to better enclose the under-seat electronics tray by adding a boarder. It doesn’t look like much, but it was a real pain in the ass. Next I got started on the steel support structure for the front fairing and headlight. I’m using a 7” Union Pacific led headlight. I was originally going to make a mount from scratch like I have in the past, but to save time I decided to cut down a steel bucket. Should work nicely.



ncologerojr

Coast to Coast
DTT BOTM WINNER

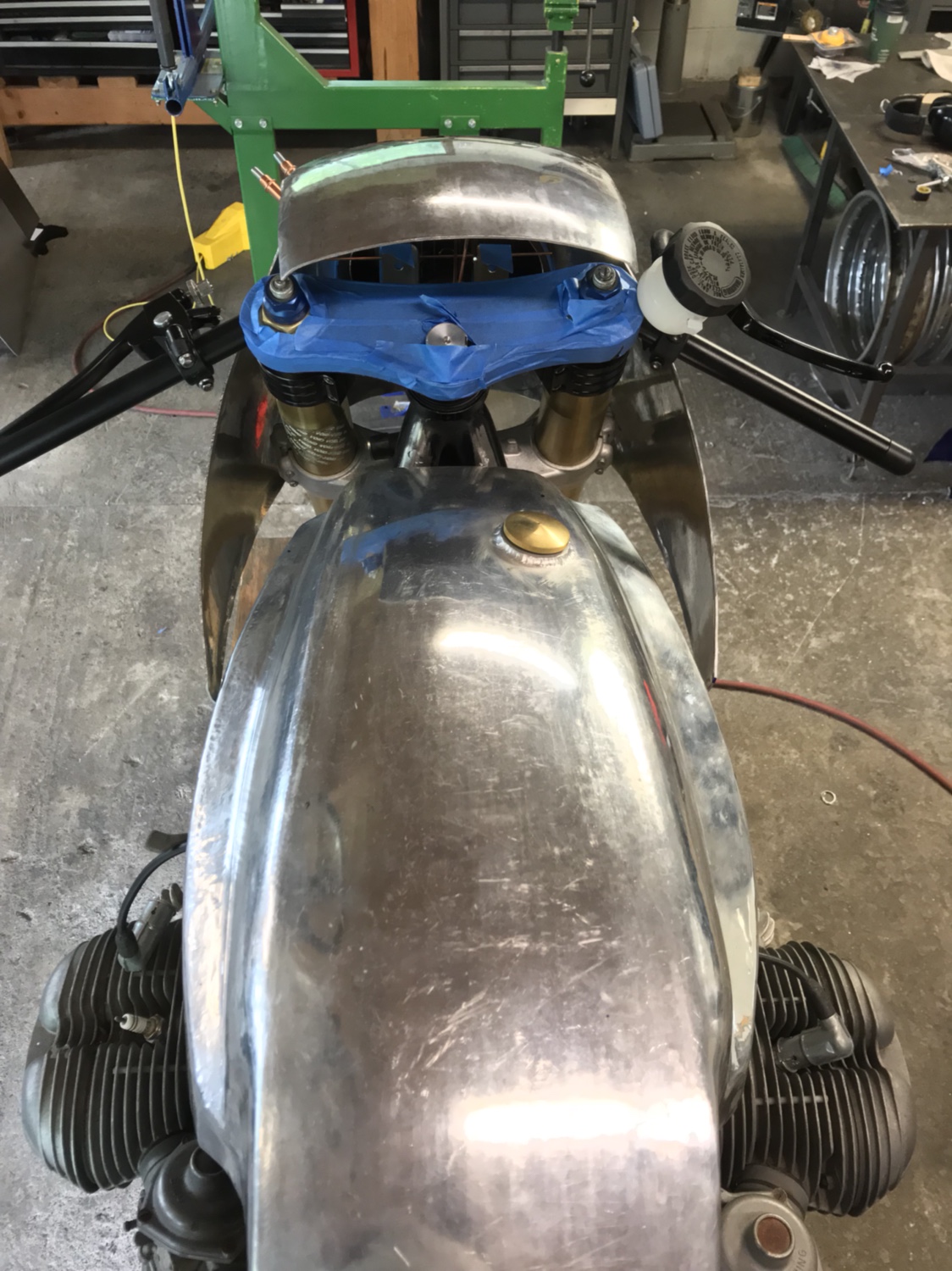

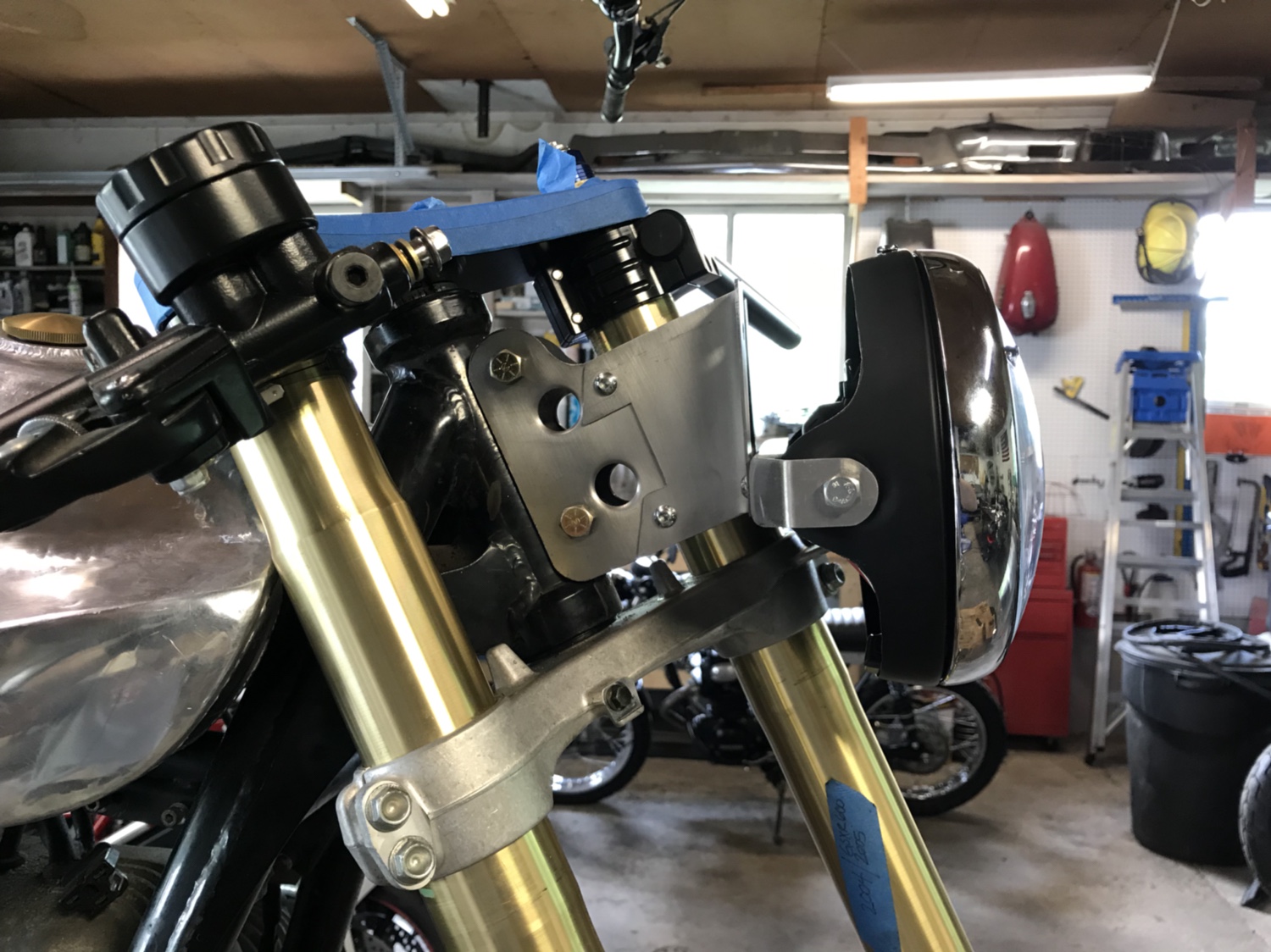

The headlight is in position. Now I’ll use tig rod to wireframe the front fairing to make sure I get the flow right. Then I’ll start hammering more aluminum.




ncologerojr

Coast to Coast
DTT BOTM WINNER

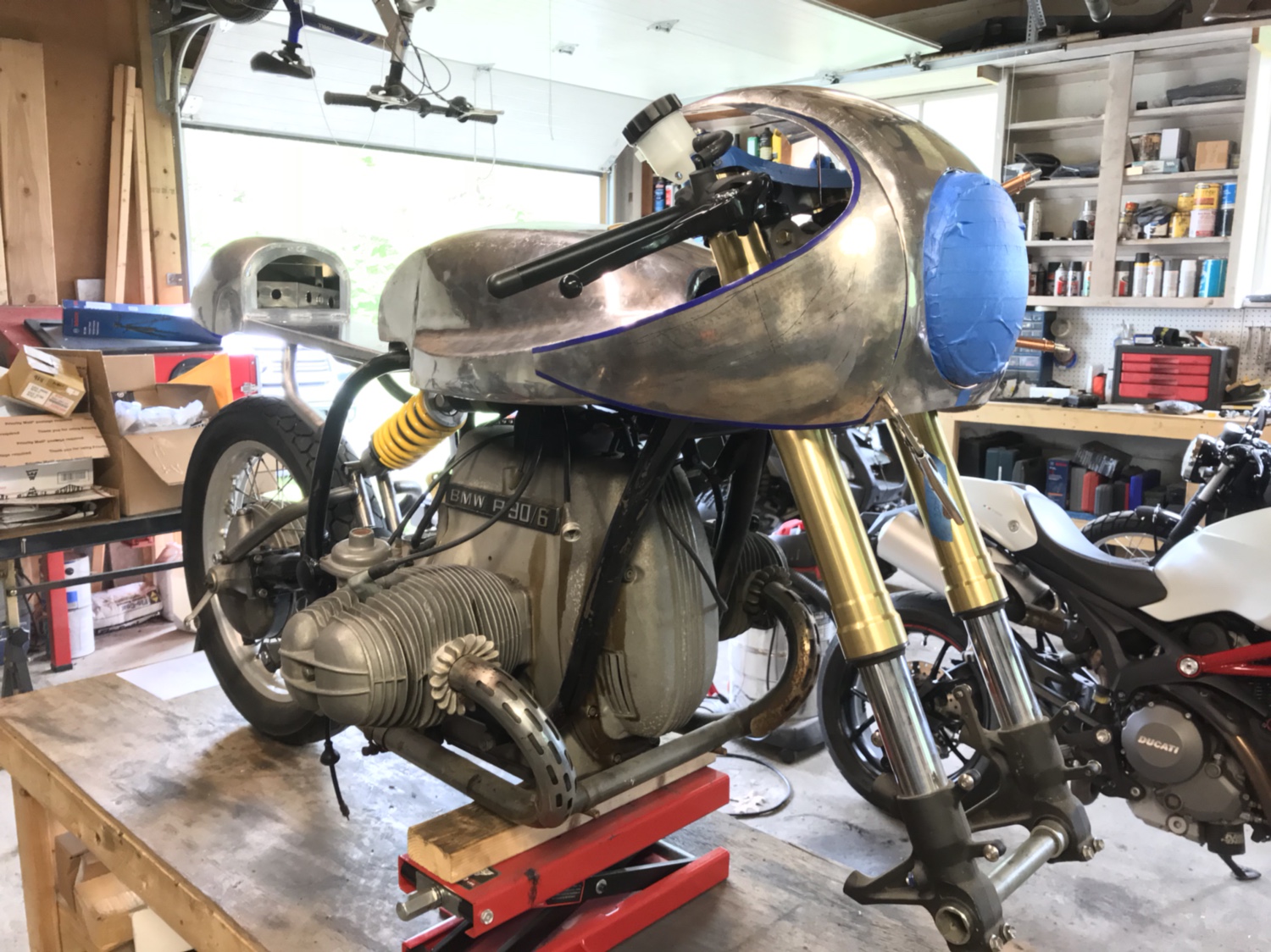

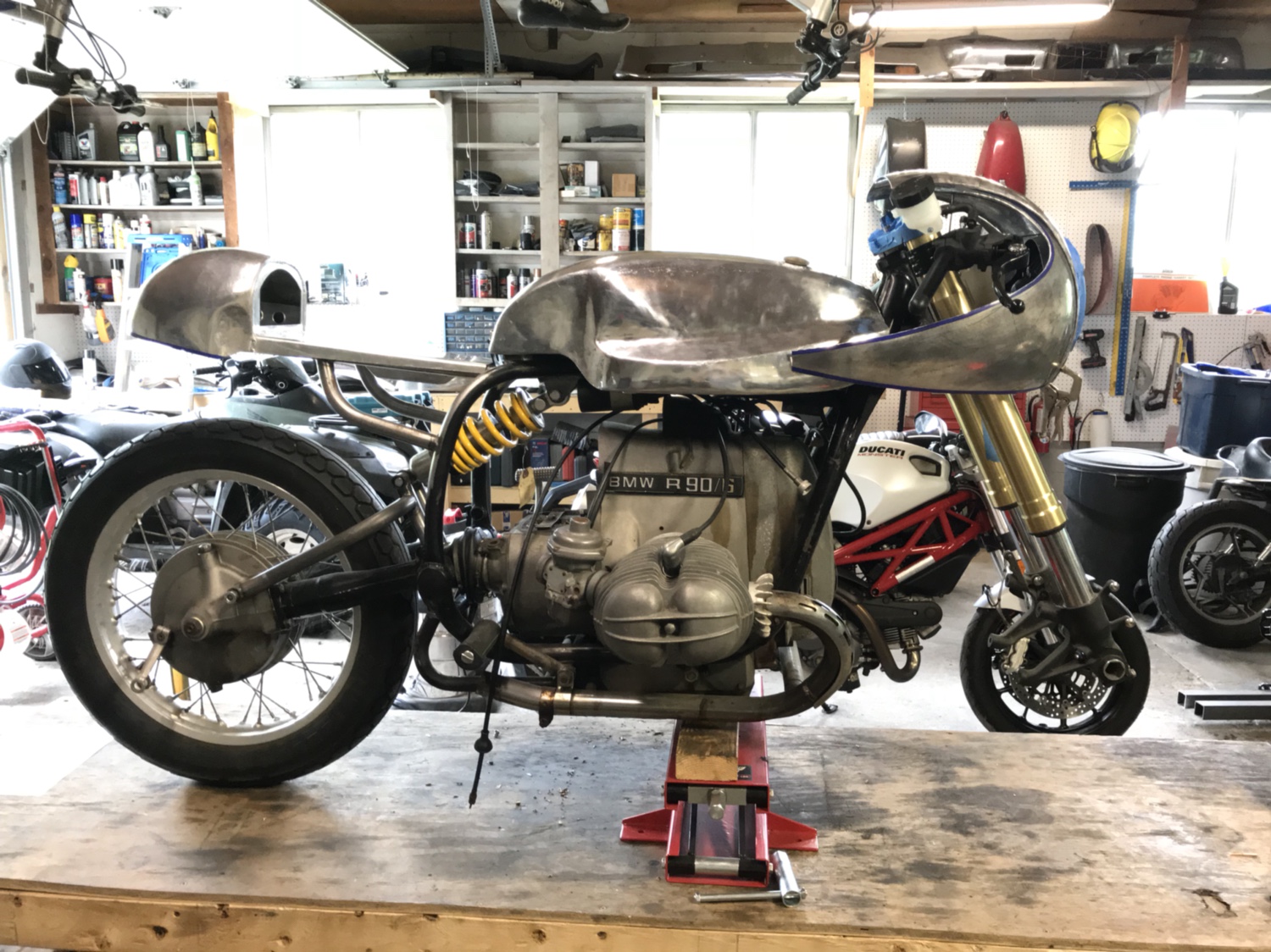

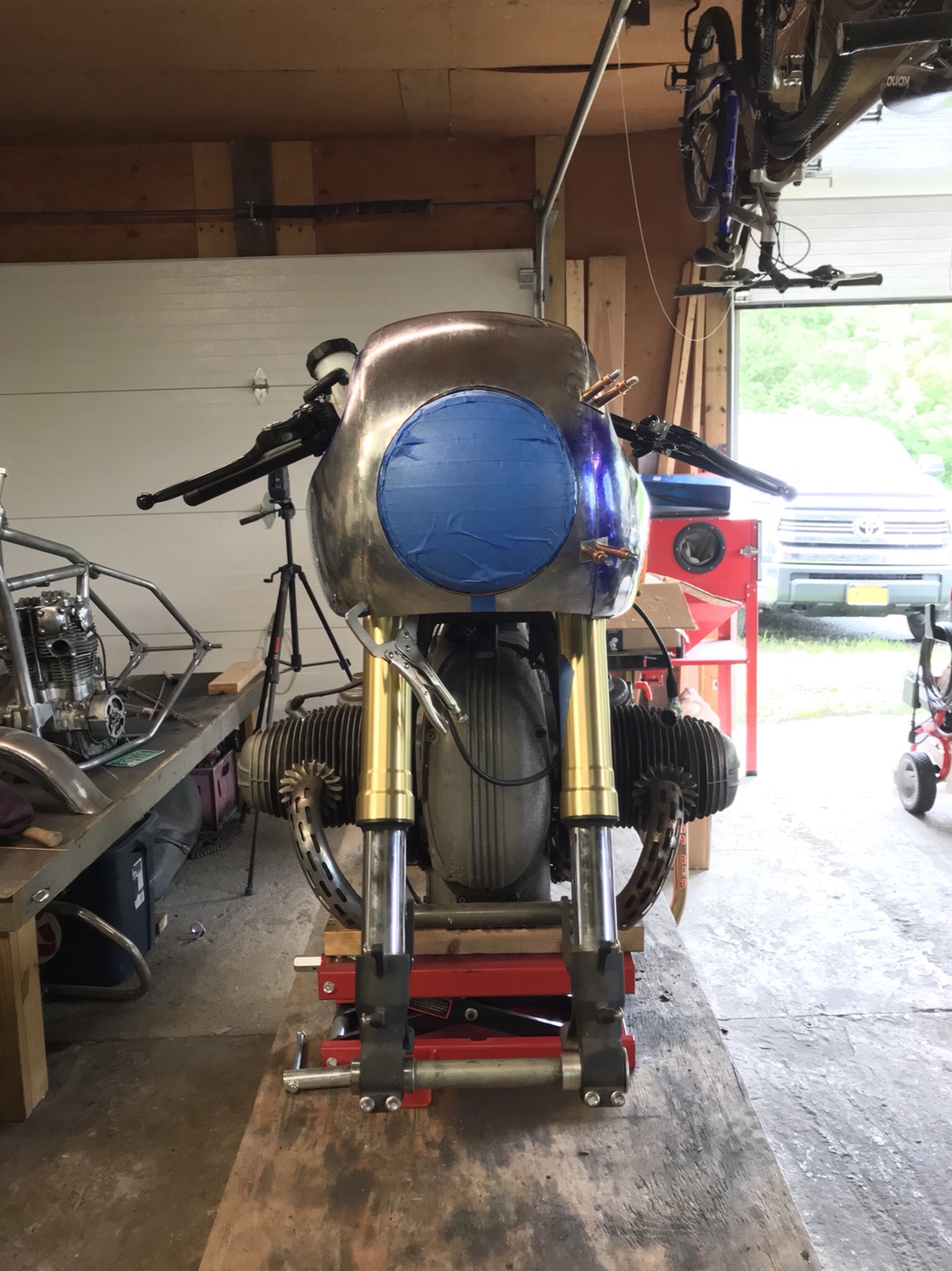

I finished up the front support and headlight mount. Now I’m roughing in the aluminum front fairing. It still needs a lot of tweaking and trimming, but showing it’s shape and flow with the tank.




ncologerojr

Coast to Coast
DTT BOTM WINNER
CrabsAndCylinders said:
Amazing work, looks fantastic!

That front wheel is way too small, see 4th pic above.

Thanks man!

That wheel is perfect! I’m just ahead of the trend. Big wheel baggers are out, tiny wheel cafes are in!


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
I just caught a glimpse of those header guards. I love them. Your make, or off the shelf?


3DogNate

"You Meet the Nicest People on a Honda"
irk miller said:
I just caught a glimpse of those header guards. I love them. Your make, or off the shelf?

https://www.ebay.com/itm/BMW-Airhead-Reynolds-Header-Pipe-Heat-Shields-R75-5-R90-6-R100/292657906639?hash=item4423c543cf:g:bVUAAOSw1r5bW4xh

My buddy Garry runs them on his BMWs... they are indeed cool.
