CB250 RS - Project "Phoenix"

datadavid

New Member
Re: CB250 RS - Project "Phoenix"

paddyshepherd said:
Yeah, I know what you're saying there - I do like brat bikes but it takes a lot for one to really stand out. This won't be a brat, but it will have a couple of small cues from brat bikes (like the seat base), but it will definitely still have a small rear hump and a more café style colour scheme, probably with quite a lot of polished/brushed parts too. I'm kinda seeing it as a combination of styles. Hopefully it'll work out nice in the end. I'm focussing a lot on aesthetics so I'll be making sure it doesn't just end up looking a dogs dinner of parts. It may sound that way at the moment but I've got a clear image in my head of how it will all flow together - it's just difficult to visualise and show when there's only half of it there!

As for the frame, what you've described is exactly what I'm planning on having done. The new top bar will join at the top of the shock mount such that it's perfectly level. I'm lucky in the fact I've got two good friends who are both very good welders. I've said I don't mind how they do it as long as the end result is the same, but I envisage they'll cut the top bar out completely and weld a new one in, which will taper at the rear end to merge with the top of the shock mount.

Not sure how that input is helpful in any way, shape or form.
Ok im gonna be helpful - skateboard seats are a joke, and a very good one! Have your welder friends help you with a sheet metal seat pan instead. Its not like anyone is gonna see that piece of wood under all the padding and leather anyway.

Re: CB250 RS - Project "Phoenix"

datadavid said:
Ok im gonna be helpful - skateboard seats are a joke, and a very good one! Have your welder friends help you with a sheet metal seat pan instead. Its not like anyone is gonna see that piece of wood under all the padding and leather anyway.
See that's kinda where you're wrong. Since the deck is going to form the top of the bike, it will also be where the hump mounts to, where the seat attaches to, license plate and tail light. Looking from the back of the bike the underside will be clearly visible, hence it'll be varnished and polished. It will be visible to those who pay enough attention to look at details and notice that it runs all the way up the bike to the tank.

I'm not using a skateboard deck as a seat base through inability to make a sheet metal one - so there's no need to try and be patronising about it.
I'm doing it through choice - I'm a skater & a snowboarder who happens to be a bike enthusiast too - so if I can combine those hobbies and still build a bike that looks how I want it to then that's what I'm gonna do.

I'm still failing to see where you've been helpful.

So some progress the past couple of days.

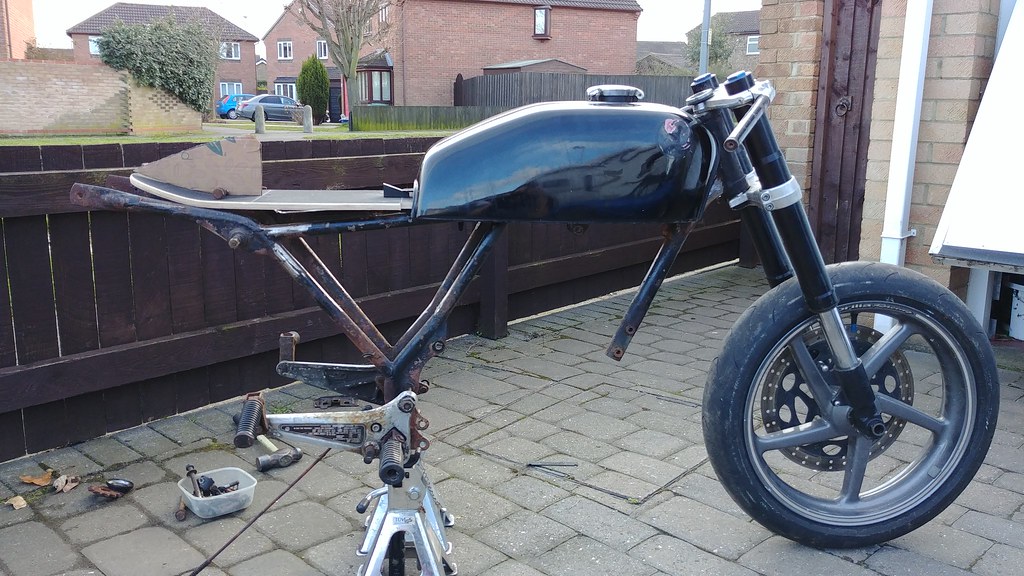

I started mocking up the seat base by trimming the deck so it would fit under my tank, so I could get a reference for my fabricator of where I wanted the bike to stop etc. I chopped one end off the deck and made it slightly narrower to clear the tank. Eventually it would be tapered in to match the inwards taper of the frame. Once done, I clamped the deck in place and had a sit to make sure it felt somewhere near. It did.




Happy with the result, I began to mock up some hump profiles out of cardboard. The plan was I could start developing the hump whilst the frame was with the fabricator. I was quite happy with this one. Very simple and quick, I know, but primarily it gave me an idea of a rough size and profile that would look good on the bike.



It was only just after this, that I began chatting with my dad and was explaining to him that I'd like to add a slight "ducktail" to the back of the bike, to give a nod to the original CB250RS tail unit. He couldn't remember what the stock one looked like so I dug it out to show him.

Light. Bulb.

Not sure why I'd never thought of it before, but why not simply re-use and modify the stock tail unit. After all, it's already quite square sided so would go quite nicely with the tank. 5 minutes later and some rough cuts made, I had a tail unit I could play about with and enhance, rather than starting afresh. Today I dropped the back end back onto the bike so that I had a bit more reference to the proportions etc with the back wheel in place.

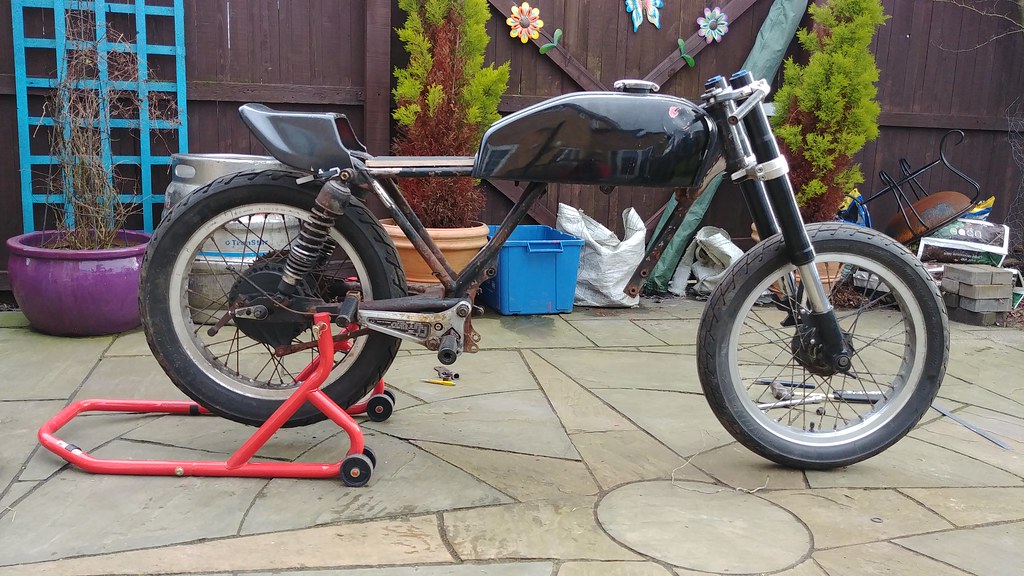

This is what I've ended up with so far.



Initial impressions are that it looks good. With a bit of work, it could be bang on the money. It's currently sitting a little bit high and a bit too upwards inclined for my liking, so tomorrow I'm gonna smooth off some stuff so that it fits a bit better (at this part of the frame, it's slightly too wide for the cowl to sit comfortably). I'm going to trim the lips of the inside of the cowl and also chop some of the frame. It's gonna be needing cut whichever route I go, so no harm in chopping some bits off now as long as I leave enough on for my fabricator to work with.

So that's that. At the moment it's a complete about-turn and the deck idea may be scrapped (as I'm sure Mr Datadavid will be thrilled by ::) ). I'm gonna keep it to one side for now in case I come back to it but I'm loving the lines with that cowl. Very retro-racey. Let me know what you think!



teazer

Well-Known Member
DTT BOTM WINNER
That has some promise.

This is going to sound off the wall, but have you looked at it with stock seat and rear cowl and seen how that might be reshaped? It might look more balanced. Just a thought. Stock is probably too long, but there may be a compromise in there somewhere that would work.

teazer said:
That has some promise.

This is going to sound off the wall, but have you looked at it with stock seat and rear cowl and seen how that might be reshaped? It might look more balanced. Just a thought. Stock is probably too long, but there may be a compromise in there somewhere that would work.
Unfortunately I no longer have the stock seat, I scrapped it as it was ruined but kept the cowl. Annoyingly, the stock cowl, moved right up forward to where the original side trims would meet the tank, was just to say too long, else it wouldn't have needed much modification at all.

I'll report back later today on where I get to!


datadavid

New Member
Re: CB250 RS - Project "Phoenix"

paddyshepherd said:
So some progress the past couple of days.

I started mocking up the seat base by trimming the deck so it would fit under my tank, so I could get a reference for my fabricator of where I wanted the bike to stop etc. I chopped one end off the deck and made it slightly narrower to clear the tank. Eventually it would be tapered in to match the inwards taper of the frame. Once done, I clamped the deck in place and had a sit to make sure it felt somewhere near. It did.




Happy with the result, I began to mock up some hump profiles out of cardboard. The plan was I could start developing the hump whilst the frame was with the fabricator. I was quite happy with this one. Very simple and quick, I know, but primarily it gave me an idea of a rough size and profile that would look good on the bike.



It was only just after this, that I began chatting with my dad and was explaining to him that I'd like to add a slight "ducktail" to the back of the bike, to give a nod to the original CB250RS tail unit. He couldn't remember what the stock one looked like so I dug it out to show him.

Light. Bulb.

Not sure why I'd never thought of it before, but why not simply re-use and modify the stock tail unit. After all, it's already quite square sided so would go quite nicely with the tank. 5 minutes later and some rough cuts made, I had a tail unit I could play about with and enhance, rather than starting afresh. Today I dropped the back end back onto the bike so that I had a bit more reference to the proportions etc with the back wheel in place.

This is what I've ended up with so far.



Initial impressions are that it looks good. With a bit of work, it could be bang on the money. It's currently sitting a little bit high and a bit too upwards inclined for my liking, so tomorrow I'm gonna smooth off some stuff so that it fits a bit better (at this part of the frame, it's slightly too wide for the cowl to sit comfortably). I'm going to trim the lips of the inside of the cowl and also chop some of the frame. It's gonna be needing cut whichever route I go, so no harm in chopping some bits off now as long as I leave enough on for my fabricator to work with.

So that's that. At the moment it's a complete about-turn and the deck idea may be scrapped (as I'm sure Mr Datadavid will be thrilled by ::) ). I'm gonna keep it to one side for now in case I come back to it but I'm loving the lines with that cowl. Very retro-racey. Let me know what you think!

You see! I helped you in the right direction! wood IS cool on bikes, maybe you could take the skateboard and steam bend it into a rear fender? It just isnt very useful mounting stuff on in the long run.

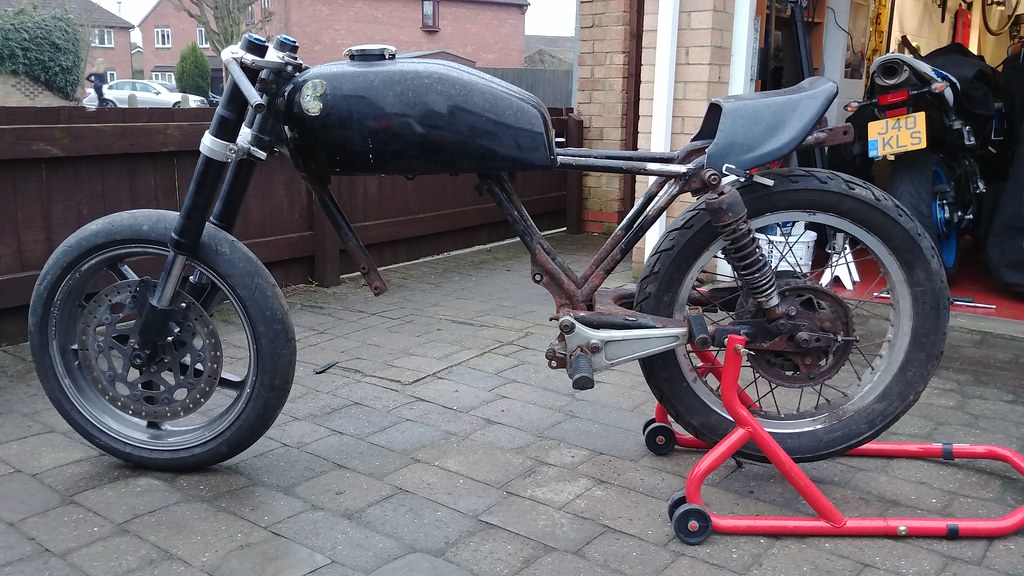

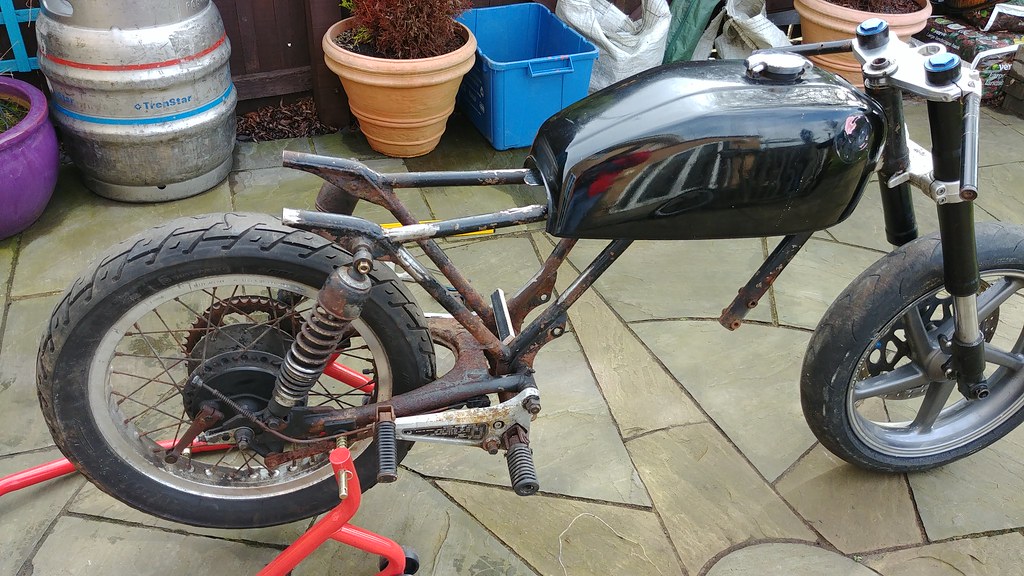

So a bit more done. Not sure if the cowl will work as it's still rather tight.

Lopped off the back end to start with and gently persuaded the back of the outer tube inwards a bit. Taking care to not bend the frame itself.

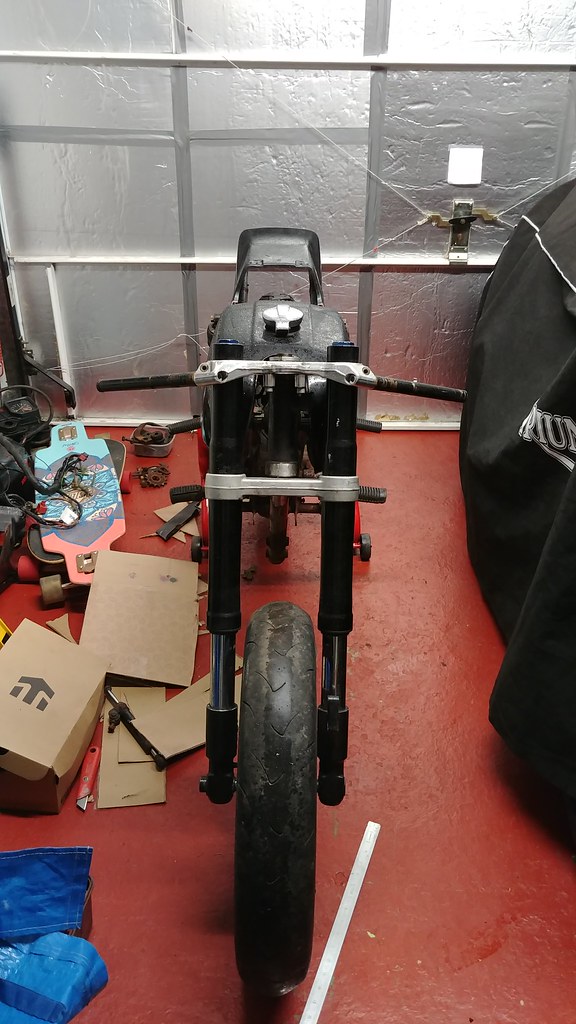

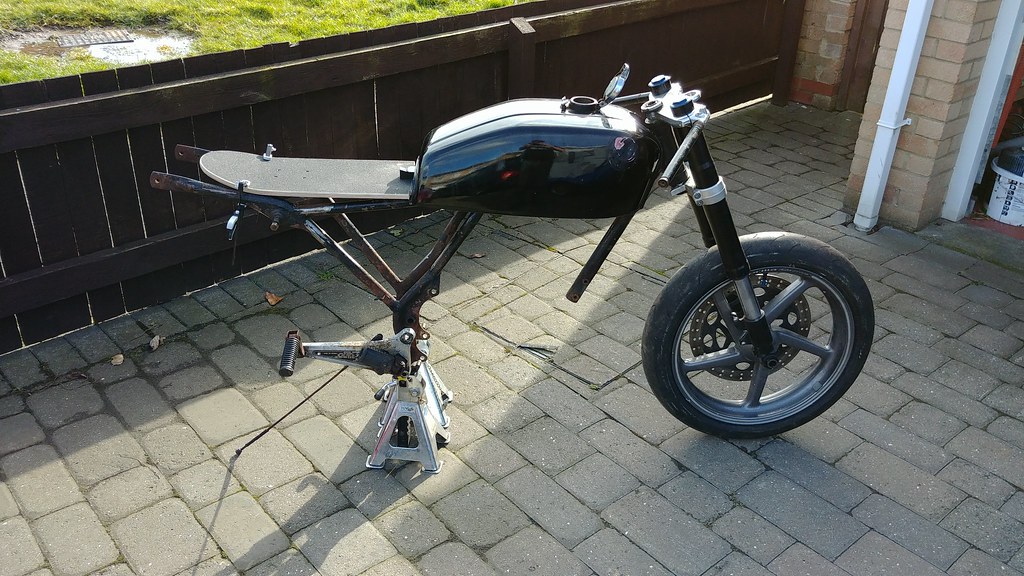

I then played about with the cowl lopped the deck down to make a makeshift seat base. Don't worry Datadavid, it won't stay like that. I dropped the front wheel of the 250 in to see how it looked. Happy with the look of it at the moment. Would be nice if I could get the cowl a little lower mind and it needs some shaping work to blend it into the frame. Still think I need the top bar of the triangle raising up to come in above the shock mount.



Popeye SXM

Also used for MX
I like cowl in the last pic. Perhaps some longer shocks, I like the lines as it sits on the stand but the rear will drop when on it's wheels. Very easy to mock up just change the shocks for timber. Or lower the front end

Popeye SXM said:
I like cowl in the last pic. Perhaps some longer shocks, I like the lines as it sits on the stand but the rear will drop when on it's wheels. Very easy to mock up just change the shocks for timber. Or lower the front end
That's a very valid point, not looked at it without it being on the stand yet. Shocks may be an option though as I need to buy new shocks anyway. Still not sure if the cowl will actually work as it's a bit of a stretch to get it to fit at the moment. May have to go for a similar styled, "universal" seat cowl.


teazer

Well-Known Member
DTT BOTM WINNER
That tail does appear to match tank shapes rather well. The overall look is not bad. Slightly longer shocks would help - agreed.

Will an XR500 slip in there to replace the 250 motor? That would make for a fun bike. Slim, light, ton of torque and styled like a seventies single racer. :)

teazer said:
That tail does appear to match tank shapes rather well. The overall look is not bad. Slightly longer shocks would help - agreed.

Will an XR500 slip in there to replace the 250 motor? That would make for a fun bike. Slim, light, ton of torque and styled like a seventies single racer. :)
Yeah, I've been having a look around at what bikes use shocks up to about 50mm longer. I dropped it off the stand last night and it would definitely benefit from it. It would help me too, being 6'3".

The XR500 engine does indeed drop straight in - if you can find one! Certainly in the UK they're pretty rare now, and thus sell for ridiculous amounts of money. There's a local guy that offered me two engines for £300, but they were in tons of pieces scattered around his workshop and the only way I'd know I'd got everything would be to take an exploded diagram with me and piece it up at his shop. Seemed a long process for 5mph, though the extra torque would be lovely. The plan is to keep it as a 250 for now but if a 500 motor comes up for sale I'll jump on it.

In the meantime, I've been invited down to Herbertson Racing's pit garage when they race at my local circuit next month, after asking about the tail unit on this bike, as they'll have it with them: https://rocket-garage.blogspot.com/2014/02/honda-cb-400-super-sport-david-roberts.html

I think it could work well for what I'm after if I can't make the stock one work.


datadavid

New Member
Re: CB250 RS - Project "Phoenix"

paddyshepherd said:
So a bit more done. Not sure if the cowl will work as it's still rather tight.

Lopped off the back end to start with and gently persuaded the back of the outer tube inwards a bit. Taking care to not bend the frame itself.



I then played about with the cowl lopped the deck down to make a makeshift seat base. Don't worry Datadavid, it won't stay like that. I dropped the front wheel of the 250 in to see how it looked. Happy with the look of it at the moment. Would be nice if I could get the cowl a little lower mind and it needs some shaping work to blend it into the frame. Still think I need the top bar of the triangle raising up to come in above the shock mount.

Hell, its gonna look a lot better than my bike

Nothing much done the past few days physically, but I've managed to iron out a few things in my head;

  • Colour scheme. This is gonna be Chevrolet Black Rose or similar. It's gonna have a dark silver stripe down the centre, where the ridged section of the tank is.
  • Tail Unit. I'm gonna make a new one. It's going to be similar to the existing, but it'll continue the ridge from the tank such that the stripe can carry through and tie the two items together
  • Wheels. Stainless spokes, Polished rims, Powdercoated hubs. Continental Classic Attacks.
  • Seat unit. Custom made and upholstered, potentially hinged, unit

Start stripping the front wheel down tomorrow hopefully.

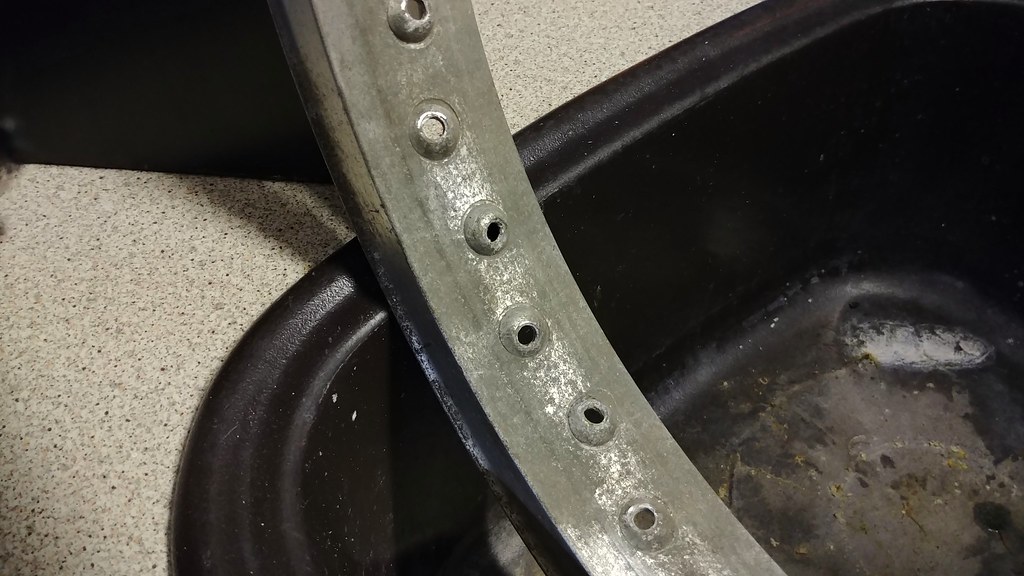

Stripped the front wheel down today. Managed to save some spokes for measuring but had to cut most of them out. Time to start seeing if these rims will polish up or if they're too far gone.



MiniatureNinja

Member
DTT BOTM WINNER
paddyshepherd said:
That's a very valid point, not looked at it without it being on the stand yet. Shocks may be an option though as I need to buy new shocks anyway. Still not sure if the cowl will actually work as it's a bit of a stretch to get it to fit at the moment. May have to go for a similar styled, "universal" seat cowl.
I say the longer rear shocks will really make the bike

Well, I think I might have just won the bargain of the century award.

So a couple of nights ago a local guy found my aprilia forks on ebay and came to collect them. Obviously got chatting about bikes and he races small capacity bikes. He was interested in quite a few bits of mine so I gave him my number and he said he'd give me a shout if he wanted anything.

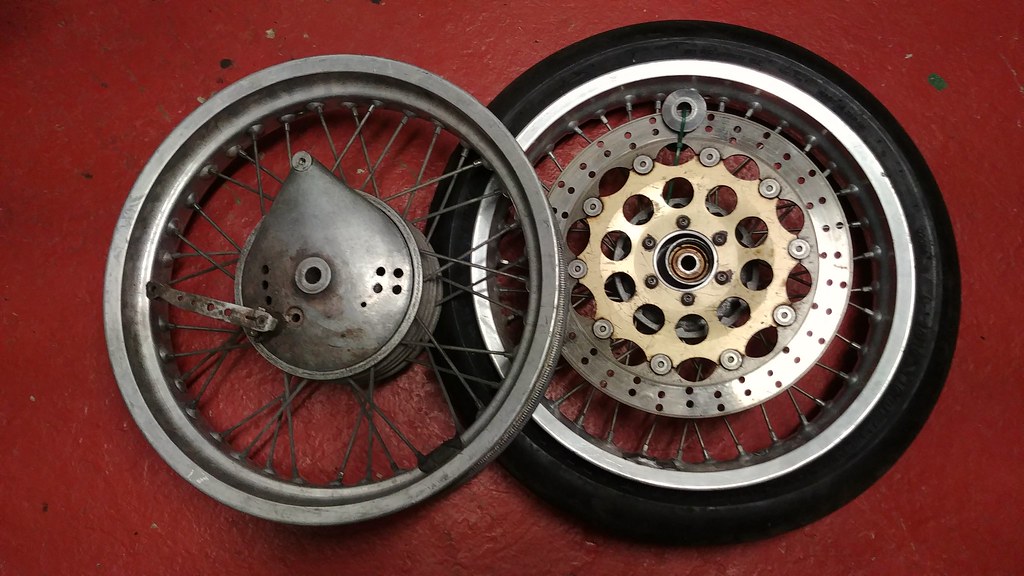

Fast forward to today and I got a text off him saying he had some spoked alloy wheels I might be interested in. 17x3" rear and a 17x2.15 front, and already had a brake spacer fitted to the front to suit an RS125 disc brake! Great, I thought, since a 17" would give me much better tyre choice, and with a bit of luck they'd need less work than mine too. I popped round to see them tonight since he's literally 5 minutes away.

Well they were just fantastic, they need a clean but very little in the way of corrosion, spokes all look good and the rear came with the drum brake assembly too. They're both Akront rims so good quality stuff. But the best bit was the price. I offered some of my parts that he was interested in but unfortunately his mrs would have killed him apparently! So instead he asked me for £50. Fifty! I nearly choked! I felt like I was robbing him as I drove away.

but anyway. Shiny things!


Today we spent a bit of time making the front wheel fit the RS forks.

The wheels were originally used on an MZ 250 race bike - if any of you remember those east german things...

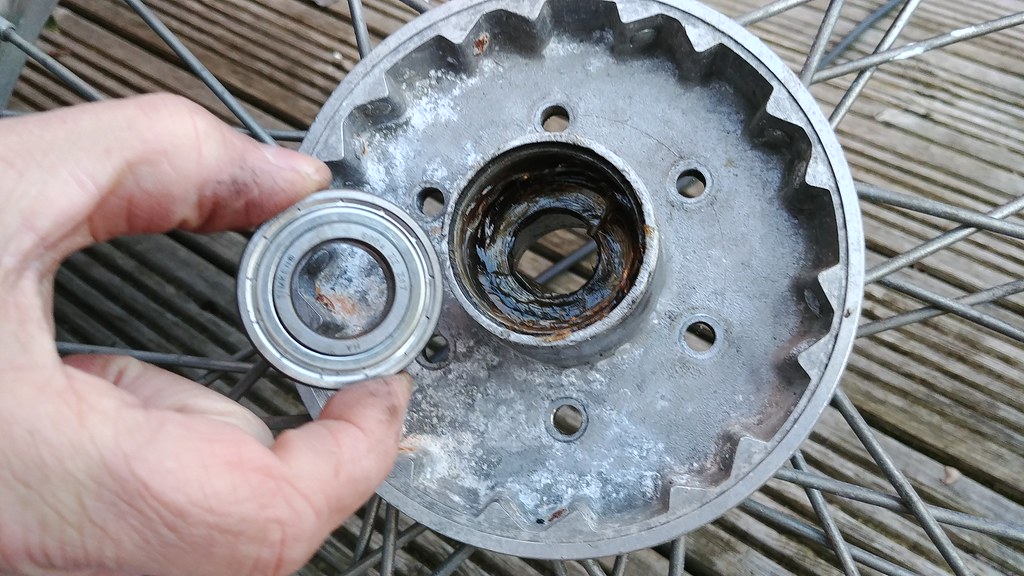

However, luckily there was an off the shelf bearing that fit what we need to suit the MZ hub diameter with the Aprilia spindle in it. I popped by our local bearing factor and they had them in.

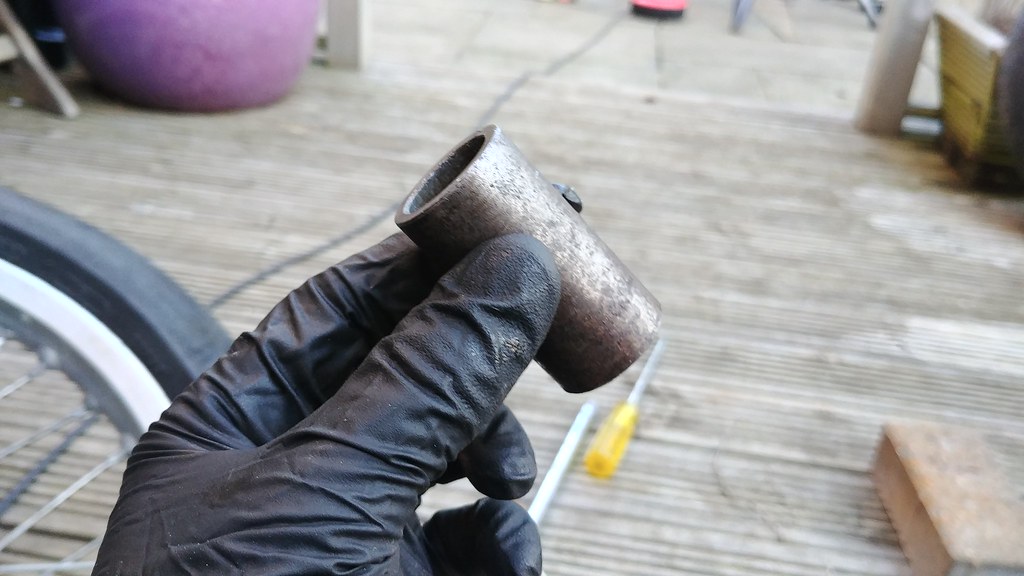

Unfortunately, the bearing spacer would also need replacement to suit the aprilia spindle. One bearing has a nice shoulder to sit against inside the hub (and due to the larger bearing ID this also now caught the inner race to prevent compression too). We grabbed an Aprilia spacer from a spare wheel and measured it up. It would fit what we needed, but wouldn't fit through the shoulder on the inside of the hub, so it was a handy bonus that the inner race on one side was nicely supported already. We could then sit our new spacer against the other side of the shoulder to support the new bearing at the opposite end of the hub. Christ I over complicated that description. ???

Anyway. We measured the required depth and lopped the Aprilia spacer down to size and chamfered the edge slightly with the grinder.

All done:

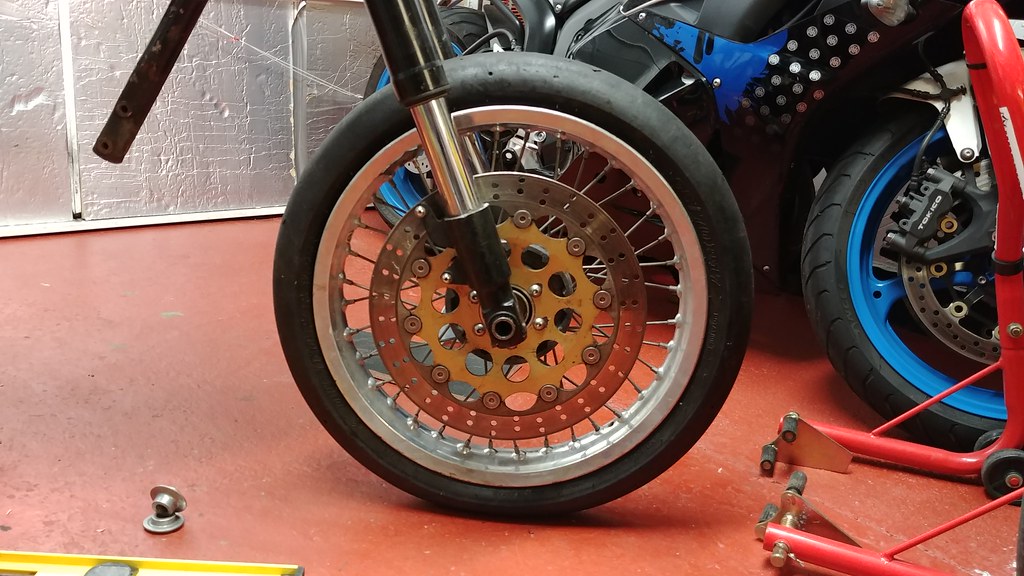

All that was left was to mount the Aprilia disc adapter and disc to the hub and mount it up to the forks!

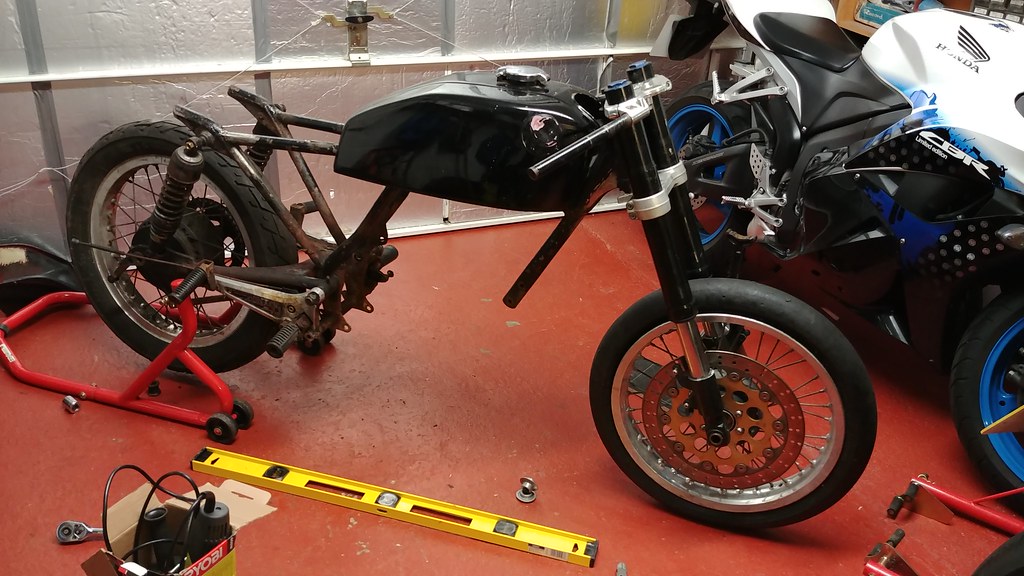

Definitely gonna need a better sized tyre than that little thing but it's looking good so far and I should have a good choice of rubber for them.
