CB750 No Plunger Hellride Freedom Machine

irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

canyoncarver said:
I like the new length and the bracing. Do you think you'll have to run a mid-chain tensioner ?
Not sure. The length really doesn't seem bad. I'm waiting on the screws to mount the rear sprocket then I'll measure it up. The local dealer didn't have a long 520 chain in stock, so I have to order. I have a tensioner here just in case.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
CB750 No Plunger Hellride

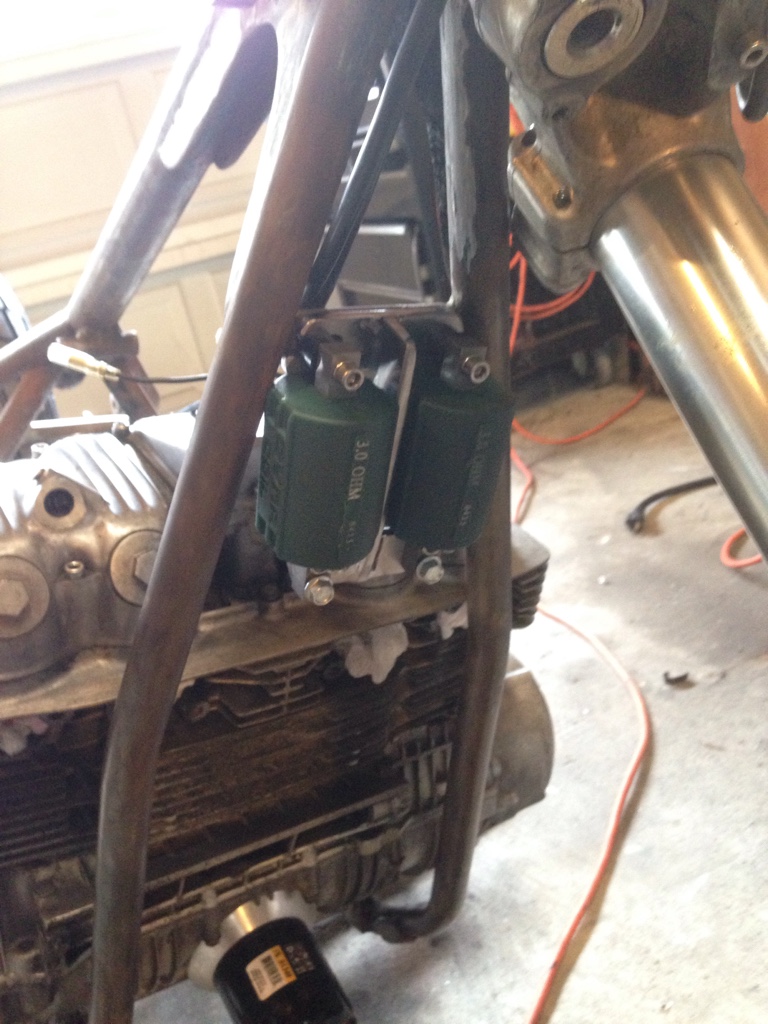

Nothing like getting a couple of days off for Fall Break and literally spending all day on a bracket to mount your coils #noglory




Sent from my iPhone using DO THE TON


Maritime

Well-Known Member
Re: CB750 No Plunger Hellride

Thats a clean and tight mount. I like it and with the hardtail the rear tire looks better to me too.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

Thanks, Mike.

A couple quick little updates...

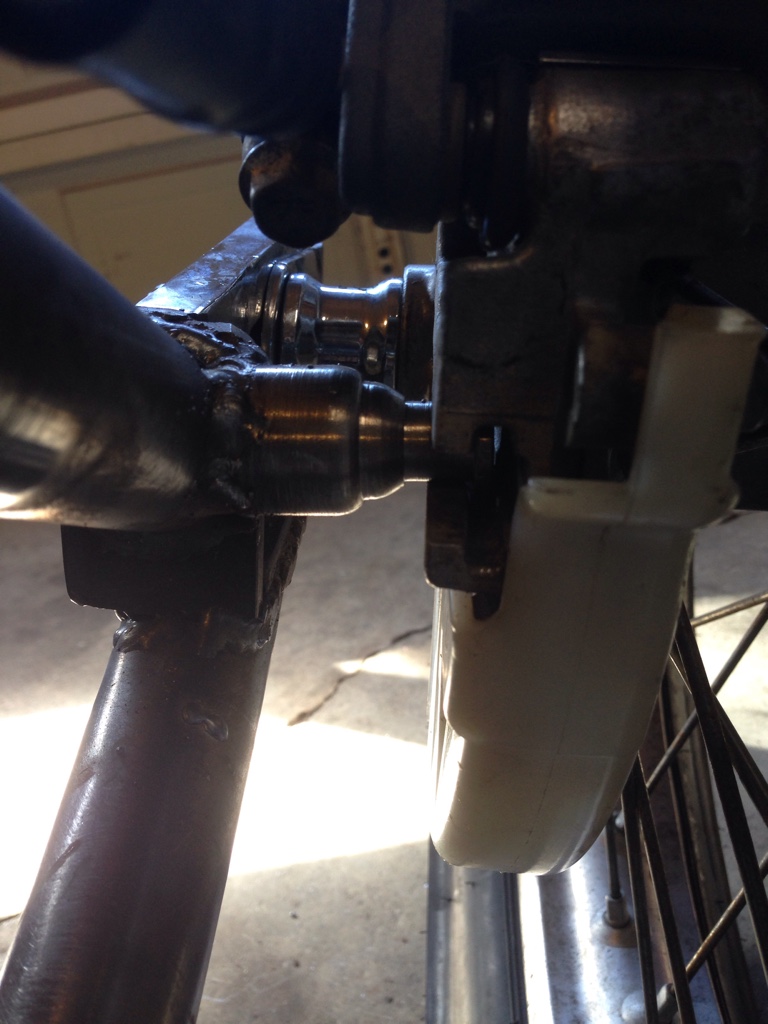

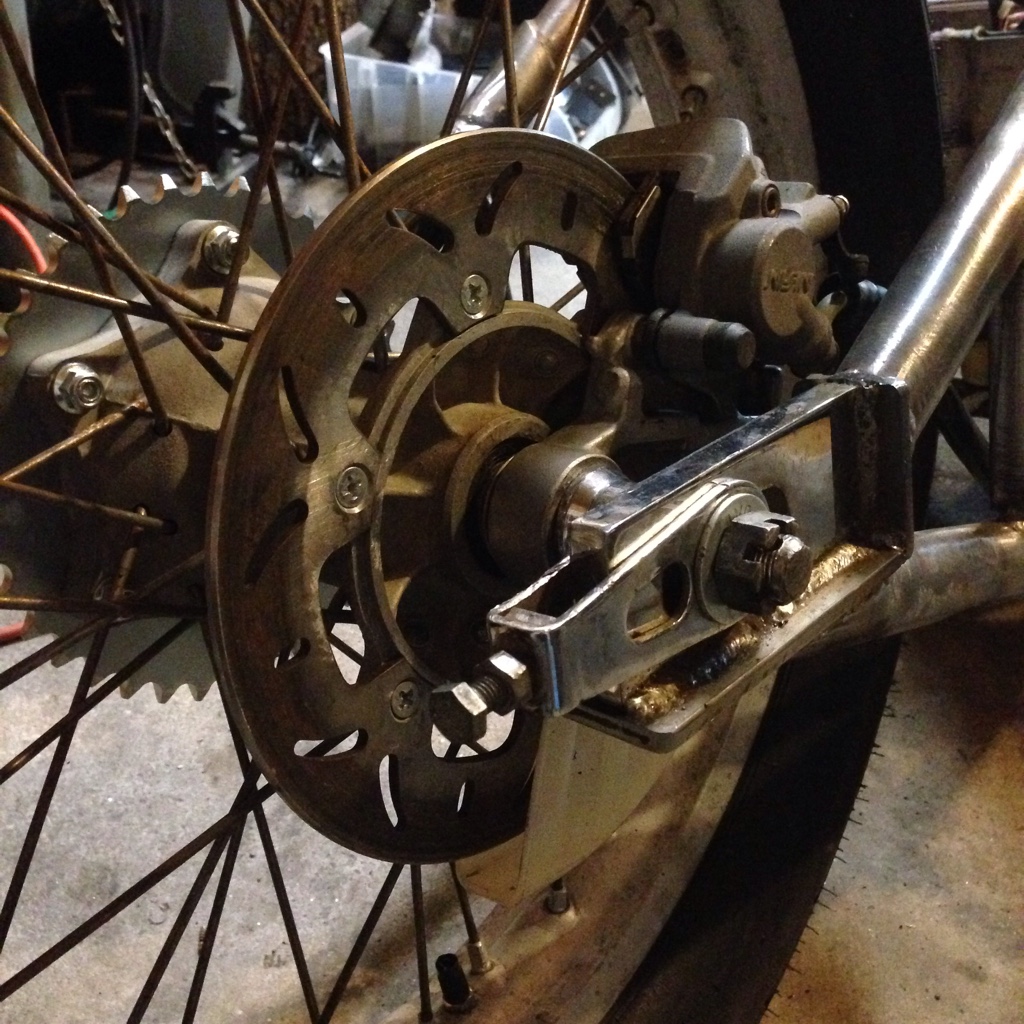

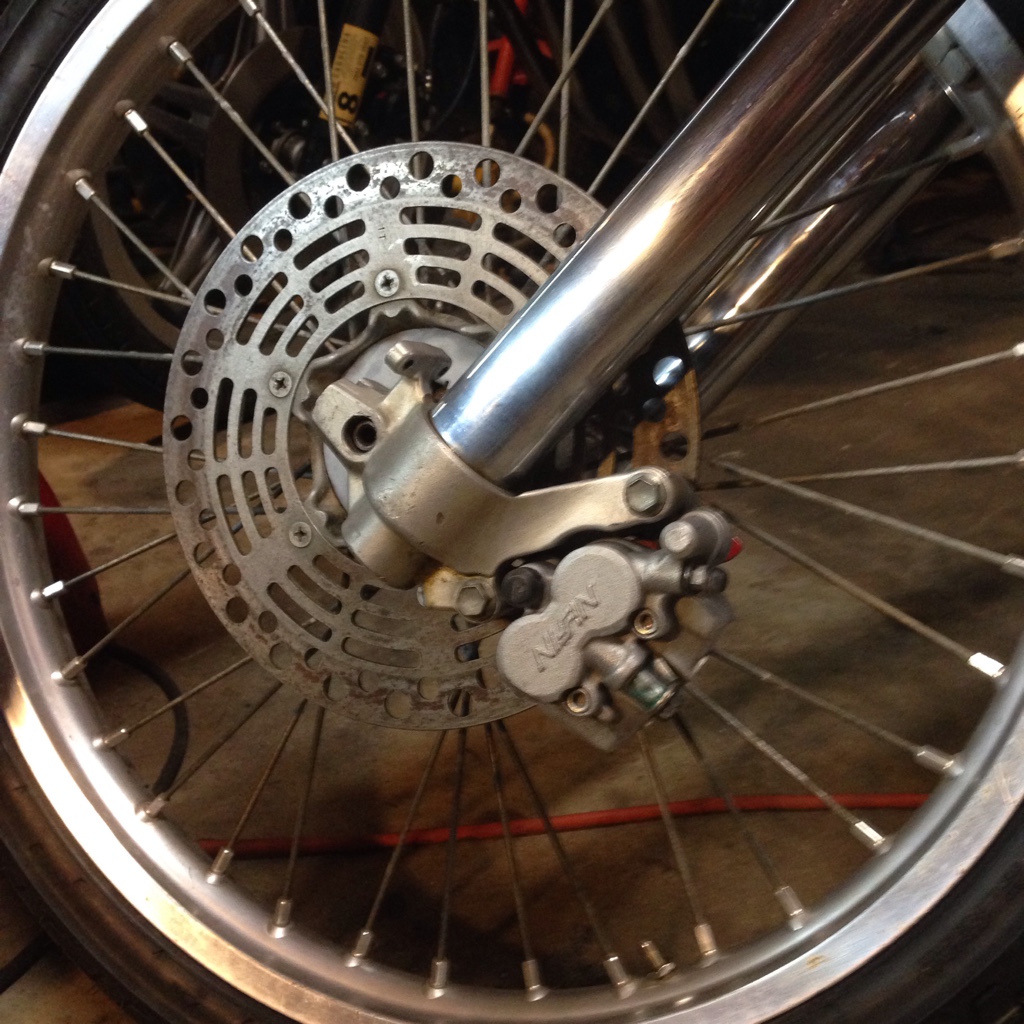

Brakes: I have to figure out a tab for the rear stay. Something I can try to machine tomorrow.

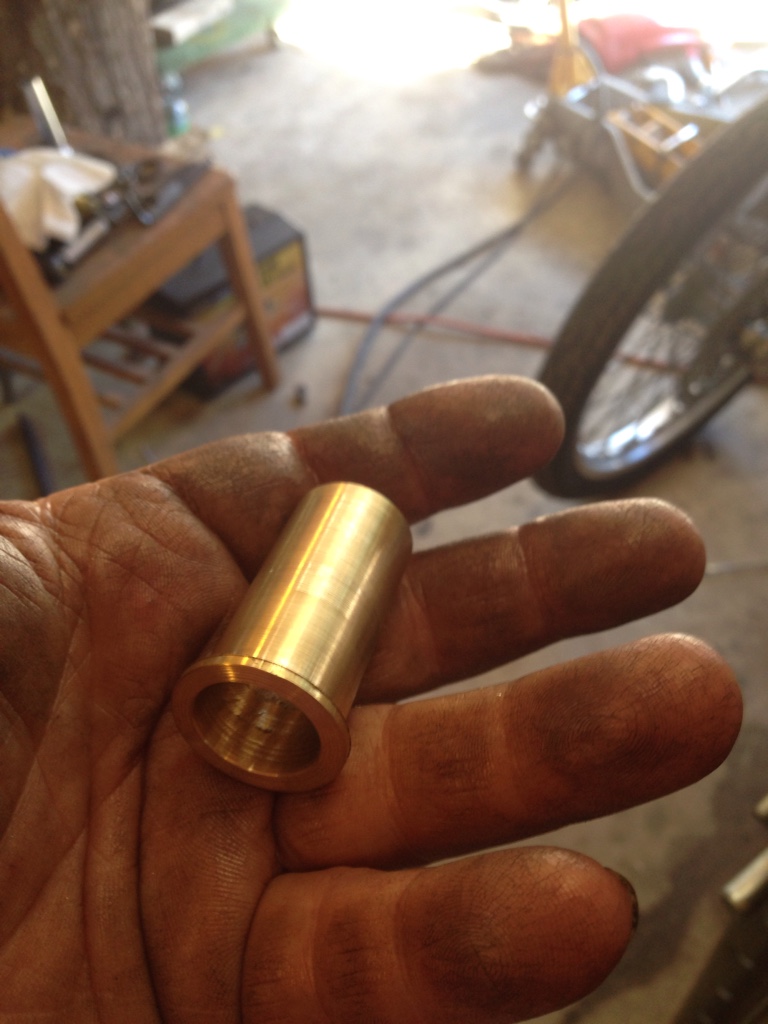

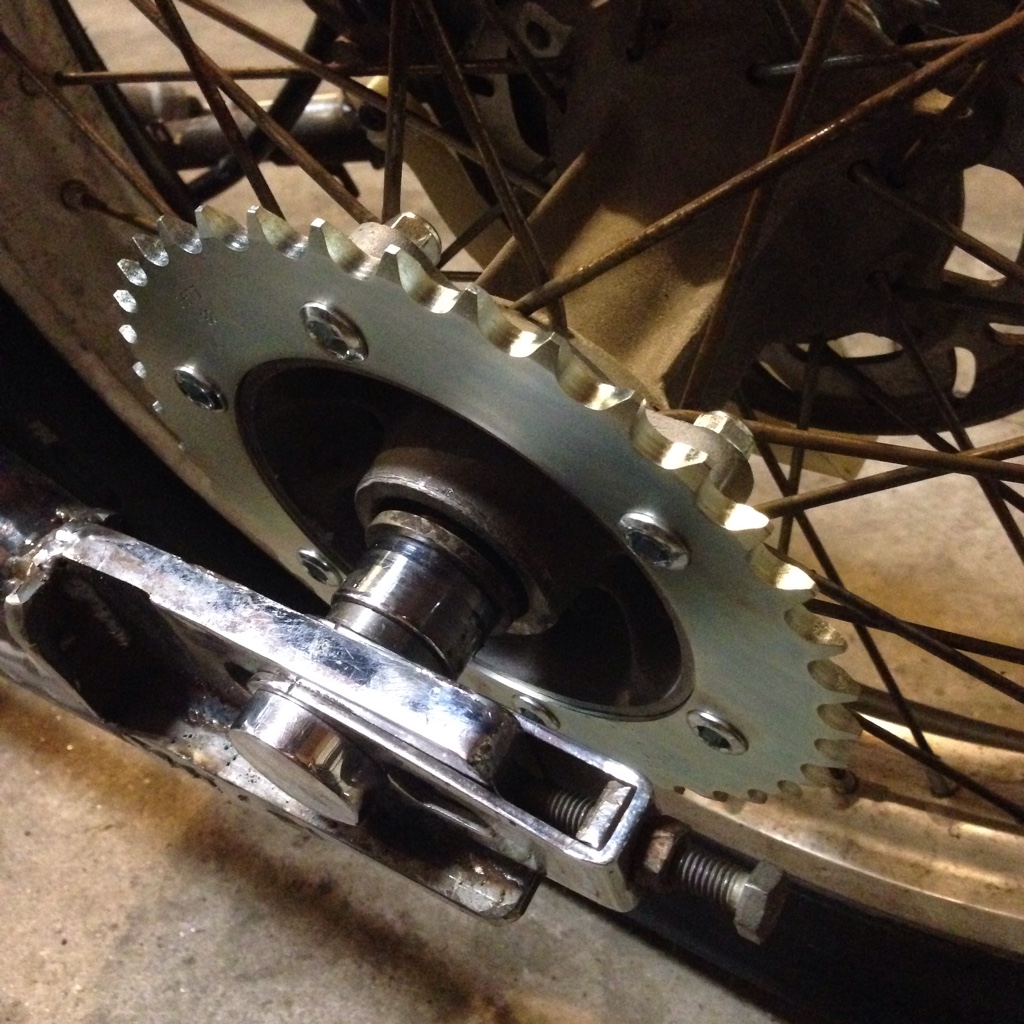

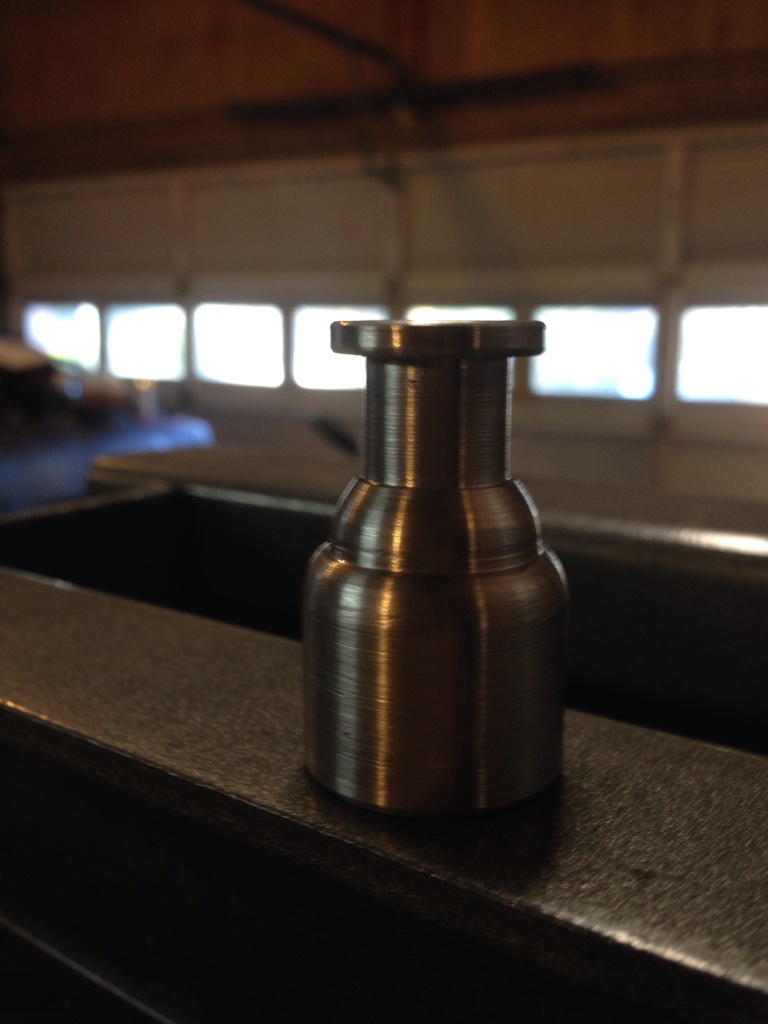

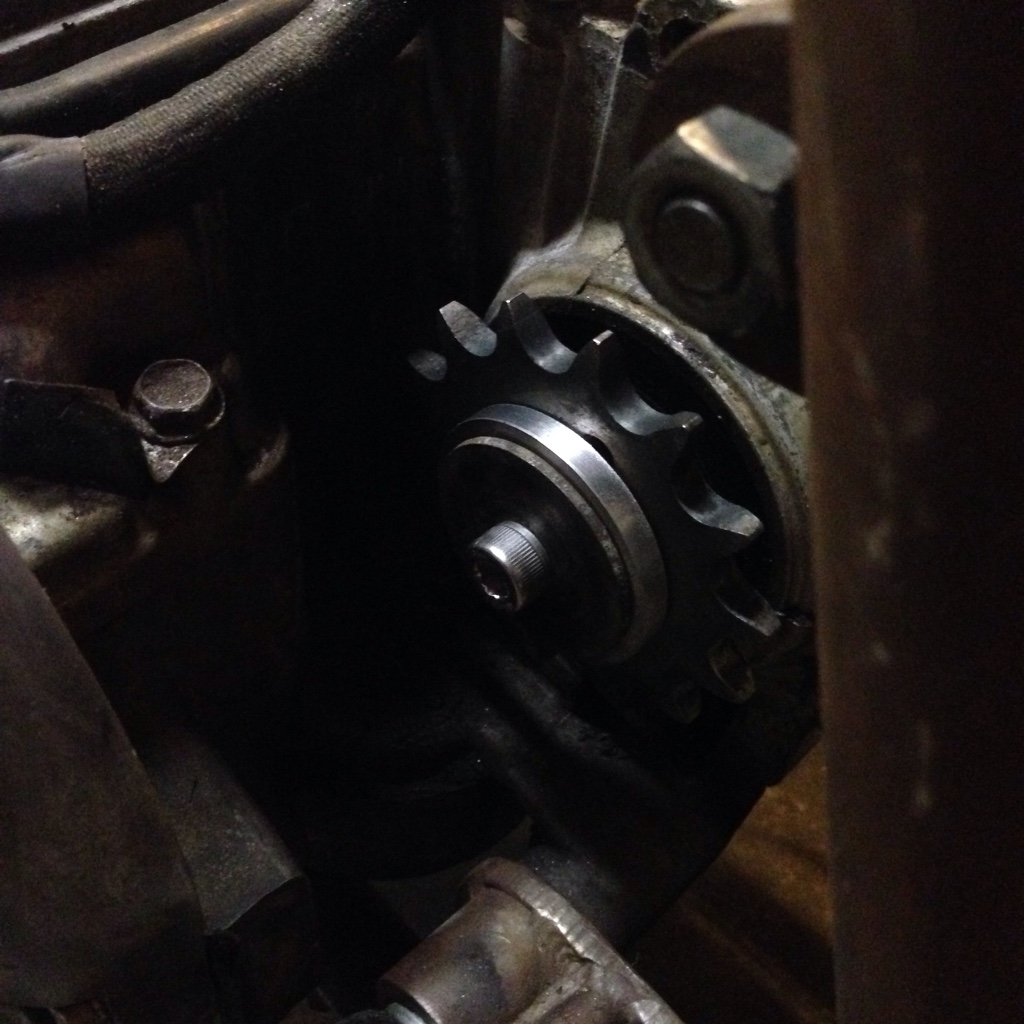

Sprockets: I'm running a 38 tooth rear and a 14 tooth counter. The counter sprocket is an XL250 sprocket, with a machined spacer. Honda ran a common counter shaft tooth for several bikes, which is really convenient when you want to convert a CB750 to 520 chain.


Sent from my iPhone using DO THE TON


canyoncarver

'hacking is learning'
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

Way better pics. I dig how you did the axle plate now I can see it. Cool.


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

yep. I agree with sonic. You need to slow down. your making us all look bad.

In 2 days you have gotten more done than I do in months on my projects lol

Lookin good bro


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

Started making a seat pan. I really just want to be able to sit down on it...




Sent from my iPhone using DO THE TON


SONICJK

Reminds me of...me No, I'm sure of it. I hate him
Re: CB750 No Plunger Hellride

This is getting dangerously close to looking like you know what you're doing.
Once you're no longer a hack you're not welcome here anymore ;D



irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
CB750 No Plunger Hellride

I promise, I'm still a hack.

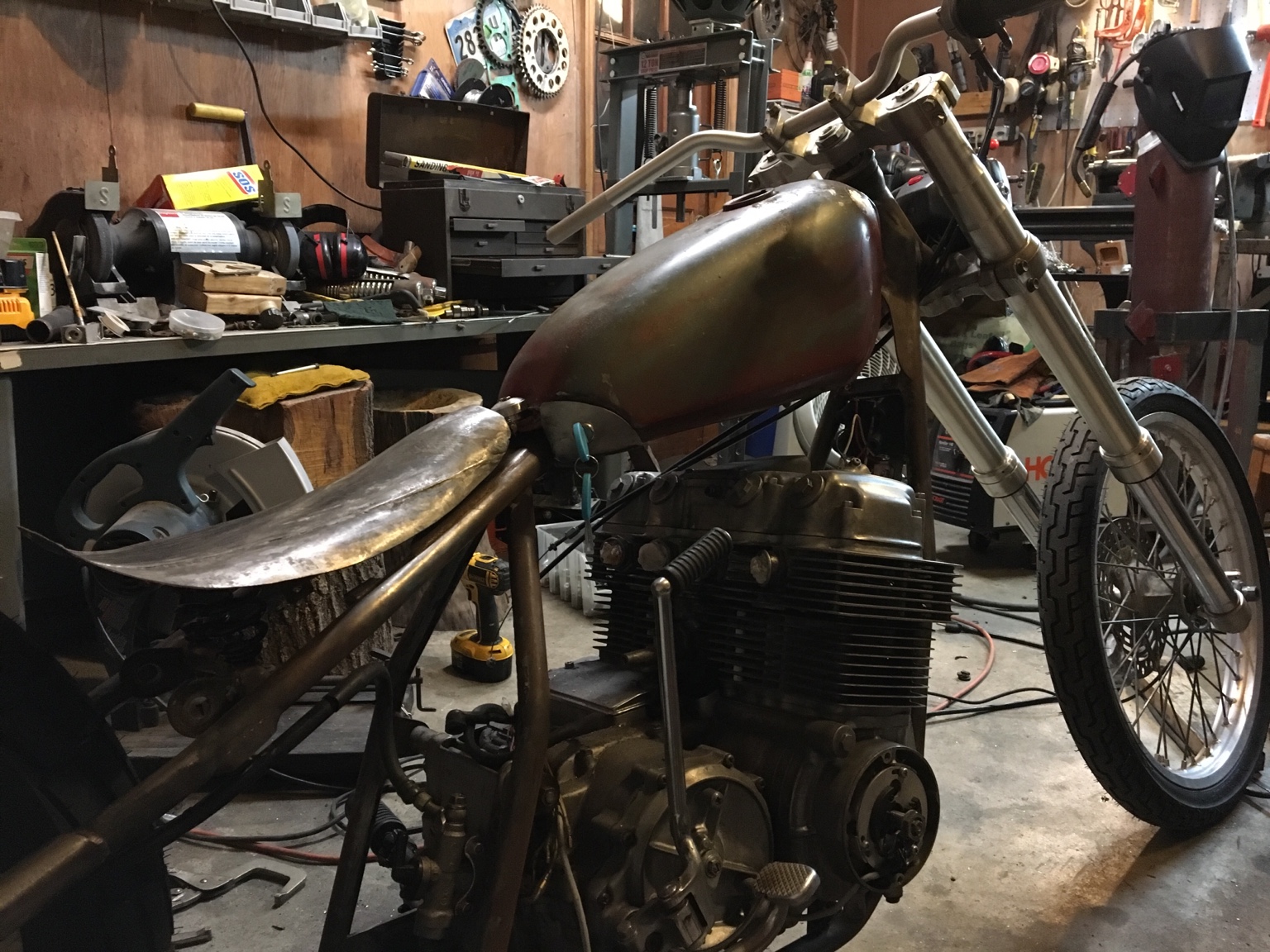

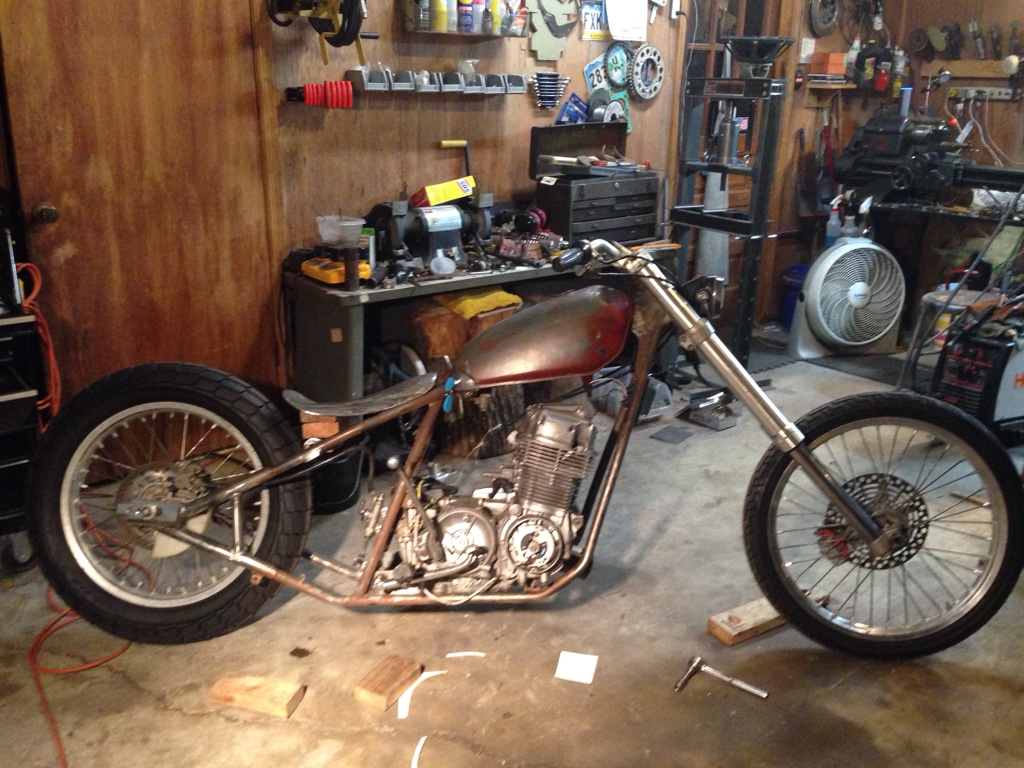

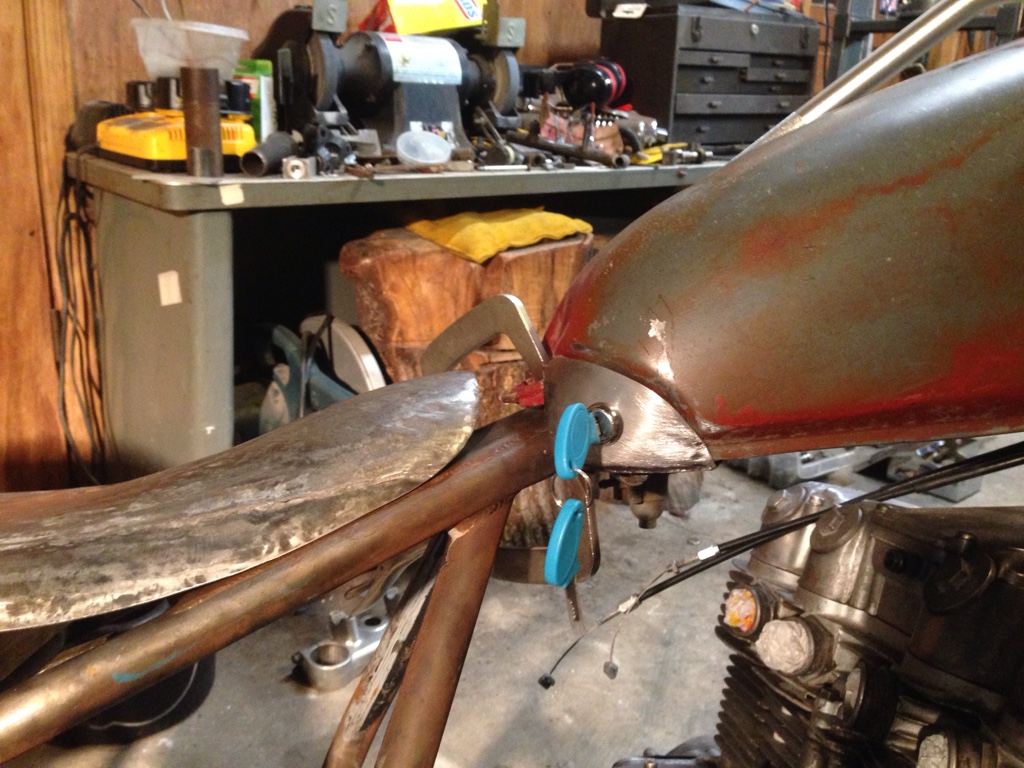

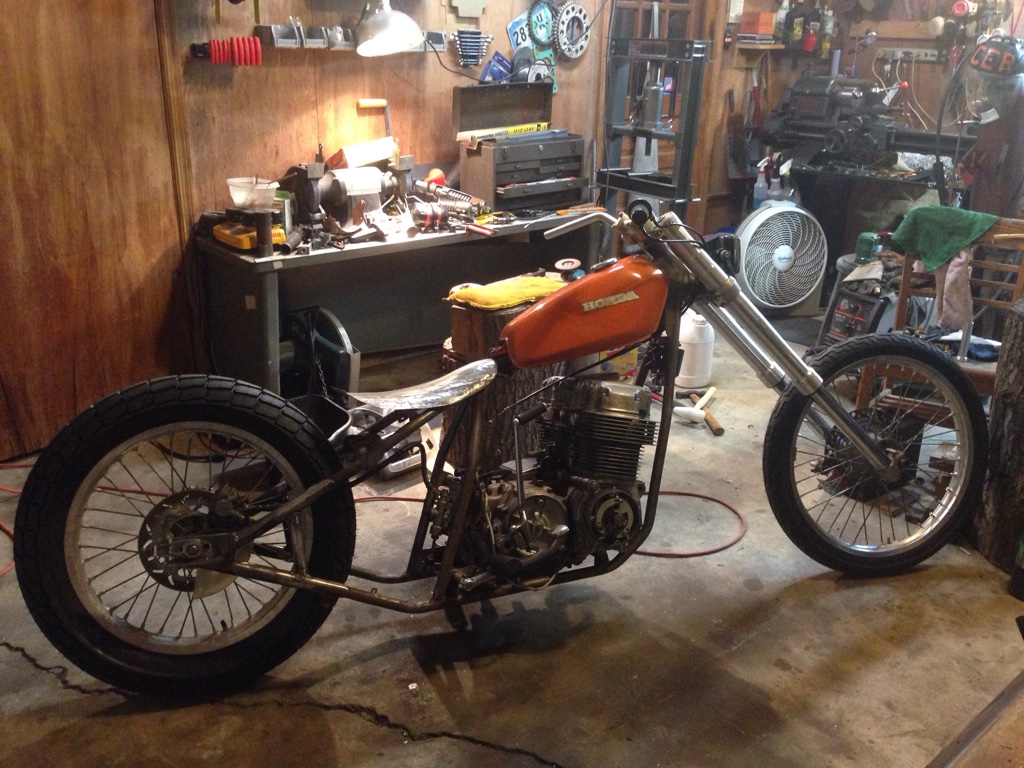

I've decided to go with a first gen XL350 tank, because I like the shape and I have an idea for placement of my ignition switch. I saw opportunity in the cutout for the carb. This tank is just for mocking. A good tank is en route...



Seat pan is basically done. Waiting on the springs, then mount. Covering may be the last thing I do.




Sent from my iPhone using DO THE TON


whynot

~~~If it ain't raining, I'm riding~~{iii}?~~prost~
Re: CB750 No Plunger Hellride

Man Eric, that is nice, just wish I had some of your gumption to do something to the "too many" projects I have.


1fasgsxr

New Member
Re: CB750 No Plunger Hellride

WhyNot said:
Man Eric, that is nice, just wish I had some of your gumption to do something to the "too many" projects I have.
I agree...I am just lazy I guess... You are killing it on this thing !!


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

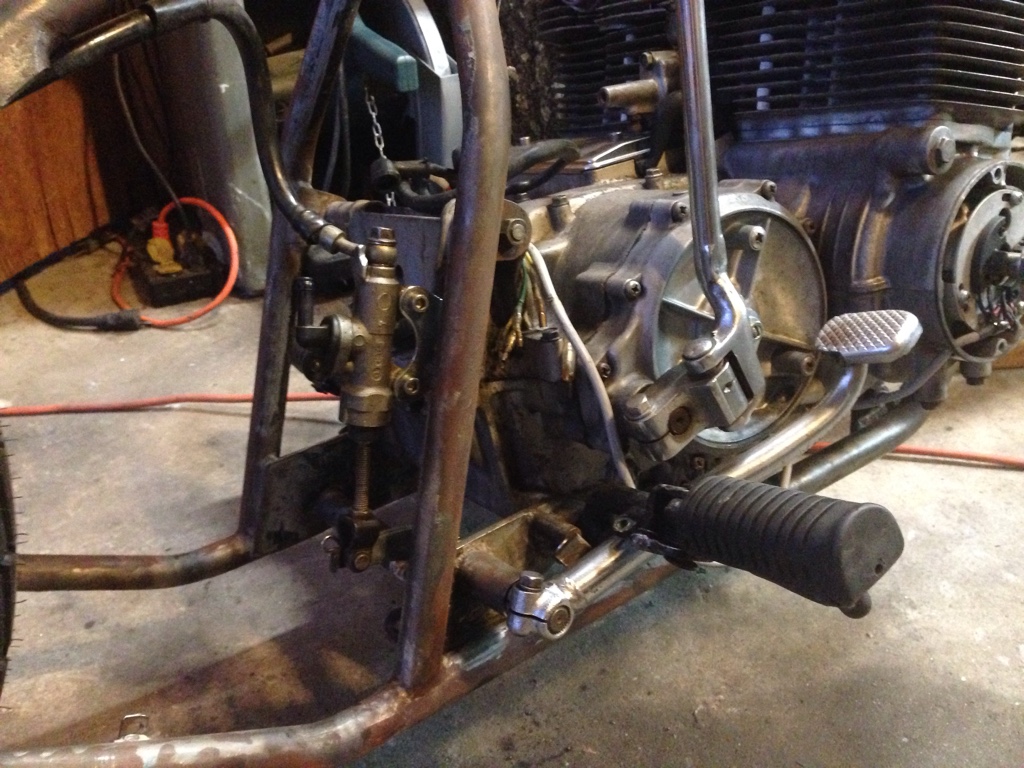

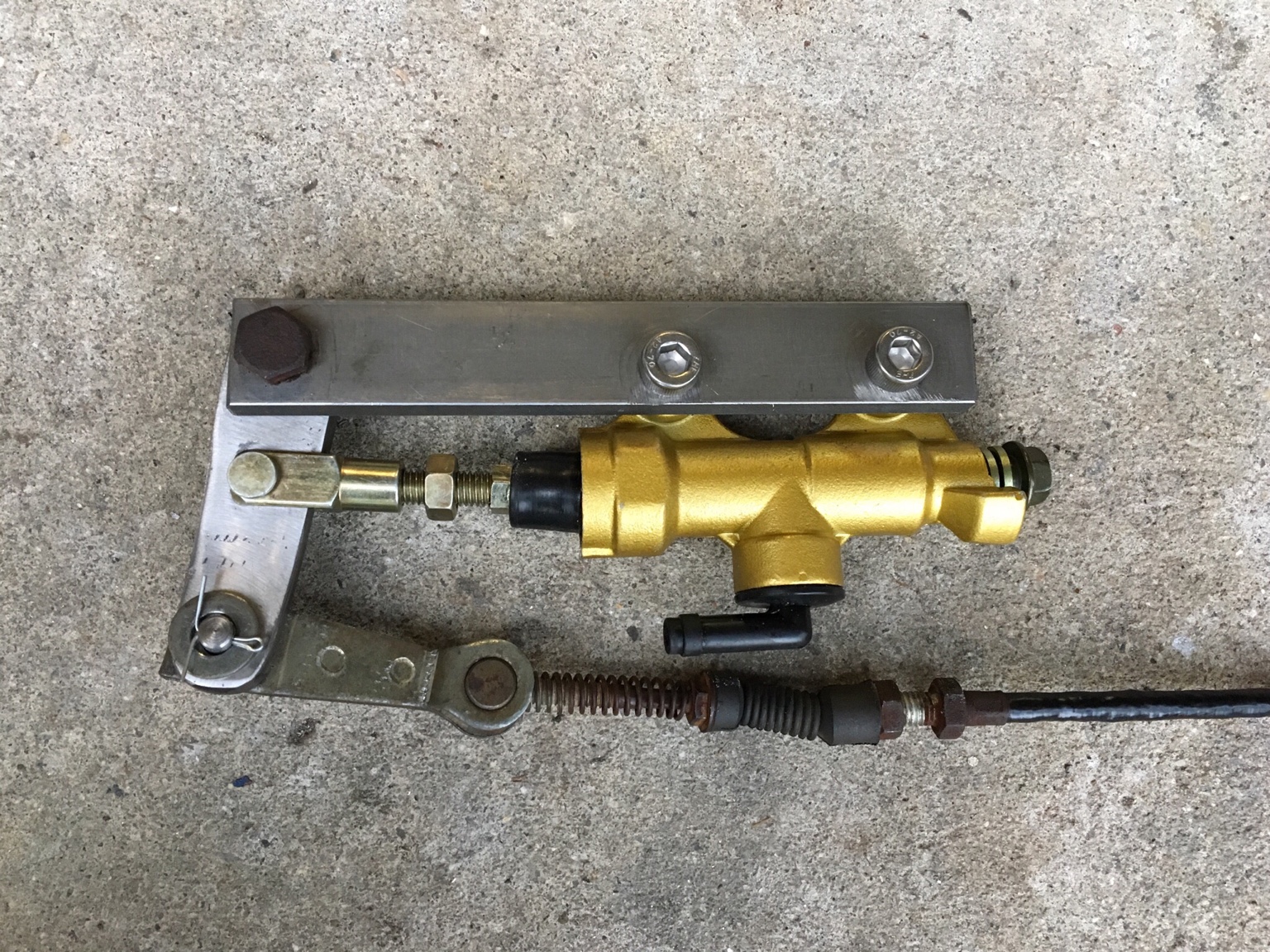

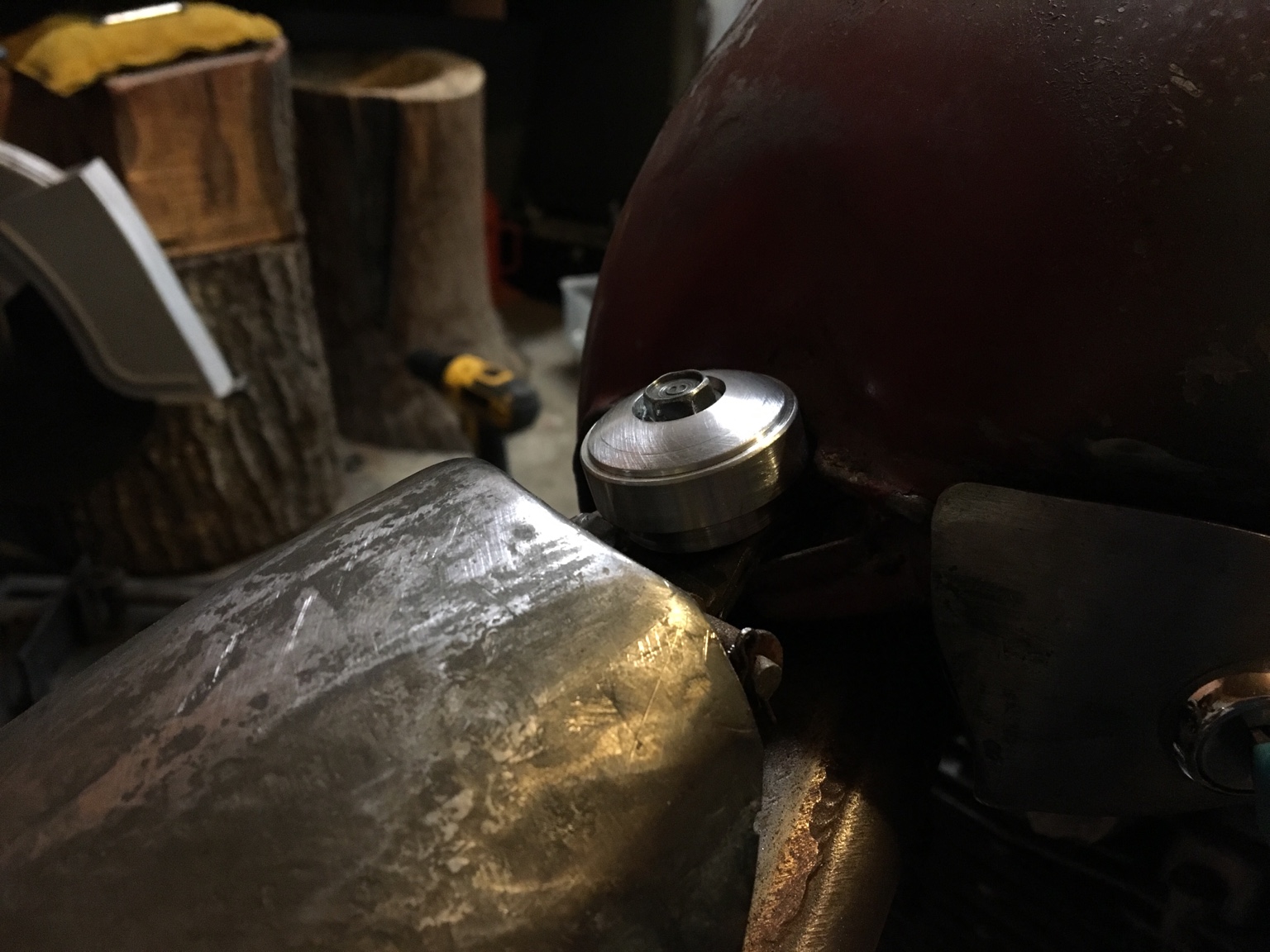

Made a remote m/c and reservoir so I can run a simple cable control on the bars. The unit will get welded underneath the tank and a short Z50r cable will actuate the lever.




Sent from my iPhone using DO THE TON


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

irk miller said:
Made a remote m/c and reservoir so I can run a simple cable control on the bars. The unit will get welded underneath the tank and a short Z50r cable will actuate the lever.




Sent from my iPhone using DO THE TON
Looks great! Just curious why you didn't use the beemer under tank mc? Thought you had a spare

Sent from my SM-G920V using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: CB750 No Plunger Hellride

HURCO550 said:
Looks great! Just curious why you didn't use the beemer under tank mc? Thought you had a spare

Sent from my SM-G920V using Tapatalk
The BMW m/c is too wide and too tall, it’s built for the top of the frame, it’s prone to leak, and I gave mine to Charlie at Thaw.


Sent from my iPhone using DO THE TON
