CX500 Build: Huzzi

full on tin

Active Member

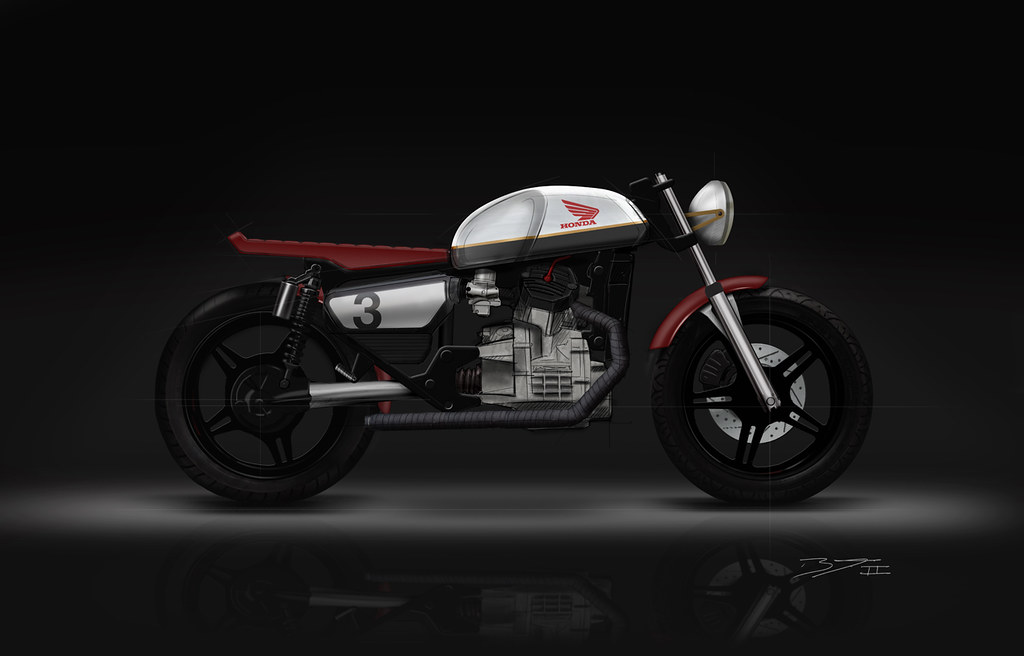

Sketched this in Photoshop about half way into the build. I'm sure things will change along the way.
Check out whats done so far.

BF_CX5_sktwht_SM by full of tin, on Flickr

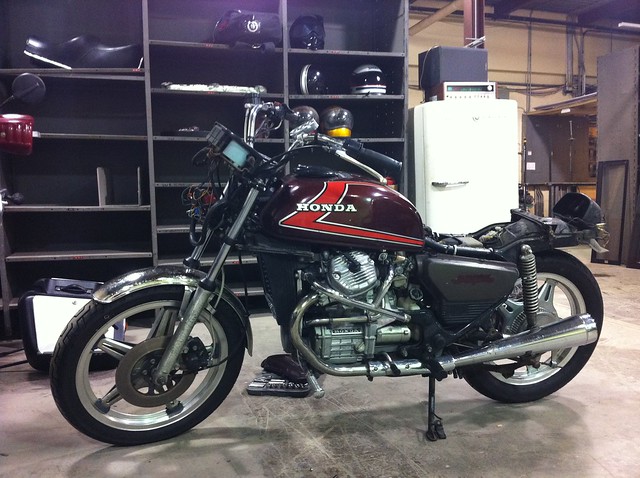

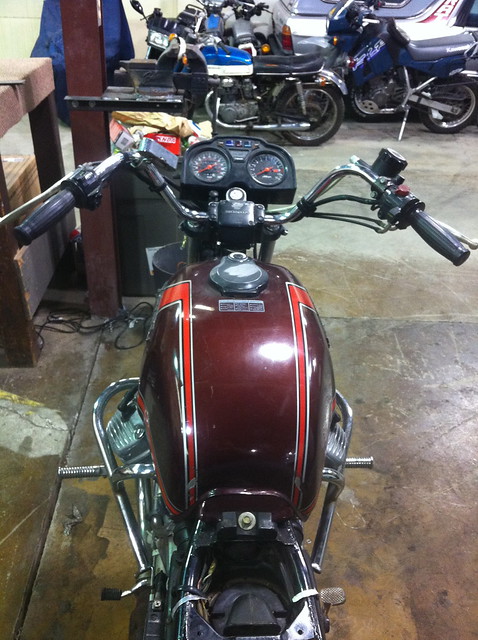

Just rolled into the SEC Shop... you know the drill, strip down.

IMG_4066 by full of tin, on Flickr

IMG_4069 by full of tin, on Flickr

IMG_4238 by full of tin, on Flickr

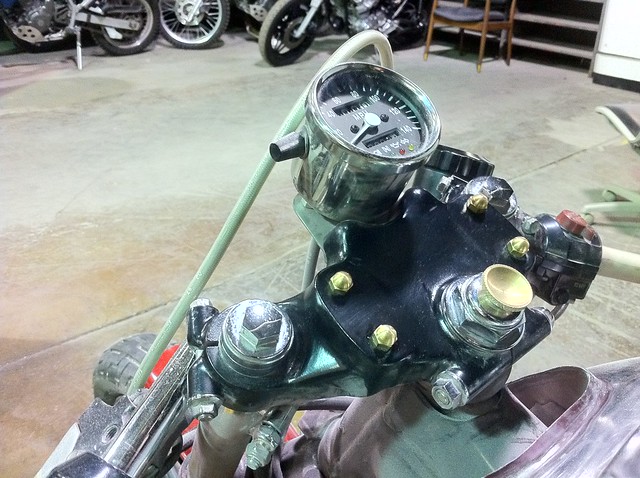

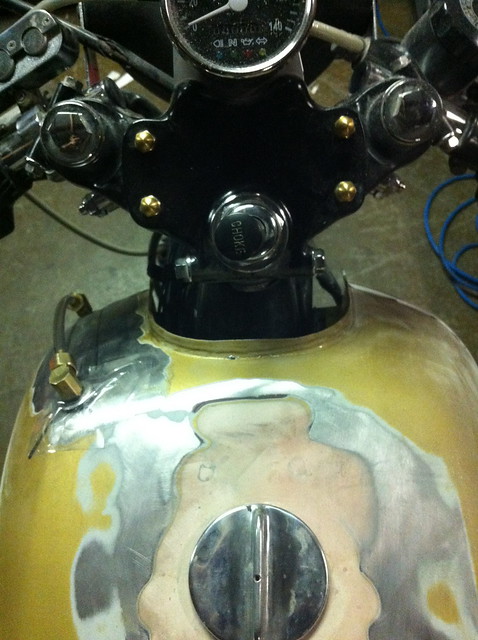

-Milled down the bar posts and plugged w/ brass acorn's
-Routed Choke through neck...Turned a new knob in solid brass.
-Ignition relocated (see below)
-Center Speedo
-33mm Clip-Ons


IMG_4354 by full of tin, on Flickr

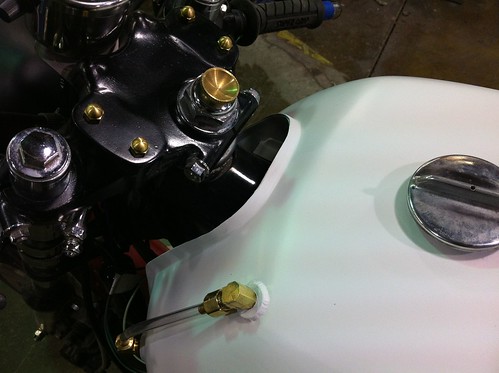

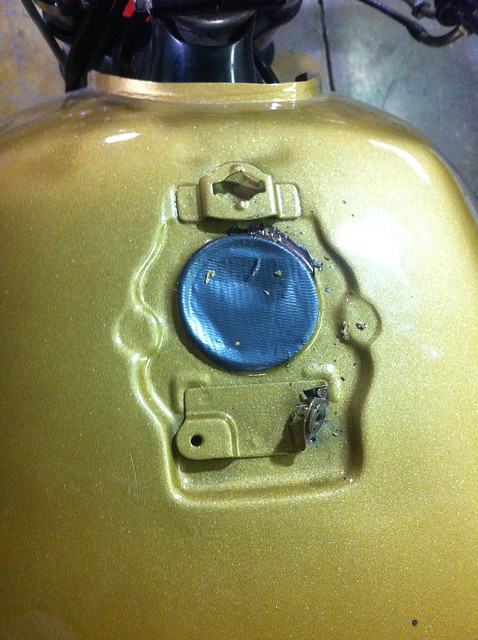

Shave Big-o fuel door down to a clean little turn cap.

IMG_4720 by full of tin, on Flickr

Fuel sight off to the left. Won't stick into you while hugging the huge tank. easy to glance at while rippin' it.

IMG_4799 by full of tin, on Flickr

IMG_4795 by full of tin, on Flickr

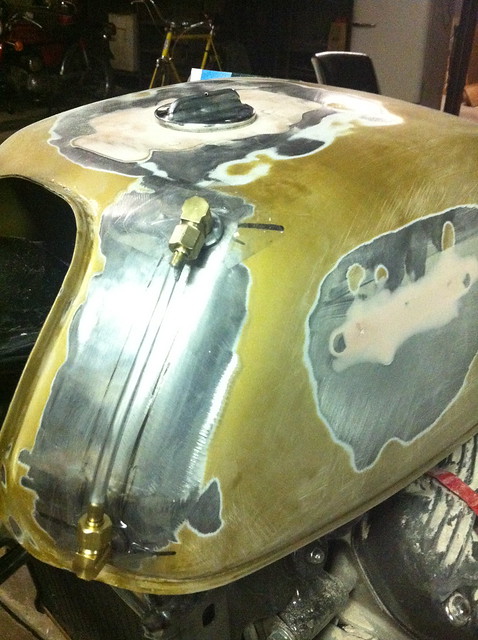

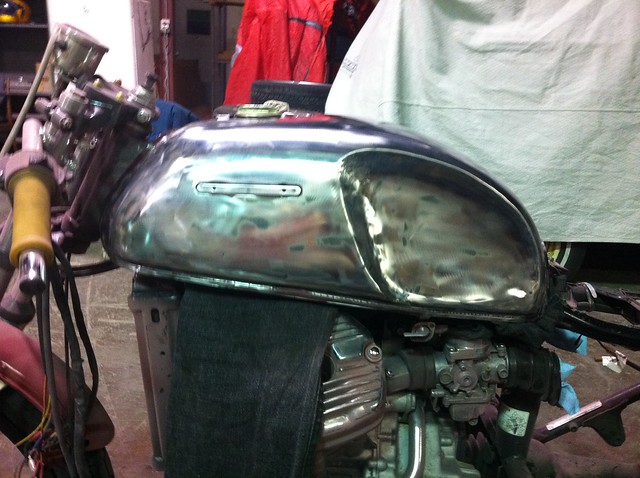

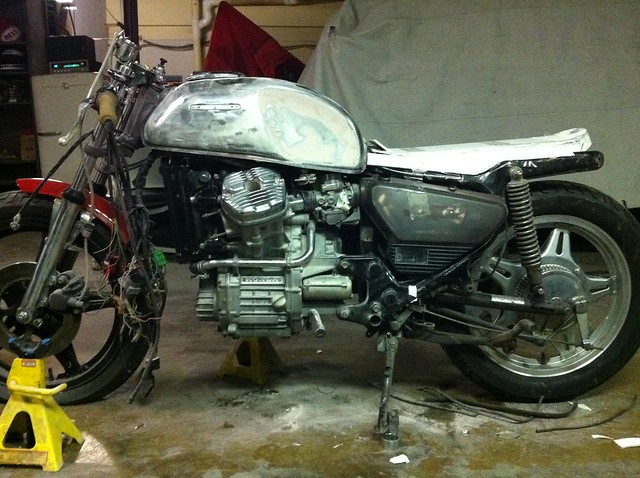

Stocker tank had kneedents...but they didn't stand out enough for me.
a mix off hammers and post working. (wish I would have used some nice planishing hammers)

IMG_4301 by full of tin, on Flickr

IMG_4342 by full of tin, on Flickr

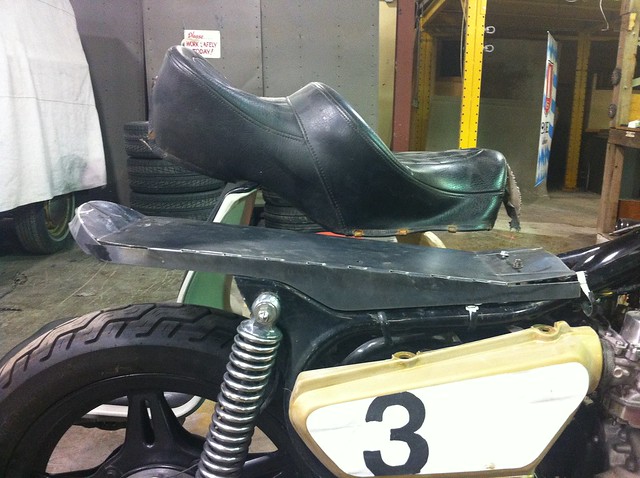

Slim Seat: Drew a CAD file, then plasma CNC cut in 18gauge Steel. mega time saver.
add ~0.75" Foam and sew up a read leather saddle.

IMG_4807 by full of tin, on Flickr

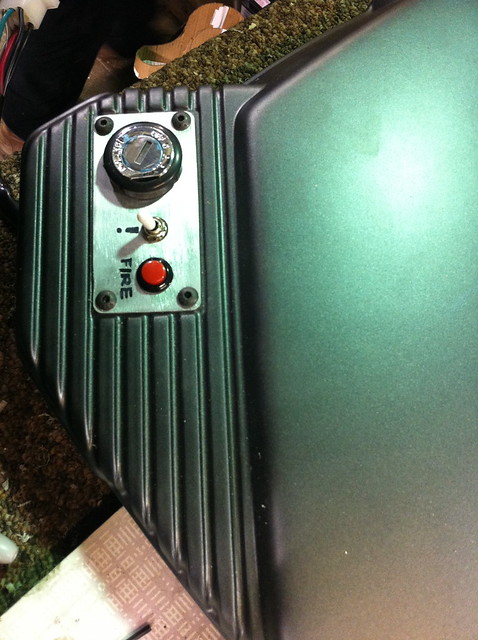

Start of new control center. Rough mock-up.

IMG_4841 by full of tin, on Flickr


Maritime

Over 10,000 Posts
I normally hate the sloping tank on the CX500's but your photoshop makes it work. Hope it looks that good when you get R done


full on tin

Active Member

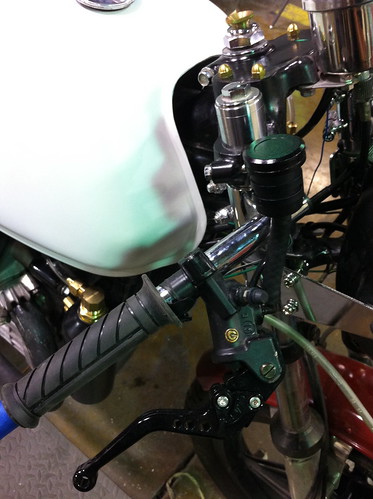

Front controls from a R1-clutch lever to match.
New throttle & kill switch to come. http://www.ride-engineering.com/products.php?d=1&p=c&pn=MX-KS00C-AS

IMG_5010 by full of tin, on Flickr

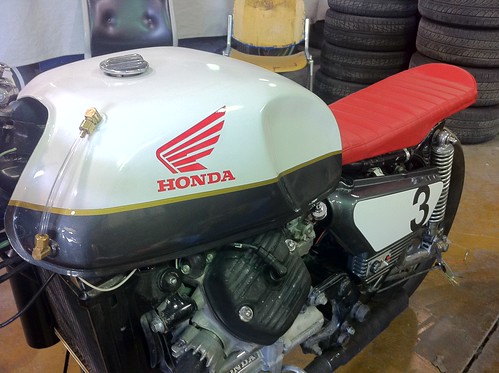

^^^look close and you ca spot the new coolant resi (brass fittings to match)

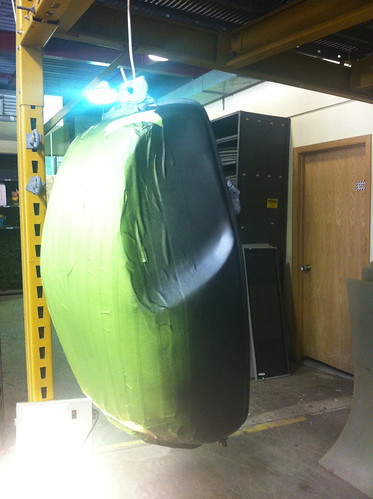

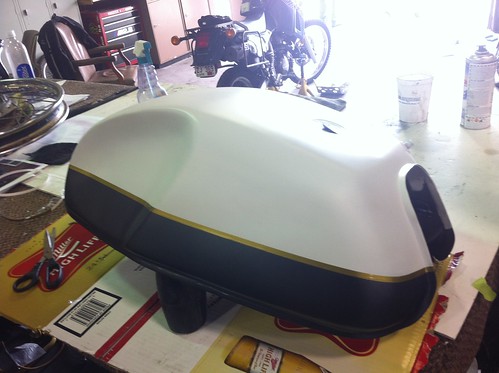

Bungs Welded on (paint is still under construction)

IMG_5008 by full of tin, on Flickr

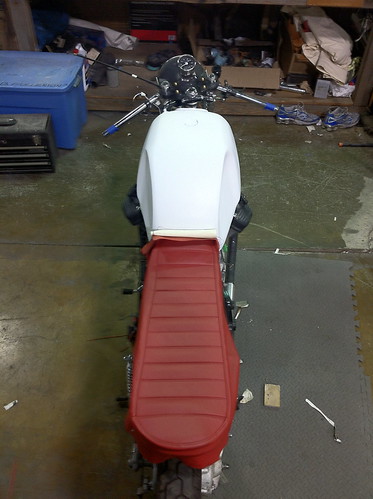

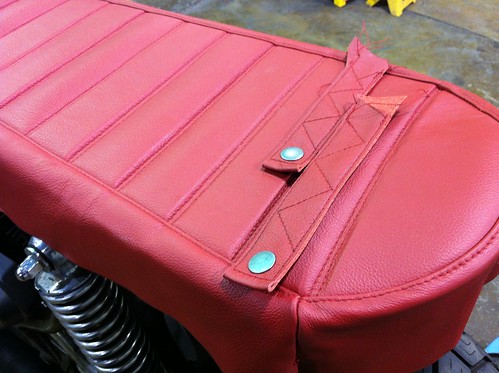

Saddle stitched up, still have some fitting to do before I make the final attachments. The straps will go under the back u-frame and snap on the side rails of the seat.

IMG_5016 by full of tin, on Flickr

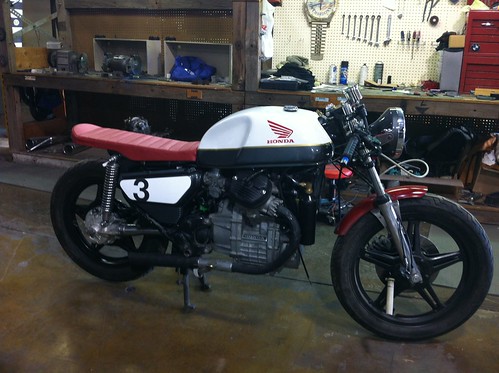

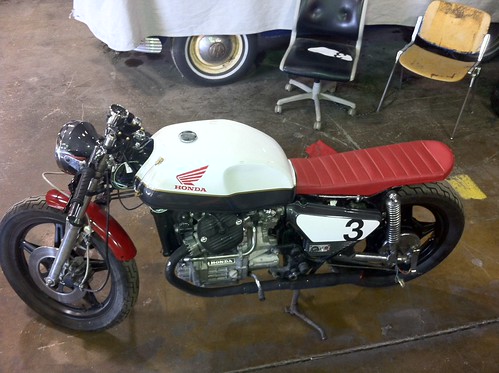

in place, seeing how she will come together.

IMG_5003 by full of tin, on Flickr

Till next time fellers!

R

RotaryDanglish

Guest
Your PS skills are sick. Did you use a Wacom plate to sketch on top of an excisting photo?
Have thought about doing the same style of fuel gauge, let us know how the pipe holds up.

Will deffinetly be following this one. :)


full on tin

Active Member
RotaryDanglish said:
Your PS skills are sick. Did you use a Wacom plate to sketch on top of an excisting photo?
Have thought about doing the same style of fuel gauge, let us know how the pipe holds up.

Will deffinetly be following this one. :)

-Thanks, but not a plate.... A Wacom Cintiq 21ux (sketching is my job, so it's nice to hear good responses!: )

-the tube is fuel safe, the bigger problem area may be the compression fittings. I just hated how all the hose/fuel clamps looked.


jaak

New Member
You know.. with your set of skills you can machine the front forks down so they don't stick out from the top.
Just saw a post it being done at the cx500 forum.

And by the way it's coming out very nice! Definately going to be a good example next to wrenchmonkees cx500 and the one from motomucci.

BR,

Jaak


full on tin

Active Member
jaak said:
.....it's coming out very nice! Definately going to be a good example next to wrenchmonkees cx500 and the one from motomucci.
BR,
Jaak

Thanks Jaak, I've loved both of those builds! I hope to carve my own path with:
-super slim 2up seat
-keeping the #3 plate going from my other build (match the rainy day M3 and A3-s)
-split horizon paint scheme inspired by a few of 60s/70's CB's.


Still debating what to do with the signals (or if I want to run them) I prefer hand signals.
But, MotoMucci lead me to this awesome switch... Might have to machine my own.


New front brake line TBD...probably clear braid/gold fitting:
http://www.spieglerusa.com/brakes/custom-brake-lines.html



ToDo List, off the top of my head.
-New Throttle
-Shorten all cables, new barrels
-Fab headlight brackets, sick of seeing all the stamped metal around.
-Rear controls and Pegs... for two?
-Re-Build Shocks (new piggyback rears)
-U-bar to brace seat pan, tucked underneath out of sight.
-Strip everything and powdercoat frame.
-Freshen up engine.
-Wiring....OH THE AGONY!!!!

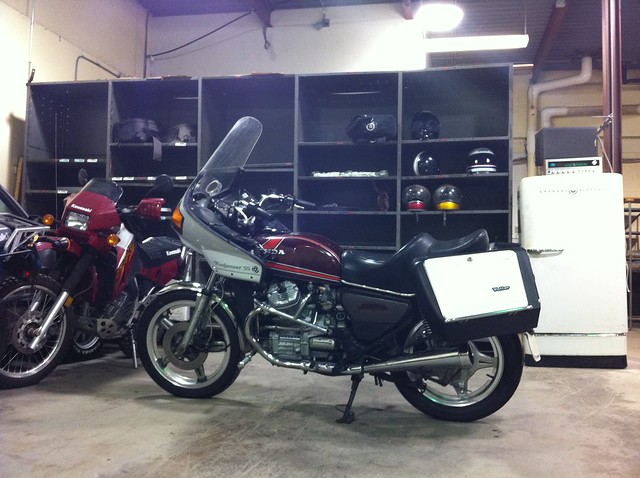

...stopping the list, need to go ride the 750.
