CX500 Build: Huzzi

Awesome work man!

I had similar seat in mind for my build. I might use wood for seat pan though.

OJ said:
Awesome work man!

I had similar seat in mind for my build. I might use wood for seat pan though.
Click to expand...

Use that wood seat as a mold for a fiberglass seat. I don't know how well wood will do for a motorbike seat pan

@tin- not sure if you're still watching this thread, but I want to flat-seat my cx500 as well. It looks like you have a bit of forward lean angle in your seat with your solution. How has that felt riding? Does it shove you into the tank or is it comfortable?
I am considering going totally flat through padding. A step up seat pan, thiiiin foam in the back passenger seat and really thick in the front.

Nice collection. I've contemplated a red seat myself, maybe a winter project just for kicks? I'm still trying to get my black seat right, but your mini write-up should help with my overall plan. Thanks.

Hammina said:
@tin- not sure if you're still watching this thread, but I want to flat-seat my cx500 as well. It looks like you have a bit of forward lean angle in your seat with your solution. How has that felt riding? Does it shove you into the tank or is it comfortable?
I am considering going totally flat through padding. A step up seat pan, thiiiin foam in the back passenger seat and really thick in the front.
Click to expand...
It's not as steep as it looks, especially when you load the rear suspension. It feels a lot better being as low as possible.

ScrapMetal said:
Nice collection. I've contemplated a red seat myself, maybe a winter project just for kicks? I'm still trying to get my black seat right, but your mini write-up should help with my overall plan. Thanks.
Click to expand...
I may have some nice red leather leftover & for sale! Winter is the best for projects, especially in the Midwest.

Thanks for the response about the seat. I am more confident in building a straight seat pan now. Red is not in the color scheme I am goin with but I hope you find a good home for it

^^ Speedo is from DimeCityCycles, great guys.
(get ready to drain your wallet, their prices are very reasonable..but they stock almost everything you need, a slippery slope!)

Spring carb cleaning!
Stock Air Box
2-2 exhaust no h-box
Jets: (first round of testing)
#45
#90
#120

Co-working is sonic cleaning the body's for me.

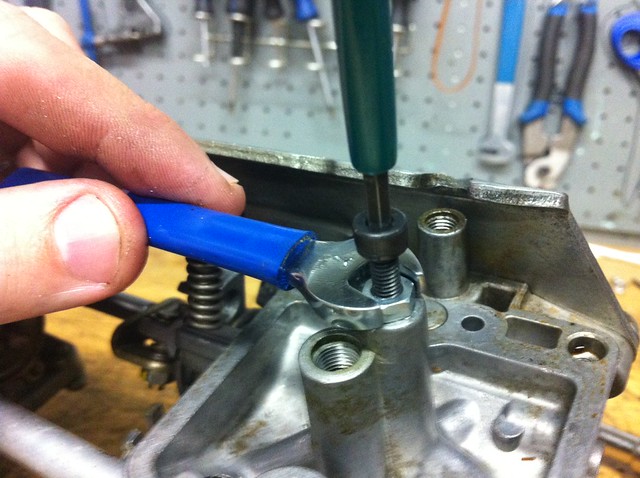

Extracting PRESS-Fit Jet under rubber cap. (easier that breaking easy-outs)
-Drill and Tap M4.
-Turn nut to back out jet.

jet_0ut_1 by full of tin, on Flickr

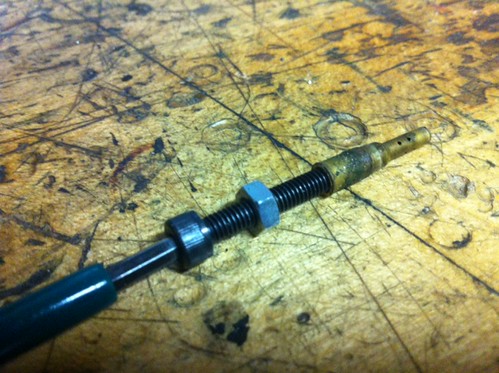

Press-Fit Jet under rubber cap came out clean
now I don't know if jet is re-usable??

Jet_0ut by full of tin, on Flickr

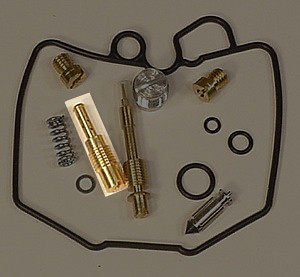

The new #45 idle jet that I ordered is threaded. I think this is GL500 style.
?will this ever work? file off threads? reuse old jets? or just find the press fits?

CX_carb_gaskets_jets copy by full of tin, on Flickr

I assume you probably got your carbs back together already, but you are going to have to re-use the OG jet. Good job on the extracting tool, I learned the hard way about breaking off an easy out off in the jet. I got another set of carbs and soaked them on CLR and them blasted them out with a power steamer and they are running great. I also settled for 90 and 130 jets. I will be rebuilding my exhaust so hopefully it doesn't mess with the jetting too much, because mi bike seems happy the way it is. I dig what you have done soo far with the CX.
