Let's go adventuring. pulling a trailer. 2006 dr650 "the tropical terradactyl"

Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Wasn't sure whether to post up a thread on this or not, but I figured heck there's a sub forum for Enduro and dirt, and since this has been my main two-wheeled bike on the stand lately, why not post it up?

I picked this 2006 dr650 up after attending the 2017 spring thaw and seeing just how much fun everyone had on their dirt machines. I haven't owned any type of dirt oriented motorcycle since I was 12 or 13 riding around on an RM80. I was just searching Facebook Marketplace for Enduros when this popped up, and had no real idea what to even be looking for.

In reality I was looking for a drz400, but this popped up for a price a couldn't pass up on, so I drove a couple hours north and picked it up, though it was making some unsavory engine noises. I thought it was just out of set valves, but it ended up being a loose primary reduction nut. I pulled the clutch case off and tightened it up to 72 ft lb, changed out the clutch discs and safety wired the nsu bolts (a fairly well known fail point on the dr650's of this era)

It spent the large part of the past summer bone stock hauling me around as my daily driver for around 2000 miles, but like most of us, I couldn't leave well enough alone.....


The dr650 has a reputation of being a dead reliable and affordable bike, if not for the sake of being a bit heavy (by dirt machine standards). There is a huge aftermarket availability for the bike, but that usually goes hand in hand with there being plenty of things that NEED upgraded.

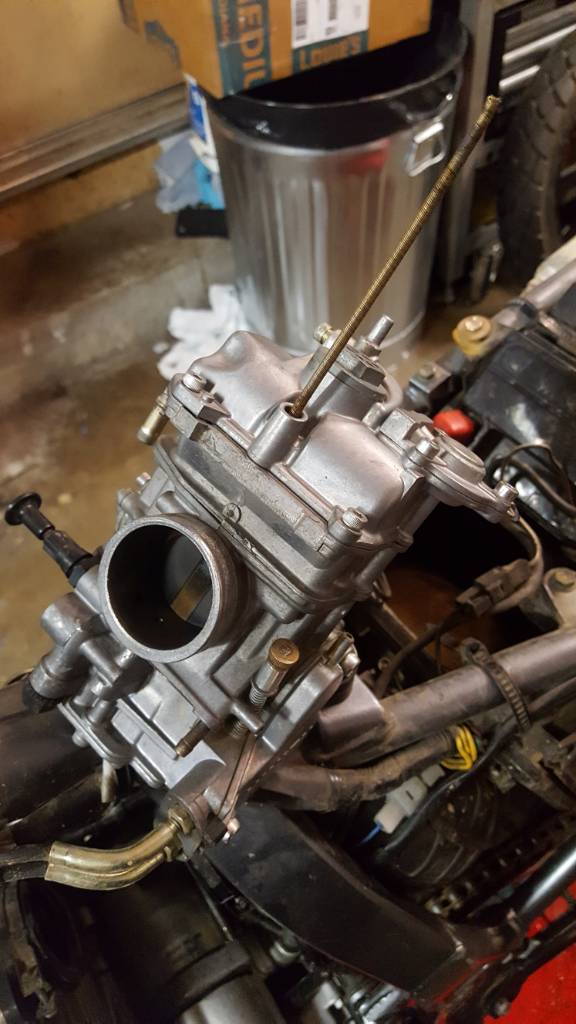

First on the list was moving air into and out of the engine. The stock bst carb was just barely adequate to do it's job, so it was pulled and replaced with an fcr39mx bought second hand and originally used on a Yamaha yzf450 quad. It came with a few mods required for the install, but luckily a chap named mx_rob has done a wonderful write-up on them and with a little tinkering it was good to go. The most major of the mods to the carb was deleting the tps block and drilling and tapping for an idle adjuster, as well as machining an adapter collar to mate it up to the stock air box.

Next up was getting rid of the bloated and heavy stock exhaust/ muffler/ tumor like thing hanging off the back. I made up a mid pipe, utilizing the stock header and used a stock 24fo muffler off of a hayabusa. A little cutting, fitting and welding, and she was good to go. The performance upgrade was really astonishing.




Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

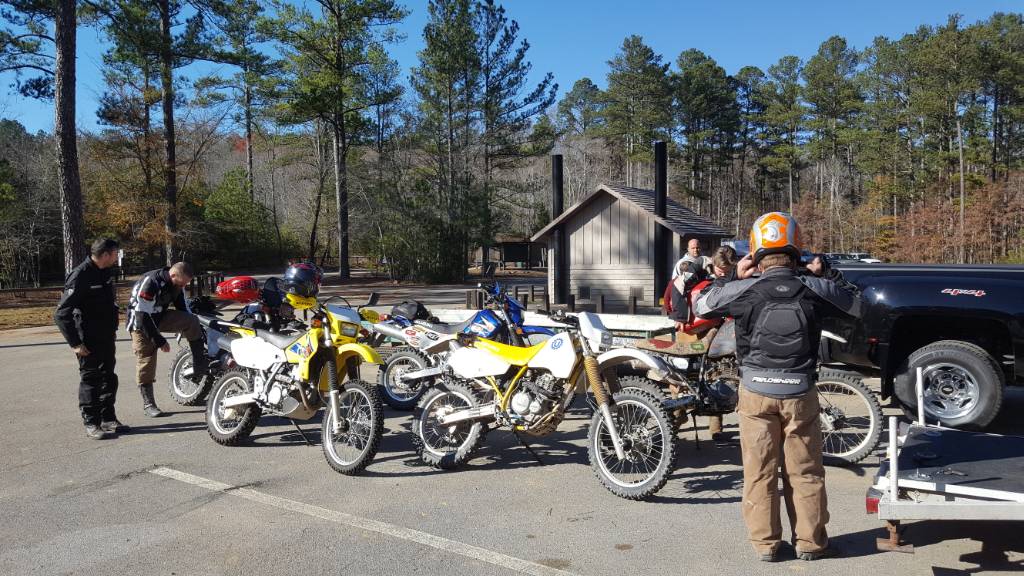

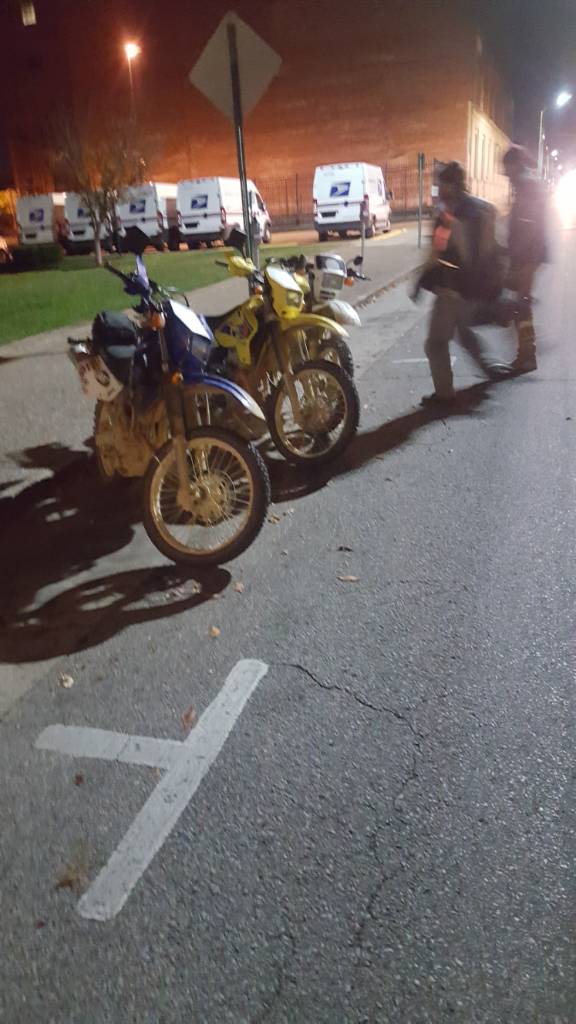

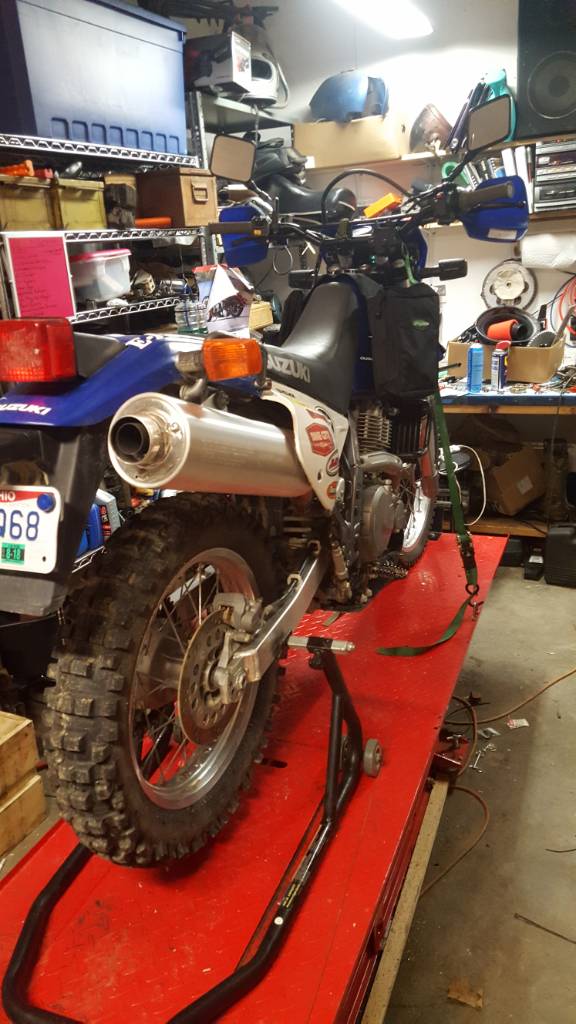

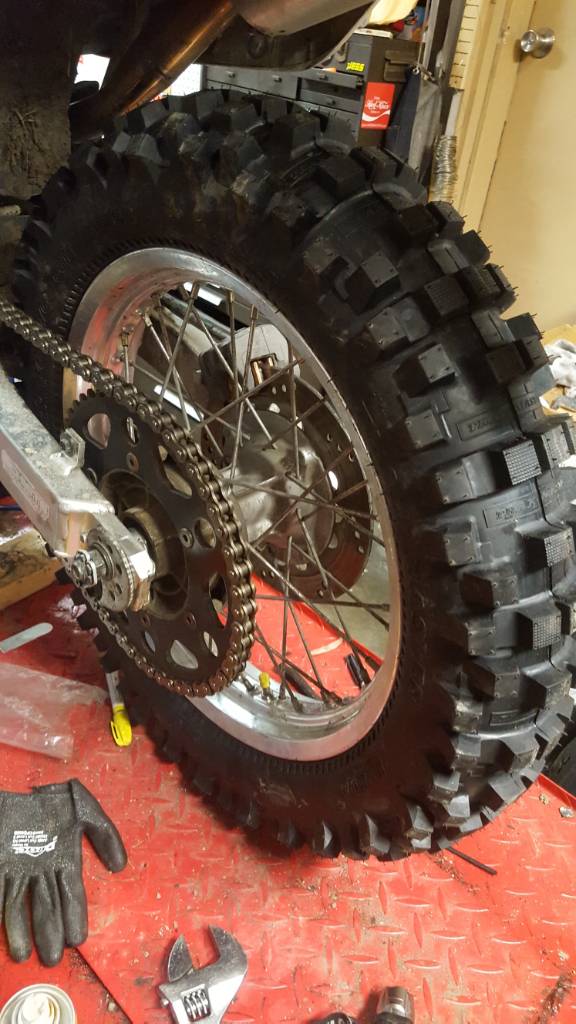

This past thanksgiving, a few motley fellows and miscreants decided to meet up to ride in some Georgia clay, so a few more dirt oriented mods were in order. A real dirt tire to replace the 50/50 golden boys, and a big ol stump puller sprocket were the main ones.

The trip was a success, even if irk couldn't keep from breaking off both his levers on two separate occasions in the parking lot, kanticoy broke a shock in half, Mr.e launched his trusty xr200 meatwad into a gulley, and I had the most awkward #noobtral wreck ever seen which somehow had me walking with a limp and a bruised knee for the better part of a month.

The trip was a good experience though, and gave me a better direction in the mods that needed to be done with the bike for future off road rides.


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

So looking at the future, my goal is to make this into a Swiss army bike, that I can go on long hauls down the slab, then switch a few things over and have a legitimate dirt machine. The dr650 has a large following as a budget do all adventure bike, but is usually setup for one type of riding (i.e. supermoto, adventure, commuter ect) and left that way. Some careful planning should allow me to have both a dirt and highway machine with the use of a second wheel and gearing set that can be swapped out once I get to the destination (more on that later)

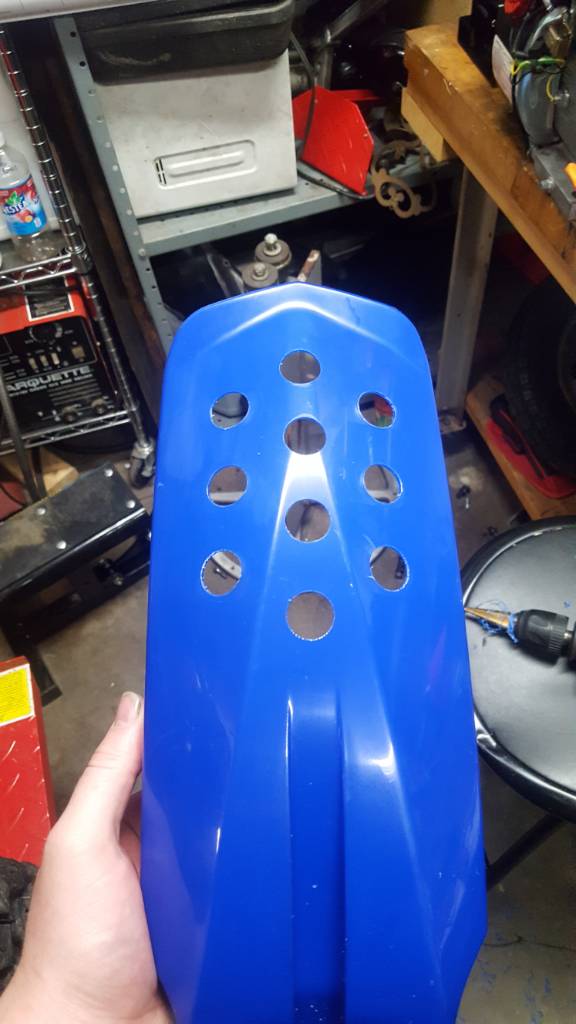

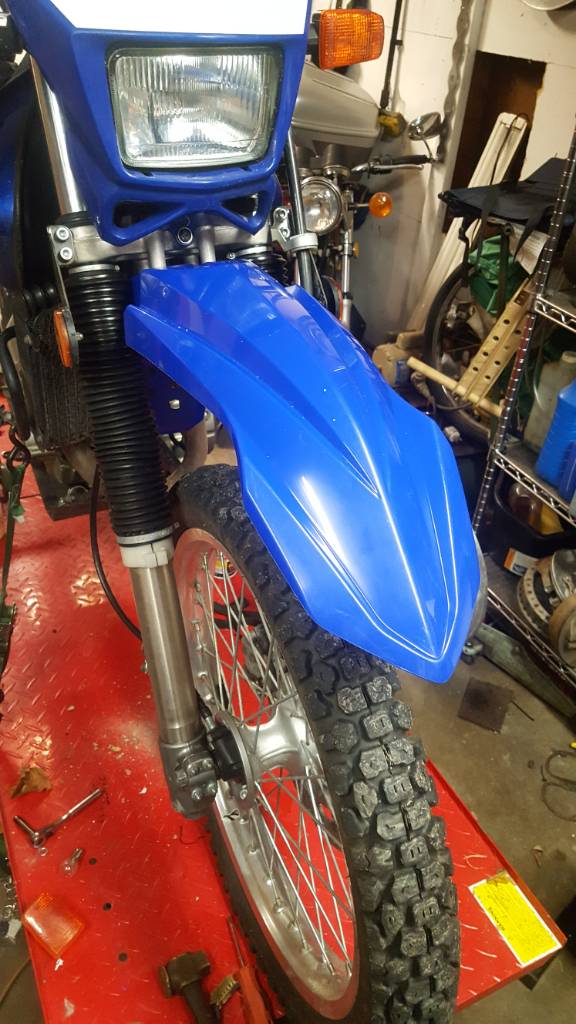

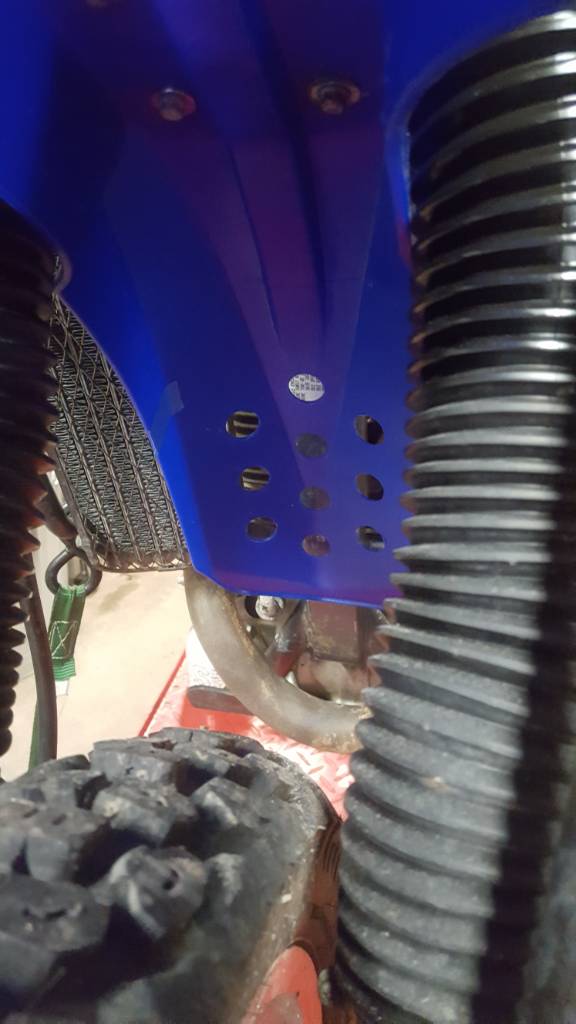

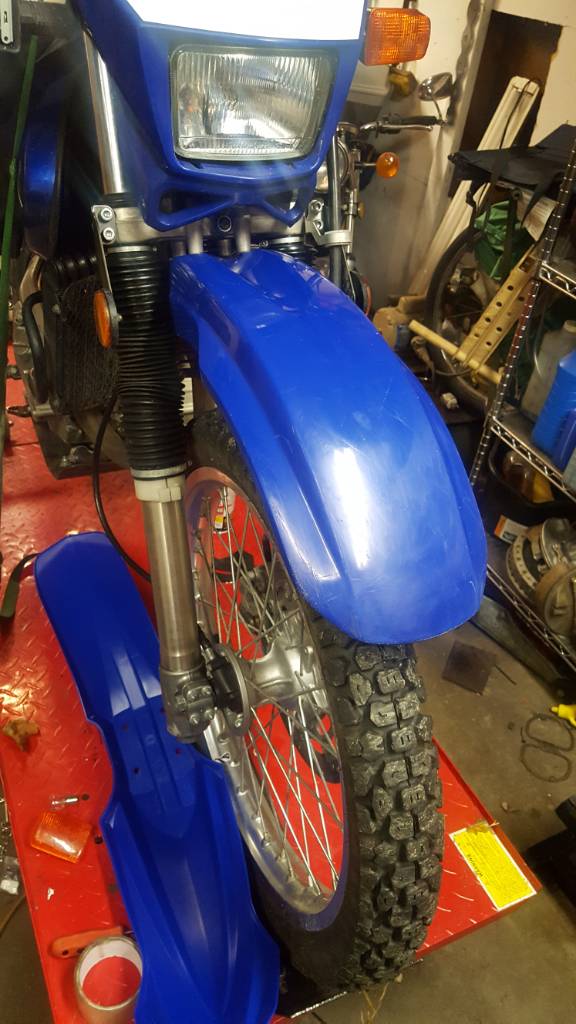

One of the upgrades to get the old lass going down the highway a little better was swapping the stock wind sail front fender for an acerbis yz450 fender that cuts the air a bit better. A few new mounting holes and some air vents to get cooling to the air cooled top end, and it was like she was meant to be.

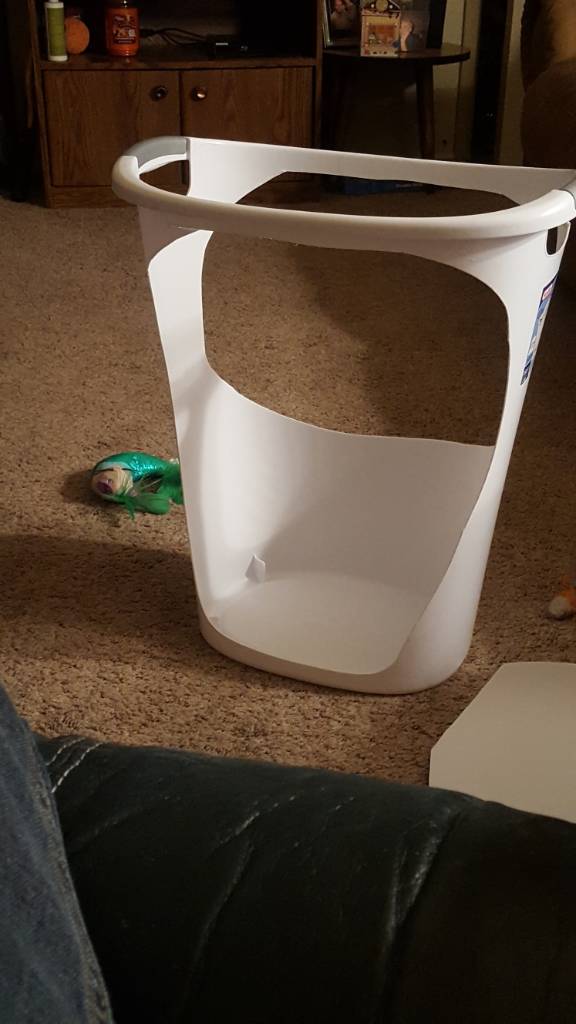

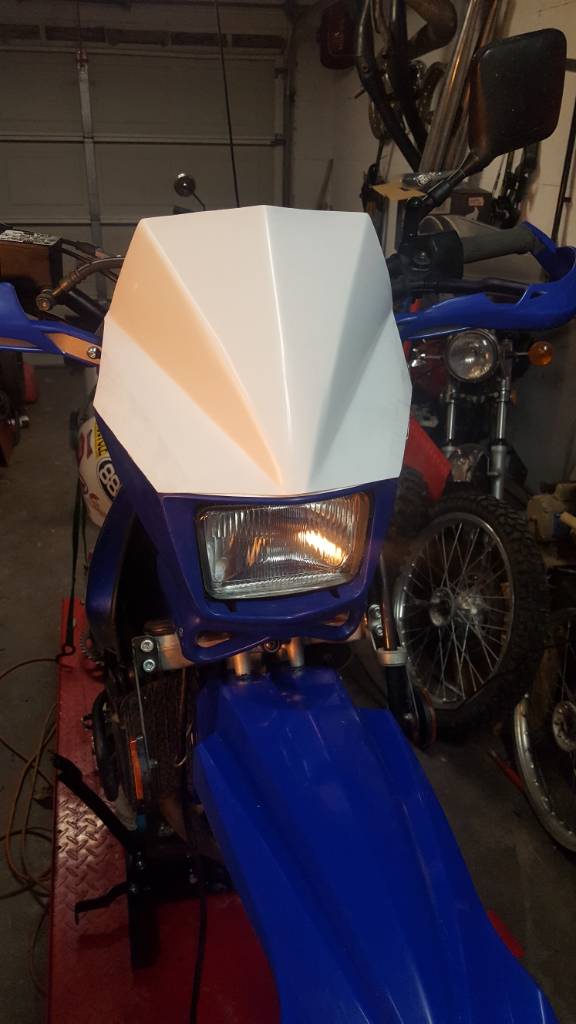

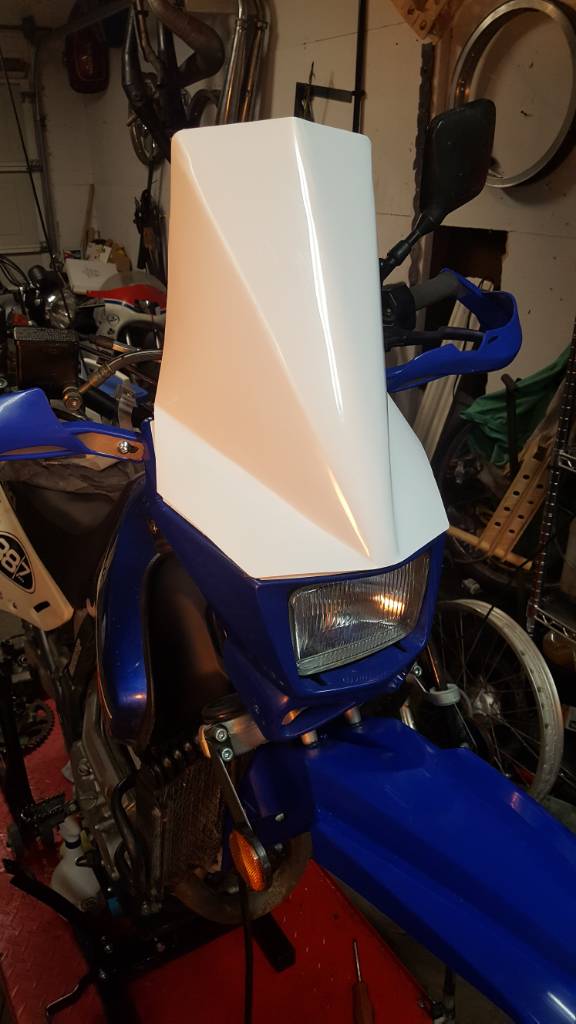

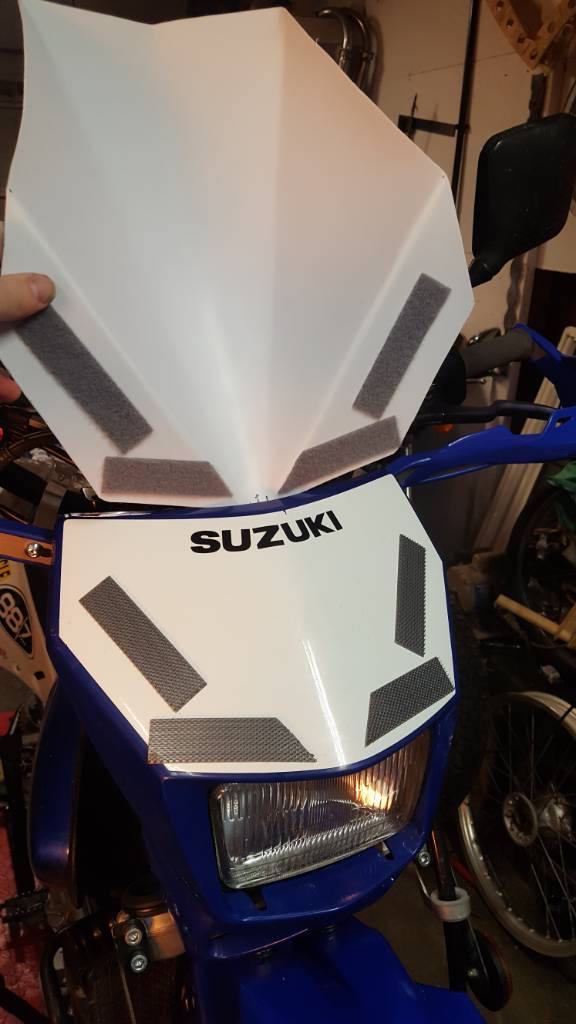

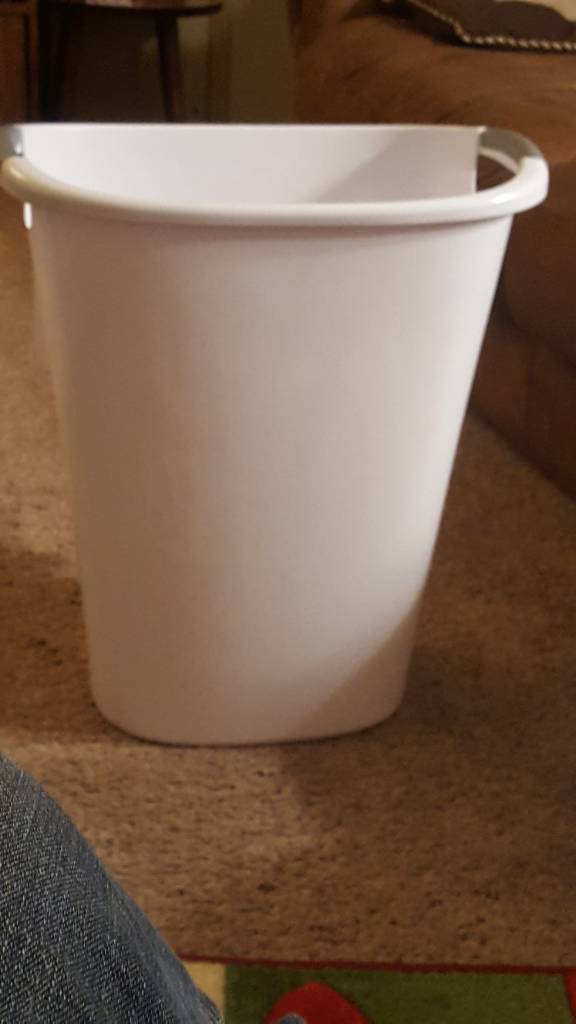

I also decided that I needed a fairing for the highway stretches, but needed it removable for when I hit the single track. I also decided that I didn't want to spend $100+ on an off the shelf item, so I picked up a $7 trash can and some Velcro, and cut and bent it into a couple fairings, one tall and one short.


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

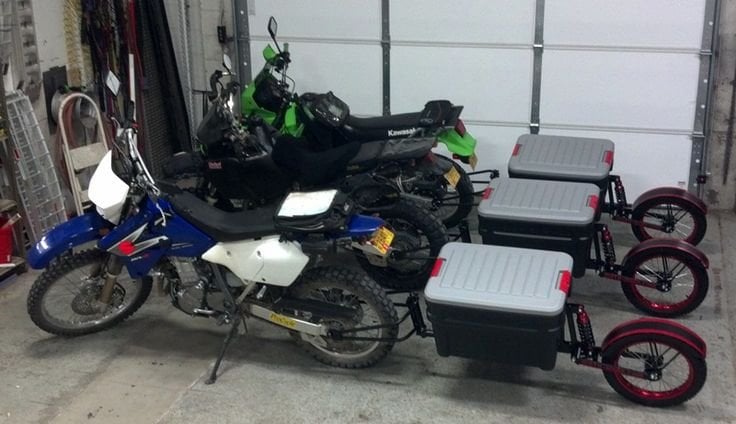

So here is where the fun begins. I want to be able to haul my stuff where it needs to be, including a second wheel set. My first thought was panniers and racks attached to the bike, but then I started reading and decided on building a trailer to pull behind the bike. It's been done before, so I'm not pioneering anything here, but I'm going to build it myself instead of forking out almost the purchase price of the bike for one. It'll have a box for my camping gear and racks for my second wheel set. Then when the time comes to hit the trails, ill pull a pin, leave the trailer at base camp and go ride, instead of having to pull a bunch of racks and panniers off the bike.

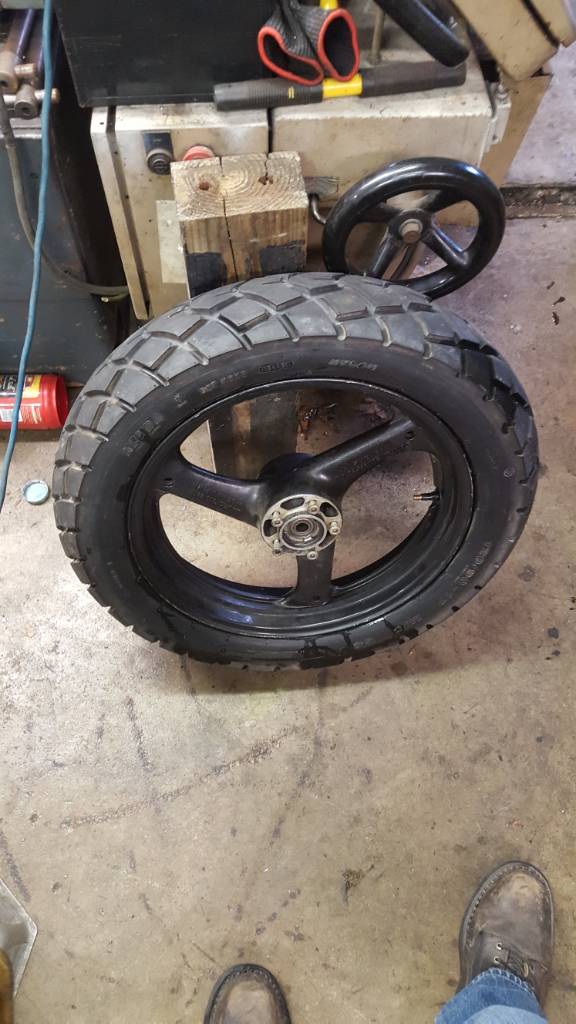

Im also going to use a katana 17" wheel with a shinko 705 that also fits the rear of the bike, for an extra spare just in case.


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

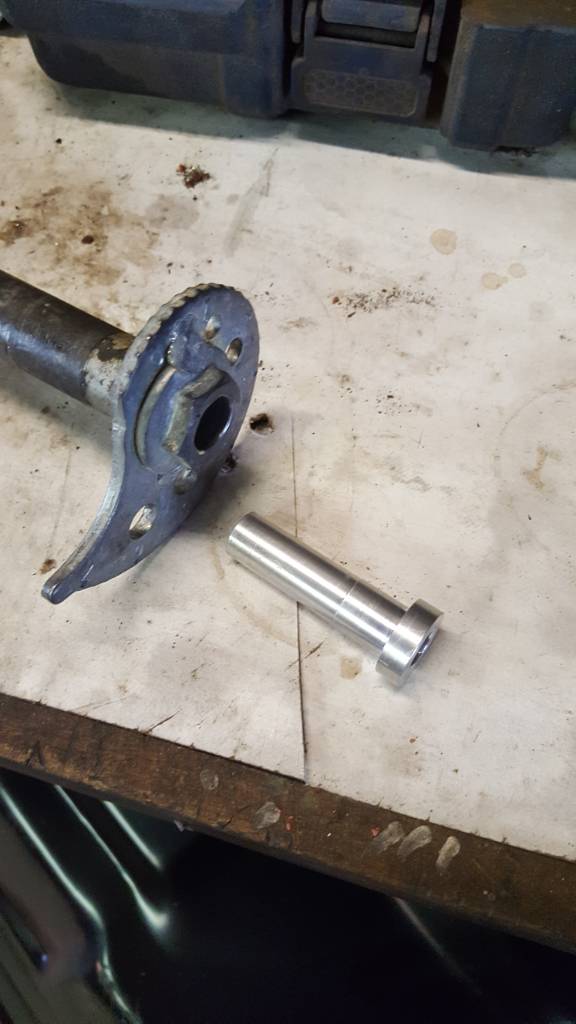

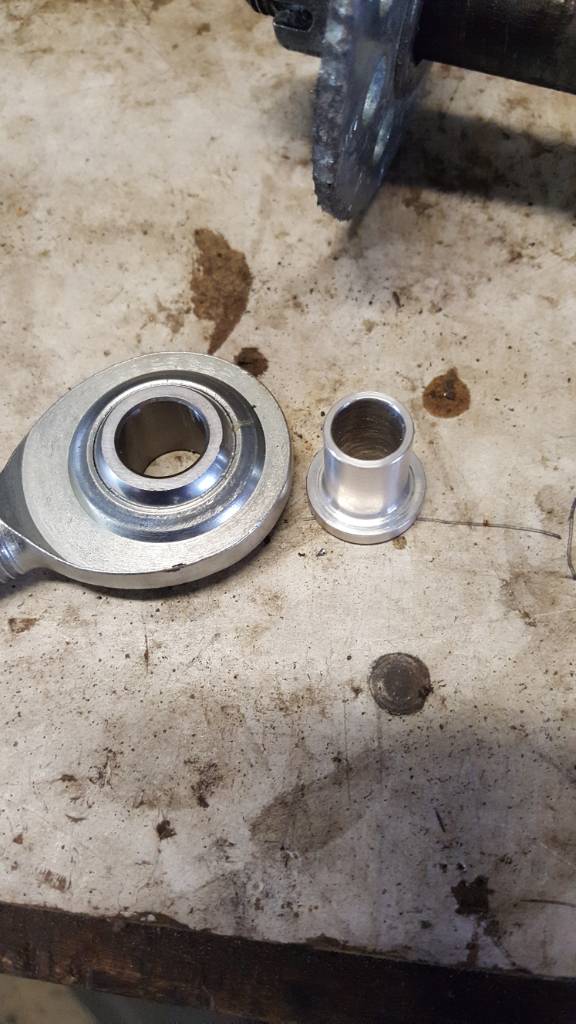

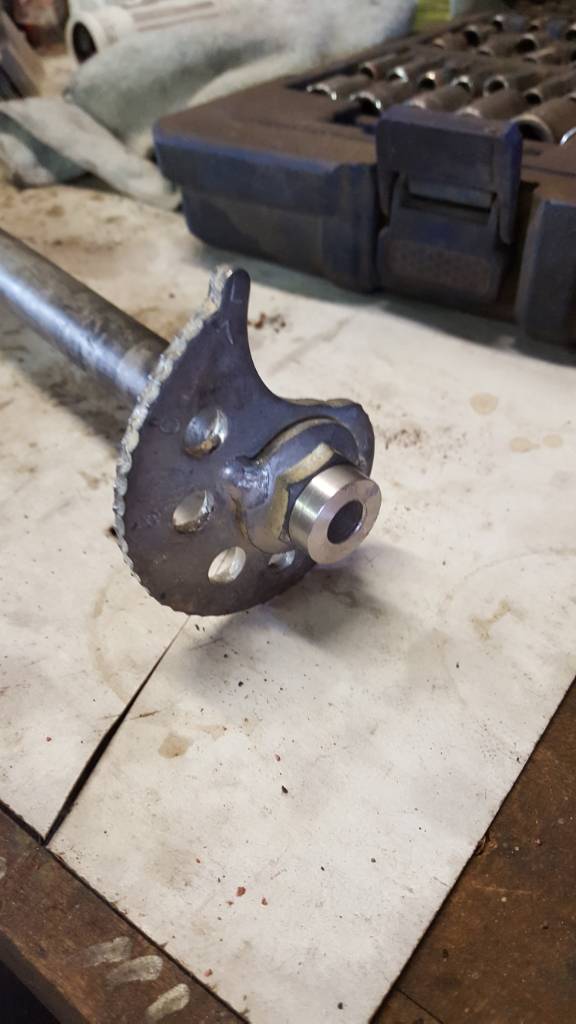

I started making up the axle connection. I will be using heim joints, with a bolt going through the hollow axle. I had to make a bushing for one side of the axle, as the opening on one side of the axle was 1/2" and the other was 3/8". I also made bushings for the heim joints to go from 1/2" i.d. to 3/8" i.d.

More updates to come...



Sent from my SM-G920V using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

What the heck is going on here?


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

irk miller said:
What the heck is going on here?
Building a trailer to pull behind the Dr man lol

Sent from my SM-G920V using Tapatalk


Mr.E

Got to keep the loonies on the path...
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

This isn't going to work either.







I'm in.


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Mr.E said:
This isn't going to work either.







I'm in.
I'm thinking about putting fat tires on the dr650 and calling it good..

Sent from my SM-G920V using Tapatalk


Mr.E

Got to keep the loonies on the path...
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Hurco550 said:
I'm thinking about putting fat tires on the dr650 and calling it good..

Sent from my SM-G920V using Tapatalk
you should do that. instagram says so. and the internet doesnt lie.

Ok, you two are gonna make me start a thread and play metoo


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Mr.E said:
you should do that. instagram says so. and the internet doesnt lie.

Ok, you two are gonna make me start a thread and play metoo
I betcha won't, woosie...

Sent from my SM-G920V using Tapatalk


Mr.E

Got to keep the loonies on the path...
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Hurco550 said:
I betcha won't, woosie...

Sent from my SM-G920V using Tapatalk
Challenge accepted

http://www.dotheton.com/forum/index.php?topic=75034.new#new


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Mr.E said:
Challenge accepted

http://www.dotheton.com/forum/index.php?topic=75034.new#new
lame thread. Do better.

Or at least build a trailer to pull behind it like a real man.

Sent from my SM-G920V using Tapatalk


Mr.E

Got to keep the loonies on the path...
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Hurco550 said:
lame thread. Do better.

Or at least build a trailer to pull behind it like a real man.

Sent from my SM-G920V using Tapatalk
Psshh, real men attach suitcases to the subframe and hide behind bosozoku windshields.


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650



Mr.E said:
Psshh, real men attach suitcases to the subframe and hide behind trash can windshields.
Fixed it

Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

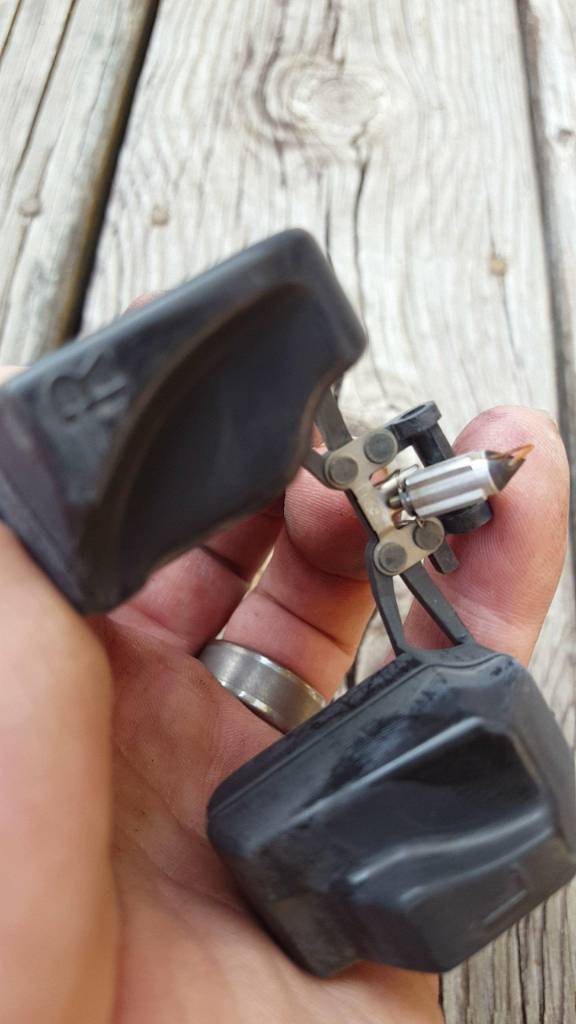

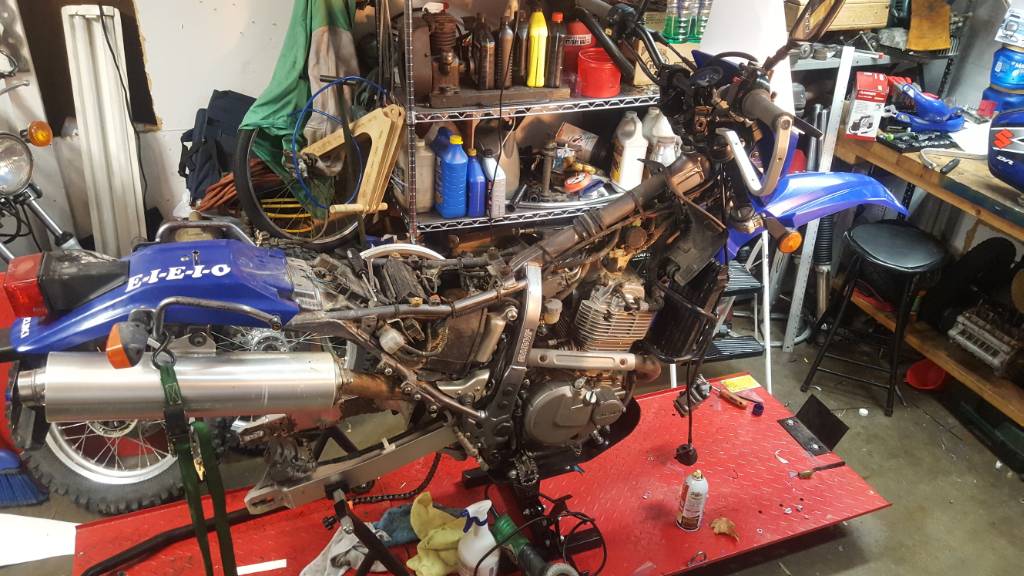

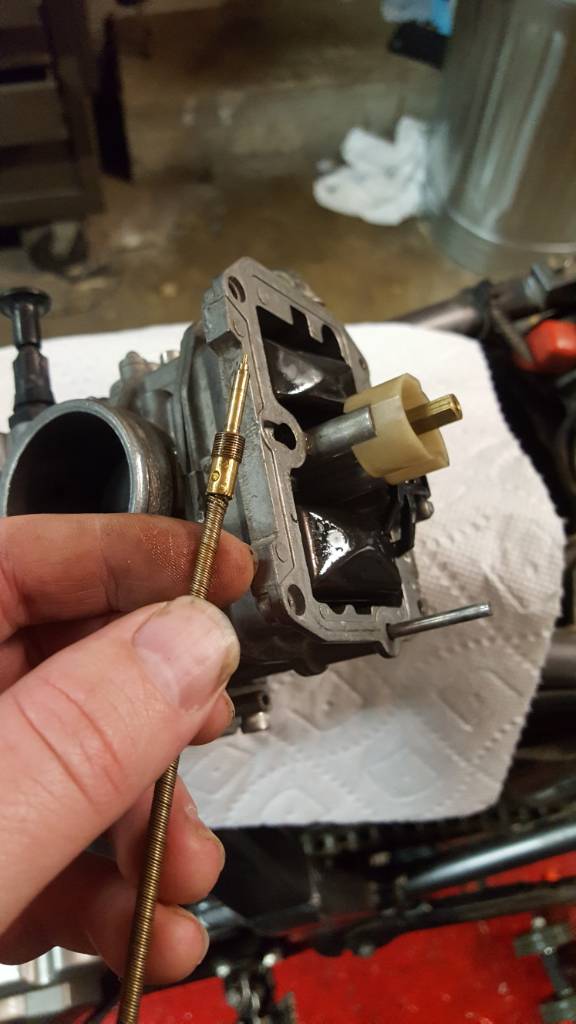

Farther apart she goes. During our post turkey day ride, I had a leftover piece of Alabama pine needle hanging out in my carb from the trip to barber, which warranted a little back yard tear down. While pulling the carb there, I realized that the fancy aftermarket flexible adjustment pilot screw had seized in place. The flexible part makes adjustment much easier, but a royal pain to get out once it's seized, because it pretty much is like trying to un torque a bolt using a spring as a socket extension. But never fear, pb blaster, metered heat and a little patience got the job done. I was so excited to see non gualded threads when I finally got it coaxed from its resting place.


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

canyoncarver said:
Fancy rickshaw is what I was thinking...
Oh i guarantee that someone will end up in the trailer at a dtt event ha


canyoncarver

'hacking is learning'
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

Hurco550 said:
Oh i guarantee that someone will end up in the trailer at a dtt event ha
Hmm, I'm too big. I'll stick to minibike racing.


Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: Let's go on an adventure... pulling a trailer... 2006 dr650

canyoncarver said:
Hmm, I'm too big. I'll stick to minibike racing.
Ephraim will. He's a child
