Motorcycle Carburetor Theory 101

Midcoastcustoms

"Live life like the captain of a sinking ship"
*NEW* LINK TO PDF FILE *NEW*
http://www.motorcyclecarbs.com/carbs101.pdf
Motorcycle Carburetor Theory 101

Motorcycle carburetors look very complex, but with a little theory, you can tune your bike for maximum performance. All carburetors work under the basic principle of atmospheric pressure. Atmospheric pressure is a powerful force which exerts pressure on everything. It varies slightly but is generally considered to be 15 pounds per square inch (PSI). This means that atmospheric pressure is pressing on everything at 15 PSI. By varying the atmospheric pressure inside the engine and carburetor, we can change the pressure and make fuel and air flow.

Atmospheric pressure will force high pressure to low pressure. As the piston on a two stroke engine goes up (or goes down on a four stroke engine), a low pressure is formed inside the crankcase (above the piston on a four stroke). This low pressure also causes a low pressure inside the carburetor. Since the pressure is higher outside the engine and carburetor, air will rush inside the carburetor and engine until the pressure is equalized. The moving air going through the carburetor will pick up fuel and mix with the air.

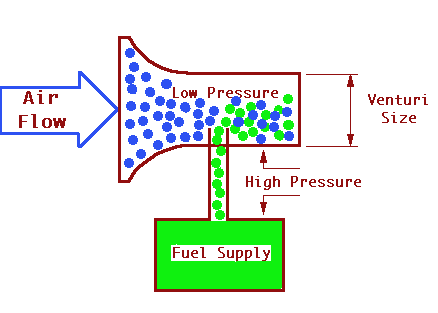

Inside a carburetor is a venturi, fig 1. The venturi is a restriction inside the carburetor that forces air to speed up to get through. A river that suddenly narrows can be used to illustrate what happens inside a carb. The water in the river speeds up as it gets near the narrowed shores and will get faster if the river narrows even more. The same thing happens inside the carburetor. The air that is speeding up will cause atmospheric pressure to drop inside the carburetor. The faster the air moves, the lower the pressure inside the carburetor.


FIG 1

Most motorcycle carburetor circuits are governed by throttle position and not by engine speed.There are five main metering systems inside most motorcycle carburetors. These metering circuits overlap each other and they are:
* pilot circuit
* throttle valve
* needle jet and jet needle
* main jet
* choke circuit

The pilot circuit has two adjustable parts, fig 2. The pilot air screw and pilot jet. The air screw can be located either near the back side of the carburetor or near the front of the carburetor. If the screw is located near the back, it regulates how much air enters the circuit. If the screw is turned in, it reduces the amount of air and richens the mixture. If it is turned out, it opens the passage more and allows more air into the circuit which results in a lean mixture. If the screw is located near the front, it regulated fuel. The mixture will be leaner if it is screwed in and richer if screwed out. If the air screw has to be turned more than 2 turns out for best idling, the next smaller size pilot jet will be needed.


FIG 2

The pilot jet is the part which supplies most of the fuel at low throttle openings. It has a small hole in it which restricts fuel flow though it. Both the pilot air screw and pilot jet affects carburetion from idle to around 1/4 throttle.

The slide valve affects carburetion between 1/8 thru 1/2 throttle. It especially affects it between 1/8 and 1/4 and has a lesser affect up to 1/2. The slides come in various sizes and the size is determined by how much is cutaway from the backside of it, fig 3. The larger the cutaway, the leaner the mixture (since more air is allowed through it) and the smaller the cutaway, the richer the mixture will be. Throttle valves have numbers on them that explains how much the cutaway is. If there is a 3 stamped into the slide, it has a 3.0mm cutaway, while a 1 will have a 1.0mm cutaway (which will be richer than a 3).


FIG 3

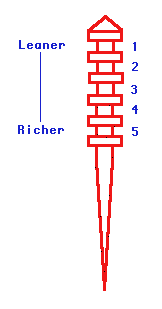

The jet needle and needle jet affects carburetion from 1/4 thru 3/4 throttle. The jet needle is a long tapered rod that controls how much fuel can be drawn into the carburetor venturi. The thinner the taper, the richer the mixture. The thicker the taper, the leaner the mixture since the thicker taper will not allow as much fuel into the venturi as a leaner one. The tapers are designed very precisely to give different mixtures at different throttle openings. Jet needles have grooves cut into the top. A clip goes into one of these grooves and holds it from falling or moving from the slide. The clip position can be changed to make an engine run richer or leaner, fig 4. If the engine needs to run leaner, the clip would be moved higher. This will drop the needle farther down into the needle jet and cause less fuel to flow past it. If the clip is lowered, the jet needle is raised and the mixture will be richer.

The needle jet is where the jet needle slides into. Depending on the inside diameter of the needle jet, it will affect the jet needle. The needle jet and jet needle work together to control the fuel flow between the 1/8 thru 3/4 range. Most of the tuning for this range is done to the jet needle, and not the needle jet.


FIG 4

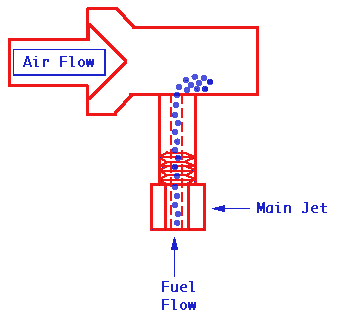

The main jet controls fuel flow from 3/4 thru full throttle, fig 5. Once the throttle is opened far enough, the jet needle is pulled high enough out of the needle jet and the size of the hole in the main jet begins to regulate fuel flow. Main jets have different size holes in them and the bigger the hole, the more fuel that will flow (and the richer the mixture). The higher the number on the mainjet, the more fuel that can flow through it and the richer the mixture.


FIG 5

The choke system is used to start cold engines. Since the fuel in a cold engine is sticking to the cylinder walls due to condensation, the mixture is too lean for the engine to start. The choke system will add fuel to the engine to compensate for the fuel that is stuck to the cylinder walls. Once the engine is warmed up, condensation is not a problem, and the choke is not needed.

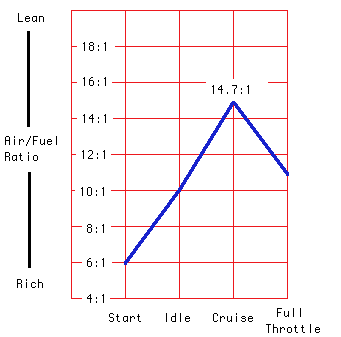

The air/fuel mixture must be changes to meet the demands of the needs of the engine. The ideal air/fuel ratio is 14.7 grams of air to 1 gram of fuel. This ideal ratio is only achieved for a very short period while the engine is running. Due to the incomplete vaporization of fuel at slow speeds or the additional fuel required at high speeds, the actual operational air/fuel ratio is usually richer. Figure 6 shows the actual air/fuel ratio for any given throttle opening.



FIG 6

Carburetor Jetting Troubleshooting

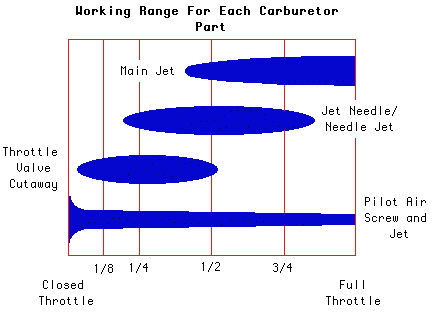

Carburetor troubleshooting is simple once the basic principles are known. The first step is to find where the engine is running poorly, fig 7. It must be remembered that carburetor jetting is determined by the throttle position, not engine speed. If the engine is having troubles at low rpm (idle to 1/4 throttle), the pilot system or slide valve is the likely problem. If the engine has problems between 1/4 and 3/4 throttle, the jet needle and needle jet (most likely the jet needle) is likely the problem. If the engine is running poorly at 3/4 to full throttle, the main jet is the likely problem.


FIG 7

While jetting carburetors, place a piece of tape on the throttle housing. Place another piece of tape on the throttle grip and draw a line (while the throttle is at idle) straight across from one piece of tape to the other. When these two lines are lined up, the engine will be idling. Now open the throttle to full throttle and draw another line directly across from it on the throttle housing. At this point, there should be two lines on the throttle housing, and one on the throttle grip. Now find the half-way point between both of the lines on the throttle housing. Make a mark and this will show when the throttle is at half throttle. Divide the spaces up even again until idle, 1/4, 1/2, 3/4, and full throttle positions are known. These lines will be used to quickly find the exact throttle opening while jetting.

Clean the air filter and warm the bike up. Accelerate through the gears until the throttle is at full throttle (a slight uphill is the best place for this). After a few seconds of full throttle running, quickly pull in the clutch and stop the engine (Do not allow the engine to idle or coast to a stop). Remove the spark plug and look at its color. It should be a light tan color. If it's white, the air/fuel mixture is too lean and a bigger main jet will have to be installed. If it's black or dark brown, the air/fuel mixture is too rich and a smaller main jet will have to be installed. While changing jets, change them one size at a time, test run after each change, and look at the plug color after each run.

After the main jet has been set, run the bike at half throttle and check the plug color. If it's white, lower the clip on the jet needle to richen the air/fuel mixture. If it's dark brown or black, raise the clip to lean the air/fuel mixture.

The pilot circuit can be adjusted while the bike is idling and then test run. If the engine is running poorly just off of idle, the pilot jet screw can be turned in or out to change the air-fuel mixture. If the screw is in the back of the carburetor, screwing it out will lean the mixture while screwing it in will richen it. If the adjustment screw is in the front of the carburetor, it will be the opposite. If turning the screw between one and two and a half doesn't have any affect, the pilot jet will have to be replaced with either a larger or smaller one. While adjusting the pilot screw, turn it 1/4 turn at a time and test run the bike between adjustments. Adjust the pilot circuit until the motorcycle runs cleanly off of idle with no hesitations or bogs.



Altitude, Humidity, and Air Temperature

Once the jetting is set and the bike is running good, there are many factors that will change the performance of the engine. Altitude, air temperature, and humidity are big factors that will affect how an engine will run. Air density increases as air gets colder. This means that there are more oxygen molecules in the same space when the air is cold. When the temperature drops, the engine will run leaner and more fuel will have to be added to compensate. When the air temperature gets warmer, the engine will run richer and less fuel will be needed. An engine that is jetted at 32š Fahrenheit may run poorly when the temperature reaches 90š Fahrenheit.

Altitude affects jetting since there are less air molecules as altitude increases. A bike that runs good at sea level will run rich at 10,000 ft due to the thinner air.

Humidity is how much moister is in the air. As humidity increases, jetting will be richer. A bike that runs fins in the mornings dry air may run rich as the day goes on and the humidity increases.

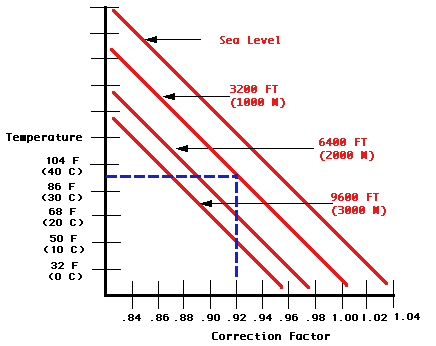

Correction factors are sometimes used to find the correct carburetor settings for changing temperatures and altitudes. The chart in fig 8, shows a typical correction factor chart. To use this chart, jet the carburetor and write down the pilot and main jet sizes. Determine the correct air temperature and follow the chart over to the right until the correct elevation is found. Move straight down from this point until the correct correction factor is found. Using fig 8 as an example, the air temperature is 95š Fahrenheit and the altitude is 3200 ft. The correction factor will be 0.92. To find out the correction main and pilot jets, multiple the correction factor and each jet size. A main jet size of 350 would be multiplied by 0.92 and the new main jet size would be a 322. A pilot jet size of 40 would be multiplied by 0.92 and the pilot jet size would be 36.8.


FIG 8

Correction factors can also be used to find the correct settings for the needle jet, jet needle, and air screw. Use the chart from fig 9 and determine the correction factor. Then use the table below to determine what to do with the needle jet, jet needle, and air screw.

Needle Jet/Jet Needle/Air Screw Correction Chart



Correction factor 1.04 or above 1.04-1.00 1.00-0.96 0.96-0.92 0.92 or below

Needle jet 2 sizes larger 1 size larger Same size 1 size smaller 2 sizes smaller

Jet needle setting Lower clip position Same Same Same Raise clip one position

Air screw opening One turn in 1/2 turn in Same 1/2 turn out One turn out

All info is from this parts site http://www.siriusconinc.com/index.php

Nice work mate. I know all this from dicking around in the garage and whatnot, but it'll be a kicker of a resource for others.

Good work on taking the time to write it up and put some decent diagrams in there. Very clear and concise.

- boingk

boingk said:
Nice work mate. I know all this from dicking around in the garage and whatnot, but it'll be a kicker of a resource for others.

Good work on taking the time to write it up and put some decent diagrams in there. Very clear and concise.

- boingk
That's how I learned too, by doing, I grew up in the garage...all the info was from the link at the bottom of the page. I came across it while searching for parts and thought this would be of help to many.

Wow!!..
What a fantastic thread!.
Thanks for taking the time to write it up!!.

I'm gonna sticky this thread!!.

locO leoN said:
Wow!!..
What a fantastic thread!.
Thanks for taking the time to write it up!!.

I'm gonna sticky this thread!!.
Once again i didn't write this just re-arranged the info and posted it. I found this while looking for parts for my cb450. The info came from this site http://www.siriusconinc.com/faq.php#name_7 This was probably one of the best carb theory explanations i have seen. Hope this is of great help to many!

Thank you for posting this. Now I've gone from knowing an itsy bit about carbs to knowing a whole lot more.

this should stay up forever hahaha. thanks for the info i'm sure it has helped a lot of us trying to tune our bikes

Best jetting post I have read.

However, my bike is giving me problems, and I can't figure out where my problem fits in all of this.

When I bought the bike it had sponge-like unifliter pods on each carb of my 82 CB650.
I installed K&N pods instead.

The bike runs pretty good, i have never ridden a bike of this size so I can't be sure. It idles fine, and seems to have good power. I have gotten it up to the ton no problem with more rpms to spare.

HOWEVER, today I finally put insurance on it, and plated it, and got ready to go on a road trip this weekend and I took it out for a ride. It was moderately windy (more wind than this bike has seen in the short time i've had it). It ran great going with the wind. No problem. When I turned around to go against the wind the bike ran like crap. Whenever a gust of wind hit me the bike bogged down so bad I almost had to pull over. I tried running with the choke half way and it seemed to fix the issue and it ran pretty decent.

So what is my issue? I suppose the bike is running lean since the choke helped.
Why does the bike run fine with lots of power as long as there is no wind?
I want to fix this problem fast for the weekend. I might try to tape up the air filter pods to limit some air and see if that helps.
Which jets would I be looking at changing in this case?

I think I'll post this under it's own subject too.

Thanks!

Thanks for the PDF, I want to go Pod Filters and had no idea what size to go for my jets, this should make things a lot easier to figure out.

Good Morning. Your explanation was very deep. Thank you for taking your time to help us understand.

My question stems from the "slider valve." I have a '67 CB160 that I am fixing up. Mine was sticking, causing the throttle to not snap back on the handle. When I took it out to clean it, and put it back in, it now doesn't seem to fit or slide back into the chamber. I am afraid if I push it in too hard it will get jammed. Am I doing something wrong? ???

Thank you.


Midcoastcustoms said:
*NEW* LINK TO PDF FILE *NEW*
http://www.motorcyclecarbs.com/carbs101.pdf
Motorcycle Carburetor Theory 101

Motorcycle carburetors look very complex, but with a little theory, you can tune your bike for maximum performance. All carburetors work under the basic principle of atmospheric pressure. Atmospheric pressure is a powerful force which exerts pressure on everything. It varies slightly but is generally considered to be 15 pounds per square inch (PSI). This means that atmospheric pressure is pressing on everything at 15 PSI. By varying the atmospheric pressure inside the engine and carburetor, we can change the pressure and make fuel and air flow.

Atmospheric pressure will force high pressure to low pressure. As the piston on a two stroke engine goes up (or goes down on a four stroke engine), a low pressure is formed inside the crankcase (above the piston on a four stroke). This low pressure also causes a low pressure inside the carburetor. Since the pressure is higher outside the engine and carburetor, air will rush inside the carburetor and engine until the pressure is equalized. The moving air going through the carburetor will pick up fuel and mix with the air.

Inside a carburetor is a venturi, fig 1. The venturi is a restriction inside the carburetor that forces air to speed up to get through. A river that suddenly narrows can be used to illustrate what happens inside a carb. The water in the river speeds up as it gets near the narrowed shores and will get faster if the river narrows even more. The same thing happens inside the carburetor. The air that is speeding up will cause atmospheric pressure to drop inside the carburetor. The faster the air moves, the lower the pressure inside the carburetor.


FIG 1

Most motorcycle carburetor circuits are governed by throttle position and not by engine speed.There are five main metering systems inside most motorcycle carburetors. These metering circuits overlap each other and they are:
* pilot circuit
* throttle valve
* needle jet and jet needle
* main jet
* choke circuit

The pilot circuit has two adjustable parts, fig 2. The pilot air screw and pilot jet. The air screw can be located either near the back side of the carburetor or near the front of the carburetor. If the screw is located near the back, it regulates how much air enters the circuit. If the screw is turned in, it reduces the amount of air and richens the mixture. If it is turned out, it opens the passage more and allows more air into the circuit which results in a lean mixture. If the screw is located near the front, it regulated fuel. The mixture will be leaner if it is screwed in and richer if screwed out. If the air screw has to be turned more than 2 turns out for best idling, the next smaller size pilot jet will be needed.


FIG 2

The pilot jet is the part which supplies most of the fuel at low throttle openings. It has a small hole in it which restricts fuel flow though it. Both the pilot air screw and pilot jet affects carburetion from idle to around 1/4 throttle.

The slide valve affects carburetion between 1/8 thru 1/2 throttle. It especially affects it between 1/8 and 1/4 and has a lesser affect up to 1/2. The slides come in various sizes and the size is determined by how much is cutaway from the backside of it, fig 3. The larger the cutaway, the leaner the mixture (since more air is allowed through it) and the smaller the cutaway, the richer the mixture will be. Throttle valves have numbers on them that explains how much the cutaway is. If there is a 3 stamped into the slide, it has a 3.0mm cutaway, while a 1 will have a 1.0mm cutaway (which will be richer than a 3).


FIG 3

The jet needle and needle jet affects carburetion from 1/4 thru 3/4 throttle. The jet needle is a long tapered rod that controls how much fuel can be drawn into the carburetor venturi. The thinner the taper, the richer the mixture. The thicker the taper, the leaner the mixture since the thicker taper will not allow as much fuel into the venturi as a leaner one. The tapers are designed very precisely to give different mixtures at different throttle openings. Jet needles have grooves cut into the top. A clip goes into one of these grooves and holds it from falling or moving from the slide. The clip position can be changed to make an engine run richer or leaner, fig 4. If the engine needs to run leaner, the clip would be moved higher. This will drop the needle farther down into the needle jet and cause less fuel to flow past it. If the clip is lowered, the jet needle is raised and the mixture will be richer.

The needle jet is where the jet needle slides into. Depending on the inside diameter of the needle jet, it will affect the jet needle. The needle jet and jet needle work together to control the fuel flow between the 1/8 thru 3/4 range. Most of the tuning for this range is done to the jet needle, and not the needle jet.


FIG 4

The main jet controls fuel flow from 3/4 thru full throttle, fig 5. Once the throttle is opened far enough, the jet needle is pulled high enough out of the needle jet and the size of the hole in the main jet begins to regulate fuel flow. Main jets have different size holes in them and the bigger the hole, the more fuel that will flow (and the richer the mixture). The higher the number on the mainjet, the more fuel that can flow through it and the richer the mixture.


FIG 5

The choke system is used to start cold engines. Since the fuel in a cold engine is sticking to the cylinder walls due to condensation, the mixture is too lean for the engine to start. The choke system will add fuel to the engine to compensate for the fuel that is stuck to the cylinder walls. Once the engine is warmed up, condensation is not a problem, and the choke is not needed.

The air/fuel mixture must be changes to meet the demands of the needs of the engine. The ideal air/fuel ratio is 14.7 grams of air to 1 gram of fuel. This ideal ratio is only achieved for a very short period while the engine is running. Due to the incomplete vaporization of fuel at slow speeds or the additional fuel required at high speeds, the actual operational air/fuel ratio is usually richer. Figure 6 shows the actual air/fuel ratio for any given throttle opening.



FIG 6

Carburetor Jetting Troubleshooting

Carburetor troubleshooting is simple once the basic principles are known. The first step is to find where the engine is running poorly, fig 7. It must be remembered that carburetor jetting is determined by the throttle position, not engine speed. If the engine is having troubles at low rpm (idle to 1/4 throttle), the pilot system or slide valve is the likely problem. If the engine has problems between 1/4 and 3/4 throttle, the jet needle and needle jet (most likely the jet needle) is likely the problem. If the engine is running poorly at 3/4 to full throttle, the main jet is the likely problem.


FIG 7

While jetting carburetors, place a piece of tape on the throttle housing. Place another piece of tape on the throttle grip and draw a line (while the throttle is at idle) straight across from one piece of tape to the other. When these two lines are lined up, the engine will be idling. Now open the throttle to full throttle and draw another line directly across from it on the throttle housing. At this point, there should be two lines on the throttle housing, and one on the throttle grip. Now find the half-way point between both of the lines on the throttle housing. Make a mark and this will show when the throttle is at half throttle. Divide the spaces up even again until idle, 1/4, 1/2, 3/4, and full throttle positions are known. These lines will be used to quickly find the exact throttle opening while jetting.

Clean the air filter and warm the bike up. Accelerate through the gears until the throttle is at full throttle (a slight uphill is the best place for this). After a few seconds of full throttle running, quickly pull in the clutch and stop the engine (Do not allow the engine to idle or coast to a stop). Remove the spark plug and look at its color. It should be a light tan color. If it's white, the air/fuel mixture is too lean and a bigger main jet will have to be installed. If it's black or dark brown, the air/fuel mixture is too rich and a smaller main jet will have to be installed. While changing jets, change them one size at a time, test run after each change, and look at the plug color after each run.

After the main jet has been set, run the bike at half throttle and check the plug color. If it's white, lower the clip on the jet needle to richen the air/fuel mixture. If it's dark brown or black, raise the clip to lean the air/fuel mixture.

The pilot circuit can be adjusted while the bike is idling and then test run. If the engine is running poorly just off of idle, the pilot jet screw can be turned in or out to change the air-fuel mixture. If the screw is in the back of the carburetor, screwing it out will lean the mixture while screwing it in will richen it. If the adjustment screw is in the front of the carburetor, it will be the opposite. If turning the screw between one and two and a half doesn't have any affect, the pilot jet will have to be replaced with either a larger or smaller one. While adjusting the pilot screw, turn it 1/4 turn at a time and test run the bike between adjustments. Adjust the pilot circuit until the motorcycle runs cleanly off of idle with no hesitations or bogs.



Altitude, Humidity, and Air Temperature

Once the jetting is set and the bike is running good, there are many factors that will change the performance of the engine. Altitude, air temperature, and humidity are big factors that will affect how an engine will run. Air density increases as air gets colder. This means that there are more oxygen molecules in the same space when the air is cold. When the temperature drops, the engine will run leaner and more fuel will have to be added to compensate. When the air temperature gets warmer, the engine will run richer and less fuel will be needed. An engine that is jetted at 32š Fahrenheit may run poorly when the temperature reaches 90š Fahrenheit.

Altitude affects jetting since there are less air molecules as altitude increases. A bike that runs good at sea level will run rich at 10,000 ft due to the thinner air.

Humidity is how much moister is in the air. As humidity increases, jetting will be richer. A bike that runs fins in the mornings dry air may run rich as the day goes on and the humidity increases.

Correction factors are sometimes used to find the correct carburetor settings for changing temperatures and altitudes. The chart in fig 8, shows a typical correction factor chart. To use this chart, jet the carburetor and write down the pilot and main jet sizes. Determine the correct air temperature and follow the chart over to the right until the correct elevation is found. Move straight down from this point until the correct correction factor is found. Using fig 8 as an example, the air temperature is 95š Fahrenheit and the altitude is 3200 ft. The correction factor will be 0.92. To find out the correction main and pilot jets, multiple the correction factor and each jet size. A main jet size of 350 would be multiplied by 0.92 and the new main jet size would be a 322. A pilot jet size of 40 would be multiplied by 0.92 and the pilot jet size would be 36.8.


FIG 8

Correction factors can also be used to find the correct settings for the needle jet, jet needle, and air screw. Use the chart from fig 9 and determine the correction factor. Then use the table below to determine what to do with the needle jet, jet needle, and air screw.

Needle Jet/Jet Needle/Air Screw Correction Chart



Correction factor 1.04 or above 1.04-1.00 1.00-0.96 0.96-0.92 0.92 or below

Needle jet 2 sizes larger 1 size larger Same size 1 size smaller 2 sizes smaller

Jet needle setting Lower clip position Same Same Same Raise clip one position

Air screw opening One turn in 1/2 turn in Same 1/2 turn out One turn out

All info is from this parts site http://www.siriusconinc.com/index.php

Not sure but it may be off 180 degrees. Repost what u wrote under a new topic in 1-800- cafe help with pics and i'm sure many people will be able to help including myself. No one will see the post here.

hey man thanks for posting what you found im really stoked hope what i learned here will help me get my bike running right

looking to put pod filters on my carbs on cb450 any1 know what size jets i need to put in my carbs to keep running?? and any1 have any 2 sell?

Do those carbs have an accelerator pump?
If they do and you look in the intake (engine off) and you turn the throttle you
should see a squirt of gas come out of the brass tube sticking up.


Can you please post a photo of the carbs.
Then I can tell you where the problem is.

bonez1122 said:
looking to put pod filters on my carbs on cb450 any1 know what size jets i need to put in my carbs to keep running?? and any1 have any 2 sell?


At least one step up from stock. Also the needles may need to me raised.
Need more info about the type of exhaust system.


The workshop manual tells you the stock jet size for California,49 state and high elevation states like Colorado.
You HAVE TO HAVE a workshop manual for any motorcycle you are working on.

Kyzer said:
Good Morning. Your explanation was very deep. Thank you for taking your time to help us understand.

My question stems from the "slider valve." I have a '67 CB160 that I am fixing up. Mine was sticking, causing the throttle to not snap back on the handle. When I took it out to clean it, and put it back in, it now doesn't seem to fit or slide back into the chamber. I am afraid if I push it in too hard it will get jammed. Am I doing something wrong? ???

Thank you.


The slides have a front and a back.
There is a notch that has to line up.
The cut away in the slide has to be on the air cleaner side of the carb.
Since it is a CB160 .Did you get the left and right carbs and slides mixed up?
Check that out.

Will McD said:
Best jetting post I have read.

However, my bike is giving me problems, and I can't figure out where my problem fits in all of this.

When I bought the bike it had sponge-like unifliter pods on each carb of my 82 CB650.
I installed K&N pods instead.

The bike runs pretty good, i have never ridden a bike of this size so I can't be sure. It idles fine, and seems to have good power. I have gotten it up to the ton no problem with more rpms to spare.

HOWEVER, today I finally put insurance on it, and plated it, and got ready to go on a road trip this weekend and I took it out for a ride. It was moderately windy (more wind than this bike has seen in the short time i've had it). It ran great going with the wind. No problem. When I turned around to go against the wind the bike ran like crap. Whenever a gust of wind hit me the bike bogged down so bad I almost had to pull over. I tried running with the choke half way and it seemed to fix the issue and it ran pretty decent.

So what is my issue? I suppose the bike is running lean since the choke helped.
Why does the bike run fine with lots of power as long as there is no wind?
I want to fix this problem fast for the weekend. I might try to tape up the air filter pods to limit some air and see if that helps.
Which jets would I be looking at changing in this case?

I think I'll post this under it's own subject too.

Thanks!





Do those carbs have an accelerator pump?
If they do and you look in the intake (engine off) and you turn the throttle you
should see a squirt of gas come out of the brass tube sticking up.


Can you please post a photo of the carbs.
Then I can tell you where the problem is.

CB160 carbs are very simple. Take teh slide out again and see why it's sticking. It may be rotated out of position or the needle may not be going into the needle jet correctly. It should be fairly obvious if you take your time to look.
