My Dad's Bike - 2012 Yamaha FJR1300

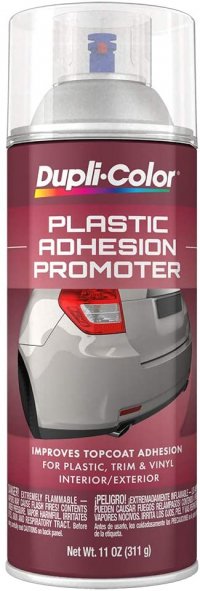

Got the top removed and all the hardware out of the way. Hit it with some 320 grit paper on an orbital sander to clean things up. I picked up a can of plastic adhesion promoter that will be going on next.


Attachments

  • Untitled.png
    1.5 MB · Views: 227
  • 51ISCXy2HFL._AC_SL1000_.jpg
    45.3 KB · Views: 196

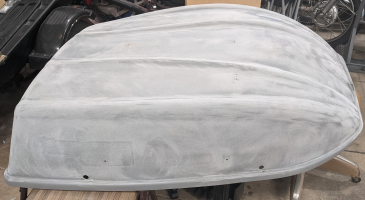

I got the plastic adhesion promoter laid down and two light coats of filler primer. Still looks pretty rough. Not sure if I should live with it and just sand it a bit or take it all the way back down or even throw on more filler....


Attachments

  • PXL_20210124_201752280.jpg
    287 KB · Views: 185
After some back and forth, I decided to sand it all back down again to remove the rough spots. I was hoping to be done sooner rather than later with this project, but I actually want it to look good, so....


Attachments

  • before.jpg
    216.2 KB · Views: 179
  • after.jpg
    246.7 KB · Views: 179
Prime, sand, rinse, repeat...

Getting closer.


Attachments

  • PXL_20210208_161200337.jpg
    162.7 KB · Views: 169
Having had one of these before, are you using anything in the paint to keep it flexible? These boxes twist and flex a lot while opening and closing. Hate for you to get this all painted to have a big chunk fall off from flexing.

You know... I hadn't considered that.

I know acrylic is more flexible than enamel, but I'm not sure if I can lay acrylic over enamel primer...

Sounds like some research is warranted.

OK. Done with paint. Also got the tail light (stole the one from my RD200) and turn signals installed.


Attachments

  • PXL_20210217_194436727.jpg
    296 KB · Views: 177
  • PXL_20210217_194447444.jpg
    500.5 KB · Views: 177
  • PXL_20210217_201130863.jpg
    254 KB · Views: 180
  • PXL_20210217_201239787.MP.jpg
    416.6 KB · Views: 176
Wired up the lights. Just need to wire up the bike to match the trailer.

Also need to figure out how to get this hitch installed. Weld? Bolt it up? Both?


Attachments

  • PXL_20210218_182046838.jpg
    229.6 KB · Views: 160
  • PXL_20210218_181825671.jpg
    362 KB · Views: 171
  • PXL_20210219_000507853.jpg
    120.2 KB · Views: 164
  • PXL_20210218_175231382.jpg
    324 KB · Views: 174
  • PXL_20210219_211239459.jpg
    284.5 KB · Views: 159
  • PXL_20210219_211305343.jpg
    342.5 KB · Views: 173
And attached.


Attachments

  • PXL_20210220_010313209.jpg
    265.7 KB · Views: 173
  • PXL_20210220_011316710.jpg
    193.8 KB · Views: 159
  • PXL_20210220_012630560.jpg
    147 KB · Views: 160
  • PXL_20210220_215908533.jpg
    237.4 KB · Views: 158
  • PXL_20210220_222307492.jpg
    281.9 KB · Views: 166
And now the hardware is installed. Up next is doing something about these wheels.


Attachments

  • Untitled.png
    1,009.5 KB · Views: 164
  • Untitled1.png
    1.1 MB · Views: 171
Wire brushed all of the rust off and then hit it with some gloss black spray paint. Polished the hub caps.


Attachments

  • PXL_20210228_191414140.jpg
    192.7 KB · Views: 162
New shoes. Just waiting on the hitch for the bike to come in now...


Attachments

  • PXL_20210301_203731784.jpg
    314.4 KB · Views: 169
The hitch has been installed and wired to the bike.

Just need to wire up the mating connector on the trailer, now.


Attachments

  • 160006465_10159451617635159_3828468967732350346_o.jpg
    238 KB · Views: 151
