Project CB690 (KTM 690 engine in a CB550f frame)

goodoltup

Been Around the Block
Mockup of how the jig will be assembled, then tacked together. I decided to only tack it, it is plenty strong, and it will be easier to cut apart and disassemble.


Attachments

  • IMG_6670.jpg
    675.3 KB · Views: 137
  • IMG_6671.jpg
    643.6 KB · Views: 124
  • IMG_6700.jpg
    763.9 KB · Views: 120
  • IMG_6701.jpg
    578.2 KB · Views: 119

goodoltup

Been Around the Block

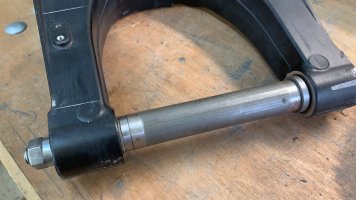

The swingarm pivot bolt needed some bushes to keep it centred in the 1" tube and on the M12 threaded rod, my neighbour made these on his lathe for me. they just press into the tube.


Attachments

  • EA512B06-462D-44A3-8197-6219EFF31403.JPG
    640.6 KB · Views: 108

goodoltup

Been Around the Block
With the jig all tacked I could remove the swingarm from the bike and finish tacking the shock mount locators. They have a slot because I was not completely sure that my measurements resulted in a perfectly level swingarm with respect to the base, so this was easier. It won't matter if the shock mounts move up and down as long as they are in plane and equal front to back.


Attachments

  • IMG_6702.jpg
    792.8 KB · Views: 106
  • IMG_6703.jpg
    892.6 KB · Views: 106

goodoltup

Been Around the Block
Ok, new swingarm back in the jig for cutting. Now the rectangular bit goes into the slot to act as a fence for the bandsaw.


Attachments

  • IMG_6704.jpg
    692.2 KB · Views: 111
  • IMG_6705.jpg
    690.9 KB · Views: 106

goodoltup

Been Around the Block
Cuts made on the bandsaw (no actions shots) and the final picture shows the result. I will cut some 10mm plate to go in between the gap and have it professionally welded.
The reason I'm not sure this will work is because the swingarm is now interfering with the frame pretty badly, and material might have to be removed off of the swingarm to make it clear, necessitating side plates on the swingarm etc. We'll see how it looks when I tack it together and try to make it fit.


Attachments

  • IMG_6706.jpg
    641.3 KB · Views: 112
  • IMG_6707.jpg
    795.5 KB · Views: 114
  • IMG_6708.jpg
    743.3 KB · Views: 113
  • IMG_6709.jpg
    790.3 KB · Views: 112
  • IMG_6710.jpg
    794.4 KB · Views: 120

goodoltup

Been Around the Block
I needed to reduce the width of the swingarm so it would fit in the frame. I used the bandsaw again and took a few mm off each side, and blended it with a sander.


Attachments

  • IMG_6733.jpg
    510.3 KB · Views: 98
  • IMG_6735.jpg
    479 KB · Views: 97
  • IMG_6736.jpg
    530.8 KB · Views: 99
  • IMG_6740.jpg
    635.2 KB · Views: 100

goodoltup

Been Around the Block

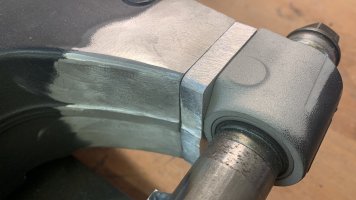

The gap will be widened to 10mm and filled in with plate.


Attachments

  • IMG_6741.jpg
    1.4 MB · Views: 100
  • IMG_6743.jpg
    667.7 KB · Views: 107

goodoltup

Been Around the Block
The cuts on the bearing side were not good because I was using an inappropriate blade. I cleaned them up on my neighbours mini-mill.


Attachments

  • IMG_6789.jpg
    657.8 KB · Views: 104

goodoltup

Been Around the Block
Mostly completed the new caliper bracket. Need a new one because the original will foul the shock. This one will use a heim rod end brake stay instead of locating on the swingarm as original. I haven't decided whether to put the bracket above or below the swingarm, so I've made it 'double sided' with respect to the brake stay mount. Once decided, I will mill off the extra brake stay mount. The bracket is designed to fit the Brembo P32. The diameter relief on the back is to clear the brake disc mounting bolts.


Attachments

  • Screenshot 2021-10-12 085700.png
    Screenshot 2021-10-12 085700.png
    119.8 KB · Views: 93
  • Screenshot 2021-10-12 085634.png
    Screenshot 2021-10-12 085634.png
    127.5 KB · Views: 83
  • Screenshot 2021-10-12 085539.png
    Screenshot 2021-10-12 085539.png
    119.8 KB · Views: 84
  • Screenshot 2021-10-12 091227.png
    Screenshot 2021-10-12 091227.png
    327.9 KB · Views: 86

goodoltup

Been Around the Block
The parts arrived, yay! They don't fit, boo! No biggie, I had to remove some material to clear the pads. When I mocked it up and measured I didn't have the pads in the calliper body, and didn't consider that the pads might extend past the body. I did a shit job with the material removal, bit no one will really see it. I'll clean it up with a file after I do a mockup. Also I threaded the holes.


Attachments

  • IMG_7004.jpg
    819.7 KB · Views: 67
  • IMG_7005.jpg
    790.6 KB · Views: 68
  • IMG_7006.jpg
    1,001.7 KB · Views: 71
  • IMG_7007.jpg
    596.2 KB · Views: 72
  • IMG_7008.jpg
    1 MB · Views: 75

goodoltup

Been Around the Block
I'm leaning towards an underslung calliper, below the swingarm. Note that in this case, the left side boss will be removed, as the brake stay would utilise the right side boss.


Attachments

  • IMG_7009.jpg
    682.3 KB · Views: 84

goodoltup

Been Around the Block

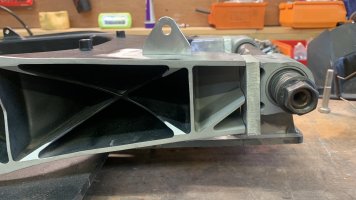

This will be the location of the shock mount bosses.Overall, the parts look great, no issues.


Attachments

  • IMG_7001.jpg
    510.6 KB · Views: 83
  • IMG_7002.jpg
    486 KB · Views: 83

goodoltup

Been Around the Block

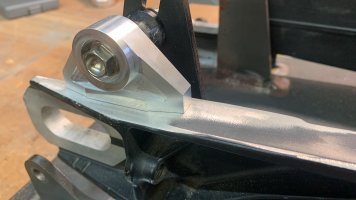

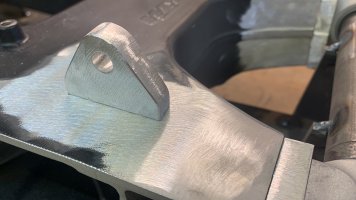

The jig is all set to be welded. Pictures 3 and 5 show the torque arm stay. I've decided to have the caliper bracket on the top of the swingarm.


Attachments

  • 5DB252FD-2E40-4689-A022-41A820E28BA7.JPG
    656.7 KB · Views: 77
  • 6ECA030A-1995-4E81-ACBC-D22E83845FE4.JPG
    585.5 KB · Views: 68
  • 9A482C35-F7A4-44FB-A722-5BBB820D79E7.JPG
    537.9 KB · Views: 67
  • A904B43E-2DBD-4780-957D-8A585AEA7656.JPG
    545.2 KB · Views: 67
  • CEF1043D-0BC2-431B-B634-2A222DC52980.JPG
    546.8 KB · Views: 71

goodoltup

Been Around the Block

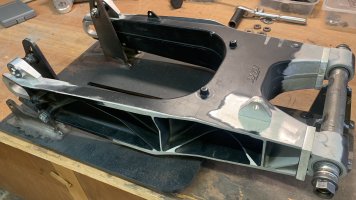

Mockup of all the parts using the original swingarm. The disc is bang on the middle of the caliper, very happy with that.


Attachments

  • IMG_7031.jpg
    711.8 KB · Views: 71
  • IMG_7032.jpg
    761.7 KB · Views: 72
  • IMG_7033.jpg
    522.4 KB · Views: 70

doc_rot

Oh the usual... I bowl, I drive around...
DTT SUPPORTER
DTT BOTM WINNER
That solid alloy plate near the pivot is going to take a ton of heat to weld properly and i would be worried that the bearing bore will distort. Have you considered machining new pivot points and welding those on instead of resuing the stock ones? I undersize the pivot and machine the bores after welding so i can ensure concentricity and roundness of the bores. Not trying to be rude, just wondering if this had been considered.


goodoltup

Been Around the Block
That solid alloy plate near the pivot is going to take a ton of heat to weld properly and i would be worried that the bearing bore will distort. Have you considered machining new pivot points and welding those on instead of resuing the stock ones? I undersize the pivot and machine the bores after welding so i can ensure concentricity and roundness of the bores. Not trying to be rude, just wondering if this had been considered.
Hi Doc,
I considered having new blocks machined as you said, but decided to gamble on this approach just due to the expense. I hope it works! The welder (a coded welder, not me) will weld the plates first, and if they fail in some way, I'm only out the £70 I paid for the swingarm, and my time of course. If it looks like the bearing bores are still round, then we'll move on to the shock mount blocks.
The solution of the plates is also ugly, but it will all be hidden between frame members and behind the side covers, so it won't really matter. The welder is coming to see the jig tonight, I'll let everyone know if he can do it!


goodoltup

Been Around the Block
Thanks guys for your comments and support! The plan is to get the new swingarm finished, put it back together and road test it, then over the winter do a full teardown and paint etc. Getting there!
