Re: Scott's 1974 CB360 project- She is alive!!

SpottheDogg

Member
Re: My 1974 CB360 project

More bits today, including my Do the Ton T-Shirt in the Dime City cycles box. I got the new pistons/rings and a set of front blinkers, also a pile of stuff from the machine shop. 8)


SpottheDogg

Member
Re: My 1974 CB360 project

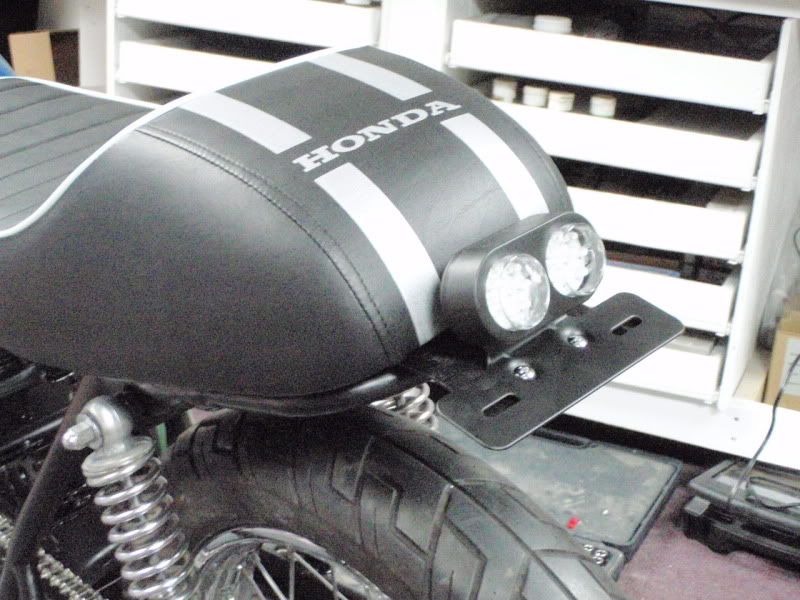

Spent some time today fabbing a bracket for the tail light and license plate and finishing up the tach/speedo design and fab.

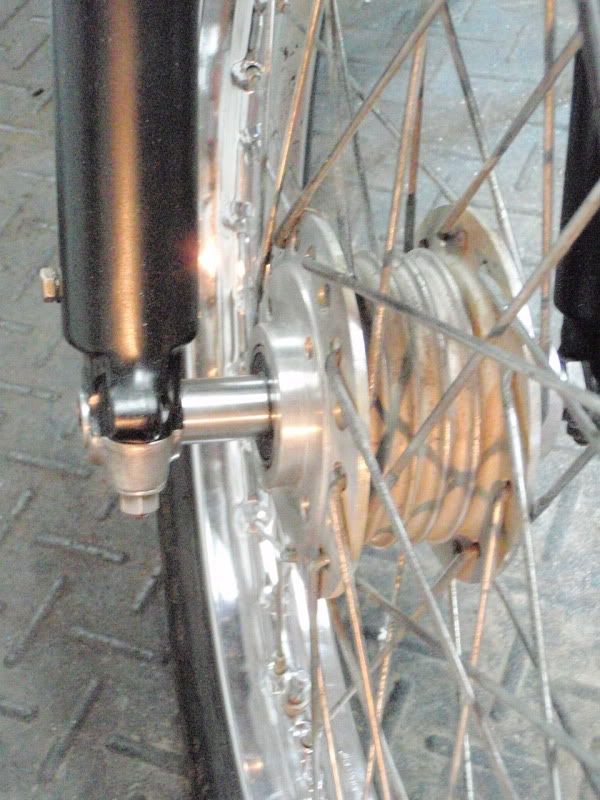

I also had a spacer made to eliminate the speedo drive, it's 29mm long if you want to make one.



SpottheDogg

Member
Re: My 1974 CB360 project, updated photos, HELP with puzzle 3/18

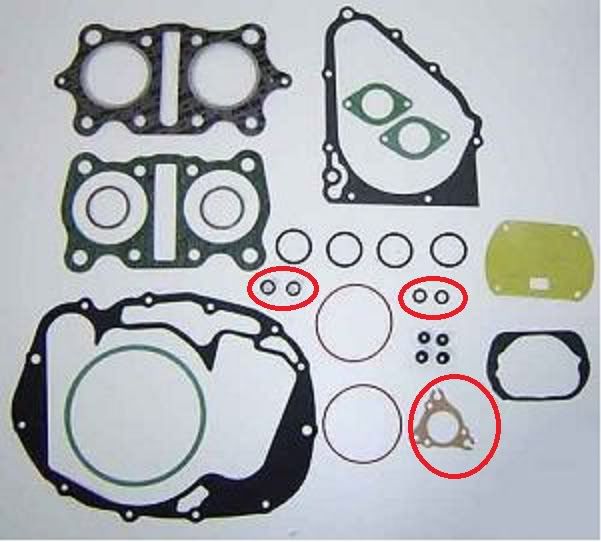

Somebody help me identify the 2 seals, 1 gasket and 2 o-rings circled. I don't recall what they are for, I just got the Athena gasket kit and there is not item list.



mspringer

75' CB360
Re: My 1974 CB360 project

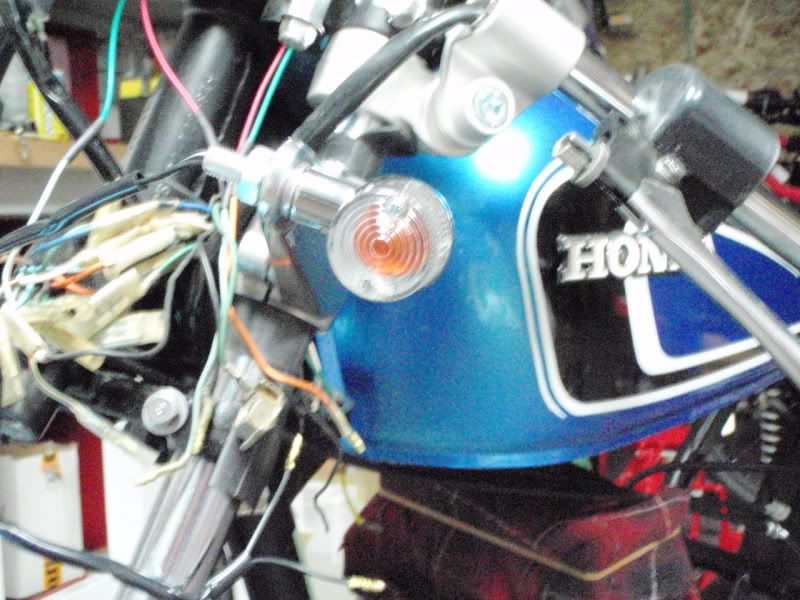

I don't have any idea what those items are for, but I like what you did with the indicator lights. I might have to steal that from you. Great Idea!


SpottheDogg

Member
Re: My 1974 CB360 project

PHeller said:
Valve Seals and Oil Pump gasket?
Nope, 4 valve seals... oil pump gasket?? Don't remember there being one of those.

Won't your Speedo block the tach?
Just the bottom of the tach where there is no information.


frogman

'74 CB360, '71 CB450, '75 CB550SS
Re: My 1974 CB360 project

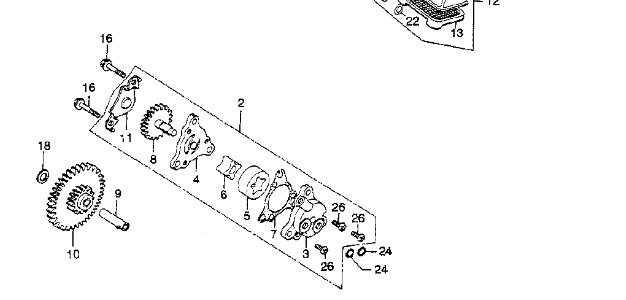

There are 2 sorta really wide o-rings that go around 2 of the locating pegs between the head and the cylinders to keep the oil in the back out side 2 studs from leaking out. Those are the oil passages to the head. # 3 on the diagram below.

The other 2 are possibly # 24 on that diagram for the oil pump, they go behind it.


Attachments

SpottheDogg

Member
Re: My 1974 CB360 project

Are there any good how to tips for rebuilding the master cylinder? I don't even know how to get the boot off... just pull it out?


frogman

'74 CB360, '71 CB450, '75 CB550SS
Re: My 1974 CB360 project

To be honest, if it doesn't leak leave it alone. All I did to mine was flush it really well, clean it off and paint it. It hasn't leaked and does a great job.

There is special set of snap ring plyers to get the snap ring out. That's all I know about it.


SpottheDogg

Member
Re: My 1974 CB360 project

Another small update, installed my drilled rotor and front caliper. Waiting for MC rebuild kit. Progress has slowed a bunch. I took the valve seals out of the head and the new ones in my gasket kit are not even similar :mad:





SpottheDogg

Member
Re: 1974 CB360 project- coming along nicely

Man I get frustrated searching for some of these little parts. Then you find one of them somewhere and get killed on shipping a single bit worth $2


SpottheDogg

Member
Re: 1974 CB360 project- coming along nicely

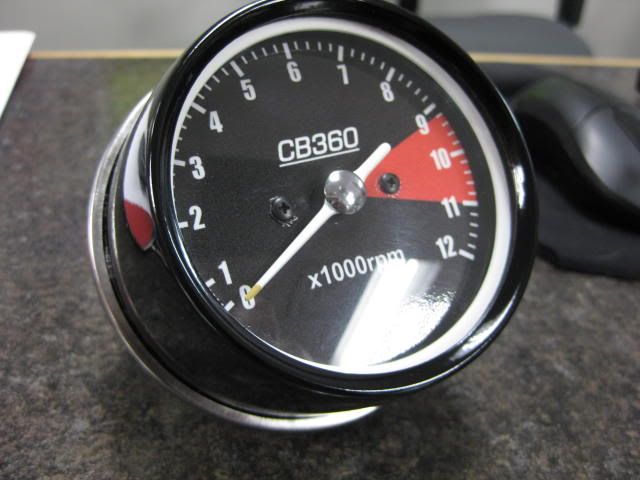

I put the tach back together this morning, I think it looks great. I have two extra overlays like this if anybody wants to Paypal me $12 shipped. incline@nb.aibn.com




I'm just trying to figure out how to fold the edge back down without scratching the paint.....



SpottheDogg

Member
Re: 1974 CB360 project- lots of pics and progress - - not many comments :(

Right side case

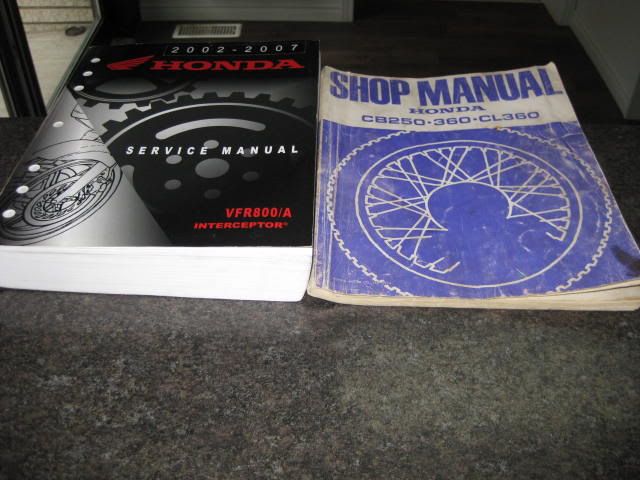

I got two manuals in the mail today, slight technology difference between my VFR800A and my CB360



JustinLonghorn

No Purple Hearts, No Blue Ribbons
Re: 1974 CB360 project- lots of pics and progress - - not many comments :(

The right side case looks nice, man.


DTT Bike Of The Month Gallery

DTT Light or Dark

www.cognitomoto.com
https://www.townmoto.com
www.speedmotoco.com
www.jadusmotorcycleparts.com
www.lostapostle.ca/
www.sparckmoto.com
