The Van Van - '73 Suzuki RV125 "tracker"

canyoncarver

'hacking is learning'
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

advCo said:
VT plate and 0.50 over piston and rings came in today. Time to ship out the cylinder for boring.

Awesome!


cbrianroll

Member
Re: The Van Van - '73 Suzuki RV125 "tracker"

How's this project going? I might be getting one this weekend that'll need alot of work, might have to bug you for some info hahaha

Sent from my SM-G930V using DO THE TON mobile app


adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

cbrianroll said:
How's this project going? I might be getting one this weekend that'll need alot of work, might have to bug you for some info hahaha
It got held up for a few weeks with the hurricane and I sent all the hardware out for plating...I have a few more things to paint and then put it all together hopefully before Barber.

Do it!


cbrianroll

Member
Re: The Van Van - '73 Suzuki RV125 "tracker"

I'm actually working on 2 rv125s. Both have a high and low gear reducer with missing parts. One has a tc125 motor. (Same thing I guess) looks like both need at least rings, I'm guessing a bore also. Do you know a good ace for parts besides eBay? Thanks

Sent from my SM-G930V using DO THE TON mobile app


adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

cbrianroll said:
I'm actually working on 2 rv125s. Both have a high and low gear reducer with missing parts. One has a tc125 motor. (Same thing I guess) looks like both need at least rings, I'm guessing a bore also. Do you know a good ace for parts besides eBay? Thanks

Sent from my SM-G930V using DO THE TON mobile app
Do you happen to have a spare air pump??

I got most of my parts from eBay. Piston and ring sets are about $35 from Thailand and my cylinder is getting send up to Ohio for a bore.

Mine is the first year with the 5 speed transmission, but my CT104 has the dual range, pretty cool.


cbrianroll

Member
Re: The Van Van - '73 Suzuki RV125 "tracker"

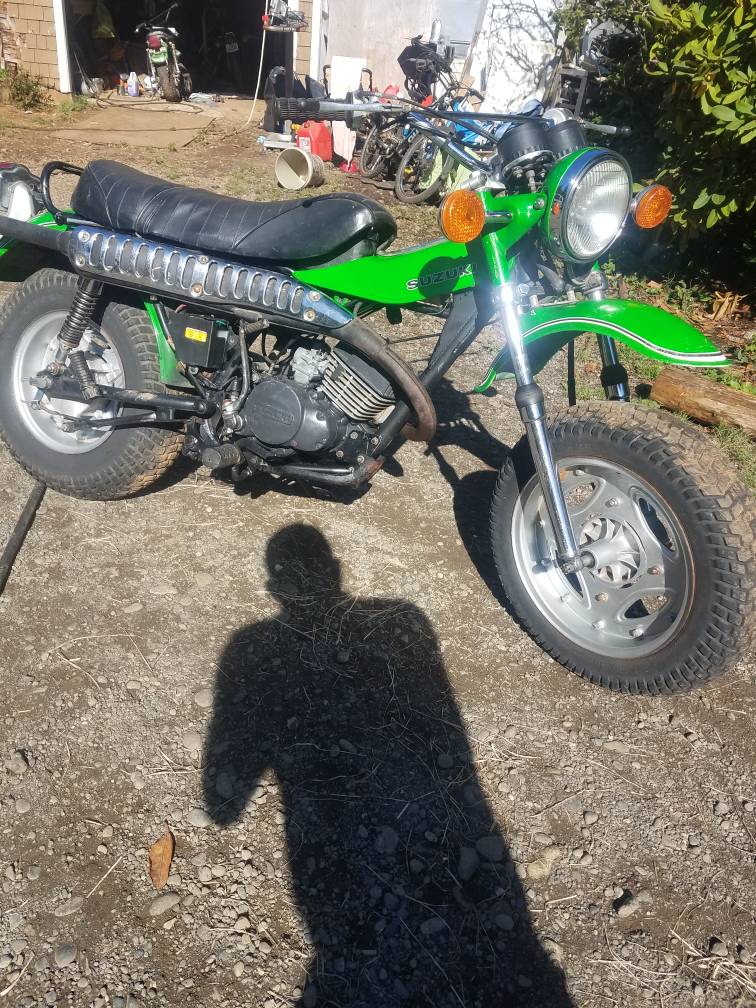

Both are missing the pumps...i was bummed out. Kickstarters seized on the one working on now.
looks good though lol

Sent from my SM-G930V using DO THE TON mobile app


adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

cbrianroll said:
Both are missing the pumps...i was bummed out. Kickstarters seized on the one working on now.
Yep looks good though, mine should look like that after a bit of paint and some assembly.

Would you be able to get me some measurements on that battery cover? They are another unobtainium part so I figure I will probably 3D print one.


cbrianroll

Member
Re: The Van Van - '73 Suzuki RV125 "tracker"

Sure thing.....i have a.horrible memory (been hit in the head alot) so if I don't get back to you in a day please remind me.

Sent from my SM-G930V using DO THE TON mobile app


adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

cbrianroll said:
Cover only or box also?

Sent from my SM-G930V using DO THE TON mobile app
Got the measurements, just what I needed. Thanks a bunch. I thought it was plastic before but I see now it's just bent sheet metal. Should be able to make one up pretty easy.


cbrianroll

Member
Re: The Van Van - '73 Suzuki RV125 "tracker"

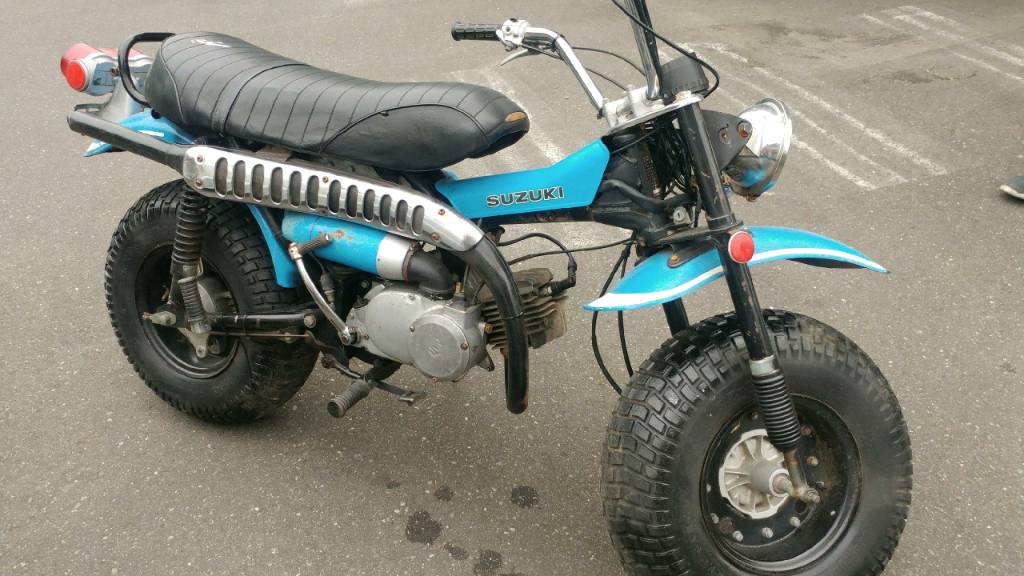

Cool beans man, hope they are clear enough lol. Both the rvs I'm working on are shot. Fun time. A buddy of mine just picked up a rv90 in really great shape for cheap, started right up.


adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

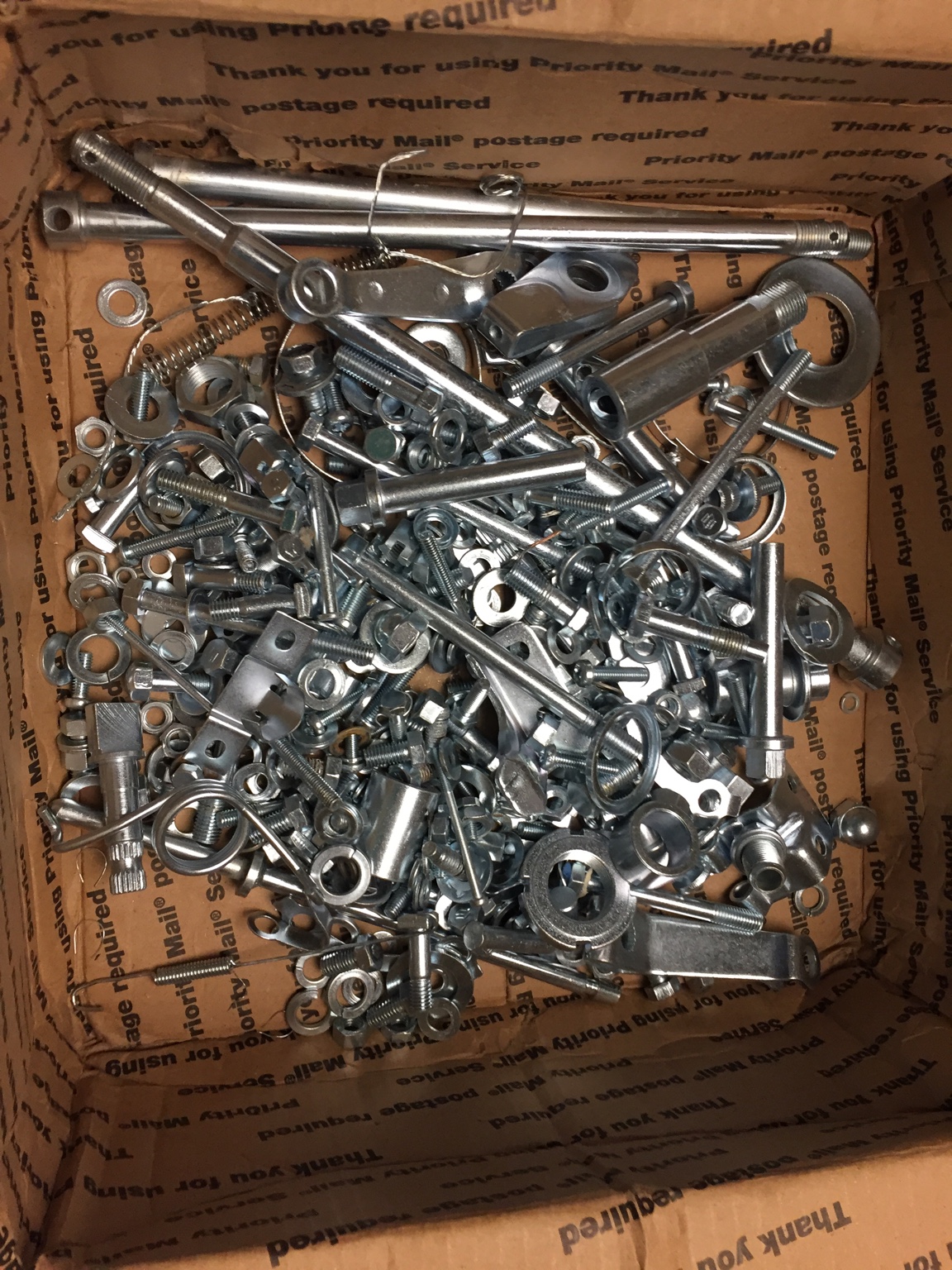

Time to get this project back on track. Hardware came in yesterday. Very happy with the results. I sent it out to Parker Metal Finishing in Greensboro, NC. SHINY.



adventurco

Nick Ol' Eye
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

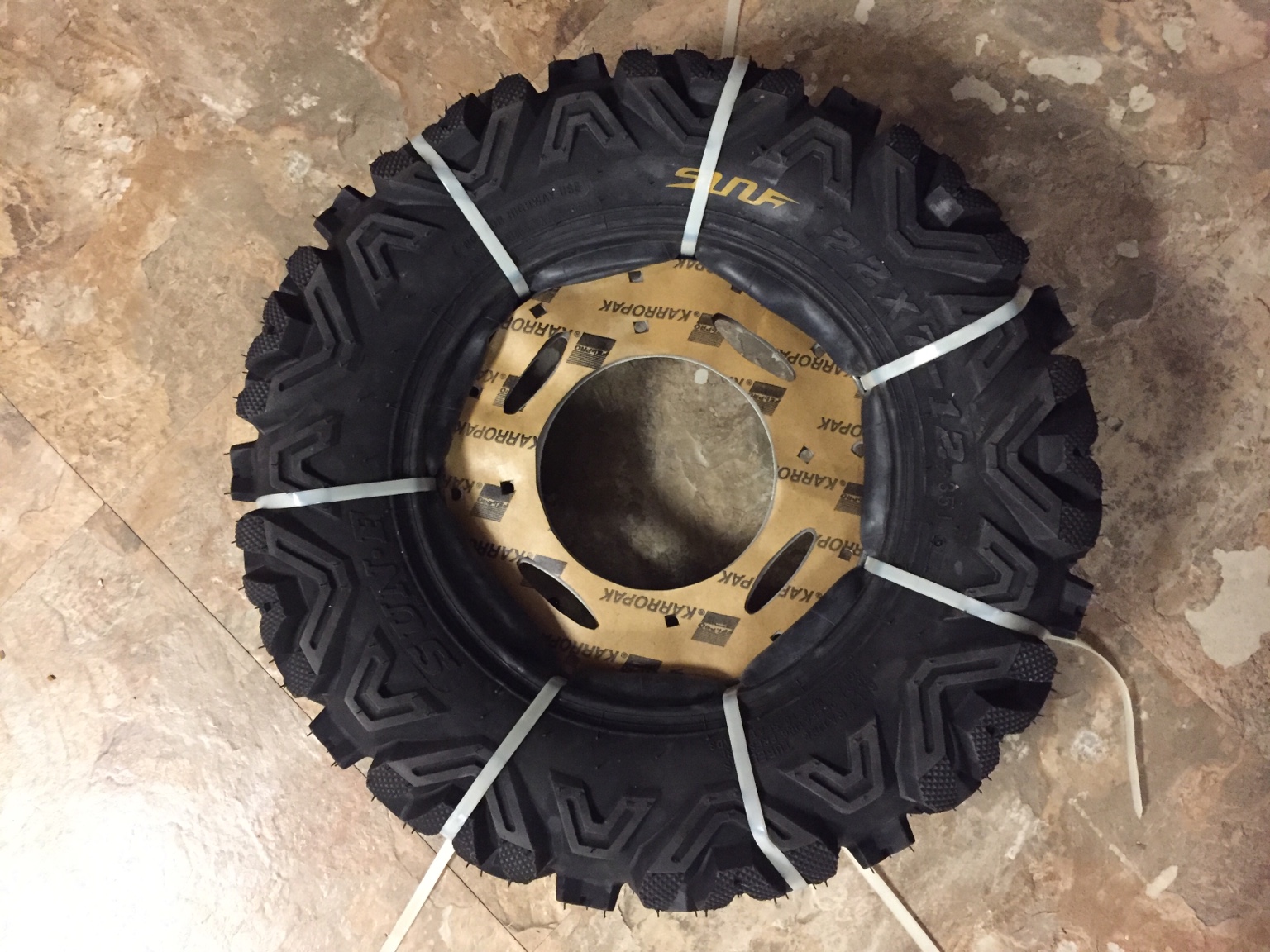

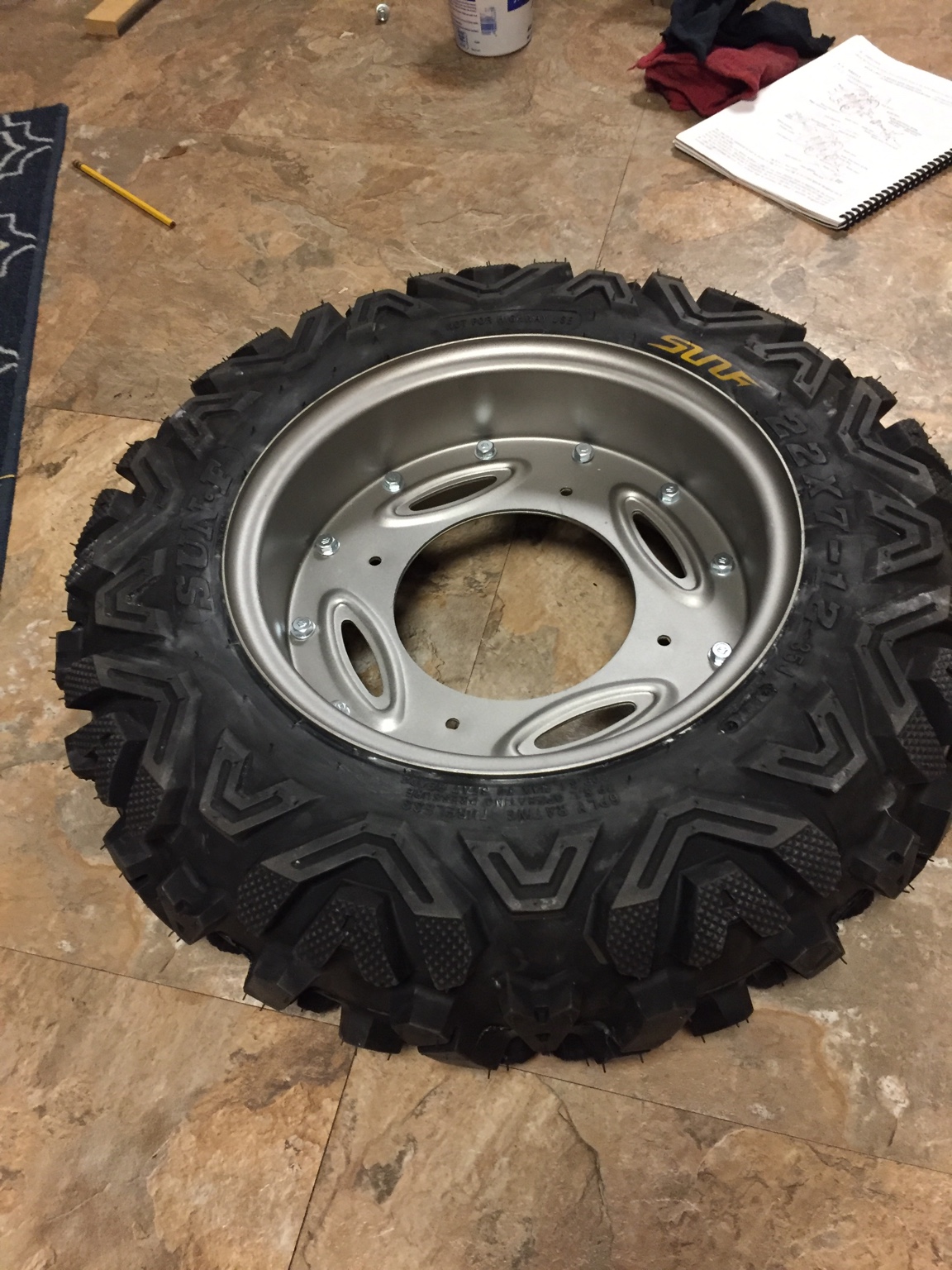

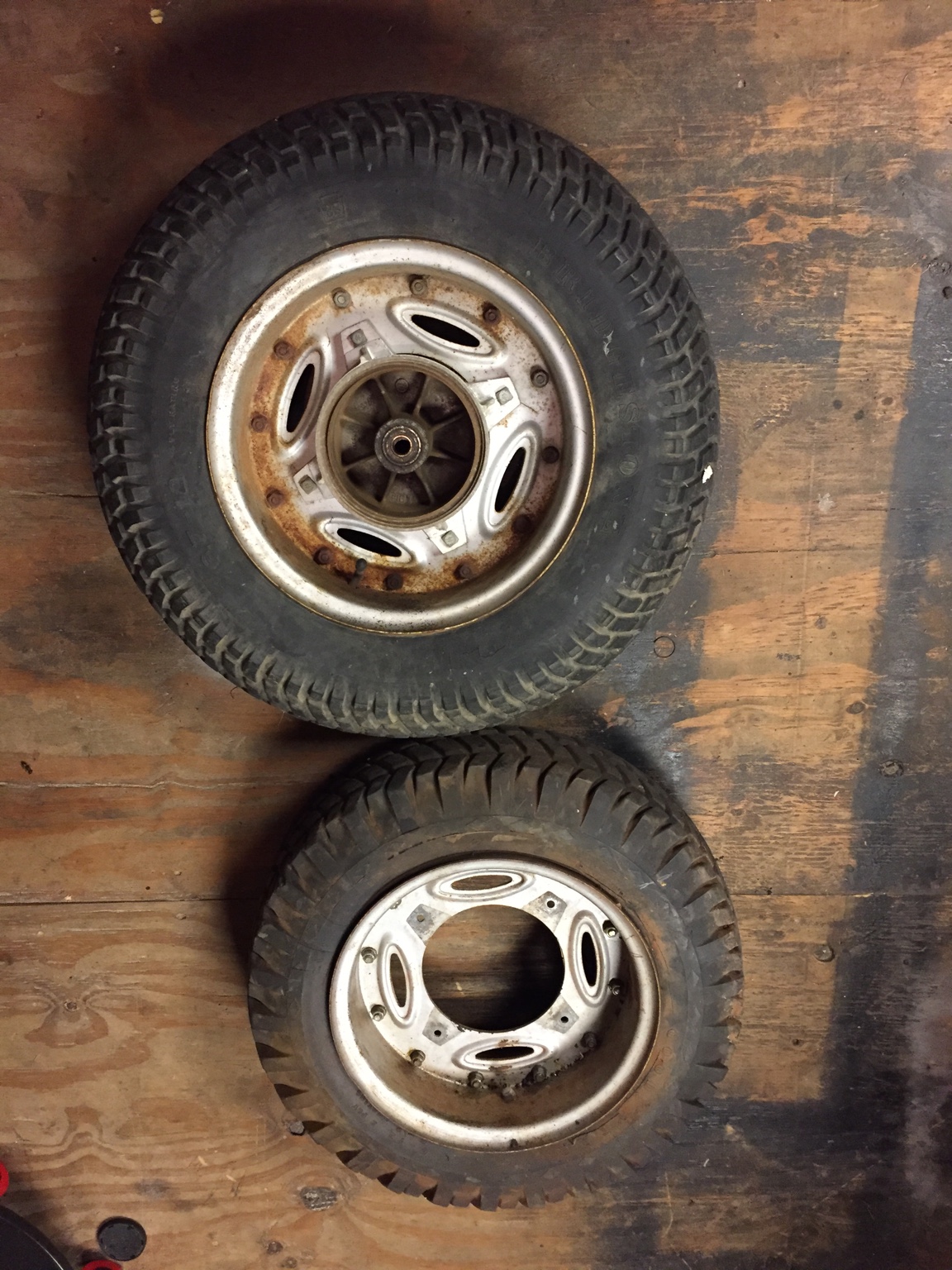

Been busy. Got the wheels and hubs painted. Mounting the tires was a massive headache, between keeping the tube inside the tire and not pinching between the halves, keeping the gasket centered, and bolting them together.







Hurco550

Keep er' Between the ditches
DTT BOTM WINNER
Re: The Van Van - '73 Suzuki RV125 "tracker"

Gonna be at barber?

Sent from my SM-G920V using Tapatalk


adventurco

Nick Ol' Eye
DTT BOTM WINNER
These updates are gonna be slightly out of order. Last week I painted the seat pan. Last night I tackled the foam and recover.

I took some foam from a crusty old XL seat I had lying around, cut out the most damaged areas to square off the existing foam, then glued blocks in place and carved them down with a woodworking hasp.

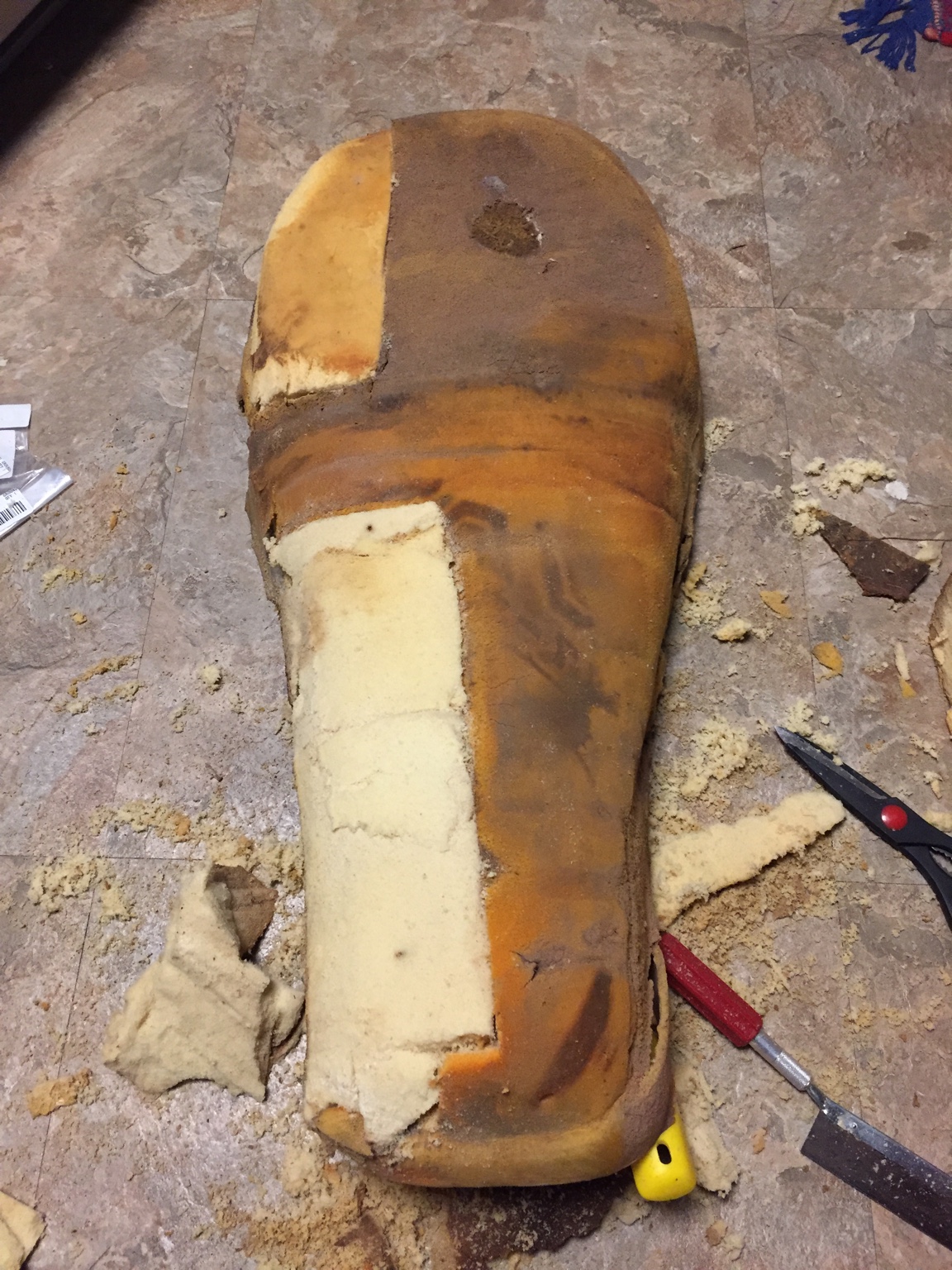

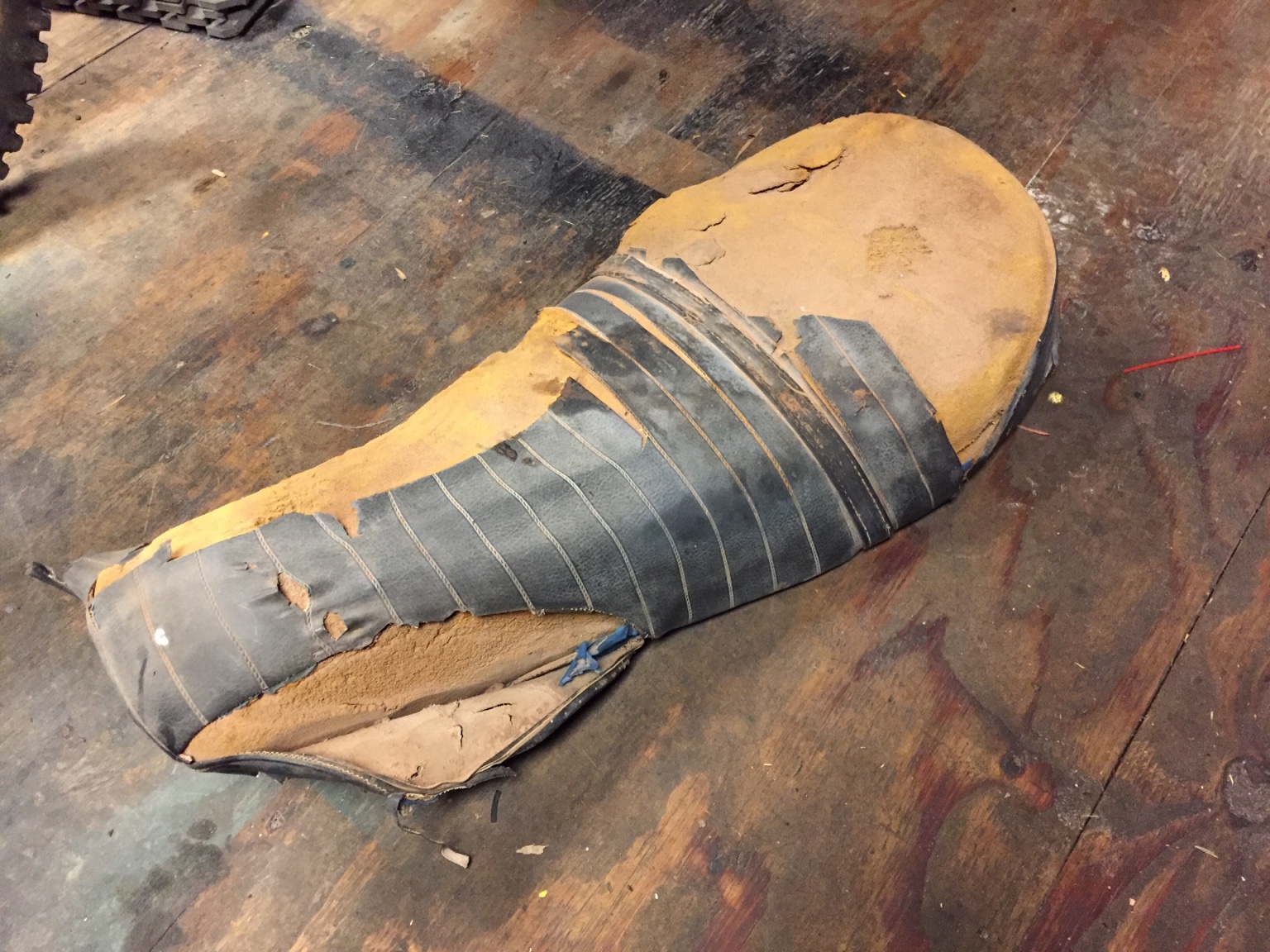

Here’s what I started with:


Donor foam glued in place and carved down.

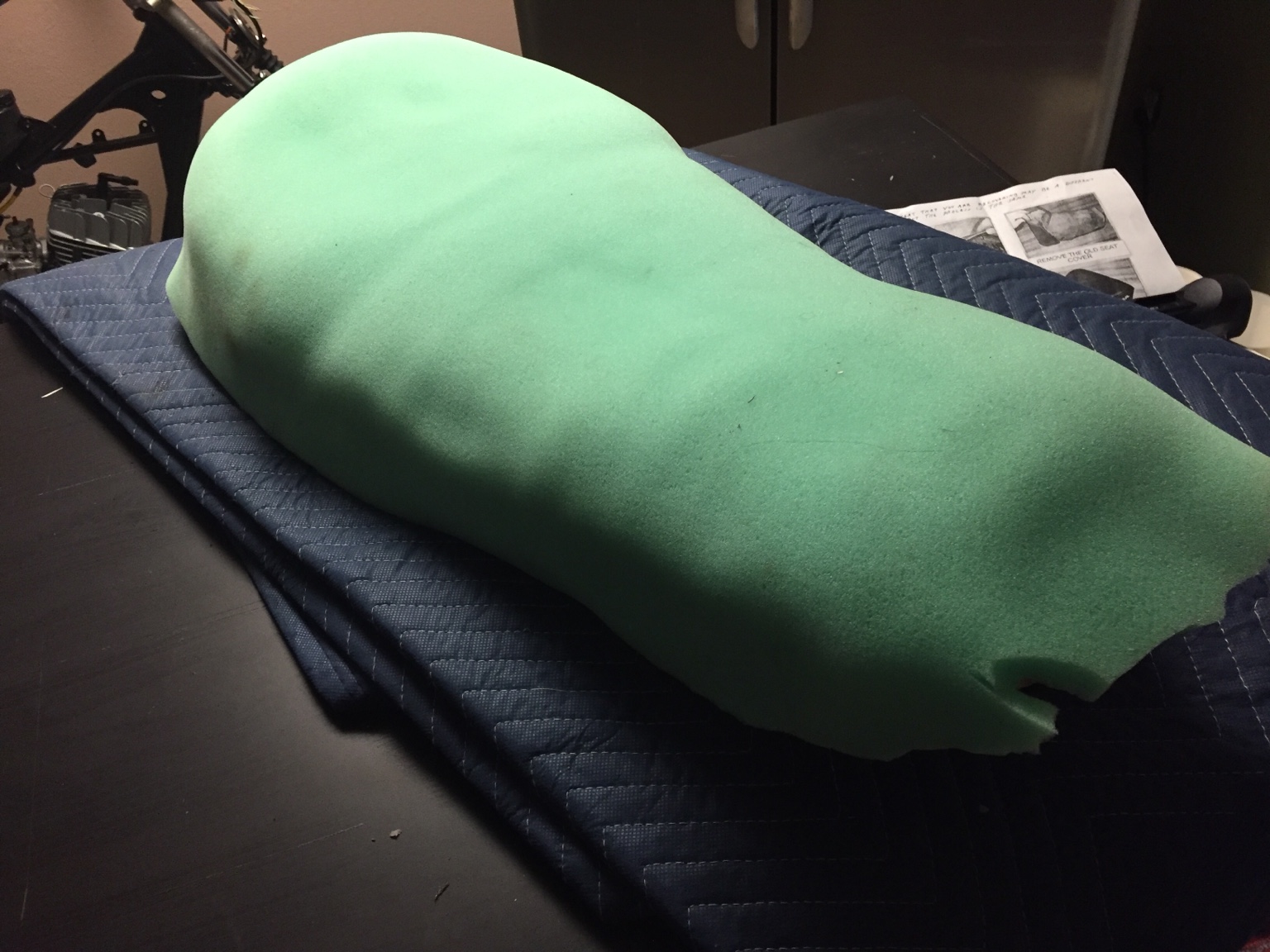

Covered with 1/2” upholstery foam. Looks a little lumpy here but it doesn’t matter - when you stretch the cover it compresses the foam enough to smooth all the irregularities.

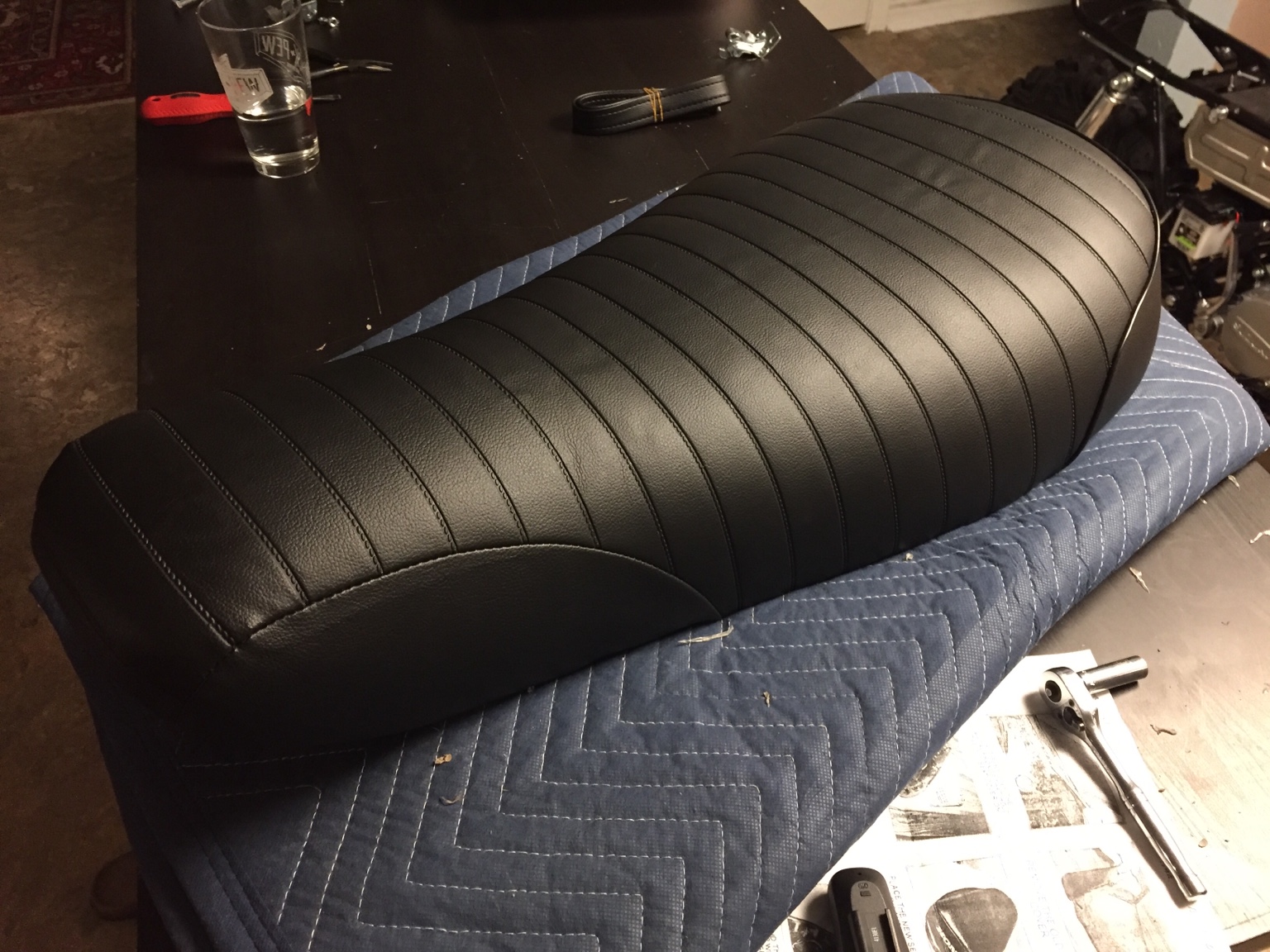

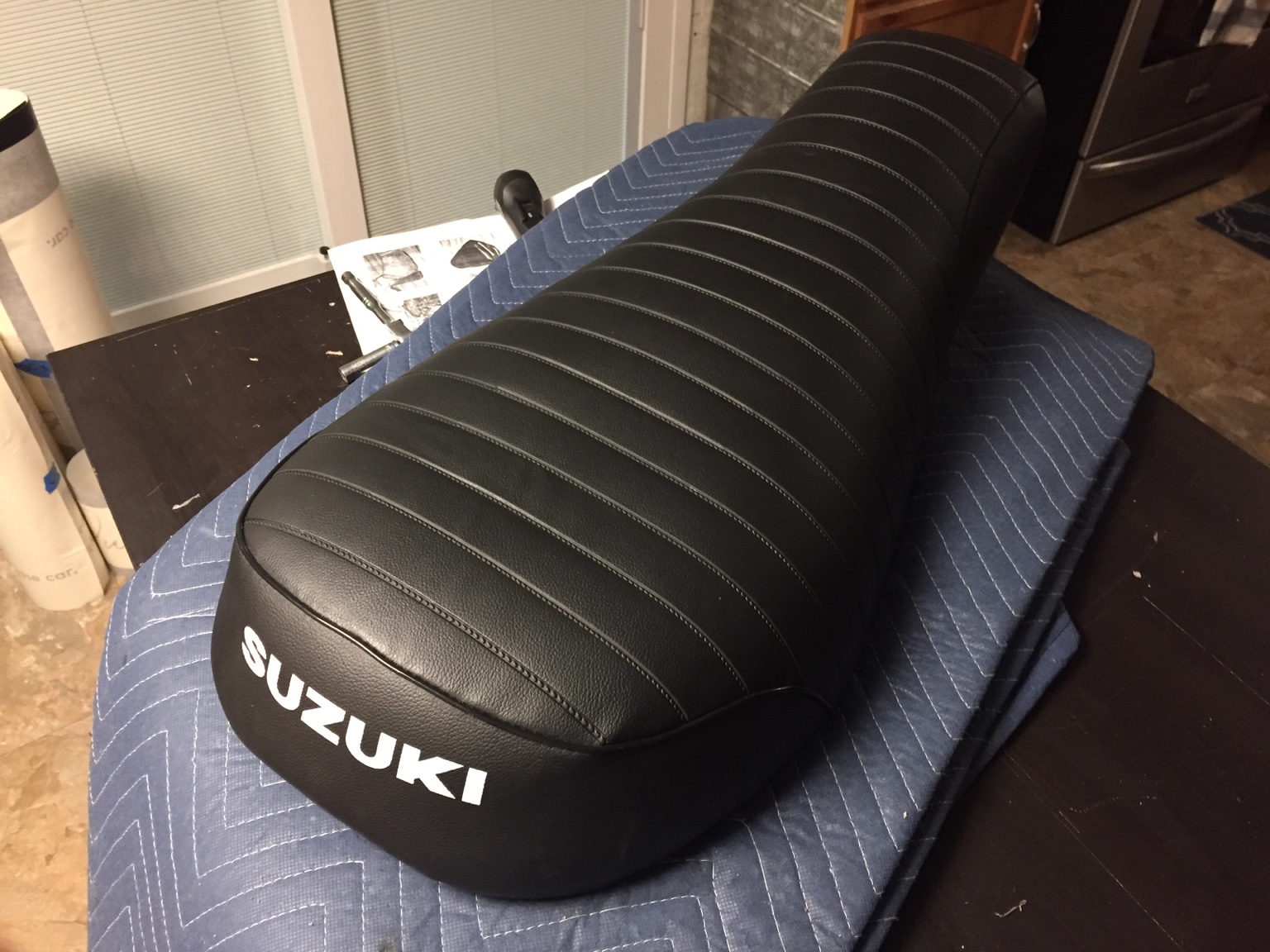

Cover installed. I got this cover from eBay and it is fantastic fit and quality. Super happy with the product.



Just have to install the strap, I’ll get that done later today.


Sent from my iPhone using DO THE TON
