Track Bike - kz550

alzcbz said:
I had an 86 Ninja 600....
Click to expand...

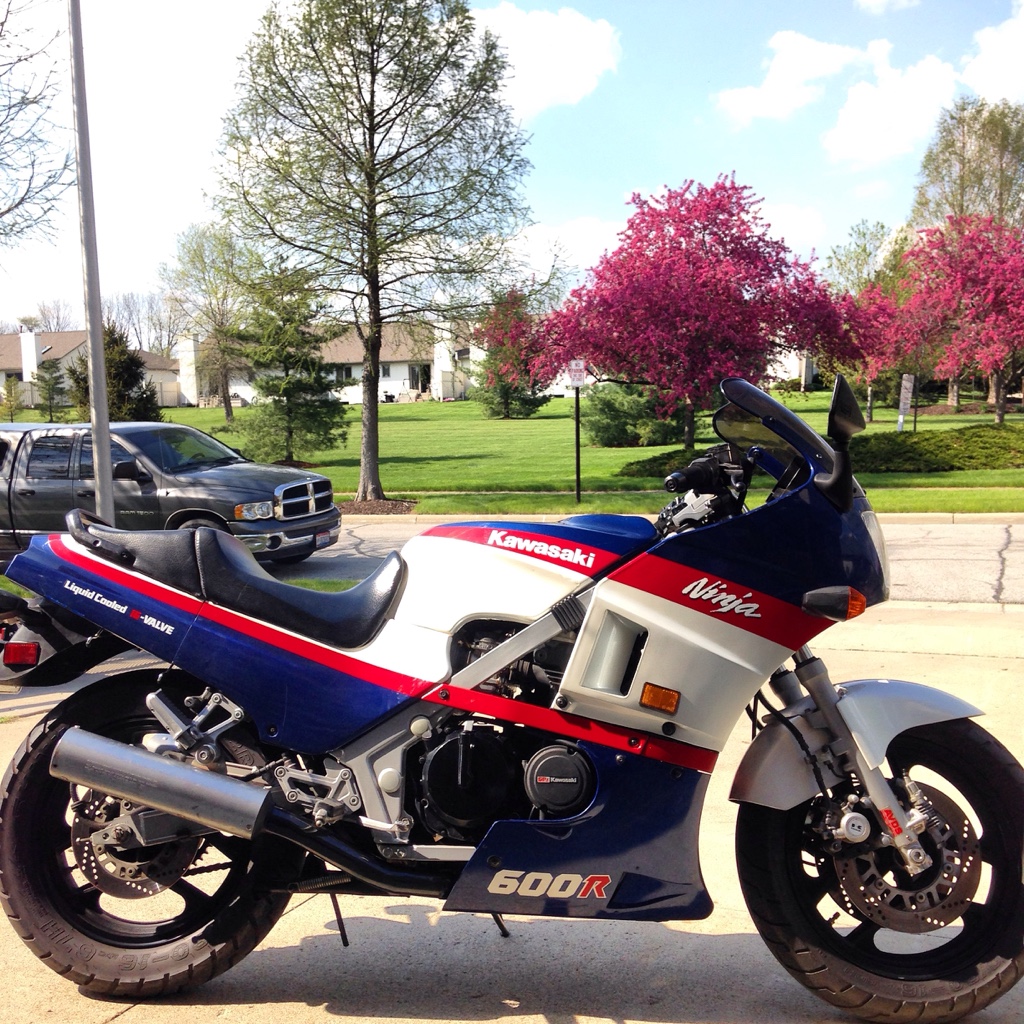

Did someone say, "86 Ninja"?

Glad you mentioned the cold start problems and experience. I have just recently had a few issues (cooling related...manifold rusting through, tank rust, carb clean where I found silicone mess all over the diaphragms).... Anywho, I'm finally giving it a proper once over after seeing working on a few things and this relit the fire for a valve check. Need to get on that!

The head that tune posted seems like a good option if the ads still up after you pull the head. I'd say check er out first.

Thanks for visiting guys! :D



I think we're just going to bite the bullet and fix the head we have. Going to get some prices quoted soon. :)

Drewski said:
O'k, back to the project and the photo update! ;)

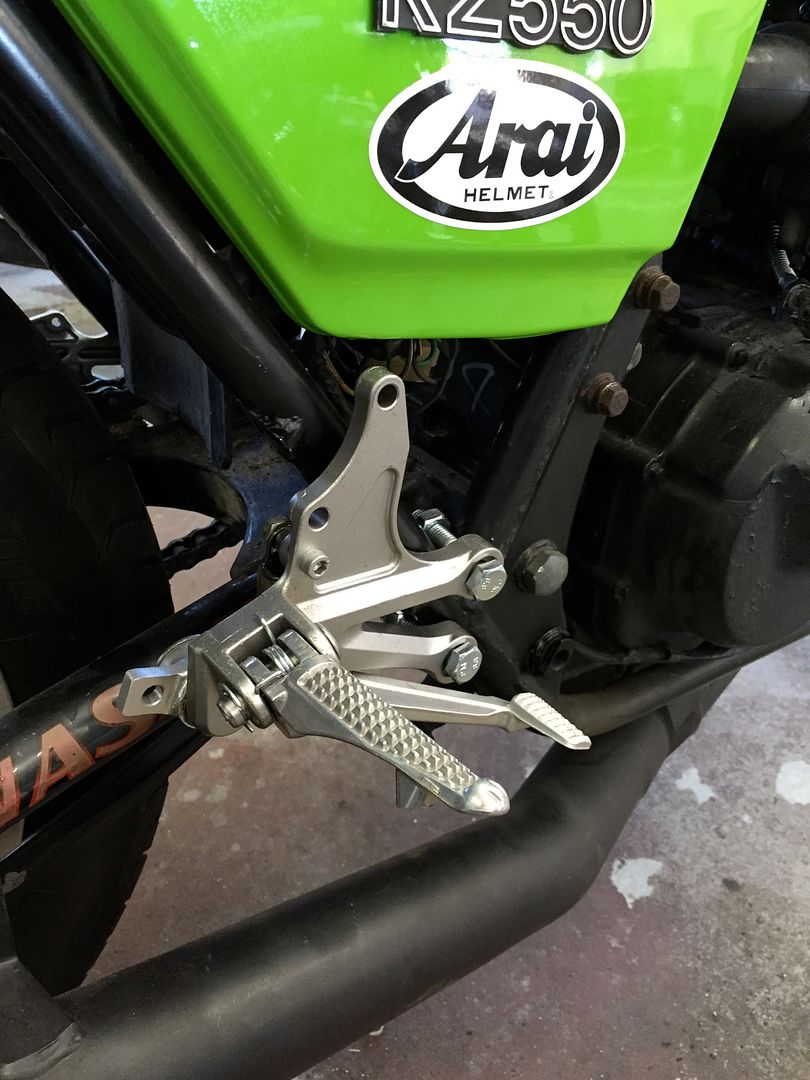

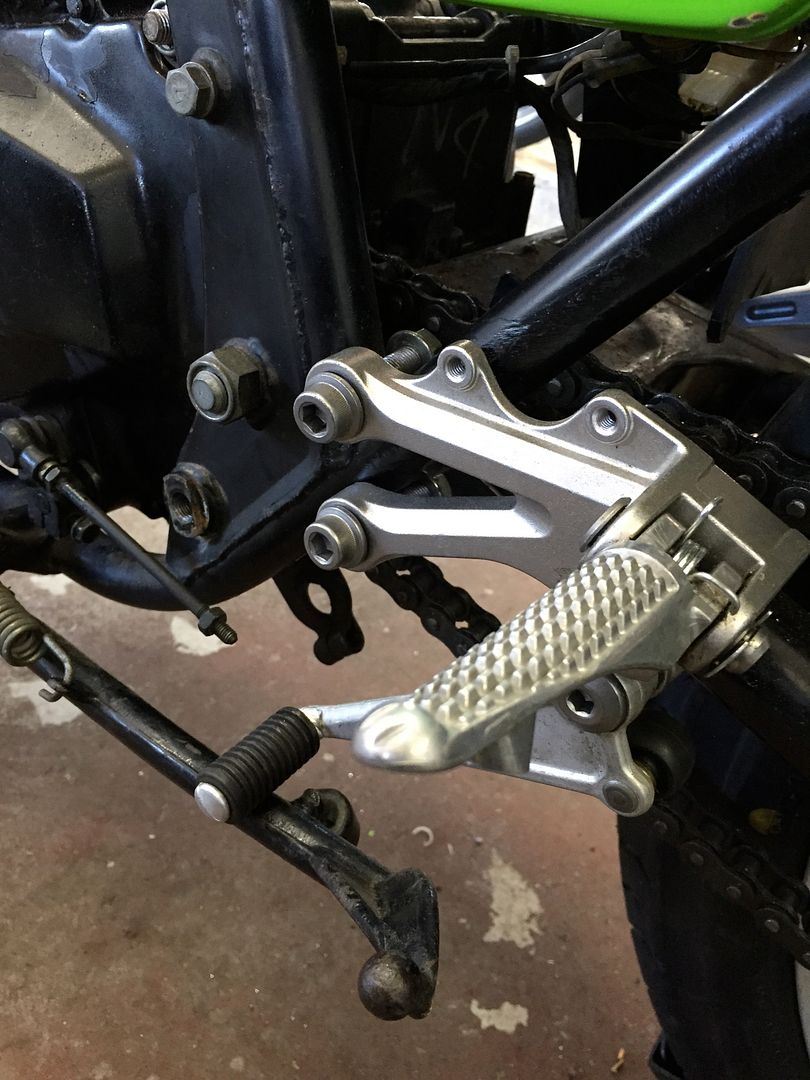

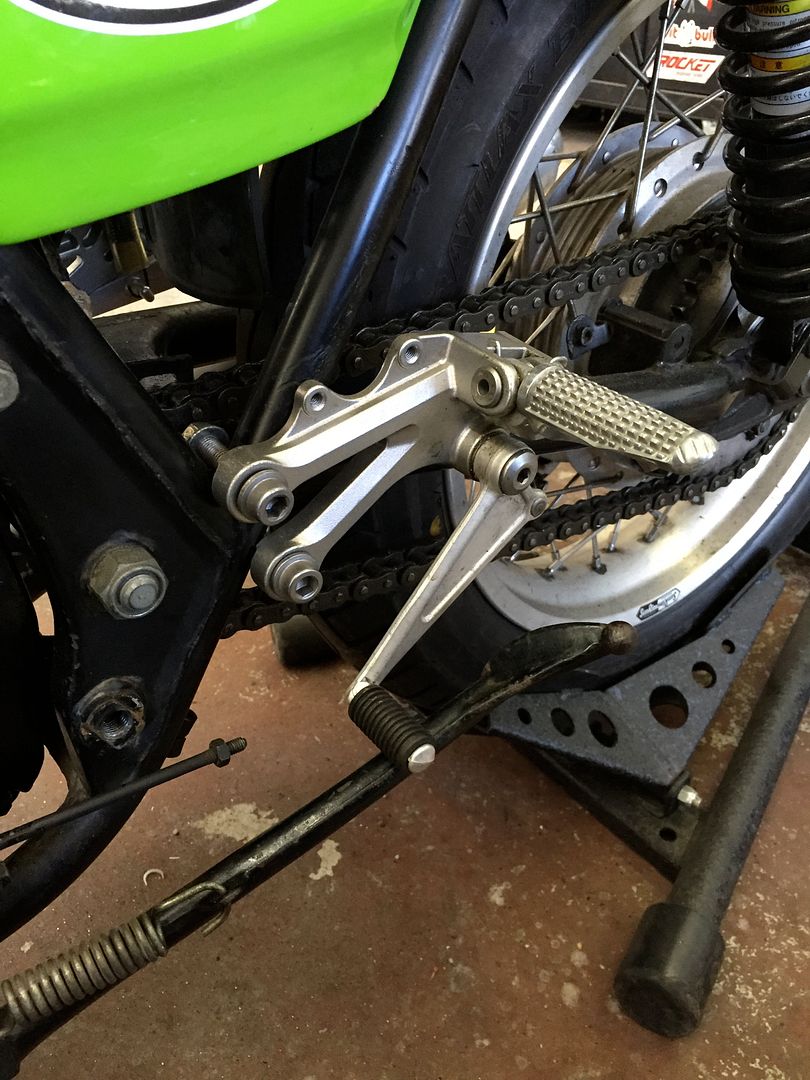

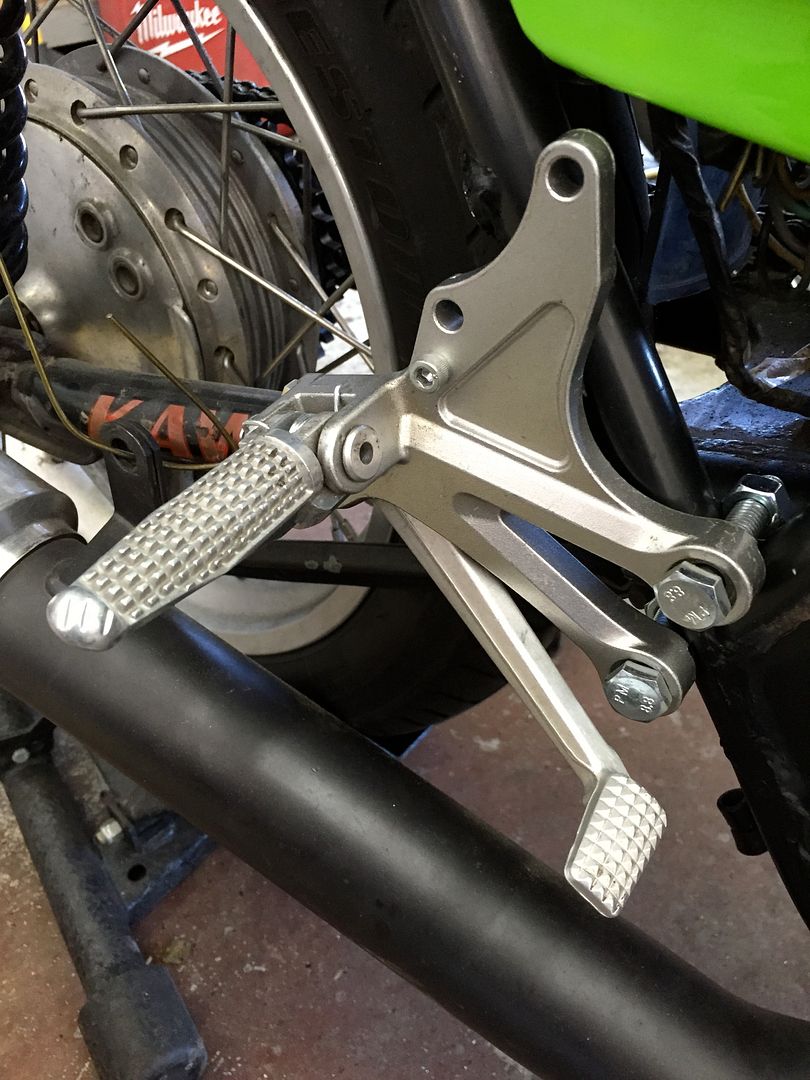

Just a prefit/mock-up for today! ;) It should be a pretty simple welding job to get them mounted, then fix the shifter linkage and (the toughest part) create a method to activate the rear drum brake. 8)

Oh ya. The side stand is 'going' soon. Right now it's just holding the shifter in place. ;D
Click to expand...

I have the same problem on my kz for rear sets except my feet end up at the passenger peg holes as far as where the pegs should go. That puts a huge gap from the rest of the frame. I have been thinking for a while the best way to tackle it. I don't like when the rear sets are extended too far from the frame as it doesn't feel solid when you put your feet on them. The bimota race tank I have is super long.

Wow "Hollywood", you must be some tall so-and so!! ;D Long arms too!! ;D Those Bimota tanks are very long... too long for a little runt like me. :eek: :D

For those 'way back' rear sets, maybe a triangular bracket similar to the old z1/h2 exhaust hanger? Something could be rigged up there that will still look like it 'belongs'. 8)

Drewski said:
Wow "Hollywood", you must be some tall so-and so!! ;D Long arms too!! ;D Those Bimota tanks are very long... too long for a little runt like me. :eek: :D

For those 'way back' rear sets, maybe a triangular bracket similar to the old z1/h2 exhaust hanger? Something could be rigged up there that will still look like it 'belongs'. 8)
Click to expand...
I'm actually not tall at all. Just what I have to deal with such a long tank. As much as I wanted modern rear sets on mine I think I will use the stock passenger pegs hole to mount the rotating part of universal Cafe rearsets and make a bracket on the one passenger mount to house the rear master cylinder. On the shifter side have the longest linkage arm in the whole universe.. Lol.

Well, a month has passed and still no head to bolt back on to the engine. :p It's nearly ready, but it looks like I'm going to miss running the kz at our last vintage track day of the season here in S. Ontario. :'(

So, to cheer myself up, I ordered a gasket kit and some new rings for the pistons. We'll hone the cylinders, re-ring the pistons and pretty much have a new engine for the next time we get to run this beauty. :) Not the result I was hoping for, but such is life. :D

I'll be sure to toss up some pics and maybe a short vid when we finally get to it. 8)



Meanwhile, I can't miss the track day, so, I've been inspired to prepare a 2nd Trackbike. ::) Check out the 'Mongrel' thread in this section. :)

Well, I got the rebuilt head back last week. ??? Only about 6 weeks late. :(

So, time now to hone the cylinders and put this beauty back together to see what else can go wrong. ::) :D

Drewski said:
Well, I got the rebuilt head back last week. ??? Only about 6 weeks late. So, time now to hone the cylinders and put this beauty back together to see what else can go wrong.
Click to expand...

Why didn't you get the honing done while the head was out?

grandpaul said:
Why didn't you get the honing done while the head was out?
Click to expand...


Well, there's no hurry. The snow will come and go before I'm riding this thing again. :D That and I had 'issues' with the rest of my stellar fleet to deal with. ::) ;D

Just figured to get all the bits and pieces together first and THEN have at it. :)

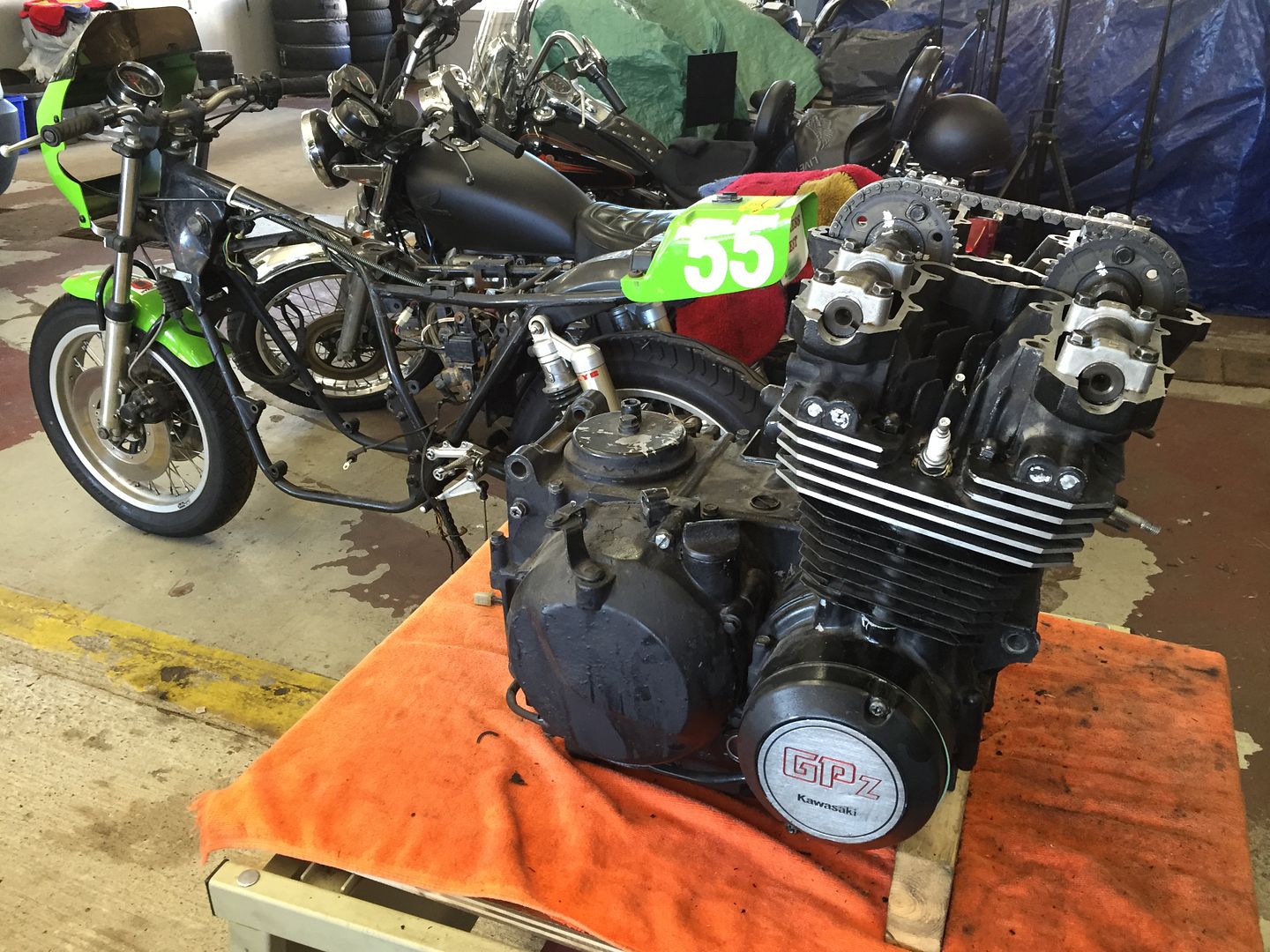

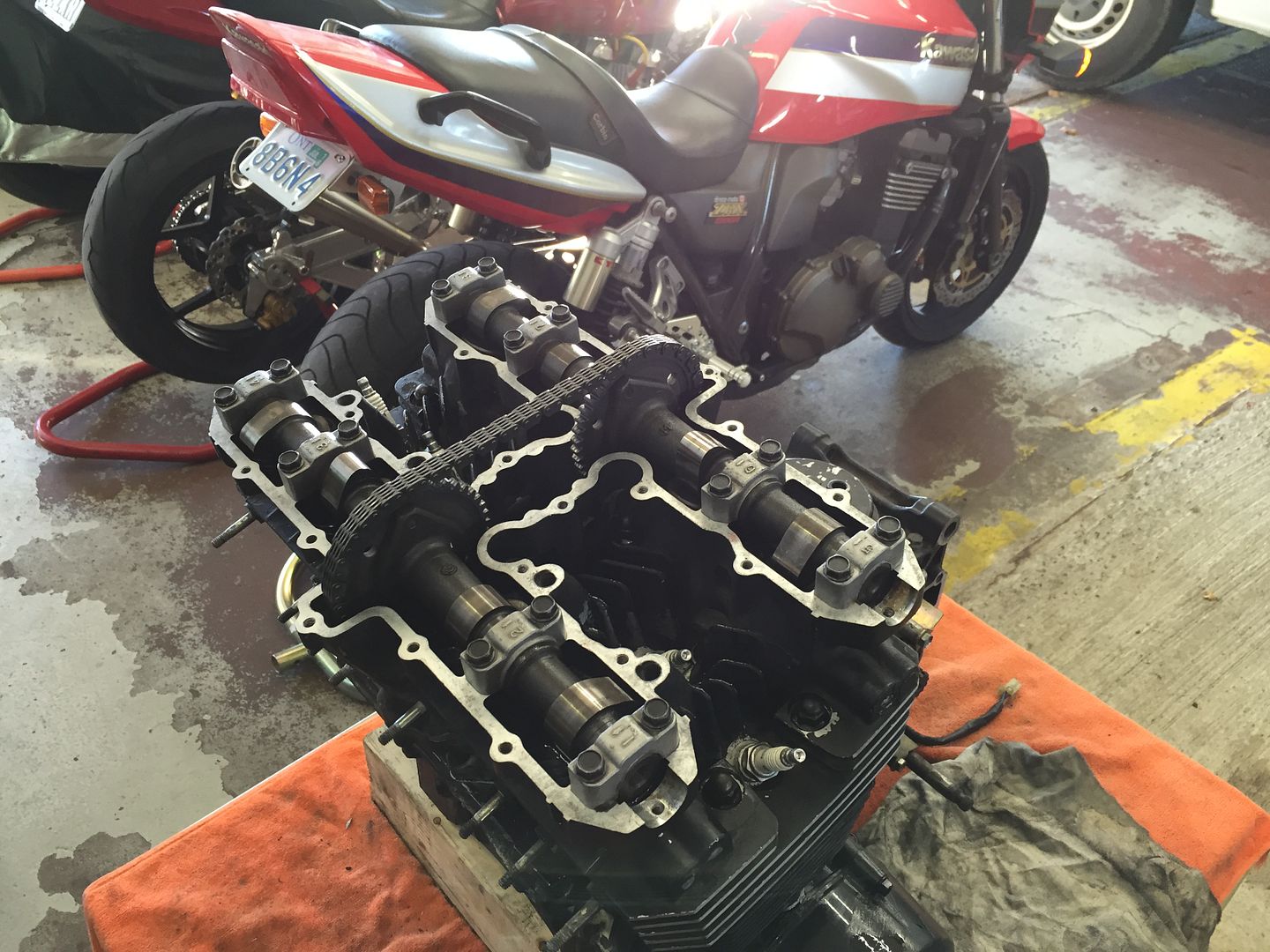

Back together. Might have it back in the frame later today. :)






Well, I got totally fed up with fussing and not having the right size shims to get the valves adjusted properly... so I dropped the whole shebang off with another buddy to finish it. :mad:

He's a pro racer and knows his stuff. :)

Drewski said:
Well, I got totally fed up with fussing and not having the right size shims to get the valves adjusted properly... so I dropped the whole shebang off with another buddy to finish it. :mad:

He's a pro racer and knows his stuff. :)
Click to expand...

Don't let it get you down Dreski. Next time... get a good set of feelers and micrometer if yer fat add up the feeler and shim and write down the correct shim needed to correct the spec, if skinny (tight) stick a smaller size shim in till you can measure with the feeler. A nice Pinot Noir is great for calming nerves :eek:

Shim math isn't a walk in the park for MOST people, don't be too frustrated if that was part of it. Then not to mention the actual labor. Like tune says, a couple drinks may help. :D

Ha! Thanks for the encouragement boys!
It really wasn't the job itself that was getting to me. We have some issues with the landlord and I need to clear out my bike space for a month or so. We were trying to get a few jobs done before clearing out and it just didn't get done. I actually normally find this stuff quite therapeutic.

I appreciate the advice tho!

Drewski said:

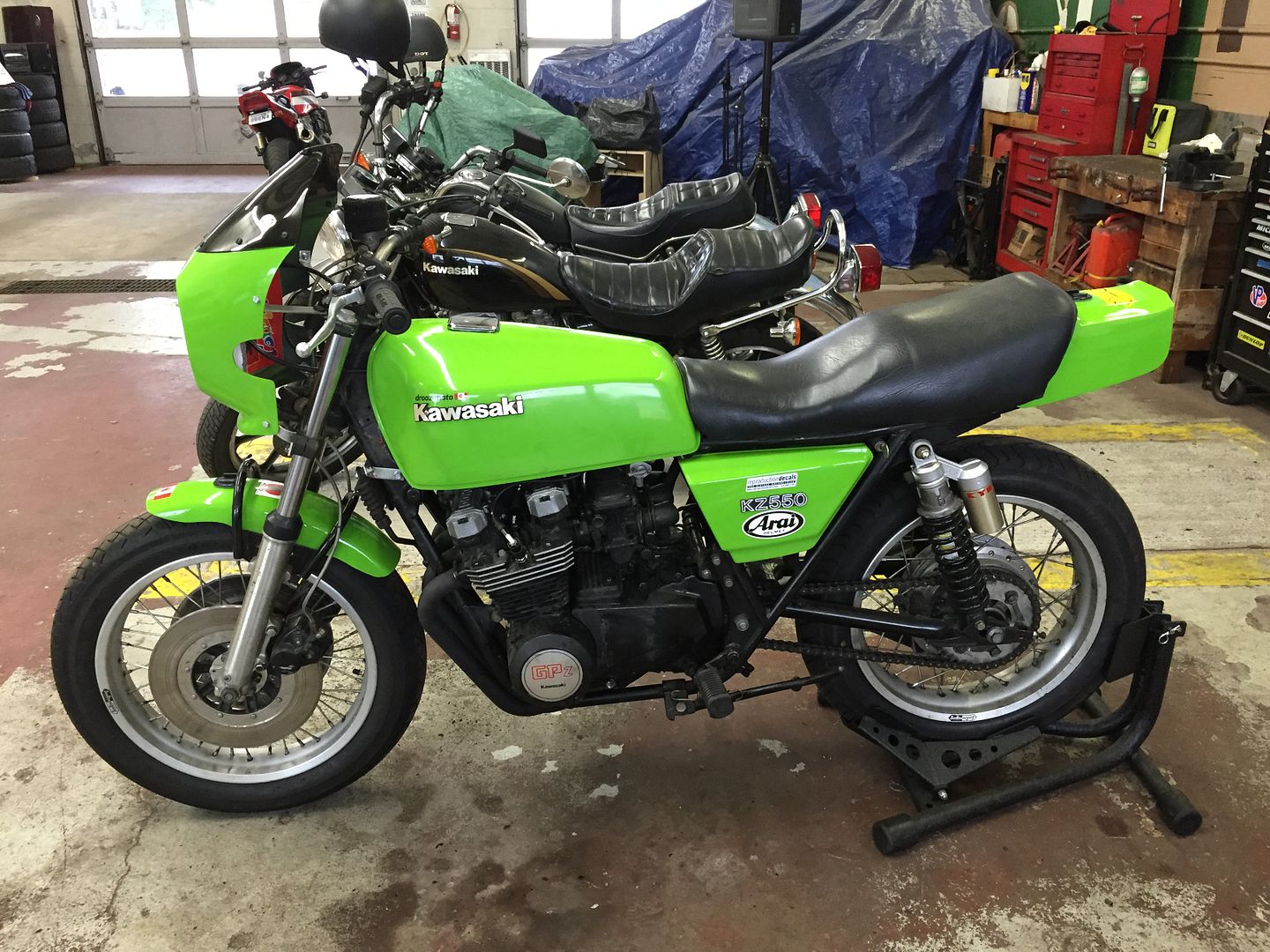

Thanks guys! This has been a really fun project! 8)

Click to expand...

Very nifty scratcher!

I live at the southern end of Hwy 59 (it literally ends at the northern border of our property as you arrive in Laredo), so I like the number plate.
