I use my phone running a app called Waze in my cars and on my other bike and the MPH is spot on to the speedo.

I don't really care too much about accuracy, I haven't been able to set the speedo on my Moto Guzzi to be even close, despite measuring the front wheel diameter twice. It is off by at least 10 mph.


Sent from my iPhone using DO THE TON


clem

static fluff
DTT BOTM WINNER
Speedo is one thing but I track my fuel level based off of mileage. That's what is most inaccurate on a GPS when you account for curves and elevation. The speed itself is usually pretty accurate. There's got to be a reason auto manufactures don't use GPS for speed and distance.

Sent from my SAMSUNG-SM-G930A using DO THE TON mobile app


CarbsAndCylinders

Careful With That Axe Eugene
But the GPS uses maps to show your route and wouldn't that allow it to use the known distances between points, like for instance intersections, to calculate mileage. I don't know much at all about this, so just throwing it out there.


clem

static fluff
DTT BOTM WINNER
A GPS speedometer doesn't use maps. It updates and gets NMEA sentences from the satellites then parses that data to get the speed, coordinates and a host of other things. Your actual mileage is based off of distances between two points. How far apart those two points are will be dictated by the update rate of the GPS module used and of course your moving speed. Download a GPS speedometer app on your phone that tracks mileage and you'll see how far off it can get even on flat curvy roads.

Sent from my SAMSUNG-SM-G930A using DO THE TON mobile app


Rusnak_322

Coast to Coast
DTT BOTM WINNER
FYI - I thought that this was pretty interesting.

GPS Complementary Technologies

The iPhone has several complementary technologies on board that work in conjunction with the GPS chip to master the phone's location.

Accelerometer and Gyroscope: The iPhone has an amazingly small 6-axis gyroscope and accelerometer combination chip on board. The gyroscope tells how your phone is oriented at all times. The accelerometer detects and records motions big and small as inputs the phone can use.

Wi-Fi Tracking: When GPS doesn't work well, such as inside buildings or among tall buildings, Wi-Fi tracking can replace or supplement it. Wi-Fi tracking uses a database of Wi-Fi networks around the world to triangulate the phone's position based on multiple Wi-Fi signals.

Compass: Your iPhone has a digital compass as part of its motion-tracking chip. The compass is used to supplement other motion technologies and to orient any map that you happen to be using. The compass comes into play, for example, when you tap the Maps arrow to orient a map. The Compass may also be used on its own.

Barometer: You might think of a barometer, which measures air pressure, as primarily a weather-prediction device, but it's not used for that purpose on an iPhone. The barometer supplements the GPS chip for measuring elevation changes to create more accurate elevation and elevation-change readings.

M10 Motion Coprocessor: In the iPhone, Apple uses its own M10 motion coprocessor chip to continuously measure data from the accelerometer, compass, gyroscope, and barometer. This offloads work from the A10 Fusion chip for improved power efficiency.


https://www.lifewire.com/iphone-gps-set-up-1683393


Rusnak_322

Coast to Coast
DTT BOTM WINNER

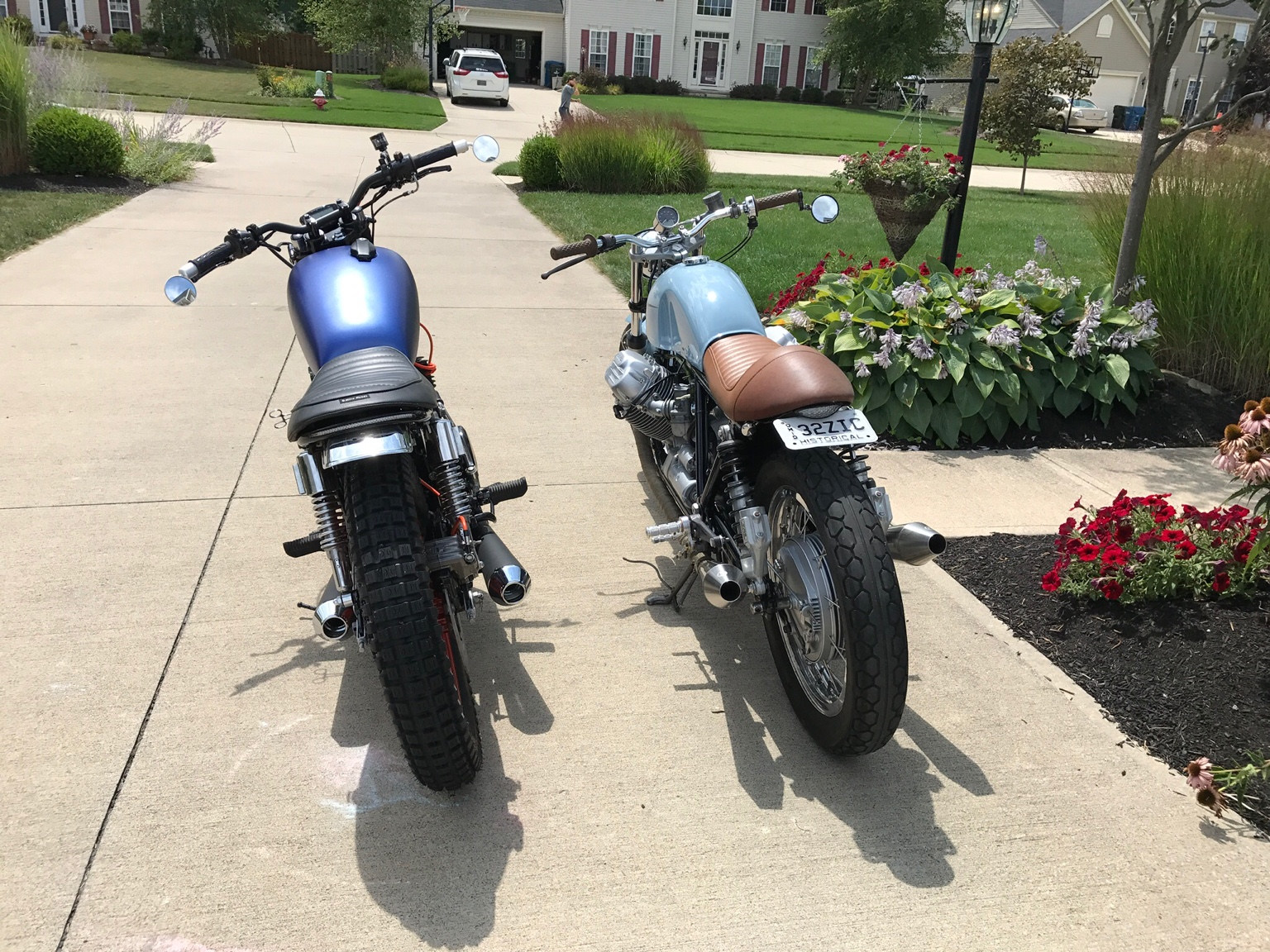

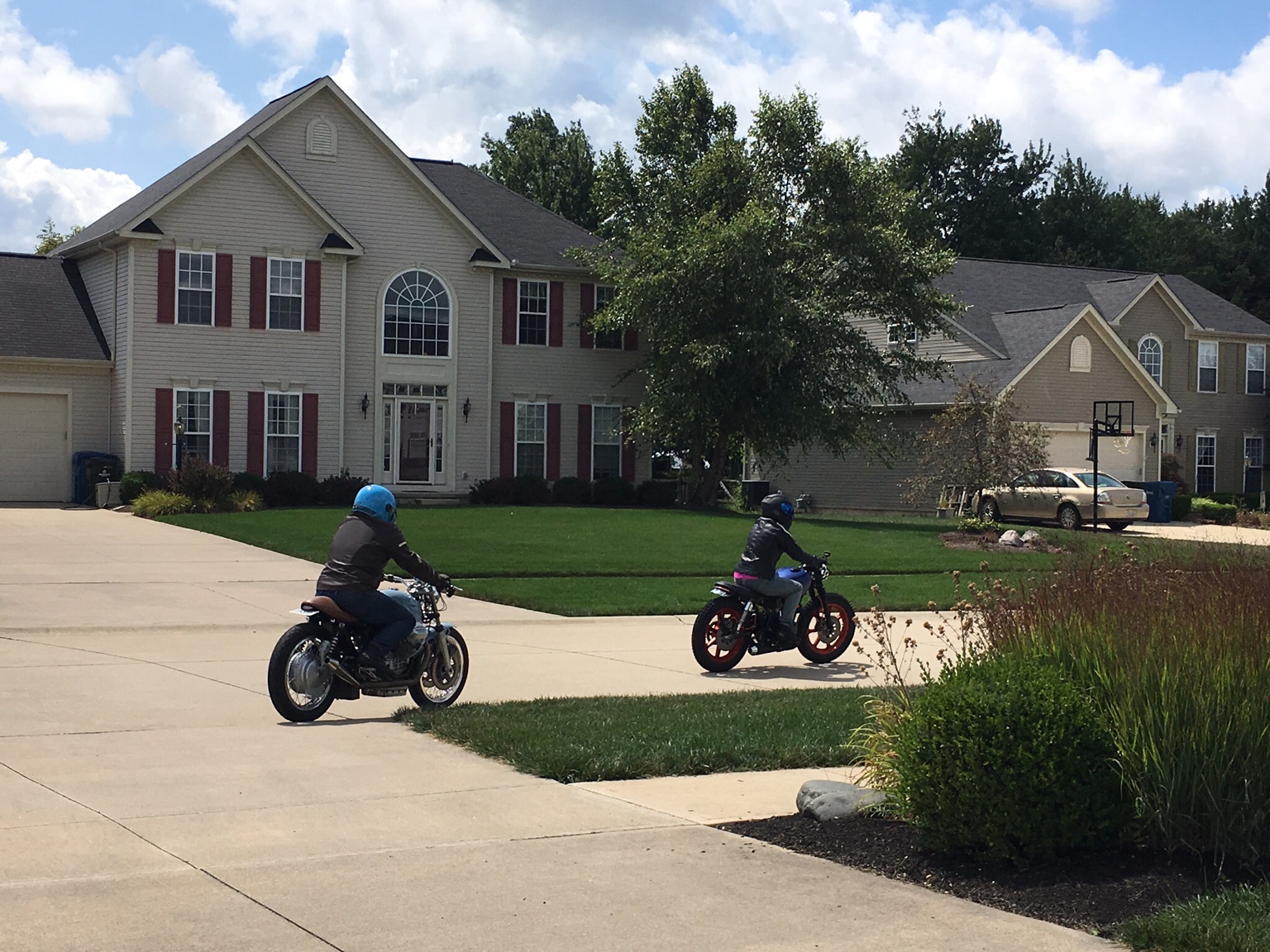

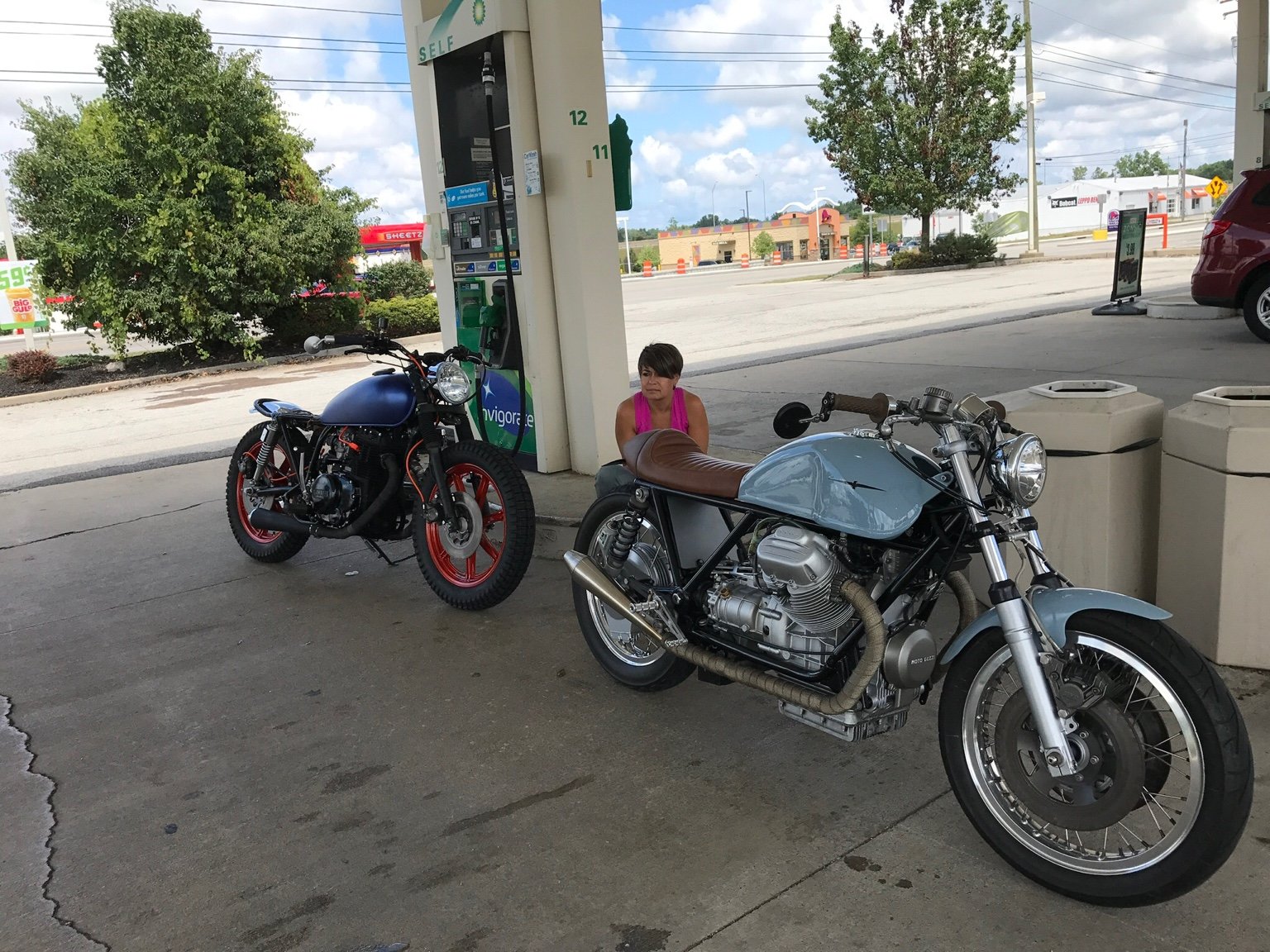

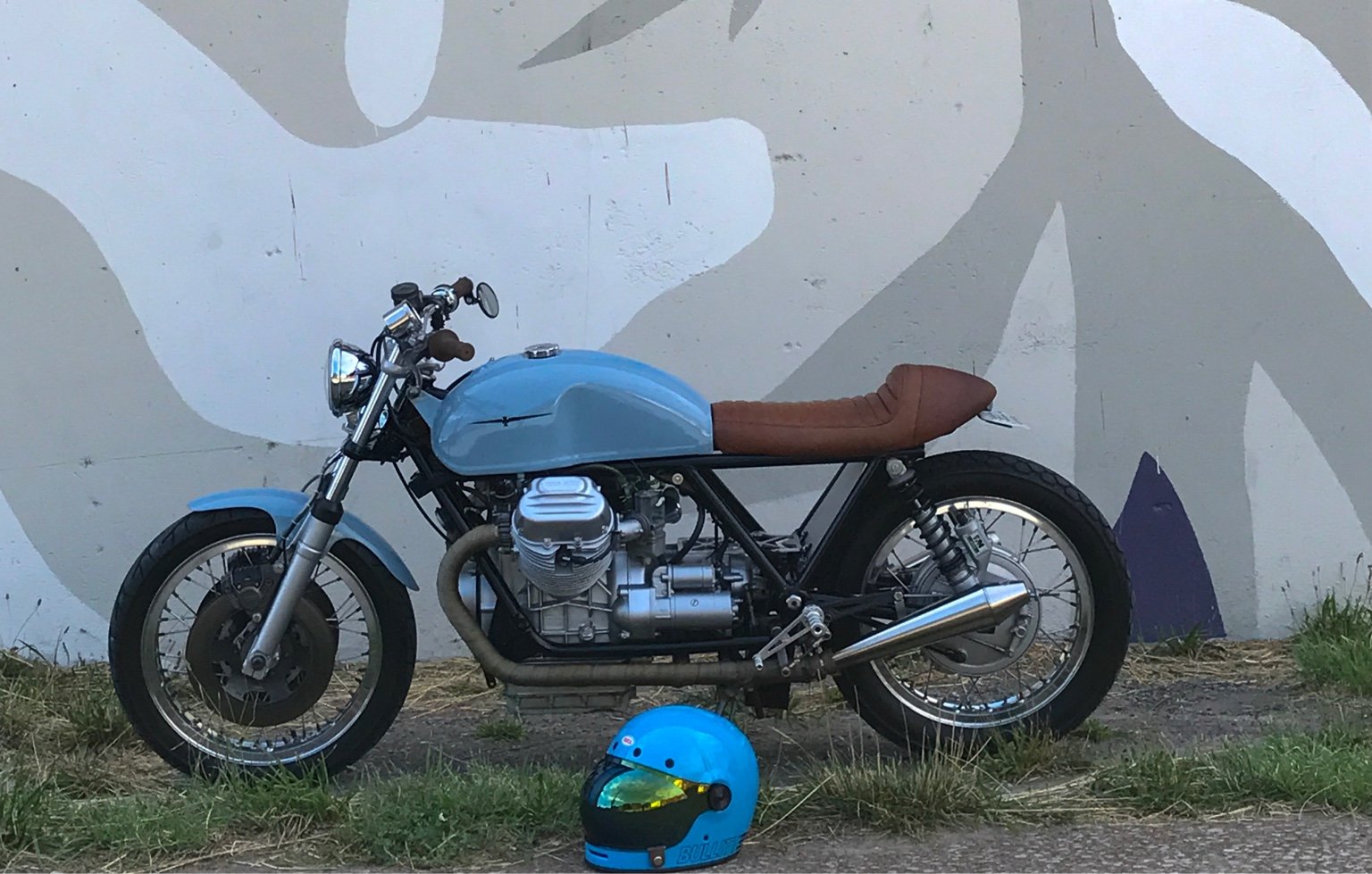

Took some pics today on a ride....














Sent from my iPad using DO THE TON


Bevelheadmhr

Coast to Coast
DTT BOTM WINNER
A question if I may... I think my Guzzi has the same rectifier set up as yours, and like you its confusing me how to wire it up

It has 4 wires going into to it. (see pic)

They are labelled from left to right, the first two have a wave sign, the third a '+' and 'L.E' and the fourth with an open switch sign. Though the '+' sign could be to id another pin which is missing on my rectifier.

There are three wires from the alternator, a grey wire and two yellows, the latter of which I think both go to the rectifier (the first two id with a wave sign).

The grey wire from the alternator I'm told goes directly to the +ve side of the battery, as its already rectified at the alternator.


Which leaves the two connections on the rectifier, the third 'L.E' and the fourth (open switch sign).


My best guess is the fourth connection is to operated a charging idiot light, but the third with the Id 'LE' is a mystery.


My best guess is that it too goes to the +ve side of the battery, so the rectifier can tell when the battery is being over charged and so limit to charge from the alternator.


Can you confirm if this is the case, and if not how you wired up your rectifier?


Attachments

  • guzzialtwiring 008.JPG
    guzzialtwiring 008.JPG
    244.8 KB · Views: 726

erock85

Been Around the Block
Rusnak_322 said:
Has anyone ever used a GPS speedo?
the speedometer on my bike has the ability to upgrade to a GPS. It isn't cheap at $132

https://www.amazon.com/Koso-KK000001-Speed-Signal-Converter/dp/B01II29JH6/ref=sr_1_1?s=automotive&ie=UTF8&qid=1497643259&sr=1-1&keywords=koso+gps




The speed reader that works off of magnets on the front wheel is UGLY. the wire is very thick and needs a lot of zip ties to keep it close to the front brake line.

with the drum/shaft drive rear wheel, there is no way to mount it in the back.

How well do these work? does the black box have to be mounted anywhere special? In line of sight to the sky?? I wouldn't think so, my phone GPS doesn't need that, but who knows??

thanks for your help
Is this some proprietary gps chip for these gauges only? All a gps chip is going to do is provide NMEA data that would then get parsed by the processor. I developed a digital gauge gps speedometer with screen from a very cheap chip, but the internals are all the same, UBLOX neo 6 or 7 are popular. And I have an arduino nano do the heavy lifting. Four wires are all that is needed, RX, TX, VIN, Ground. If you can figure out the pinout on your gauge you can get a very cheap chip, I'm talking sub $12 so long as the gauge you have doesn't need to communicate with a specific gps chip. I have my chip mounted to the front forks and it takes approx. 30 seconds to get a gps lock. The ones with a battery or EEPROM save your last location and have a hot boot function, so your lock is instant.


Rusnak_322

Coast to Coast
DTT BOTM WINNER

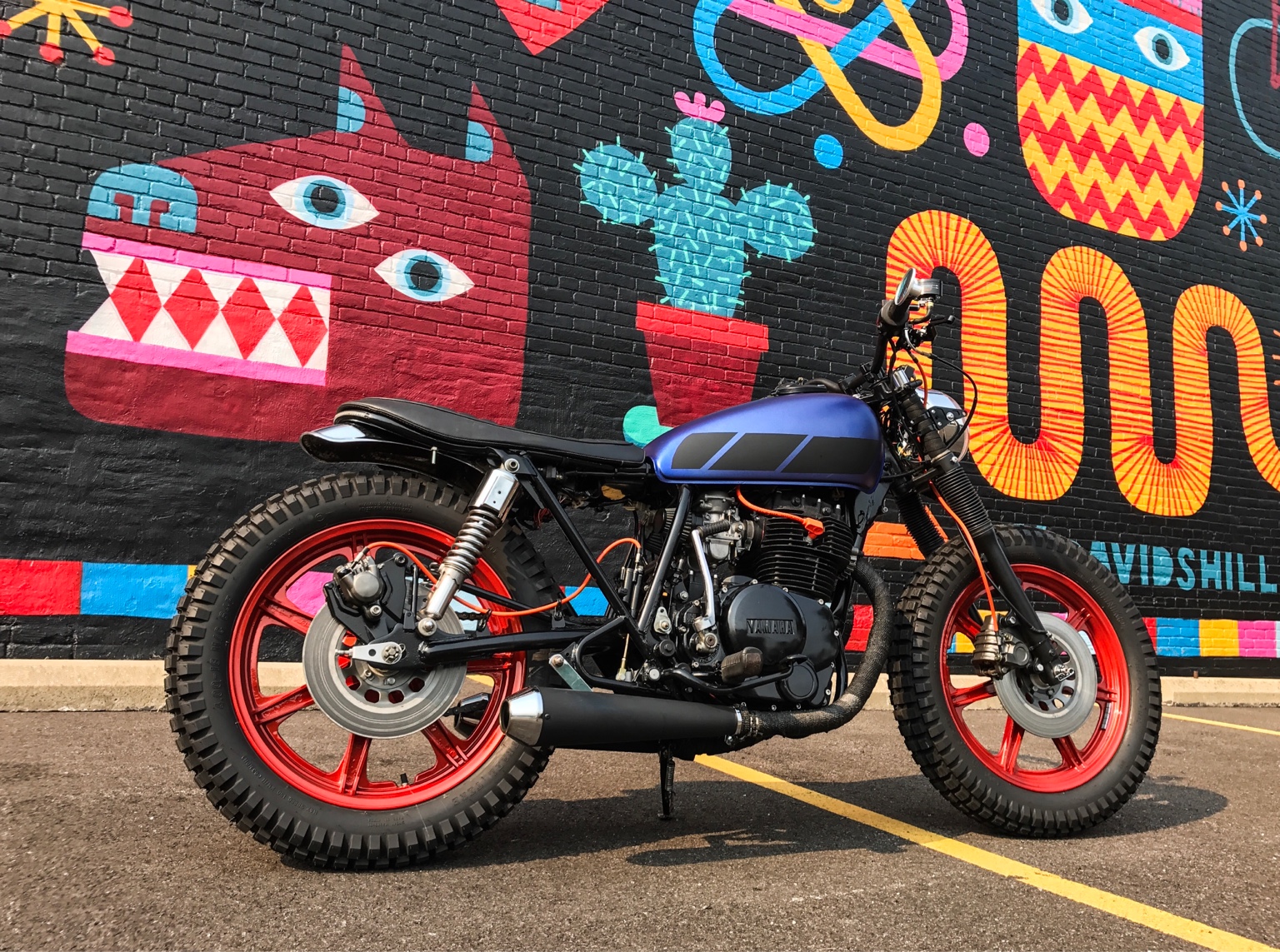

I built a bike for my wife, so that she has a vintage bike to ride when I am on my Moto Guzzi. See build thread in my signature.














Sent from my iPad using DO THE TON


Rusnak_322

Coast to Coast
DTT BOTM WINNER

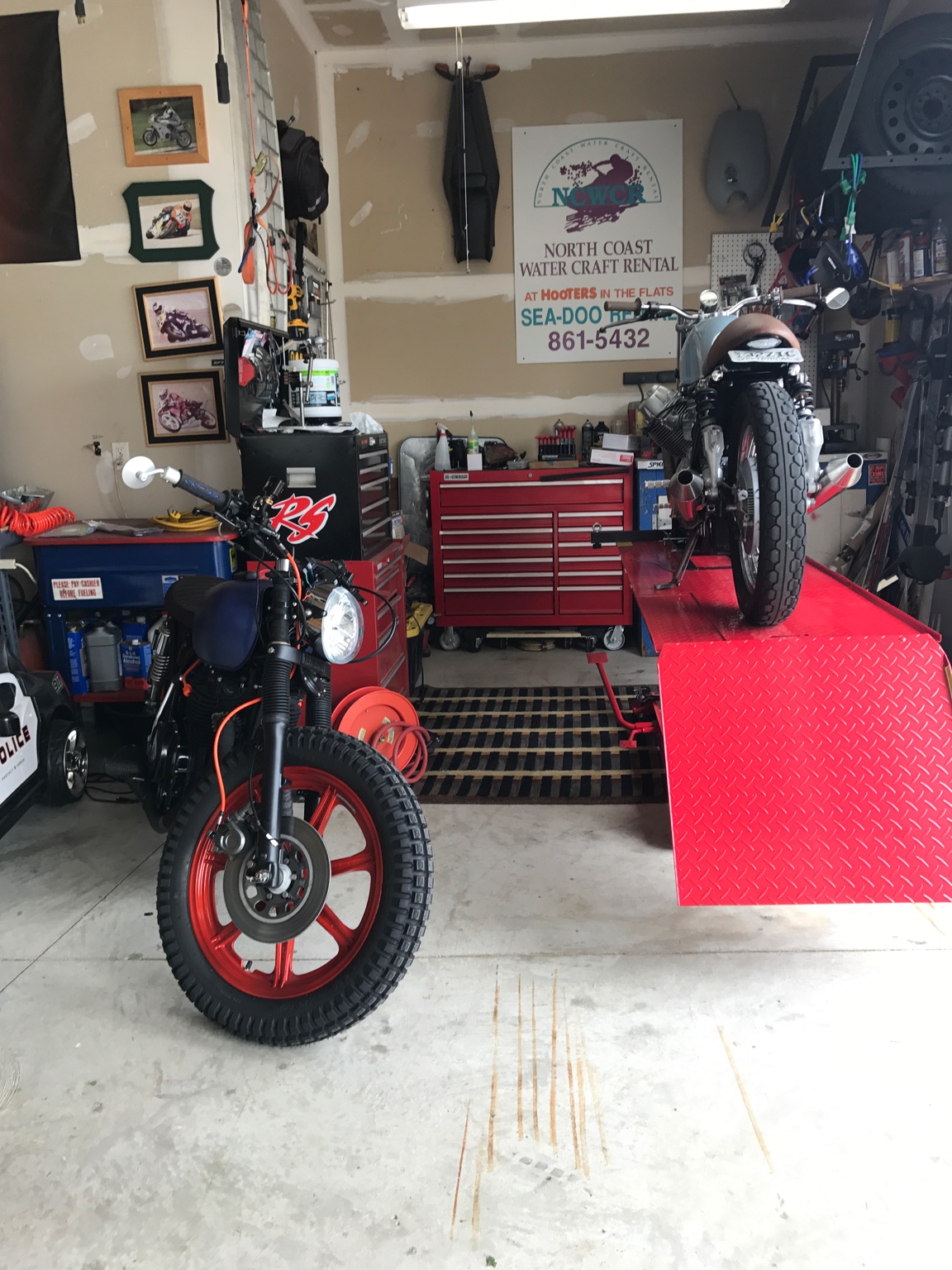

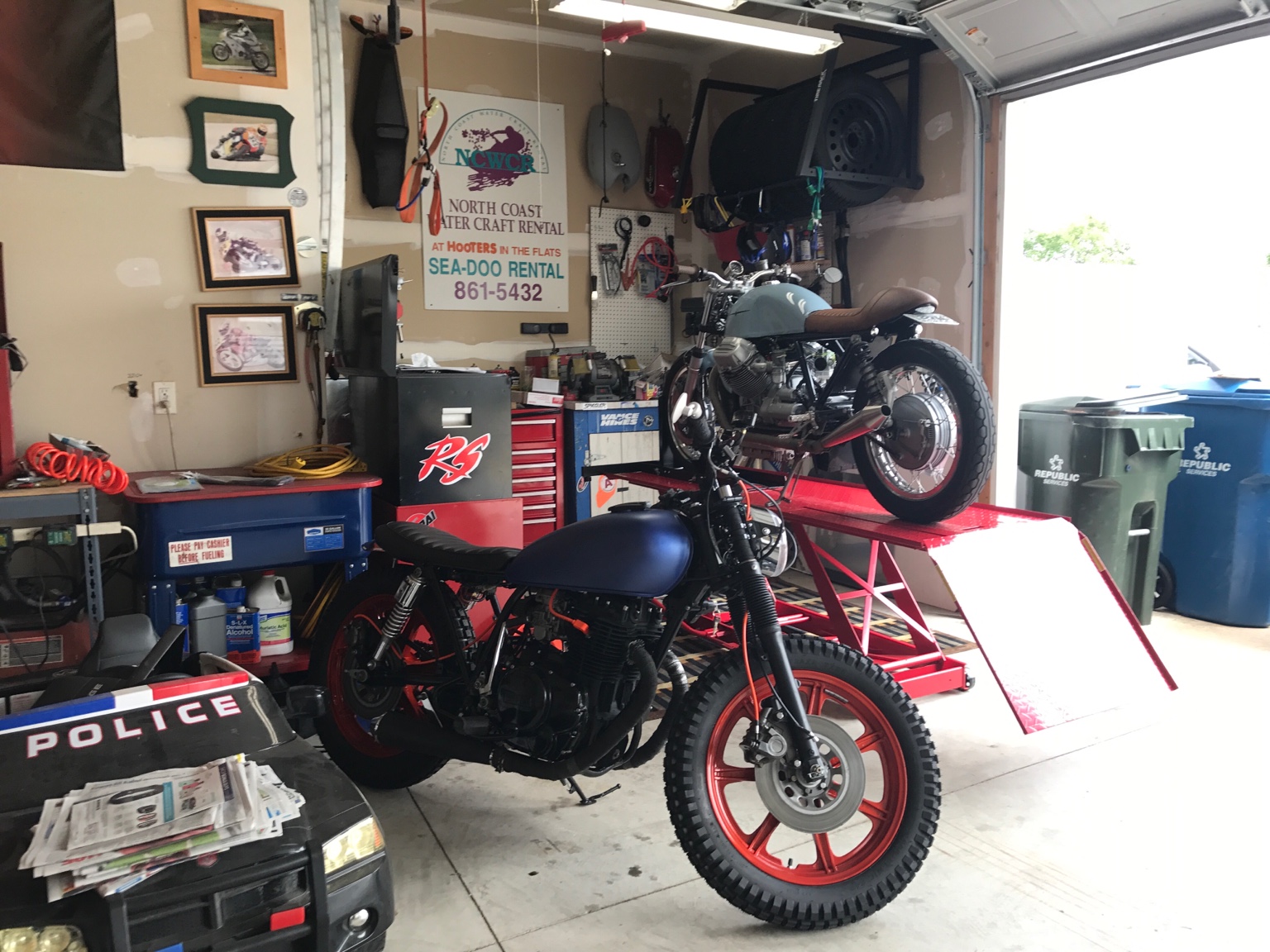

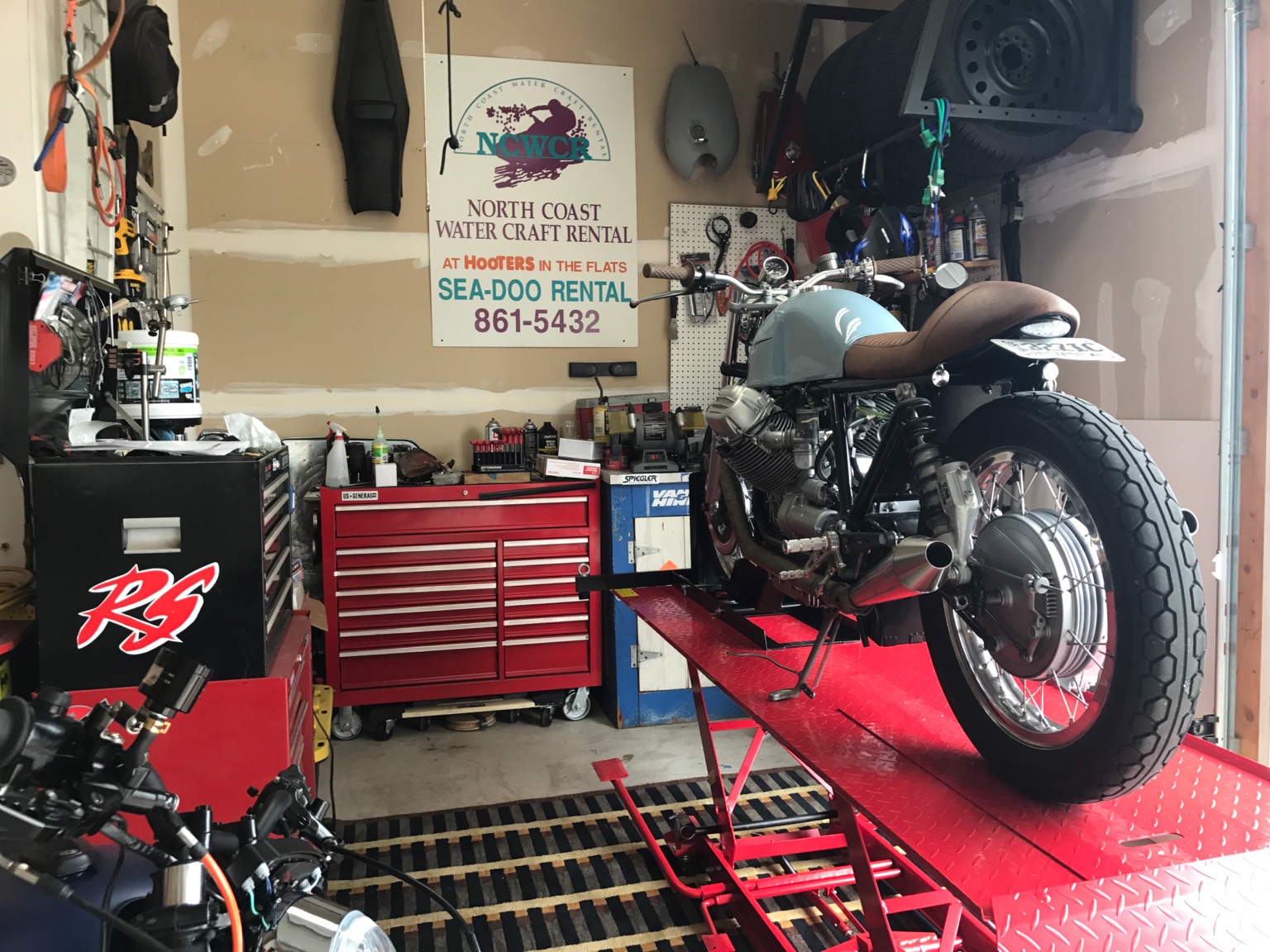

Cleaned up the garage after building the XS400.

I decided to finally buy a HF work table. My wife has been bugging me for 2 years to get one, but I am cheap and my home made table has worked for 20+ years. But the coffee tables I was using as a base are getting wobbly.








Sent from my iPhone using DO THE TON


Rusnak_322

Coast to Coast
DTT BOTM WINNER

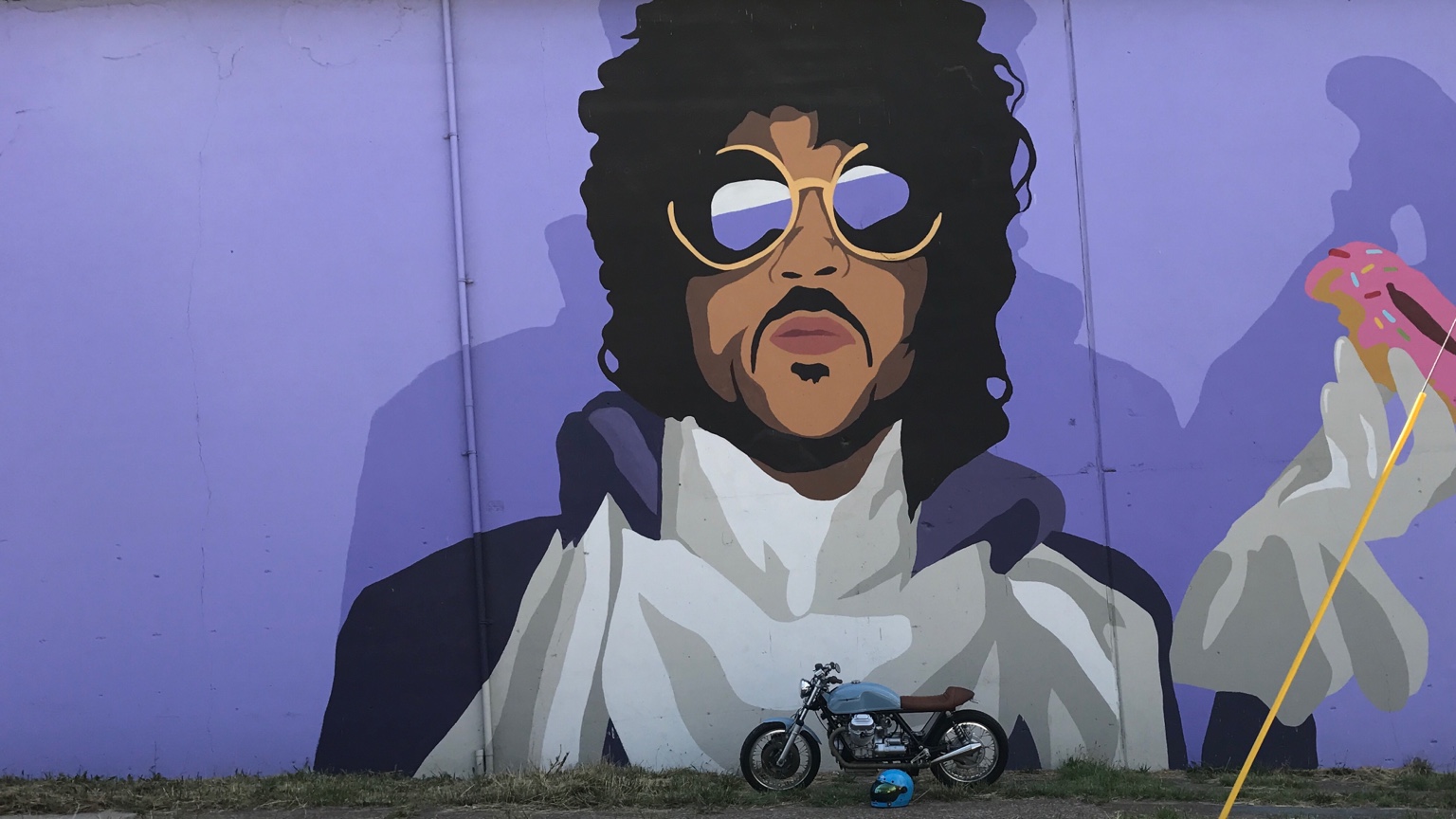

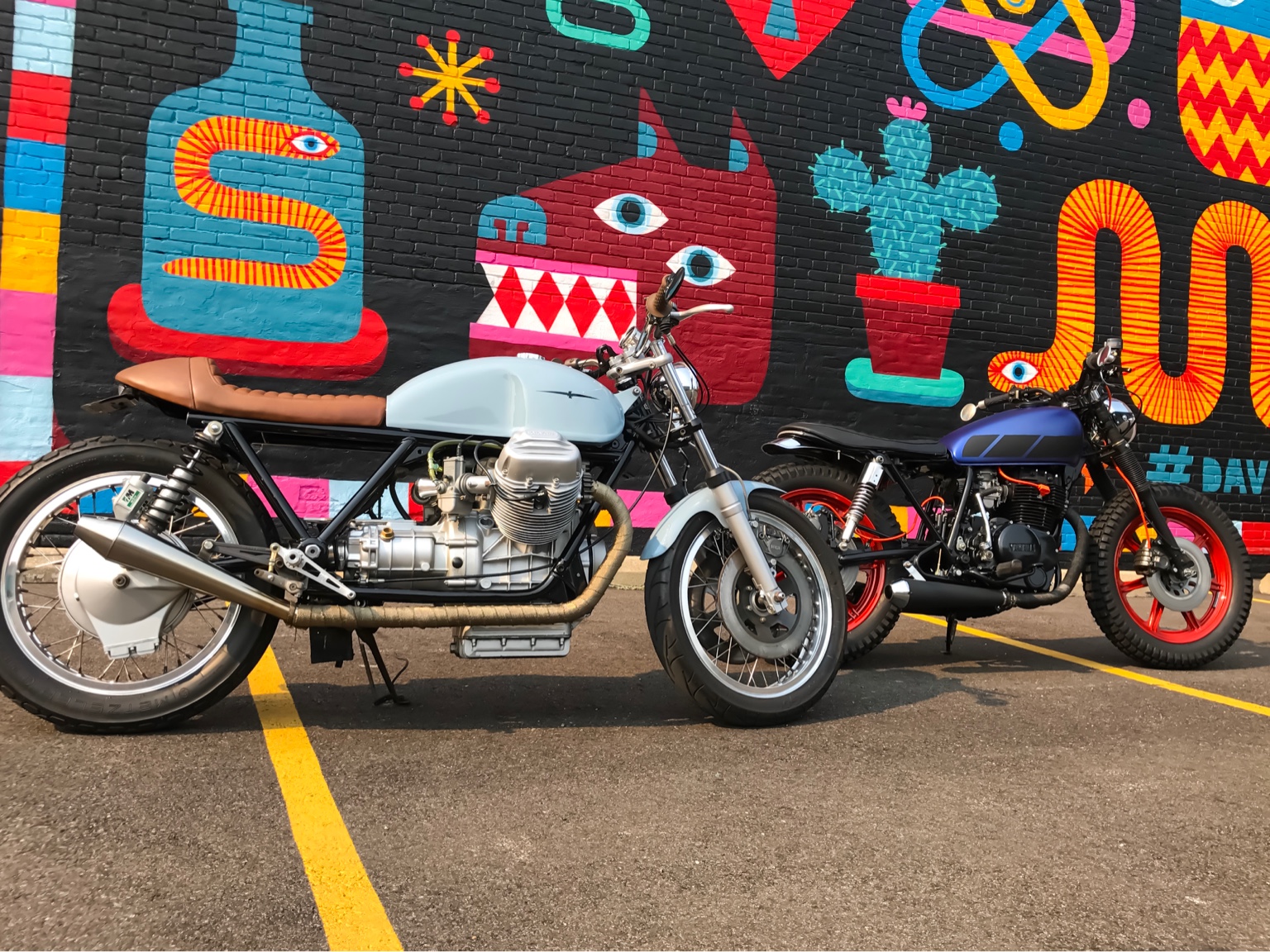

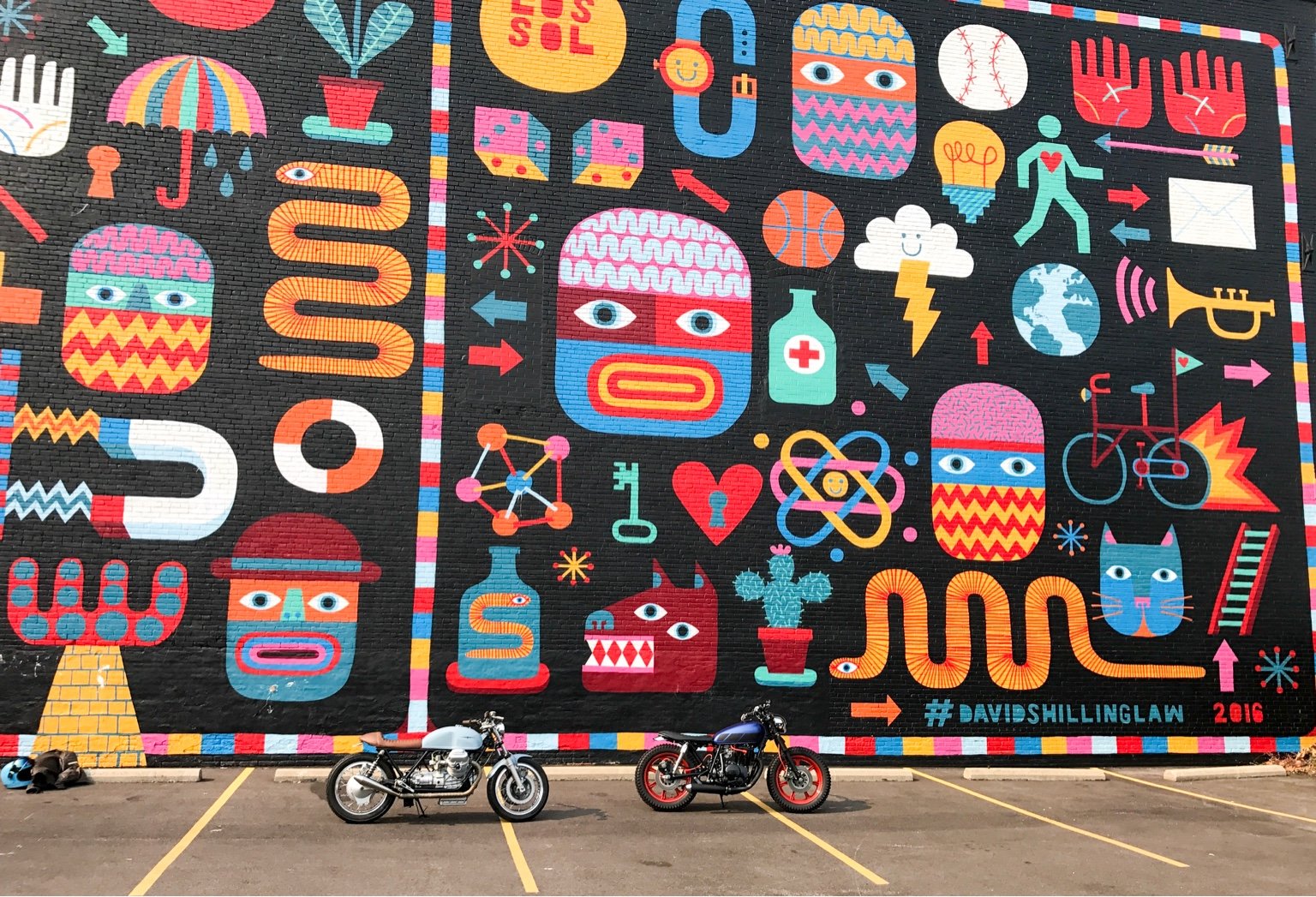

Here are some pics from today's ride. My wife wanted to get a picture of her XS400 against a mural, like I did with the Prince pic above. Her bike wasn't done at that point.






Her bike turned out to be a real fun ride.




Sent from my iPad using DO THE TON


CQ Custom Designs

Active Member
Hey rusnak. What is the actual motorcycle that your tank on your moto guzzi off of? I see people using that style of tank on a verity of different builds and it's by far my favorite tank style. But I don't know what motorcycle / motorcycles that tank originates from


Sent from my iPhone using DO THE TON


Rusnak_322

Coast to Coast
DTT BOTM WINNER
Lots of haters think that this tank is overused. I don't care, I think it was overused because it looks great and is cheap.

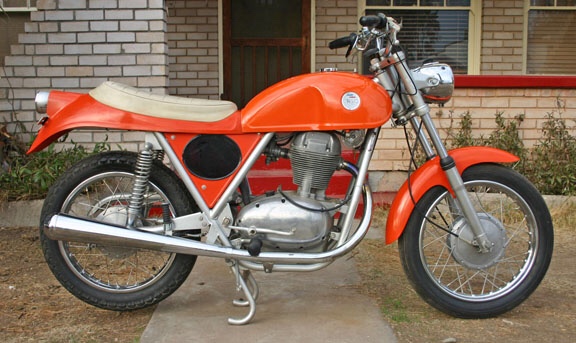

benelli mojave 360
